Everlast 1650901 User manual

Retain For
Future Reference
Owner’s Manual
Model No.
1650901
- Assembly
- Operation
- Adjustments
- Parts
- Warranty
CAUTION:
Read and
understand this
manual before
operating unit

2012
1
Important Safety Instructions……………………………………………………………………2
Important Electrical Information……………………………………………………………….. 4
Assembly instructions…………….……………………………………………………………...6
Folding Instructions ……………………………………………………………………………...14
Operation of Your Treadmill…………………………………….………………..…………….. 15
Part list and Parts diagram …………………………………………………………………….. 24
General Maintenance.……………….………………………………………….………………. 30
Manufacturer’s Limited Warranty……………………………………………………………….33
ver. A
Table of Contents

2012
2
IMPORTANT SAFETY INFORMATION
THIS UNIT IS INTENDED FOR HOUSEHOLD USE ONLY
READ ALL INSTRUCTIONS BEFORE USING THIS TREADMILL
▲CAUTION: Before starting any exercise program, it is recommended that you consult
your physician.
▲WARNING: Connect this unit to a properly grounded outlet only.
▲DANGER: To reduce the risk of electric shock, always unplug the treadmill from the
electrical outlet immediately after using and before cleaning.
WARNING
To reduce the risk of burns, fire, electric shock, or injury to persons:
1. Use 120 volt a.c. household current on a dedicated circuit.
Grounding Instructions
This product must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for
electric current to reduce the risk of electric shock. This product is equipped with a cord having an equipment-grounding
conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and
grounded in accordance with all local codes and ordinances. See diagram below for grounding methods.
2. It is the responsibility of the owner to ensure that all users of this treadmill are adequately informed of all
warnings and precautions.
3. The use of an extension cord with this product is not recommended. If an extension cord is needed, use a
short (less than 10 feet) heavy gauge (14 gauge or better) extension cord with a three prong (grounded) plug
and receptacle.
4. Never leave the treadmill unattended when plugged in. Remove the safety key and unplug the unit from the
outlet when not in use and before removing or replacing parts.
5. Never operate the treadmill if it has a damaged cord or plug, if it is not working properly, if it has been
dropped, damaged, or exposed to water. Never move the treadmill belt while the power is turned off.
6. Do not pull the treadmill by the power supply cord or use cord as a handle. Keep cord away from heated
surfaces and open flames.
7. Fitness equipment must always be installed and used on a flat surface. Do not use outdoors or near water.
Do not place the unit on a loose rug or uneven surface. It is recommended to use an equipment mat to
prevent the unit from moving while it is being used, which could possibly scratch or damage the surface of
your floor. It is recommended to have a minimum of 3 metres safe clearance on all sides of the treadmill
while in use.
8. Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a garage, covered patio
or near water.
9. Do not operate the treadmill where aerosol products are used or where oxygen is being administered.
10.Read, understand and test the emergency stop procedure before using the treadmill
11.Do not insert any objects into any openings.
12.Inspect and properly tighten all parts of the treadmill regularly.
13.Keep children and pets away from this equipment at all times while exercising.
14.Handicapped individuals should have medical approval and close supervision when using this treadmill.
15.Do not place hands or feet under the treadmill. Always keep hands and legs off of the treadmill when others
are using it.

2012
3
16.Never turn on treadmill while standing on treadbelt. Always hold the handrails while using the treadmill.
Always return the treadmill to the slowest speed to provide for safe dismount and low speed restart.
17.To disconnect, turn all controls to the off position, then remove plug from outlet.
18.Do not attempt to raise, lower or move the treadmill until it is properly assembled. See assembly on page 5
and to fold and move the treadmill on page 13. Care must be taken when lifting or moving the equipment, so
as not to injure your back. Always use proper lifting techniques. You must use any attachments that are not
recommended by the manufacturer.
19.Use the treadmill only for its intended use as described in this manual. Do not use any attachments that are
not recommended by the manufacturer.
20. User weight limit should not exceed for 400lbs (181 kg).
21.Never allow more than one person on the treadmill at once.
22.Warm up 5 to 10 minutes before each workout and cool down 5 to 10 minutes afterward. This allows your
heart rate to gradually increase and decrease and will help prevent straining muscles.
23.Never hold your breath while exercising. Breathing should remain at a normal rate in conjunction with the
level of exercise being performed.
24.Start your program slowly and very gradually increase your speed and distance.
25.Always wear suitable clothing and footwear while exercising. Do not wear loose fitting clothing that could
become entangled with the moving parts of your treadmill. Do not walk or jog barefoot, in stocking feet or
loose fitting shoes or slippers.
▲WARNING: Before beginning any exercise program consult your physician. This is especially important for
individuals over the age of 35 or persons with pre-existing health problems. Read all instructions before using
any fitness equipment. We assume no responsibility from personal injury or property damage sustained by or
through the use of this product.
SAVE THESE INSTRUCTIONS

2012
4
WARNING!
● NEVER use a ground fault circuit interrupt (GFCI) wall outlet with this treadmill.
Route the power cord away from any moving part of the treadmill including the elevation
mechanism and transport wheels.
● NEVER remove any cover without first disconnecting AC power.
● If voltage varies by ten percent (10%) or more, the performance of your treadmill may
be affected. Such conditions are not covered under your warranty. If you suspect
the voltage is low, contact your local power company or a licensed electrician for proper
testing. See Diagnosis Guide, page 46.
● NEVER expose this treadmill to rain or moisture. This product is NOT designed for
use outdoors, near a pool or spa, or in any other high humidity environment.
This product must be grounded. If the treadmill should malfunction or breakdown, grounding
provides a path of least resistance for electric current, reducing the risk of electric shock. This
product is equipped with a cord having an equipment-grounding plug. The plug must be plugged
into an appropriate outlet that is properly installed and grounded in accordance with all local codes
and ordinances.
DANGER - Improper connection of the equipment-grounding conductor can result in a risk
of electric shock. Check with a qualified electrician or serviceman if you are in doubt as to
whether the product is properly grounded. Do not modify the plug provided with the
product if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

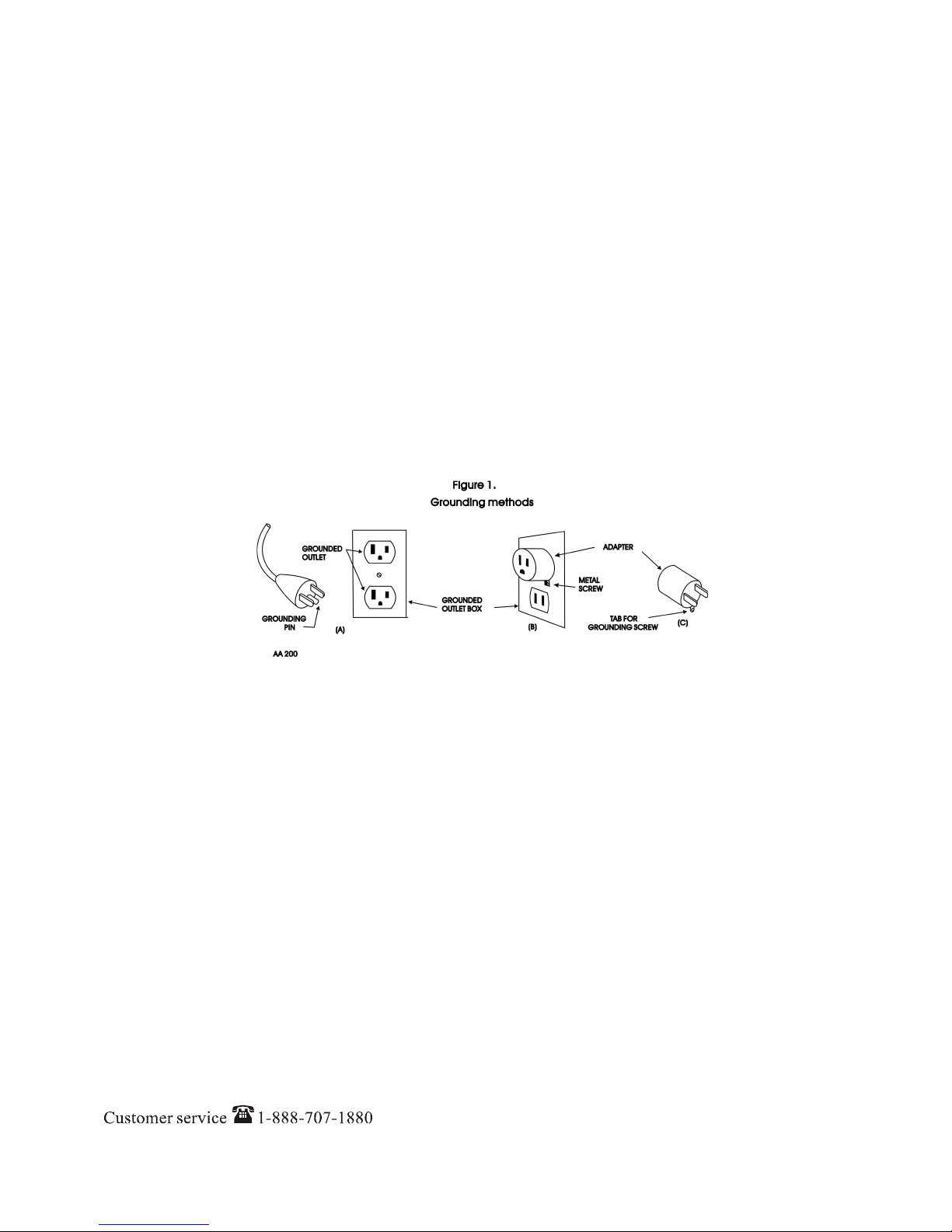

This product is for use on a nominal 120-volt circuit, and has a grounding plug that looks like the
plug illustrated below. A temporary adapter that looks like the adapter illustrated below may be
used to connect this plug to a 2-pole receptacle as shown below if a properly grounded outlet is
not available. The temporary adapter should be used only until a properly grounded outlet (below)
can be installed by a qualified electrician. The green colored rigid ear-lug, or the like, extending
from the adapter, must be connected to a permanent ground such as a properly grounded outlet
box cover. Whenever the adapter is used, it must be held in place by a metal screw.
Important Electrical Information
Grounding Instructions
Grounded Outlet
Grounding Pin Grounded Outlet Box
Metal Screw
Adapter
Tab of
Grounding
Screw

2012
5
● NEVER operate this treadmill without reading and completely understanding the results of any
operational change you request from the computer.
● Understand that changes in speed and incline do not occur immediately. Set your desired
speed on the computer console and release the adjustment key. The computer will obey the
command gradually.
● NEVER use your treadmill during an electrical storm. Surges may occur in your household
power supply that could damage treadmill components.
● Use caution while participating in other activities while walking on your treadmill; such as
watching television, reading, etc. These distractions may cause you to lose balance or stray
from walking in the center of the belt; which may result in serious injury.
● NEVER mount or dismount the treadmill while the belt is moving. the treadmills start with at a
very low speed and it is unnecessary to straddle the belt during start up. Simply standing on the
belt during slow acceleration is proper after you have learned to operate the unit.
● Always hold on to a handrail or hand bar while making control changes (incline, speed, etc.).
Do not use excessive pressure on console control keys. They are precision set to
function properly with little finger pressure. Pushing harder is not going to make the unit go
faster or slower. If you feel the buttons are not functioning properly with normal pressure contact
your Maurice Pincoffs Canada Inc. dealer.
A safety tether cord is provided with this unit. It is a simple magnetic design that should be used at
all times. It is for your safety should you fall or move too far back on the tread-belt.
Pulling this safety tether cord will stop tread-belt movement.
To Use:
1. Place the magnet into position on the round metal portion of the console control head. Your
treadmill will not start and operate without this. Removing the magnet also secures the treadmill
from unauthorized use.
2. Fasten the plastic clip onto your clothing securely to assure good holding power.
Note: The magnet has strong enough power to minimize accidental, unexpected stopping. The
clip should be attached securely to make certain it does not come off. Be familiar with its function
and limitations. The treadmill will stop, depending on speed, with a one to two step coast anytime
the magnet is pulled off the console. Use the red Stop / Pause switch in normal operation.
Safety Tether Cord

2012
6
!!ATTENTION: IMPORTANT UNPACKING INSTRUCTIONS. PLEASE
READ BEFORE UNPACKING YOUR FOLDING TREADMILL!!
Serious injury could occur if this folding treadmill is not unpacked properly.
There is a Velcro strap installed around the treadmill base that prevents the treadmill
from unfolding accidentally during shipping. If this strap is not removed properly the
treadmill could spring open unexpectedly and cause injury if someone is standing near
the treadmill when the strap is removed.
To ensure your personal safety during removal of the shipping strap please make sure the treadmill is
positioned flat on the ground, in the orientation it would be in if you were using the treadmill. Do not
turn the treadmill up on its side while removing the shipping strap. This could cause the treadmill’s
folding mechanism to spring open. If the end of the Velcro strap (that you need to grab to remove it)
happens to be under the treadmill deck, reach under the deck to grab it, but do not tilt the treadmill up
to gain access to the strap end.
Unpack the treadmill and locate the hardware pack. The hardware pack is separated into five
sections; one section containing tools and four sections labeled steps 1-4 which contain the
hardware needed for assembly of each step. The assembly steps below are numbered one through
four and correspond to the hardware in the numbered sections of the hardware pack. Remove only
the hardware for the step you are currently assembling to avoid confusion and mix-ups.
Assembly Instructions

2012
7
HARDWARE LIST
Assembly Instructions
Step 1
Step 3
93
.
5/16” x 2-3/4”
Button Head Socket Bolt (2pcs)
1
45
.
Ø 8mm
Star Washer (2pcs)
13
9
.
Ø 8 x 23mm x 1.5T
Flat Washer (4pcs)
13
7
.
5/16” x 1-1/2”
Button Head Socket Bolt (2pcs)
Step 2
13
4
.
5/16” x 2”
Button Head Socket Bolt (4pcs)
1
40
.
Ø8 x 23mm
Curved Washer (4pcs)
120.
5 x 16 mm
Tapping Screw (6 pcs)
138.
5/16” x 15mm
Button Head Socket Bolt (8pcs)
131.
M5
Iron Plate Nut (6pcs)
1
72
.
5/16” x 3/4”
Button Head Socket Bolt (4pcs)

2012
8
Tools
Step 4
1
35
.
3.5 x 40mm
Self Tapping Screw (6pcs)
81. Safety Key (1pc)
30
.
Deck / Belt
Lubricant (1pc)
142. M6 Allen Wrench (1pc)
1
41
.
Combination M5 Allen Wrench
& Phillips Head Screw Driver (1 pc)

2012
9
STEP 1

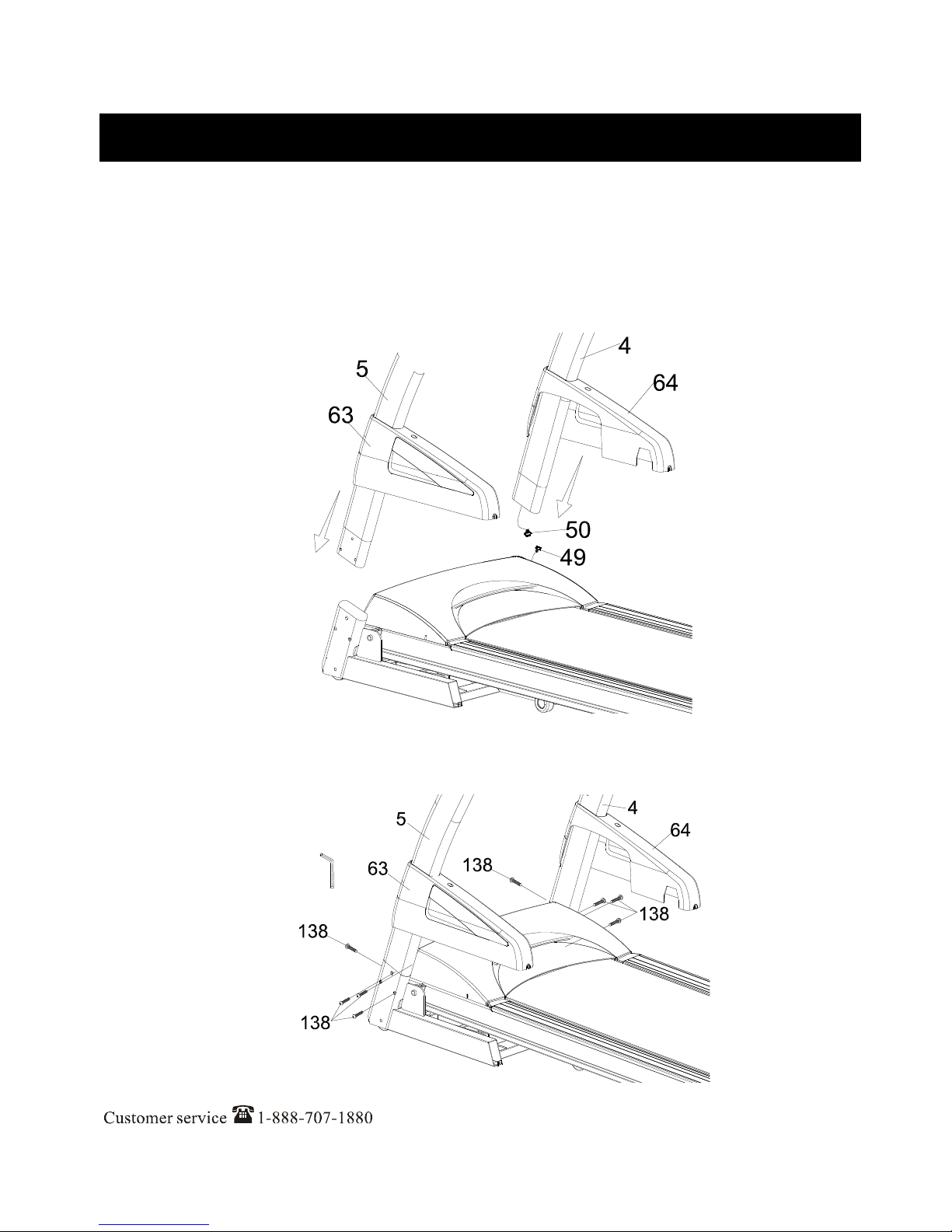

1. Take the Left and Right upright tubes (part numbers 5 & 4) and slip the upright covers (63 left,
64 right) onto the tubes (observe the cover orientation is correct). Connect the Middle Console
Cable (50) that exits from the bottom of the right upright tube with the lower Console Cable
(49). Install the Left and Right (L & R) Uprights into the Left and Right Receiving Tubes. Be
careful not to pinch the wire when installing the upright.
2. Install and tighten the eight 5/16”x 15mm Button Head Socket Bolts (138).
141
Assembly

2012
10
3. Install the six Iron Plate Nuts (131) onto the tabs on the frame.
4. Install and fasten in place the two upright covers (63,64) with the six 5mm X 16mm
tapping screws (120).

2012
11
STEP 2
1. Mount the L&R Handle bars (7B & 7A) onto Handle bar mounting plates at the top of the
upright tubes with four 5/16” x 2” Button Head Socket Bolts (134) and four curved washers
(140). NOTE: The L&R handlebars are different. The Right handle bar has two wires and
the switches on the handle bar say “Fast and Slow” while the Left handle bar switch
says “Up and Down”.
STEP 3
1. Install the L & R handgrip side caps (68 left, 69 right) inside the console and onto the ends of
the console support with two 5/16" x 2-3/4" button head socket bolts (93) and two 8 x 23 x
1.5T flat washers (139). Ensure the side caps are oriented correctly and facing the correct
direction (see diagram). Also ensure that the wiring is fed through the side caps.
2. Place the console onto the L & R mounting brackets at the top of the upright tubes. Then
install and tighten with two 5/16 ” x 1-1/2 ” button head socket bolts (137), two 8 x 23 x 1.5T
flat washers (139) and star washers (145) through the holes at the top and front of the console
support with the combination M5 allen wrench & phillips head screwdriver (141).

2012
12
3. Connect the Speed Adjustment Switch W/Cable (56) into the Speed Cable (Upper)(37).
Connect the Incline Adjustment Switch W/Cable (57) into the Incline Cable (Upper)(38).
Connect the Computer Cable (Middle)(50) and Computer Cable (Upper/Lower) (48).
Connect the Receiver, HR Assembly (147) with the HR Assembly (147).

2012
13
STEP 4
1. Install the Handrail Support (170) between the Right and Left Uprights (4,5) with the four
5/16” ×3/4” Button Head Socket Bolts (172) by using the Combination M5 Allen Wrench &
Phillips Head Screw Driver (141).
2. Install the Beverage Holder (171) onto the Handrail Support (170).
141
3. Install the outside pieces of the console end caps with six 3.5mm x 40mm Self Tapping
Screws (135) and install the Bolt Access Caps (146) into the uprights. (Be careful not to cut or
pinch the wires.)

2012
14
Do not attempt to move the unit unless it is in the folded and locked position. Be sure the power cord
is secured to avoid possible damage. Use both handrails to maneuver the unit to the desired position.

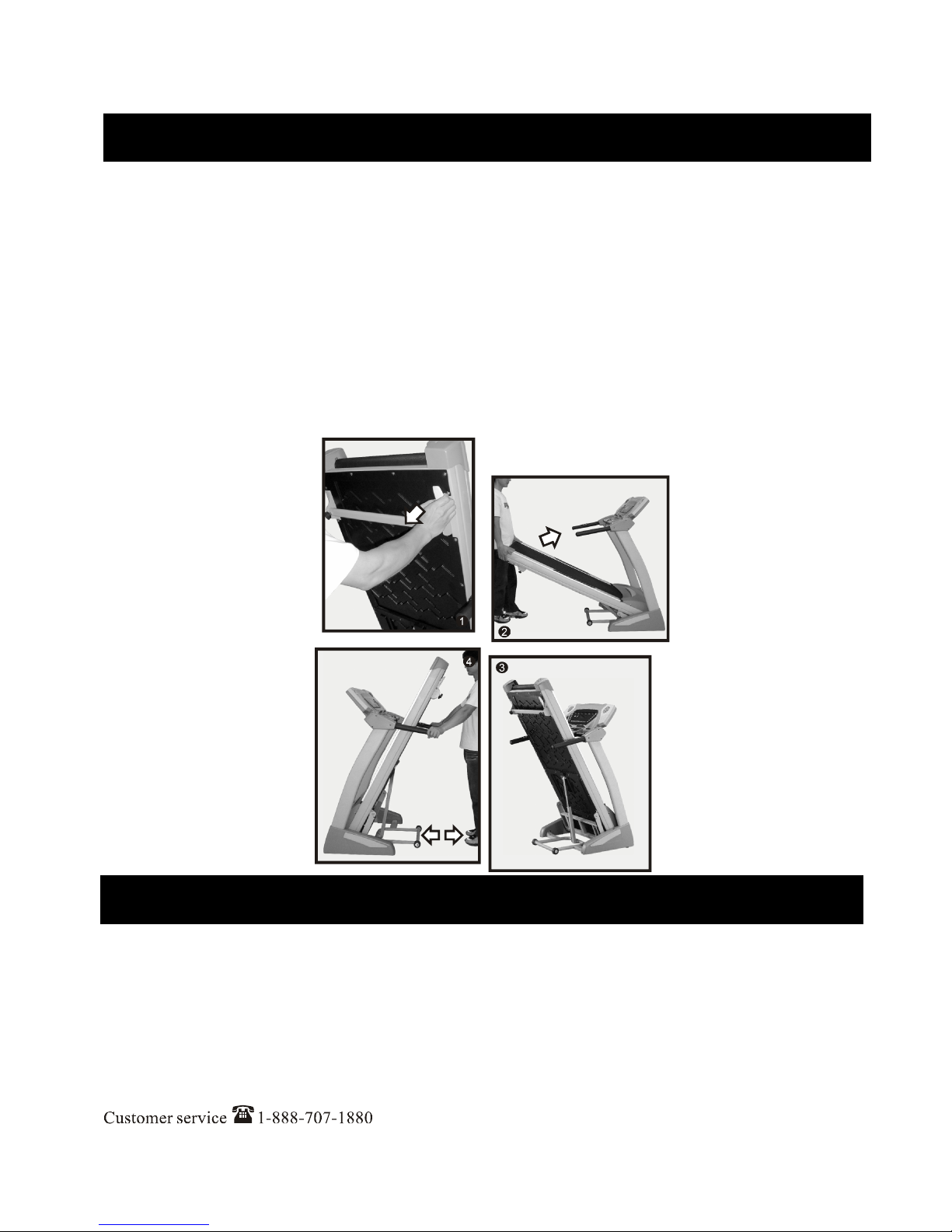

■ To Fold The Treadmill:
Make certain the treadmill is at minimum incline. Lift the treadmill running deck until it
is secured by the locking telescoping tube assembly in center back of base.
■ To Unfold The Treadmill:
Apply slight forward pressure* on the treadmill running deck with one hand. Pull down on the
unlocking lever and slowly lower the running deck to the floor. The deck will lower unassisted when it
reaches about waist high.
*At the rear roller area to relieve pressure on the locking system.
The treadmill is equipped with four transport wheels which are engaged when the treadmill is folded.
After folding simply roll the treadmill away.
Carefully lift the treadmill at the rear roller area, grasping the two side end caps, and roll the treadmill
away.
Folding Instructions
Transportation

2012
15
Console
Getting started:
Power the treadmill on by plugging it into an appropriate wall outlet, then turn on the power switch
located at the front of the treadmill below the motor hood. Ensure that the safety key is installed, as
the treadmill will not power on without it.
When the power is turned on, all the lights on the display will light for a short time. Then the Time
and Distance windows will display Odometer readings for a short time. The Time window will
show how many hours the treadmill has been in use and the Distance window will show how
many miles (or Kilometers if the treadmill is set to metric readings) the treadmill has gone. Then a
message will scroll across the message window showing the current software version. The
treadmill will then enter idle mode, which is the starting point for operation.
Quick-Start Operation:
STEP 1: Press and release the Start key to wake display up (if not already on).
Note: Installing the tether key will also wake up the console.
STEP 2: Press and release the Start key to begin belt movement, at .5 mph, then
adjust to the desired speed using the Fast / Slow keys (console or hand rail). You may also use
the rapid speed keys 2 through 12 to adjust the speed.
Operation of Your Treadmill

2012
16
STEP 3: To slow tread-belt press and hold the Slow key (console or hand rail) to the desired
speed. You may also press the rapid speed adjust keys, 2 through 12.
STEP 4: To stop the tread-belt press and release red Stop key.
Pause/Stop/Reset Feature:
STEP 1: When the treadmill is running the pause feature may be utilized by pressing the red Stop
key once. This will slowly decelerate the tread-belt to a stop. The incline will go to zero percent.
The Time, Distance and Calorie readings will hold while the unit is in the pause mode. After 5
minutes the display will reset and return to the start up screen.
STEP 2: To resume your exercise, when in Pause mode, press the Start key. The speed and
incline will return to their previous settings.
Pause is executed when the Stop button is pressed once. If the Stop key is pressed a second
time, the program will end and a workout summary will be displayed. If the Stop button is
pressed a third time, the console will return to the idle mode (start up) screen. If the Stop
button is held down for more than 3 seconds the console will reset.
Incline Feature:
Incline may be adjusted anytime after belt movement.
Press and hold the Adjust ▲▼ keys (console or hand rail) to achieve desired level of effort.
You may also choose a more rapid increase / decrease by selecting desired key, 2 through 12,
on left hand side of console (incline).
The display will indicate incline percent as adjustments are made.
Incline will remain in it’s position when display is turned off.
Dot Matrix Center Display (Manual Operation) :
Twenty four rows of “ dots ” (10 high) indicate each segment of a workout.The dots are only to show
an approximate level (speed/incline) of effort. They do not necessarily indicate a specific value - only
an approximate percent to compare levels of intensity. In Manual Operation the Speed / Incline dot
matrix window will build a profile “picture” as values are changed during a workout.
Next to the Dot Matrix window are three LEDs labeled: Track, Speed and Incline, along with a Display
button. When the Track LED is lit the Dot matrix displays the Track profile, when the Speed LED is lit
the Dot matrix displays the Speed profile and when the Incline LED is lit the Dot Matrix displays the
Incline profile. You may change the Dot Matrix profile view by pressing the Display button. After
scrolling through the three profiles, by pressing the Display button, the Dot matrix will automatically
scroll through the three displays showing each one for four seconds. The LED associated with each
profile will blink while that view is displayed. One more press of the Display button will return you to
the Track profile.

2012
17
1/4-Mile Track:
The 1/4-mile track will be displayed around the dot matrix window. The flashing dot indicates your
progress. Once the 1/4-mile is complete this feature will begin again. There is a lap counter in the
center of the track for monitoring your distance.
Pulse Grip Feature:
The Pulse (Heart Rate) console window will display your current heart rate in beats per minute
during the workout. You must use both stainless steel sensors on the front cross bar to display
your pulse. Pulse value displays anytime the upper display is receiving a Grip Pulse signal. You
may not use the Grip Pulse feature while in Heart Rate Control.
Note: Refer to Important Safety Instructions (page 2) concerning Pulse Grip operation.
Calorie Display:
Displays the cumulative calories burned at any given time during your workout.
Note: This is only a rough guide used for comparison of different exercise sessions, which
cannot be used for medical purposes.
Auto-Pilot feature
This unique feature allows the user to instantly enter the Heart Rate Control mode at any time with the
press of a button.
The HR2 program button also doubles as the Auto-Pilot button. During any program the user may
press the Auto-Pilot button to enter the HRC program. Your current heart rate (the heart rate you are
at when you press Auto-Pilot) will be maintained automatically by the Auto-Pilot program. You may
press the elevation/incline up or down buttons to change your target heart rate while in the Auto-Pilot
mode.
Speakers:
The console has built-in Speakers. You may Plug an Audio Source (CD player, MP3, Computer,
etc.) into the Jack on the Left side of console. There is no volume control on the console. The
volume must be controlled on the Audio Source.
Fans:
The console has a built in fan. Press the fan button to turn the fan on or off.
Handrail buttons disable switch
Just above the Stop button there is a button with a picture of the handrail switches on it
and an indicator light above it labeled Disabled. When the indicator light is lit, the
handrail switches are disabled. This allows you to use the full length of the handrails
without fear of activating the speed or elevation controls.

2012
18
To Turn Treadmill Off:
(1) Display will automatically turn off (go to sleep) after 30 minutes (no key operations). The
treadmill will draw very little current in sleep mode (about as much as your television when it is
turned off).
(2) Remove tether cord.
(3) Turn of the main switch on the front of the treadmill, below the motor cover.
The treadmill monitor offers seven factory preset-programs, two user defined programs and one
Manual program. Each preset program has a maximum speed level that is displayed when a
desired workout is chosen. The maximum speed that the particular program will achieve will be
displayed in the Speed window.
Also included are two user programs (User 1 and User 2) for custom workouts.
To Select a Program:
STEP 1: Press the desired PROGRAM key. Press enter to select the program. The display will
prompt you through the programming or you can just press Start to begin the program with default
values.
STEP 2: If enter was pressed, the Time window will blink with the default value of 20 minutes. You
may use any of the up/down keys to adjust the time. After adjusting, or to accept the default, press
enter. (Note: You may press start at any time during the programming to start the program.)
STEP 3: The Calorie window will now be blinking a value, indicating your Body Weight. Entering
the correct body weight will affect the calorie count. Use the Up/Down keys to adjust, then press
enter.
A note about the Calorie display: No exercise machine can give you an exact calorie count
because there are too many factors which determine exact calorie burn for a particular person.
Even if someone is the exact same body weight, age and height, their calorie burn may be very
different than yours. The Calorie display is to be used as a reference only to monitor improvement
from workout to workout.
STEP 4: The Heart Rate window will now be blinking a value, indicating your Age. Entering your
correct age affects the heart rate Bar Graph Display and the Heart Rate Control programs. Use
the Up/Down keys to adjust, then press enter.
Your age determines the maximum heart rate you may achieve. Since the Bar Graph Display and
the Heart Rate control features are based on a percentage of your maximum heart rate, it is
important to enter the correct age for these features to work properly.
STEP 5: The Speed window will now be blinking the preset top speed of the selected program.
Use the Up/Down keys to adjust, then press enter. Each program has various speed changes
throughout; this allows you to limit the highest speed the program can reach.
Programmable Features

2012
19
User Programs:
STEP 1: Select User 1 or User 2 via the PROGRAM key then press Enter. Note that the dot matrix
display portion will have a single row of dots at the bottom (Unless there is a previously stored
program).
STEP 2: Note the clock (Time) window is flashing. Use the Adjust ▲▼ keys to adjust up from 10
minutes (if desired). Press ENTER key. This is a must to continue even if time is not adjusted.
STEP 3: The Calorie window will now be blinking a bodyweight value. Enter your bodyweight and
press Enter.
STEP 4: The Pulse window will now be blinking an Age value. Adjust the age and press enter.
STEP 5: The first column (segment) will now be blinking. Using the Fast / Slow keys, adjust the
speed level to your desired effort for the first segment then press enter. The second column will
now be blinking. Repeat the above process until all segments have been programmed. The first
column will be blinking again. This is for the incline programming. Repeat the above process to
program all segments for incline.
STEP 6: Press the Start button to begin the workout and also save the program to memory.
