EVERSPRING AN183 User manual

1
AN183
Smart Plug
Installation Instructions
General Introduction
AN183 Smart Plug is a home automation devicedesigned to control the On / Off
status of home electronic devices. AN183 can measure the connected load power
for electricity usage monitoring applications and is able to detect overload condition
and turn off the load, preventing fire hazard.
Product Overview
Plug Type
AN183 comes in German plug and French plug versions.
Binding with VIAS
1. Do not insert the plug into an electrical outlet yet.
2. Log into the VIAS APP.
3. Select “System”, then “Add a Device”,
4. Plug the Smart Plug into an electrical outlet. There is no need to press On/Off
button to make the auto-inclusion at first time.
5. Time-out will occur if the binding process was unsuccessful. Please refer to the
“Manual binding” on the wizard.
Operation on VIAS APP
Look for the sensor in Room/Device list, press and hold the sensor icon for 2 sec to
enter the sensor information page to assign the sensor into different rooms.
On/Off button
& LED Indicator
Side
view
Front
view
AN183-2
German plug
AN183-6
French plug

2
ON/Off control:
Short press the plug icons once in the assigned room can easily quick on/off the
plug.
Power Measurement Chart

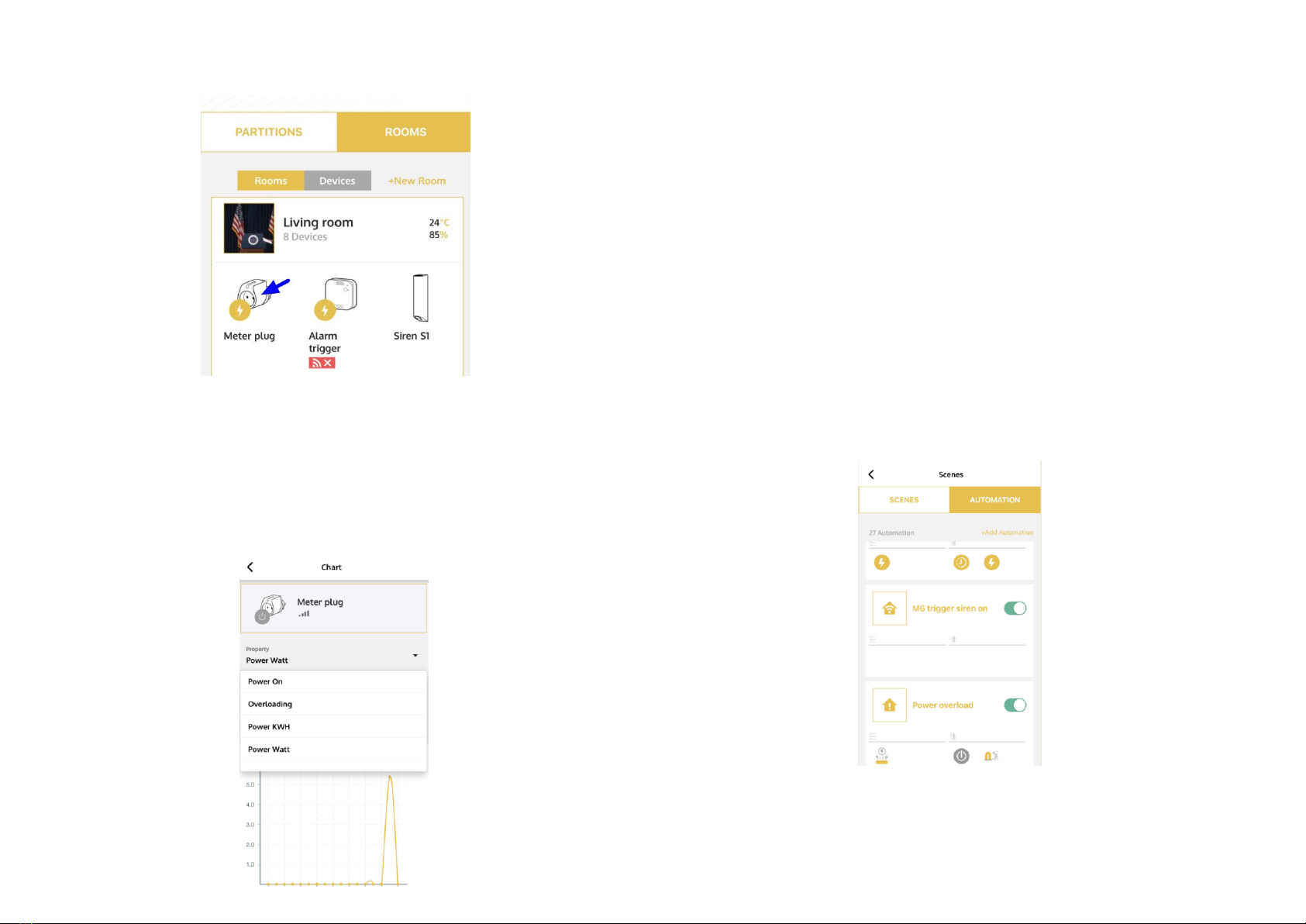

(1) Short press the plug icons once on Rooms/Device list can enter the page for
the chart of figures by day, week, month or year. The chart data is kept on the
SD card or HDD/SSD. There will be no chart information if panel does not
contain SD card or HDD/SSD
There are different property can be set on list of display.
Power on: to indicate the period of time the plug is on
Overloading: to the period of time the plug is overloading.
Power KWH: to show the power consumption by KWH
Power Watt: to show the power consumption by Watt
Loading: to indicate the time when the connected appliance on plug is turned on
Automation
The sensor can be working on the advanced automation to set in a group of
scenario. Ex.If the power consumption overloading then activate the action like
send push message, siren alarm, turn off all the power, etc.
Enter SceneAutomation, choose “+Automation”
Select Metering plug according to Room, there are several condition can be set
including, on/off, overloading, loading enabled or not, then goes to Edit Actions to
choose the actions on this scenario. Please remember to press save to complete
the setting.

3
Manual ON/Off control:
Press the button and the LED will turn on, and the electronic device controlled by
AN183 will also turn on, while pressing the button again will turn off the electronic
device and its LED will turn off as well.
Manual Binding
1. With the plug in Off position (LED is Off) press and hold the On/Off button for
more than 4 seconds until the LED blinks rapidly. A 30-second countdown will
start. Then goes to VIAS APP, choose System>Add Device to press the AN183
icon on the list, then enter the pairing wizard to perform the pairng.
2. Within 5 seconds, the LED indicator will then stop flashing and turn off,
indicating the learning procedure is completed. The screen will appear
indicating the process is successful.
Note: The Plug has an overload protection feature. Upon detecting an overload
condition, it will automatically switch off the load, disable the On/Off button and the
LED will flash rapidly for 30 seconds as warning. When this happens, disconnect
the load and check the load for symptoms of failure. The overload protection of the
Plug can be reset by simply unplugging the Plug and re-connecting it to the
electrical outlet.
Safety Precautions
1. Do not put the unit in humid or dusty places or facing direct sunlight.
2. The suitable ambient temperature for the unit is 0°C to 40°C.
3. Do not place the unit near combustible substances or any source of heat, e.g.
fire, radiators, boilers, etc.
Troubleshooting
The troubleshooting table lists some possible causes and solutions. Please contact
your original retailer or nearest service center if the below solutions cannot solve
your problem.
Symptom
Cause of Failure
Recommendation
The unit is not working and
LED is off.
1. The unit is not connected
well to the power socket
or extender.
2. The unit is out of order.
1. Try to connect again and
make sure the extender is
working fine.
2. Don’t open up the unit and
send it for repair.
The unit is working, but
cannot control the ON/OFF
status of the device
connected to the unit.
Check if the device
connected to the unit has its
own on/off switch.
Set the switch of the connected
lamp to On/Off.
The LED is on but cannot
control the unit.
1. The unit didn’t complete
successfully the binding
operation.
2. The unit cannot
communicate with the
gateway U-net gateway.
1. Check “Manual binding”.
2. Place the plug closer to the
gateway.
The LED flashes rapidly for
30 seconds and the unit
cannot be controlled.
Overload occurred.
Remove the load and ensure
the connected load does not
exceed 3000 VA and current
does not exceed 14.5A.
Reset to Factory Settings
To reset AN183 back to factory default state:
1. Press and hold the On/Off button for 3 seconds until the LED starts to flash
then release the button.
2. Within 30 seconds, press and hold the button for more than 6 seconds. The
LED will start to flash, implying the device is reset back to factory mode
LED Table
The table below describes the LED indication at various stages of Plug operation.
LED indication
Stage
Explanation
LED blinks rapidly for
30 seconds (blinks
every 1 second)
1.During 30 seconds after
plugged into electrical
outlet
The Plug enters Binding mode for
30 seconds to bind with Gateway.
If binding is successful, the LED
will stop blinking.
If binding fails, the LED flashes
rapidly for 3 times at the end of 30
seconds.
2. After entering Manual
Binding mode
LED blinks slowly for a
long period. (blinks
every 2 seconds)
1. More than 30 seconds
have passed after
plugging into electrical
outlet
Binding with Gateway has failed.
The Plug is still in factory reset
status.
2. After reset to factory
default
The Plug is in factory reset status.
LED turns On
After short button press
Plug turns on the load.
LED turns Off
After short button press
Plug turns off the load.
LED flashes rapidly for
30 seconds
After plug turns on the
load
Indicates overload protection is
activated.

4
Specifications
Frequency Range
868MHz (EU)
Operating Voltage
220-240V/50Hz
Maximum Load
3000 W
Overload Protection
Current over 14.5A or load over 3000 VA (±1%)
KW/h Detection
Max. 10485.75 KW/h, with an accuracy of 2 digits after the
decimal point. (When maximum value is reached, the value
will reset to 0.)
Protection Degree
IP20
Range
>300 meter in open space
1. Class I product with earth contact in plug and socket-outlet.
2. Operating environment: Indoor use
3. ta: 40°C
4. Rated impulse withstand voltage of this switch is 2.5KV
5. Relay is used as circuit disconnection for this switch
6. PTI=175
7. Level of glow wire test: Level 1
8. Non-replaceable current fuse protection used.
Nicht hintereinander stecken (Do not connect after each other)
** Specifications are subject to change without notice.
WARNING:
Do not dispose of electrical appliances as unsorted municipal waste, use separate collection
facilities.
Contact your local government for information regarding the collection systems available.
If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak
into the groundwater and get into the food chain, damaging your health and well-being.
When replacing old appliances with new ones, the retailer is legally obligated to take back
your old appliance for disposal at least for free of charge.
www.everspring.com
50 Sect. 1 Zhonghua Rd Tucheng
NewTaipeiCity 236 Taiwan.
