evertz 7700ACO-HD User manual

7700 MultiFrame Manual
7700ACO-HD HD/SD-SDI 8-Channel AES & RS-232/RS-422
Auto Changeover User Manual
© Copyright 2020
EVERTZ MICROSYSTEMS LTD.
5292 John Lucas Drive
Burlington, Ontario
Canada L7L 5Z9
Phone: [phone]
Sales: [email protected] Fax: [phone]
Tech Support: [email protected] Fax: [phone]
Web Page: http://www.evertz.com Twitter: @EvertzTV
Version 1.3, July 2020
The material contained in this manual consists of information that is the property of Evertz Microsystems and is intended solely for the use of
purchasers of the 7700Multiframe. Evertz Microsystems expressly prohibits the use of this manual for any purpose other than the operation of the
7700AC0-HD.
All rights reserved. No part of this publication may be reproduced without the express written permission of Evertz Microsystems Ltd. Copies of
this manual can be ordered from your Evertz dealer or from Evertz Microsystems.

This page left intentionally blank

IMPORTANT SAFETY INSTRUCTIONS
The lightning flash with arrowhead symbol within an equilateral triangle
is intended to alert the user to the presence of uninsulated “Dangerous
voltage” within the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of
important operating and maintenance
(Servicing) instructions in the literature accompanying the product.
•Read this information
•Keep these instructions.
•Heed all warnings.
•Follow all instructions.
•Do not use this apparatus near water
•Clean only with dry cloth.
•Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions
•Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
•Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two
blades with one wider than other. A grounding type plug has two blades and a third grounding prong.
The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your
outlet, consult an electrician for replacement of the obsolete outlet.
•Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles
and the point where they exit from the apparatus.
•Only use attachments/accessories specified by the manufacturer
•Unplug this apparatus during lightning storms or when unused for long periods of time.
•Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or
objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC –
SHOCK, DO NOT EXPOSE THIS APPARATUS
TO RAIN OR MOISTURE
WARNING
DO NOT EXPOSE THIS EQUIPMENT TO DRIPPING OR SPLASHING AND ENSURE THAT NO
OBJECTS FILLED WITH LIQUIDS ARE PLACED ON THE EQUIPMENT
WARNING
TO COMPLETELY DISCONNE
CT THIS EQUIPMENT FROM THE AC MAINS, DISCONNECT THE
POWER SUPPLY CORD PLUG FROM THE AC RECEPTACLE
WARNING
THE MAINS PLUG OF THE POWER SUPPLY CORD SHALL REMAIN READILY OPERABLE

WARNING
Never look directly into an optical fiber. Non-reversible damag
e to the eye can
occur in a matter of milliseconds.

Do not hook up the 7707MB DWDM cards directly with a short fiber optic
cable. The 7707MB DWDM cards produce +7dBm of power which will
damage the receiver if connected directly.

INFORMATION TO USERS IN EUROPE
NOTE
This equipment with the CE marking complies with both the EMC Directive (89/336/EEC) and the Low
Voltage Directive (73/23/EEC) issued by the Commission of the European Community.
Compliance with these directives implies conformity to the following European standards:
•EN60065 Product Safety
•EN55103-1 Electromagnetic Interference Class A (Emission)
•EN55103-2 Electromagnetic Susceptibility (Immunity)
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant
to the European Union EMC directive. These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
INFORMATION TO USERS IN THE U.S.A.
NOTE
FCC CLASS A DIGITAL DEVICE OR PERIPHERAL
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
WARNING
Changes or modifications not expressly approved by Evertz Microsystems Ltd. could void the user’s
authority to operate the equipment.
Use of unshielded plugs or cables may cause radiation interference. Properly shielded interface cables
with the shield connected to the chassis ground of the device must be used.

This page left intentionally blank

7700 MultiFrame Manual
7700ACO-HD HD/SD SDI 8 Channel AES & RS-232/RS-422 Auto Changeover
Revision 1.3 Page i
REVISION HISTORY
REVISION DESCRIPTION DATE
1.0 Preliminary Version Jan 2006
0.2 Added VistaLINK®parameters Jan 2006
0.3 Added Pool Example to section 6.9 Feb 2006
0.4 Update AES card edge status display Mar 2006
0.5 Updated GPI/GPO figure in section 2.4 Mar 2006
1.0 Modified features list Oct 2007
1.1 General format clean up June 2009
1.2 Removed references to AnSD & AnHD March 2010
1.3 Updated AES warnings July 2020
Information contained in this manual is believed to be accurate and reliable. However, Evertz assumes no responsibility for the use thereof nor for
the rights of third parties, which may be affected in any way by the use thereof. Any representations in this document concerning performance of
Evertz products are for informational use only and are not warranties of future performance, either expressed or implied. The only warranty
offered by Evertz in relation to this product is the Evertz standard limited warranty, stated in the sales contract or order confirmation form.
Although every attempt has been made to accurately describe the features, installation and operation of this product in this manual, no warranty
is granted nor liability assumed in relation to any errors or omissions unless specifically undertaken in the Evertz sales contract or order
confirmation. Information contained in this manual is periodically updated and changes will be incorporated into subsequent editions. If you
encounter an error, please notify Evertz Customer Service department. Evertz reserves the right, without notice or liability, to make changes in
equipment design or specifications.
limited warranty, stated in the sales contract or order confirmation form.
Although every attempt has been made to accurately describe the features, installation and operation of this product in this manual, no warranty
is granted nor liability assumed in relation to any errors or omissions unless specifically undertaken in the Evertz sales contract or order
confirmation. Information contained in this manual is periodically updated and changes will be incorporated into subsequent editions. If you
encounter an error, please notify Evertz Customer Service department. Evertz reserves the right, without notice or liability, to make changes in
equipment design or specifications.

7700 MultiFrame Manual
7700ACO-HD HD/SD SDI 8 Channel AES & RS-232/RS-422 Auto Changeover
Page ii Revision 1.3
This page left intentionally blank

7700 MultiFrame Manual
7700ACO-HD HD/SD SDI 8 Channel AES & RS-232/RS-422 Auto Changeover
Revision 1.3 Page iii
TABLE OF CONTENTS
1. OVERVIEW .......................................................................................................................................1
2. INSTALLATION.................................................................................................................................3
2.1. VIDEO CONNECTIONS ............................................................................................................3
2.2. AES IN AND OUT CONNECTIONS ...........................................................................................4
2.3. CONTROL CONNECTIONS .....................................................................................................5
2.4. GENERAL PURPOSE INPUTS AND OUTPUTS .......................................................................6
3. SPECIFICATIONS.............................................................................................................................7
3.1. SERIAL DIGITAL VIDEO INPUTS.............................................................................................7
3.2. SERIAL DIGITAL VIDEO OUTPUTS.........................................................................................7
3.3. AES INPUTS .............................................................................................................................7
3.4. AES OUTPUTS .........................................................................................................................7
3.5. GENERAL PURPOSE INPUTS AND OUTPUTS .......................................................................8
3.6. COMMUNICATIONS AND CONTROL ......................................................................................8
3.7. ELECTRICAL............................................................................................................................8
3.8. PHYSICAL ................................................................................................................................8
4. STATUS INDICATORS......................................................................................................................9
4.1. BANK SELECTION LEDS..........................................................................................................9
4.2. BANK PRESENCE LEDS.........................................................................................................10
4.3. LOCAL /REMOTE STATUS ...................................................................................................10
5. CARD EDGE CONTROLS...............................................................................................................11
5.1.1. Setting Local or Remote Module Control .....................................................................11
5.1.2. Setting Control or Monitor Mode ..................................................................................12
6. CARD EDGE MENU SYSTEM.........................................................................................................13
6.1. NAVIGATING THE MENU SYSTEM........................................................................................13
6.2. CARD EDGE STATUS MESSAGES........................................................................................13
6.2.1. Display Type of Signal present on HD/SD Input A .......................................................14
6.2.2. Display Which AES are Present on AES Input A .........................................................14
6.3. TOP LEVEL MENU STRUCTURE...........................................................................................15
6.4. SETTING THE CHANGEOVER MODE ...................................................................................15
6.5. RESETTING THE MODULE TO FACTORY DEFAULTS.........................................................16
6.6. DISPLAYING THE MODULE FIRMWARE VERSION..............................................................16
6.7. CONFIGURING THE CARD EDGE DISPLAYORIENTATION ................................................16
6.8. CONFIGURING MONITORING MODE ...................................................................................16

7700 MultiFrame Manual
7700ACO-HD HD/SD SDI 8 Channel AES & RS-232/RS-422 Auto Changeover
Page iv Revision 1.3
6.9. SELECTING WHICH INPUT SIGNALS TO SWITCH ON......................................................... 16
6.9.1. Adding an Input Signal to the Pool...............................................................................19
6.10. SETTING THE TYPE OF AUTO CHANGEOVER MODE......................................................... 19
7. JUMPERS .......................................................................................................................................20
7.1. SELECTING WHETHER LOCAL FAULTS WILL BE MONITORED
BY THE GLOBAL FRAME STATUS .......................................................................................21
7.2. CONFIGURING THE MODULE FOR FIRMWARE UPGRADES.............................................. 21
8. VISTALINK®REMOTE MONITORING/CONTROL..........................................................................22
8.1. WHAT IS VISTALINK®? ...........................................................................................................23
8.2. VISTALINK®MONITORED PARAMETERS .............................................................................24
8.3. VISTALINK®CONTROLLED PARAMETERS ..........................................................................24
8.4. VISTALINK®TRAPS ................................................................................................................26
9. MENU QUICK REFERENCE...........................................................................................................27

7700 MultiFrame Manual
7700ACO-HD HD/SD SDI 8 Channel AES & RS-232/RS-422 Auto Changeover
Revision 1.3 Page v
Figures

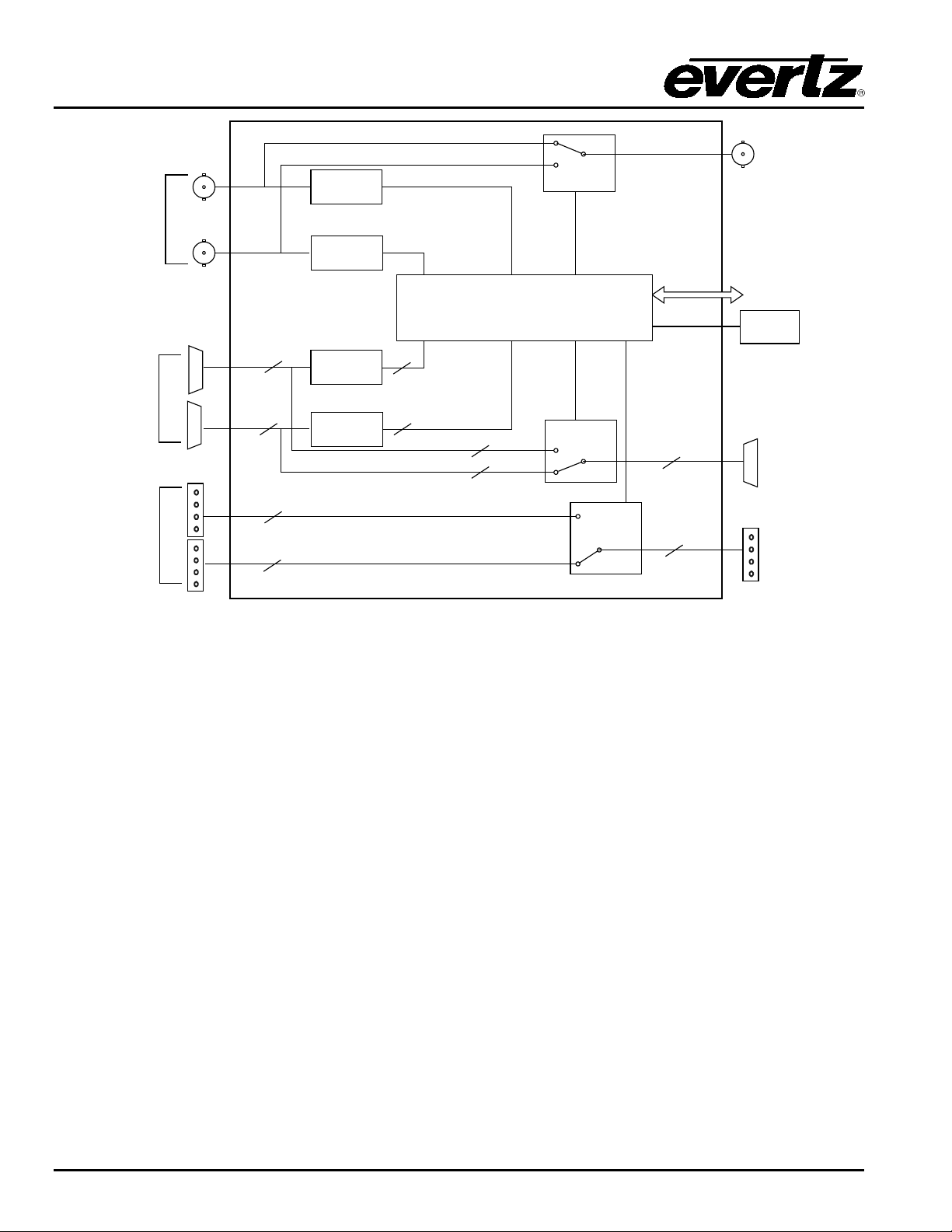

Figure 1-1: 7700ACO-HD Block Diagram.............................................................................................................. 2
Figure 2-1: Rear Panel .......................................................................................................................................... 3

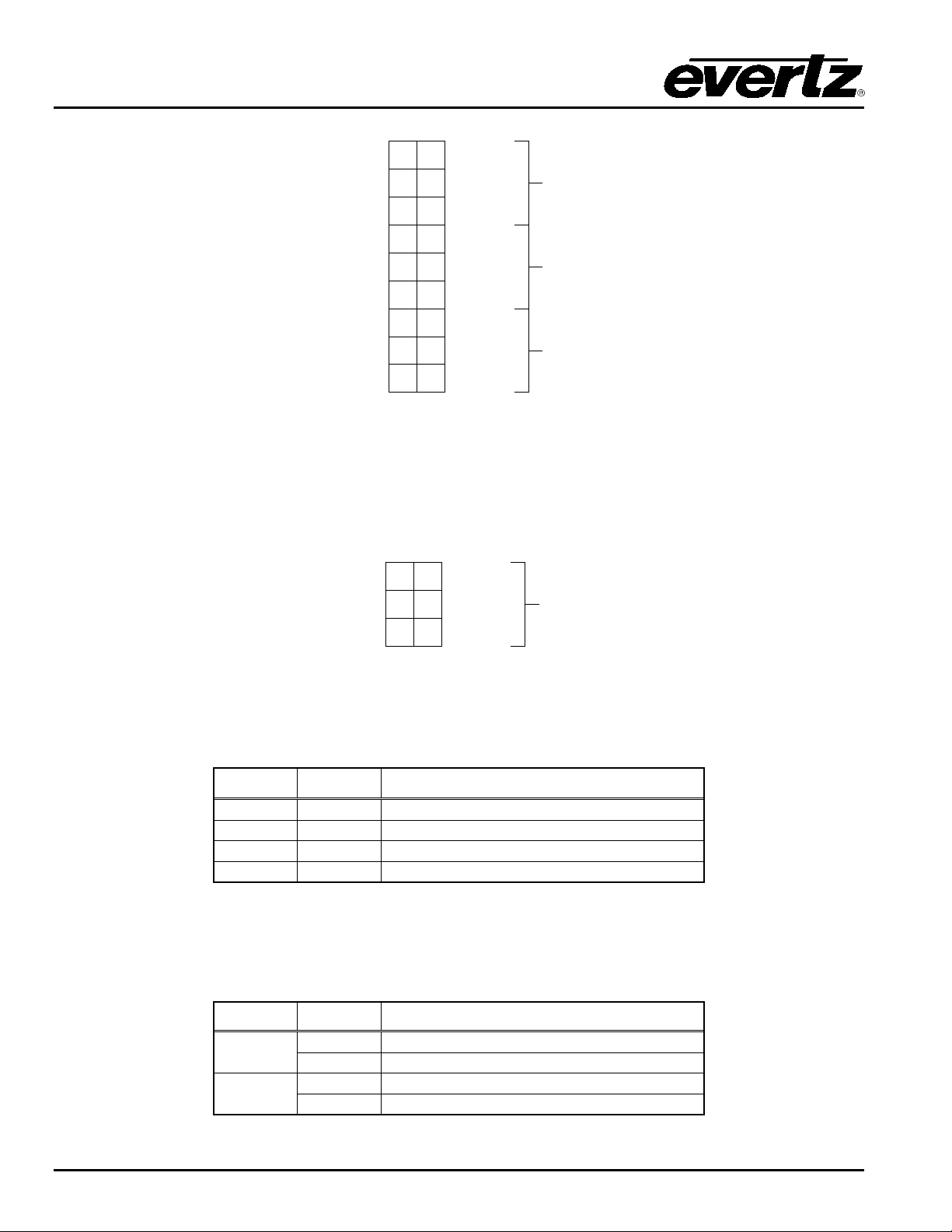

Figure 2-2: Control Connection Pin Out................................................................................................................. 6
Figure 2-3: GPIO Pin Out ...................................................................................................................................... 6
Figure 4-1: Status LED Locations.......................................................................................................................... 9
Figure 7-1: Location of Jumpers – Rev 3 Main Board ......................................................................................... 21
Figure 8-1: VistaLINK®Monitored Parameters .................................................................................................... 24
Figure 8-2: VistaLINK®Module Fault Traps......................................................................................................... 24
Figure 8-3: VistaLINK®Bank A Fault Traps......................................................................................................... 25
Figure 8-4: VistaLINK®Bank B Fault Traps......................................................................................................... 25
Figure 8-5: VistaLINK®Control ............................................................................................................................ 26
Figure 8-6: VistaLINK®Traps .............................................................................................................................. 26
Tables
Table 2-1: AES IN A and AES IN B Audio Connector Pin Out ..............................................................................4
Table 2-2: AES OUT Audio Connector Pin Out ..................................................................................................... 4
Table 2-3: AES Audio Breakout Cable (Evertz Part # WPAES8-BNCM-6F)......................................................... 5
Table 2-4: GPI Operations..................................................................................................................................... 6
Table 2-5: GPO Status .......................................................................................................................................... 6
Table 4-1: Bank Selection LEDs............................................................................................................................ 9
Table 4-2: Bank Presence LEDs ......................................................................................................................... 10
Table 4-3: Local / Remote LED ........................................................................................................................... 10
Table 5-1: DIP Switch Functions – Overview ...................................................................................................... 11
Table 5-2: Local or Remote Control Switch......................................................................................................... 11
Table 5-3: Control or Monitor Switch ................................................................................................................... 12
Table 6-1: Card Edge Status Messages (Monitor mode is BANK)......................................................................13
Table 6-2: Card Edge Status Messages (Monitor mode is FULL).......................................................................13
Table 6-3: Top Level Menu Structure .................................................................................................................. 15
Table 6-4: Pool Example ..................................................................................................................................... 17

7700 MultiFrame Manual
7700ACO-HD HD/SD SDI 8 Channel AES & RS-232/RS-422 Auto Changeover
Page vi Revision 1.3
This page left intentionally blank

7700 MultiFrame Manual
7700ACO-HD HD/SD SDI 8 Channel AES & RS-232/RS-422 Auto Changeover
Revision 1.3 Page 1
1. OVERVIEW
The 7700ACO-HD HD/SD SDI Auto Changeover is designed to provide a HD/SD SDI video, multi-channel
AES audio, and RS422/RS232 changeover in a single device. The module can be controlled via GPI,
remotely via VistaLINK® PRO, or be set in auto changeover mode. It is an all-in-one ACO package aimed
towards protecting a complete channel (i.e. video, 8 unbalanced AES, and associated control channel
(RS232 or RS422)). The unit also features latching relays that maintain state through a loss of power.
VistaLINK®enables control and configuration capabilities via Simple Network Management Protocol
(SNMP). This offers the flexibility to manage the module status monitoring and configuration from SNMP
enabled control systems such as Evertz VistaLINK®.
Features:
•Auto detection of signal standard
•Four modes of operation:
•Auto changeover - two standalone auto changeovers
•Manual DIP switch control - two independently controlled 2x1 switchers
•GPI Control - two independently GPI controlled 2x1 switchers
•Tally output provided
•Protection for 8 channels of AES
•Control channels
•Protection (on HD (1.5Gb/s) or SD (270Mb/s)
•Changeover conditions are based on signal presence of:
•HD/SDI (TRS timing, CRC and EDH)
•DVB-ASI (SMPTE sync word); Sync (H timing) and AES (sync word)

Please note: Early versions supported changeover of analog composite and tri-
level signals.
•VistaLINK®-capable offering remote monitoring, control and configuration capabilities via SNMP
•VistaLINK®is available when modules are used with the 3RU 7800FR frame and a 7700FC
VistaLINK®Frame Controller module in slot 1 of the frame

7700 MultiFrame Manual
7700ACO-HD HD/SD SDI 8 Channel AES & RS-232/RS-422 Auto Changeover
Page 2Revision 1.3
COM
(RS422, RS232)
HD/SD EQ
HD/SD EQ
Latching
Relay
AES Rx
AES Rx
HD/SD SDI
Inputs
AES Inputs
1-8
A
B
HD/SD SDI
Out
AES 1-8
Out
Latching
Relay
VistaLINK® Interface
A
B
GPI
Interface
Format Validation
GPIO Processor
Selector Guide
8 8
88
8
8
8
COM
Out
Latching
Relay
A
B
4
4
4
*
*
*
*DB15 to 8 channel unbalanced AES adapter provided
Figure 1-1: 7700ACO-HD Block Diagram

7700 MultiFrame Manual
7700ACO-HD HD/SD SDI 8 Channel AES & RS-232/RS-422 Auto Changeover
Revision 1.3 Page 3
2. INSTALLATION
The 7700ACO-HD comes with a companion rear plate that occupies two slots in the frame. For
information on mounting the rear plate and inserting the module into the frame see section 3 of the
7700FR chapter.
Figure 2-1: Rear Panel
2.1. VIDEO CONNECTIONS
HD/SDI INPUT A and B: The input BNC connector for 10-bit serial digital video signals compatible
with the SMPTE 292M, SMPTE 259M, or SMTPE 310M standard.
HD/SDI OUT: This BNC connector is used to output the video as serial component video,
compatible with the SMPTE 292M or SMPTE 259M standard (same as
input) with embedded audio.

Unused HD/SDI OUT connectors MUST BE terminated with 75 ohms for proper
operation. If it is not terminated, in some cases relays MAY oscillate.

7700 MultiFrame Manual
7700ACO-HD HD/SD SDI 8 Channel AES & RS-232/RS-422 Auto Changeover
Page 4Revision 1.3
2.2. AES IN AND OUT CONNECTIONS
There are two high-density DB-15 connectors labeled AES IN A and AES IN B.Each connector provides
eight unbalanced AES inputs on 8 BNC connectors. There is a third high-density DB-15 connector
labeled AES OUT. The connector provides eight unbalanced AES outputs on 8 BNC connectors. These
inputs and outputs are for unbalanced AES signals conforming to SMPTE 276M. Table 2-1 and Table 2-2
shows the DB-15 connector pin out.
Name Description DB-15 Pin
Reserved for Future Use
1
Reserved for Future Use
2
Reserved for Future Use
3
Reserved for Future Use
4
Reserved for Future Use
5
Reserved for Future Use
6
AES In 2
AES Input 2 - Unbalanced
7
Reserved for Future Use
8
AES In 6
AES Input 6 - Unbalanced
9
AES In 5
AES Input 5 - Unbalanced
10
AES In 1
AES Input 1 - Unbalanced
11
AES In 8
AES Input 8 - Unbalanced
12
AES In 7
AES Input 7 - Unbalanced
13
AES In 4
AES Input 4 - Unbalanced
14
AES In 3
AES Input 3 - Unbalanced
15
GND
Ground
Shell
Table 2-1: AES IN A and AES IN B Audio Connector Pin Out
Name Description DB-15 Pin
Reserved for Future Use
1
Reserved for Future Use
2
Reserved for Future Use
3
Reserved for Future Use
4
Reserved for Future Use
5
Reserved for Future Use
6
AES Out 2
AES Output 2 - Unbalanced
7
Reserved for Future Use
8
AES Out 6
AES Output 6 - Unbalanced
9
AES Out 5
AES Output 5 - Unbalanced
10
AES Out 1
AES Output 1 - Unbalanced
11
AES Out 8
AES Output 8 - Unbalanced
12
AES Out 7
AES Output 7 - Unbalanced
13
AES Out 4
AES Output 4 - Unbalanced
14
AES Out 3
AES Output 3 - Unbalanced
15
GND
Ground
Shell
Table 2-2: AES OUT Audio Connector Pin Out

7700 MultiFrame Manual
7700ACO-HD HD/SD SDI 8 Channel AES & RS-232/RS-422 Auto Changeover
Revision 1.3 Page 5
The 7700ACO-HD is shipped with three breakout cables for the DB-15 connector (Evertz Part #
WPAES8-BNCM-6F), which can be used to facilitate wiring the audio and GPI connections. The pin outs
of the cables are shown in Table 2-3.
High
Density
DB-15 PIN
(male)
Wire Ground/Shield
Connection Labeled Name Connector Type
7700ACO-HD
AES IN A and
AES IN B
7700ACO-HD
AES OUT
1
Red
W1 RED
WIRE
2
Green
W2 GREEN
WIRE
3
Blue
W3 BLUE
WIRE
4
(not
used)
(not used)
5
(not
used)
(not used)
6
White
W4 WHITE
WIRE
7 Black
Soldered to
DB15 Shell
AES A2 BNC MALE AES In 2 AES Out 2
8
Yellow
W5 YELLOW
WIRE
9 Coax
Soldered to
DB15 Shell
AES B2 BNC MALE AES In 6 AES Out 6
10 Coax
Soldered to
DB15 Shell
AES B1 BNC MALE AES In 5 AES Out 5
11 Coax
Soldered to
DB15 Shell
AES A1 BNC MALE AES In 1 AES Out 1
12 Coax
Soldered to
DB15 Shell
AES B4 BNC MALE AES In 8 AES Out 8
13 Coax
Soldered to
DB15 Shell
AES B3 BNC MALE AES In 7 AES Out 7
14 Coax
Soldered to
DB15 Shell
AES A4 BNC MALE AES In 4 AES Out 4
15 Coax
Soldered to
DB15 Shell
AES A3 BNC MALE AES In 3 AES Out 3
Shell
Black
GND
WIRE
GND
GND
Table 2-3: AES Audio Breakout Cable (Evertz Part # WPAES8-BNCM-6F)

AES OUT connectors MUST BE terminated with 75 ohms for proper operation.
2.3. CONTROL CONNECTIONS
There is a terminal block that allows the user to connect either RS232 or RS422. COM IN A and COM IN
Bare used for connecting two RS232/RS422 as inputs. COM OUT is used for connecting RS232/RS422
as an output. The input cables can be secured into the removable portion of the terminal strips using a
small screwdriver. The removable part of the terminal strip is then inserted into the rear panel and can be
secured using the hold down screws. The terminal block pin out for the control connections is shown in
Figure 2-2.

7700 MultiFrame Manual
7700ACO-HD HD/SD SDI 8 Channel AES & RS-232/RS-422 Auto Changeover
Page 6Revision 1.3
IN B
GND GND
Serial 3
Serial 1 Serial 2
Serial 4
OUT
GND GND
Serial 3
Serial 1 Serial 2
Serial 4
IN A
GND GND
Serial 3
Serial 1 Serial 2
Serial 4
Figure 2-2: Control Connection Pin Out
2.4. GENERAL PURPOSE INPUTS AND OUTPUTS
The 7700ACO-HD has two GPI’s and two GPO’s available via terminal block. The terminal block pin out
is shown in Figure 2-3.
GPIOGPO 1
GPI 1 GPI 2
GPO 2
GND GND
Figure 2-3: GPIO Pin Out
The two GPI’s are active if the MODE is set to either GPI or MAN (see section 6.4). Table 2-4 shows the
operations that the two GPI’s control.
GPI 1 GPI 2 Operation
Low
Low
Current bank selected (no change)
Low
High
Master A inputs selected
High
Low
Master B inputs selected
High
High
Current bank selected (no change)
Table 2-4: GPI Operations
The two GPO’s are active in all modes. The GPO’s will report different types of status. Table 2-5
describes the status reported by the two GPO’s.
State Status
GPO 1
Low
Master A is selected
High
Master B is selected
GPO 2
Low
Master A and B are different
High
Master A and B have equivalent signals
Table 2-5: GPO Status

7700 MultiFrame Manual
7700ACO-HD HD/SD SDI 8 Channel AES & RS-232/RS-422 Auto Changeover
Revision 1.3 Page 7
3. SPECIFICATIONS
3.1. SERIAL DIGITAL VIDEO INPUTS
Standards: STMPE 292M (1.5Gb/s), SMPTE 259M-C (270 Mb/s) 525 or 625 line
component SMPTE 310M
Number of Inputs: 2
Connector: 2 BNC per IEC 61169-8 Annex A
Maximum Cable Length: 100m of Belden 1694 or equivalent cable combined input and output.
Return Loss: >10 dB up to 1. 5GHz
3.2. SERIAL DIGITAL VIDEO OUTPUTS
Standard: 1.485 Gb/s SMPTE 292M, 270Mb/s SMPTE 259M or SMPTE 310M (same
as input)
Number of Outputs: 1 Passive Relay Output
Connector: BNC per IEC 61169-8 Annex A
Maximum Cable Length: 60m of Belden 1694 or equivalent cable combined input and output
Signal Level: 800mV nominal
DC Offset: 0V ±0.5V
Return Loss: >12 dB up to 1. 5GHz
3.3. AES INPUTS
Number of Outputs: 8 Unbalanced AES (per connector)
Connectors: 2 Female High-Density DB-15
Input Level: 1V p-p
Input Impedance: 75Ω
Return Loss: >25dB 100kHz to 6MHz
Detection: Up to 600m with Belden 1694A (or equivalent) @ 48kHz AES signal
3.4. AES OUTPUTS
Number of Outputs: 8 Unbalanced AES (per connector)
Connectors: 1 Female High-Density DB-15
Input Level: 1V p-p
Input Impedance: Output must be terminated to 75R
Return Loss: >25dB 100kHz to 6MHz

7700 MultiFrame Manual
7700ACO-HD HD/SD SDI 8 Channel AES & RS-232/RS-422 Auto Changeover
Page 8Revision 1.3
3.5. GENERAL PURPOSE INPUTS AND OUTPUTS
Type
Inputs: Opto-isolated input with internal pull-up to +5 Volts
Outputs: Normally 10k internal pull-up to +5V. Ground to rear panel when relay is in
active position
Connectors: Screw down terminal block
Signal Level: +5 V nominal
3.6. COMMUNICATIONS AND CONTROL
Serial Port: RS232/RS422 – 4 wire, terminal block
Connectors: Terminal block
3.7. ELECTRICAL
Voltage: +12VDC
Power: 6 Watts
EMI/RFI: Complies with FCC regulations for class A devices
Complies with EU EMC directive
3.8. PHYSICAL
Number of slots:
350FR: 2
7700FR-C: 2
7800FR: 2
