evertz 7800EMR-IO User manual

7800EMR-IO
32x32 AES & MADI Router/Interface
User manual
© Copyright 2015
EVERTZ MICROSYSTEMS LTD.
5292 John Lucas Drive
Burlington, Ontario
Canada L7L 5Z9
Phone: [phone]
Sales: [e-mail] Fax: [phone]
Tech Support: [e-mail] Fax: [phone]
Web Page: http://www.evertz.com
Version 1.0, December 2015
The material contained in this manual consists of information that is the property of Evertz Microsystems and is intended solely for the use of
purchasers of the 7800EMR-IO product. Evertz Microsystems expressly prohibits the use of this guide for any purpose other than the operation of
the contained in this reference guide consists of information that is the property of Evertz Microsystems and is intended solely for the use of
purchasers of the 7800EMR-IO product. Due to on going research and development, features and specifications in this manual are subject to
change without notice.
All rights reserved. No part of this publication may be reproduced without the express written permission of Evertz Microsystems Ltd. Copies of
this manual can be ordered from your Evertz dealer or from Evertz Microsystems.

This page left intentionally blank

IMPORTANT SAFETY INSTRUCTIONS
The lightning flash with arrowhead symbol within an equilateral triangle is
intended to alert the user to the presence of uninsulated “Dangerous voltage”
within the product’s enclosure that may be of sufficient magnitude to constitute
a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user
to the presence of important operating and maintenance (Servicing) instructions
in the literature accompanying the product.
•Read these instructions
•Keep these instructions.
•Heed all warnings.
•Follow all instructions.
•Do not use this apparatus near water
•Clean only with dry cloth.
•Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
•Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
•Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two
blades with one wider than other. A grounding-type plug has two blades and a third grounding prong.
The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your
outlet, consult an electrician for replacement of the obsolete outlet.
•Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles and the point where they exit from the apparatus.
•Only use attachments/accessories specified by the manufacturer
•Unplug this apparatus during lightning storms or when unused for long periods of time.
•Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or
objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC –
SHOCK, DO NOT EXPOSE THIS APPARATUS
TO RAIN OR MOISTURE
WARNING
DO NOT EXPOSE THIS EQUIPMENT TO
DRIPPING OR SPLASHING AND ENSURE THAT NO
OBJECTS FILLED WITH LIQUIDS ARE PLACED ON THE EQUIPMENT
WARNING
TO COMPLETELY DISCONNECT THIS EQUIPMENT FROM THE AC MAINS, DISCONNECT THE
POWER SUPPLY CORD PLUG FROM THE AC RECEPTACLE
WARNING
THE MAINS PLUG OF THE POWER SUPPLY CORD SHALL REMAIN READILY OPERABLE

INFORMATION TO USERS IN EUROPE
NOTE
CISPR 22 CLASS A DIGITAL DEVICE OR PERIPHERAL
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant
to the European Union EMC directive. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own expense.
INFORMATION TO USERS IN THE U.S.A.
NOTE
FCC CLASS A DIGITAL DEVICE OR PERIPHERAL
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
WARNING
Changes or Modifications not expressly approved by Evertz Microsystems Ltd. could void the user’s
authority to operate the equipment.
Use of unshielded plugs or cables may cause radiation interference. Properly shielded interface cables
with the shield connected to the chassis ground of the device must be used.
EN60065
Safety
EN504192 2005
Waste electrical products should not be
disposed of with household waste.
Contact your Local Authority for recycling
advice
EN55103-1: 1996
Emission
EN55103-2: 1996
Immunity

7800EMR-IO
32x32 AES & MADI Router/Interface
Revision 1.0 Page - i
TABLE OF CONTENTS
1. OVERVIEW ...................................................................................................................................1
1.1. FEATURES & BENEFITS.....................................................................................................1
1.1.1. STANDALONE MODE...............................................................................................2
1.1.2. ADMX MODE ............................................................................................................3
2. SPECIFICATIONS.........................................................................................................................5
2.1. AUDIO CONNECTIONS .......................................................................................................5
2.2. AUDIO INPUTS ....................................................................................................................5
2.3. ELECTRICAL .......................................................................................................................5
2.4. FRAMES...............................................................................................................................5
3. INSTALLATION.............................................................................................................................7
3.1. INSTALLATION OF 7800EMR-IO ON 7800FR FRAME.......................................................8
4. FRONT CARD EDGE CONTROLS AND LEDS ............................................................................9
4.1. SERIAL MENU ...................................................................................................................10
4.1.1. Network Configuration .............................................................................................10
4.1.2. SNMP Configuration................................................................................................10
4.1.3. Set Router Mode......................................................................................................11
4.1.4. Audio Configuration.................................................................................................11
4.1.5. Show Board Information ..........................................................................................12
4.1.6. Reference Configuration Menu................................................................................12
4.1.7. Engineering Debug Utility ........................................................................................12
4.1.8. Save to the Flash and Reboot..................................................................................12
5. VISTALINK®PRO CONFIGURATION.........................................................................................13
5.1. GENERAL TAB ..................................................................................................................14
5.2. SRC (SAMPLE RATE CONVERTER) CONTROL TAB......................................................16
5.3. AUDIO PAIR CONTROL TAB ............................................................................................17
5.4. AUDIO PAIR FAULTS........................................................................................................18
5.5. TDM STATUS TAB.............................................................................................................19
5.6. MADI STATUS TAB ...........................................................................................................20
5.7. TDM FAULTS TAB.............................................................................................................21
5.8. MADI FAULTS TAB............................................................................................................21
5.9. MONITORING TAB FOR INDIVIDUAL CHANNELS OF 7800EMR-IO...............................22
5.9.1. Audio TDM Processing Tab.....................................................................................23
5.9.2. Audio Mono Config Tab...........................................................................................24
5.9.3. Audio Tone Generator Tab......................................................................................25
5.9.4. Audio Faults Tab......................................................................................................25
5.9.5. Audio Monitor Tab ...................................................................................................26
5.9.6. Audio Control Tab....................................................................................................27

7800EMR-IO
32x32 AES & MADI Router/Interface
Page - ii Revision 1.0
5.9.7. Audio AES Processing ............................................................................................27
6. UPDATING VLPRO SERVER JAR FILE ....................................................................................29
7. UPGRADING THE FIRMWARE ON 7800EMR-IO THROUGH FTP............................................31
Figures

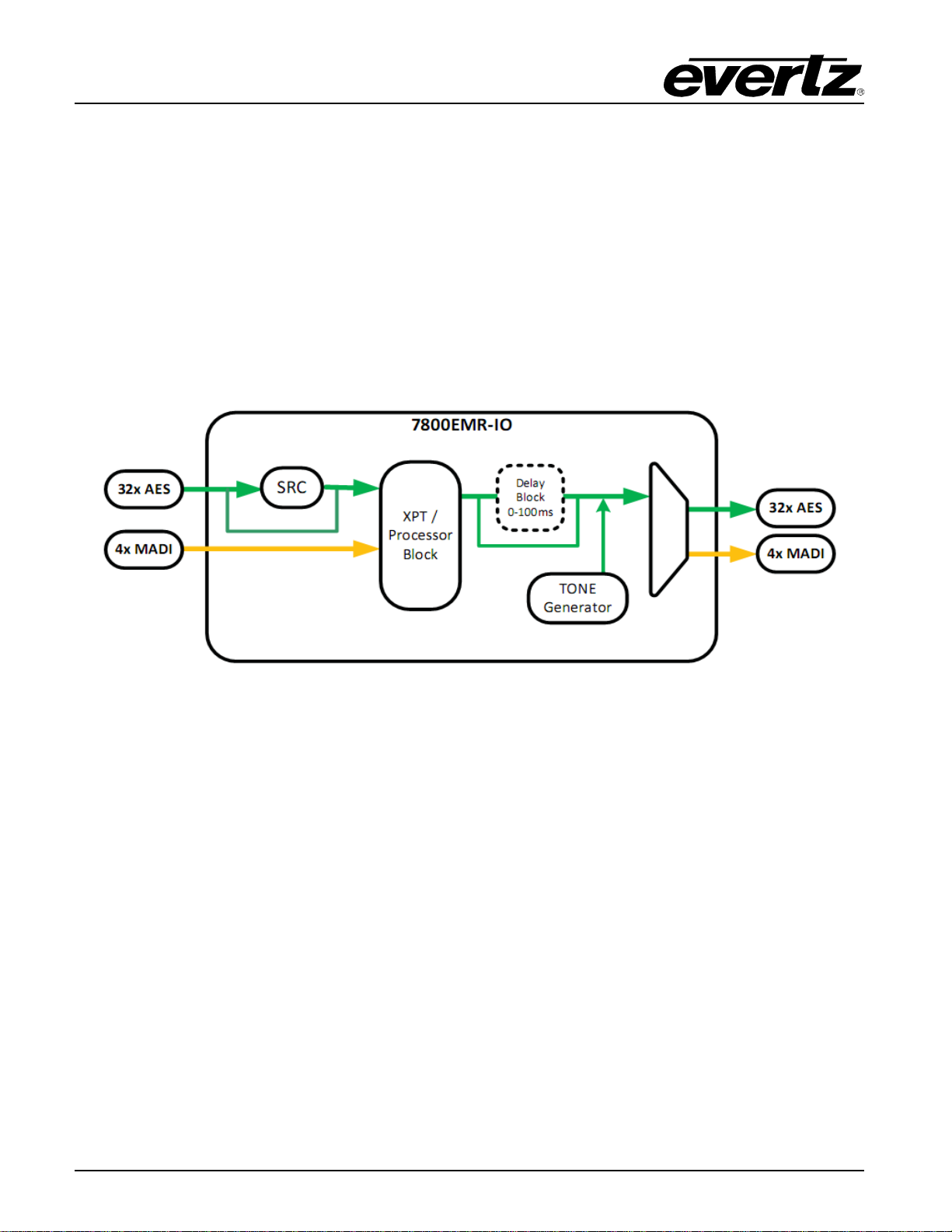

Figure 1-1: Standalone Mode Block Diagram ..................................................................................................2

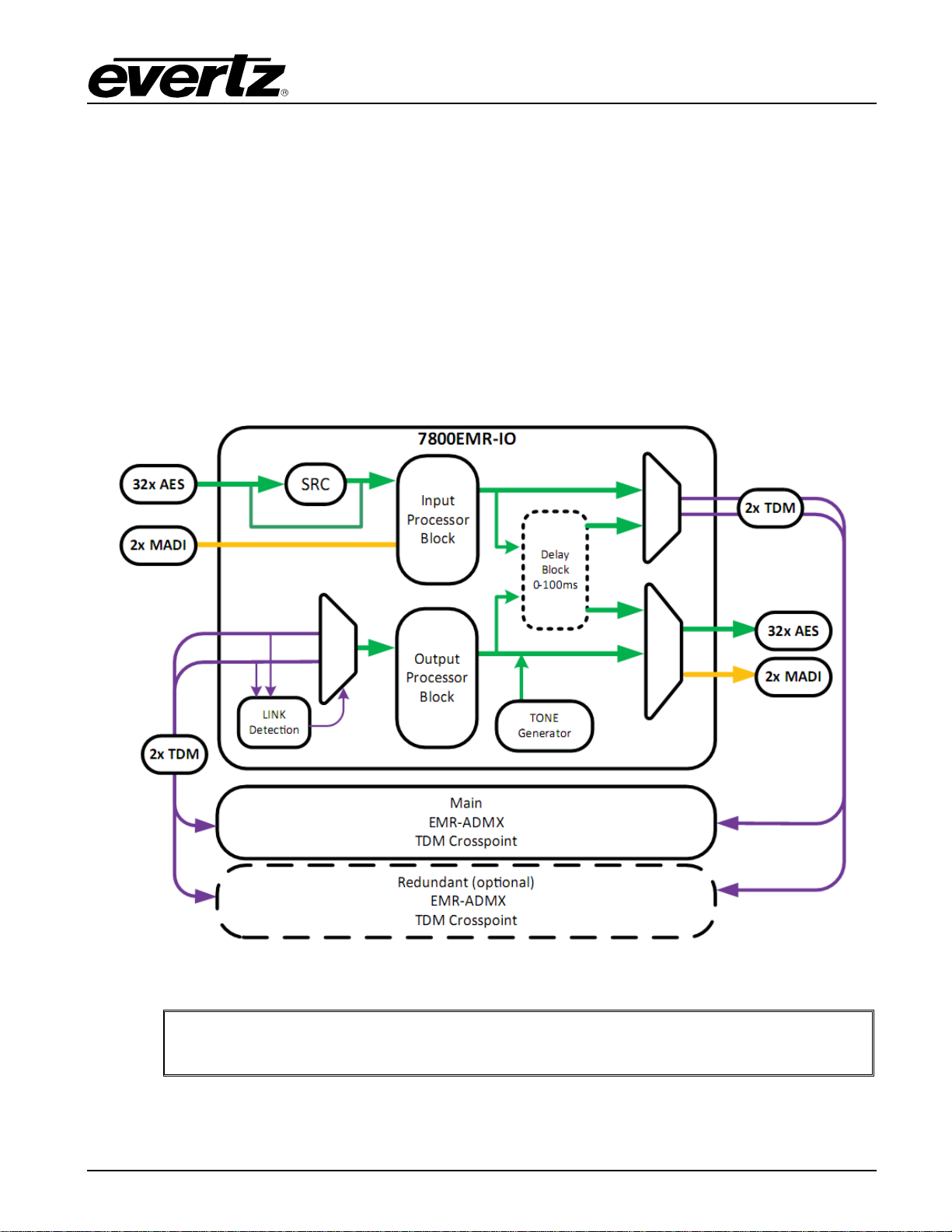

Figure 1-2: ADMX Mode Block Diagram..........................................................................................................3

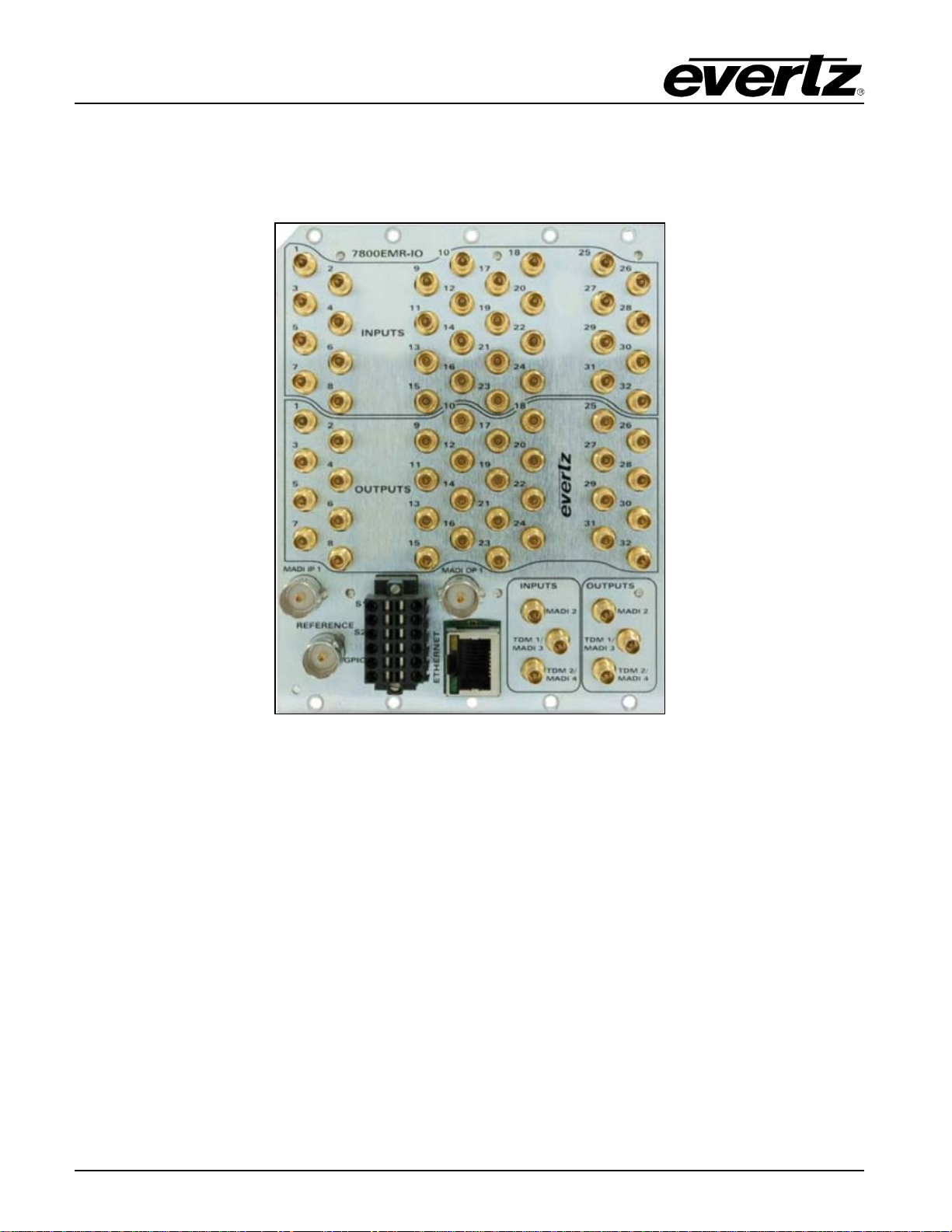

Figure 3-1: 7800EMR-IO Rear Plate................................................................................................................8

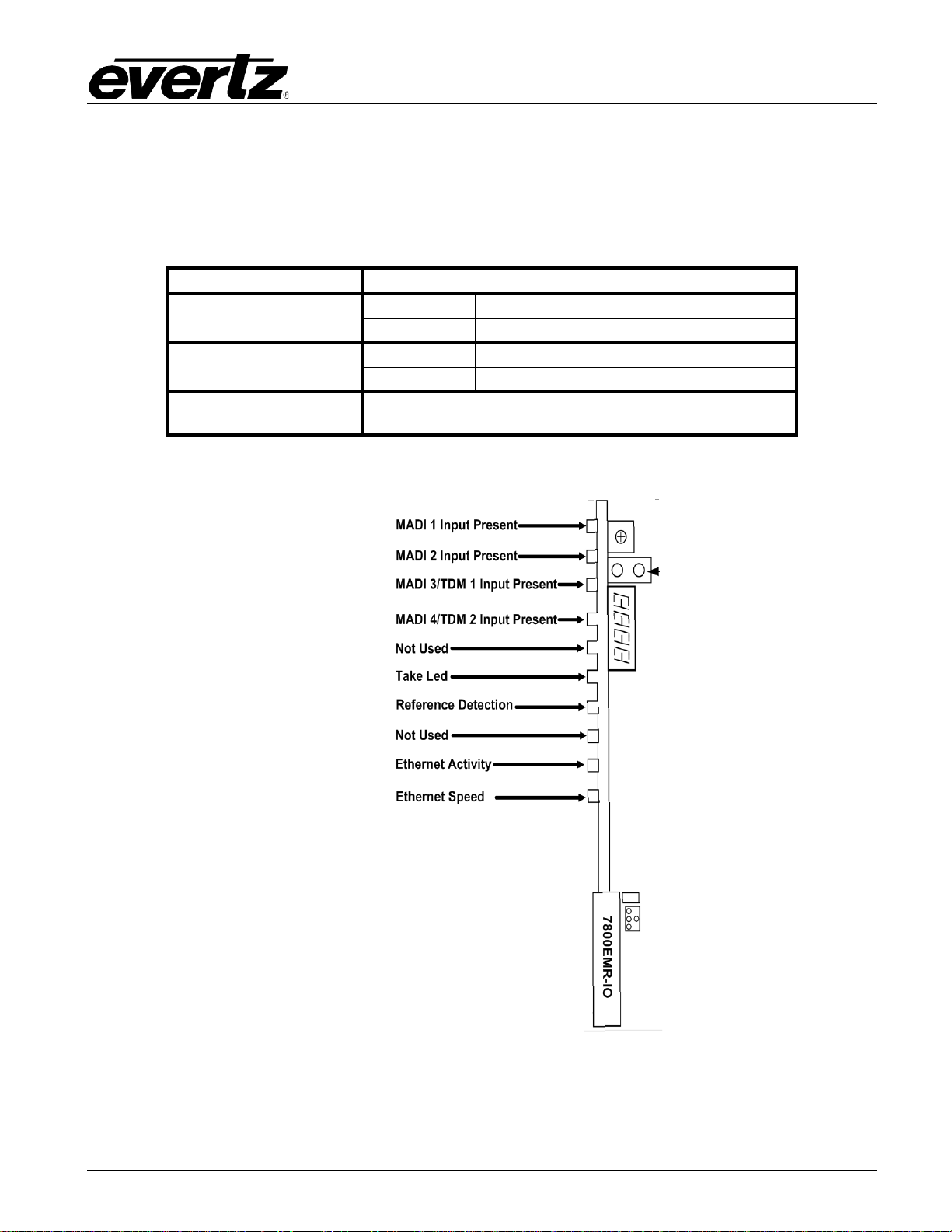

Figure 4-1: Illustration of the Front Card Edge of the 7800EMR-IO.................................................................9
Figure 4-2: Main Menu Prompt.......................................................................................................................10
Figure 5-1: VistaLINK® - Adding the 7800EMR-IO’s as an Agent..................................................................13
Figure 5-2: VistaLINK® - Adding the 7800EMR-IO’s IP Address....................................................................13
Figure 5-3: VistaLINK® - General Tab ............................................................................................................14
Figure 5-4: VistaLINK® - SRC Control Tab.....................................................................................................16
Figure 5-5: VistaLINK® - Audio Pair Control Tab............................................................................................17
Figure 5-6: VistaLINK® - Audio Pair Faults Tab..............................................................................................18
Figure 5-7: VistaLINK® - TDM Status Tab......................................................................................................19
Figure 5-8: VistaLINK® - MADI Status Tab.....................................................................................................20
Figure 5-9: VistaLINK® - TDM Faults Tab.......................................................................................................21
Figure 5-10: VistaLINK® - MADI Faults Tab ...................................................................................................21
Figure 5-11: VistaLINK® - Individual Channel Tab .........................................................................................22
Figure 5-12: VistaLINK® - Audio TDM Processing Tab ..................................................................................23
Figure 5-13: VistaLINK® - Audio Mono Config Tab ........................................................................................24
Figure 5-14: VistaLINK® - Audio Tone Generator Tab ...................................................................................25
Figure 5-15: VistaLINK® - Audio Faults Tab...................................................................................................25
Figure 5-16: VistaLINK® - Audio Monitor Tab.................................................................................................26
Figure 5-17: VistaLINK® - Audio Control.........................................................................................................27
Figure 5-18: VistaLINK® - Audio AES Processing..........................................................................................27
Figure 6-1: VistaLink®PRO Server ................................................................................................................29
Figure 6-2: VistaLink®PRO – Applying JAR File Updates.............................................................................30
Figure 7-1: Run Window for FTP Access.......................................................................................................31
Figure 7-2: Sample - FTP Upgrade Window..................................................................................................32
Tables
Table 4-1: Description of 7800EMR-IO Card Edge..........................................................................................9

7800EMR-IO
32x32 AES & MADI Router/Interface
Revision 1.0 Page - iii
REVISION HISTORY
REVISION DESCRIPTION DATE
1.0 First Release Dec 2015
Information contained in this reference guide is believed to be accurate and reliable. However, Evertz assumes no responsibility for the use
thereof nor for the rights of third parties, which may be affected in any way by the use thereof. Any representations in this document
concerning performance of Evertz products are for informational use only and are not warranties of future performance, either expressed or
implied. The only warranty offered by Evertz in relation to this product is the Evertz standard limited warranty, stated in the sales contract or
order confirmation form.
Although every attempt has been made to accurately describe the features, installation and operation of this product in this reference guide, no
warranty is granted nor liability assumed in relation to any errors or omissions unless specifically undertaken in the Evertz sales contract or
order confirmation. Information contained in this reference guide is periodically updated and changes will be incorporated into subsequent
editions. If you encounter an error, please notify Evertz Customer Service department. Evertz reserves the right, without notice or liability, to
make changes in equipment design or specifications.

7800EMR-IO
32x32 AES & MADI Router/Interface
Page - iv Revision 1.0
This page left intentionally blank

7800EMR-IO
32x32 AES & MADI Router/Interface
Revision 1.0 Page - 1
1. OVERVIEW
The 7800EMR-IO is a compact modular audio router/interface that can be configured to operate in two
different modes depending on the application requirements. The first mode is stand alone mode which
the device will function as a standalone router with AES and MADI as input and output. The second
mode is ADMX mode which will allow the module to act as an input and output interface and has to be
connected to an ADMX crosspoint for integration into an EMR audio router.
7800EMR-IO contains 32 unbalanced AES inputs and 32 unbalanced AES outputs as well as 2 MADI
Inputs and 2 MADI output ports, all these IOs are used in both modes. There are 2 additional inputs and
output ports that are software programmable to be MADI or TDM for the different modes.
The processing unit interfaces the various control options such as serial and Ethernet, allowing full
control of the routing resources. The processing unit also provides a video reference to maintain a
clean switch.
1.1. FEATURES & BENEFITS
•Hot-swappable, front-loading modular
•STANDALONE and ADMX Mode
•Low latency TDMV2
•Sample Rate Conversion
•References from Rear Panel or Frame Reference
•Single Network connection
•VISTALINK®Monitoring and SNMP Management System

7800EMR-IO
32x32 AES & MADI Router/Interface
Page - 2 Revision 1.0
1.1.1. STANDALONE MODE
•32 AES Inputs and 32 AES Outputs
•4 MADI Inputs and 4 MADI Outputs
•320 Mono or 160 Stereo Channels
•Supports 4:1 Mono Mixing
•Audio Monitoring for AES and MADI Signals
•Changeable Audio Delay Option
•Audio Tone Generator with variable Frequency, Gain and Inversion
•Cross fade in PCM streams when Soft Switch is enabled
•Supports Synergy and Quartz protocol
Figure 1-1: Standalone Mode Block Diagram
