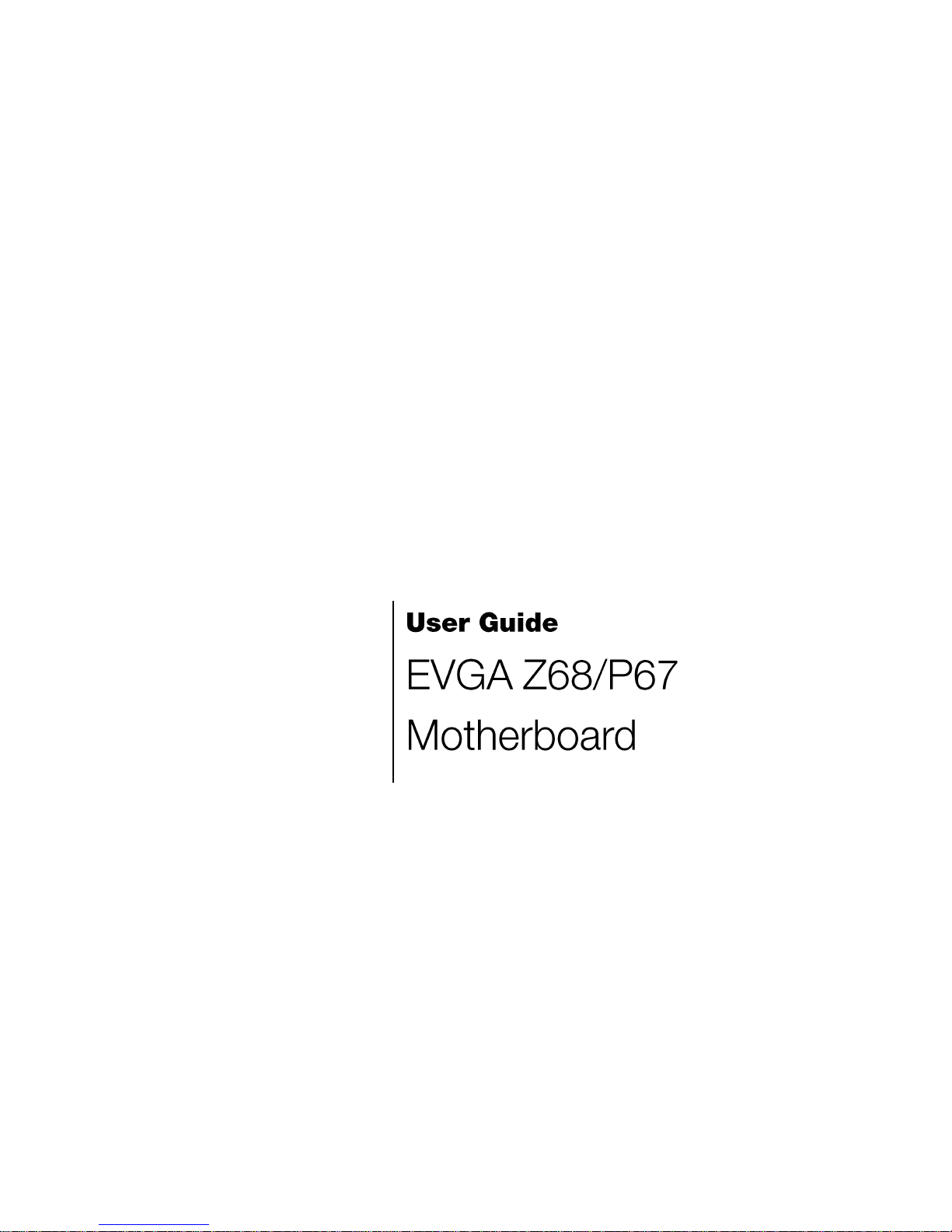

EVGA 120-SB-E682-KR User manual

EVGA Z68/P67 Motherboard

EVGA Z68/P67 Motherboard

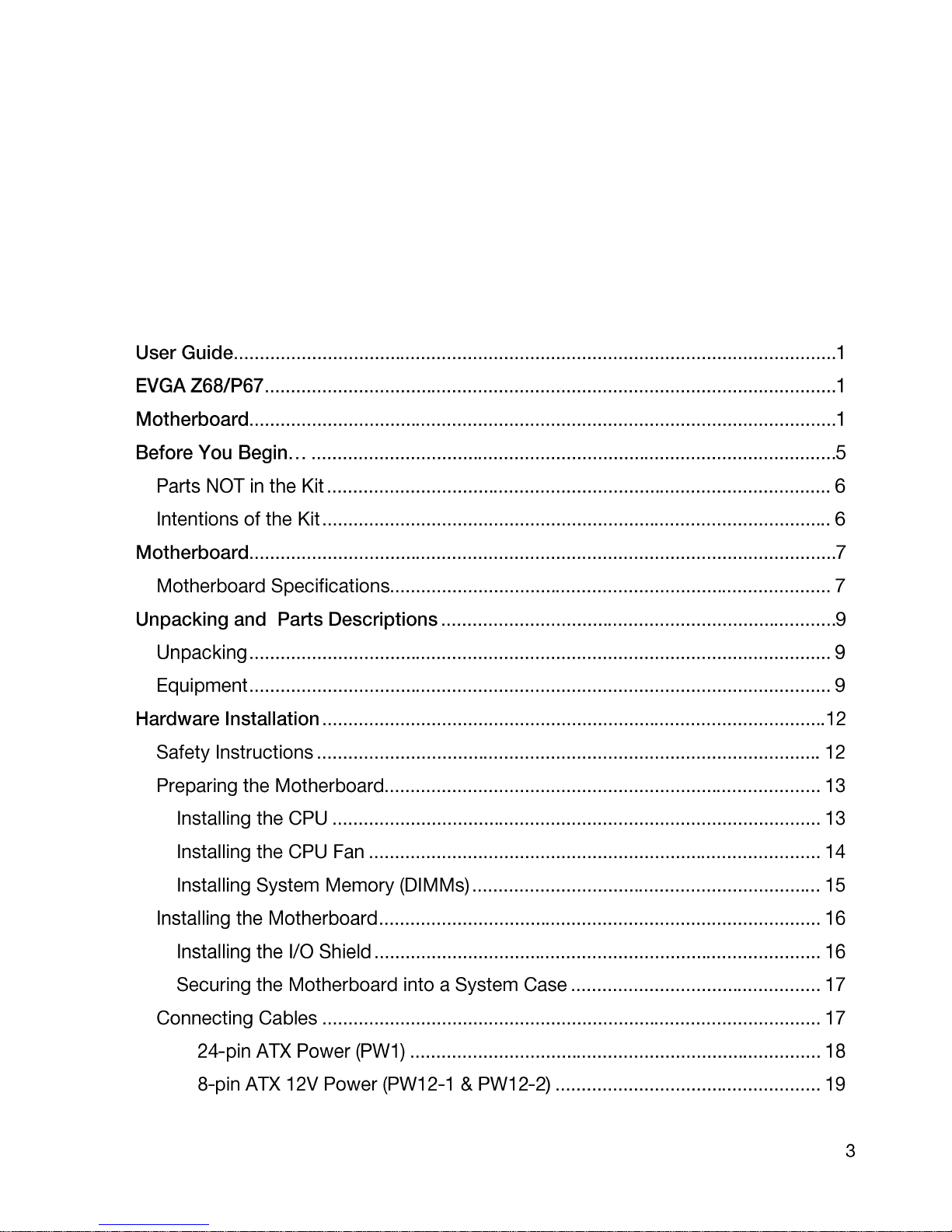

Table of Contents

EVGA Z68/P67 Motherboard

EVGA Z68/P67 Motherboard
Thank you for purchasing the EVGA Z68/P67 Motherboard. This board is based off
of the new Intel Z68/P67 chipset with native support for SATA III/6G for the
performance you demand, delivered when you need it.
As always this board comes with the added bonus of EVGA’s industry leading 24/7
technical support in case you ever have any issues or questions.

EVGA Z68/P67 Motherboard
This kit contains all the hardware necessary to install and connect your new
EVGA Z68/P67 Motherboard. However, it does not contain the following
items that must be purchased separately to make the motherboard functional.
Intel Socket 1155 Processor
DDR3 System Memory
Socket 775 or 1155/1156 CPU cooler for the processor
PCI Express Graphics Card
Power Supply
EVGA assumes you have purchased all the necessary parts needed to allow for
proper system functionality. For a full list of supported CPU’s on this
motherboard, please visit http://www.evga.com/support/motherboard/.
This kit provides you with the motherboard and all connecting cables necessary
to install the motherboard into a PC case. If you are building a PC, you will use
most of the cables provided in the kit. If however, you are replacing a
motherboard, you will not need many of the cables.
When replacing a motherboard in a PC case, you will need to reinstall an
operating system even though the current Hard Disk Drive may already have
one installed.

EVGA Z68/P67 Motherboard
Size
EATX form factor of 12 inches x 10.3 inches
Microprocessor support
Intel Socket 1155 Processor
Operating systems:
Supports Windows XP/Vista/7 32 and 64 bit
Contains Intel Z68/P67 chipset
System Memory support
Supports Dual channel DDR3-2133+. Officially supports up to 16GBs of
DDR3 memory.
USB 2.0 Ports
Supports hot plug
Supports wake-up from S1 and S3 mode
Supports USB 2.0 protocol up to a 480 Mbps transmission rate
USB 3.0 Ports
Backwards compatible USB 2.0 and USB 1.1 support
Supports transfer speeds up to 5Gbps

EVGA Z68/P67 Motherboard
SATA ports up to 3.0 Gb/s (300 M/s) data transfer rate
SATA ports up to 6.0 Gb/s (600 M/s) data transfer rate
Support for RAID 0, RAID 1, RAID 0+1, RAID5 and RAID 10
ESATA (optional)
Onboard LAN
Supports 10/100/1000 Mbit/sec Ethernet
Onboard IEEE 1394a (Firewire)
Supports hot plug
Onboard Audio
Realtek High-Definition audio
Supports 8-channel audio
Supports Jack-Sensing function
PCI-E Support
PCI-E 2.0 Slots
Low power consumption and power management features
Green Function
Supports ACPI (Advanced Configuration and Power Interface)
Supports S0 (normal), S1 (power on suspend), S3 (suspend to RAM), S4
(Suspend to disk - depends on OS), and S5 (soft - off)
Expansion Slots
PCI-E x1 slots
PCI-E x8/x16 slots

EVGA Z68/P67 Motherboard
The EVGA Z68/P67 Motherboard comes with all the necessary cables for
adding a motherboard to a system case. If replacing a motherboard, you may
not need many of these cables.
The following accessories are included with the EVGA Z68/P67 Motherboard:
The EVGA Z68/P67 Motherboard
This PCI-E motherboard contains the Intel Z68/P67 chipset and
is SLI-ready.
- Visual Guide
Helps to quickly and visually guide you through the hardware
installation of the motherboard.

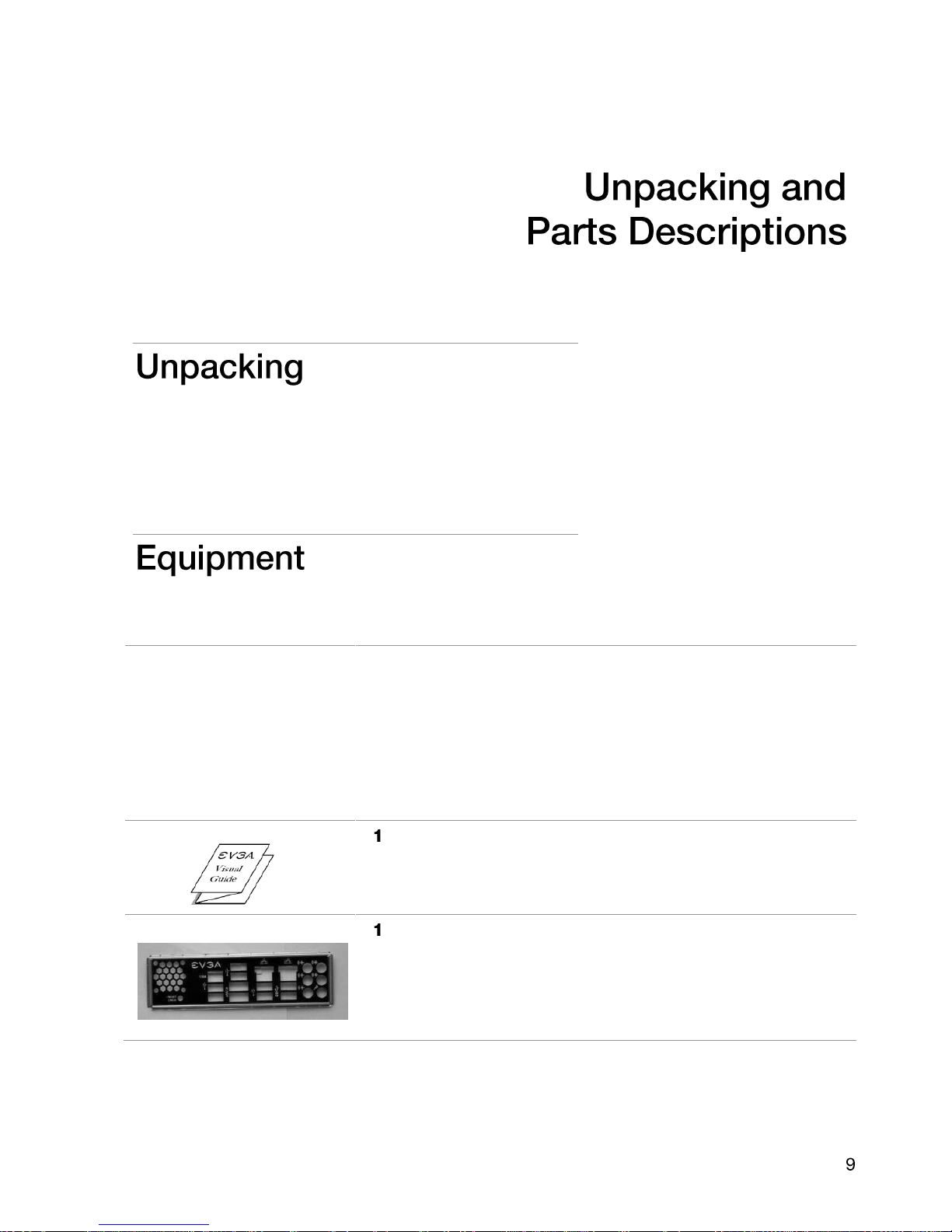

- I/O Shield
Installs in the system case to block radio frequency
transmissions, protect internal components from dust, foreign
objects, and aids in proper airflow within the chassis.

EVGA Z68/P67 Motherboard
–I/O Shield Fan (Optional)
Exhausts Air from the IO Shield out of the rear of the case.
Attaches to IO Shield.
- 2-Port SATA Power Cables
Allows a Molex power connector to adapt to a SATA power
connector.
- 2-Port USB 2.0 / 1394a Firewire Bracket
Provides two additional USB ports and 1 additional 1394a
Firewire port to the back panels of the chassis.
–2-Port USB 3.0 Bracket (FTW Model Only)
Allows Addition of 2 USB 3.0 ports by Connecting to the
motherboard header.

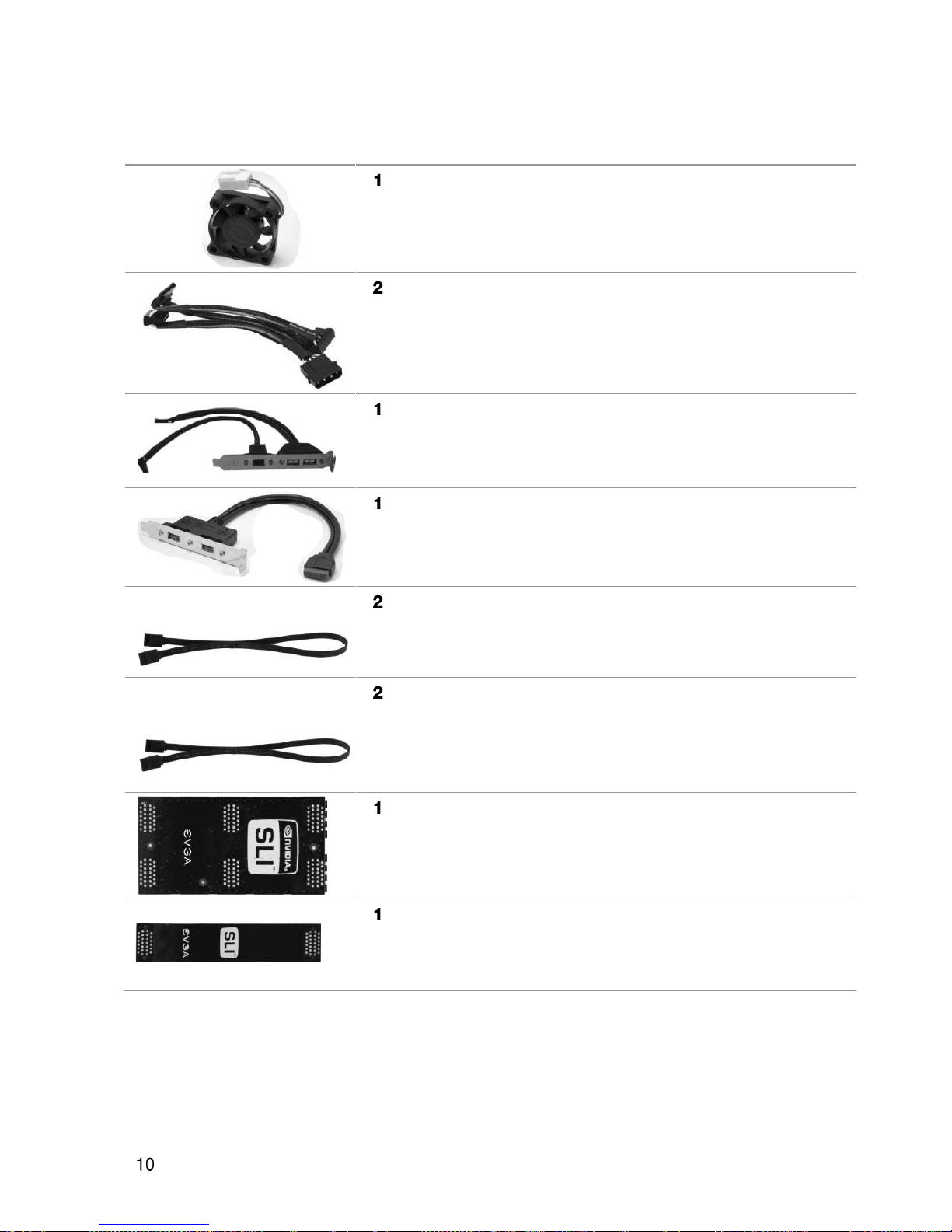

–SATA II/3G Data Cables
Used to support the SATA protocol and each one connects a
single drive to the motherboard.
–SATA III/6G Data Cables
Used to support the SATAIII/6G high speed protocol and each
one connects a single drive to the motherboard.
- 3-way SLI Bridge (FTW Model Only)
Bridges three (3) graphics cards together which allows for
3-way SLI.
- 2-way SLI Bridge
Bridges two (2) graphics cards together which allows for
2-way SLI.

EVGA Z68/P67 Motherboard
–EVGauge (Optional)
Analog Gauge that represents your CPU frequency in real time.
–ECP Panel (Optional)
Allows monitoring of post codes and remote control of PCIe
slot disable, voltages and CMOS reset all on one bay mounted
panel.
- Installation CD
Contains drivers and soare needed to setup the motherboard.
–User Manual
Contains Information needed to properly install and configure
your EVGA Motherboard.

EVGA Z68/P67 Motherboard
This section will guide you through the installation of the motherboard. The
topics covered in this section are:
Preparing the motherboard
Installing the CPU
Installing the CPU fan
Installing the memory
Installing the motherboard
Connecting cables
To reduce the risk of fire, electric shock, and injury, always follow basic
safety precautions.
Remember to remove power from your computer by disconnecting the
AC main source before removing or installing any equipment from/to the
computer chassis.

EVGA Z68/P67 Motherboard
Be very careful when handling the CPU. Hold
the processor only by the edges and do not
touch the bottom of the processor.
Use the following procedure to install the CPU
onto the motherboard:
Unhook the socket lever by pushing down and
away from the socket.
Pull the socket lever back and the load plate
will automatically lift. There is a protective
socket cover within the CPU socket to
protect the socket when there is no CPU
installed.
Remove the protective socket cover from the
CPU Socket.
Note: After removing the CPU socket cover, it is recommended that you keep it
in case you need to remove the CPU so for any reason you can replace
the cover to avoid damaging the CPU socket pins.

EVGA Z68/P67 Motherboard
Align the notches in the processor with the
notches on the socket.
Lower the processor straight down into the socket
with out tilting or sliding it into the socket.
Note: Make sure the CPU is fully seated and level in
the socket.
Close the load plate over the CPU and press
down while you close and engage the
socket lever.
The CPU installation is complete.
There are many different fan types that can be used with this motherboard.
Follow the instruction that came with your fan assembly. Be sure that the fan
orientation is correct for your chassis type and your fan assembly.
Please note that there are 2 sets of mounting holes, there are holes to be used
for Socket 1156 and 1155 heatsinks and are labeled. The other holes are to be
used for Socket 775 heatsinks.
In most cases, the Socket 1156/1155 mounting holes will be used.
Align notches with notches on the CPU

EVGA Z68/P67 Motherboard
Your new motherboard has four 240-pin slots for DDR3 memory. These slots
support 1GB, 2GB and 4GB DDR3 DIMMs. There must be at least one
memory slot populated to ensure normal operation. Use the following the
recommendations for installing memory. (See Figure 1 on page for the location
of the memory slots.)
One DIMM: If using 1 DIMM (Single Channel), install into: DIMM slot 1.
Two or Four DIMMs: If using 2 DIMMs (Dual Channel), install into:
DIMM slots 1 and 3. If using 4 DIMMs (Dual Channel), install into:
DIMM slots 1, 2, 3, and 4.
Use the following procedure to install DIMMs. Note that there is only one gap
near the center of the DIMM slot. This slot matches the slot on the DIMM to
ensure the component is installed properly.
Unlock a DIMM slot by pressing the module clips outward.
Align the memory module to the DIMM slot, and insert the module vertically
into the DIMM slot. The plastic clips at both sides of the DIMM slot
automatically lock the DIMM into the connector.
DIMM Slot 1
DIMM Slot 2
DIMM Slot 3
DIMM Slot 4

EVGA Z68/P67 Motherboard
The sequence of installing the motherboard into a system case depends on the
chassis you are using and if you are replacing an existing motherboard or
working with an empty system case. Determine if it would be easier to make all
the connections prior to this step or to secure the motherboard and then make
all the connections. It is normally easier to secure the motherboard first.
Use the following procedure to install the I/O shield and secure the
motherboard into the chassis.
Note: Be sure that the CPU fan assembly has enough clearance for the system
case covers to lock into place and for the expansion cards. Also make sure
the CPU Fan assembly is aligned with the vents on the covers. This will
depend on the system case being used.
The motherboard kit comes with an I/O shield that is used to block radio
frequency transmissions, protects internal components from dust and foreign
objects, and promotes correct airflow within the chassis.
Before installing the motherboard, install the I/O shield from the inside of the
chassis. Press the I/O shield into place and make sure it fits securely. If the
I/O shield does not fit into the chassis, you would need to obtain the proper
size from the chassis supplier.
Also Note that for ease of installation you may want to install I/O shield Fan
(optional) before installing into case.

EVGA Z68/P67 Motherboard
Most system cases have a base with mounting studs or spacers to allow the
motherboard to be secured to the chassis and help to prevent short circuits. If
there are studs that do not align with a mounting hole on the motherboard, it is
recommended that you remove that stud to prevent the possibility of a short
circuit. In most cases, it is recommended to secure the motherboard using a
minimum of nine (9) spacers and screws.
1. Carefully place the motherboard onto the stand offs located inside the chassis.
2. Align the mounting holes with the stand offs.
3. Align the connectors to the I/O shield.
4. Ensure that the fan assembly is aligned with the chassis vents according to the fan
assembly instruction.
5. Secure the motherboard with a recommended minimum of nine (9) screws.
This section takes you through all the necessary connections on the
motherboard. This will include:
Power Connections
24-pin ATX power (PW1)

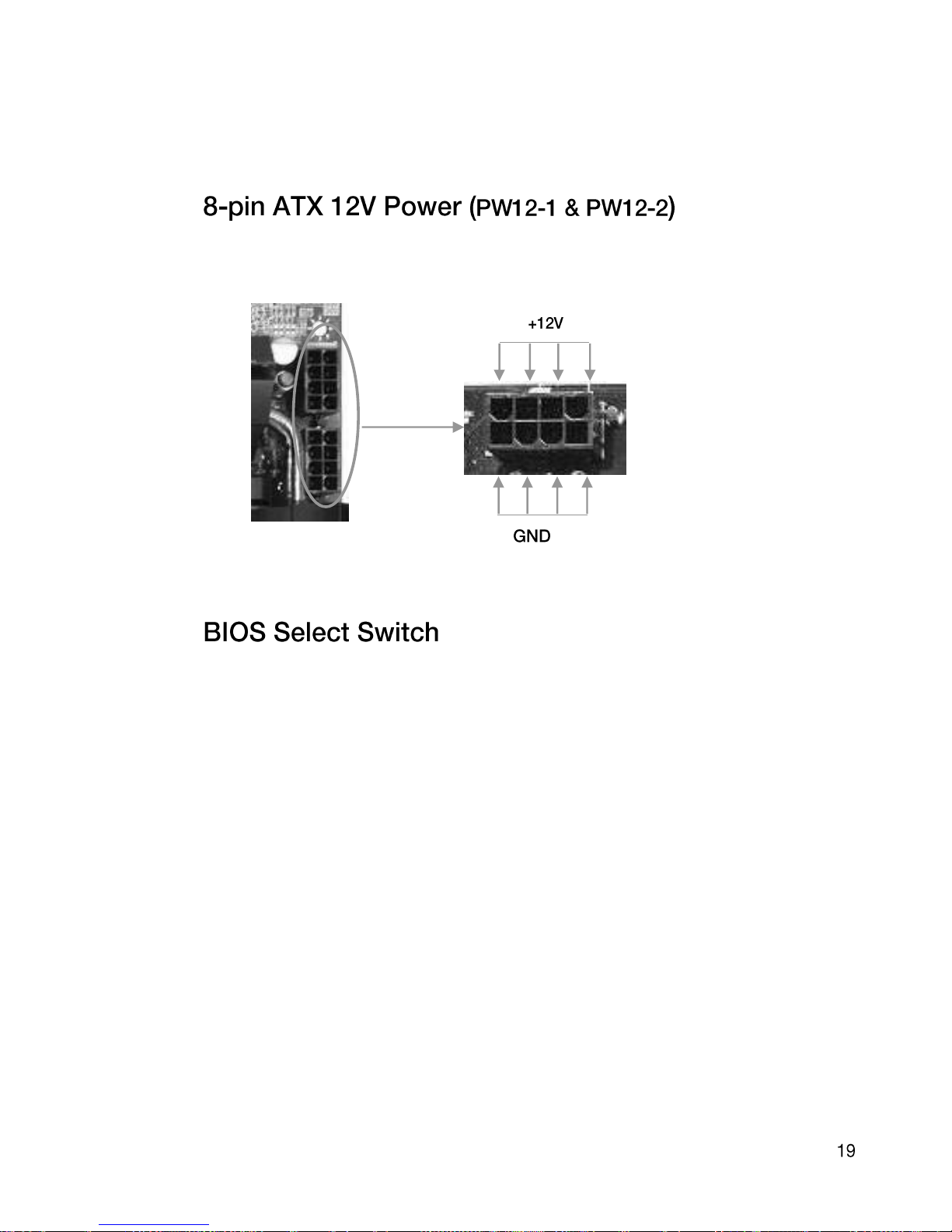

8-pin ATX 12V power (PW12-1 & PW12-2)
Internal Headers
Front Panel Header
IEEE 1394a Header
USB Headers
Audio Header
SATA II
SATA III
Chassis Fans
USB 2.0

EVGA Z68/P67 Motherboard
Expansion slots
CMOS Clear Button
PW1 is the main power supply connector located along the edge of the board
next to the DIMM slots. Make sure that the power supply cable and pins are
properly aligned with the connector on the motherboard. Firmly plug the power
supply cable into the connector and make sure it is secure.
Figure 1. PW1 Motherboard Connector
Table 1. PW1 Pin Assignments
Connector
Pin
Signal
Pin
Signal
1
+3.3V
13
+3.3V
2
+3.3V
14
-12V
3
GND
15
GND
4
+5V
16
PS_ON
5
GND
17
GND
6
+5V
18
GND
7
GND
19
GND
8
PWROK
20
RSVD
9
+5V_AUX
21
+5V
10
+12V
22
+5V
11
+12V
23
+5V
12
+3.3V
24
GND
PW1 connector
Plug power cable from system
power supply to PW1
Board edge
24
13
12
1

EVGA Z68/P67 Motherboard
PW12-1 & PW12-2, the 8-pin ATX 12V power connection, is used to provide
power to the CPU. Align the pins to the connector and press firmly until seated.
The BIOS Select Switch is located directly to the right of the PC speaker on the lower
edge of the mainboard. This jumper controls which of physical BIOS chips are to be
used when the system is powered on.
The addition of 3 physical BIOS chips on the mainboard allows for usage of three
completely different bios versions or saving of profiles to differentiate between bench
sessions and regular 24/7 usage.

EVGA Z68/P67 Motherboard
The front panel header on this motherboard is one connector used to connect
the following four cables.
(see Table 2 for pin definitions):
PWRLED
Attach the front panel power LED
cable to these two pins of the
connector. The Power LED indicates
the system’s status. When the system
is powered on, the LED will be on.
When the system is turned off, the
LED is off. When the system is in S1,
S3, S4 status, the LED will blink.
Note: Some system cases do not have all four cables. Be sure to match the
name on the connectors to the corresponding pins.
PWRSW
Attach the power button cable from
the case to these two pins. Pressing
the power button on the front panel
turns the system on and off rather
than using the onboard button.
HD_LED
Attach the hard disk drive indicator
LED cable to these two pins. The
HDD indicator LED indicates the
activity status of the hard disks.
RESET
Attach the Reset switch cable from
the front panel of the case to these
two pins. The system restarts when
the RESET switch is pressed.
Table 2.Front Panel Header Pins
Pin
Signal
HD_LED
1
HD_PWR
3
HD Active
PWRLED
2
PWR LED
4
STBY LED
RESET
5
Ground
7
RST BTN
PWRSW
6
PWR BTN
8
Ground
No Connect
9
+5V
Empty
10
Empty
