IWILL DPL533 User manual

Overview
Hard ware
Installation
BIOS Setup
BIOS Flash
Utility
Troubleshooting
DPL533
User’s Guide

The information in this document is subject to change without notice
IWILL makes no warranty of any kind with regard to this material, including,
but not limited to, the implied warranties of merchantability and fitness for a
particular purpose.
IWILL shall not be liable for errors contained herein or for incidental or
consequential damages in connection with the furnishing, performance, or use
of this material.
IWILL assumes no responsibility for the use or reliability of its software on
equipment that is not furnished by IWILL
This document contains proprietary information that is protected by copyright.
All rights are reserved. No part of this publication may be reproduced,
transcribed, stored in a retrieval system, translated into any language or
computer language, or transmitted in any form whatsoever without the prior
written consent of IWILL
Copyright2002 by IWILL Corp. All rights reserved.
IWILLTM is the trademark of IWILL Corp.
Other products and companies referred to herein the trademarks or registered
trademarks of their respective companies or mark holders.
Printed in Taiwan
Revision Version: 1.00
Release Date: September 2002

Contents
OVERVIEW…………………………………………………..I
UNPACKING............................................................................................ I
FEATURES HIGHLIGHT ........................................................................... II
ABOUT THIS USER GUIDE .....................................................................IIV
GETTING HELP...................................................................................... V
DPL533 MOTHERBOARD (PICTURE) ..................................................... VI
DPL533 MOTHERBOARD (LAYOUT).......................................................VII
CHAPTER 1:HARDWARE INSTALLATION………..…1-1
Step 1:Jumper Setting………………………………………………….1-2
Step 2:Install Memory ......................................................................1-3
Step 3:Install CPU............................................................................1-5
Step 4:Attach Cable to Connectors .................................................1-7
Step 5:Install Expansion Cards......................................................1-16
Step 6:Powering on Your Computer ..............................................1-17
CHAPTER 2:BIOS SETUP…………………………….….2-1
Section 1:Main Menu……………………………………………..…….2-5
Section 2:Advanced Menu.............................................................2-13
Section 3:Power Menu...................................................................2-19
Section 4:Boot Menu .....................................................................2-21
Section 5:Exit Menu.......................................................................2-24
CHAPTER 3:BIOS FLASH UPGRADE UTILITY……...3-1
INSTALLATION………………………………...………………….....…….3-1
EXECUTING PHOENIX PHLASH16.EXE PROGRAM………………..………3-2
CREATE THE RECOVERY DISKETTE .....................................................3-2
UPDATING THE RECOVERY DISKETTE ..................................................3-3

APPENDIX A: SYMPTOM CHECKING LIST……….A-1
APPENDIX B: SYMPTOM REPORT FORM…….…...A-3

i
Overview
Overview
Overview
Thank you for choosing the IWILLTM DPL533 high performance Workstation
motherboard. The DPL533 is a dual Socket-604 motherboard (M/B) based on
the ATX form factor. As the latest Intel North Bridge Placer (MCH) with South
Bridge ICH4: PCI-X Bridge P64H2 is built in the M/B, DPL533 fully supports
Intel®Xeon (Prestonia) socket-604 processor at 533 MHz FSB (Front Side
Bus) frequency. In memory support, DPL533 provides four sockets for the
system memory. Users just simply choose Unbuffered DDR DRAM Module as
the system memory and the total maximum memory size can be up to 8GB
(Unbuffered ECC DIMM Support). Flexibility and expandability are always
concerned by IWILLTM, DPL533 contains two PCI-X slots one PCI-64 slots
and two PCI-32 slots for numerous add-on cards and provides Peer PCI
transaction support to increase system performance.
Other features such as onboard Promise PDC20271 IDE RAID interface
(optional)  Broadcom 5702 Ethernet controller AGP 8X six USB 2.0
connectors  Hardware Monitor (PC87366) function and Wake-On-LAN
function will provides an optimal platform for performance workstation
environments.
Unpacking
Remove all items from the box and make sure you have these following items:
If you discover damaged or missing items, please contact your retailer.
Remove all items from the box and make sure you have these following items:
❒ One IWILL DPL533 motherboard
❒ One ATA /66 IDE ribbon cable
❒ One Floppy ribbon cable
❒ One CD containing user’s manual, drivers and utilities
❒ One Broadcom 5702 Ethernet Controller User’s Guide

ii Overview
Overview
Features Highlight
Processor  Support dual Intel®Xeon (Prestonia)
Socket-604 CPUs at 533 MHz Host Bus
Interface
 Integrated VRM complies to spec 9.1
Chipset  Chipset E7505
 North BridgePlacer (MCH)
 South BridgeICH4
 PCI-X BridgeP64H2
Memory
Support
 Four DIMM sockets and support up to 8GB
memory size Unbuffered DDR DRAM
Module Support Single and Dual Channel
(144-bits wide) DDR memory interface
 Unbuffered ECC DIMM support
Onboard IDE
RAID
(optional)
 Dual Promise PDC20271 IDERAID Channels
 Two Channels and up to four drives
 ATA133 Compatible
 RAID Level 0, 1, 10
Onboard
LAN
 Broadcom 5702 Gigabit Ethernet Controller
(32bit)
Onboard
Multi-I/O
 NS super I/O (PC87366)
 Two serial ports with UART 16550
 One parallel port with ECP/EPP support
 Dual onboard USB 2.0 connectors; Four
extendable USB 2.0 connectors
 PS/2 mouse and keyboard connectors with
Wake-up function

iii
Overview
Overview
System
BIOS
 Phoenix BIOS
 I2C support
 Legacy USB 2.0 support
 MP 1.1 & 1.4 compliant
 SMBIOS 2.3 compliant
 DMI 2.0 compliant
 Soft Power-down
System Bus  533/400 MHz Data Bus Frequency
 Dual Channel (144-bits wide) DDR memory
interface
System
Management
 IWILLTM CheckUpTM to alert the event of
hardware problem
 Prevent from abnormal system down/data
loss
 Alert on LAN ready
 Remote system controller ready
Expansion
Slots
 Two PCI-X slotsone PCI-32 slots and one
PCI-64 slot
 One AGP 8X slot
Floppy Drive  Supports 3.5” (1.44MB or 2.88MB) floppy
drive and Japanese standard “Floppy 3
mode” (3.5” disk drive: 1.44MB, 1.2MB,
720KB) and LS-120 floppy disk drives (3.5”
disk drive: 120 MB). BIOS supports IDE
CD-ROM boot-up.
Dimension  ATX form factor with size: 12” * 10”

iv Overview
Overview
About This User Guide
This manual explains how to build your system with DPL533 in detail. Please
follow the procedures of this User’s Manual carefully and pay special attention
to these icons.
IMPORTANT
This icon informs you for particularly important
details regarding the setup or maintenance of
your system. While we point out the most vital
paragraphs in a chapter, you should always
read every word carefully. Failing to do so can
cause exasperation.
WARNING
This icon alerted you for potential dangers
during setting up your system with DPL533.
These warnings should not be regarded as the
whole of your safety regimen. Never forget that
computer are electronic devices and are
capable of delivering a shock. Prevent damage
to yourself and to your board: always ensure
that your system is turned off and unplugged the
power cords whenever you are working with it,
and that you are equipped
NOTE
This icon alerted you for notice during setting up
your system. It provides you can useful alert
during setting up a new system.
TIP
This icon will show you how to configure your
system with DPL533 in an easy and simple
ways. This icon always provides some useful
description to help you configure your system.

v
Overview
Overview
Getting Help
If a problem arises with your system during installation or OS operating, you
should ask your dealer for help first as your system has most likely be
configured by them. They always have the best idea and quick response for
your symptoms. If your dealer is near to your locations, you should bring your
system to them to have it quickly serviced instead of attempting to solve the
problem by yourself. Besides these, IWILL also provides some helpful
resources to help you.
1. Select IWILL
TM ‘s website at www.iwill.net and navigate to this product
page which contain links to product updates such as Jumper settings or
BIOS updates.
2. Any driver issue please visit IWILL TM ‘s website ate www.iwill.net to
download the driver you need.
3. FAQ sections on IWILL Website are often helpful since other user’s
questions are often your own.
4. Email us at: [email protected] and we will try to answer your questions
within 24 hours. Before you email your symptom to [email protected],
please fill in the symptom report form (page A-5) in order to let our
engineers solve your problem quickly.

vi Overview
Overview
DPL533 Motherboard (Picture)
2 PCI-32
Slots
1 PCI-64
slot
2 PCI-64
Slots
Floppy
Connector
IDE Connectors
IDERAID
Connectors
A
GP 8X
CPU 1
CPU 2
Main Power Connecto
r
8 Pin Power Connector 4 DDR DIMM Sockets

vii
Overview
Overview
DPL533 Motherboard (Layout)
CN2
CN15
CN14
CN13
CN17
CN3
CN5
CN32 CN33
CPU1
CPU2
CN36
DDR A1 DDR B1 DDR A2 DDR B2
RAID1
RAID0
IDE0
ID E 1
CN30CN29CN28CN27
PCI32 -2
PCI32 -1
PCI66 -1
P C IX -2
P C IX -1
AGP

viii Overview
Overview
CPU FAN1
SYS FAN2
SYS FAN
Main Power Connector
8 pin Power
Connector
Chassis intrution
CPU1
CPU2
Power
Switch
DDR A1 DDR B1 DDR A2 DDR B2
RAID0
RAID1
IDE0
ID E 1
Clear CMOS
USB 2 & 3
USB 4 & 5
W ake-on-LAN
PCI32 -2
PCI32 -1
PCI66 -1
PC IX -2
PC IX -1
AGP
CPU FAN2
SYS FAN1
Chassis
intrution

Hardware Installation
Hardware Installation 1-1
Chapter 1
Hardware Installation
In this chapter, the installation of the DPL533 with the processor and other
hardware connected to your system will be explained in detail.
Installation Procedures
Installation procedures will be broken up into six major parts.
Step 1:Jumper setting
Step 2: Install memory (Unbuffered DDR DRAM Module)
Step 3: Install Intel Xeon CPU
Step 4: Attach cables to connectors
Step 5: Install expansion cards
Step 6: Power connection
Warning
This motherboard contains sensitive electronic components that can be
easily damaged by static electricity. Follow the instructions carefully to
ensure correct installation and to avoid static damage.

Hardware Installation
Hardware
Installation
1-2
Step 1.
Jumper Setting

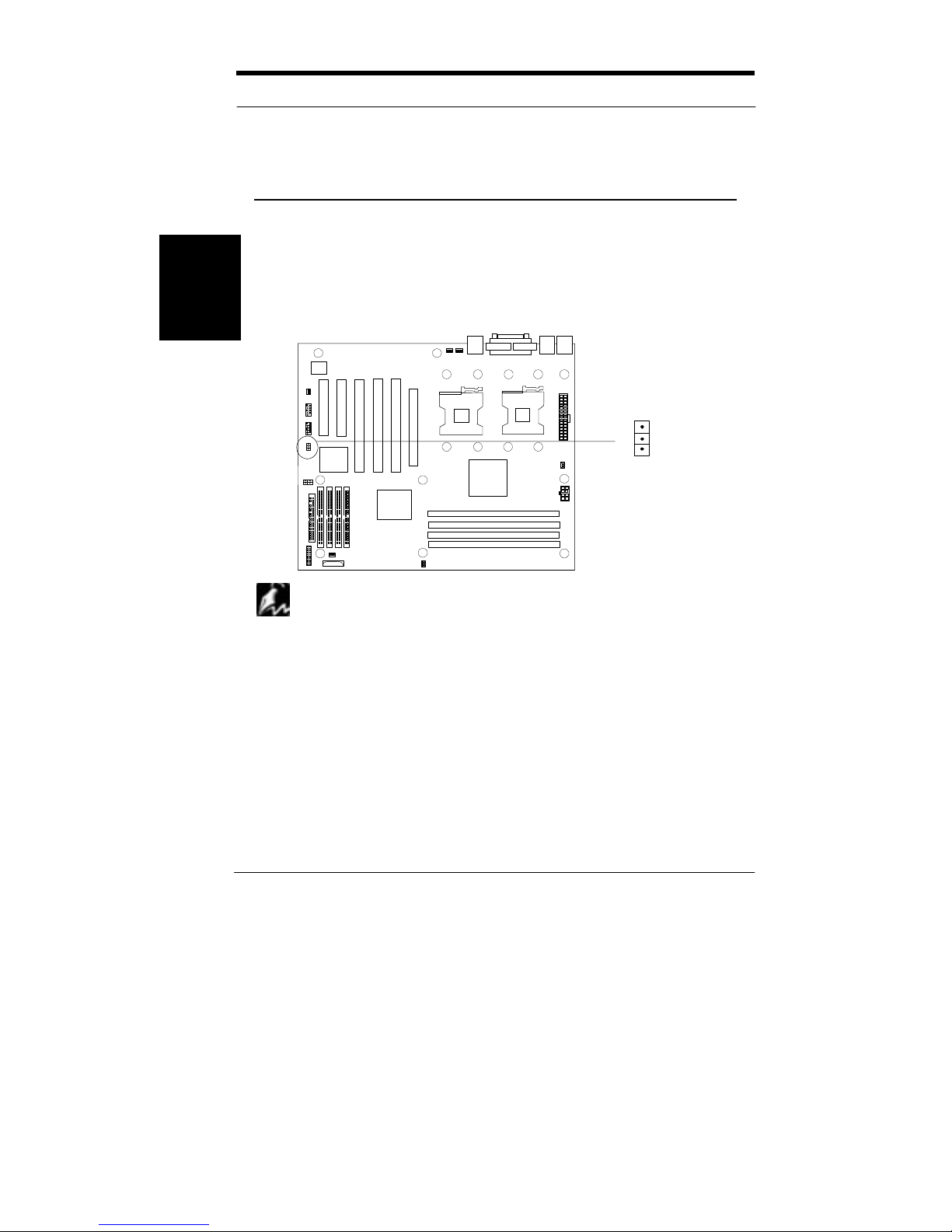

1. Clear Real Time Clock (RTC) RAM-CN30
The onboard button cell battery powers the CMOS RAM. It contains all the
BIOS setup information. Normally, it is necessary to keep the jumper
connected to pin2 and pin3 (Default) to retain the RTC data as shown below.
Note
Should you want to clear the RTC data:
(1) Power Down your computer
(2) Short pin1 and pin2 with jumper for few seconds
(3) Connect pin2 and pin3 with jumper again.
(4) Turn on your computer by pressing the power-on button from front-panel.
(5) Hold down <Delete> during boot-up and select <Load Setup Defaults>
option in the selection <Exit Saving Changes>. Then re-enter BIOS setup
to re-enter user preferences.
DDR-A1
DDR-B1
DDR-A2
DDR-B2
1¡ B2
1
2
3
2¡ B3
Clear CMOS
N
ormal

Hardware Installation
Hardware Installation 1-3
Step 2
Install Memory
DPL533 uses 184-pin Double Data Rate (DDR) Inline Memory Modules
(DIMM). Four DIMM sockets are available for Unbuffered DDR DRAM Module
with 128MB, 256MB, 512MB and 1GB combinations. And the total memory
size is between 128MB and 8GB.
IMPORTANT
 Unbuffered DDR DRAM Module support only. Unbuffered ECC
support
 No matter how many memory DIMM you want to plug in, You have to
insert one memory DIMM in #DDR-A1 DIMM socket while you install
the system at the first time that you want to use it; such as the
system will be able to boot up, otherwise, it can not work yet.
80 Pins 104 Pins

Hardware Installation
Hardware
Installation
1-4
Memory Installation Procedures
1. Locate the DIMM modules on the DPL533.
2. Make sure the DIMM module’s pins face down and match the socket’s size
as depicted below.
3. Insert the module down to the DIMM socket in with both hands and press
down firmly until the DIMM module is securely in place. (The tabs of the
socket will close-up to hold the DIMM in place when the DIMM touches the
socket’s bottom.
4. Repeat step1 to step 3 to add additional DIMM modules.
IMPORTANT
You have to insert one memory DIMM in #DDR-A1 DIMM socket while
you install the system at the first time that you want to use it; such as
the system will be able to boot up, otherwise, it can not work yet.
Y
ou have to insert one memory DIMM in #DDR-A1
DIMM socket while you install the system at the first
time that
y
ou want to use it.

Hardware Installation
Hardware Installation 1-5
Step 3
Install CPU
DPL533 uses dual Intel®Xeon (Prestonia) socket-604 processors at 533 MHz
FSB and support 2.5 GHz plus.
CPU Installation Procedures
1. Lift up the socket lever and carefully place the Xeon CPU with the correct
orientation as the figures are shown below
2. Mount the CPU heatsink with proper exproxy and secure it with the lock as
the figures are shown below.
3. Plug the 3-wire fan power core into the connector named CPU1 FAN
4. Repeat to install the other CPU

Hardware Installation
Hardware
Installation
1-6

Hardware Installation
Hardware Installation 1-7
Step 4.
Attach Cable to Connectors
This step explains where each connector is inserted on the DPL533. There will
be a DPL533 layout picture following each explanation indicating where the
connector is inserted. The motherboard connectors are:
CN2
CN15
CN14
CN13
CN17
CN3
CN5
CN32
CN33
CPU1
CPU2
CN36
DDR A1
DDR B1
DDR A2
DDR B2
RAID1 RAID0
IDE0
IDE1
CN30CN29CN28CN27
PCI32 -2 PCI32 -1 PCI66 -1
PCIX -2 PCIX -1
AGP

Hardware Installation
Hardware
Installation
1-8
Item Connectors Page
1 ATX Power Supply 1-9
2 Floppy Disk Drive Connector 1-9
3 Primary IDE Connectors 1-10
4 Promise PDC 20271 IDERAID Controllers (optional) 1-11
5 Reset Switch Header 1-12
6 Hard Disk Activity LED Header 1-12
7 Speaker Header 1-12
8 System Power LED Header 1-12
9 CPU and Aux Fan Connectors 1-12
10 Onboard Broadcom 5702 Ethernet Controller 1-12
11 PS/2 Mouse Port 1-13
12 PS/2 Keyboard Port 1-14
13 Universal Serial BUS Ports 1-14
14 Parallel Printer Port 1-14
15 Serial Port (COM1/ 2) 1-15
16 Wake-On-LAN function 1-15
