EVGA Z97 FTW User manual

- 1 -
User Guide
EVGA Z97 FTW
Specs and Initial Installation
(Part 1)

- 2 -
Table of Contents
Before you Begin……………………………………………………………………..…………3
Parts Not in the kit………………………………………………………………………….…..4
Intentions of the kit…………………………………………………………………..…………4
Motherboard Spe ifi ations ...................................................................................................................... 5-6
Unpa king and Parts Des riptions ............................................................................................................... 7
Equipment ....................................................................................................................................................... 7
Hardware Installation ..................................................................................................................................... 8
Component legend ...…………………………………………………….………..…..................8
PCI-E Slot Breakdown ...…………………………………………...................................................9
Rear I/O Panel legend ...…………………………………………..................................................10
Preparing the Motherboard .........................................................................................................................11
Installing the CPU ................................................................................................................................... 11-12
Installing the Cooling Devi e ......................................................................................................................12
Installing System Memory (DIMMs) .........................................................................................................13
Complian e Information ..............................................................................................................................14

- 3 -
Before You Begin…
Wel ome to a new lass of high performan e motherboards that boast 4
th
and 5
th
Generation Intel® Core™ Pro essor ompatibility. The Z97 platform takes you to a
new level of performan e and effi ien y. We have refined the GUI BIOS interfa e,
reimagined power VRM that fo uses on effi ien y, added M.2 support and loaded with
features like 2-Way-SLI, Intel Gigabit LAN, native SATA 6G/USB 3.0 and more. All
sitting on a 6 layer PCB to improve performan e and effi ien y.
Did we also mention that this motherboard is designed for the over lo ker? Built from
the ground up to give you all the essentials that you need for over lo king, with a GUI
BIOS that is fo used on fun tionality, ultra high quality omponents and robust PCI-E
3.0 and memory tra e layout.
With these features and more, it is lear that the EVGA Z97 motherboards are
engineered to ex eed the best.

- 4 -
Parts NOT in the Kit
This kit ontains all the hardware ne essary to install and onne t your new
EVGA Z97 FTW Motherboard. However, it does NOT ontain the following
items that must be pur hased separately in order to make the system fully
fun tional and install an Operating System:
 Intel Socket 1150 Processor
 DDR3 System Memory
 CPU Cooling Device
 PCI Express Gr phics C rd
 Power Supply
 H rd Drive or SSD
 Keybo rd / Mouse
 Monitor
 (Option l) Optic l Drive
EVGA assumes you have pur hased all the ne essary parts needed to allow for
proper system fun tionality. For a full list of supported CPUs on this
motherboard, please visit www.evga. om/support/motherboard
Intentions of the Kit
This kit provides you with the motherboard and all onne ting ables ne essary
to install the motherboard into a PC ase.
When repla ing a motherboard in a PC ase, you will need to reinstall an
operating system even though the urrent storage drive may already have one
installed.

- 5 -
EVGA Z97
Motherboard
Motherboard Specifications
 Size:
ATX form fa tor of 12 in hes x 9.6 in hes
 Microprocessor support:
Intel So ket 1150 Pro essor
 Oper ting Systems:
Supports Windows 8 / 7
 Cont ins Intel Z97 chipset
 System Memory support:
Supports Dual hannel DDR3 up to 2666MHz+.
Offi ially supports up to 32GB of DDR3 memory.
 USB 2.0 Ports:
6x from Intel Z97 PCH – 4x external, 2x internal
Supports hot plug
Supports wake-up from S1 and S3 mode
Supports USB 2.0 proto ol up to a 480 Mbps transmission rate
 USB 3.0 Ports:
6x from Intel Z97 PCH – 4x external, 2x internal
Supports transfer speeds up to 5Gbps
Ba kwards ompatible USB 2.0 and USB 1.1 support
 SATA Ports:
Intel Z97 PCH Controller
6x SATA 3 Ports up to 6G (600 MB/s) data transfer rate
- Support for RAID 0, RAID 1, RAID 0+1, RAID 5, AND RAID 10

- 6 -
- Supports hot plug
2x SATA3/6G Marvell 88E9182
 Onbo rd LAN:
1x Intel i217 Gigabit PHY
Supports 10/100/1000 Mb/se Ethernet
 Onbo rd Audio:
Realtek Audio (ALC898)
Supports 8- hannel (7.1) audio
Supports Ja k-Sensing fun tion
Supports Opti al Output
 PCI-E 3.0 Support:
Low power onsumption and power management features
 Power Functions:
Supports ACPI (Advan ed Configuration and Power Interfa e)
Supports S0 (normal), S1 (power on suspend), S3 (suspend to RAM), S4
(Suspend to disk - depends on OS), and S5 (soft - off)
 Exp nsion Slots:
4x PCI-E 16x slot 1x16/8, 1x8/4, 1x4, 1x1
1x PCI-E 1x slot
1x M.2 slot
 1x Displ y Port (Full size)
 1x HDMI Port (Full Size)

- 7 -
Unpacking and
Parts Descriptions
Equipment
The following a essories are in luded with the EVGA Z97 FTW
Motherboard:
The EVGA Z97 FTW Motherboard
This PCI-E motherboard contains the Intel Z97 chipset.
I/O Shield
Installs in the system case to block radio frequency
transmissions protect internal components from dust foreign
objects and aids in proper airflow within the chassis.
4 x SATA 3G/6G Data ables
Used to support the SATA protocol and each one connects a
single drive to the motherboard.
I/O over
This optional cover attaches to the PCB and covers the I/O
area
Installation D
Contains drivers and software needed to setup the
motherboard.
User Manual
The user manual you are reading right now!

- 8 -
Intel Z97 FTW Motherboard
The EVGA Z97 FTW Motherboard with the Intel Z97 and PCH Chipset. Figure 1
shows the motherboard and Figure 2 shows the ba k panel onne tors
FIGURE 1. Z97 FTW Motherbo rd L yout

- 9 -
1. CPU Socket 1150 13. USB 2.0 Headers 25. M.2 Slot
2. Intel Z97 South ridge 14. USB 3.0 Headers 26. Front Panel Audio Connector
3. CPU Fan Headers (1 amp PWM) 15. CMOS Battery 27. EVGauge
4. DDR3 Memory DIMM Slots 1-4 16. CMOS Reset Button 28. Back Panel Connectors (Figure 2)
5. 24-pin ATX power connector 17. Power Button 29. 8 pin EPS Connector
6. Fan Headers (1 amp DC) 18. Reset Button 30. Supplemental PCI-E 6pin Power
7. PCI-E Disa le Dipswitches 19. PC Speaker 31. Pro e It Header
8. Intel Sata 6G/3G Ports 20. PCI-E Slot 16x/8x 32. BIOS Selector Switch
9. Marvell Sata 6G Ports 21. PCI-E Slot 8x/4x 33. Remova le BIOS Chip
10. S/PDIF Out 22. PCI-E Slot 4x (16x physical) 34. De ug Jumper
11. Front Panel Connectors 23. PCI-E Slot 1x (16x physical)
12. De ug LED / CPU Temp Monitor
24. PCI-E Slot 1x
PCI-E Lane Distribution
 PE1 – x16 (x8 if PE2 is used)
 PE2 – x8 (x4 if PE3 is used)
 PE3 – x4
 PE4 – x1
 PE5 – x1 (x16 Physi al)

- 10 -
Figure 2. Ch ssis Re r P nel Connectors
1. USB 2.0 4. NIC Port (Intel i217) 7. Optical Out
2. USB 3.0 5. Display Port 8. Analog Audio Output Jacks
3. BIOS/CMOS Reset 6. HDMI
Analog Audio Port Breakdown
2/2.1
(Channel) (4.0/4.1 Channel)
5.1 (6 Channel) 7.1 (8 Channel)
Blue Line in Line In Line in Side channel
Green Line Out/
Speaker Out
Front Speaker/
Speaker+Su Out
Front Speaker/
Speaker+Su Out
Front Speaker/
Speaker+Su Out
Pink Mic In Mic In Mic In Mic In
Black
Rear Speaker Out Rear Speaker Out Rear Speaker Out
Orange
Center/Voice
channel
Center/Voice
channel
Only used in 7.1 and is changed via Realtek Software from within Windows.

- 11 -
Preparing the Motherboard
Installing the CPU
Be very areful when handling the CPU. Hold the pro essor
only by the edges and do not tou h the bottom of the
pro essor.
Note: Use extreme caution when working with the CPU,
not to damage any pins in the CPU socket on the
motherboard!

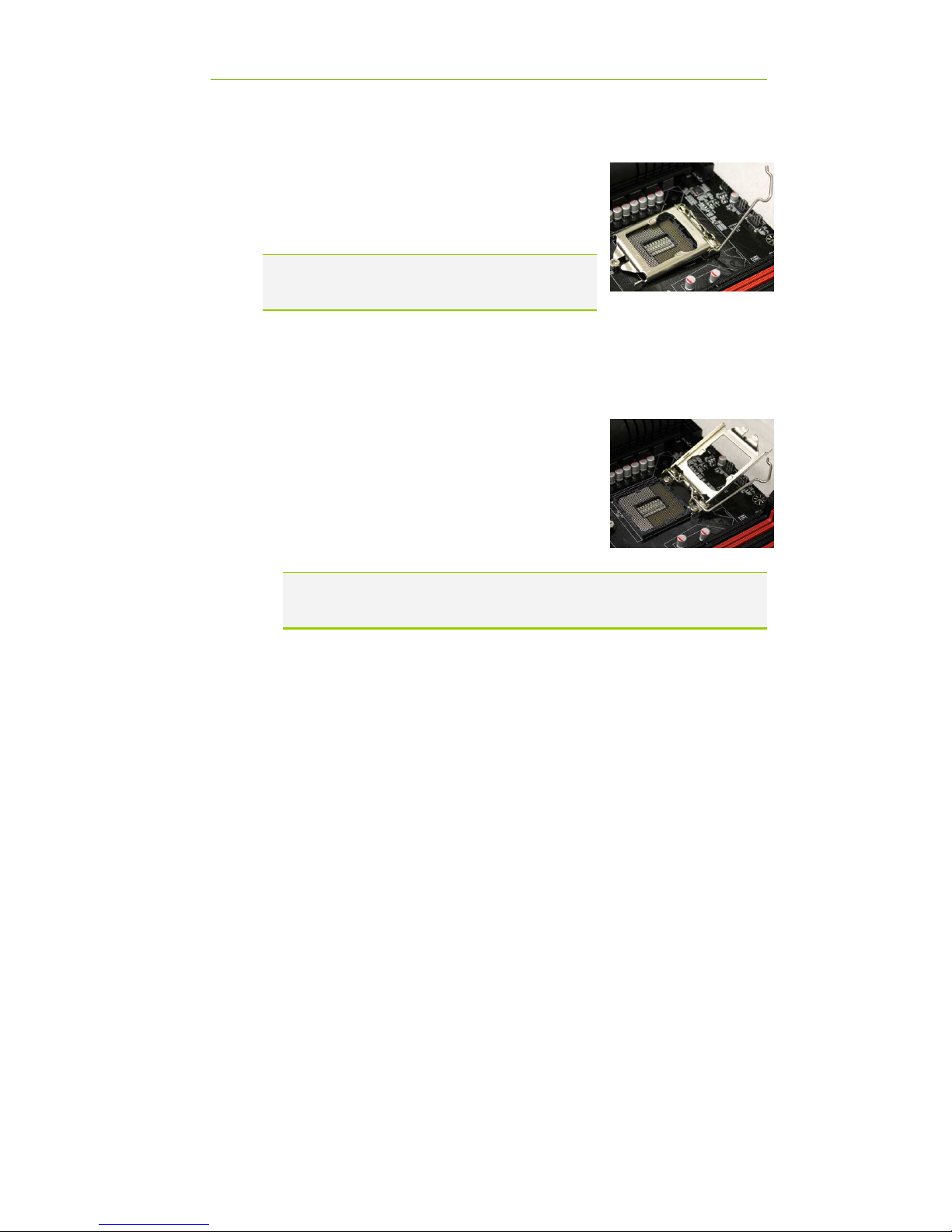

Use the following pro edure to install the CPU onto the motherboard:
 Remove the plasti prote tive so ket over by pulling it straight up. Be sure not
to damage any of the pins inside the so ket.
 Unhook the so ket lever by pushing down and away
from the so ket.
 Pull the so ket lever ba k and the load plate will lift.
 Open the load plate and make sure not to damage
any of the pins inside the so ket.
Note: After removing the CPU socket cover, it is recommended to store it in
case you ever need to transport your motherboard. If you ever remove the
CPU, it is highly recommended to reinstall the socket cover.

- 12 -

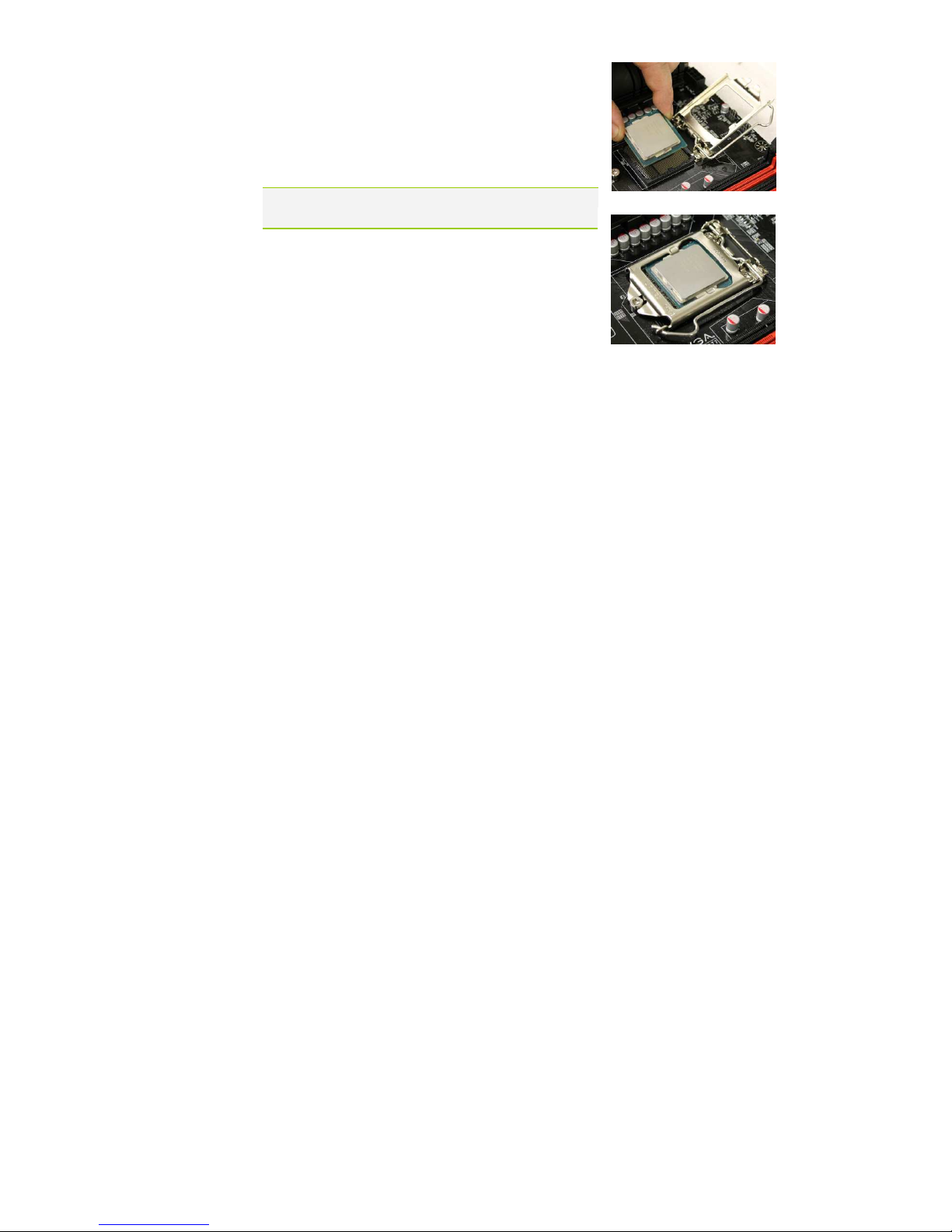

 Align the not hes on the CPU to the not hes in the
so ket.
 Lower the pro essor straight down into the so ket.
Note: Make sure the CPU is fully seated and level in
the socket.
 Lower the load plate so it is resting on the CPU.
 Carefully lo k the lever ba k into pla e.
Installing the CPU Cooling Device
There are many different ooling devi es that an be used with this
motherboard. Follow the instru tions that ome with your ooling assembly.

- 13 -
Installing System Memory (DIMMs)
Your Z97 FTW has (4) 240-pin slots for DDR3 memory. These slots support
2GB, 4GB and 8GB DDR3 DIMMs. There must be at least one memory slot
populated to ensure normal operation.
The Intel Z97 hipset supports dual hannel memory; supports
a maximum of 32GB of DDR3 and up to 2666MHz+ in dual
hannel onfiguration. It is required to populate slot 1 first. The
board will not boot if slot 1 is not populated.

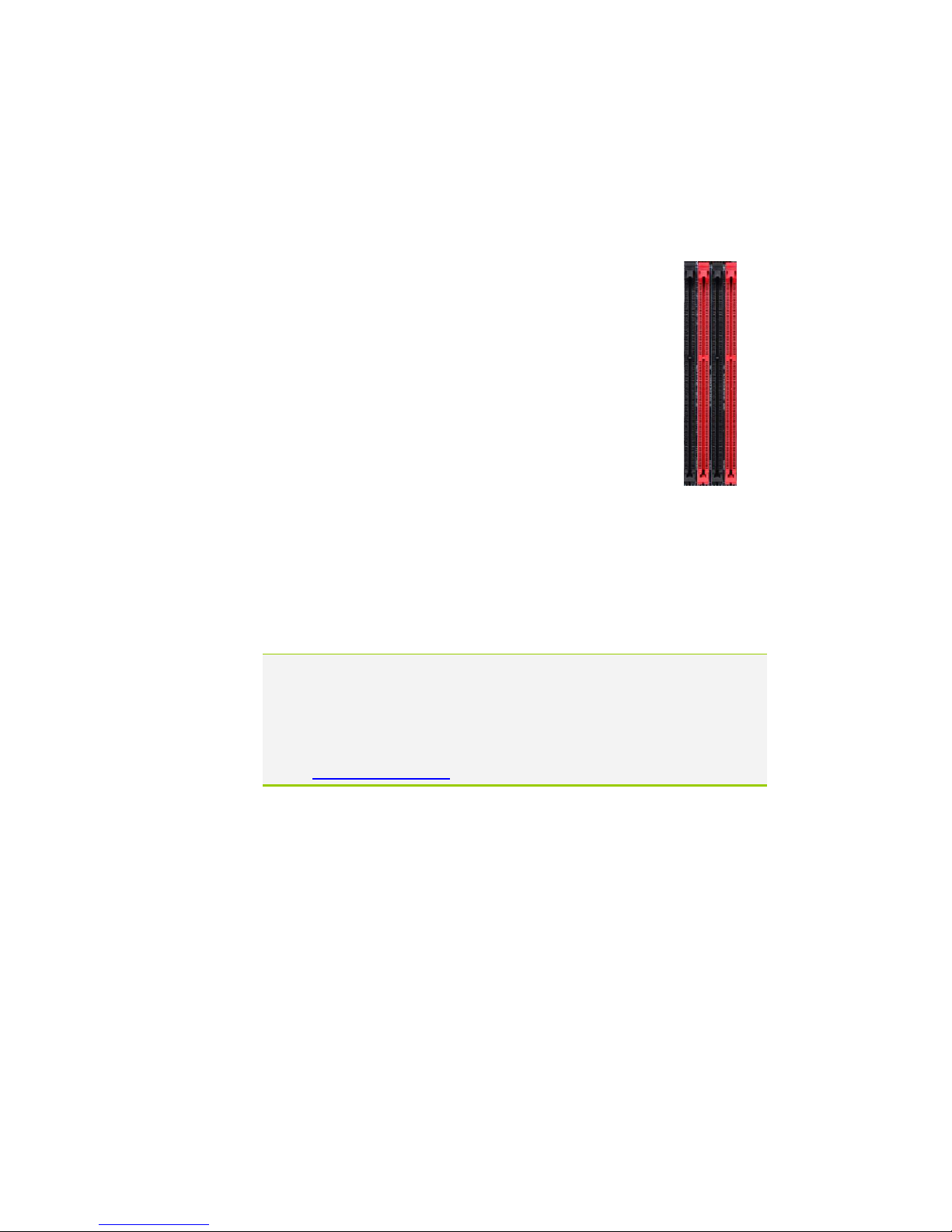

Use the following pro edure to install DIMMs. Note that there
is only one gap near the enter of the DIMM slots. This slot
mat hes the slot on the DIMM to ensure the omponent is
installed properly.
 Unlo k a DIMM slot by pressing the module lips on both sides
outward.
 Align the memory module to the DIMM slot, and insert the module
verti ally into the DIMM slot, pressing straight down to seat the
module. The plasti lips at top side of the DIMM slot automati ally
lo k the DIMM into the onne tor.
Note: The memory controller on most Haswell and Broadwell CPUs runs at a
default frequency of 1600MHz. To achieve memory speeds above 1600+
may require manual setting of the memory timings, frequency and voltages
and/or overclocking of the CPU.
Refer to the memory manufacturer specifications for the recommended
memory timings. For overclocking support you can visit our forums:
http://forums.evga.com/

- 14 -
Compliance Information
FCC Compliance Information
This device complies with FCC Rules Part 15. Operation is subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with the manufacturer’s instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
(1) Increase the separation between the equipment and signal source, or (2) connect the equipment to an outlet on a
circuit different from that to which the signal source is connected. Consult the dealer or an experienced computer
technician for help. The use of shielded cables for connection of peripheral devices to the PC systems is required to
ensure compliance with FCC regulations. Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
CE Compliance Information
Generic Radiation Interference Standard for Information Technology Equipment. (EN 55022: 2006, Class B), (EN 61000-
3-2: 2006), (EN 61000-3-3: 1995 + A1: 2001 + A2: 2005). Warning: This is a Class B product. In a domestic environment
this product may cause radio interference in which case the user may be required to take adequate measure. Generic
Immunity Standard for Information Technology Equipment. (EN 55024: 1998 + A1: 2001 + A2: 2003).
Trademark & Copyright Information
2001-2014 EVGA Corp. EVGA, the EVGA logo and combinations thereof are trademarks of EVGA Corp. All brand names,
company names, service marks, logos, and trademarks of the company, or its affiliates or licensors are trademarks or
registered trademarks of the company or its subsidiaries, affiliates or licensors in the US and other countries. Other
company, products and service names may be trademarks or service marks of others. EVGA reserves the right to
terminate this license if there is a violation of its terms or default by the Original Purchaser. Upon termination, for any
reason, all copies of Software and materials must be immediately returned to EVGA and the Original Purchaser shall be
liable to EVGA.com CORP for any and all damages suffered as a result of the violation or default.
Legal Information
All material including but not limited to, text, data, design specifications, diagnostics, graphics, logos, reference boards,
files, images, drawings, and software including this document and the software itself (together and separately) is owned,
controlled by, licensed to, or used with permission by EVGA Corporation and is protected by copyright, trademark, and
other intellectual property rights. All is being provided “as is”, EVGA Corporation makes no warranties, whether express
or implied, statutory or otherwise with respect to the materials and expressly disclaims all implied warranties of non-
infringement, merchantability, and fitness for a particular purpose. In no event shall the liability of EVGA Corporation for
claims arising from the use of the materials by anyone exceed the original purchase price of the materials (or replacement
of the materials at EVGA Corporation’s option). All information furnished is believed to be accurate and reliable. However,
EVGA Corporation assumes no responsibility for the consequences of use of such information or for any infringement of
patents or other rights of third parties that may result from its use, or use of the Software. No license is granted by
implication or otherwise under any patent or patent rights of EVGA Corporation except as expressly provided herein. All
specifications mentioned in this publication are subject to change without notice.
Ver. 2
