Evikon PluraSens E2648-VOC User manual

PluraSens®
Solvent Vapor Detector-Transmitter
E2648-VOC
User Manual

E2648-VOC Rev 11.05.2021
Table of contents
Acetone 4
Benzene 5
Ethanol 6
Ethyl acetate 7
Toluene 8
Xylene 9
Specifications 10
Product description 12
Safety requirements 12
Operating conditions 13
Installation guidelines 13
Mounting dimensions 14
Sensor probe handling 15
Electrical connections 16
Operation 19
Maintenance 19
Calibration 19
Delivery set 20
Order code for E2648-VOC options 20
Configuring 21
Return to default settings 21
Modbus RTU Communication 22
RS485 communication interface 22
Communication parameters 22
Modbus holding registers 22
2

E2648-VOC Rev 11.05.2021
Warranty 27
Manufacturer contacts 27
3

E2648-VOC Rev 11.05.2021
Acetone
A colorless organic solvent with a characteristic pungent odor that is volatile and
flammable with the chemical formula (CH3)2CO.
Synonyms/Trade Names: Dimethyl ketone, Ketone propane, 2-Propanone.
Chemical formula
(CH3)2CO
Molar weight
58
Relative gas density (to air)
2.0
Conversion*
1 ppm = 2.38 mg/m3
Boiling point
56.11 °C
Low explosive limit (LEL), % vol. in air
2.5
Upper explosive limit (UEL), % vol. in air
12.8
Odor
Characteristic pungent smell
Hazards
Highly flammable.
Slightly toxic in normal use. Irritant causing mild skin
irritation and moderate to severe eye irritation. At high
vapor concentrations, it may depress the CNS.
Exposure limits
8 hours
(2000/39/EC)
1900 mg/m3/ 500 ppm
NIOSH REL TWA
590 mg/m3/250 ppm
IDLH (NIOSH)
2500 ppm [10%LEL]
4

E2648-VOC Rev 11.05.2021
Benzene
A colorless liquid with an aromatic odor that is highly flammable with the molecular
formula C6H6.
Synonyms/Trade Names: Benzol, Phenyl hydride.
Chemical formula
C6H6
Molar weight
78
Relative gas density (to air)
2.69
Conversion*
1 ppm = 3.19 mg/m3
Boiling point
80 °C
Low explosive limit (LEL), % vol. in air
1.2
Upper explosive limit (UEL), % vol. in air
7.8
Odor
Hyacinth-like odor
Hazards
Highly flammable.
Irritant. Carcinogen.
May cause dizziness; headache, nausea, staggering
gait; anorexia, lassitude.
Target organs: eyes, skin, respiratory system, blood,
central nervous system, bone marrow.
Exposure limits
(NIOSH REL)
Ca TWA
0.319 mg/m3/0.1 ppm
STEL
15 minutes
1 ppm
Ca IDLH
500 ppm
5

E2648-VOC Rev 11.05.2021
Ethanol
A clear colorless liquid with a faintly sweet odor and pungent taste.
Synonyms/Trade Names: ethyl, alcohol.
Chemical formula
CH3CH2OH
Molar weight
46
Relative gas density (to air)
1,59
Conversion*
1 ppm = 1.89 mg/m3
Boiling point
78.37°C
Low explosive limit (LEL), % vol. in air
3 - 3.3
Upper explosive limit (UEL), % vol. in air
19
Odor
The characteristic smell of alcohol
Hazards
Highly flammable.
Gas/air mixtures are explosive.
Inhalation of vapors leads to cough, headache, fatigue,
and drowsiness. High concentrations may damage the
fetus. Repeated high exposure may affect the liver and
the nervous system.
Exposure limits
according to
Commission
Directive 2006/15/EC
TWA
8 hours
1210 mg/m3/ 1000 ppm
STEL
15 minutes
-
6

E2648-VOC Rev 11.05.2021
Ethyl acetate
A colorless organic compound with a sweet pear-like smell that is highly flammable.
Synonyms/Trade Names: ethyl ester, acetic ester, EA, EtOAc.
Chemical formula
C4H8O2
Molar weight
88
Conversion*
1 ppm = 3.60 mg/m3
Boiling point
77.1 °C
Low explosive limit (LEL), % vol.
in air
2
Upper explosive limit (UEL), %
vol. in air
11.5
Odor
Sweet “pear” smell
Hazards
Flammable.
Short-term exposure to high levels of ethyl acetate results first in
irritation of the eyes, nose, and throat, followed by headache,
nausea, vomiting, sleepiness, and unconsciousness.
Exposure limits
(NIOSH)
TWA
8 hours
1400 mg/m3/400 ppm
IDLH
2000 ppm [10%LEL]
7

E2648-VOC Rev 11.05.2021
Toluene
A clear, colorless liquid with a sweet smell that is highly flammable.
Synonyms/Trade Names: methylbenzene, phenylmethane.
Chemical formula
C6H5CH3
Molar weight
92
Conversion*
1 ppm = 3.77 mg/m3
Boiling point
110.7°C
Low explosive limit (LEL), % vol.
in air
1.1 - 1.27
Upper explosive limit (UEL), %
vol. in air
6.75–7.1
Odor
Characteristic “chemical” smell
Hazards
Highly flammable.
Gas/air mixtures are explosive.
Inhalation possible effects: irritation eyes, nose; lassitude
(weakness, exhaustion), confusion, euphoria, dizziness,
headache; dilated pupils, lacrimation (discharge of tears); anxiety,
muscle fatigue, insomnia; paraesthesia; dermatitis; liver, kidney
damage
Exposure limits
according to
Commission
Directive
2006/15/EC
TWA
192 mg/mm3/ 50 ppm
STEL
384 mg/mm3/ 100 ppm
8

E2648-VOC Rev 11.05.2021

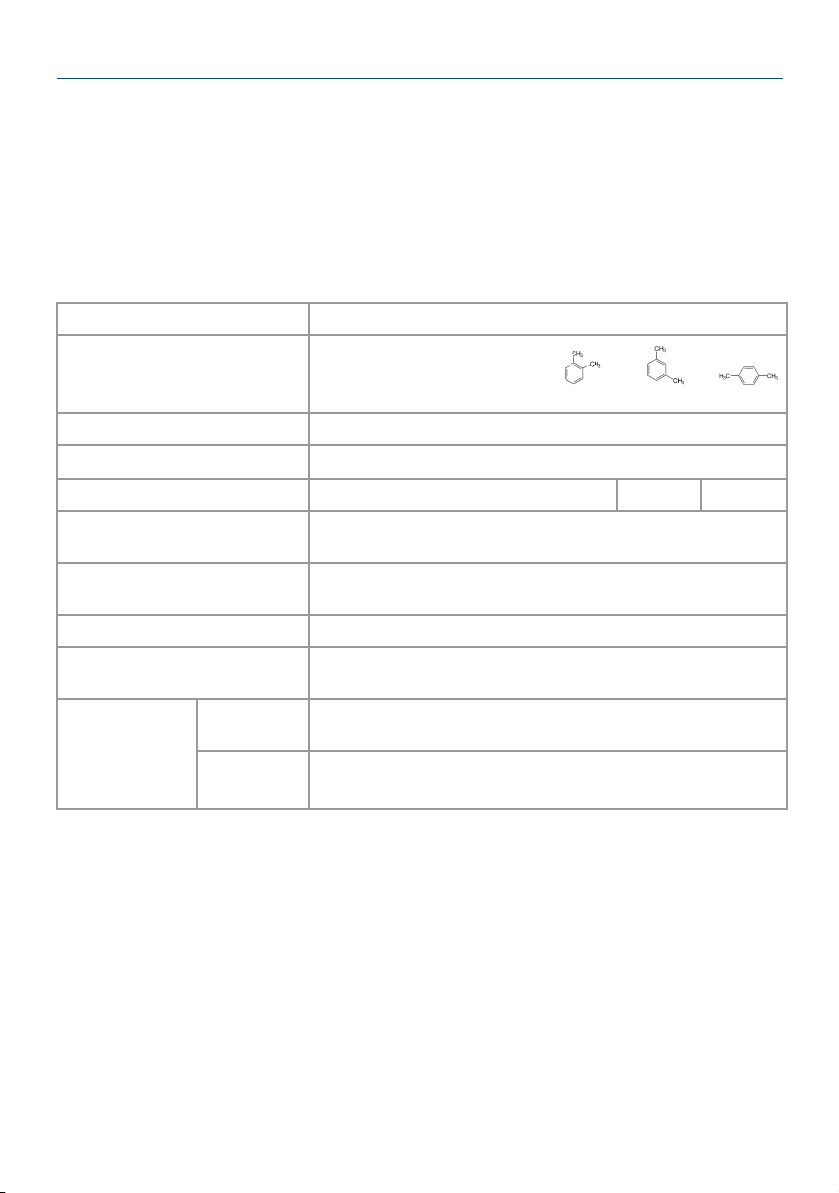

Xylene
A colorless, flammable liquid with a chemical smell. Xylenes are produced by the
methylation of toluene and benzene.
The term is used for any of three isomers of dimethylbenzene, or a combination thereof.
Synonyms/Trade Names: xylol, dimethylbenzene.
Chemical formula
C6H4(CH3)2
Isomers
ortho-xylene meta-xylene para-xylene
Molar weight
106
Conversion*
1 ppm = 4.34 mg/m3
Boiling point
144.4 °C
139 °C
138.35 °C
Low explosive limit (LEL), % vol.
in air
0.9 - 1.1
Upper explosive limit (UEL), % vol.
in air
6.0–7.0
Odor
Characteristic “chemical” smell
Hazards
Flammable.
Inhaling can cause dizziness, headache, drowsiness, and nausea.
Exposure limits
according to
Commission
Directive
2000/39/EC
TWA
8 hours
221 mg/mm3/ 50 ppm
STEL
15 minutes
442 mg/mm3/ 100 ppm
Conversion of ppm to mg/m3is calculated for 25°C and 1 atm.
9

E2648-VOC Rev 11.05.2021
Specifications
Sampling method
Diffusion
Sensor type
Metal oxide semiconductor
Default calibration
Toluene
Typical detection range
0...100% LEL
Up to 0...1000 ppm
Resolution / digital unit
0.1% LEL
1 ppm
Response time T90
< 120 s
Sensor lifetime
> 5 years
Calibration interval
12 months
Signal update
Every 1 second
Load resistance
RL< (Us - 2 V) / 22 mA for 4-20 mA
RL> 250 kOhm for 0-10 V mode
Digital interface
RS485, Modbus RTU protocol
No galvanic isolation
Cable connections
Screwless spring-loaded terminal
Power supply
11...30 VDC,
24 VAC or 90...265 VAC as options
Power consumption
< 2 VA
Analog outputs
2 × 4-20 mA / 0-10 V, user settable
Outputs assignment
OUT1 2 gas; OUT2 2 gas
Outputs scale width
> 10 × resolution
Recommended: 20-100% of the detection range
Enclosure
Die-cast aluminum, wall mount, protection class IP66
Dimensions
H120 × W125 × D57 mm
CE marking
According to 2014/30/EU and 2014/35/EU, EN 50491-4-1:2012
EN 61000-6-3:2020, EN 61326-1:2013(EMC, emissions)
EN 61000-6-1:2019, EN 61000-6-2:2019(EMC, Immunity)
EN 60079-29-1:2016, EN 60079-29-2:2015 and EN 60079-29-3:2014
Operating conditions
-40...+70 °C; <95% RH non-condensing, 0,9...1,1 atm
Explosion-safe areas
Normal ambient oxygen level
Avoid exposure to corrosive gases or silicone-containing products
10

E2648-VOC Rev 11.05.2021
Relay option
Output relays
2 × SPST relays (closing contact),
250 VAC / 30 VDC, 5 A max
Alarm setpoints
(set/release)
RE1 (LOW): 20/16 % LEL;
RE2 (HIGH): 50/40% LEL
RE1 (LOW): 100/80 ppm;
RE2 (HIGH): 300/240 ppm
(for 0...500 ppm range)
Other options
Remote probe
Protection IP65, default cable length 3.0 m;
max height 80 mm, max diameter 65 mm
11

E2648-VOC Rev 11.05.2021
Product description
E2648 series heavy duty detectors-transmitters belong to the PluraSens® family of
multifunctional measurement instruments. The instruments utilize gas sensors of various
types with excellent repeatability, stability, and long lifetime. Due to its IP66 enclosure of
die-cast aluminum, the device may be used under harsh conditions.
E2648 series provides two independent analog outputs OUT1 and OUT2, user-selectable to
4-20 mA or 0-10 V, proportional to gas concentrations. RS485 Modbus RTU digital
communication interface allows easy instrument configuration and integration into various
automation systems.
The following features are available as an option:
●Two relays RE1 and RE2 with closing contacts. Relay outputs can be used to
switch alarm sirens, ventilation fans, shut-off valves, or other actuators,
●24 VAC or 230 VAC as options for power supply module,
●Remote probe.
The version of your detector is marked on the package. If the symbol ⚠ is marked on the
equipment, consult the documentation for further information.
Safety requirements
Misuse will impair the protection of the product. Always adhere to the safety provisions
applicable in the country of use.
Do not perform any maintenance operation with the power on. Do not let water or foreign
objects inside the device.
Removal of the PCB from the enclosure voids the warranty. Do not touch the electronic
components directly, as they are sensitive to static electricity.
Connection diagrams can be found in the electrical connections section. The device might
not perform correctly or be damaged if the wrong power supply is connected.
External circuits connected to the equipment should have sufficient insulation rating
according to the environmental conditions and equipment power.
A disconnecting device that is marked as such and easily accessible should be included in
the installation of this product.
12

E2648-VOC Rev 11.05.2021
Operating conditions
The device should be used both in a non-hazardous area and in a basic electromagnetic
environment, where the latter is defined in EN 61326-1. Avoid strong mechanical shock and
vibrations. Avoid corrosive atmosphere and areas highly contaminated with dust, oil mist,
etc. Keep the instrument away from direct sunlight. A sudden temperature or humidity
change might affect the sensitivity of the sensor.
Installation guidelines
Before proceeding with the installation it is mandatory to read the Safety requirements
section and make sure to comply with all listed instructions. Installation standards EN
60079-29-2 and EN 45544-4 are also recommended for further instructions and related
information about the installation. During the installation of the transmitter the following
points must be considered:
●Application (the instrument is intended for leakage control.)
●Properties of the space under investigation (room geometry, direction, and
velocity of airflows, etc.),
●Solvent vapors are heavier than air, so the gas detector-transmitter should be
placed near the floor or potential leakage or formation source.
●The device should be accessible for maintenance and repair.
The aforementioned conditions above will affect the coverage area of the device. however,
the coverage area for a transmitter is usually between 2.5 to 5 meters radius.
For early leakage detection install the sensor as close as possible to the potential leakage
sources (flanges, valves, pressure reducers, pumps, etc.), taking into consideration other
points listed above.
Do not locate the detector close to ventilation openings and strong air currents. Avoid the
areas without air circulation (corners, niches) as well.
For general area monitoring without definite leakage sources, the detectors should be
distributed evenly in the room.
For personal safety control, the detectors are installed in the breathing zone (at the height
of the head of people or animals). The recommended sensor position is vertical, pointing
downwards.
Unscrew four lid screws and detach the lid from the transmitter. Attach the device to a wall
with screws passing through mounting holes. The device is fixed on the wall using two
holes located outside the sealed area of the device.
13

E2648-VOC Rev 11.05.2021

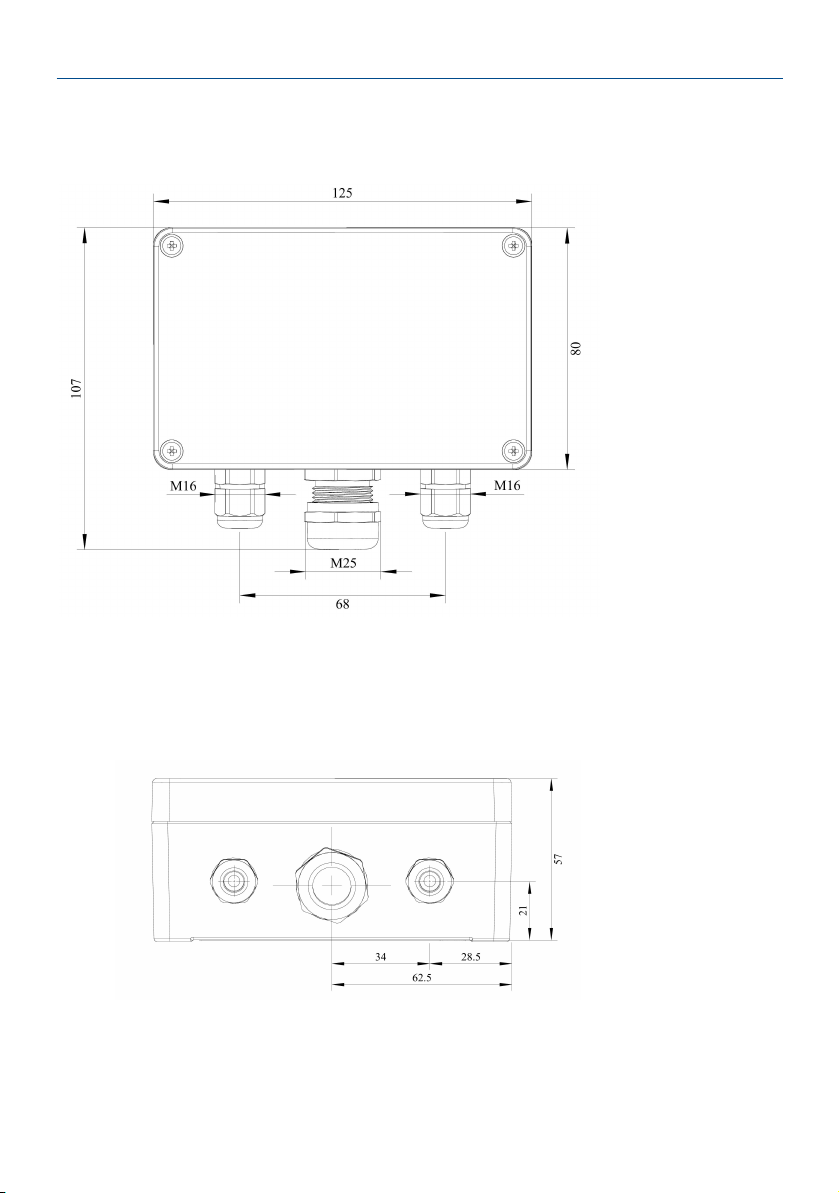

Mounting dimensions
Front view
Bottom view
14

E2648-VOC Rev 11.05.2021
Sensor probe handling
The E2648 series devices are available with a remote probe. The remote probe is
connected to the main unit with a shielded cable. The default remote probe cable length is
3 m.

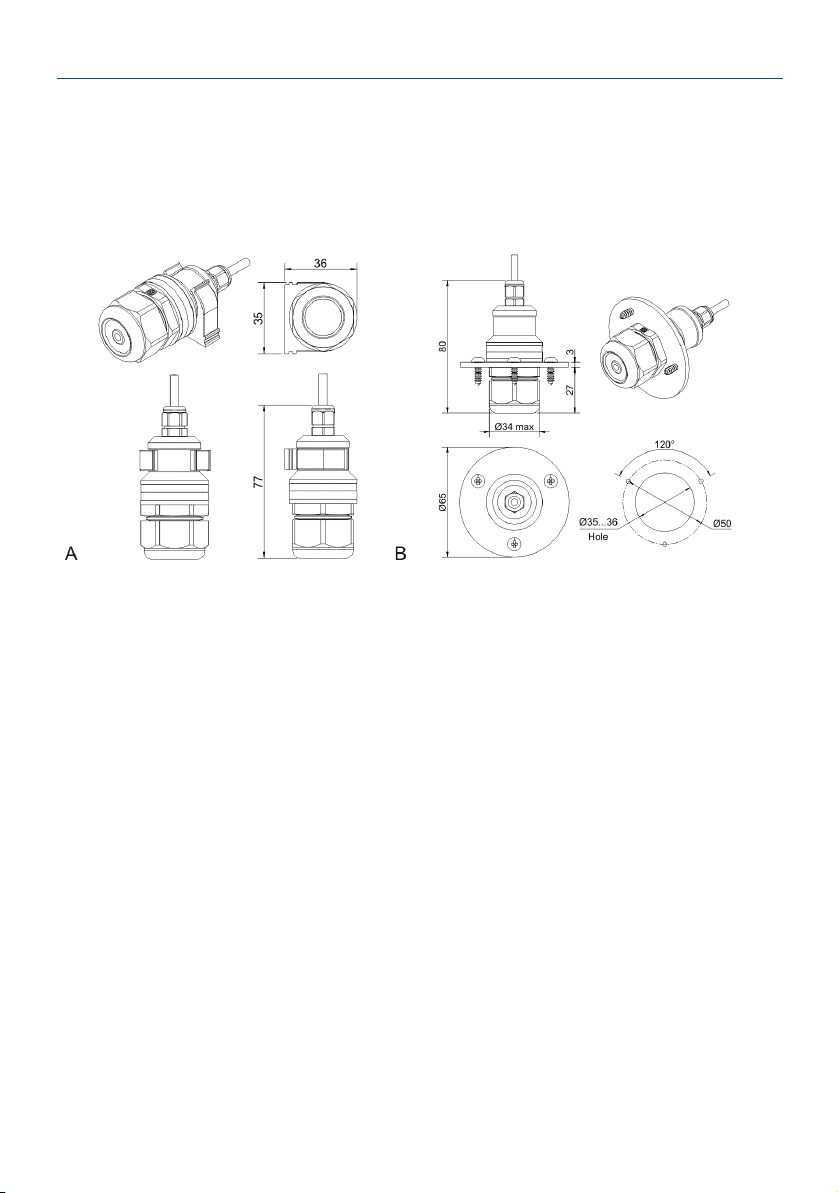

A) Wall mount remote probe with fixing clamp (default version),
B) Remote probe with rubber flange and three self-tapping screws (on request)
The sensor probes of all types are equipped with a hydrophobic microporous PTFE filter to
protect the sensor from dust, dirt, and water drops. The filter should be replaced if it gets
strongly contaminated. To replace the PTFE filter, unscrew the sensor head cap and
remove the old filter. Place a new filter into the cap and tighten it again.
NOTE! Never stab or press the filter near its center where the sensor is located since this
may damage the sensor. Do not remove the filter as it may cause the device to show
incorrect values and/or break the sensor.
The recommended orientation of the sensor probe is vertical with the sensor tip pointing
downwards. This prevents the possible accumulation of condensed water on the sensor
protection filter.
NOTE! Metal oxide semiconductor sensors are not replaceable.
15

E2648-VOC Rev 11.05.2021
Electrical connections
Unscrew four lid screws and detach the lid from the device. Use the M16 cable gland to let
in cables of the power supply and of the external devices. Attach the power cable to the
device without turning it on. Using the connection diagram below, connect the analog
outputs and digital interface terminals to the relevant devices according to your tasks.

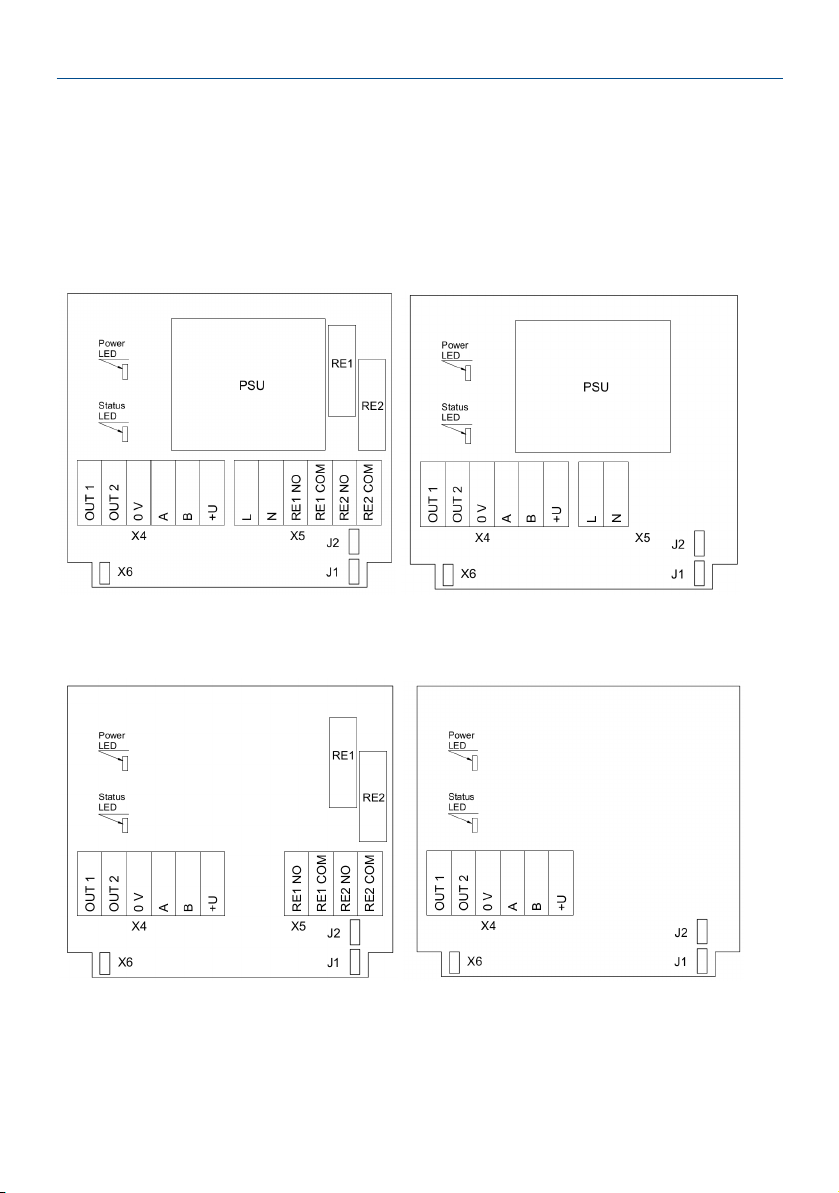

Version with PSU and relays Version with PSU and without relays
Version without PSU and with relays Version without PSU and relays
16

E2648-VOC Rev 11.05.2021
Jumpers
J1
OUT1 type (open: 4-20 mA; closed 0-10 V)
J2
OUT2 type (open: 4-20 mA; closed 0-10 V)
X6
Reset Modbus network parameters to default
X4 terminals
OUT1
4-20 mA / 0-10 V output
OUT2
4-20 mA / 0-10 V output
0V
0 V / 24 VAC Neutral (optional)
A
RS485 A / Data +
B
RS485 B / Data -
+U
+24 VDC / 24 VAC Phase (optional)
X5 terminals (optional)
L
90…265 VAC Phase
N
90…265 VAC Neutral
RE1 NO
Relay 1, normally open terminal
RE1 COM
Relay 1, common terminal
RE2 NO
Relay 2, normally open terminal
RE2 COM
Relay 2, common terminal
17

E2648-VOC Rev 11.05.2021
The screwless quick connect spring terminals on the E2648 series devices are suitable for
a wide range of wires with a cross-section of 0.2...1.5 mm2. We recommend to strip the
wire end by 8...9 mm and use wire end sleeves.
To connect the wire, insert the wire end into the terminal hole. To disconnect, push the
spring-loaded terminal lever, pull the wire out, and release the lever.
Use a twisted-pair cable, e.g. LiYY TP 2×2×0.5 mm2or CAT 5, to connect the device to the
RS485 network. A and B on the device represent DATA+ and DATA- respectively, polarity
must be respected when connecting to an external RS485 network.
Both analog outputs can be independently changed between 4-20 mA and 0-10 V type
using jumpers J1 (OUT1) and J2 (OUT2). By closing pins on a specific jumper the related
output is 0-10 V, with an open jumper the output is 4-20 mA. Power restart is required after
changing the position of the jumpers.
NOTE! The outputs are not galvanically isolated from the external power supply and share
a common 0V. Allowed load resistance limits are stated in the Specifications table. To
power the instrument from an external power source, connect terminals 0V and +U to the
source. If the integrated mains power supply module is used, connect terminals L and N to
the mains.
NOTE! Actuator short-circuits should be avoided, to protect the instrument relays using
external fuses or safety switches.
18

E2648-VOC Rev 11.05.2021
Operation
Turn on the power. The instrument warm-up time takes about 5 minutes after switching on
and the final sensor stabilization time to maximum accuracy takes about 60 minutes. The
operating status is indicated by the LED on the PCB of the device. The control LED (red)
response to different processes is presented in the following table:
Mode
LED mode
During calibration mode or sensor heating
period (if activated)
0.5 Hz (50% on, 50% off)
Relay 1 turned on
Blinking 1 Hz (50% on, 50% off)
Relay 2 turned on
Blinking 2 Hz (50% on, 50% off)
During the Modbus communication cycle
Short on-off pulses
Normal operating/measurement
Continuously on or off
Make sure that the transmitter is properly mounted, the external devices connected, the
power LED (green) on, and the control LED (red) is constantly lit. Make certain that the
cable glands are properly tightened to ensure the conformity to IP66 protection class.
Place the lid back and fix it with the screws. The device is ready to use.
Maintenance
Do not perform any maintenance operation with the power on.
Clean the device with a soft damp cloth. Do not use any abrasive cleaning agents. Do not
immerse the device in water or any cleaning media.
Calibration
E2648-VOC detectors have been calibrated by the Manufacturer with standard gas
mixtures before delivery. Provided that the sensor is used under moderate conditions, field
recalibration is recommended every 12 months. Please contact your dealer for more
information.
19

E2648-VOC Rev 11.05.2021
Delivery set
●Detector-transmitter E2648
●Mounting accessories:
○2 screws with plastic dowels
○Fixing clamp for remote probe versions
Order code for E2648-VOC options
E2648 options
Order code
Remote probe, 3 m cable
E2648-VOC-RP33-3
Remote probe, 10 m cable
E2648-VOC-RP33-10
Integrated 90...265 V mains power supply module
E2648-VOC-230
Integrated 24 VAC power supply module
E2648-VOC-24VAC
Two SPST relays
E2648-VOC-R
20
