Evo Affinity 30Ge User manual
OWNER & INSTALLATION MANUAL
Affinity 30Ge
Cooktop
Evo, Inc. | 8140 SW Nimbus Ave., Bldg 5 | Beaverton, Oregon 97008 USA
Evo Affinity 30Ge
Electronically-Controlled Gas Cooktop
For Indoor Use Only
Certification: ANSI Z83.11b - 2009. OMNI Report #: 141-S-04b-5
Part #: Commercial models: 10-0050-NG | 10-0050-LP, Residential models: 10-0051-NG | 10-0051-LP,
Doc: OM-C&R-30Ge v2 05/2013
Copyright © 2013
INSTALLATION INSTRUCTIONS
Affinity 30Ge
Evo, Inc. | 8140 SW Nimbus Ave., Bldg 5 | Beaverton, Oregon 97008 USA
2
THIS MANUAL MUST BE RETAINED FOR FUTURE REFERENCE. READ, UNDERSTAND,
AND FOLLOW THE INSTRUCTIONS AND WARNINGS CONTAINED IN THIS MANUAL.
DANGER POTENTIALLY HAZARDOUS SITUATION WHICH, IF NOT
AVOIDED, COULD RESULT IN DEATH
HIGH
VOLTAGE
CAUTION POTENTIALLY HAZARDOUSSITUATION WHICH,IF NOTAVOIDED,
MAY RESULT IN MINOR OR MODERATE INJURY.
WARNING POTENTIALLY HAZARDOUSSITUATION WHICH,IF NOTAVOIDED,
COULD RESULT IN DEATH OR SERIOUS INJURY
CAUTION Helpful tips and technique instructions are shown.
Notes
Complete Now For Future Reference
Model #_______________________________ Serial # _________________________________
Date Purchased ________________________ Location Purchased _______________________
Date Installed __________________________ Location Installed _________________________
To Installer or Person Uncrating Grill:
Leave these instructions with purchaser.
To Purchaser:
Keep these instructions for future reference.
INSTALLATION INSTRUCTIONS
Affinity 30Ge
Evo, Inc. | 8140 SW Nimbus Ave., Bldg 5 | Beaverton, Oregon 97008 USA
WARNING
This symbol identifies the most important
safety messaging in this manual. When you
see this symbol, be alert to the possibility of
serious bodily injury if the instructions are
not followed. Be sure to read and carefully
follow all of the messages.
Grill is for indoor use only. Grill should be operated in a well-ventilated space. Never operate
near flammable liquids or vapors. Do not install or use grill within 36” of combustible materials
from back and sides of grill. Grill shall not be located under unprotected overhead made of
combustible construction.
WARNING
Warnings
FOR YOUR SAFETY
If You Smell Gas:
1. Shut off gas to appliance.
2. Extinguish any open flame.
3. Remove grill cooking surface.
4. If odor continues, immediately call your
gas supplier or your fire department.
5. Evacuate all personnel from the area.
FOR YOUR SAFETY
1. Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
2. An LP Tank not connected for use shall
not be stored in the vicinity of this or
any other appliance.
It is the responsibility of the assembler/owner
to assemble, install and maintain gas grill.
Do not let children operate or play near your
grill. Failure to follow these instructions could
result in serious personal injury and / or
property damage.
WARNING
Improper installation, adjustment, alteration, service or maintenance can cause property dam-
age, injury or death. Read the installation, operating and maintenance instructions thoroughly
before installing or servicing this equipment.
WARNING
INSTALLATION INSTRUCTIONS
Affinity 30Ge
Evo, Inc. | 8140 SW Nimbus Ave., Bldg 5 | Beaverton, Oregon 97008 USA
4
READ FIRST
IMPORTANT PRODUCT AND SAFETY INFORMATION
WARNING INSTALLATION OF THIS UNIT MUST BE DONE BY A QUALIFIED PLUMBER
AND ELECTRICIAN. INCORRECT INSTALLATION CAN CAUSE INJURY
TO PERSONNEL AND/OR DAMAGE TO EQUIPMENT. THIS UNIT MUST BE
INSTALLED IN ACCORDANCE WITH ALL LOCAL AND UNIFORM BUILDING/
CONSTRUCTION CODES.
WARNING DO NOT INSTALL THIS UNIT TO COMBUSTIBLE SURFACES, AND DO
NOT USE COMBUSTIBLE MATERIALS IN THE CONSTRUCTION OF ANY
COUNTER, STAND, OR OTHER DEVICE.
WARNING THIS UNIT IS EQUIPPED WITH A THREE-PRONG (GROUNDING) PLUG FOR
YOUR PROTECTION AGAINST SHOCK HAZARD AND MUST BE PLUGGED
INTO GROUNDED RECEPTACLE. DO NOT MODIFY, CUT, OR REMOVE THE
GROUNDING PRONG FROM THIS PLUG.
WARNING IMMEDIATELY AFTER CONNECTING GAS SUPPLY LINE AND BEFORE
FIRST IGNITION, CHECK ALL GAS CONNECTIONS WITH SOAPY WATER
TO TEST FOR LEAKS.
WARNING KEEP WATER AND ALL COOKING SPILL OVERS AWAY FROM FRONT
CONTROL PANEL AND ALL OPEN SERVICE AREAS. NEVER HOSE UNIT,
OR SPRAY UNIT WITH CLEANING SOLUTIONS.
CAUTION CAREFULLY FOLLOW ALL INSTALLATION INSTRUCTIONS AND
CONSTRUCT ALL COUNTER SPACE, STANDS, OR OTHER SURFACES TO
THE RECOMMENDED INSTALLATION SPECIFICATIONS AS OUTLINED IN
THIS MANUAL.
CAUTION THIS UNIT IS HEAVY AND SHOULD BE INSTALLED BY TWO PEOPLE.
USE NECESSARY BLOCKING FOR LOCATING COOK SURFACE AND
CONNECTING TEMPERATURE SENSORS TO THE UNDERSIDE OF COOK
SURFACE.
CAUTION ALWAYS KEEP ANY AND ALL FLAMMABLE LIQUIDS AND COMBUSTIBLE
MATERIALS AWAY FROM UNIT. DO NOT STORE TOWELS OR UTENSILS,
OR ANY OTHER ITEMS ON UNIT’S DRIP PAN.
CAUTION DO NOT CLEAN THE COOK SURFACE WITH GRILL BRICKS OR CLEANING
SOLUTIONS. USE ONLY GRILL SCREENS AND GRILL PADS AND FOLLOW
THE PRESCRIBED METHOD OF CLEANING AS OUTLINED IN THIS
MANUAL.
NOTICE THE SERIAL NUMBER AND MODEL INFORMATION LABEL PLATE IS
LOCATED UNDERNEATH THE CONTROL PANEL.
NOTICE INSTALLATION OF ANY VENT HOODS OR FIRE EXTINGUISHER SYSTEMS
MUST CONFORM TO THE NATIONAL, STATE, AND LOCAL BUILDING AND
ALL APPLICABLE UNIFORM CONSTRUCTION CODES.
NOTICE DURING THE FIRST FEW HOURS OF OPERATION IT IS NORMAL FOR OILS
USED IN THE MANUFACTURING PROCESS TO BURN OFF AND GIVE AN
ODOR OR PETROLEUM SMOKE.
INSTALLATION INSTRUCTIONS
Affinity 30Ge
Evo, Inc. | 8140 SW Nimbus Ave., Bldg 5 | Beaverton, Oregon 97008 USA
Evo, Incorporated warrants to the original residential consumer-purchaser that the Evo grill shall be free from rust-through on all
metal surfaces and shall be free from defects in materials and workmanship under normal and reasonable use from the original
date of purchase. Evo promises to replace, at its determination, any product or component that is defective and covered under
this warranty for as long as you, the registered original consumer-purchaser, owns the grill. This is your sole and exclusive
remedy. This warranty is for the benefit of the original consumer-purchaser and is non-transferable. This warranty is subject to the
limitations, exclusions and other provisions listed below.
Limitations Involving Materials and Components:
Warranty does not apply to normal wear and tear, which are expected over the course of ownership. The materials and
components listed below are covered according to the following schedule from the original date of purchase:
• One Year – electrical and electronic components [including, but not limited to, electronic displays, overlay and membrane
switches, temperature sensors (RTD and K-Value Thermal Couple), hot surface igniters, computers, transformers,
heater elements, relays, igniters, ignition controllers, wiring, switches, encoders, outlets and plugs
• One Year – gas components [including, but not limited to, gas regulator, gas hoses, manifold assemblies]
• One Year – accessories and repair parts
The Warranty Registration Card (or online warranty registration form available at www.evoamerica.com/content/
residential-warranty-registration) must be completed and returned/submitted to Evo, Incorporated within 30 days from the
date of purchase. The original purchase invoice or payment record must be retained and produced upon request if claims
are made under this warranty. To receive a replacement Warranty Registration Card, write or call the address listed at the
bottom of this page. Warranties are void if the original serial numbers have been removed, altered, or cannot be readily
determined.
THIS WARRANTY APPLIES ONLY TO PRODUCTS PURCHASED AND LOCATED WITHIN THE UNITED STATES
OR CANADA.
WHAT IS NOT COVERED BY THIS WARRANTY
1. Conditions and damages resulting from any of the following:
a. Improper or inadequate installation, delivery, use, storage or maintenance
b. Any repair not authorized in writing by Evo, Inc., any modifications, misapplications, or unreasonable use
c. Improper setting of any control
d. Harsh environmental conditions, including, but not limited to, continual seawater spray, high pressure water, and direct contact
with corrosive chemicals and materials
e. Excessive or inadequate electrical, or gas supply
f. Accidents, natural disasters, acts of God
g. Conditions covered by the purchaser’s insurance
h. Cleaning supplies and filters
2. Products purchased or utilized for commercial use without the express authorization of Evo, Incorporated for such use
3. Labor not pre-authorized by Evo, Incorporated, and labor not performed by an authorized Evo service agency or representative
4. Pre-authorized warranty labor performed outside of normal business hours, and at overtime and premium rates
5. The cost of service or a service call to:
a. Identify or correct installation errors
b. Transport the product or component for service to/from the manufacturer or service center
c. Instruct the user of the proper use of the product
6. The cost for any inconvenience, personal injury or property damage due to failure of the product, and cost of damage arising out
of the transportation of the product which is covered under different terms with the carrier
7. Natural variations in color and finishes that are inherent to the material and unavoidable (and therefore not defects)
ALL IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY, SUITABILITY,
QUALITYAND/OR FITNESS FORAPARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE EXPRESS
WARRANTY PERIODS SPECIFIEDABOVE FOR THE PARTS DESCRIBED THEREIN. EVO, INCORPORATED
MAKES NO OTHER WARRANTYAND WILL NOT BE LIABLE FORANY DIRECT OR INDIRECT, CONSEQUENTIAL
OR INCIDENTAL DAMAGES. Some states do not allow limitations on how long an implied warranty lasts, so the above
limitation may not apply to you. Neither Evo manufacturer representatives and dealers, nor the retail establishment selling this
product has any authority to make any warranties or to promise remedies in addition to or inconsistent with those stated above.
The maximum liability to Evo, Incorporated in any event, shall not exceed the purchase price of the product paid by the original
consumer-purchaser. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above
limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights
which vary from state to state.
EVO RESIDENTIAL LIMITED WARRANTY TERMS
INSTALLATION INSTRUCTIONS
Affinity 30Ge
Evo, Inc. | 8140 SW Nimbus Ave., Bldg 5 | Beaverton, Oregon 97008 USA
6
Evo, Incorporated warrants to the original commercial foodservice purchaser that the Evo cooking, refrigeration and ventilation
equipment shall be free from rust through on all metal surfaces and shall be free from defects in materials and workmanship under
normal and reasonable use for One Year from the original date of purchase from Evo, Inc. This warranty is for the benefit of the
original use purchaser and is non-transferable. Evo promises to replace, at its determination, any product or component that is
defective during this initial one year period. Or as a resolution, Evo may at its option repurchase the product at its original purchase
price. This is your sole and exclusive remedy. This warranty is subject to the limitations, exclusions and other provisions listed
below.
Limitations Involving Materials and Components:
Warranty does not apply to normal wear and tear, which are expected over the course of ownership. The materials and
components listed below are covered according to the following schedule from the original date of purchase from Evo:
• One Year – electrical and electronic components [including, but not limited to, electronic displays, overlay and membrane
switches, temperature sensors (RTD and K-Value Thermal Couple), hot surface igniters, computers, transformers,
heater elements, relays, igniters, ignition controllers, wiring, switches, encoders, outlets and plugs
• One Year – gas components [including, but not limited to, gas regulator, gas hoses, manifold assemblies]
• One Year – accessories and repair parts
• Ninety (90) Days - refrigeration components [including, but not limited to, compressor, evaporator, pressure control units]
The Warranty Registration Card (or online warranty registration form available at www.evoamerica.com/content/
commercial-warranty-registration) must be completed and returned/submitted to Evo, Incorporated within 30 days from
the date of purchase. The original purchase invoice or payment record must be retained and produced upon request if
claims are made under this warranty. To receive a replacement Warranty Registration Card, write or call the address listed
at the bottom of this page. Warranties are void if the original serial numbers have been removed, altered, or cannot be
readily determined.
THIS WARRANTY APPLIES ONLY TO PRODUCTS PURCHASED AND LOCATED WITHIN THE USA OR CANADA.
What is NOT COVERED by this warranty:
1. Conditions and damages resulting from any of the following:
a. Improper or inadequate installation, delivery, use, storage or maintenance
b. Any repair not authorized in writing by Evo, Inc., any modifications, misapplications, or unreasonable use
c. Improper setting of any control
d. Harsh environmental conditions, including, but not limited to, continual seawater spray, high pressure water, and direct contact
with corrosive chemicals and materials
e. Excessive or inadequate electrical, gas, or refrigeration supply
f. Accidents, natural disasters, acts of God
g. Conditions covered by the purchaser’s insurance
h. Cleaning supplies and filters
2. Labor not pre-authorized by Evo, Incorporated, and labor not performed by an authorized Evo service agency or
representative
3. Pre-authorized warranty labor performed outside of normal business hours, and at overtime and premium rates
4. The cost of service or a service call to:
a. Identify or correct installation errors
b. Transport the product or component for service to/from the manufacturer or service center
c. Instruct the user of the proper use of the product
5. The cost for any inconvenience, personal injury or property damage due to failure of the product, and cost of
damage arising out of the transportation of the product which is covered under different terms with the carrier
6. Natural variations in color and finishes that are inherent to the material and unavoidable (and therefore not defects)
ALL IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY, SUITABILITY, QUALITY
AND/OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE EXPRESS WARRANTY PERIODS
SPECIFIED ABOVE FOR THE PARTS DESCRIBED THEREIN. EVO, INCORPORATED MAKES NO OTHER WARRANTYAND
WILL NOT BE LIABLE FORANY DIRECT OR INDIRECT, CONSEQUENTIAL OR INCIDENTAL DAMAGES. Some states do not
allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. Neither Evo manufacturer
representatives and dealers, nor the commercial establishment selling this product has any authority to make any warranties
or to promise remedies in addition to or inconsistent with those stated above. The maximum liability to Evo, Incorporated in any
event, shall not exceed the purchase price of the product paid by the original commercial-purchaser. Some states do not allow the
exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This
warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
EVO COMMERCIAL LIMITED WARRANTY TERMS
INSTALLATION INSTRUCTIONS
Affinity 30Ge
Evo, Inc. | 8140 SW Nimbus Ave., Bldg 5 | Beaverton, Oregon 97008 USA
INSTALLATION CHECKLIST
UNPACK COOKTOP COMPONENTS 8
Follow unpacking instructions carefully
PREPARE COUNTERTOP FOR INSTALLATION 9-13
INSERT CHASSIS IN COUNTERTOP 14
INSTALL DRIP PAN 15-16
INSTALL DRIP PAN GASKET 16
INSTALL ELECTRICAL TC CONNECTIONS TO COOK SURFACE 17-18
INSTALL COOK SURFACE AND TIGHTEN FASTENERS 19-20
CONNECT ELECTRICAL AND GAS LINES 21
CHECK INSTALLATION 22
PAGE #
INSTALLATION INSTRUCTIONS
Affinity 30Ge
Evo, Inc. | 8140 SW Nimbus Ave., Bldg 5 | Beaverton, Oregon 97008 USA
8
Cook Surface: Lift and separate cook surface from unit and place next to installation area.
Drip Pan Gasket:
Gasket is secured
to top of drip tray.
Remove gasket
from drip tray
and set aside
for reinstallation.
Drip Pan
Unlatch pan
from circular
skirt, then
carefully lift and
separate drip
pan from unit
and place next
to installation
area. Take care
not to scratch
drip pan during
installation.
Chassis:
Lift chassis
from crating box
and place on
its side next to
installation area.
Use caution
since ignition
components
are exposed.
Metal Right Angle Brackets: Unscrew from unit
and keep screws and brackets handy for first
installation step.
3-wire service line: Black, white
and green
UNPACKING COOKTOP COMPONENTS
STEP 1: As you are unpacking the crate, make sure you locate all components before
installation.
Ignition components are exposed during uncrating and installation.
Use caution and do not alter factory set positions.
Use caution when lifting. The cook surface is heavy.
INSTALLATION INSTRUCTIONS
Affinity 30Ge
Evo, Inc. | 8140 SW Nimbus Ave., Bldg 5 | Beaverton, Oregon 97008 USA
36” clearance to ceiling from cook surface
CLEARANCE DIMENSIONS
Read the instructions carefully in this booklet to install the
Evo Affinity 30Ge Cooktop to a metal, stone or wood countertop surface.
Cabinet layout and construction may vary.
12” clearance to sidewall
from cook surface
12” clearance to backwall
from cook surface
Minimum 3” clearance required under unit
venting to 22 sq/in of combustible air.
Do not install above any equipment, table or shelving where
air temperature is greater than ambient air temperature.
CLEARANCE TO COMBUSTIBLE CONSTRUCTION FROM CHASSIS
Combustibles Non-combustibles
Back 3/8” 0”
Sides 3/8” 0”
Bottom 3” 3”
CLEARANCE TO COMBUSTIBLE SURFACE FROM COOKING SURFACE
Top 36”
Sides 12”
INSTALLATION INSTRUCTIONS
Affinity 30Ge
Evo, Inc. | 8140 SW Nimbus Ave., Bldg 5 | Beaverton, Oregon 97008 USA
10
271932
"
701.04mm
2734
"
704.85mm
11532
"
37.16mm
R18
18
"
460.38mm
1318
"
333.38mm
262332
"
678.51mm
131316
"
350.52mm
STEP 2: Mark the finished position of the Evo Affinity 30Ge drip pan on the countertop using
the dimensions shown. The circular dimension of 18-1/8” is the diameter of the drip pan to
the outside flange material thickness (located to the inside of the half-rolled bead edge). The
drip pan cutout must be made precisely to these dimensions (or at a maximum +1/16”) so
that the half-rolled top bead on the drip pan edge overhangs the cutout dimension by .25”.
(See following page for more detail).
Countertop with substrate
underlayment
OPENING IN COUNTERTOP FRONT
Countertop
overhang to
cabinet front
Cabinetry Box:
minimum 3 cm
below countertop
surface
TOP VIEW
COUNTERTOP INSTALLATION (1 of 4)
INSTALLATION INSTRUCTIONS
Affinity 30Ge
Evo, Inc. | 8140 SW Nimbus Ave., Bldg 5 | Beaverton, Oregon 97008 USA
COUNTERTOP INSTALLATION (2 of 4)
CORRECTALIGNMENT OF DRIP PAN
AND CHASSIS TO COUNTERTOP INCORRECTALIGNMENT OF DRIP PAN
AND CHASSIS TO COUNTERTOP
Possible reasons for incorrect alignment:
1. Top of cabinetry box is less than 3 cm
from countertop
2. Chassis mounting brackets are too high.
Black o-ring under
drip pan bead
STEP 2 continued: Make sure cabinetry box is 1-1/2” below countertop surface and
mounting brackets are positioned correctly so drip pan and chassis are aligned to countertop.
(see diagrams above). A black o-ring is recessed in the top bead and designed to create a
seal against the countertop.
Also ensure allowance for the countertop overhang as shown on the SIDE VIEW (see next
page).
When you have confirmed the position is correct, cut the countertop and substrate.
INSTALLATION INSTRUCTIONS
Affinity 30Ge
Evo, Inc. | 8140 SW Nimbus Ave., Bldg 5 | Beaverton, Oregon 97008 USA
12
2514
"
641.35mm
6916
"
166.55mm
3X
7.65in
194.36mm
1316
"
30mm
22332
"
69.21mm
81532
"
215.32mm
SIDE VIEW
Example of 3/8” tile with substrate for a minimum 3 cm overall. Make sure you allow for the
countertop overhang as shown.
Metal
Right Angle
Mounting
Brackets
(supplied)
Shelving or
drawers can
be installed
under Affinity
30Ge if
desired.
Finished cabinet face
set back from finished
countertop front edge
COUNTERTOP INSTALLATION (3 of 4)
INSTALLATION INSTRUCTIONS
Affinity 30Ge
Evo, Inc. | 8140 SW Nimbus Ave., Bldg 5 | Beaverton, Oregon 97008 USA
1916
"
40mm
1316
"
30mm
2734
"
704.85mm
7.65in
194.36mm
Shelving or
drawers can
be installed
under Affinity
30Ge if
desired.
FRONT VIEW
STEP 3: Construct a bay for the Evo unit with your chosen cabinet system. Position and
fasten the supplied mounting brackets 7.65” below the finished countertop surface.
Metal right angle mounting brackets supplied with unit are
each 1/16” thick. Mount angle brackets as shown. Unit
slides into framework and rests on top side of brackets.
Brackets are slotted for fasteners at each four corners.
Cabinet
Framework
Example: Tiled countertop with substrate.
Finished countertop thickness should be
3 cm.
COUNTERTOP INSTALLATION (4 of 4)
INSTALLATION INSTRUCTIONS
Affinity 30Ge
Evo, Inc. | 8140 SW Nimbus Ave., Bldg 5 | Beaverton, Oregon 97008 USA
14

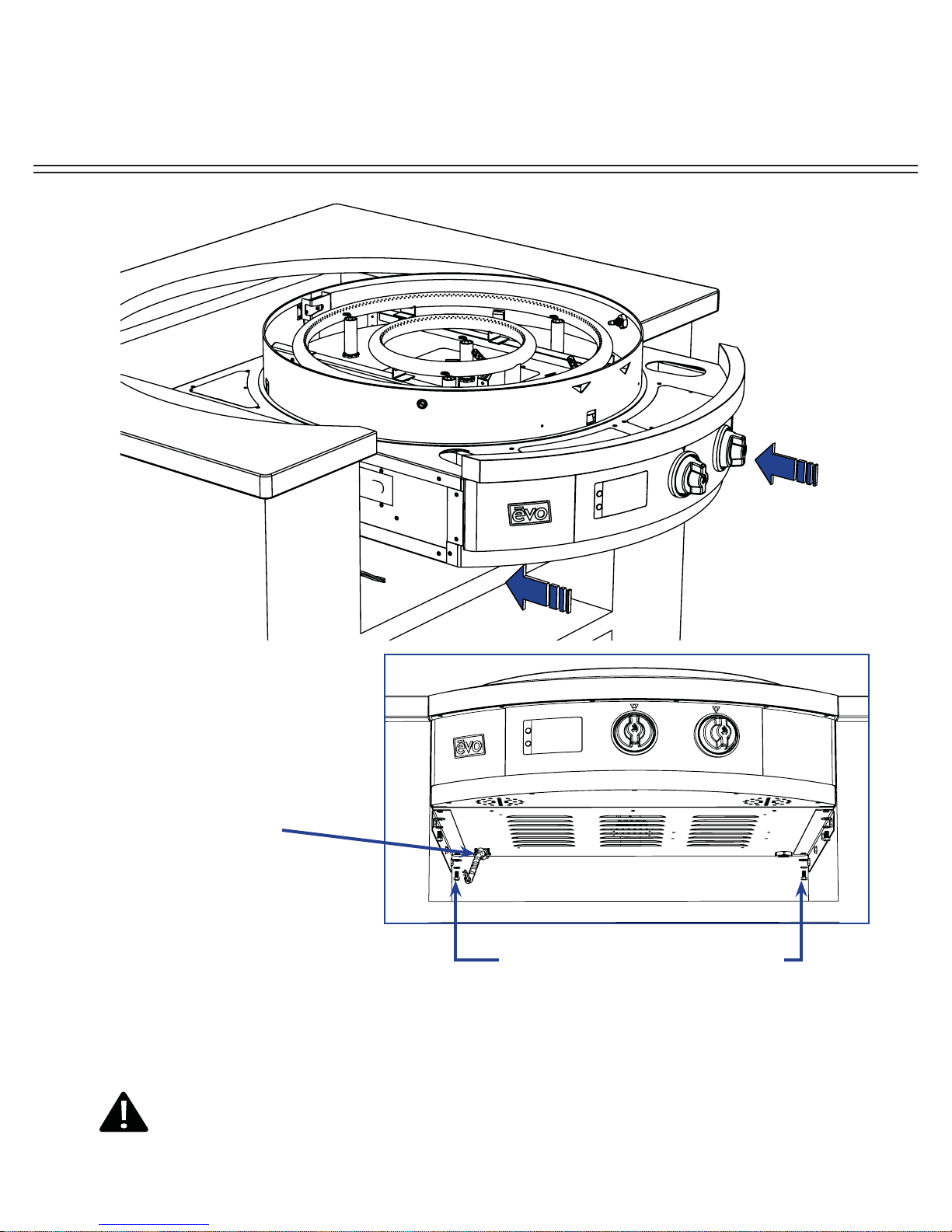

STEP 4: Slide the Affinity 30Ge chassis into the countertop so it rests on top of the installed
brackets. Bolt unit to angle brackets using supplied 1/4” x 20 fasteners from underside.
3 WIRE SERVICE LINE:
black, white and green
120V, 1-Phase, 50-60Hz
15AMP circuit
INSERT CHASSIS IN COUNTERTOP
Use supplied 1/4” fasteners to bolt
chassis to angle brackets.
Electrical and Gas Installation must be done by a licensed electrician and
plumber in accordance with local guidelines once unit has been completely
installed. Refer to pages 17-18 and 21 for further instructions.
INSTALLATION INSTRUCTIONS
Affinity 30Ge
Evo, Inc. | 8140 SW Nimbus Ave., Bldg 5 | Beaverton, Oregon 97008 USA
STEP 5: Locate the two captive fasteners on the front of the chassis circular skirt and ensure
they are threaded inward. Slide drip tray over chassis circular skirt positioning spillover slots
to the corresponding slots of the top chassis deck. Notice the drip pan catches showing
through the inside cutout locations of the circular chassis skirt. From the inside of the skirt,
use each of the three latches to pull the drip pan down into the counter.
Drip Tray
Catches
Using a #3 Phillips flat
screwdriver, ensure captive
fasteners on chassis skirt
are threaded inward before
drip pan is secured.
DRIP PAN INSTALLATION
GRILL FRONT
INSTALLATION INSTRUCTIONS
Affinity 30Ge
Evo, Inc. | 8140 SW Nimbus Ave., Bldg 5 | Beaverton, Oregon 97008 USA
16
STEP 6: Secure drip pan to chassis using access slot (A). Rewrap drip pan gasket around
top of drip tray and secure (B). Ensure seal under drip pan edge is touching countertop(C).
drip pan gasket
- seam at rear
(opposite to
chef side)
DRIP PAN AND GASKET INSTALLATION
CROSS SECTION OF
CHASSIS ACCESS SLOT
Hook drip pan latch under
chassis catch and tighten
screw at chassis access slot.
A
Slip gasket ring onto top of
drip pan so it creates a seal to
the chassis skirt.
CROSS SECTION OF
DRIP PAN TOP CROSS SECTION OF
DRIP PAN EDGE
Ensure the black seal under
the drip pan bead edge is
touching the countertop.
BC
drip pan countertop
drip pan
chassis
skirt
Use No. 3 Phillips screwdriver
to secure drip pan at the
access points.
INSTALLATION INSTRUCTIONS
Affinity 30Ge
Evo, Inc. | 8140 SW Nimbus Ave., Bldg 5 | Beaverton, Oregon 97008 USA
STEP 7: Before picking up cook surface, rotate each of the two front slotted captive fastener
screws counter-clockwise and back them out fully. Then position the cook surface at the rear
of the burner chassis by placing the cook surface in the area of the drip pan, separated by a
towel or cardboard to prevent damage to the drip pan.
CONNECTING COOK SURFACE - ELECTRICAL CONNECTIONS 1 of 2
Using a Phillips #3 Flat
Screwdriver, back out each of the
two front captive fasteners on the
chassis skirt counter-clockwise
until they stop. Do not twist
fastener beyond the stop.
SIDE VIEW OF FRONT
CAPTIVE FASTENERS
TC (Thermal Couple Temperature Detector)
Used To Electrically Monitor Cook Surface Temperatures At Inner And Outer Zones. The Affinity 30Ge
uses K-Value TC’s.
The numbers show TC threaded stud locations for attaching TC wires. Each TC stud location has a
corresponding numbered TC connection wire located at a respective location on the heat shield under
the burners. When cook surface is lowered to its final location, the TC studs and wires are vertically
aligned.
The Inner Zone (Inner Burner) has one TC at #1 position. The Outer Zone (Outer Burner) has three
TC’s at positions #2, #3, and #4. The Outer TC’s average three locations for consistent temperature
delivery.
1
2
3
4
Inner Zone
Outer Zone
Outer Zone
Outer Zone
1
2
4
3
Place suitable
protection on
drip pan (towel or
cardboard). Place
cook surface
vertically with
Bullet Fastener
facing downward.
IT IS HIGHLY RECOMMENDED THAT TWO INSTALLERS BE PRESENT TO
CONNECT THE TC’S AND INSTALL THE COOK SURFACE.
INSTALLATION INSTRUCTIONS
Affinity 30Ge
Evo, Inc. | 8140 SW Nimbus Ave., Bldg 5 | Beaverton, Oregon 97008 USA
18
Step 7 continued: Connect temperature sensor leads as per diagram and tighten. Ensure
there are no excess wires near the burners or draping on the heat shield. Then
carefully lower the cook surface and push excess wire back through the heat shield so
there is a direct and straight path from the cook surface connection down through the heat
shield.
CONNECTING COOK SURFACE - ELECTRICAL CONNECTIONS 2 of 2
2
3
4
While one installer
supports cook surface,
the other installer
extends the TC wires up
through the heat shield
and connects to each
respective stud using
1/4 x 20 Hex Nuts. Hex
nuts only need moderate
tightening.
1
DO NOT OVER TIGHTEN TC-WIRE HEX NUTS. DOING SO WILL BREAK
THREADED WELD STUD ON COOK SURFACE.
WHEN LOWERING COOK SURFACE ENSURE ALL EXCESS WIRES ARE PUSHED
BACK THROUGH HEAT SHIELDS. NO WIRES SHOULD BE NEAR BURNERS OR
DRAPING ON HEAT SHIELDS.
Inner Zone
Outer Zone Outer Zone
Outer Zone
INSTALLATION INSTRUCTIONS
Affinity 30Ge
Evo, Inc. | 8140 SW Nimbus Ave., Bldg 5 | Beaverton, Oregon 97008 USA
STEP 8: Before lowering cook surface, ensure the two slotted captive fastener screws are
backed out fully (see page 16). Then place cook surface over circular skirt with the three
support tabs (located under cook surface) resting on the chassis skirt top. Position the rear
support tab of the cook surface to the right of the rear seam of the chassis skirt (A). Then
rotate the cook surface clockwise until the support tab is in line with the seam (B) and the
rear bullet secures in the chassis slot (C) .
Cook surface
support tabs
INSTALLING COOK SURFACE (1 OF 2)
BOTTOM-UP VIEW OF
REAR COOK SURFACE
CUTAWAY VIEW OF REAR COOK
SURFACE SHOWING BULLET
ENGAGED IN CHASSIS SLOT
A
B
C
Rear bullet
INSTALLATION INSTRUCTIONS
Affinity 30Ge
Evo, Inc. | 8140 SW Nimbus Ave., Bldg 5 | Beaverton, Oregon 97008 USA
20
INSTALLING COOK SURFACE (2 OF 2)
Tighten two front captive fastener screws into fastener
slots located underneath cook surface (non visible).
Lift surface slightly to check screws are secure in
slots.
STEP 9: Tighten the two captive screws clockwise so they engage into the slots on the
underside of the cook surface. Test to ensure screws are secure by lifting cook surface
slightly. If screws are secure, cook surface should not move more than 1/16”. Remove all
protective cardboard on cook surface and drip pan.
CUTAWAY VIEW OF FRONT
CAPTIVE FASTENERS
