evoheat Force-i 9 User manual

1
EvoHeat Force-i Series Manual
Contents
1. Introduction_____________________________________________________________________________________ 2
2. Unit Dimensions _________________________________________________________________________________ 3
3. Quick Start Guide ________________________________________________________________________________ 5
4. Safety Instructions________________________________________________________________________________ 7
5. Installation______________________________________________________________________________________ 8
5.1 System Installation ____________________________________________________________________________ 8
5.2 Heater Condition ______________________________________________________________________________ 8
5.3 Location Recommendations _____________________________________________________________________ 9
5.4 Airflow Clearances_____________________________________________________________________________ 9
5.5 Adequate Water Flow _________________________________________________________________________ 10
5.6 Rubber Feet _________________________________________________________________________________ 10
5.7 Condensate Drain Barb ________________________________________________________________________ 10
5.8 Drainage & Condensation ______________________________________________________________________ 10
5.9 Plumbing ___________________________________________________________________________________ 10
5.10 Electrical Connection_________________________________________________________________________ 11
5.11 Initial Start-up ______________________________________________________________________________ 11
6. Operation______________________________________________________________________________________ 12
6.1 Main Controller Interface ______________________________________________________________________ 12
6.2 Functions of the Controller _____________________________________________________________________ 12
6.2.1 Start-up & Shut-Down _____________________________________________________________________ 12
6.2.2 Switching Modes & Setting the Target Temperature _____________________________________________ 12
6.2.3 Clock Settings ____________________________________________________________________________ 13
6.2.4 Silent Setting & Silent Timing________________________________________________________________ 13
6.2.5 Fault History _____________________________________________________________________________ 14
6.2.6 Colour Display Calibration __________________________________________________________________ 14
6.2.7 Temperature Curve _______________________________________________________________________ 14
7. Troubleshooting ________________________________________________________________________________ 15
7.1 Electronic Control Fault Table ___________________________________________________________________ 15
7.2 Frequency Conversion Board Fault Table __________________________________________________________ 16
8. Appendix ______________________________________________________________________________________ 17
8.1 Interface Drawings ___________________________________________________________________________ 17
8.1.1 Force-i 9, 12 & 17 _________________________________________________________________________ 17
8.1.2 Force-i 19, 24 & 28-3 ______________________________________________________________________ 18
8.2 Parameter List _______________________________________________________________________________ 20
8.3 Cable Specifications___________________________________________________________________________ 20
8.4 Comparison Table of Refrigerant Saturation Temperature ____________________________________________ 20
9. Maintenance ___________________________________________________________________________________ 21
10. Warranty _____________________________________________________________________________________ 26
10.1 Warranty Registration________________________________________________________________________ 26

2
EvoHeat Force-i Series Manual
1. Introduction
This manual contains all the necessary information in regard to the installation, troubleshooting, operation and
maintenance of this unit. Ensure instructions in this manual are adhered to at all times. Failing to comply with these
recommendations will invalidate the warranty.
The Evo Force-i series heat pump is our high performance pool and spa inverter heat pump that provides year round
pool heating with the lowest running costs. Designed with the latest stepless full DC inverter compressors, fans, and
control systems – all working in perfect harmony to provide optimized heating and cooling with the lowest operating
costs. With higher performances, lower noise levels, and more features as standard; the Evo Force-i is the most
energy efficient & environmentally friendly year round pool heater available.
•Extremely energy efficient, C.O.P. up to 16.28
•Latest full stepless inverter technology
•Heating and cooling capability
•Built-in timers
•Easy to use colour LCD touchscreen controller
•Wi-Fi control
•Low noise fan blades
•Robust ABS cabinet
•Eco-friendly and safe R32 refrigerant
•Automatic defrost system
•Horizontal front discharge air flow
•Simple installation
•Small footprint, ideal for tight installations
•Guaranteed stable performance from -15°C air
•Ideal to work with solar PV panels

3
EvoHeat Force-i Series Manual
2. Unit Dimensions
Unit: mm
Force-i 9 & Force-i 12
Force-i 17

4
EvoHeat Force-i Series Manual
Force-i 19
Force-i 24 & Force-i 28-3

5
EvoHeat Force-i Series Manual
3. Quick Start Guide
IMPORTANT THINGS TO NOTE
•Ensure you meet the minimum clearances and recommended installation locations as outlined in the manual.
•All heat pump accessories are contained in a plastic bag inside the packaging of your heat pump unit.
PRE-INSTALLATION
1. Position the heater on a level pad in the desired location on the pool water return line (as shown in the example
image below).
2. Install the supplied antivibration rubber pads under the feet of the unit.
3. Install the supplied condensation barb to the underside of the unit and direct the condensation to an
appropriate drainage point.
PLUMBING INSTALLATION
PLEASE NOTE: Evo heat pumps standard plumbing fitting size can accept 40mm NB PVC pipe for connection to the
pool or spa filtration plumbing.
1. Attach the supplied barrel unions to the cold inlet and hot outlet (hand tighten).
2. Use plumbing tape and ensure the ‘O’ ring is in position when sealing.
3. Install a 3-way valve at the cold-water inlet and create a bypass by connecting a “T” piece into the heated line.
4. Make the plumbing connections and brace pipework where necessary.

6
EvoHeat Force-i Series Manual
ELECTRICAL CONNECTION
PLEASE NOTE: Electrical connection should only be completed by licenced personnel and in accordance with all
relevant Australian Standards, applicable laws and local legislations.
1. Remove the external cover to the electrical terminal by removing the screws and the terminal cover panel.
2. Feed the electrical cable in through the conduit nipple and attach the electric supply wires to the applicable
Active Neutral and Earth connections located in the electrical terminal.
3. To complete the electrical connection, install electrical conduit, UF cable or other suitable means as specified (as
permitted by local electrical authorities) and connect the cable to a dedicated power supply branch circuit
equipped with the appropriate size circuit breaker, or time delay fuse protection.
INITIAL START UP AND COMMISSIONING
PLEASE NOTE: The water pump must be running and water circulating through the heat pump for the system to
operate.
1. Turn on your water filter pump.
2. Check for water leaks and verify flow to and from the pool.
3. Turn on the electrical power supply to the EvoHeat unit.
4. Press the ON/OFF button of the controller to be green for on (off is white), it will start within 60 seconds
5. Ensure the fan icon is showing 5 fan blades (performance mode)
6. Click on the large temperature display on the main screen to enter the parameter menu
a. Click the sun icon to activate heating mode
b. Click the temperature display to set the desired pool water temperature
c. Enter the temperature via the digital keypad and click enter
7. After the system has been running for a running for approximately 5 minutes; check the Temperature
Differential (TD) of the entering cold water to the exiting heated water:
a. Press the graph symbol in the top right corner of screen
b. Review the inlet and outlet water temperatures and adjust the water flow by opening or closing the 3-way
valve installed at the cold water inlet to achieve a target TD of approximately 2°C (e.g 22°C inlet water and
24°C outlet water)
8. If there is any interruption to water flow (i.e. when the water pump is turned off), the unit will automatically turn
off and display an E03 error code - no water flow. This is normal and the system will restart once water flow is
reinstated.
INITIAL HEAT UP TIME
Initial heat up times will vary depending on the size of your pool, environmental conditions and the capacity of the
system installed. After installation please allow the unit and pool pump to run continuously until the desired pool
water temperature is reached (it may take several days for the pool to initially reach the set temperature).

7
EvoHeat Force-i Series Manual
4. Safety Instructions
Installation, repair or relocations must be done by a fully qualified person and not by the customer. If done
incorrectly it may cause fire, electric shock, water leakage and other hazards.
A circuit breaker must be installed for the unit.
To avoid risk of electrical shock, the unit must have a good power connection and earthing.
The unit is equipped with an over-load protection system. After a previous stoppage, the unit will not start for at
least 3 minutes.
Do not use any means to accelerate the defrosting processor or to clean other than those
recommended by the manufacturer.
The unit must be stored in a room without any continuously operating ignition sources
(for example: open flames, an operating gas appliance or an operating electric heater.)
Do not pierce or burn.
Be aware that refrigerants may not contain an odour.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
The appliance shall be installed in accordance with national wiring regulations.
Before obtaining access to terminals, all supply circuits must be disconnected.
An all-pole disconnection device must be incorporated which as at least 3mm clearances in all poles, a leakage
current that may exceed 10mA, residual current device (RCD) having a rated residual operating current not
exceeding 30mA and disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.
The unit should be installed, operated and stored in a room with a floor area larger than 30m2.
-The installation of pipe-work shall be kept to a minimum 30 m2
-Spaces where refrigerant pipes shall be compliance with national gas regulations.
-Servicing shall be performed only as recommended by the manufacturer.
-The appliance shall be stored in a well-ventilated area where the room size corresponds to the room area as
specified for operation.
-All working procedure that affects safety means shall only be carried by competent persons.
Transport of equipment containing flammable refrigerants
-Compliance with the transport regulations
-Marking of equipment using signs
-Compliance with local regulations
-Disposal of equipment using flammable refrigerants
-Compliance with national regulations
-Storage of equipment/appliances
-The storage of equipment should be in accordance with the manufacturer's instructions. Storage of packed
(unsold) equipment
-Storage package protection should be constructed such that mechanical damage to the equipment inside
the package will not cause a leak of the refrigerant charge.
-The maximum number of pieces of equipment permitted to be stored together will be determined by local
regulations.
Use supply wires suitable for 75°C
*Caution: Single wall heat exchanger, not suitable for potable water connection.

8
EvoHeat Force-i Series Manual
5. Installation
5.1 System Installation
The factory only provides the main unit and the water unit, other items in the illustration above are necessary spare
parts for the water system that are to be provided by the user or the installer.
ATTENTION
Please follow these steps when using for the first time:
1. Open valve and charge water
2. Make sure that the pump and the water-in pipe have been filled with water.
3. Close the valve and start the unit.
NOTE: It is necessary that the water-in pipe is higher than the pool surface.
The schematic diagram is for reference only. Please check the water inlet/outlet label on the heat pump while plumbing the unit.
IMPORTANT: EvoHeat heat pumps MUST be connected by a licensed electrician. Under no circumstances should an
unlicensed person attempt to install or repair an EvoHeat heat pump themselves. Heater electrical installation
undertaken by an unlicensed installer will void the warranty. Correct installation is required to ensure safe and
efficient operation of your pool heater.
Before installation it is very important to ensure 5 variables are carefully checked to allow the unit to operate
correctly.
•Heater Condition
•Location
•Clearances & Air Flow
•Adequate water flow & plumbing
•Correct electrical connection & supply
5.2 Heater Condition
Check the heater packaging upon delivery for any obvious signs of damage. Inform your supplier IMMEDIATELY if
there is any evidence of rough handling. When the heater has been removed from the packaging check the
refrigerant gauge on the front panel of the unit. The gauge should be showing a pressure of approx. 10 – 20 on the
outside red band – any less than this figure means there may be a leak in the refrigerant system and you should
immediately contact your EvoHeat Dealer.
NOTE: All accessories (drain barb, rubber feet, Wi-Fi module and barrel unions) and installation manuals are inside the DHP-R
service panel. Please ensure to remove the service panel to locate these items.

9
EvoHeat Force-i Series Manual
5.3 Location Recommendations
Installation and service must be performed by a qualified installer.
Evo recommend the heat pump should be installed in an outdoor location with appropriate ventilation. Installing the
heater indoors without adequate ventilation, or in a poorly ventilated enclosed space, will result in very poor
performance and can, in extreme cases, damage the heater. Ensure the heater is installed in a well-ventilated area
with plenty of fresh air.
Evo recommend the heat pump should ONLY be installed in a location with appropriate ventilation.
The Evo pool heat pump should be installed with a minimum clearance of at least 3.5m to the water’s edge.
Furthermore, EvoHeat recommend installing the heat pump no greater than 7.5 meters away from the water’s edge
due to heat loss from the piping.
The heat pump should be installed a maximum of 5m below the water level of the pool/spa.
Make sure the heat pump is not located where large amounts of water may run-off from a roof into the unit. Sharp
sloping roofs without gutters will allow excessive amounts of rain water mixed with debris from the roof to be forced
through the unit. A water deflector may be needed to protect the heat pump.
If installing the heater on an existing pump/filtration system the heater must be installed AFTER the filter and
BEFORE the chlorinator/sanitizer.
The heat pump should be installed on a flat level surface.
In the event that a suitable outdoor location is unavailable please contact Evo Industries for specialist technical
advice ON 1300 859 933.
5.4 Airflow Clearances
The heat pump unit needs continuous fresh air whilst running. The heater draws up to 80m3/min ambient air
through the sides and discharges through the top fan cowl.
Installing the heater indoors or in an enclosed space will result in very poor performance and can in extreme cases
damage the heater. Ensure the heater is installed in a well-ventilated area with plenty of fresh air, a minimum gap
between walls/fences etc of 600mm on the sides and 1500mm overhead clearance.
Leave sufficient space for unobstructed airflow into and out of the heater. Do not locate the heater in an enclosed
area, or the discharged cold air will recirculate into the unit and consequently lower the heating efficiency as well as
possible icing up.
If you do not have a location with these suggested clearances, please contact our EvoHeat Tech Support Specialist to
discuss appropriate installation locations.

10
EvoHeat Force-i Series Manual
5.5 Adequate Water Flow
All EVOHEAT heat pumps have a factory preset internal water flow switch. If there is insufficient water flow the
heater will not operate.
It is CRITICAL that there is sufficient water flow to the unit. Incorrect water flow can cause a loss of efficiency and
possible damage to the unit. Optimal water flow rates are listed in the EvoHeat manual. It is imperative that water
flow is kept as close as possible to these flow rates. Correct water flow not only offers optimal heater performance,
but may also prevent possible damage to your heater.
Before connecting the heater to the plumbing, all piping must be thoroughly flushed to ensure no debris can enter
the heater. Failure to remove pipe debris can jam or damage the flow switch and may cause damage to the heater.
When cleaning the pool it is advisable to turn off your heater as restricted water flow may cause the heater to shut
down and indicate low water flow fault (E03 error) or high pressure fault (E01 Error).
IMPORTANT: A Variable speed pump or bypass valve and plumbing MUST be fitted to allow water flow to be
adjusted through the heater. Do not direct connect a water pump with higher flow than required to the heat
pump.
5.6 Rubber Feet
All EvoHeat units are provided with rubber feet which EvoHeat highly recommend being installed. The rubber feet
help reduce vibration of the unit and help provide a space below the heat pump to install the drainage barbs.
5.7 Condensate Drain Barb
Fit the condensate drain barb into the 2 holes under the unit if you need to
direct water away from the heater. Put in hot water if stiff.
5.8 Drainage & Condensation
Whilst the heater is operating, water in the air condenses on the fins of the evaporator. In the instance of high
humidity, the condensate may be several litres per hour. This may give the impression that the heater is leaking,
however this is a normal function of heat pumps.
The heater will automatically activate reverse cycle or de-icing mode when required which also increases condensate
discharge. This normally occurs at temperatures below 8 degC. The condensate water will discharge through the
base of the heater. As an option a pipe can be connected to the drain on the base of the unit to direct condensate
water to an appropriate location.
NOTE: A quick way to verify that the water is condensation is to shut off the unit and keep the pool pump running. If
the water stops running out of the basepan, it is condensation. AN EVEN QUICKER WAY IS to TEST THE DRAIN WATER
FOR CHLORINE – if the is no chlorine present, then it’s condensation.
5.9 Plumbing
The Swimming Pool Heat Pumps exclusive rated flow titanium heat exchanger requires no special plumbing
arrangements except bypass (please set the flow rate according to the nameplate). The water pressure drop is less
than 10kPa at max.
Flow rate: Since there is no residual heat or flame Temperatures, the unit does not need copper heat sink piping.
PVC pipe can be run straight into the unit.
Location: Connect the unit in the pool pump discharge (return) line downstream of all filter and pool pumps, and
upstream of any chlorinators, ozonators or chemical pumps.
Standard model have slip glue fittings which accept 40 mm PVC pipe for connection to the pool or spa filtration
piping. By using a 50 NB to 40NB you can plumb 40NB.
Give serious consideration to adding a quick coupler fitting at the unit inlet and outlet to allow easy draining of unit
for winterizing and to provide easier access should servicing be required.

11
EvoHeat Force-i Series Manual
5.10 Electrical Connection
IMPORTANT: Always use a qualified Electrician to perform any electrical work. A licensed electrician must read the
information before connecting.
Ensure the power cable and circuit breaker are of a suitable size for the heater being installed. Also check that there
is adequate voltage and current available at the heater connection to run the unit.
Voltage range should be 220-230 volts for single phase, and 380-400 volts for 3 phase units. Voltage ranges outside
these parameters will cause heater damage and void your warranty.
1. Ensure power is disconnected during installation or service.
2. Always comply with the national and local electrical codes and standards.
3. Ensure electrical cable size is adequate for heater requirements at the installation location.
4. The heater must be equipped with a circuit breaker and isolation device.
5. Circuit breaker must be installed between the heater and the water circulation pump if the water pump is
hard-wired into the heater. Please note recommended circuit breaker sizes make no allowance for a water
pump hard wired into the heater.
6. The unit must be well earthed. Remove the front panel to access the electrical connection terminals of the
heater. The electrical wiring diagram is affixed to the inside of the front panel.
Correct phase connection is important with 3 phase heaters. NOTE: if 2 lights are showing on the 3 PHASE relay
monitor this means the EvoHeat heat pump has been wired correctly (one orange light and one green light). If
only one light is showing, the phases are out of rotation and need to be rotated to get the correct phase rotation.
5.11 Initial Start-up
Refer to the Quick Start Guide, page 6 for instructions on the initial start-up and commissioning of the unit.

12
EvoHeat Force-i Series Manual
6. Operation
6.1 Main Controller Interface
No.
Name
Function
1
ON/OFF
Start up or shut down the unit
2
PARAMETER
View the unit state and the parameter
3
CLOCK
Set the clock or turn the timer on/off. When the timer is on, this button is green
4
FAULT DISPLAY
View fault history
5
SILENT SETTING
Turn on/off silent function and set timing of the Low speed function
6
MODE
Enter mode settings and the target temp. settings interface
7
TEMP. CURVE
View temp. and power curve
8
WATER INLET TEMP.
Enter mode settings and the target temp. settings interface
9
LOCK
Lock or unlock the screen. Use the code “22” to unlock
6.2 Functions of the Controller
6.2.1 Start-up & Shut-Down
To turn the unit on or off, press the ON/OFF button (1).
6.2.2 Switching Modes & Setting the Target Temperature

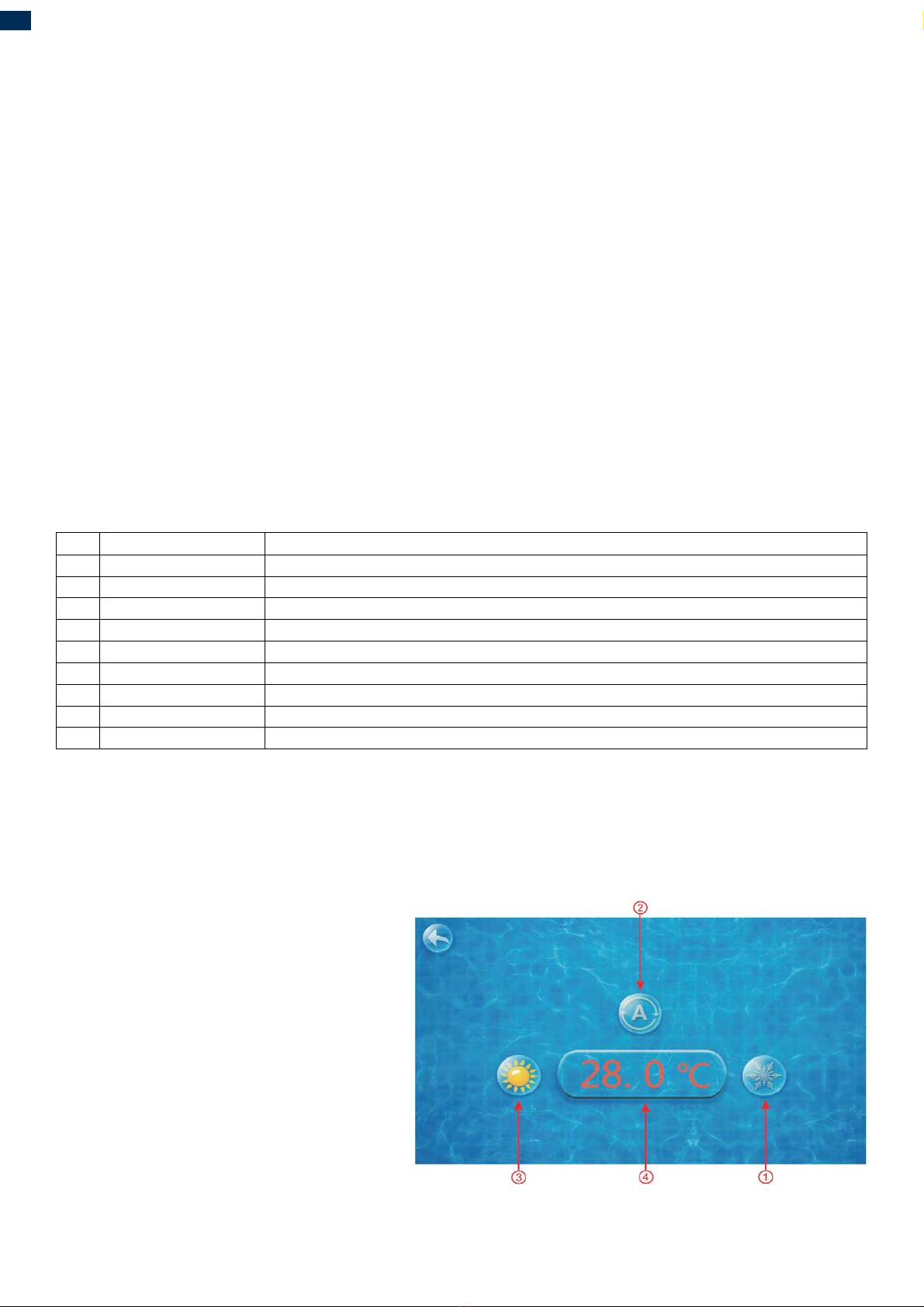

In the main interface, click the MODE (6) button
or WATER INLET TEMP. (8) button to get the
following menu:
Choose from the modes: refrigeration mode (1),
automatic mode (2) or heating mode (3).
Note: When the unit is designed for single automatic
mode or single thermal mode, the mode cannot be
switched.
From this screen, pressing the temperature (4)
will allow you to adjust it as desired.

13
EvoHeat Force-i Series Manual
6.2.3 Clock Settings
After clicking the CLOCK button, a menu will appear where you can choose to adjust either Time or Timer settings.
Setting the Date & Time
Click the value you wish to change to set the time directly. Press confirm to save the settings.
For example, if the setup time were 23/11/2016 at 1:00pm; you would input: 23-11-16 13:00:00. Be aware that if the
input format is incorrect, pressing the confirm button will save the wrong time.
Timer Settings
No.
Name
Button Colour
Function
1 Timing Start Button
Start: Green
End: Grey
Click this button to start or end the timing start setting function
2
Timing On Setting
Click to set the start time of the timer.
3 Timing End Button
Open: Red
End: Grey
Click this button to start or end the timing end setting function.
4
Timing Off Setting
Click to set the end timer of the timer.
When the timer is on, the clock button will be green on the main interface.
6.2.4 Silent Setting & Silent Timing
Pressing the SILENT TIMING button (5) from the main menu will bring up the silent settings. Press the left-hand fan
symbol to enable silent mode. To exit silent mode, follow the steps and press the button again.
NOTE: When silent mode is enabled, the icon will display with only 3 fans compared to 5 when the mode is off.
Pressing the alarm clock symbol will display the screen shown above on the right.

14
EvoHeat Force-i Series Manual
No.
Name
Colour
Function
1
Timing silent off
Used: Red
Unused: Grey
Click to use or unused timing off function
2
Timing silent on
Used: Green
Unused: Grey
Click to use or unused timing silent function
3
Timing silent start time
Click this button to set the timing silent start time
4
Timing silent end time
Click this button to set the timing silent end time
The start and end time values me be within the range of 0:00 – 23:00; the value can be precise to the hour digit.
Example: Click ‘ON’ to use timing silent. The unit will begin silent mode from 0:00 and end at 4:00. Click ‘OFF’ to turn
off the timing silent manually, however the unit will turn off this setting once it reaches the end time.
6.2.5 Fault History
If there is no failure, the main interface will display a static “
”
When a fault occurs, the fault icon will flash. When this occurs,
the failure interface will record the time, code and name of the
fault.
After troubleshooting, if you do not check the failure record,
the main interface will display a static symbol: “ “
If you check the failure record, the main interface will display a
static: “ ”
The failure record is in reverse order according to the time of occurrence. Press the clean key to delete all fault
records.
6.2.6 Colour Display Calibration
Keep clicking quickly on the blank area at any interface until you hear a long beep. You will then enter the calibration
interface. Click “+” to start calibration. When you hear the beep again, you will finish calibration and exit.
Note: The wire controller can display the temperature unit as ‘°F’ or ‘°C’ according to the model you bought.
6.2.7 Temperature Curve
Press the TEMP CURVE (7) button to view the temperature curve & average power curve.
The temperature curve automatically updates every hour and will be stored for 60 days.
If the unit is powered off after less than 1 hour of operation, the data in this period will not be saved.

15
EvoHeat Force-i Series Manual
7. Troubleshooting
EvoHeat have developed a YouTube Channel where you will find useful videos - from setting up your
timers to setting up the EvoHeat app. View it to see resolutions to some of our most asked, yet easily
solved questions: https://www.youtube.com/channel/UCfYiOxHuybBuC1NZcqUnrcA/playlists
7.1 Electronic Control Fault Table
Protect/fault
Fault
display
Reason
Elimination Methods
Standby Non
Normal boot Non
Inlet Temp. Sensor Fault
P01
The temp. Sensor is broken or short circuit
Check or change the temp. sensor
Outlet Temp. Sensor Fault
P02
The temp. Sensor is broken or short circuit
Check or change the temp. sensor
Ambient Temp. Sensor Fault
P04
The temp. Sensor is broken or short circuit
Check or change the temp. sensor
Coil1 Temp. Sensor Fault
P05 The temp. Sensor is broken or short circuit Check or change the temp. sensor
Suction Temp. Sensor Fault
P07
The temp. Sensor is broken or short circuit
Check or change the temp. sensor
Discharge Temp. Sensor Fault P081 The temp. Sensor is broken or short circuit Check or change the temp. sensor
High Pressure Prot.
E01
The high-pressure switch is broken
Check the pressure switch and cold circuit
Low Pressure Prot.
E02
Low pressure1 protection
Check the pressure switch and cold circuit
Flow Switch Prot.
E03
No water/little water in water system
Check the pipe water flow and water pump
Anti-freezing Prot.E07 Water flow is not enough Check the pipe water flow and whether water
system is jammed or not
Primary Anti-freezing Prot. E19 The ambient temp. Is low
Secondary Anti-freezing Prot. E29 The ambient temp. Is low
Inlet and outlet temp. too big E06 Water flow is not enough
and low differential pressure
Check the pipe water flow and whether water
system is jammed or not
Low temperature protection Non The environment temp. is low
Comp. Overcurrent Prot. E051 The compressor is overload Check whether the system of the compressor
running normally
Exhaust Air over Temp Prot. P082 The compressor is overload Check whether the system of the compressor
running normally
Communication Fault E08 Communication failure between wire controller
and mainboard
Check the wire connection between
remote wire controller and main board
Antifreeze Temp. Sensor
Fault P09 Antifreeze temp sensor is broken or short circuited check and replace this temp sensor
Waterway Anti-freezing Prot. E05 Water temp. or ambient temp. is too low
EC fan feedback Fault F051 There is something wrong with fan motor and
fan motor stops running
Check whether fan motor is broken or locked
or not
Pressure sensor Fault PP The pressure Sensor is broken Check or change the pressure sensor or
pressure
Fan Motor1 Fault F031
1. Motor is in locked-rotor state
2. The wire connection between DC-fan motor
module and fan motor is in bad contact
1. Change a new fan motor
2. Check the wire connection and make sure
they are in good contact
Low AT Protection TP Ambient temp is too low
Fan Motor2 Fault F032
1. Motor is in locked-rotor state
2. The wire connection between DC-fan motor
module and fan motor is in bad contact
1. Change a new fan motor
2. Check the wire connection and make sure
they are in good contact.
Communication Fault (speed
control module) E081 Speed control module and main board communication fail Check the communication connection
Coil2 Temp. Sensor Fault
P15
The temp. sensor is broken or short circuit
Check or change the temp. sensor

16
EvoHeat Force-i Series Manual
7.2 Frequency Conversion Board Fault Table
Protection/Fault
Fault
Display
Reason
Elimination Methods
Drv1 MOP alarm
F01
MOP drive alarm
Recovery after the 150s
Inverter offline F02
Frequency conversion board and
main board communication failure
Check the communication connection
IPM protection
F03
IPM modular protection
Recovery after the 150s
Comp. Driver Failure F04
Lack of phase, step or drive
hardware damage
Check the measuring voltage check
frequency conversion board hardware
DC Fan Fault F05
Motor current feedback open circuit
or short circuit
Check whether current return wires
connected motor
IPM Overcurrent
F06
IPM Input current is large
Check and adjust the current measurement
Inv. DC Overvoltage F07
DC bus voltage>Dc bus over-voltage
protection value
Check the input voltage measurement
Inv. DC Lessvoltage F08
DC bus voltage<Dc bus over-voltage
protection value
Check the input voltage measurement
Inv. Input Lessvolt. F09
The input voltage is low, causing the
input current to be high
Check the input voltage measurement
Inv. Input Overvolt F10
The input voltage is too high, more
than outage protection current RMS
Check the input voltage measurement
Inv. Sampling Volt
F11
The input voltage sampling fault
Check and adjust the current measurement
Comm. Err DSP-PFC
F12
DSP and PFC connect fault
Check the communication connection
Input Over Cur.
F26
The equipment load is too large
PFC Fault F27 The PFC circuit protection
Check the PFC switch tube short circuit or
not
IPM Over heating
F15
The IPM module is overheat
Check and adjust the current measurement
Weak Magnetic Warn F16
Compressor magnetic force is not
enough
Inv. Input Out Phase
F17
The input voltage lost phase
Check and measure the voltage adjustment
IPM Sampling Cur.
F18
IPM sampling electricity is fault
Check and adjust the current measurement
Inv. Temp Probe Fail
F19
Sensor is short circuit or open circuit
Inspect and replace the sensor
Inverter Overheating
F20
The transducer is overheat
Check and adjust the current measurement
Inv. Overheating Warn
F22
Transducer temperature is too high
Check and adjust the current measurement
Comp. Overcut. Warn
F23
Compressor electricity is large
The compressor over-current protection
Input Over Cur. Warn
F24
Input current is too large
Check and adjust the current measurement
EEPROM Error Warn F25 MCU error
Check whether the chip is damaged
Replace the chip
V15V over/undervoltage fault F28
The V15C is overload or
undervoltage
Check the V15V input voltage in range
13.5v~16.5v or not

17
EvoHeat Force-i Series Manual
8. Appendix
8.1 Interface Drawings
8.1.1 Force-i 9, 12 & 17
Main Board

18
EvoHeat Force-i Series Manual
Main board of the input and output interface instructions below
Number
Sign
Meaning
01
P10-(U)
Compressor (output 220-230VAC)
02
P10-(V)
03
P10-(W)
04
CN18 (EMV)
Water pump (output 220-230VAC)
05
CN13 (HEAT)
4-way valve (output 220-230VAC)
06
CN96 (H)
High speed of fan (output 220-230VAC)
07
CN96 (L)
Low speed of fan (output 220-230VAC)
08
P1 (AC-L)
Live wire (input 220-230VAC)
09
P2 (AC-N)
Neutral wire (input 220-230VAC)
10
CN99 (PL)
Pressure sensor
11
CN29 (OVT)
Water flow switch (input)
12
CN30 (HP)
High pressure switch (input)
13
CN31 (LP)
Low pressure switch (input)
14
CN7 (OAT)
System suction temperature (input)
15
CN21 (RES1)
Water input temperature (input)
16
CN22 (RES2)
Water output temperature (input)
17
CN8 (OPT)
System fan coil temperature (input)
18
CN12 (PH)
Ambient temperature (input)
19
CN9 (OHT)
System exhaust temperature (input)
20
P00 (GND)
Earth wire
21
P01 (GND)
Earth wire
22
P13(L)
P14(L)
Electric reactor
23
R485 (B)
R485 (A)
Color line controller communication
24
CN15
Electronic Expansion valve
8.1.2 Force-i 19, 24 & 28-3
(1) Wire Control Interface Diagram and Definition

19
EvoHeat Force-i Series Manual
(2) Controller Interface Diagram and Definition
Number
Sign
Meaning
01
OUT1
Compressor (output 220-230VAC)
02
OUT2
Water pump (output 220-230VAC)
03
OUT3
4-way valve (output 220-230VAC)
04
OUT4
High speed of fan (output 220-230VAC)
05
OUT5
Low speed of fan (output 220-230VAC)
06
AC-L
Live wire (input 220-230VAC)
07
AC-N
Neutral wire (input 220-230VAC)
08
AI/DI01
Emergency switch (input)
09
AI/DI02
Water flow switch (input)
10
AI/DI03
System low pressure (input)
11
AI/DI04
System high pressure (input)
12
AI/DI05
System suction temperature (input)
13
AI/DI06
Water input temperature (input)
14
AI/DI07
Water output temperature (input)
15
AI/DI08
System fan coil temperature (input)
16
AI/DI09
Ambient temperature (input)
17
AI/DI10
Mode switch (input)
18
AI/DI11
Master-slave machine switch/ antifreeze temperature (input)
19
AI12(50K)
System exhaust temperature (input)
20
0_5V_IN
Compressor current detection/pressure sensor (input)
21
PWM_IN
Master-slave machine switch/ Feedback signal of EC fan (input)
22
PWN_OUT
AC fan control (output)
23
0_10V_OUT
EC fan control (output)
24
+5V
+5V (output)
25
+12V
+12V (output)
26
GND
Frequency conversion board communications
27
485_B1
28
485_A1
29
12V
30
GND
Colour line controller communication
31
485_B2
32
485_A2
33
12V
34
CN9
Electronic expansion valve
35
GND
The port for centralized control system
36
485_B3
37
485_A3
38
12V
