Evolution 110V User manual

Date Published: 01 / 09 / 2016Written in UK English
DISC CUTTER
Original Instructions
Original Bedienungsanleitung
Instructions Originales
Instrucciones Originales
®

2
www.evolutionpowertools.com
TABLE OF CONTENTS
English Page 02
Deutsch Seite 20
Français Page 40
Español Página 56
INTRODUCTION Page 03
Guarantee Page 03
Machine Specification Page 04
Vibration Page 04
Labels and Symbols Page 05
Intended use of this Power Tool Page 06
Prohibited use of this Power Tool Page 06
SAFETY PRECAUTIONS Page 06
Electrical Safety Page 06
Outdoor Use Page 06
General Power Tool Safety Instructions Page 06
Additional Safety Instructions Page 10
GETTING STARTED Page 11
Unpacking Page 11
Machine Overview Page 12
Assembly and Preparation Page 13
Operating Instructions Page 13
MAINTENANCE Page 17
Environmental Protection Page 17
DECLARATION OF CONFORMITY Page 18

3
www.evolutionpowertools.com
EN
DE
FR
ES
1.2
This Instruction Manual was originally
written in English.
(1.3)
IMPORTANT
Please read these operating and safety
instructions carefully and completely.
For your own safety, if you are uncertain
about any aspect of using this equipment
please access the relevant Technical Helpline,
the number of which can be found on the
Evolution Power Tools website. We operate
several Helplines throughout our worldwide
organization, but Technical help is also
available from your supplier.
WEB
www.evolutionpowertools.com
(1.4)
Congratulations on your purchase of an
Evolution Power Tools Machine. Please
complete your product registration ‘online’
as explained in the A4 online guarantee
registration leaflet included with this
machine. You can also scan the QR code
found on the A4 leaflet with a Smart Phone.
This will enable you to validate your
machine’s guarantee period via Evolutions
website by entering your details and thus
ensure prompt service if ever needed. We
sincerely thank you for selecting a product
from Evolution Power Tools.
EVOLUTION LIMITED GUARANTEE.
Evolution Power Tools reserves the right
to make improvements and modifications
to the product design without prior notice.
Please refer to the guarantee registration
leaflet and/or the packaging for details of
the terms and conditions of the guarantee.
(1.5)
Evolution Power Tools will, within the
guarantee period, and from the original date of
purchase, repair or replace any goods found to
be defective in materials or workmanship. This
guarantee is void if the tool being returned
has been used beyond the recommendations
in the Instruction Manual or if the machine
has been damaged by accident, neglect, or
improper service. This guarantee does not
apply to machines and / or components which
have been altered, changed, or modified
in any way, or subjected to use beyond
recommended capacities and specifications.
Electrical components are subject to respective
manufacturers’ warranties. All goods returned
defective shall be returned prepaid freight
to Evolution Power Tools. Evolution Power
Tools reserves the right to optionally repair or
replace it with the same or equivalent item.
There is no warranty – written or verbal – for
consumable accessories such as (following list
not exhaustive) blades, cutters, drills, chisels
or paddles etc. In no event shall Evolution
Power Tools be liable for loss or damage
resulting directly or indirectly from the use
of our merchandise or from any other cause.
Evolution Power Tools is not liable for any
costs incurred on such goods or consequential
damages. No officer, employee or agent of
Evolution Power Tools is authorized to make
oral representations of fitness or to waive any
of the foregoing terms of sale and none shall
be binding on Evolution Power Tools.
Questions relating to this limited
guarantee should be directed to the
company’s head office, or call the
appropriate Helpline number.

4
www.evolutionpowertools.com
(1.6)
Note: The vibration measurement was made
under standard conditions in accordance with:
BS EN 61029-1:2009
The declared vibration total value has been
measured in accordance with a standard test
method and may be used for comparing one
tool with another.
The declared vibration total value may also be
used in a preliminary assessment of exposure.
(1.7)
VIBRATION
WARNING: When using this machine the
operator can be exposed to high levels of
vibration transmitted to the hand and arm.
It is possible that the operator could develop
“Vibration white finger disease” (Raynaud
syndrome). This condition can reduce the
sensitivity of the hand to temperature as well
as producing general numbness. Prolonged or
regular users of this machine should monitor
POWER METRIC IMPERIAL
UK/EU Motor (230-240V ~ 50Hz) 2400W 10A
UK Motor (110V ~ 50Hz) 2000W 18A
USA Motor (120V ~ 60Hz) 1800W 15A
MACHINE METRIC IMPERIAL
Maximum Depth of Cut
*
*Progressive/incremental cutting required to obtain maximum cutting depth. 100mm 4”
UK/EU Speed (No Load) 4500min
-1
4500rpm
USA Speed (No Load) 5000min
-1
5000rpm
AUS Rated Speed (No Load) 4900min
-1
4900rpm
Protection Class Class II (UK & EU) / Class I (US)
Degree of Protection IP20
Gross Weight 9.5kg 21lbs
BLADE METRIC IMPERIAL
Diameter 305mm 12”
UK & EU Bore 22.2mm 7/8”
USA Bore 25.4mm 1”
Thickness 3mm 1/8”
Maximum Speed 5500min
-1
5500rpm
NOISE & VIBRATION DATA 110V  120V MODELS 230V  240V MODELS
Sound Pressure L
P
A96.0dB(A) K=3dB(A) 98.3dB(A) K=3dB(A)
Sound Power Level L
W
A110.0dB(A) K=3dB(A) 112.0dB(A) K=3dB(A)
Front Handle Vibration Level 3.294m/s
2
K=1.5m/s
2
2,273m/s
2
K=1.5m/s
2
Rear Handle Vibration Level 3. 611m/s
2
K=1.5m/s
2
3.788m/s
2
K=1.5m/s
2
SPECIFICATIONS

5
www.evolutionpowertools.com
EN
DE
FR
ES
the condition of their hands and fingers closely.
If any of the symptoms become evident, seek
immediate medical advice.
• The measurement and assessment of
human exposure to hand-transmitted
vibration in the workplace is given in:
BS EN ISO 5349-1:2001 and
BS EN ISO 5349-2:2002
• Many factors can influence the actual
vibration level during operation e.g. the
work surfaces condition and orientation
and the type and condition of the machine
being used. Before each use, such factors
should be assessed, and where possible
appropriate working practices adopted.
Managing these factors can help reduce
the effects of vibration:
Handling
• Handle the machine with care, allowing
the machine to do the work.
• Avoid using excessive physical effort on
any of the machines controls.
• Consider your security and stability,
and the orientation of the machine
during use.
Work Surface
• Consider the work surface material; its
condition, density, strength, rigidity and
orientation.
WARNING: The vibration emission during
actual use of the power tool can differ from
the declared total value depending on the
ways in which the tool is used. The need
to identify safety measures and to protect
the operator are based on an estimation
of exposure in the actual conditions of use
(taking account of all parts of the operating
cycle, such as the times the tool is switched
off, when it is running idle, in addition to
trigger time).
(1.8)
LABELS & SYMBOLS
WARNING: Do not operate this machine if
warning and/or instruction labels are missing
or damaged. Contact Evolution Power Tools
for replacement labels.
Note: All or some of the following symbols
may appear in the manual or on the product.
SYMBOL DESCRIPTION
V Volts
A Amperes
Hz Hertz
Min-1 Speed
~ Alternating Current
n Rated Speed
Warning!
Read Instructions
Drt Cutting Only
Wear Safety Goggles
Wear Ear Protection
Wear Dust Protection
Wear Safety Gloves
Wear Safety Boots
US Certification
CE Certification
Waste Electrical &
Electronic Equipment
(RCM) Regulatory Compliance Mark
for electrical and electronic equipment.
Australian/New Zealand Standard

6
www.evolutionpowertools.com
(1.10)
INTENDED USE OF
THIS POWER TOOL
WARNING: This product is a Hand Operated
Disc Cutter and has been designed to be
used with special Evolution blades. Only use
accessories designed for use in this machine
and/or those recommended specifically by
Evolution Power Tools Ltd.
When fitted with an appropriate blade
this machine can be used to cut:
Brick
Paving
Kerb Stones
Concrete
1.11
PROHIBITED USE OF
THIS POWER TOOL
WARNING: This product is a Hand Operated
Disc Cutter and must only be used as such. It
must not be modified in any way, or used to
power any other equipment or drive any other
accessories other than those mentioned in
this Instruction Manual. (1.11)
WARNING: This machine must not be used to
cut any material that may contain asbestos. If
the presence of asbestos is suspected, consult
the relevant authorities for advice.
(1.13)
WARNING: This machine is not intended
for use by persons (including children)
with reduced physical, sensory or mental
capabilities, or lack of experience and
knowledge, unless they have been given
supervision or instruction concerning the safe
use of the machine by a person responsible
for their safety and who is competent in its
safe use.
Children should be supervised to ensure
that they do not have access to, and are not
allowed to play with, this machine.
(1.14)
ELECTRICAL SAFETY
This machine is fitted with the correct
moulded plug and mains lead for the
designated market. If the supply cord is
damaged, it must be replaced by a special
cord or assembly available from the
manufacturer or its service agent.
(1.15)
OUTDOOR USE
WARNING: For your protection if this tool
is to be used outdoors it should not be
exposed to rain, or used in damp locations.
Do not place the tool on damp surfaces.
Use a clean, dry workbench if available. For
added protection use a residual current
device (R.C.D.) that will interrupt the supply
if the leakage current to earth exceeds 30mA
for 30ms. Always check the operation of the
residual current device (R.C.D.) before using
the machine.
If an extension cable is required it must be a
suitable type for use outdoors and so labelled.
The manufacturers instructions should be
followed when using an extension cable.
(2.1)
GENERAL POWER TOOL
SAFETY INSTRUCTIONS
WARNING: Read all safety warnings and
instructions. Failure to follow the warnings
and instructions may result in electric shock,
fire and/ or serious injury.
Save all warnings and instructions for
future reference.
The term “power tool” in the warnings refers
to your mains-operated (corded) power tool
or battery-operated (cordless) power tool.
(2.2)
1) General Power Tool Safety Warnings
[Work area safety]
a) Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
b) Do not operate power tools in

7
www.evolutionpowertools.com
EN
DE
FR
ES
explosive atmospheres, such as in the
presence of flammable liquids, gasses or
dust. Power tools create sparks which may
ignite the dust or fumes.
c) Keep children and bystanders away
while operating power tool. Distractions
can cause you to lose control.
(2.3)
2) General Power Tool Safety Warnings
[Electrical Safety]
a) Power tool plugs must match the
outlet. Never modify the plug in any way
Do not use any adapter plugs with
earthed (grounded) power tools.
Unmodified plugs and matching outlets will
reduce the risk of electric shock.
b) Avoid body contact with earthed
or grounded surfaces, such as pipes,
radiators, ranges and refrigerators. There
is an increased risk of electric shock if your
body is earthed or grounded.
c) Do not expose power tools to rain or
wet conditions. Water entering a power tool
will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord
for carrying, pulling or unplugging the power
tool. Keep cord away from heat, oil, sharp
edges or moving parts. Damaged or entangled
cords increase the risk of electric shock.
e) When operating a power tool outdoors,
use an extension cord suitable for
outdoor use. Use of a cord suitable for
outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp
location is unavoidable, use a residual
current device (RCD) protected supply. Use
of an RCD reduces the risk of electric shock.
(2.4)
3) General Power Tool Safety Warnings
[Personal Safety].
a) Stay alert, watch what you are doing
and use common sense when operating
a power tool. Do not use a power tool
while you are tired or under the influence of
drugs, alcohol or medication. A moment of
inattention while operating power tools may
result in serious personal injury.
b) Use personal protective equipment.
Always wear eye protection. Protective
equipment such as dust masks, non-skid
safety shoes, hard hat or hearing protection
used for appropriate conditions will reduce
personal injuries.
c) Prevent unintentional starting. Ensure
the switch is in the off-position before
connecting to power source and or battery
pack, picking up or carrying the tool. Carrying
power tools with your finger on the switch
or energising the power tools that have the
switch on invites accidents.
d) Remove any adjusting key or wrench
before turning the power tool on. A
wrench or key left attached to a rotating part
of a power tool may result in personal injury .
e) Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
f) Dress properly. Do not wear loose
clothing or jewellery. Keep your hair, clothing
and gloves away from moving parts. Loose
clothes, jewellery or long hair can be caught
in moving parts.
g) If devices are provided for the
connection of dust extraction and
collection facilities, ensure that these are
connected and properly used. Use of dust
collection can reduce dust-related hazards.
(2.5)
4) General Power Tool Safety Warnings
[Power tool use and care].
a) Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer at a rate
for which it was designed.
b) Do not use the power tool if the switch
does not turn it on or off. Any power tool that
cannot be controlled with the switch is dangerous
and must be repaired.
c) Disconnect the power tool from the
power source and/or battery pack from the
power tool before making any adjustments,

8
www.evolutionpowertools.com
changing accessories, or storing power tools.
Such preventative safety measures reduce the risk
of starting the power tool accidentally.
d) Store idle power tools out of the reach of
children and do not allow persons unfamiliar
with the power tool or these Instructions
to operate the power tool. Power tools are
dangerous in the hands of untrained users.
e) Maintain power tools. Check for
misalignment or binding of moving parts,
breakage of moving parts and any other condition
that may affect the power tools operation. If
damaged, have the power tool repaired before
use. Many accidents are caused by poorly
maintained power tools.
f) Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
g) Use the power tool, accessories and
tool bits etc. in accordance with these
instructions, taking into account the
working conditions and the work to be
performed. Use of the power tool for operations
different from those intended could result in a
hazardous situation.
(2.6)
5) General Power Tool Safety Warnings
[Service]
a) Have your power tool serviced by a
qualified repair person using only identical
replacement parts. This will ensure that the
safety of the power tool is maintained.
(2.7)
HEALTH ADVICE
WARNING: When using this machine, dust
particles may be produced. In some instances,
depending on the materials you are working
with, this dust can be particularly harmful. If you
suspect that paint on the surface of material you
wish to cut contains lead, seek professional advice.
Lead based paints should only be removed
by a professional and you should not attempt
to remove it yourself. Once the dust has been
deposited on surfaces, hand to mouth contact can
result in the ingestion of lead. Exposure to even
low levels of lead can cause irreversible brain and
nervous system damage. The young and unborn
children are particularly vulnerable. You are
advised to consider the risks associated with the
materials you are working with and to reduce the
risk of exposure. As some materials can produce
dust that may be hazardous to your health, we
recommend the use of an approved face mask
with replaceable filters when using this machine.
You should always:
• Work in a well-ventilated area.
• Work with approved safety equipment, such as
dust masks that are specially designed to filter
microscopic particles.
SAFETY INSTRUCTIONS FOR ABRASIVE
CUTTINGOFF OPERATIONS
Cut-off machine safety warnings
a) The guard provided with the tool must
be securely attached to the power tool and
positioned for maximum safety, so the least
amount of wheel is exposed towards the
operator. Position yourself and bystanders
away from the plane of the rotating wheel. The
guard helps to protect operator from broken wheel
fragments and accidental contact with wheel.
b) Use only bonded reinforced or diamond
cut-off wheels for your power tool. Just
because an accessory can be attached to your
power tool, it does not assure safe operation.
c) The rated speed of the accessory must be at
least equal to the maximum speed marked on
the power tool. Accessories running faster than
their rated speed can break and fly apart.
d) Wheels must be used only for recommended
applications. For example: do not grind with
the side of cut-off wheel. Abrasive cut-off wheels
are intended for peripheral grinding, side forces
applied to these wheels may cause them to shatter.
e) Always use undamaged wheel flanges
that are of correct diameter for your selected
wheel. Proper wheel flanges support the wheel
thus reducing the possibility of wheel breakage.
f) Do not use worn down reinforced wheels
from larger power tools. Wheels intended
for a larger power tool are not suitable for the

9
www.evolutionpowertools.com
EN
DE
FR
ES
higher speed of a smaller tool and may burst.
g) The outside diameter and the
thickness of your accessory must be
within the capacity rating of your power
tool. Incorrectly sized accessories cannot
be adequately guarded or controlled.
h) The arbour size of wheels and flanges must
properly fit the spindle of the power tool.
Wheels and flanges with arbour holes that do not
match the mounting hardware of the power tool
will run out of balance, vibrate excessively and may
cause loss of control.
i) Do not use damaged wheels. Before each
use, inspect the wheels for chips and cracks.
If power tool or wheel is dropped, inspect for
damage
or install an undamaged wheel. After
inspecting and installing the wheel, position
yourself and bystanders away from the plane
of the rotating wheel and run the power tool
at maximum no load speed for one minute.
Damaged wheels will normally break apart during
this test time.
j) Wear personal protective equipment.
Depending on application, use face shield,
safety goggles or safety glasses. As
appropriate, wear dust mask, hearing
protectors, gloves and shop apron capable of
stopping small abrasive or workpiece
fragments. The eye protection must be capable
of stopping flying debris generated by various
operations. The dust mask or respirator must be
capable of filtrating particles generated by your
operation. Prolonged exposure to high intensity
noise may cause hearing loss.
k) Keep bystanders a safe distance away from
work area. Anyone entering the work
area must wear personal protective
equipment. Fragments of workpiece or of a
broken wheel may fly away and cause injury beyond
immediate area of operation.
l) Hold the power tool by insulated gripping
surfaces only, when performing an operation
where the cutting accessory may contact
hidden wiring or its own cord.
Cutting accessory contacting a “live” wire may make
exposed metal parts of the power tool “live” and
could give the operator an electric shock.
m) Position the cord clear of the spinning
accessory. If you lose control, the cord may be
cut or snagged and your hand or arm may be pulled
into the spinning wheel.
n) Never lay the power tool down until the
accessory has come to a complete stop.
The spinning wheel may grab the surface and pull
the power tool out of your control.
o) Do not run the power tool while carrying it at
your side. Accidental contact with the
spinning accessory could snag your clothing, pulling
the accessory into your body.
p) Regularly clean the power tool’s air vents.
The motor’s fan will draw the dust inside the housing
and excessive accumulation of powdered metal may
cause electrical hazards.
q) Do not operate the power tool near
flammable materials. Sparks could ignite these
materials.
r) Do not use accessories that require liquid
coolants. Using water or other liquid coolants may
result in electrocution or shock.
FURTHER SAFETY INSTRUCTIONS FOR
ABRASIVE CUTTINGOFF OPERATIONS
Kickback and related warnings
Kickback is a sudden reaction to a pinched or
snagged rotating wheel. Pinching or snagging
causes rapid stalling of the rotating wheel which in
turn causes the uncontrolled power tool to be forced
in the direction opposite of the wheel’s rotation at
the point of the binding. For example, if an abrasive
wheel is snagged or pinched by the workpiece, the
edge of the wheel that is entering into the pinch
point can dig into the surface of the material causing
the wheel to climb out or kick out. The wheel may
either jump toward or away from the operator,
depending on direction of the wheel’s movement
at the point of pinching. Abrasive wheels may also
break under these conditions. Kickback is the result
of power tool misuse and/or incorrect operating
procedures or conditions and can be avoided by
taking proper precautions as given below.
a) Maintain a firm grip on the power tool and
position your body and arm to allow you to
resist kickback forces. Always use auxiliary

10
www.evolutionpowertools.com
handle, if provided, for maximum control over
kickback or torque reaction during start-
up. The operator can control torque reactions or
kickback forces, if proper precautions are taken.
b) Never place your hand near the rotating
accessory. Accessory may kickback over your hand.
c) Do not position your body in line with the
rotating wheel. Kickback will propel the tool in
direction opposite to the wheel’s movement at the
point of snagging.
d) Use special care when working corners,
sharp edges etc. Avoid bouncing and snagging
the accessory. Corners, sharp edges or bouncing
have a tendency to snag the rotating accessory and
cause loss of control or kickback.
e) Do not attach a saw chain, woodcarving
blade, segmented diamond wheel with a
peripheral gap greater than 10 mm or toothed
saw blade. Such blades create frequent kickback
and loss of control.
f) Do not “jam” the wheel or apply excessive
pressure. Do not attempt to make an excessive
depth of cut. Overstressing the wheel increases the
loading and susceptibility to twisting or binding of
the wheel in the cut and the possibility of kickback or
wheel breakage.
g) When wheel is binding or when interrupting
a cut for any reason, switch off the power tool
and hold the power tool motionless until the
wheel comes to a complete stop. Never attempt
to remove the wheel from the cut while the
wheel is in motion otherwise kickback may
occur. Investigate and take corrective action to
eliminate the cause of wheel binding.
h) Do not restart the cutting operation in the
workpiece. Let the wheel reach full speed and
carefully re-enter the cut. The wheel may bind,
walk up or kickback if the power tool is restarted in
the workpiece.
i) Support panels or any oversized workpiece to
minimize the risk of wheel pinching
and kickback. Large workpieces tend to sag under
their own weight. Supports must be placed under
the workpiece near the line of cut and near the edge
of the workpiece on both sides of the wheel.
j) Use extra caution when making a “pocket
cut” into existing walls or other blind areas.
The protruding wheel may cut gas or water pipes,
electrical wiring or objects that can cause kickback.
(2.8) WARNING: the operation of any power
tool can result in foreign objects being thrown
towards your eyes, which could result in severe eye
damage. Before beginning power tool operation,
always wear safety goggles or safety glasses with
side shield or a full face shield where necessary.
ADDITIONAL SAFETY INSTRUCTIONS
WARNING: Always disconnect the Disc Cutter
from the mains supply before changing discs,
servicing, cleaning or adjusting the Disc Cutter.
• Keep your hands away from cutting area and
the cutting disc. Keep your second hand on
the auxiliary handle or motor housing. If both
hands are holding the machine, they cannot
come into contact with the diamond disc.
• Never engage the spindle lock button while
the machine is running. Serious damage could
occur to the machine and potentially a very
hazardous situation arise for the operator.
• Only use diamond discs or other approved
cutting discs as specified by the manufacturer.
Do not operate the cutter while applying water.
The cutting discs are ‘dry cut’ discs.
• Always check the diamond disc before starting
the machine. If it is cracked, broken or bent,
do not use it. Carefully start the machine and
check for any unusual noises, vibration or other
abnormalities.
• Be careful when cutting metal. Using the
diamond disc to cut metal (reinforcing rods
embedded in concrete) will shorten its service
life and could lead to disc damage.
• Allow the Cutting Disc to reach full speed
before beginning a cut. Start working only
when maximum speed is reached.
• Do not use excessive force. Excessive force
overloads the motor and reduces working
efficiency and service life. Always cut concrete,
tile or stone to a maximum cutting depth of
50mm or less. If the cutting depth is more than
50mm, cut the workpiece 2 or 3 times. If the
workpiece is cut with a cutting depth of more
than 50mm, the service life of the diamond disc
will be re¬duced and the motor may seize.

11
www.evolutionpowertools.com
EN
DE
FR
ES
• Install the dust extraction port cover when
a dust collection hose is not in use. During
cutting operations if sparks could be generated,
cover the dust extraction port with its rubber
cap and be sure to wear protective glasses.
• Never use a damaged or incorrect arbor bolt
or disc flanges. The disc flanges and arbor bolt
were specially designed for your machine to
provide optimum performance and safety of
operation.
• This saw is equipped with an approved cord
and plug for its intended Country of use. Do not
alter or modify the power cord. If the moulded
plug or the power cord is damaged in any way
it must be replaced with an identical type by a
competent technician.
WARNING: This machine must not be used to
cut any material that may contain asbestos. If the
presence of asbestos is suspected, consult the
relevant authorities for advice.
PPE (Personal Protective Equipment)
Note: If using this equipment on a construction
site it is important that the operator conforms to
any site rules/regulations that may apply. Consult
the site foreman or other responsible person for
details.
a. Wear suitable clothing. This could include a
Boiler Suit or Padded Coverall and Hi Vis jacket etc.
b. Wear suitable footwear. Safety shoes with
steel toecaps and anti-slip soles are recommended.
c. Wear suitable Safety Glasses. A Full Face
Safety Shield or Safety Goggles with side shields
which provide protection from thrown debris is
recommended.
d. Protect you hearing. Wear suitable ear
protectors.
e. Wear suitable gloves. High grip gloves are
recommended.
f. Wear respiratory protection. A dust mask
with replaceable filters which provide protection
against fine toxic dust, fibres and vapours is
recommended.
g. Wear a Safety Helmet. The use of a Safety
Hat may be compulsory on construction sites to
protect the operator from potential overhead
dangers.
(4.1) GETTING STARTED - UNPACKING
Caution: This packaging contains sharp objects.
Take care when unpacking. Remove the machine,
together with the accessories supplied from the
packaging. Check carefully to ensure that the
machine is in good condition and account for all
the accessories listed in this manual. Also make
sure that all the accessories are complete. If any
parts are found to be missing, the machine and its
accessories should be returned together in their
original packaging to the retailer. Do not throw
the packaging away; keep it safe throughout the
guarantee period. Dispose of the packaging in
an environmentally responsible manner. Recycle
if possible. Do not let children play with empty
plastic bags due to the risk of suffocation.
(4.2)
ITEMS SUPPLIED
DESCRIPTION QUANTITY
Instruction Manual 1
Blade (Fitted) 1
Spanner (blade change) 1
Rubber Cap
(extraction port) 1
4.3
ADDITIONAL ACCESSORIES
In addition to the standard items supplied
with this machine the following accessories
are also available from the Evolution online
shop at www.evolutionpowertools.com or
from your local retailer.
(4.4)
DESCRIPTION PART NO
Specialist cutting blades
(use only Evolution Blades
or Evolution approved blades
with this machine)
Not suitable for resharpening.
Specific to
blade type

12
www.evolutionpowertools.com

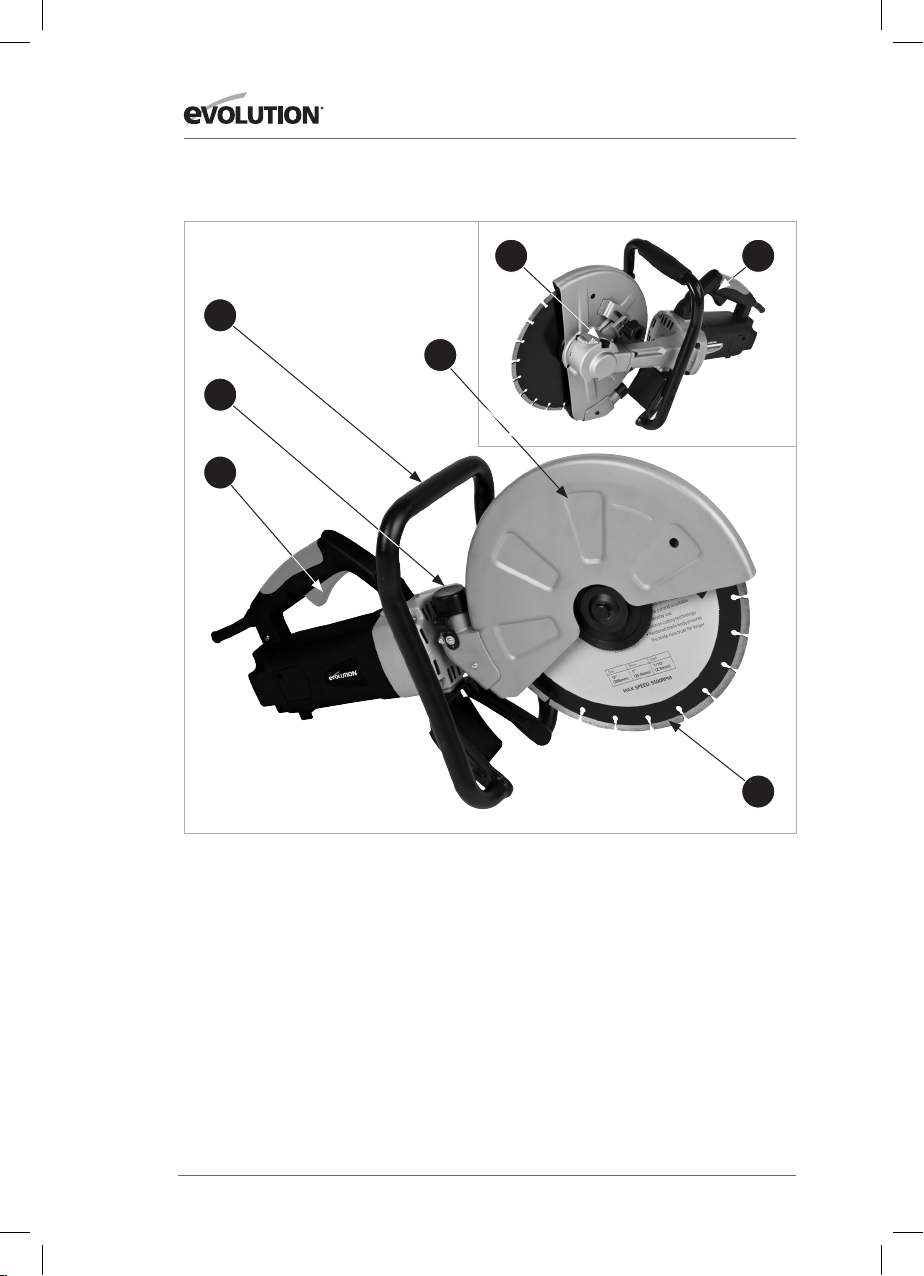

MACHINE OVERVIEW
1. Safety Lock Button
2. Trigger Switch
3. Dust Extraction Port
4. Cutting Disc
5. Adjustable Disc Guard
6. Arbor Lock Button
7. Anti-vibration Front handle
2
4
1
3
7
6
5

13
www.evolutionpowertools.com
EN
DE
FR
ES
OPERATING INSTRUCTIONS
The tool is recommended to always be supplied via a residual
current device with a rated residual current of 30 mA or less.
INSTALLING/REMOVING A DISC
WARNING: Always disconnect the machine from the power
supply before attempting to install or remove a Cutting Disc.
• Ensure that the machines arbor and the blade flanges are
clean and free from dust and debris.
• Ensure that the direction of rotation marked on the blade
matches the direction of rotation marked on the machines
guard.
Note: This machine is supplied with two (2) blade flanges. These
can accommodate blades with either a ø20mm (ø3/4”) or ø22.2
(ø7/8”) arbor hole depending upon how they are installed.
• Install blade flange ‘A’ on the inner side when the arbor hole
in the cutting disc is ø22.2mm (ø7/8”). FIG. 1
• Install the blade flange ‘B’ on the inner side when the arbor
hole in the cutting disc is ø20mm (ø3/4”) FIG. 2
• Install the cutting blade and outer blade flange, washer and
arbor bolt.
• Press the arbor lock to lock the machines arbor.
• Tighten the arbor bolt using the supplied spanner. FIG. 3
• Release the arbor lock and check by hand that the Cutting
Disc is secure and correctly positioned on the arbor and that
if rotates freely.
Note: The arbor bolt has a Left Hand thread. Turn
counterclockwise to tighten the arbor bolt. Turn clockwise to
loosen the arbor bolt.
To remove a Cutting Disc, reverse the above Installation
procedure.

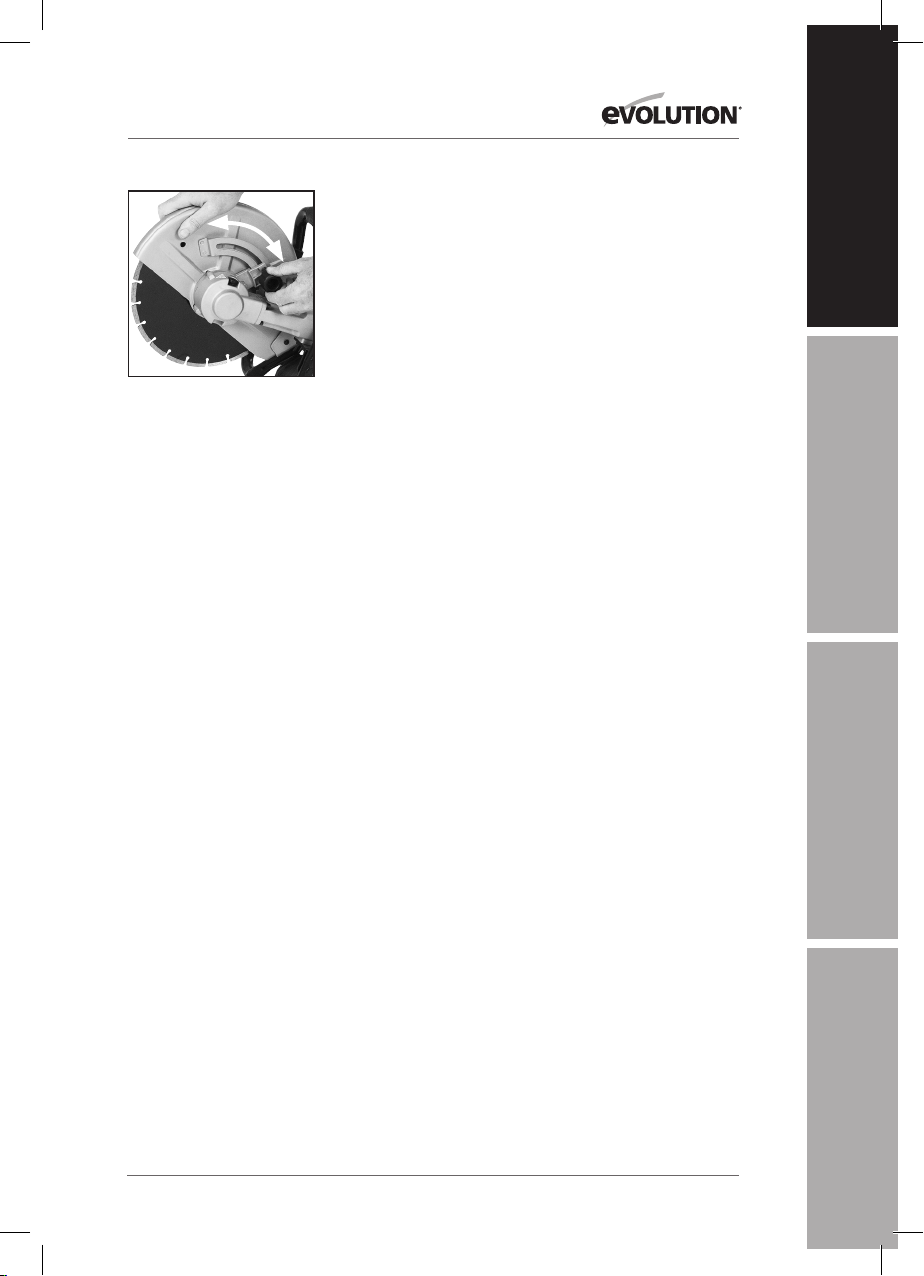

FIG. 1
FIG. 3
FIG. 2

14
www.evolutionpowertools.com
USING A DUST EXTRACTION MACHINE
A workshop dust extraction machine can be attached to the
Evolution Disc Cutter.
WARNING: Dust can be very dangerous. We strongly
recommend that a suitable dust extraction machine (not
supplied) is used with this machine to keep the workplace as
clean and safe as possible.
The suction hose from the dust extraction machine should be
attached to the dust extraction port of the Disc Cutter.
• Remove the rubber cap from the dust extraction port and
store it safely for future use.
• Push the connection hose from the dust extraction machine
into the dust extraction port of the Disc Cutter. FIG. 4
• Follow all instructions supplied with the dust extraction
machine when using such with this Disc Cutter.
• Ensure that the hose and power cable of any attached dust
extraction machine do not pose or cause a trip or any other
form of hazard to the operator.
• When the dust extraction machine is no longer required,
remove it from the Disc Cutter and replace the rubber cap to
the dust extraction port.
THE ON/OFF TRIGGER SWITCH
This machine is equipped with a safety start trigger switch.
To start the tool:
• Push in the safety lock button (Fig. 5a) on the side of the
handle with your thumb.
• Depress the main trigger switch (Fig. 5b) to start the motor.
WARNING: Never start the saw with the cutting edge of the
saw blade in contact with the workpiece surface.

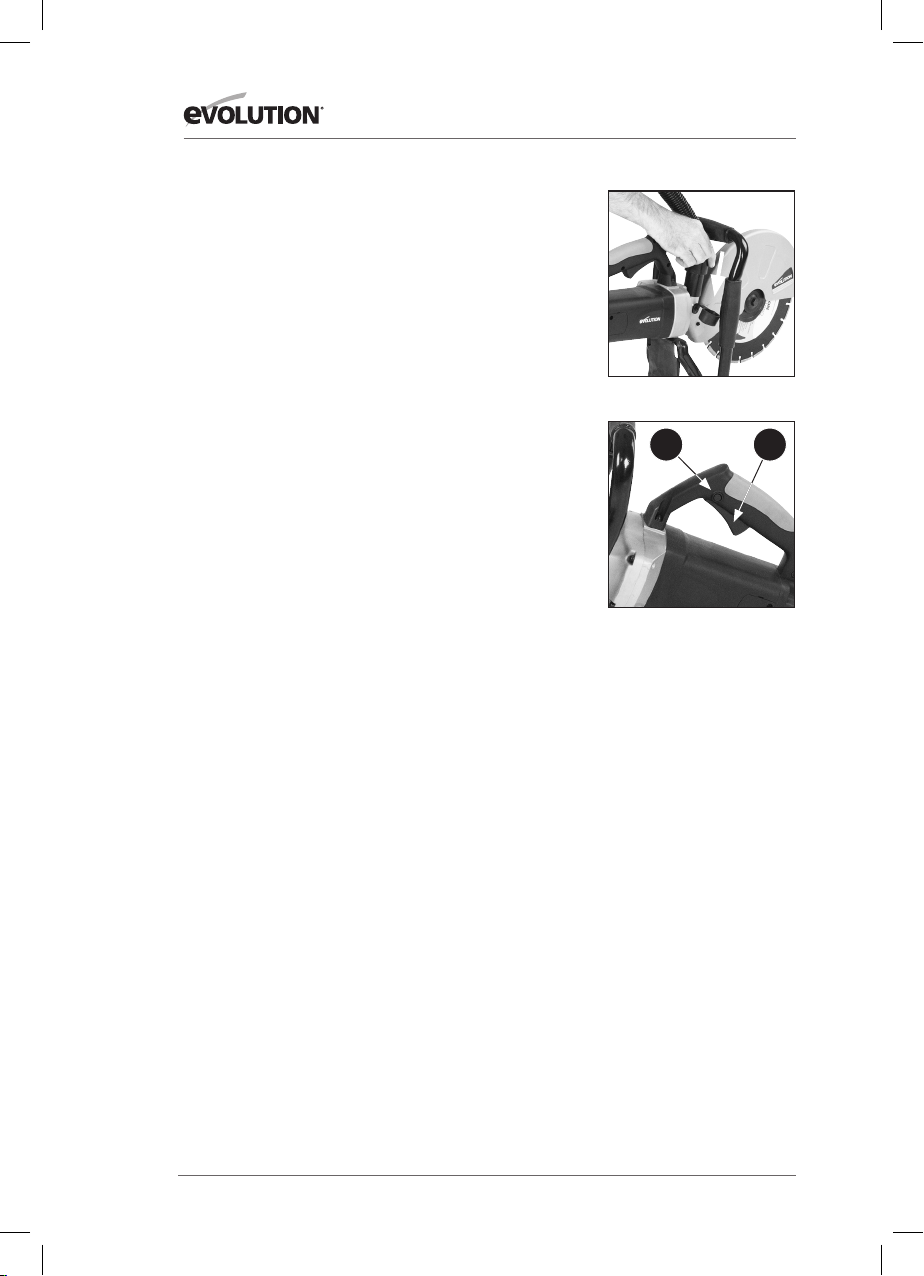

FIG. 4
FIG. 5a & 5b
a b

15
www.evolutionpowertools.com
EN
DE
FR
ES
CUTTING ADVICE
PRE-CUTTING ADVICE
• Ensure that the power supply matches the requirements
specified on the machines rating plate.
• Ensure that the machines trigger switch is in the ‘OFF’
position. If the machine is connected to a power source with
the trigger switch in the ‘ON’ position, the machine could
start operating immediately with the possibility of a serious
accident occurring.
• If an extension cable is required it must be a suitable type
for use outdoors and so labelled.
• The manufacturers instructions should be followed when
using an extension cable.
• Route any extension cable so that it does not pose a trip (or
any other) hazard to the operator or any bystanders.
WHEEL GUARD ADJUSTMENT
The Wheel Guard is adjustable and should be positioned to
provide the operator with the best combination of personal
protection and visibility of the cutting area.
WARNING: Ensure that the machine is disconnected from the
power supply before adjusting the Wheel Guard.
• Loosen the Wheel Guard locking knob and rotate the Guard
to the required position. FIG. 6
• Securely tighten the Wheel Guard locking knob to lock the
Guard in place.
Note: The tightness of this locking knob and the security of
the Wheel Guard should be checked regularly when operations
commence.
FIG. 6

16
www.evolutionpowertools.com
CUTTING ADVICE
Mark out all the cutting lines on the workpiece using suitable
media – pencil, crayon, chalk etc. All cutting lines should be
clear and readily visible.
• If possible support the workpiece in such a way that it is
possible to predict what will happen, and that the cut will
remain stable and open while cutting. (FIG. 7)
• Always align the diamond wheel with a pre-marked cutting
line before beginning operations, but ensure that the
diamond wheel is not touching the workpiece.
• Switch the machine ‘ON’ and allow the blade to reach its full
operational speed.
• Gently feed the blade into the workpiece. Cutting
performance is best when you cut straight ahead along the
pre-marked cutting line. Do not cut a depth of greater than
50mm (2”). FIG. 8 If a cut of greater than 50 mm (2”) is
required make several passes.
• Cut smoothly, allowing the machine to work without forcing
the blade.
WARNING: Do not attempt to cut curved or zig zag lines.
Never use the side of the blade as a cutting surface. Never use
to perform inclination cutting.
• Do not apply water or coolant to the diamond blade.
• Move the blade slowly backwards and forwards and try to
achieve a small contact area between the blade and the
workpiece being cut. This reduces the temperature of the
blade and ensures efficient cutting.
• If the blade seizes or there is any abnormal noise,
immediately turn the power ‘OFF’ and investigate the
cause. Determine the cause of any noise or stoppage. Only
recommence cutting if it is safe to do so.
• Feed the machine down in line with the blade. Sideways
pressure on the blade disc can damage it and can be very
dangerous.
FIG. 7
FIG. 8

17
www.evolutionpowertools.com
EN
DE
FR
ES
(6.1) MAINTENANCE
Note: Any maintenance must be carried out with the machine
switched off and disconnected from the mains/battery power
supply.
Check that all safety features and guards are operating
correctly on a regular basis. Only use this machine if all guards/
safety features are fully operational.
All motor bearings in this machine are lubricated for life. No
further lubrication is required.
Use a clean, slightly damp cloth to clean the plastic parts of the
machine. Do not use solvents or similar products which could
damage the plastic parts.
WARNING: Do not attempt to clean by inserting pointed
objects through openings in the machines casings etc. The
machines air vents should be cleaned using compressed dry air.
Excessive sparking may indicate the presence of dirt in the
motor or worn out carbon brushes.
(6.2)
If this is suspected have the machine serviced and the brushes
replaced by a qualified technician.
(6.4)
ENVIRONMENTAL PROTECTION
Waste electrical products should not be disposed of with
household waste. Please recycle where facilities exist. Check
with your Local Authority or retailer for recycling advice.

18
www.evolutionpowertools.com
DECLARATION OF CONFORMITY
The manufacturer of the product covered by this Declaration is:
Evolution Power Tools, Venture One, Longacre Close, Holbrook Industrial Estate, Sheffield, S20 3FR
The manufacturer hereby declares that the machine as detailed in this declaration fulfils all the
relevant provisions of the Machinery Directive and other appropriate directives as detailed below.
The manufacture further declares that the machine as detailed in this declaration, where
applicable, fulfils the relevant provisions of the Essential Health and Safety requirements.
The Directives covered by this Declaration are as detailed below:
And is in conformity with the applicable requirements of the following documents
Product Details
Description: Evolution 305mm (12”) Multipurpose Electric Disc Cutter
Brand Name: Evolution Build
Voltage: 110V / 230-240V ~ 50Hz / 60Hz
Input: 1800W (120v) 2000W (110v) 2400W (230v)
The technical documentation required to demonstrate that the product meets the requirements
of directive has been compiled and is available for inspection by the relevant enforcement
authorities, and verifies that our technical file contains the documents listed above and that they
are the correct standards for the product as detailed above.
Name and address of technical documentation holder.
Signed: Print: Matthew Gavins - Operations Director
Date: 01/03/16
2006/42/EC. Machinery Directive.
2014/30/EU. Electromagnetic Compatibility Directive.
93/68/EC. The CE Marking Directive.
2011/65/EU. The Restriction of the Use of certain Hazardous Substances in Electrical Equipment (RoHS) Directive.
2002/96/EC. as amended by 2003/108/EC The Waste Electrical and Electronic Equipment (WEEE) Directive.
EN 60745-1/A11:2010 • EN ISO 12100: 2010 • EN 55014-1: 2017 • EN 55014-2: 2015 •
EN61000-3-2: 2014 • EN61000-3-3: 2013

19
www.evolutionpowertools.com
EN
DE
FR
ES
Notes

20
www.evolutionpowertools.com
INHALTSVERZEICHNIS
English Page 02
Deutsch Seite 20
Français Page 40
Español Página 56
EINLEITUNG Seite 21
Garantie Seite 21
Python Programming Seite 22
Vibration Seite 22
Kennzeichnungen und Symbole Seite 23
Bestimmungsgemäßer Gebrauch des Elektrowerkzeugs Seite 24
Python Programming Gebrauch des Elektrowerkzeugs Seite 24
SICHERHEITSVORKEHRUNGEN Seite 24
Elektrische Sicherheit Seite 24
Verwendung im Freien Seite 24
Allgemeine Sicherheitsanweisungen zu Elektrowerkzeugen Seite 24
Zusätzliche Sicherheitsanweisungen Seite 29
ERSTE SCHRITTE Seite 30
Auspacken Seite 30
Maschinenübersicht Seite 32
Montage und Vorbereitung Seite 33
Betriebsanleitung Seite 33
INSTANDHALTUNG Seite 16
Umweltschutz Seite 37
KONFORMITÄTSERKLÄRUNG Seite 38
