Evonicfires Brooklyn Manual

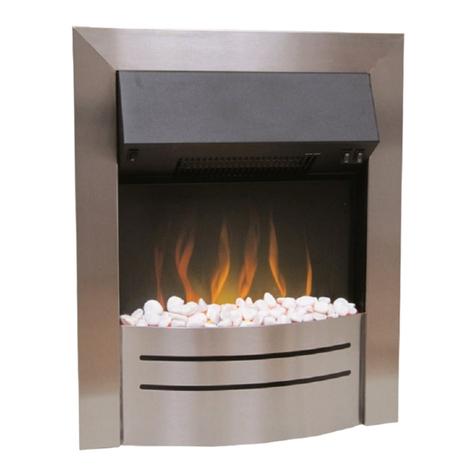

Models—BROOKLYN—PHANTOM—
AMATHUS—CASAL
Instrucon Guide
Important Safety Informaon
Always read this manual rst before aempng to install or use this
replace. For your safety, always comply with all warnings and safety
Instrucons contained in this manual to prevent personal injury or property
damage.
Please Note: This product is for well insulated spaces or
occasional use.
English

welcome to evonicres
evonicres is an award-winning brand of CK Fires Ltd, situated just outside Straord-
upon-Avon, we manufacture a range of Brish built electric res and are considered as
one of the most technically advanced manufacturers in the world, with oponal
controllers such as e-touch and a fully integrated APP available to download on both
or .
This guide is designed to aid in the installaon and connued performance of this
product. This product conforms with all health, safety, and environmental protecon
standards as indicated by a CE mark. For opmum performance this product requires
a well insulated locaon or occasional use.
1. Introducon 2
2. Electrical Safety 3/4
3. Important Instrucons 5/6
4. Installaon Requirements 7
5. Seng the Thermostat 8
6. Operang Instrucons 9
7. Hole In Wall Installaon 10
8. Technical Specicaon & Problem
Solving 11
9. Warranty 12
2.
Contents

3.
ELECTRICAL SAFETY:
When using electrical appliances, basic precauons should always be
followed to reduce the risk of re, electric shock, and injury to persons,
including the following:
① Read all instrucons before using this electric replace.
② This replace is hot when in use. To avoid burns, do not let bare skin
touch hot surfaces. The trim around the heater outlet becomes hot during
heater operaon. DANGER: High temperatures may be generated under
certain abnormal condions. Do not parally or fully cover or obstruct the
front of this heater.
③ Extreme cauon is necessary when any heater is used by or near
children or people of reduced mobility and whenever the unit is le
operang and unaended.
④ Young children should be supervised to ensure that they do not play
with the appliance.
⑤ The appliance is not intended for use by young children or inrmed
persons without supervision.
⑥ In the event of a malfuncon, disconnect power at the service panel
and have the unit inspected by a reputable electrician before reusing.
⑦ If the supply cord is damaged, it must be replaced by the
manufacturer, or its service agent, or a qualied person in order to avoid a
hazard.
⑧ Do not use outdoors.
⑨ Never locate replace where it may fall into a bathtub or other water
container.
⑩ To disconnect the replace, turn the controls o, and turn o power to
heater circuit at main disconnect panel.
⑪ Do not run the cord under carpeng. Do not cover cord with throw
rugs, runners, or the like. Arrange cord away from trac area and where it
will not be tripped over.
⑫ Do not locate the heater immediately below a xed socket-outlet.

4.
⑬ Do not insert or allow foreign objects to enter any venlaon or exhaust
opening as this may cause an electric shock or re, or damage to the heater.
⑭ To prevent a possible re, do not block air intakes or exhaust in any manner.
⑮ All electrical heaters have hot and arcing or sparking parts inside. Do not use
in areas where gasoline, paint, or ammable liquids are used or stored.
⑯ Use this replace only as described in this manual. Any other use not
recommended by the manufacturer may cause re, electric shock or injury to
persons.
⑰ Do not change the plug in any way. Always plug heaters directly into a wall
outlet/receptacle. Never use with an extension cord or relocatable power tap
(outlet/power strip).
⑱ Do not burn wood or other materials in the electric replace.
⑲ Do not strike the replace glass.
⑳ Always use a cered electrician should new circuits or outlets be required.
㉑ Always use properly grounded, fused and polarized outlets.
㉒ Disconnect all power supply before performing any cleaning, maintenance or
relocaon of the unit.
㉓ When transporng or storing the unit and cord, keep in a dry place, free from
excessive vibraon and store so as to avoid damage.
NOTE: Changes or modicaons not expressly approved by the party responsi-
ble for compliance could void user's authority to operate the equipment.

IMPORTANT INSTRUCTIONS:
Important electrical safety:
This appliance must never be installed above or in front of a fixed electric socket.
The electrical socket must be easily accessible to isolate the supply during maintenance and
cleaning.
This appliance is supplied with a two meter power lead, which has a 13Amp moulded three pin plug
to connect to a standard 230/240V plug socket.
This appliance must always be earthed. If in any doubt consult a suitably competent person.
Replacement plug: (Please note that it may invalidate your warranty is the moulded plug is
removed)
This appliance must only be connected to a 230/240 Volts AC 50Hz supply. Before connecting the
fire, check that the supply voltage is the same as stated on the fire. This appliance must only be used
on a AC supply, fuse rating 13Amp.
The wires in the mains lead are coloured in accordance with a standard UK supply, these being:
GREEN/YELLOW –EARTH
BLUE –NEUTRAL
BROWN –LIVE
As the colours of the mains lead of this appliance may not match the coloured markings used to
identify the terminals in a plug, please observe the following:
•The green and yellow wire must be connected to the terminal in the plug which is marked with the
letter E or the earth symbol.
•The blue wire must be connected to the terminal in the plug marked with the letter N.
•The brown wire must be connected to the terminal in the plug marked with the letter L.
•If the plug is damaged, replace or consult a qualified electrician.
•Replace fuses only with fuses of the correct size and rating.
Servicing:
Only a competent person should service this appliance.
We recommend that this appliance is serviced every 12 months.
Warning: Before carrying out any repairs or servicing, ensure that the power
supply cord is removed from the mains supply.

5.
All Evonic fires products meet the requirements of the EC Directives
2004/108/EC and 2006/95/EC.
These directives have been met by compliance with the following
standards:
BS EN 60335-1:2002
BS EN 60335-2-30:2003
BS EN 6100-6-3:2001
Please read these instructions before installation or use and keep this
booklet handy for future reference.
Safety:
This appliance is not intended for use by persons (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have been given supervision
or instruction concerning the use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
General Warnings:
Never leave children unsupervised with an unguarded heater.
Never obstruct or cover the heater outlet.
Never install or use this product where it may come in contact with water i.e. a bathroom or wet room.
Never use aerosols or steam cleaners near this product.
Never route the electric cable near the heater outlet.
Never route the electric cable under carpets or floor coverings.
Never install this product close to curtains or combustible materials.
Never Use the heater to dry clothes or other objects.
Never remove the fireplace surrounding without isolating the electric supply.
Important electrical safety:
This appliance must never be installed above or in front of a fixed electric socket.
The electrical socket must be easily accessible to isolate the supply during maintenance and clean-
ing.
This appliance is supplied with a two meter power lead, which has a 13Amp moulded three pin plug
to connect to a standard 230/240V plug socket.
This appliance must always be earthed. If in any doubt consult a suitably competent person.
All Evonic fires products meet the requirements of the EC Directives 2004/108/EC and 2006/95/EC.

6.
INSTALLATION REQUIREMENTS:
INSTALLATION REQUIREMENTS:
INSET MODELS:

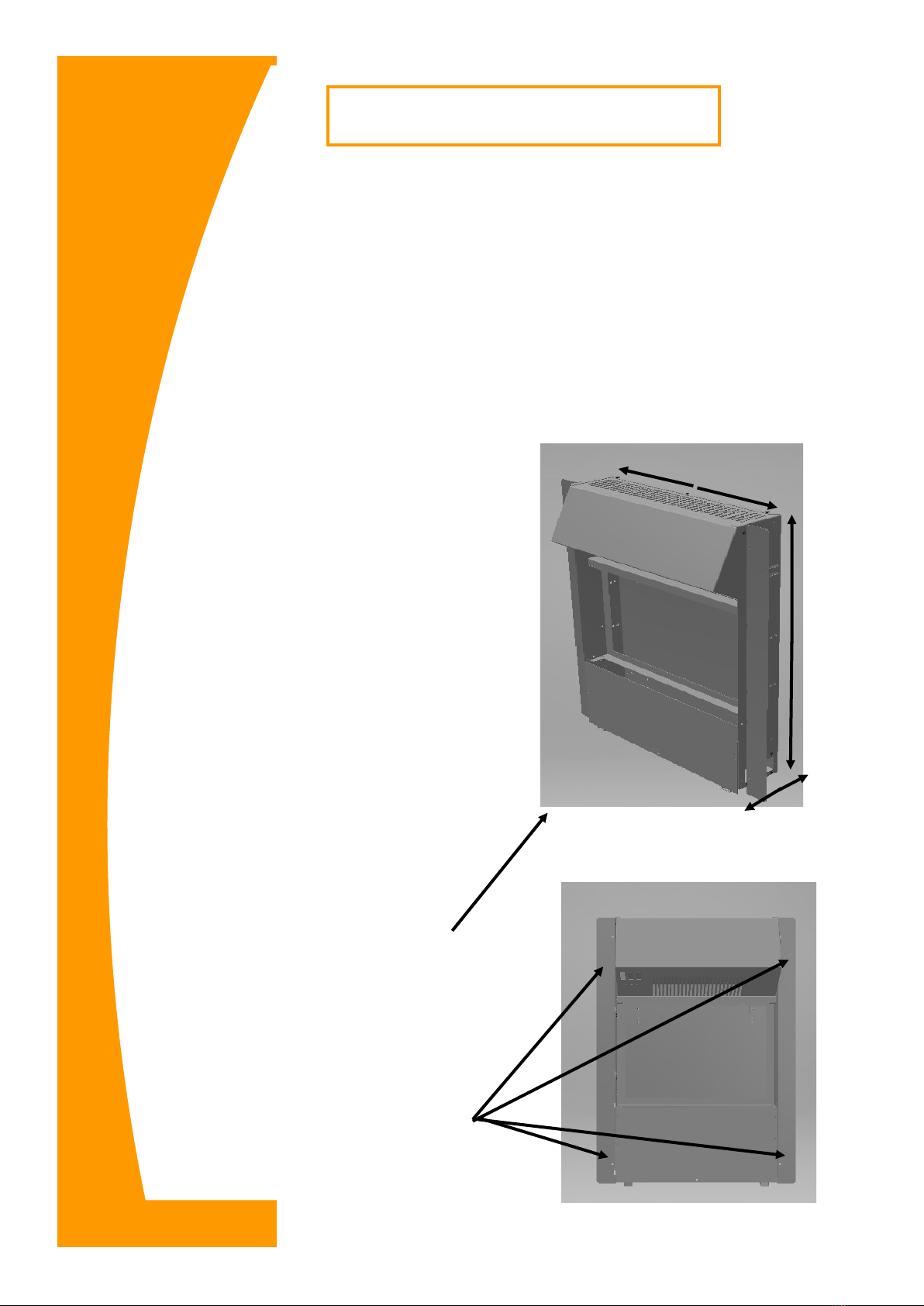

This product has been designed to be installed into a standard 420mm(W)
x 570mm(H) x 80m(D)
If the products is to be installed into a open chimney or flue, it is important that
the chimney/flue is blocked off to prevent any up/down draughts and falling de-
bris which could restrict and alter the airflow to the product.
It is also important to ensure that the product has a minimum clearance around
it of 15mm, this is to ensure that the productcan circulate the required airflow for
the heater unit.
The product should never be sealed into a opening with the use of silicones or
adhesives as this can also alter the airflow and hinder any further servicing of
the product.
Please refer to technical specification table for further information, with refer-
ence to measurements.
(Heater unit cut-out) (This is a safety feature, to safe guard against further
damage to the product).
If the airflow is restricted the heater will automatically turn off. This is can occur
due to incorrect installation or obstruction.
To reset the heater function:
•isolate from the mains power supply.
•Leave product to cool.
•After a suitable cooling down period, remove the obstruction if obstructed, and
check installation.
•After 10 minutes the thermo switch (cut-out) in the heater will reset.
Please note that both the effect fan and heater fan omit a low decibel
noise, both of which are normal operating characteristics.

Seng the Thermostat
Ensure the re is plugged in.

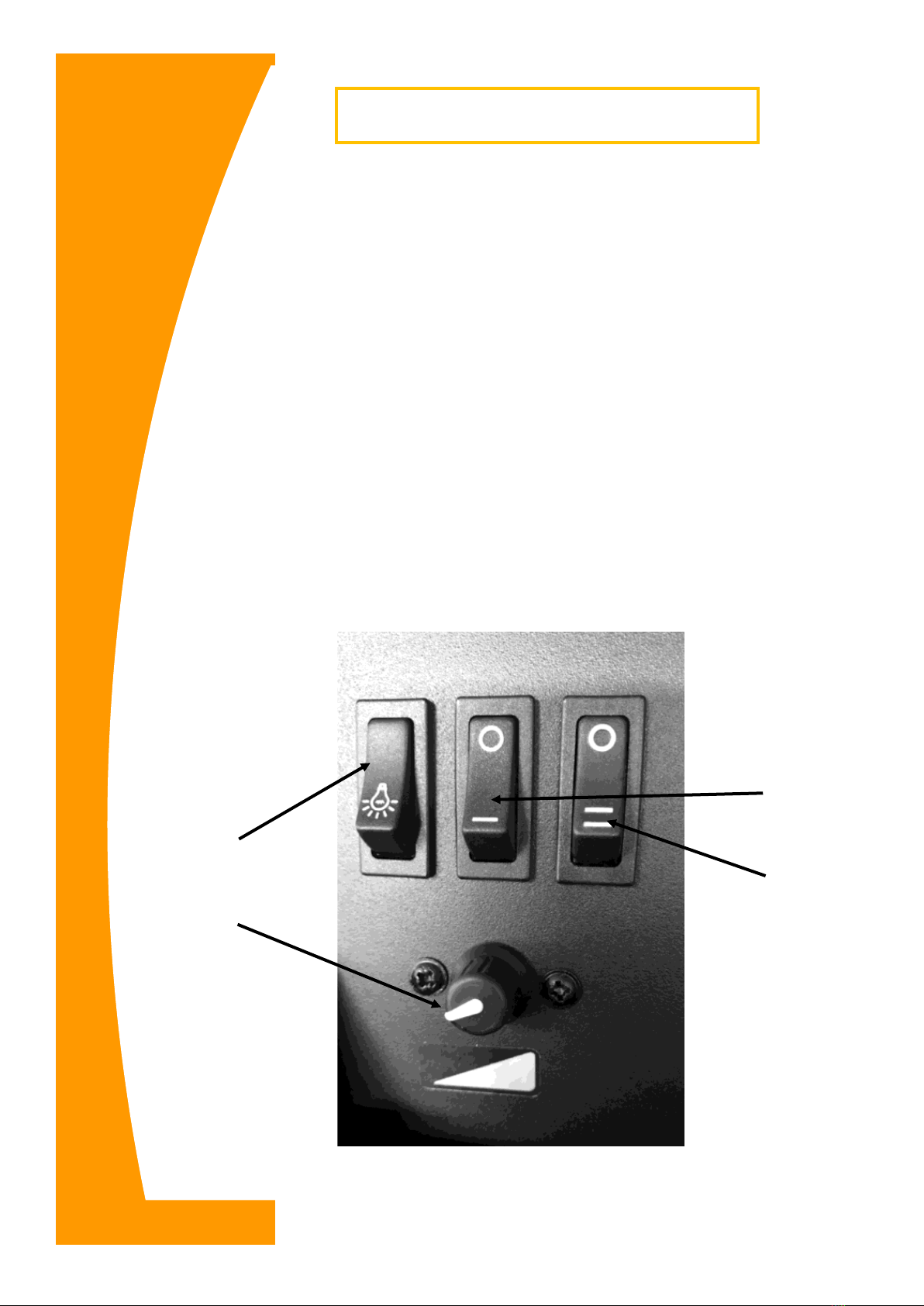

Start by pressing the ‘light’ buon on the le. This will acvate
your LED’s and boom blower.
For heat seng, ensure the thermostat knob is turned fully to the
right (max temperature).
Once this has been completed, you can choose to have either
1kw or 2kw of heat given from your re.
For 1kw, simply press the middle buon with the single line at the
boom (heat 1).
For 2kw, repeat this process but also turn the right switch on
marked with 2 lines at the boom (heat 2).
Note: This only applies to MANUAL res
7.
Light switch
Thermostat
Heat 1
Heat 2

Operang Instrucons
8.
Note: This only applies to REMOTE res

Hole-in-wall Installaon
To Install the appliance inside an exisng wall cavity, please
follow the subsequent instrucons.
This product has been designed to be installed
into a plaster board, drywalled, or exisng
masonry chimney breast.
Please seek advice from a professional, with
reference to the structural integrity of the
installaon site.
PLEASE NOTE: The screws and wall plugs pro-
vided are only suitable for a solid wall xing /
when installing onto a hollow-stud wall it is
recommended that heavy duty wall anchors or
equivalent are used.
The product should never be sealed into a
opening with the use of silicones or adhesives
as this can also alter the airow and hinder any
further servicing of the product.
11.
Please refer to technical specicaon page for exact measurements,
ensuring the space you wish to install the appliance ts correctly.
To successfully install this appliance
into a wall cavity, you must rst start
by checking the specicaons of the
re & and the cut-out you wish install
the replace into (W,D & H). Fig 1.
Once you have established the
correct measurements, simply insert
the replace into the cavity ensuring it
has ample insulaon. Then complete
installaon by aaching the frame
using magnets in each corner. (Fig 2)
W
H
D
Fig 1.

Problem solving
• No power to the re: Check the wall socket, plug and fuse.
• No illuminaon: Make sure the re is turned on. Check heater is working,
if so check that the dimmer control is set to full on the
e-touch app/e-touch controller.
• Illuminaon but no heat: The safety cut has operated see note on
operang the Fire.
• Noise when illuminated: Due to moving parts, the electric re will make a
noise.
• Noise from the heater when in use: The sound of rushing air is normal.
• Reporng a fault: If a product is encountering a fault with the operaon
and a service engineer is required, please visit : www.evonicres.co.uk
and complete the elds required under the Report a Fault secon. Please
refer to the terms of your warranty.
12
MODEL TOTAL
HEIGHT
TOTAL
WIDTH
TOTAL
DEPTH
INSET
HEIGHT
INSET WIDTH INSET DEPTH
BROOKLYN 605MM 490MM 130MM 550MM 382MM 60MM
PHANTOM 602MM 506MM 105MM 550MM 382MM 75MM
AMATHUS 602MM 506MM 105MM 550MM 382MM 75MM
CASAL 612MM 495MM 90MM 550MM 382MM 75MM
Technical Specicaon

Condions of warranty:
If this appliance should prove to be defecve due to faulty design,
materials or workmanship within 12 months of purchase, the product
will be repaired free of charge, subject to the following condions:
The electric re shall have been purchased and used solely within the UK
and Ireland for domesc purposes and in accordance with the Users
operang instrucons.
It is the purchasers responsibility to prove that the unit is under
warranty, e.g. receipt of purchase.
All warranes, will be invalidated if unauthorised repairs or modicaons
are made to the electric re, or in case of accident, misuse or damage
caused by improper installaon, or to damage occurring during transit
to or from the repairer and altered or missing serial numbers.
Any parts, which have been replaced under this warranty, shall become
our property.
The company shall not be liable for any consequenal loss or damage
what so ever, arising from or in connecon with this electric re.
This Warranty does not apply to Heang elements, Bulbs or fuses.
‘No fault found’, service calls and installaon errors are not covered
under the manufacturers warranty and will result in a charge being made
for the Call-Out by our appointed service engineer.
This warranty is in addion to and does not aect the purchasers
statutory rights of consumers.
CK Fires Ltd / Evonic Fires
1 Evonic house, Clifford park, Clifford lane, Stratford-Upon-
Avon, CV37 8HW
Tel: [phone] Fax: [phone]
13.
Registering product:
To register a product please visit: www.evonicres.co.uk
and complete the elds required under the Register a Prod-
uct Secon. By registering your appliance, an extra 12
months of cover will be added to your warranty.
