Evonicfires SUITES 180 User manual

1
SUITES 180 MANUAL ISS. 1SUITES 180 MANUAL ISS. 1 EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1
SUITES 180SUITES 180
E-SmartE-Smart
INSTRUCTION MANUALINSTRUCTION MANUAL
EnglishEnglish
CANTO 200
LOCONDA 175
ESPIRE 150
RIVERA 125
RIVERA 150
RIVERA 175
RIVERA 200
MURANO
MIRADA
IMPERIUM
CRENSHAW
INGLEWOOD
ELLIPSE

2SUITES 180 MANUAL ISS. 1SUITES 180 MANUAL ISS. 1EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1
CONTENTS
EU Directives and UKCA Standards......................................................................3
Important Information and Health & Safety........................................................... 4
Components for Suites......................................................................................... 5
App Instructions...................................................................................................6
E-Smart Cloud App Instructions..................................................................7
Pairing with Amazon Alexa..........................................................................13
Pairing with Google Home...........................................................................16
Installation........................................................................................................... 21
Model Dimensions...................................................................................... 22
Installation (Wall Mounted Suites)............................................................... 24
Installation (Floor-based Suites)................................................................. 29Installation (Floor-based Suites)................................................................. 29
Log Layouts......................................................................................................... 31
Front & Side Glass Installation..............................................................................33Front & Side Glass Installation..............................................................................33
Troubleshooting, Warranty & Registration............................................................ 36

3
SUITES 180 MANUAL ISS. 1SUITES 180 MANUAL ISS. 1 EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1
All Evonic Fires products are in conformity with the relevant UK Statutory InstrumentsAll Evonic Fires products are in conformity with the relevant UK Statutory Instruments
(and their amendments).(and their amendments).
2016 No. 1101 The Electrical Equipment (Safety) Regulations 20162016 No. 1101 The Electrical Equipment (Safety) Regulations 2016
2016 No. 1091 The Electromagnetic Compatibility Regulations 20162016 No. 1091 The Electromagnetic Compatibility Regulations 2016
2012 No. 3032 The Restriction Of Use Of Certain Hazardous Substances In2012 No. 3032 The Restriction Of Use Of Certain Hazardous Substances In
Electrical And Electronic Equipment Regulations 2012Electrical And Electronic Equipment Regulations 2012
EU DIRECTIVES
All Evonic Fires products meet the requirements of the EC Directives.All Evonic Fires products meet the requirements of the EC Directives.
These directives have been met by compliance with the following standards:These directives have been met by compliance with the following standards:
EU 2011-65/EU 2015/863 Restriction of Hazardous Substances.EU 2011-65/EU 2015/863 Restriction of Hazardous Substances.
References to the relevant designated standards used:References to the relevant designated standards used:
EN 55014-1:2006 + A1:2009 + A2:2011 Electromagnetic Compatibility.EN 55014-1:2006 + A1:2009 + A2:2011 Electromagnetic Compatibility.
EN 55014-2:2015 Electromagnetic Compatibility.EN 55014-2:2015 Electromagnetic Compatibility.
EN 61000-3-2:2014 Electromagnetic Compatibility (EMC). Limits. Limits forEN 61000-3-2:2014 Electromagnetic Compatibility (EMC). Limits. Limits for
Harmonic Current Emissions.Harmonic Current Emissions.
EN 61000-3-3:2013 Electromagnetic Compatibility (EMC). Limits. Limitation ofEN 61000-3-3:2013 Electromagnetic Compatibility (EMC). Limits. Limitation of
Voltage Changes, Voltage Fluctuations and Flicker.Voltage Changes, Voltage Fluctuations and Flicker.
EN 60335-1:2012 + A11:2014 Household and similar electrical appliances - SafetyEN 60335-1:2012 + A11:2014 Household and similar electrical appliances - Safety
EN 60335-2-30:2009+A11:2012 Household and similar electrical appliances. Safety.EN 60335-2-30:2009+A11:2012 Household and similar electrical appliances. Safety.
Particular requirements for room heatersParticular requirements for room heaters
UKCA STANDARDS

4SUITES 180 MANUAL ISS. 1SUITES 180 MANUAL ISS. 1EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1
IMPORTANT INFORMATION AND HEALTH & SAFETY
When using electrical appliances, basic precautions should always be followed to reduce
the risk of fire, electric shock, and injury to persons, including the following:
• Read all of the instructions carefully before using the appliance, only use this appliance
as described in this manual. Any other use not recommended by the manufacturer mayAny other use not recommended by the manufacturer may
cause injury to persons, or damage to the appliance.cause injury to persons, or damage to the appliance.
• Remove all packaging and dispose of it at an appropriate recycling facility.
•• When transporting or storing the appliance and power lead, keep in a dry place, awayWhen transporting or storing the appliance and power lead, keep in a dry place, away
from excessive vibration and store so as to avoid damage.from excessive vibration and store so as to avoid damage.
• This fireplace is hot when in use. To avoid burns, do not let bare skin touch hot
surfaces. The trim around the heater outlet becomes hot during heater operation.
DANGER: High temperatures may be generated under certain abnormal conditions.
• Do not install this appliance immediately in front of a fixed socket outlet.
• Do not install this appliance in the immediate surroundings of a bath, shower,
swimming pool or any other area where the appliance could come into contact with
water or humidity, e.g. a bathroom.
•• Do not use in areas where gasoline, paint, or any flammable liquids are used or stored.Do not use in areas where gasoline, paint, or any flammable liquids are used or stored.
• This appliance is only suitable for indoor use. Do not use outdoors.
• Do not cover the appliance, or let the air inlet/outlet to be obstructed in any way as it
may overheat.
• Keep the power lead away from hot surfaces and the heater outlet. Do not route the
power lead in front of the appliance, or under any carpets or rugs. Do not allow the
power lead to be coiled up once installed, as this can cause overheating.
• Wall-mounted suites must be firmly fixed to a flat internal wall.
• A maintenance hatch must be installed into the surrounding installation to allow future
access.
• Always use a certified electrician should new circuits or outlets be required. And
always use properly grounded, fused and polarised outlets.
• Where the power lead passes through any masonry wall, stone surround etc. ensure
that suitable rubber bushes are fitted at any possible wear points.
• If the power lead is damaged do not use the appliance until it has been replaced.
• Do not use any external switching device, timers, or extension leads. Do not connect
the appliance to a circuit that is frequently switched on and off by the utility.
•• In the event of a malfunction, switch off the appliance, and disconnect it from theIn the event of a malfunction, switch off the appliance, and disconnect it from the
mains power supply. Have the appliance inspected by a certified electrician beforemains power supply. Have the appliance inspected by a certified electrician before
reusing.reusing.
• Do not use the appliance if it is damaged. In the event of any damage to the appliance,
please contact the retailer from whom the appliance was purchased.
• Any repairs must only be carried out by a certified electrician.
• Extreme caution is necessary when any heater is used by, located near children or
people of reduced mobility, and whenever the unit is left operating and unattended.
• Young children should be supervised to ensure that they do not play with the appliance.
•• Disconnect from the power supply before performing any cleaning, maintenance orDisconnect from the power supply before performing any cleaning, maintenance or
relocation of the unit. Do not use steam cleaners or aerosols near the appliance.relocation of the unit. Do not use steam cleaners or aerosols near the appliance.
• Do not burn wood or anything else in this appliance.
• Do not strike the glass. The glass used is toughened safety glass; if broken it will
shatter into small chunks which are less likely to cause injury.
• Do not drill or screw any new holes into the appliance.

5
SUITES 180 MANUAL ISS. 1SUITES 180 MANUAL ISS. 1 EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1
COMPONENTS FOR SUITES 180
Name
Log Sets &
Quantity
Glass Stones
Clear & Amber
Black
Vermiculite
Suction Lifter
Wall Bracket
Bracket
fixings
Electrical Lead
IEC Clip
Remote Control
Woodland Silver Birch E900 Twigs Wall Plugs Screws
Canto 20 2 x 3 x Clear
3 x Amber 6 x 1 x 1 x 10 x 10 x 1 x 1 x 1 x
Crenshaw 1 x large 1 x large 1 x Clear
1 x Amber 1 x 1 x 1 x 5 x 5 x 1 x 1 x 1 x
Ellipse 1 x 1 x Clear
1 x Amber 1 x 1 x 1 x 5 x 5 x 1 x 1 x 1 x
Espire 15 1 x 1 x Clear
1 x Amber 1 x 1 x 1 x 5 x 5 x 1 x 1 x 1 x
Imperium 1 x small 1 x small 1 x Clear
1 x Amber 1 x 1 x 1 x 5 x 5 x 1 x 1 x 1 x
Inglewood 1 x small 1 x small 1 x Clear
1 x Amber 1 x 1 x 1 x 5 x 5 x 1 x 1 x 1 x
Locanda 18 2 x 2 x Clear
2 x Amber 4 x 1 x 1 x 10 x 10 x 1 x 1 x 1 x
Mirada 2 x 2 x Clear
2 x Amber 4 x 1 x 1 x 1 x 1 x
Murano 2 x 1 x Clear
1 x Amber 1 x 1 x 1 x 1 x 1 x
Rivera 2 x 1 x Clear
1 x Amber 1 x 1 x 1 x 5 x 5 x 1 x 1 x 1 x

6SUITES 180 MANUAL ISS. 1SUITES 180 MANUAL ISS. 1EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1
APP INSTRUCTIONSAPP INSTRUCTIONS

7
SUITES 180 MANUAL ISS. 1SUITES 180 MANUAL ISS. 1 EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1
WHAT IS E-SMART?
E-Smart is a range of fires developed by Evonic Fires which allows you to operate your fire
using either the E-Smart Cloud app on a smart phone or any internet connected device.
This enables you to change the flame effect, adjust the speed or brightness of the flame
effect, operate the heater, and change the temperature all through the app.
In addition E-Smart fires can be operated using Amazon Alexa, or Google Home, allowing
you to control your fire with voice commands.
There is also the option to operate your fire with the included remote control.
In order for your fire to connect to the app, your internet router and smart device should
meet the following minimum requirements;
Wi-Fi Router
• Compatible with IEEE 802.11n/g/b
• WPA2 encryption
• Radio frequency: 2.4GHz band
• Wireless auto channel: auto search for wireless LAN radio channel free of interference
• Support for the User Datagram Protocol (UDP)
• The minimum distance from your internet router to the fire should be 70cm
Smart Device
• IOS 8.0 or Android 4.4
MINIMUM REQUIREMENTS
E-Smart App on
the Apple Store
E-Smart App on
the Google Play
Store

8SUITES 180 MANUAL ISS. 1SUITES 180 MANUAL ISS. 1EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1

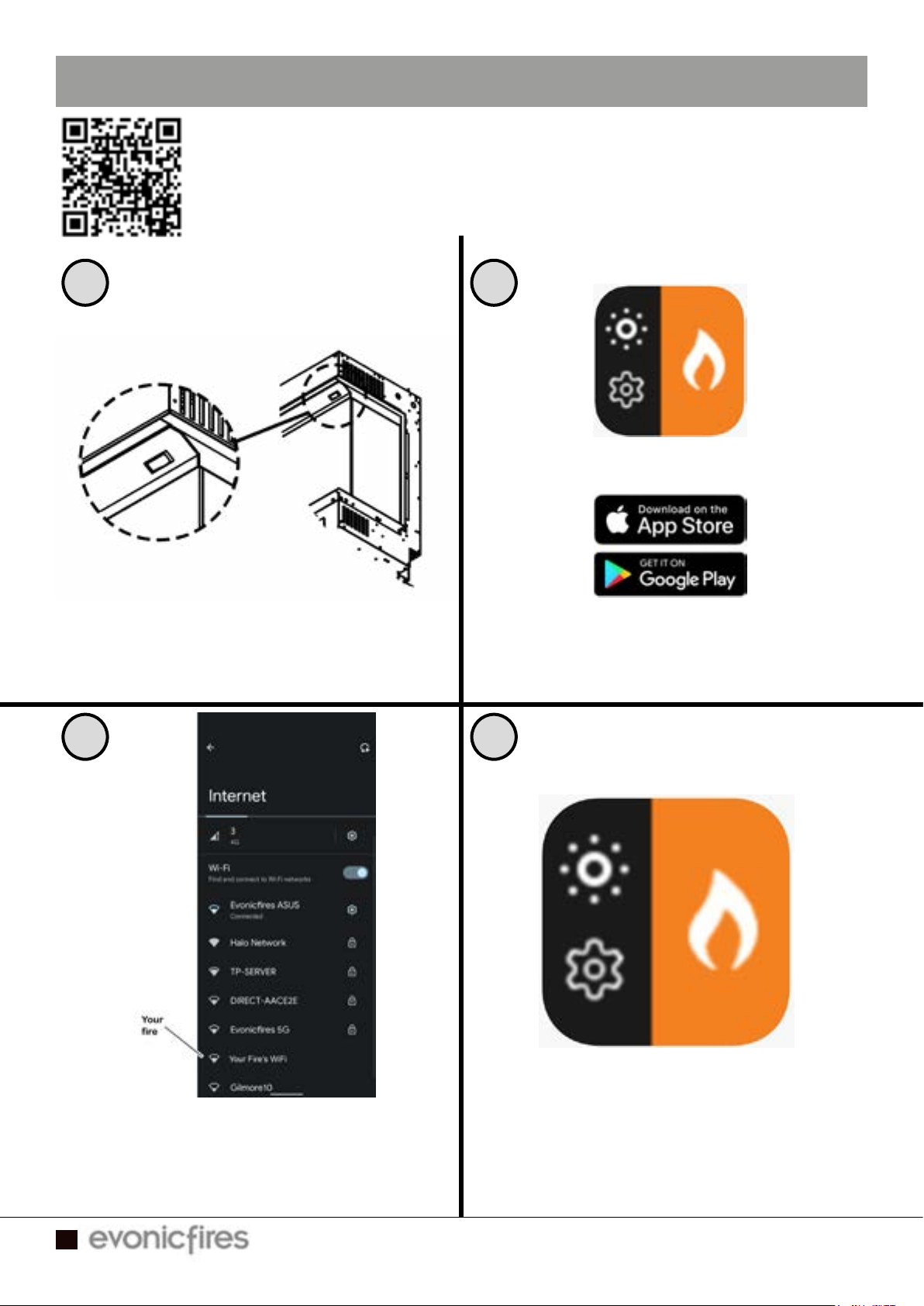

STEP-BY-STEP GUIDE
Make sure that your fire is plugged in and
the switch is on. Then turn on your fire
by pressing the rocker switch to the ‘ON’
position.
Download the E-Smart Cloud app from the
Apple Store, or Google Play Store.
1 2
3 4
Open the Settings panel on your device
and connect to the fire’s wireless
connection. The name of the fire’s WiFi will
vary depending on the model.
Open the E-Smart app.
To begin using the app you first need to pair your appliance to the app.To begin using the app you first need to pair your appliance to the app.
We have created a video on our Youtube channel to guide you through theWe have created a video on our Youtube channel to guide you through the
process of pairing your appliance to your smart phone or tablet. Scan theprocess of pairing your appliance to your smart phone or tablet. Scan the
QR code to be taken to the video and get started. Alternatively follow theQR code to be taken to the video and get started. Alternatively follow the
step-by-step guide below.step-by-step guide below.

9
SUITES 180 MANUAL ISS. 1SUITES 180 MANUAL ISS. 1 EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1
Open the settings panel on the app’s Home
Screen.
5 6
7 8
The pairing process between your device,
the fire, and your router will now take
place. This may take a few minutes, and
when the app shows ‘Redirect’ you may
see the lighting on your fire change colour.
This is completely normal.
Scroll down to the ‘IoT Registration’
section and fill in your email address and
create a password. Press ‘Save’.
Then select the grey WiFi button.
Save
Select your router from the drop down box,
and enter your router’s password. Press the
eye icon to double check for mistakes. Press
‘Save and Connect’.
Only select Static IP if advised by an IT
professional.

10 SUITES 180 MANUAL ISS. 1SUITES 180 MANUAL ISS. 1EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1
USING THE E-SMART CLOUD APP

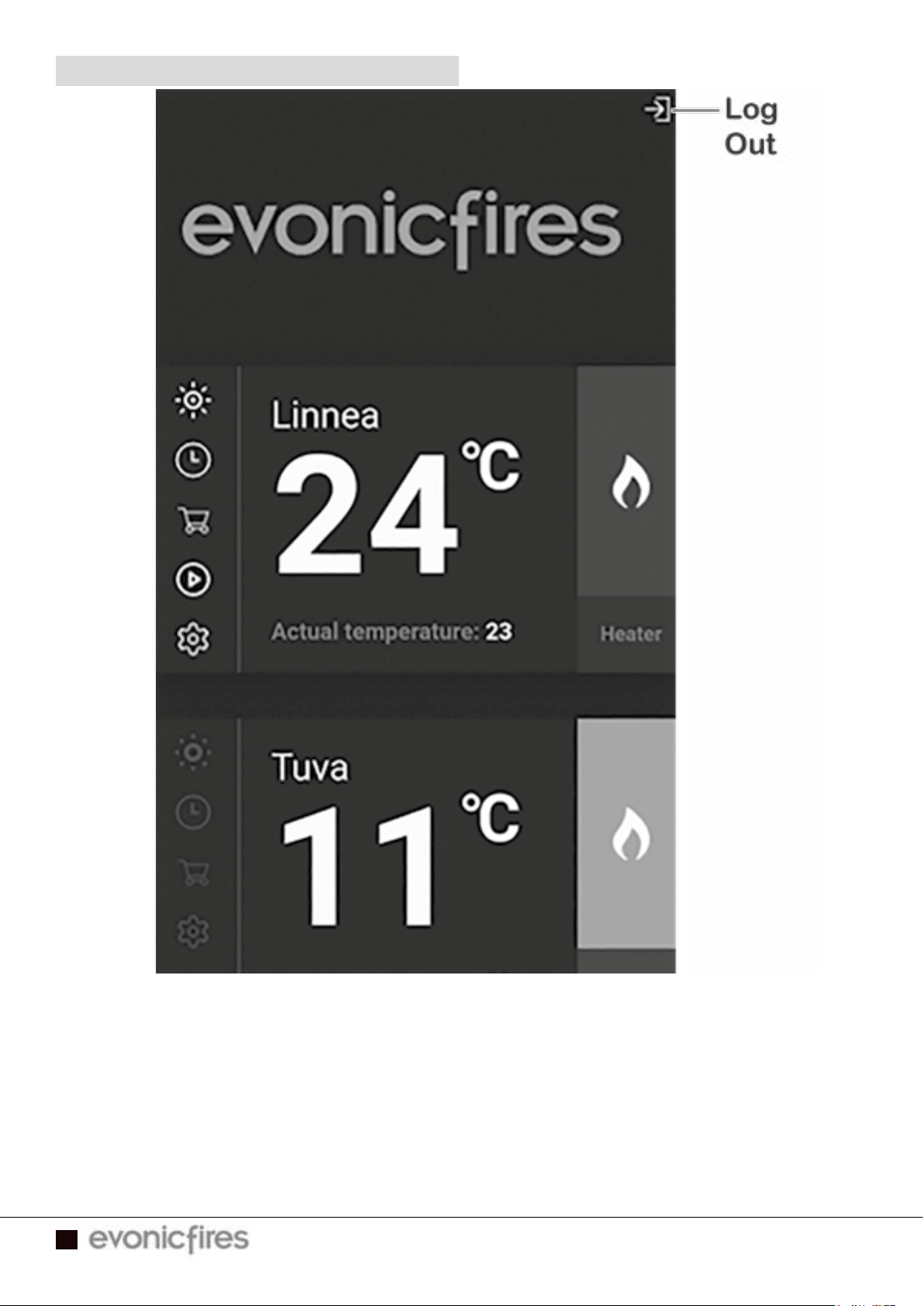

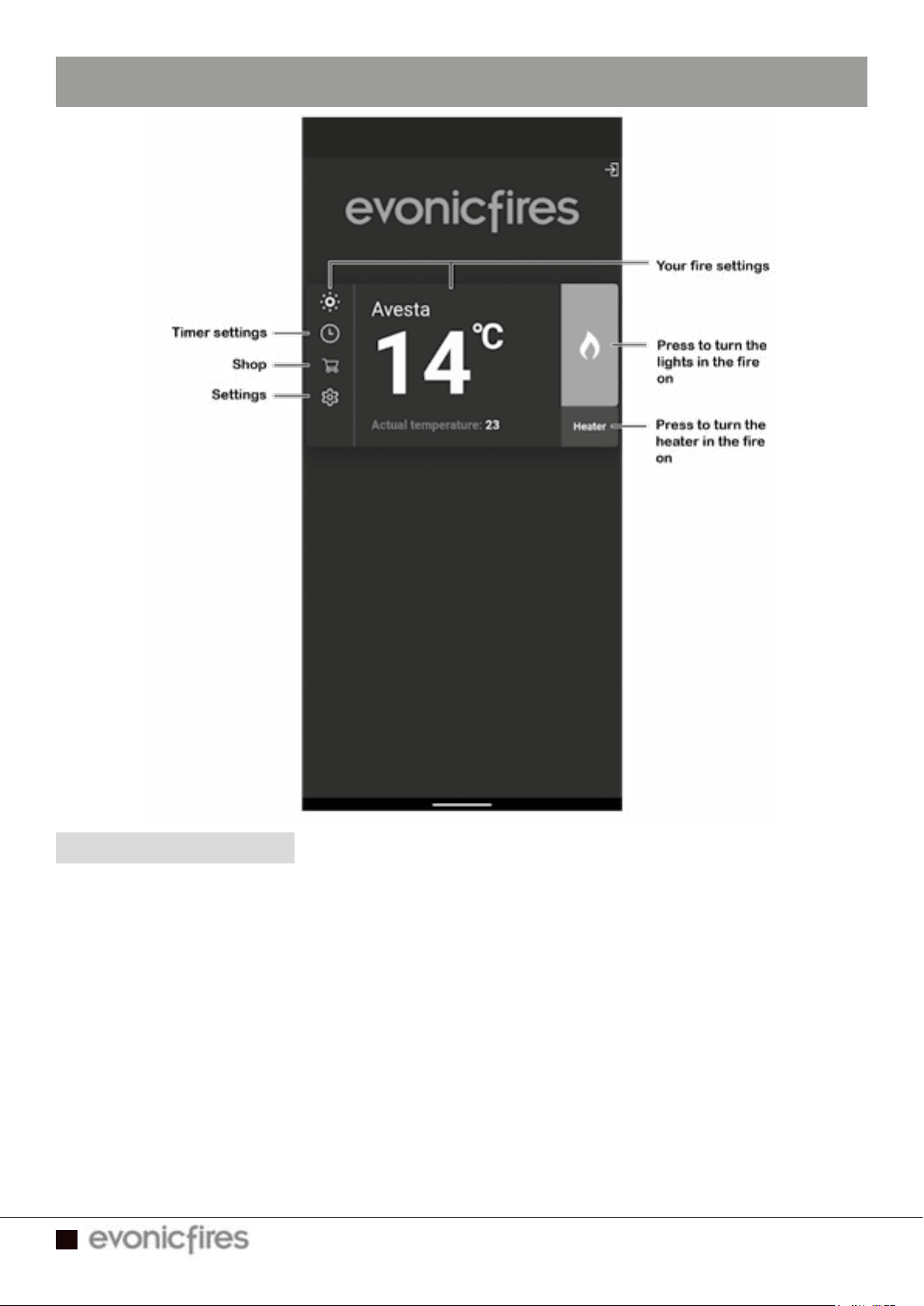

HOME PAGE
On the Home Page of the E-Smart Cloud App you can see the name of your fire, the
chosen temperature, and the actual temperature.
On the left hand side you can select the timer, shop, and app settings. On the right hand
side you can turn the lights in the fire on and off, and also turn the heater on and off.
To enter the Control Overview either select the light bulb icon on the top left or the central
temperature box.

11
SUITES 180 MANUAL ISS. 1SUITES 180 MANUAL ISS. 1 EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1

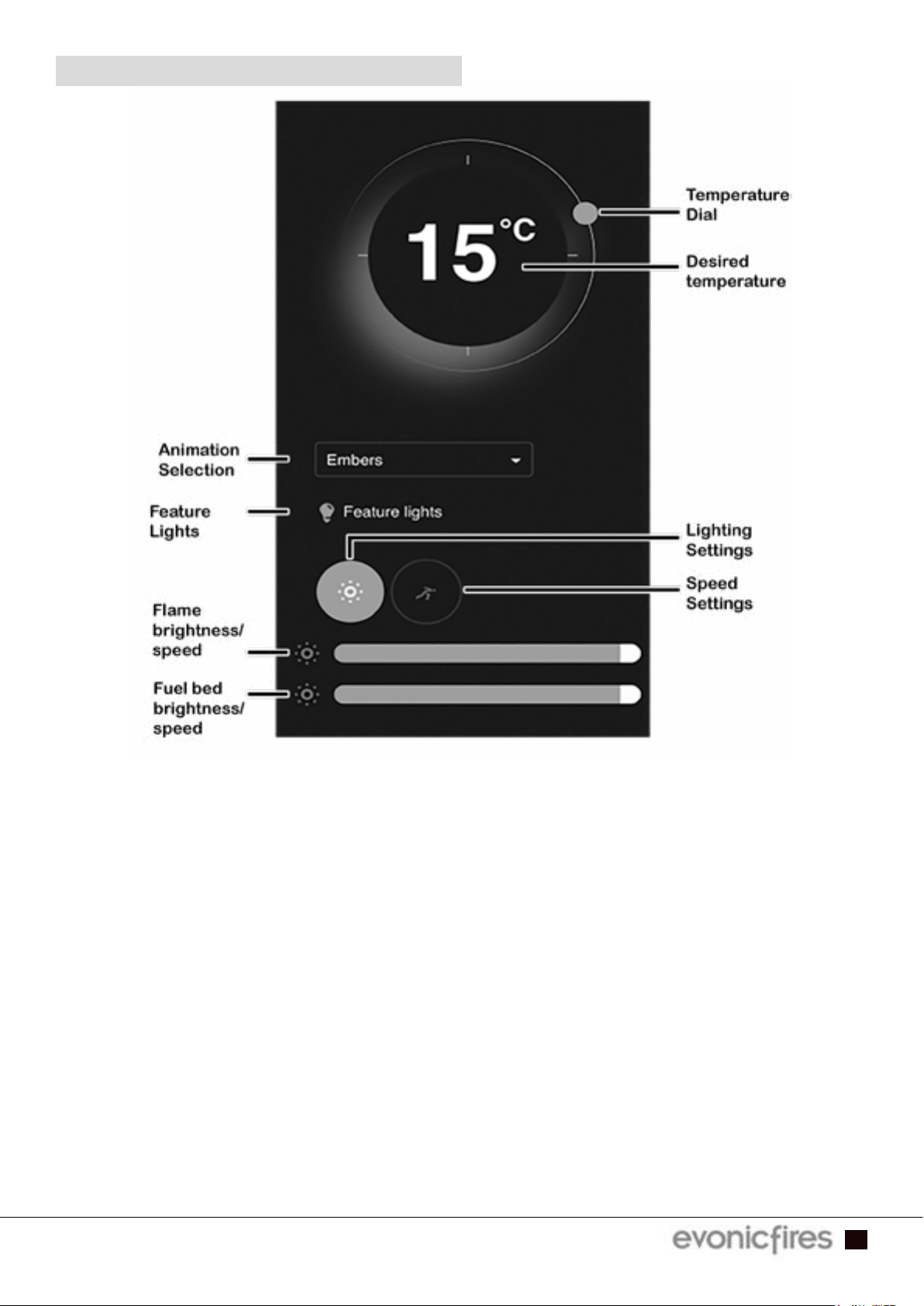

CONTROL OVERVIEW
To adjust the desired temperature of your fire ensure that the heater is selected on theTo adjust the desired temperature of your fire ensure that the heater is selected on the
Home Page in the previous step. Then press, hold, and rotate the temperature dial to setHome Page in the previous step. Then press, hold, and rotate the temperature dial to set
the temperature.the temperature.
The animation drop down allows you to choose the flame effect for your fire; more flameThe animation drop down allows you to choose the flame effect for your fire; more flame
effects are available to download from our shop on the Home Page.effects are available to download from our shop on the Home Page.
The ‘Feature lights’ button will activate the over fuel-bed lights. If you have a model withThe ‘Feature lights’ button will activate the over fuel-bed lights. If you have a model with
tile wings then this button will also turn on the side down-lighters.tile wings then this button will also turn on the side down-lighters.
By clicking on lighting settings you can adjust the flame brightness by pressing, holding,By clicking on lighting settings you can adjust the flame brightness by pressing, holding,
and sliding the tab at the bottom of the screen. Slide left to lower the brightness, and rightand sliding the tab at the bottom of the screen. Slide left to lower the brightness, and right
to increase the brightness. You can adjust the fuel bed brightness in the same way withto increase the brightness. You can adjust the fuel bed brightness in the same way with
the lower tab slider.the lower tab slider.
To change the speed of the LED flame effect single press the speed setting option, andTo change the speed of the LED flame effect single press the speed setting option, and
slide the top dial left to slow it down, and right to increase the speed. Likewise with theslide the top dial left to slow it down, and right to increase the speed. Likewise with the
fuel bed speed, slide the lower tab left to slow it down and right to increase it.fuel bed speed, slide the lower tab left to slow it down and right to increase it.

12 SUITES 180 MANUAL ISS. 1SUITES 180 MANUAL ISS. 1EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1

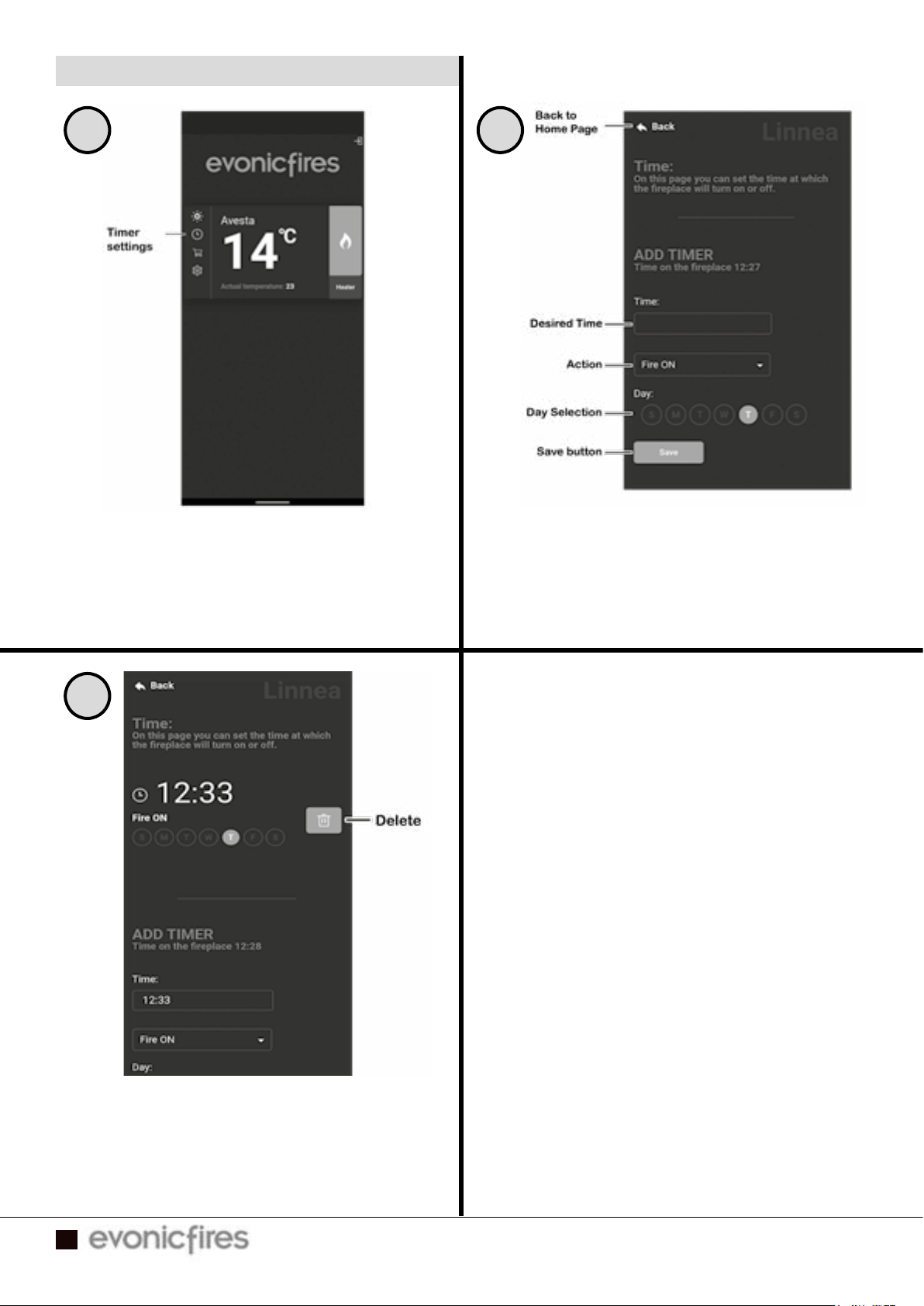

PROGRAMMING THE TIMER
Single press the clock icon on the HomeSingle press the clock icon on the Home
Page to begin programming the Timer.Page to begin programming the Timer.
Input your desired time in the Time box,Input your desired time in the Time box,
select the action (Fire On/Off/, Heaterselect the action (Fire On/Off/, Heater
On/Off) you want. Deselect the day/sOn/Off) you want. Deselect the day/s
you don’t want it to apply to, and pressyou don’t want it to apply to, and press
the Save button.the Save button.
1 2
3
The above screen will now show yourThe above screen will now show your
set timer. To delete the timer press theset timer. To delete the timer press the
bin icon. To add an additional timerbin icon. To add an additional timer
scroll down and repeat the process.scroll down and repeat the process.
Press the Back button to return to thePress the Back button to return to the
Home Page.Home Page.

13
SUITES 180 MANUAL ISS. 1SUITES 180 MANUAL ISS. 1 EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1
PAIRING WITH AMAZON ALEXA
Once your fire is installed, and switchedOnce your fire is installed, and switched
on, download and open the Amazonon, download and open the Amazon
Alexa app. Once open single press MoreAlexa app. Once open single press More
in the bottom right hand corner.in the bottom right hand corner.
Single press Skills & Games on the popSingle press Skills & Games on the pop
up list.up list.
1 2
3
Single press Search and type inSingle press Search and type in
evonicfires. Select the Evonicfires Haloevonicfires. Select the Evonicfires Halo
skill icon to open.skill icon to open.
Now on the Evonicfires Halo skill pageNow on the Evonicfires Halo skill page
you can single press the Enable to Useyou can single press the Enable to Use
button to go to the log in page.button to go to the log in page.
4

14 SUITES 180 MANUAL ISS. 1SUITES 180 MANUAL ISS. 1EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1
Enter the log in details that youEnter the log in details that you
previously entered in the app set uppreviously entered in the app set up
process, and single press Log In.process, and single press Log In.
After a few moments your account willAfter a few moments your account will
be linked, once this is done you canbe linked, once this is done you can
single press Close.single press Close.
5 6
7
Single press Discover Devices to searchSingle press Discover Devices to search
for your fire.for your fire.
Your fire will show up as two devices,Your fire will show up as two devices,
allowing you to programme the heaterallowing you to programme the heater
separately to the effects. Single pressseparately to the effects. Single press
the second option, and Set up Device.the second option, and Set up Device.
8

15
SUITES 180 MANUAL ISS. 1SUITES 180 MANUAL ISS. 1 EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1
ALEXA COMMANDS
“Alexa, turn fire on.” “Alexa, turn fire off.”
When using Alexa to control your appliance settings remember to substitute the words
‘the fire’ for whatever you have named your appliance.
Turning the appliance On and Off.
Turning the heater On and Off.
“Alexa, set fire heater to auto.” “Alexa, set fire heater to off.”
Changing the temperature.
Alexa can only change the temperature between 10° and 32°.
“Alexa, set temperature to 27 degrees.”
“Alexa, make it cooler in there.”“Alexa, make it warmer in there.”
Decreases the temperature by 3°
Increases the temperature by 3°
Changing the flame effect.
“Alexa, set animation to still.”
“Alexa, set animation to breathe.”
“Alexa, set animation to spectrum.”
“Alexa, set animation to embers.”
“Alexa, set animation to odyssey.”
“Alexa, set animation to aurora.”

16 SUITES 180 MANUAL ISS. 1SUITES 180 MANUAL ISS. 1EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1
PAIRING WITH GOOGLE HOME
Once your fire is installed, and switchedOnce your fire is installed, and switched
on, download and open the Googleon, download and open the Google
Home app. Once open single press theHome app. Once open single press the
plus symbol in the top left hand corner.plus symbol in the top left hand corner.
Single press Set up Device on the popSingle press Set up Device on the pop
up list.up list.
1 2
3
Single press Works with Google.Single press Works with Google. Single press the Search icon in the topSingle press the Search icon in the top
right corner.right corner.
4

17
SUITES 180 MANUAL ISS. 1SUITES 180 MANUAL ISS. 1 EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1

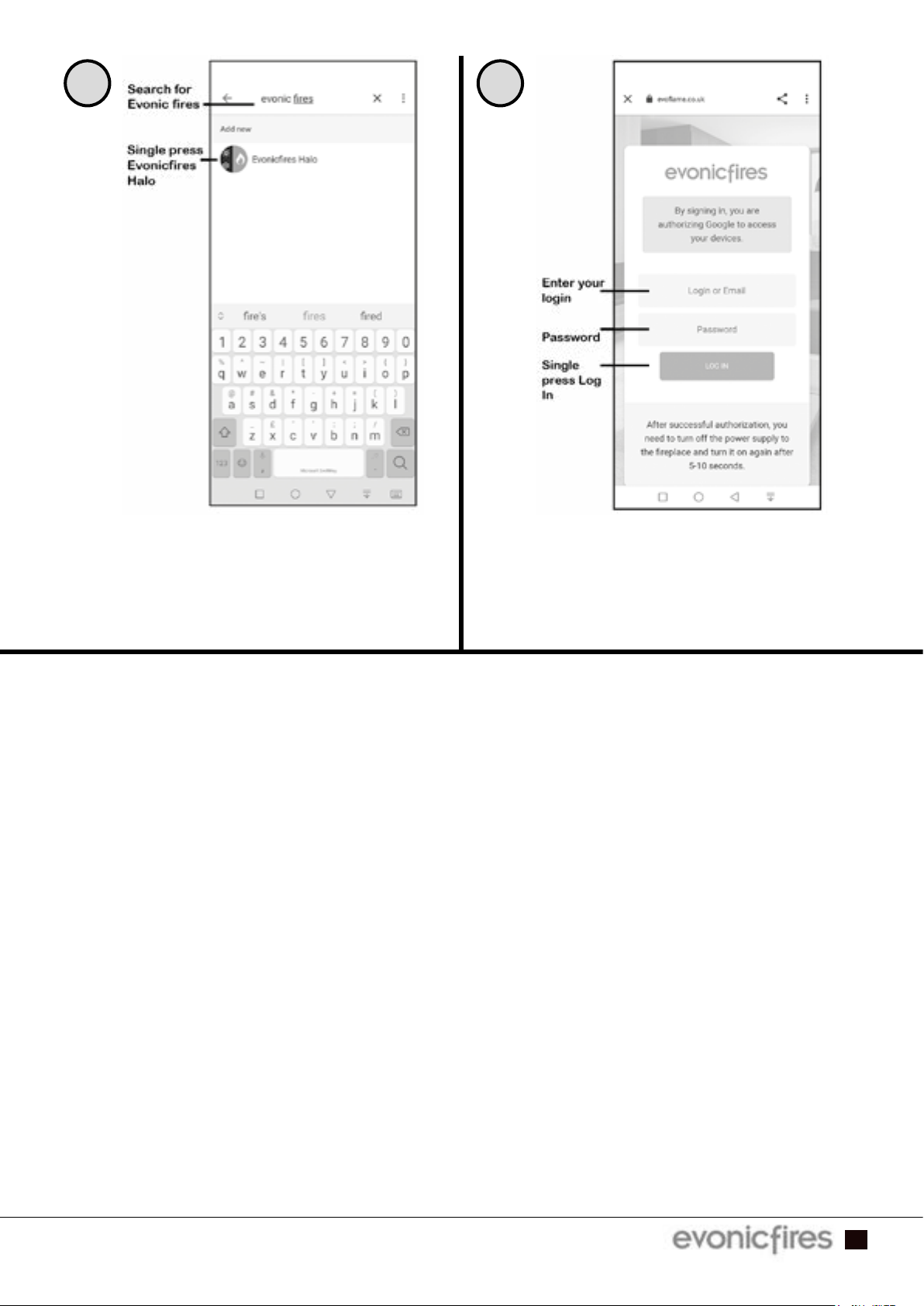

Type in Evonic Fires, single pressType in Evonic Fires, single press
search and then select the Evonic Firessearch and then select the Evonic Fires
E-Smart icon.E-Smart icon.
Once in the Evoflame log in page, enterOnce in the Evoflame log in page, enter
thethe log in details that you previouslylog in details that you previously
entered in the app set up process, andentered in the app set up process, and
single press Log In.single press Log In.
Your appliance is now paired withYour appliance is now paired with
Google Home!Google Home!
5 6

18 SUITES 180 MANUAL ISS. 1SUITES 180 MANUAL ISS. 1EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1
GOOGLE HOME COMMANDS
“OK Google, turn on the fire.” “OK Google, turn off the fire.”
When using Google Home to control your appliance settings remember to substitute the
words ‘the fire’ for whatever you have named your appliance. Please note that the Google
Home app cannot control the heater in the appliance.
Turning the appliance On and Off.
Changing the flame effect.
“OK Google, change the animation to still on the fire.”
“OK Google, change the animation to breathe on the fire.”
“OK Google, change the animation to spectrum on the fire.”
“OK Google, change the animation to embers on the fire.”
“OK Google, change the animation to odyssey on the fire.”
“OK Google, change the animation to aurora on the fire.”
“OK Google, change the animation to red on the fire.”
“OK Google, change the animation to orange on the fire.”
“OK Google, change the animation to yellow on the fire.”
“OK Google, change the animation to green on the fire.”
“OK Google, change the animation to blue on the fire.”
“OK Google, change the animation to violet on the fire.”
“OK Google, change the animation to white on the fire.”

19
SUITES 180 MANUAL ISS. 1SUITES 180 MANUAL ISS. 1 EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1
UPDATING YOUR FIRE
Update
Update your fire by clicking on the triangular icon.
Do not turn your fire off until it is complete
It may take up to 10 minutes to update.

20 SUITES 180 MANUAL ISS. 1SUITES 180 MANUAL ISS. 1EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1EVONIC - 104 INSTRUCTION GUIDE TEMPLATE ISSUE 1
LOGGING OUT
To log out of your account, single press the exit icon in the top right hand corner of theTo log out of your account, single press the exit icon in the top right hand corner of the
Home Page.Home Page.
Please note that you should not need to log out of the app; once logged in you can stayPlease note that you should not need to log out of the app; once logged in you can stay
logged in for quick and easy operation of your fire.logged in for quick and easy operation of your fire.
