ewheels EW-32 User manual

0
EW-32
Owner’s Manual
www.ewheelsdealers.com
[phone] Sales
[phone] Service

1
Table of Contents
Page 2 - Feature Guide
Page 3 - Technical Specifications
Page 4-8 - Operation of Scooter
Page 9-10 - Charging and Battery Information
Page 10 - Ramps and Curbs
Page 11 - General
Page 11 - Use While Under Influence
Page 12-13 - Safety Requirements
Page 14-15 –Warranty
Page 16-20 –Safety Manual

2

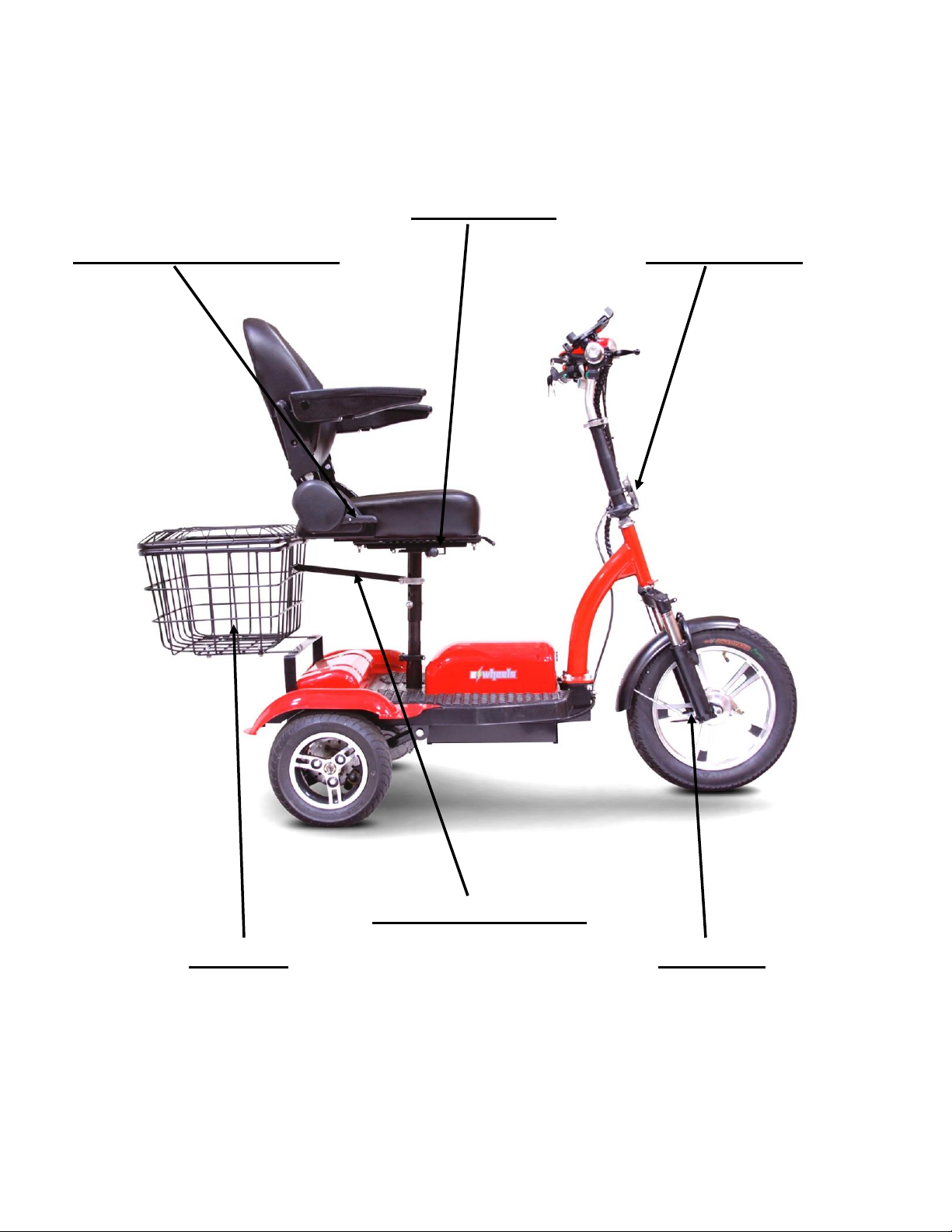

Basket Stabilizing Bracket
Rear Basket Front Shocks
Seat Swivel Lever
Seat Backrest Adjustment Lever Folding Front Tiller

3
Technical Specifications
Model
EW-32
Weight Capacity
350LBS
Speed:
Up to 10mph
Distance:
30-35 miles per charge (distance varies on terrain, riders
weight, road surface, etc.)
Front Seat: Type
Adjustable Comfort Seat
Front seat: Size
18” x 18” x 20”
Front Windshield:
N/A
Rear Seat: Type
N/A
Rear Seat: Size
N/A
Steering Height
42”- 44” from Floor
Rear Foot Rest:
N/A
Power:
Electric 48 volts
Swivel Seat:
Yes
Motor Type:
500 Watt Powerful Brushless Motor
Amps:
20 AH Batteries
Volts:
48 Volts
Dimensions:
66” x 30.5” x 47.5” (LxWxH)
Floor Clearance:
3”
Rear Basket:
Oversized Rear Basket
Batteries:
(4) 12 Volt, 20 AH, Deep Cycle, Maintenance Free, SLA
Forward/Reverse switch:
Yes
LED Lighting Package:
Yes
Front tire size:
3” x 16”
Rear tire size:
3” x 11”
Charger:
48 volt Smart Charger
Throttle Type:
Variable Twist Throttle
Key Start:
N/A
Braking System:
Front Drum Brake, Rear Hydraulic Disc Brakes
Folded Height:
36” With Seat and Front Tiller Folded
Headlight:
LED Headlight
Rear lights:
N/A
Electric Horn:
Yes
Scooter Weight:
200 Lbs
Battery Indicator:
Yes
Front Suspension:
Front Suspension Fork
Rear Suspension:
Two Rear Suspension Springs
Reflectors:
N/A
Warranty:
3 Year Limited Warranty

4
Operation of Scooter

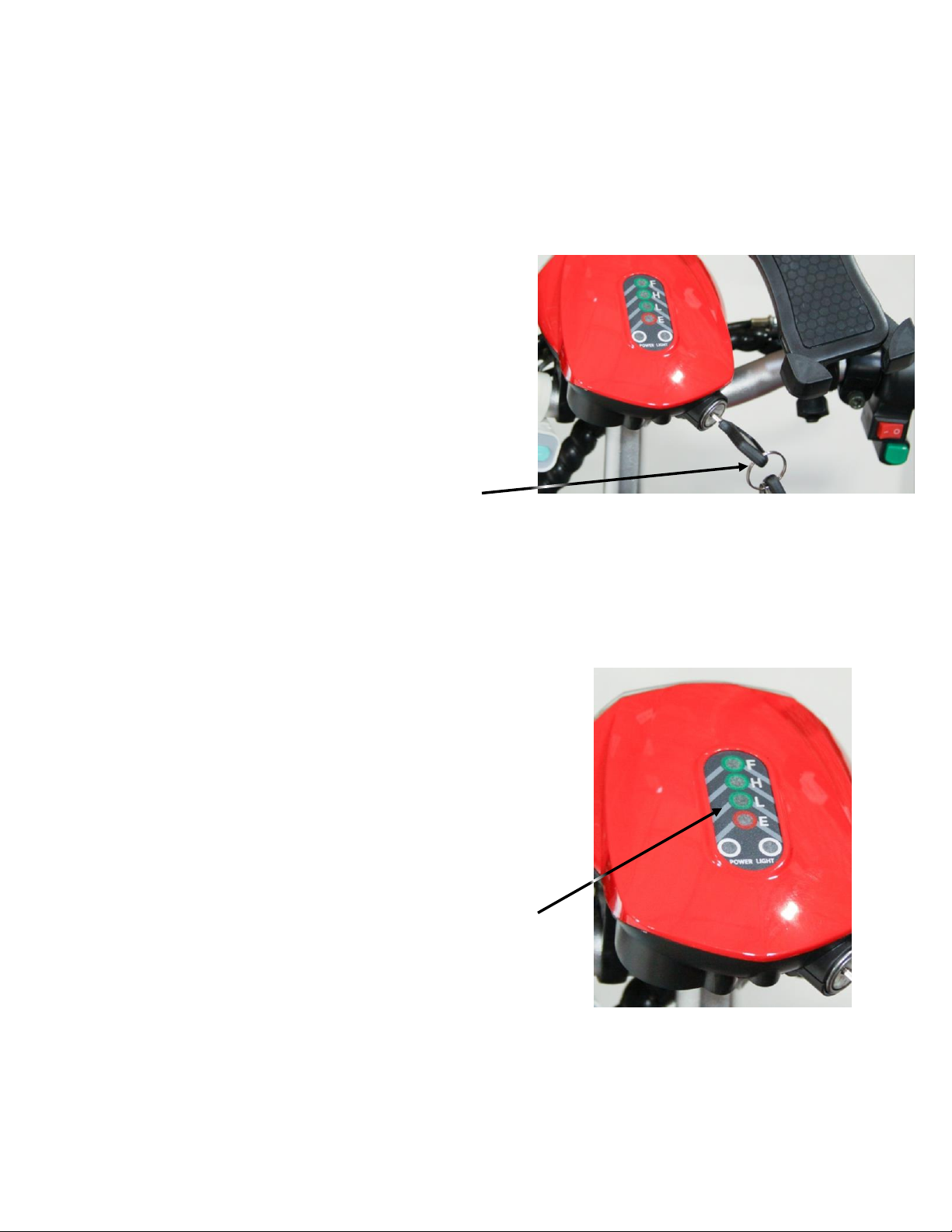

1. Turning on the power
Insert key into ignition and turn
clockwise to turn the scooter on. Turn
the key one more time clockwise to
activate the headlight. The battery
indicator will display the current
charge level when on. Turn the key
counter-clockwise to power off when
stopped. *
2. Battery Power Indicator Lights
The battery power indicator lights will light
up when turned on. The battery indicator
lights will only be displayed when the
scooter is turned on. There are four lights
to represent the scooter’s current charge
level. Full, half, low and empty. *

5

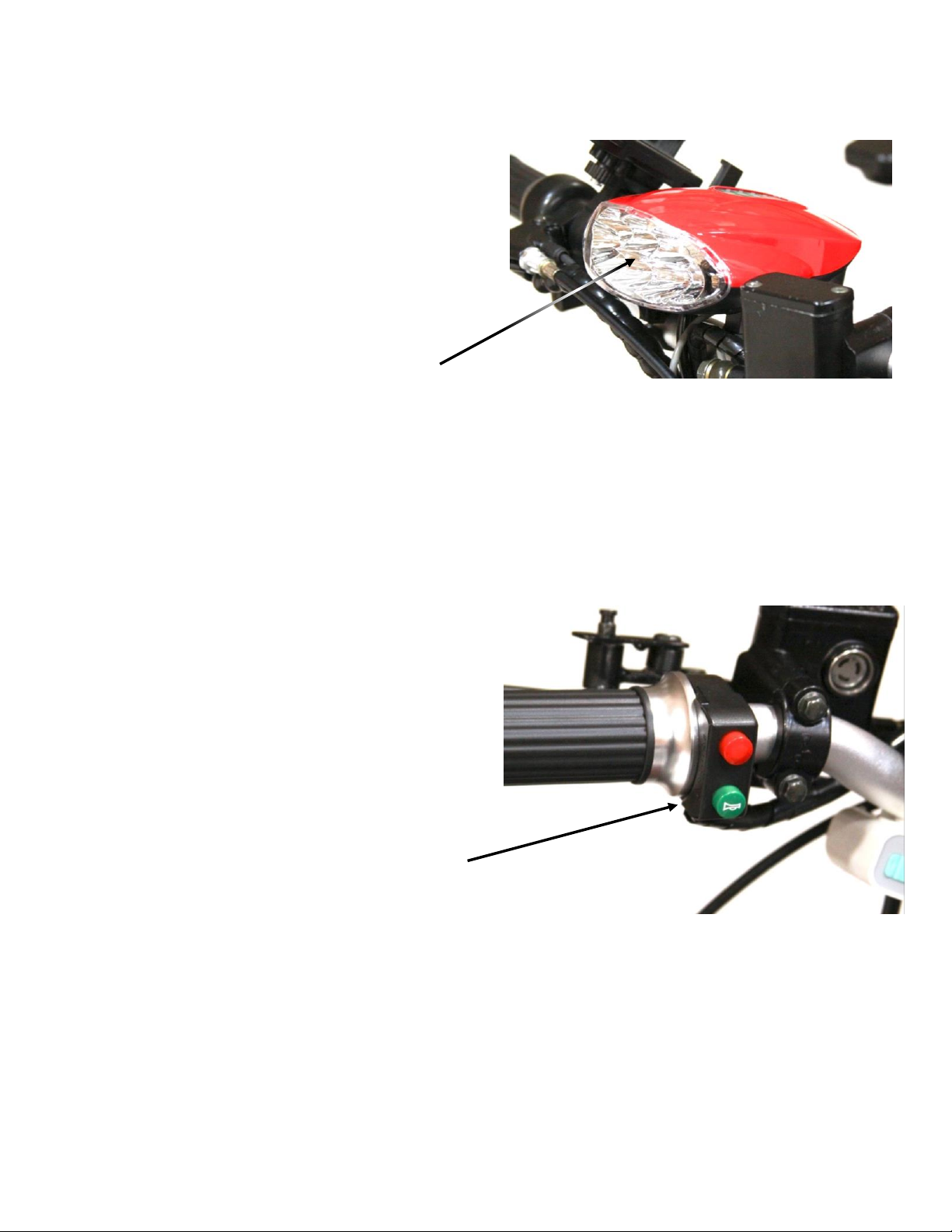

3. Headlight
The headlight has multiple LED’s
that are very bright. The headset
can be adjusted upwards or
downwards as needed to light up
the path ahead. Apply light pressure
to the headset, and push in the
desired direction. *
4. Forward/Reverse and Horn
The forward/reverse and horn
button are located on the left side
of the handlebar assembly. Push
the red button inwards to activate
reverse, and click back out to
activate forwards. The horn button
is green, and will only sound when
pushed with the scooter power
turned on. *

6
5. Emergency Brake
The emergency brake mechanism
is located on the left-hand side
hand brake, and does require both
hands to engage or disengage. To
activate, start by pulling and *
holding the brake handle, then
push the emergency brake pin
downwards, and release the brake
handle before releasing the pin.
The spring actuated lock arm will automatically lock the pin in the engaged
position. To disengage, squeeze the let brake handle, push the lock arm
away from the pin, and the pin will automatically return to its original
position. This will keep the scooter stationary while not in use.
6. Kill Switch and High/Low Switch
There is a kill switch that will disable
the throttle when clicked inwards. You
can continue to use the Bluetooth
music playback without having to
worry about the throttle accidentally
being pulled. *

7
7. Bluetooth Radio
The Bluetooth speaker is inside the headset
and will automatically start when the
scooter is turned on. To connect to the
Bluetooth speaker, start by turning on
Bluetooth on your Bluetooth compatible
device that you would like to play music
from. Then, scan for a device and pair with
the device named “Bluetooth”. No password
is required. *

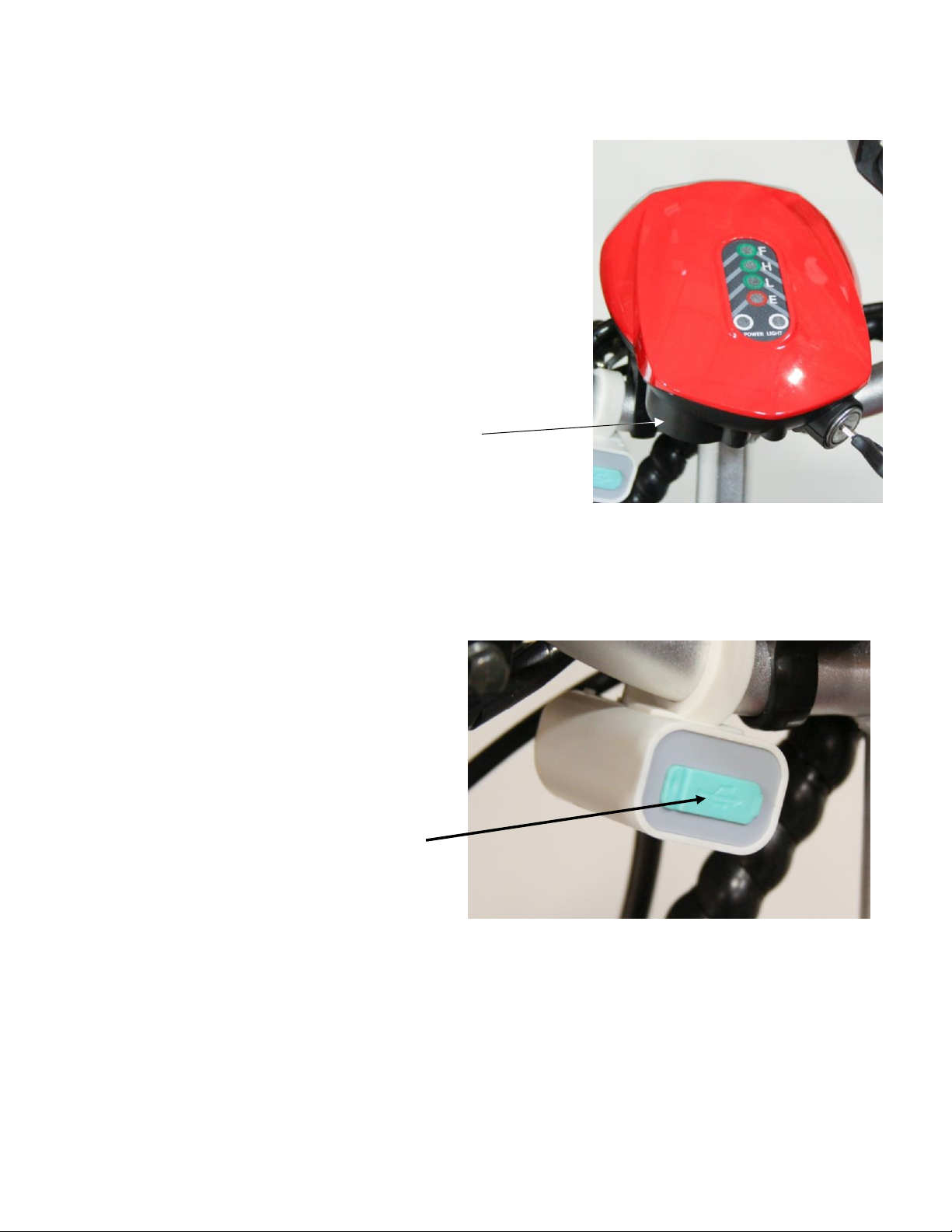

8. USB Port
The USB port can be used only
as a method to recharge an
electric device. Music cannot be
played back through the USB
port. Pull back the aqua colored
cover to access. *

8
9. Swiveling Seat
The swiveling seat handle is
located underneath the seat
on the right-hand side. Before
swiveling the seat, adjust the
seat all the way forward to *
avoid the seat hitting the rear
basket. If the seat is not
adjusted forward prior to swiveling, damage to the seat may occur.
10.Folding Front Tiller *
The front tiller can be folded
when transporting or storing.
To fold the front tiller, start by
sliding the black clamp ring
tab away from the silver
release handle. Then, pull the
top of the release handle away
and downwards to be able to
fold the front tiller.
Charging Instructions:

9
The smart charger included with your scooter will shut off its high current
mode when the scooter is fully charged. When the light on the charger is red,
the scooter is still charging. When the light turns green, this means the scooter
is fully charged. Once fully charged, unplug within two hours to avoid
overcharging.
The charging time varies depending on how charged the batteries are. If almost
empty, the charge time may take up to 8 hours. If the red light stays on for
more than 8 hours, unplug the charger.
Batteries and Battery Maintenance:
Only use the recommend batteries for your scooter. Do not use lithium ion
batteries. The batteries can be charged as needed without causing damage.
You can wait until low, or charge right after a short ride. Avoid leaving on the
charger for an extended period to avoid potential damage.
Specification of the battery that we recommend:
Type: (4) 12 volt, 20 AH, Deep Cycle, Maintenance Free, Sealed Lead Acid
Note:
-Do not use automotive starter batteries. They are not designed to handle
long deep discharge and are unsafe for use in your scooter.

10
-The useful life of a battery is quite often a reflection of the care it
receives.
-Always charge the batteries in a well-ventilated area.
-The charger is intended for indoor use only.
-Replace all batteries at the same time if weak.
-Recharge the scooter at least once every month when not in use to avoid
deterioration of the batteries.
Ramps and Curbs:
1. Check that the ramp surface is roughened to prevent slipping. Never drive
across a slope or turn sharply on a slope.
2. When driving up curbs, always check the height of the curb to ensure that
it does not exceed 4” height.
3. Always go forward up ramps and curbs.
4. Avoid stopping completely when going over small objects or obstructions.
General:
1. Always keep your feet on the scooter while riding.
2. Do not exceed the weight capacity of 350lbs.

11
3. Do not attempt to lift or move the scooter by any of its removable parts.
Personal injury and damage to the scooter may result.
4. Never try to use your scooter beyond its limitations as described in the
manual.
5. Do not connect any electrical or mechanical device to the scooter. Failure
to obey this instruction may result in injury and will void the warranty.
6. Always comply with local laws and regulations.
Use While Under the Influence of Medication or Alcohol:
1. Check with your physician if you are taking any medication that may
affect your ability to operate your scooter safely.
2. Do not operate your scooter while you are under the influence of alcohol
as this may impair your ability to operate your scooter in a safe manner.
Safety Requirements:
Driving Surface
The EW-32 has the best stability and performs the best under the normal
driving conditions (dry, level ground with concrete or asphalt). Extra care must
be taken when riding on other surfaces (grass, gravel, etc.).

12
DO NOT exceed the specified climbing angle. Do not operate the scooter before
you have fully read and understood the manual.
•Always turn the scooter off before getting on or off the scooter.
•Avoid driving in loose gravel, covered soil and sandstone.
•Do not drive the scooter in unknown road conditions.
•The scooter can ride over small obstacles within a certain height, but you
must minimize the speed and slowly drive over the obstacle.
•Do not operate the scooter under the influence of drugs or alcohol.
•Do not park on steep slopes.
•Changing the initial setting of refitting your scooter is forbidden.
•Use caution when operating near busy streets, markets or shopping
centers. Do not operate in unsafe areas.
•Consult local authorities about the traffic rules for scooters in your city.
•Hold the handlebar with both hands and put both feet on the floorboard
while driving the scooter.
•Never sit on the scooter in a moving vehicle.
•Do not drive on uneven slopes or uneven ground; be careful when passing
over slopes.

13
•Never take the scooter on an escalator.
•Do not operate on frozen, slippery or salty roads.
•Never let the batteries freeze; do not charge when frozen.
•Do not let the batteries every go completely dead. When low, do not let
sit for an extended period or damage may occur.
•Always use required safety equipment while operating.
•Do not modify or change the electrical system and frame. Doing so will
void the warranty.

14
Warranty
Three Year Limited Warranty
Three (3) years from the date of purchase on all structural frame components; Seat post and
frame.
One Year Limited Warranty
One (1) Year from the date of purchase, if any part or electronic component of the scooter is
found upon examination to be defective in material and/or workmanship, it will be replaced at E-
Wheels’ discretion.
The batteries are warranted by E-Wheels for 2 months after the purchase of the Unit.
Labor and service calls are NOT included: The purchaser is responsible for the delivery to the
authorized repair facility. Satisfactory proof of purchase is always required for warranty service.
Please contact the dealer/company from whom you purchased your E-Wheels product.
SHIPPING - DOMESTIC: Parts will be provided under warranty at no charge. All warranty items
will be shipped via UPS Ground. Shipping fees will be at the expense of the purchaser.
SHIPPING - INTERNATIONAL: Parts will be provided under warranty at no charge, but shipping
to any offshore and/or international location will be the responsibility of the purchaser.
International and offshore end-users must contact E-Wheels directly to initiate the warranty
process.
ONE-YEAR WARRANTY EXCEPTIONS
MOTOR: In cases where there is an increase in the operational noise level, the warranty does not
apply.
(An increase in operational noise level usually occurs due to excessive strain on the scooter).
SERVICE: Warranty service can be performed by E-Wheels or by an authorized service facility.
Do not return faulty parts to E-Wheels without prior consent. A request for a Return Authorization
is required prior to returning items. All transportation costs and shipping damage incurred while
submitting units and/or parts for repair or replacement are the responsibility of the original
purchaser.
WARRANTY EXCLUSIONS: This warranty is only given to the original purchaser of the Scooter.
This Warranty excludes:
Battery Charger: The charger carries a 30 day warranty.

15
Consumable items which may need replacing due to normal wear and tear (tires, tubes,
belts, bulbs, upholstery and seating, throttle, brakes, motor brushes, fuses, plastic shrouds
and footrest covers)
Damaged caused by: battery fluid spillage or leakage, abuse, misuse, accident,
negligence, improper operation, excessive loading, maintenance, storage, commercial use, or
use other than normal.
Used other than for the purpose of the purchaser’s mobility.
Repairs and/or modifications made to any part of the scooter without specific and prior
consent from E-Wheels.
Labor, service calls, shipping (including warranty claims), and other charges incurred for repair of
the product are not approved by E-Wheels unless authorized.
Batteries: Batteries carry a limited warranty which is subject to a stringent wear and tear
clause. Any battery faults due to a defect in the original manufacture will normally become
obvious within the first two months of use. Any gradual deterioration in performance after this
period is normally associated with fair wear and tear, misuse or accidental damage and as such
is not covered by the manufacturer’s warranty. There is no other express warranty.
Implied warranties, including those of merchantability and fitness for a particular purpose,
are limited to one (1) year from the date of the original purchase and to the extent permitted
by law. Any and all implied warranties are excluded. This is the exclusive remedy. Liabilities
for consequential damages under any and all warranties are excluded

16
Intended Use
Your scooter is a recreational scooter and is to be used for improving mobility in your daily activities such as walking. It is
not a medical scooter or medical and does not and is not intended to provide medical benefits, medical assistance,
medical therapy, or treat or alleviate any medical condition or disability.
Quick-Start Warnings
The below warnings and instructions caution against some activities. Reviewing this list is not a substitute for reading the
entire Manual. Use common sense when operating your scooter.
•Do not disassemble your scooter on your own.
•Avoid touching hot parts of your scooter during or after operation.
•Avoid touching hot parts of your scooter that may have become hot from exposure to sunlight.
•Do not touch any chemicals in the scooter.
•Keep your hands and other body parts away from moving parts of the scooter.
•Do not operate the scooter with any loose clothing or dangling which wires which could become trapped in the
wheels or other moving components of the scooter.
•Do not use any battery which is not approved by eWheels for use with your scooter.
•Do not allow children to play on the scooter or use it without supervision.
•Single-person scooters should only be used by one person at a time.
•Do not operate the scooter while under the influence of alcohol, drugs, or other medications which may impair
your ability to operate a vehicle.
•Do not operate the scooter while using a mobile phone or other mobile device.
•Do not operate your scooter if it is not functioning properly.
•Never try to operate your scooter beyond the its limitations as described in the manual.
Size and Weight Limits
Your scooter was designed to accommodate users up to a specified size and weight. As each scooter is designed and
rated differently, ensure you check your particular scooter model’s limits. Periodically check your weight against your
scooter’s limits, as your weight may fluctuate over time. Ensure other users of your scooter are within the weight limits.
Operation of the scooter by a user over the weight limit can damage the scooter and can cause hazardous situations,
including increased braking distances and times, decreased steering responsiveness, tip-overs, and other dangers which
may cause injury. Further, modifications which increase the riding height of the scooter, which raise the user’s riding
height on the scooter, or which otherwise change the center of gravity of the scooter can damage the scooter and cause
the hazardous situations identified above. eWheels is not responsible for damage to the scooter or personal injury
caused by exceeding weight limitations or modifying the center of gravity of your scooter. Do not adjust your seat while
the scooter is in motion or operating.
General Operation –Safety Belt
If your scooter is equipped with a safety belt, use it all times when seated in the scooter. Do not operate your scooter
without wearing the safety belt. Have the belt replaced by an authorized repair technician if the safety belt becomes
frayed, cut, or shows other signs of wear or damage.

17
General Operation - Mirrors
If your scooter is equipped with mirrors, orient them so that you can see behind you. Orient the mirrors while sitting on
the scooter but while the scooter is not moving and is not in operation. Never attempt to adjust the mirrors while
operating the scooter. Proper orientation of the mirrors should allow you to see behind you and should minimize blind
spots.
General Operation –Lights and Signals
If your scooter is equipped with headlights and turn signals, use them. Using headlights at night, and even at day,
increases your visibility to other vehicles. Using turn signals provides warning to vehicle and pedestrian traffic near you.
General Operation –Driving Outdoors
Your scooter is designed to be driven on clean, even, dry surfaces. eWheels does not recommend you store your scooter
outdoors. Your scooter is susceptible to damage to electronic, mechanical, or other components if exposed to water. If
you are caught outside during inclement weather, seek shelter or ask someone for assistance.
Always ensure that the power is switched off when getting on or off the scooter. Never attempt to mount or dismount
the scooter if it is operational or moving. Do not switch the power off when the scooter is still moving forward or in
reverse. Always check that the variable speed switch is set to the desired speed setting. Always check that the desired
direction of forward or reverse travel is selected when ready to drive.
General Operation –Public Roads
Unless specifically permitted or authorized by the state, do not drive your scooter on public roads. If you need to drive
along a public road, use the sidewalk adjoining the road. Always use care when driving near to or around public roads, as
you may be less visible to motor vehicles when riding the scooter because of your smaller relative size and slower
relative speed. Always be aware of state and local rules of traffic, and take those rules into account when operating your
scooter; it is your responsibility to know those rules, obey them, and understand how other traffic will operate in
accordance with such rules. eWheels recommends that you gain your first experiences with your scooter well away from
public roads, so that you can learn and understand how the scooter operates and handles in a comfortable and quiet
environment.
General Operation –Alternate Surfaces
Do not drive your scooter onto stairs or escalators; serious injury will result. Do not attempt to drive your scooter onto
stairs or escalators. Most elevators are safe for use with the scooter. When confronted with stairs or escalators,
navigate to the closest elevator instead. Conduct a visual inspection and assess the quality and condition of the elevator
before using it. Use care; some elevators have awkward entrance angles that can make ingress and egress difficult.
General Operation –Curbs
Curbs generally are formed in two manners: abrupt, vertical curbs and gradual, smooth curbs. Your scooter cannot drive
over or off of an abrupt, vertical curb. Do not attempt to do so, as this will cause serious damage to your scooter and
likely injury to yourself. Do not drive over a curb or object exceeding 4 inches in height. Your scooter can drive over
most gradual, smooth curbs. Approach such curbs head-on, so that the scooter is oriented perpendicular to the curb.

18
Consistently apply speed over the curb until the rear wheels of the scooter have moved just past the curb. Do not
approach the curb at an oblique angle; doing so can increase the risk that your scooter tips over. Likewise, when moving
down a curb, approach the curb perpendicular to it and not at an oblique angle. Avoid stopping completely when going
over small objects, curbs, or other obstacles and obstructions.
General Operation –Incline Control
Your scooter can handle a wide range of inclines and declines. The scooter is safe for operation on most handicap-
accessible ramps. However, do not use the scooter on inclines of a degree which makes operation of the scooter
difficult; if the scooter does not readily climb the incline, move off of the incline and/or ask for assistance. Likewise, do
not use the scooter on declines of a degree which makes operation of the scooter difficult; if the scooter moves too
quickly on an incline, fully apply the brakes, move off of the decline, and/or ask for assistance. eWheels recommends
that you only use ramps which have a roughened surface to prevent slipping. Never drive in a transverse direction across
an incline or turn sharply on an incline. Never drive in a reverse direction down an incline. Because the capability of your
scooter to climb an incline or descend a decline depends on a number of factors, such as the scooter’s specifications,
your size and weight, the quality of the surface, and your personal setup of the scooter, eWheels does not guarantee the
scooter’s safety on a specific angle of incline or decline. However, eWheels does not recommend you use your scooter
on inclines or declines greater than 10 degrees, while making no guarantees of performance and safety on angles less
than 10 degrees.
General Operation –Cornering
Always reduce your speed when making sharp turns. Always control your speed when cornering. As with any vehicle,
maneuvering a corner at a high speed increases the risk of tipping the scooter. You should maneuver at a speed which is
reasonable for the scooter, its specifications and conditions, your size and weight, your angle of approach, the type of
turn, and the surface conditions.
General Operation –Influences
Do not operate the scooter while under the influence of alcohol, drugs, or other medications which may impair your
ability to operate a vehicle. The scooter is heavy and can reach significant speeds, but even at low speeds it is dangerous
to operate under the influence of alcohol, drugs, or other medications which may alter or impair your coordination,
reaction time, reflexes, and other capabilities.
General Operation –Ingress and Egress
Exercise care when moving onto your scooter. Ensure the scooter is braked on level ground and the switch is in the off
position. Brace yourself against a sturdy piece of furniture, or use a cane or other walking assistive equipment. Use your
upper body to assist your legs in lowering you onto the scooter seat. Move downwardly slowly. Apply and buckle the
safety belt. Sit for a few minutes before operating the scooter. Also exercise care when moving off of your scooter.
Ensure the scooter is braked on level ground and the switch is in the off position. Unbuckle the safety belt. Getting up
quickly or the wrong way could lead to injury. Look around for a sturdy piece of furniture, or use a cane or other walking
assistive equipment. Use your upper body to assist your legs in lifting you. Lift slowly and pause for a few moments if
you feel unsteady. Stand for a few minutes before moving further.

19
Regular Maintenance
Always check your scooter for normal operation, loose parts, and defects before operating. If you find a problem, have it
repaired before operating.
Keep your scooter clean and dry. Do not use a high-pressure water sprayer to clean the scooter. If you wash your
scooter, use a damp sponge or cloth, and dry the scooter thoroughly before operating. Do not immerse any components
in water.
Always check your scooter for wear or damage to the tires before operating.
Keep tires inflated to their recommended tire pressure at all times. Regularly check tires for wear, cracks, nails, or other
damage. Keep tires clean and replace them when damaged. Failure to maintain the tires at the recommended tire
pressure will cause premature wear, and failure to maintain the tires could lead to damage or personal injury.
Use Within a Motor Vehicle
Do not sit in or operate your scooter in a motor vehicle such as a train, bus, or large van. Stow or rack your scooter
according to the motor vehicle’s guidelines before entering or when entering the motor vehicle. Never sit in your
scooter while it is on or in a motor vehicle which is operating or in motion.
Batteries
Do not use automotive batteries with your scooter. Always charge your scooter’s batteries in a well-ventilated area.
eWheels recommends that you periodically charge your batteries, such as once a month, when your scooter is not in
regular use. Ensure the switch is in the off position when the batteries are charged. Ensure that the power plug is
inserted and plugged firmly into the battery during charging. Do not use an extension cord while charging the batteries.
Do not use a battery which is cracked, leaking, or otherwise damaged. Do not use your scooter if the battery is cracked,
leaking, or otherwise damaged. Keep tools and other metal elements away from the contact terminals of the batteries.
Remove the batteries when transporting your scooter.
Modifications to the Scooter
Do not disassemble or modify your scooter on your own. Do not remove or disable any element or feature of your
scooter. Do not modify the programmable controller governing the scooter’s electric, electronic, and electro-mechanical
operations. While there are a wide range of after-market products available to modify and alter scooters, some may
make your scooter more dangerous to operate or may impair your ability to operate the scooter safely. eWheels makes
no claim or warranty as to the safety, effectiveness, and operability of any aftermarket product added to your scooter, or
as to any modification you make or have made to your scooter, which are not performed by eWheels or eWheels
approved vendors. eWheels is not responsible for damage to the scooter or personal injury caused by disassembly,
modification, or other alteration of your scooter.
