Exhausto VEX200 series User manual

VEX240HX w/o a control system
Mechanical installation instructions
Product information........................................ Chapter 1 + 6
Mechanical assembly..................................... Chapter 2 + 3
Electrical installation.......................................Chapter 4
Maintenance...................................................Chapter 5
Unit supplied with (factory fitted):
The following accessories are supplied
separately:
Rotor with standard temperature efficiency
Rotor with high temperature efficiency
Compact filters FP
Bag filter FB
Trim damper and blowout zone, TB240
OD (roof for outdoor)
HCW heating coil
HCE heating coil
CCW cold water coil
DX cooling/heating coil
Mounting base, MSVEX240H
Closing damper, LS315-24, (LSA exhaust)
Closing damper, LS315-24, (LSF outdoor)
Closing damper, LSR315-24, with
spring-return (LSFR outdoor)
Serial no.:
Prod. order no.:
Sales order no.:
Original instructions
3005039-2018-01-08 VEX240-X
EXHAUSTO A/S
Odensevej 76
DK-5550 Langeskov
Tel.: [phone]
Fax: [phone]
[email protected]
www.exhausto.dk

1. Product information
1.1. Model overview...................................................................................................... 5
Model overview................................................................................................ 5
1.2. Designations used in these instructions.............................................................7
1.2.1. Designations used in these instructions...........................................................7
1.3. Application............................................................................................................. 7
1.4. Location requirements.......................................................................................... 7
1.4.1. Spatial requirements........................................................................................ 8
1.4.2. Requirements for underlying surface.............................................................. 8
1.4.3. Requirements for duct system......................................................................... 8
1.5. Description............................................................................................................. 9
1.5.1. VEX unit construction......................................................................................9
1.6. Principal dimensions...........................................................................................12
VEX240, V1....................................................................................................12
VEX240, V2....................................................................................................13
2. Handling
2.1. Unpacking.............................................................................................................14
2.2. Transport.............................................................................................................. 14
2.2.1. Weight...........................................................................................................14
2.2.2. Passage through openings .......................................................................... 15
2.2.3. Internal transport with reduced weight.......................................................... 16
3. Mechanical assembly
3.1. Installing the unit................................................................................................. 18
3.1.1. Installed directly onto the floor....................................................................... 18
3.1.2. Installing on mounting base........................................................................... 18
4. Electrical installation
4.1. Electrical installation........................................................................................... 19
5. Maintenance
5.1. Maintenance chart............................................................................................... 20
5.2. Service.................................................................................................................. 20
5.2.1. Filter change.................................................................................................. 20
5.2.2. Servicing and cleaning...................................................................................21
5.3. Airflow measurement.......................................................................................... 21
5.3.1. Determining airflow and pressure.................................................................. 21
6. Technical specifications
6.1. Weight, corrosion class, temperature ranges, etc............................................25
6.2. Compact filters.....................................................................................................26
6.3. Bag filters............................................................................................................. 27
6.4. Capacity diagrams............................................................................................... 28
6.5. Ordering spare parts........................................................................................... 28
3005039-2018-01-08
2/32

Symbols, terms and warnings
Prohibition symbol Failure to observe instructions marked with a prohibition symbol
may result in serious or fatal injury.
Danger symbol Failure to observe instructions marked with a danger symbol
may result in personal injury and/or damage to the unit.
Scope This instruction manual is for use with EXHAUSTO VEX-type air handling units.
Please refer to the product instructions regarding accessories and extra equip-
ment.
The instructions must be fully observed to ensure personal safety and to protect
the equipment and ensure its correct operation. EXHAUSTO A/S accepts no liabil-
ity for accidents caused by equipment not used in accordance with the manual’s
instructions and recommendations.
Supply air/extract
air
These instructions use the following terms as given in DS447-2013:
● Supply air (air blown in)
● Extract air (air removed)
● Outdoor air
● Exhaust air
Left/Right The term R for Right, indicates the supply air is to the right of the cooling unit, as
seen from the operating side. The term L for Left, indicates the supply air is to the
left.
Front page: Acces-
sories
The front page of the instruction manual contains a checklist, detailing the acces-
sories delivered with the VEX unit.
NB When retrofitting EXHAUSTO accessories, please update the checklist on
the front page.
Warnings
Opening the unit Do not open the service doors before the supply voltage has
been disconnected at the isolation switch and the ventilators
have stopped.
Prohibited The VEX unit must not be used to transport solid particles or in
areas where there is a risk of explosive gases.
No duct connection If one or more of the spigots is not connected to a duct: Fit a
protective net to the spigots with a maximum mesh width of 20
mm (in accordance with EN 294).
3005039-2018-01-08
3/32

Lock the air han-
dling unit during
operation
The VEX unit must always be locked
during operation:
● Use the cylinder lock in the han-
dle. Remember to remove the key
from the lock.
● Or use a padlock. Use the han-
dle’s built-in padlock fixture.
Lock
Padlock fitting
Rating plate The VEX unit rating plate shows:
● VEX unit, type (1)
● production number (2)
1
2
NB Always have the production number ready when contacting EXHAUSTO A/S.
3005039-2018-01-08
4/32

1. Product information
1.1 Model overview
Model overview
Positioning of fan,
motor (M) and mo-
tor control (MC)
Fan placement 1 (V1)
RD12178-01
M2
MC2
M1
MC1
Fan placement 2 (V2)
RD12179-01
M1
MC1
M2
MC2
Elements Description
RD12767-01
Fan
RD12763-01
Compact filter
RD12762-01
Bag filter
1,1,A or B Extract air spigot
1,2,A or B Exhaust air spigot
2,1,A or B Outdoor air spigot
2,2,A or B Supply air spigot
11
Air direction, extract air
22
Air direction, supply air
3005039-2018-01-08 Product information
5/32

Optional spigot positions in relation to fan placement and filter type
Fan placement
and airflows
Compact filters
RD12763-01
Bag filters
RD12762-01
Fan placement 1,
Right
RD12178-01
1
2
RD12979-01
RD12980-01
Fan placement 1, Left
RD12178-01
1
2
RD12981-01
RD12982-01
Fan placement 2,
Right
RD12179-01
2
1
RD12983-01
RD12984-01
Fan placement 2, Left
RD12179-01
2
1
RD12985-01
RD12986-01
3005039-2018-01-08 Product information
6/32

1.2 Designations used in these instructions
1.2.1 Designations used in these instructions
The simplified diagram shows a VEX unit with fan location 1, Left
Component Function
MC1 Motor control, motor 1 (extract air)
MC2 Motor control, motor 2 (supply air)
LS1) Closing damper, outdoor air/exhaust air
M1 Fan motor 1
M2 Fan motor 2
DRHX Control unit for the rotary heat exchanger
P1.1X Measurement point, pressure drop across extract air filter
P1.1Y Measurement point, pressure drop across extract air filter
P1.2X Measurement point, airflow in exhaust air
P1.2Y Measurement point, airflow in exhaust air
P2.1X Measurement point, pressure drop across outdoor air filter
P2.1Y Measurement point, pressure drop across outdoor air filter
P2.2X Measurement point, airflow in supply air
P2.2Y Measurement point, airflow in supply air
1.3 Application
Comfort ventilation EXHAUSTO VEX is used for comfort ventilation tasks. Operating temperature
range for the unit – see section "Technical data".
Prohibited uses The VEX unit is not to be used to transport solid particles or in areas where there
is a risk of explosive gases.
1.4 Location requirements
Positioning The air handling unit is designed for indoor fitting. The air handling unit can be or-
dered for outdoor installation (accessory Outdoor, OD).
3005039-2018-01-08 Product information
7/32

1.4.1 Spatial requirements
The drawing below indicates how much space is needed for servicing, replacing fil-
ters, cleaning, etc.
1550
755
805
RD11665-01
NB: A free height of at least 200 mm is required above the unit’s connection box.
1.4.2 Requirements for underlying surface
When fitting the unit directly to an existing surface - i.e. without using the mounting
base (accessory) - the surface must be:
● level
● horizontal (±3 mm per metre
● hard
● vibration-resistant
1.4.3 Requirements for duct system
Silencers The duct system must be fitted with silencers specified by the Project Manager,
which meet the requirements of the operating area.
Bends A duct bend may be fitted immediately after the unit, because the airflow in the
spigot has a uniformly moderate speed profile, which results in negligible system
pressure loss.
Insulation The duct system must be insulated against:
● condensation
● sound leakage
● heating/cooling losses
Condensation Condensation in the ducts may occur when the exhaust/outdoor air has high hu-
midity. EXHAUSTO recommends a condensation outlet is also fitted at the lowest
point in the ducts.
3005039-2018-01-08 Product information
8/32

No duct connection If one or more of the spigots is not connected to a duct: Fit a
protective net to the spigots with a maximum mesh width of 20
mm.
1.5 Description
1.5.1 VEX unit construction
VEX200L-V1 The drawing below illustrates the construction of the unit (without service doors).
RD11734-02
2,1,A
1,2,A
1,1,A
2,2,A
1 214
13
11 9 5 36
12
10
16
4
8 7
15 1718
VEX200L-V2
2,1,A
1,2,A
1,1,A
2,2,A
11 10 5 4
2161412 6
3
9
13 8 7
15
1
RD11735-02
1718
3005039-2018-01-08 Product information
9/32

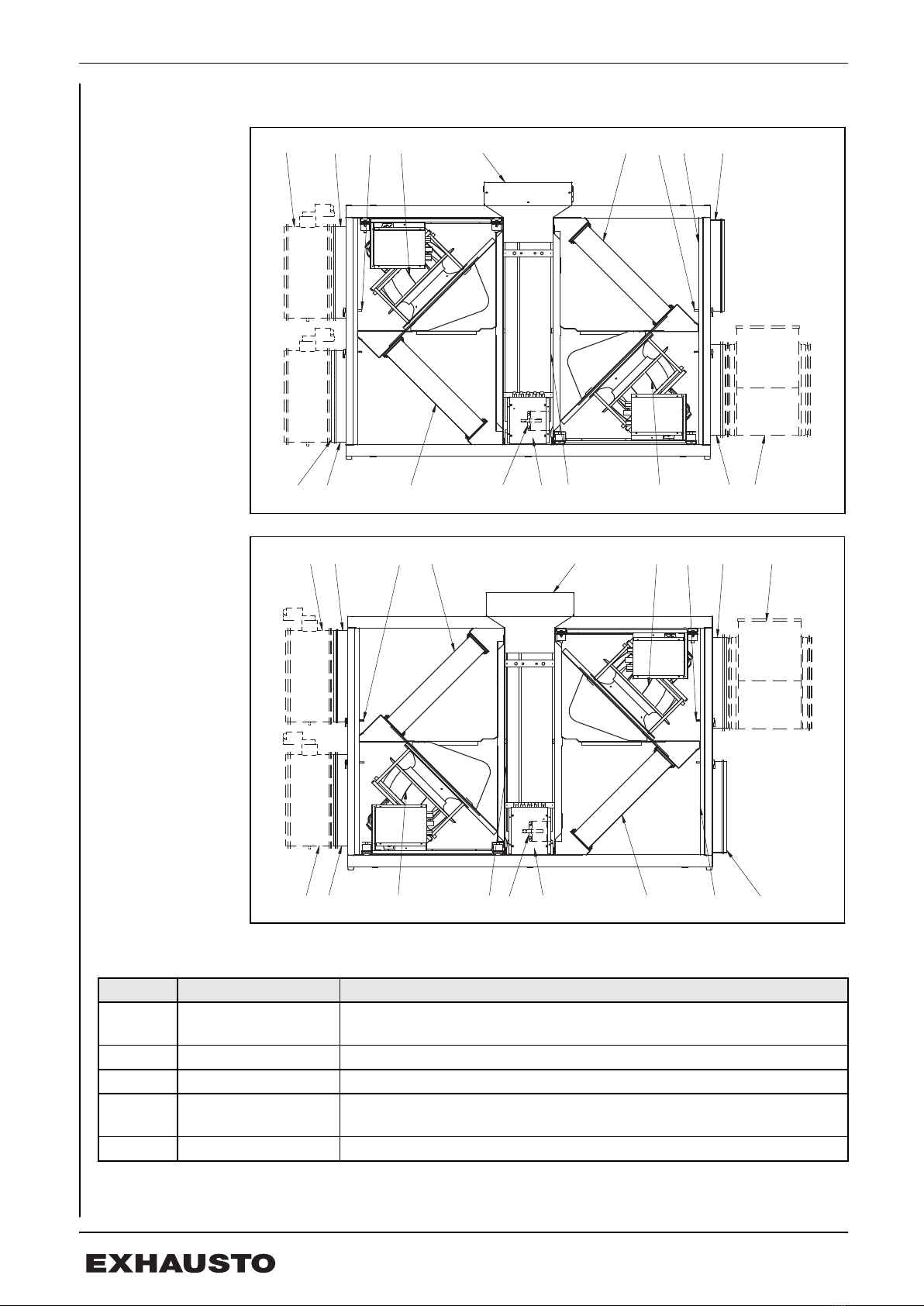

VEX200R-V1 The drawing below illustrates the construction of the unit (without service doors).
RD11736-02
2,1,A
1,2,A 1,1,A
2,2,A
11105
4
2 16 14 126
39
13
8 7
15
1
17 18
VEX200R-V2
2,1,A
1,2,A 1,1,A
2,2,A
121413
119536
12
10
16
487
15
RD11737-02
17 18
Pos. no. Part Function
1 Spigot 2.1.A Outdoor air spigot The spigot can also be positioned on the top or in the
bottom of the unit (2.1.B) – however, only on units with compact filters.
2 Closing damper LS Closing damper, outdoor air, LSF (accessory).
3 Closing damper LS Closing damper, exhaust air, LSA (accessory).
4 Spigot 1.2.A Exhaust air spigot The spigot can also be positioned on the top of the
unit (1.2.B).
5 Fan unit For extract air/exhaust air
3005039-2018-01-08 Product information
10/32

Pos. no. Part Function
6 Rotary heat ex-
changer
Conducts heat from extract air to supply air.
7 Step motor Drives the rotary heat exchanger via the drive belt.
8 Rotor control Controls and monitors the step motor.
9 Extract air filter Filters extract air.
10 Trim damper The trim damper (accessory) ensures there is pressure balance across
the rotor and seals to prevent extract air from entering the supply air.
Used with purging sector (accessory).
11 Spigot 1.1.A Extract air spigot The spigot can also be positioned in the bottom of the
unit (1.1.B) – however, only on units with compact filters.
12 Heating coil Heats supply air if heat recovery is insufficient (accessory).
13 Spigot 2.2.A Supply air spigot. The spigot can also be positioned at the bottom of the
air handling unit (2.2.B).
14 Fan unit For outdoor air/supply air.
15 Connection box Connection box to fan motor and rotor control.
16 Outdoor air filter Filters outdoor air.
17 Measurement socket Measurement socket for pressure loss across the filters.
18 Measurement socket Measurement socket for airflow calculation.
Cabinet The inside and outside of the cabinet is made of Aluzinc® and insulated with 50
mm mineral wool.
Ventilators The unit has a centrifugal fan for extract air and a centrifugal fan for supply air
Rotary heat ex-
changer
The rotary heat exchanger is driven by a step motor with rotor control, which con-
trols the rotor's speed.
Filters There are built-in compact filters (as shown on the drawings on the previous pa-
ges) or bag filters on both the extract air and supply air side.
3005039-2018-01-08 Product information
11/32

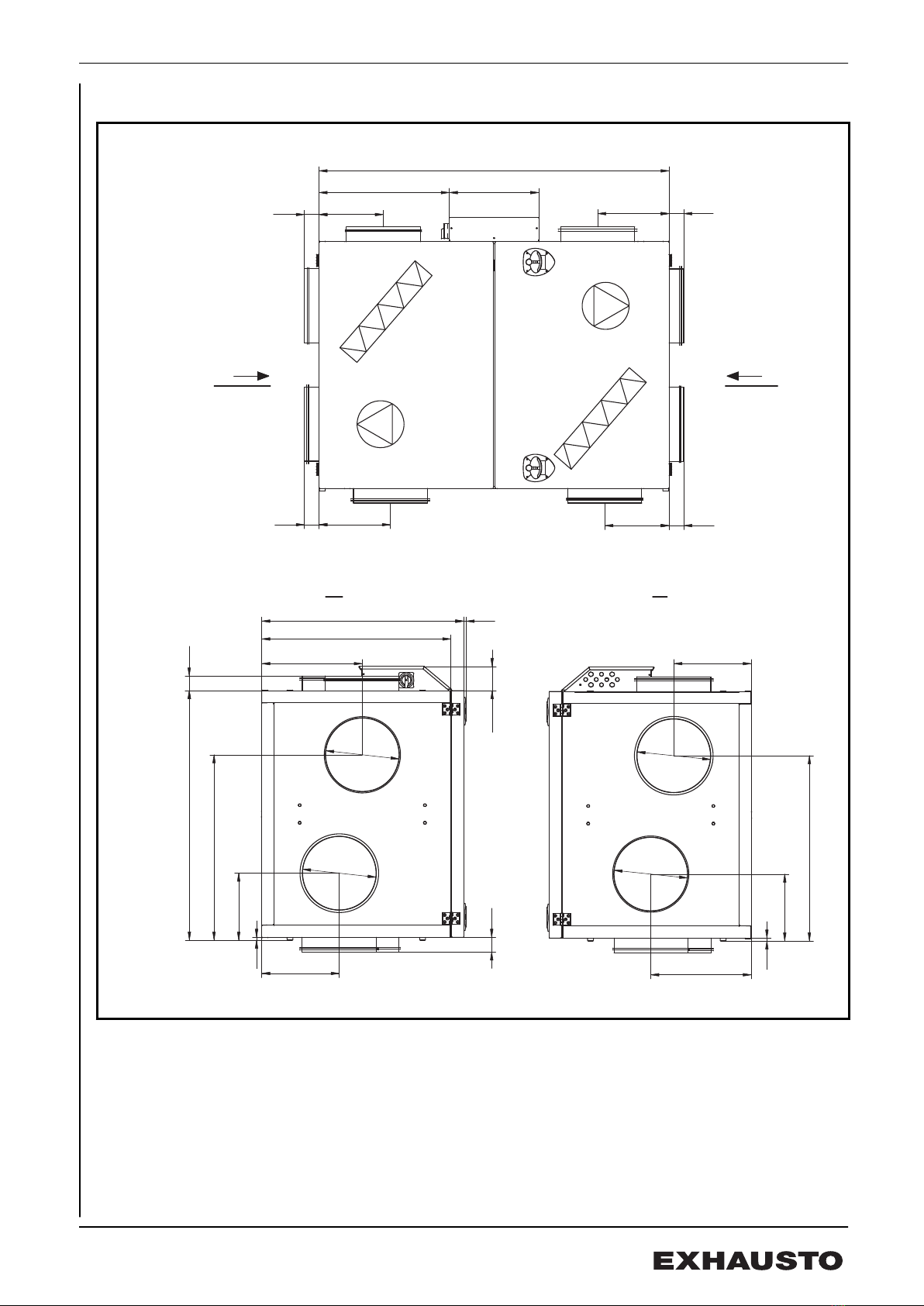

1.6 Principal dimensions
VEX240, V1
MN
N
M
62 273
554,5 381
1490
62273
62 273 62273
330
805
860 10
105
12
62
O
315
O315
430
62
O
315
O
315
330
12
430
285
789
1062
285
789
RD11666-01
*)
*)
NB The drawing shows all of the spigot positioning options. Spigot positioning
marked with * is not available for VEX units with a bag filter.
3005039-2018-01-08 Product information
12/32

VEX240, V2
MN
N
M
1490
860 10
554,5 381
62 273 62273
62 273 62273
O
315
O
315
O
315
O
315
330
62
12
62
428
805
105
430
12
330
285
789
1062
285
789
RD11667-01
*)
*)
NB The drawing shows all of the spigot positioning options. Spigot positioning
marked with * is not available for VEX units with a bag filter.
3005039-2018-01-08 Product information
13/32

2. Handling
2.1 Unpacking
Supplied compo-
nents
The following components are supplied:
● VEX unit
● Supplied with accessories (as indicated in the checklist on the front page of
the instructions)
Packaging The unit is delivered attached to a disposable pallet and packed in clear plastic.
NB Once the plastic has been removed, the unit must be protected against dirt
and dust:
●The covers on the spigots must not be removed until the spigots are
connected to the ventilation ducts.
●Whenever possible, keep the unit closed during fitting.
The unit should be
cleaned before it is
used.
Once the VEX unit is fitted, it must be checked and thoroughly cleaned. All dust,
debris and metal shavings must be vacuumed up.
2.2 Transport
2.2.1 Weight
The unit weighs 267 kg
Transport equip-
ment
Transport the VEX unit in one of the following ways:
Method Drawing
Manual transport:
Lifting brackets for
manual transport can
be fitted as shown on
the drawing:
RD10541-01
RD10542-01
3005039-2018-01-08 Handling
14/32

Method Drawing
Using pallet truck or
fork-lift truck:
Lift the VEX unit on the
disposable pallet.
IMPORTANT: If the
disposable pallet can-
not be used, the forks
on the lifting equipment
must be long enough
to prevent damage to
the bottom of the unit.
RD12463-01
Crane:
Never lift the
VEX unit
with the lift-
ing brackets
by using a
crane.
Use straps and lifting
yokes to prevent dam-
age to the unit.
RD13029-01
2.2.2 Passage through openings
Height The unit's height is 1,167 mm
Width The list (below) shows how wide an opening has to be for the unit to pass through:
If the opening width is* Then
Less than 815 mm the unit will not pass through
Between 815 and 868 mm remove doors, see relevant section
Greater than 868 mm the unit can pass through
* Measurements are based on the exact dimensions of the VEX unit.
3005039-2018-01-08 Handling
15/32

2.2.3 Internal transport with reduced weight
Weight reduction The weight can be reduced during transport by removing the service doors and
fan units.
Removing the serv-
ice doors
To remove the service doors:
Detail A
A
RD12580-01
A
● Open both doors
● Tap the hinge door pin out using a small
pin bolt or similar
● Lift the doors off
3005039-2018-01-08 Handling
16/32

To remove the fan
unit
RD11568-01
Step Action
1 Remove the fixing screws on the sliding rail (out towards the oper-
ating side)
2 Loosen the bindings on the motor cable and the measuring hose
3 Pull the fan unit out to the end-stop (a screw on each rail acts as a
stop)
4 Remove the supply cable and modbus cable in the motor control
box
5 Remove the measuring hose which is fixed to the intake
6 Remove the two end-stop screws (one on each rail). The fan unit
can now be lifted off.
NB: A single fan unit weighs 20 kg.
3005039-2018-01-08 Handling
17/32

3. Mechanical assembly
3.1 Installing the unit
Description The VEX unit is installed so that it is horizontal.
3.1.1 Installed directly onto the floor
The requirements for the floor surface must be met, see the section entitled "Re-
quirements for underlying surface", chapter 1.
NB After installation, check the VEX unit is completely level.
3.1.2 Installing on mounting base
The EXHAUSTO mounting base enables the air handling unit to be installed correct-
ly. The base is equipped with adjustable levelling screws, so that the air handling unit
can be fitted horizontally on a surface that is not level ( +/- 20 mm per metre). See
diagram no. 3002646 for installing on the mounting base.
Diagram showing
levelling screw po-
sitions
1492
804,5 754,5
1442
RD12464-01
3005039-2018-01-08 Mechanical assembly
18/32

4. Electrical installation
4.1 Electrical installation
See the attached instructions "Guide to Electrical Installation of VEX240HX/250HX
for third party control systems":
Electrical installation guide
VEX240HX/250HX for third-party control systems
Electrical installation........................................Chapter 1 + 2
Original instructions
3003474-2014-02-26 VEX240-250HX
EXHAUSTO A/S
Odensevej 76
DK-5550 Langeskov
Tel. [phone]
Fax [phone]
[email protected]
www.exhausto.dk
3005039-2018-01-08 Electrical installation
19/32

5. Maintenance
5.1 Maintenance chart
Recommended in-
tervals
The following chart details the recommended maintenance intervals, under normal
operating conditions. EXHAUSTO recommends maintenance is adjusted to suit
the actual operating requirements.
Component Procedure Once a
year
Twice a
year
Filters* Recommended that both filters are replaced at the
same time.
Filters should be replaced at least: X
Filter monitor Check that all the seals in the filter monitor are
tight.
X
Seals and sealing strips Check that all the seals are tight. X
Fans and heating coil (ac-
cessories)
Check
Removal of fan unit. See section "Internal trans-
port with reduced weight"
Cleaning. See next section
X
Rotary heat exchanger Check
Clean when required. See next section.
X
*Filters Only use original filters
● The provided filter data and pressure loss graphs (section "Technical data")
are based on the use of original filters
● EUROVENT certification is only valid if original filters are used
● Use of non-original filters may cause leakage in the VEX and impair filter
function
● EXHAUSTO recommends that you register the filter replacement date to en-
sure filters are replaced at the correct intervals
5.2 Service
5.2.1 Filter change
Use original filters Only use original filters. See section "Maintenance chart".
Disconnect power at the isolation switch before opening the
door.
Pull the filters out. Remember to check the flow direction - see the arrows on the
filter.
Discarded filters must be stored immediately in sealed plastic bags and disposed
of responsibly.
3005039-2018-01-08 Maintenance
20/32
