—Chapter 1—
Using The IR Remote
This chapter will discuss the use to the IR remote. The remote is used to initially set the Network
Parameters, Time and Date. It can also be used during operation to allow for resetting of process
variables.

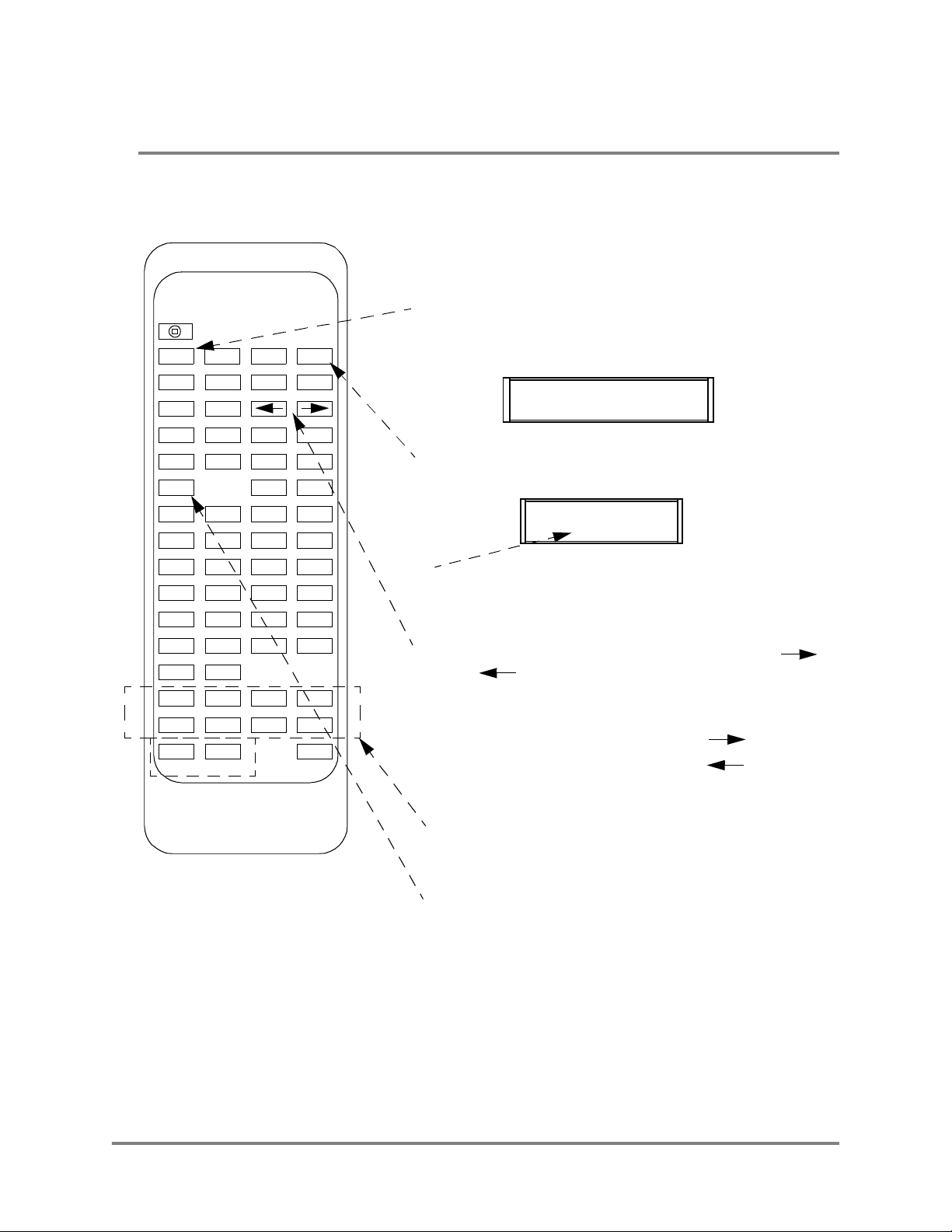

CPWPROG PREV NEXT
SPEPAU
SYMCAP GRA PHR
BEEPCLR DEL ENT
RUN INS ESC
BA C D
FE G H
JI K L
NM O P
RQ S T
VU W X
ZY
21 3 4
65 7 8
09 ALT
TIMEMET FONT COL

4 Operation Manual Copyright © 2006
Using The IR Remote
Key Usage Of IR Remote
There are many keys that are not currently used for the operation of the Marquee display. The
following lists the keys that have operation capability with the marquee.
KEY USAGE
PROG Enter Program Mode
PREV Go To Previous Program Screen
NEXT Go To Next Program Screen
Move Cursor To Left
Move Cursor To Right
RUN Return to Operating Mode
Y Used For Conformation Of Change
N Used for Rejection Of Change
0-9 Numeric Keys For Data Entry
Table 1—IR Remote Key Usage

Copyright © 2006 Operation Manual 5
Using The IR Remote
The IR Menus Of The Marquee
The following is the menus that can be accessed via the IR remote. These menus allow the user to
configure the basic settings of the Marquee display.
Menu Usage
Allows the user to set the Ethernet
IP address for the built in ethernet
port of the Marquee.
Allows the user to set the Ethernet
SUB NET MASK for the built in
Ethernet port of the Marquee.
Allows the user to set the Ethernet
DEFAULT GATEWAY for the
built in Ethernet port of the
Marquee.
Allows the user to set the TIME
for the built in real time clock of
the Marquee.
Allows the user to set the DATE
for the built in real time clock of
the Marquee.
Table 2—Marquee Configuration Menus
IP ADDRESS
1 92.168.1.200
NET MASK
2 55 .255.255.000
SET GATEWAY
0 00.000.000.000
SET TIME
0 2:47:37
SET DATE
0 6/10/06

6 Operation Manual Copyright © 2006
Using The IR Remote
Programing With The IR Remote
The following section will describe the steps that are taking in order to enter program mode and
accessing the Marquee setup menus. In this section the user will be instructed on how to accomplish
the following tasks.
•Set the Ethernet parameters of the Marquee
•Set the Time and Date on the Marquee display
Entering Into Program Mode
In order to access the setup menus the user must put the Marquee into program mode. This is a
simple as pressing the PROG key on the IR remote.

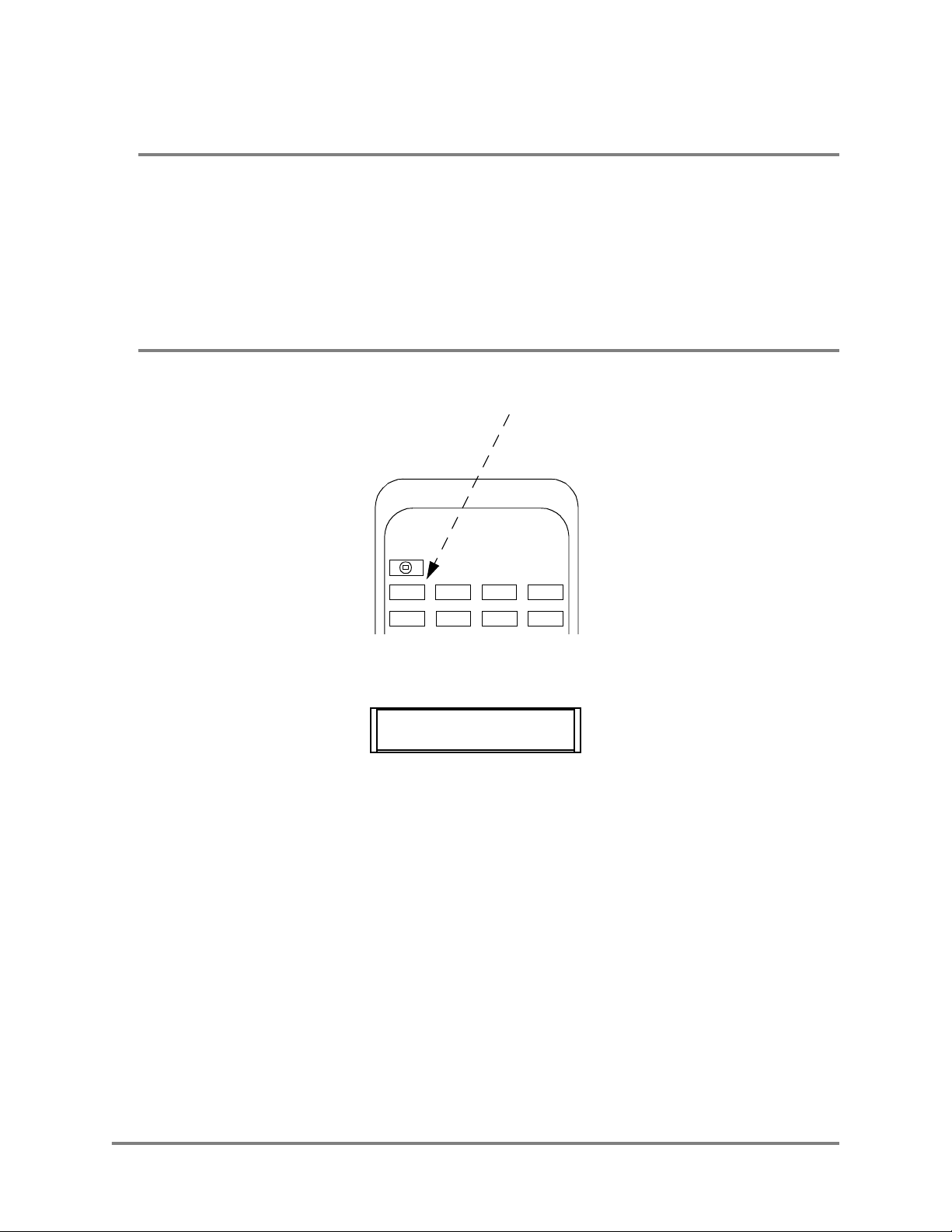

The follow message will be displayed on the Marquee.
Note: The user should be within 20 Ft of the Marquee in order for IR operations!

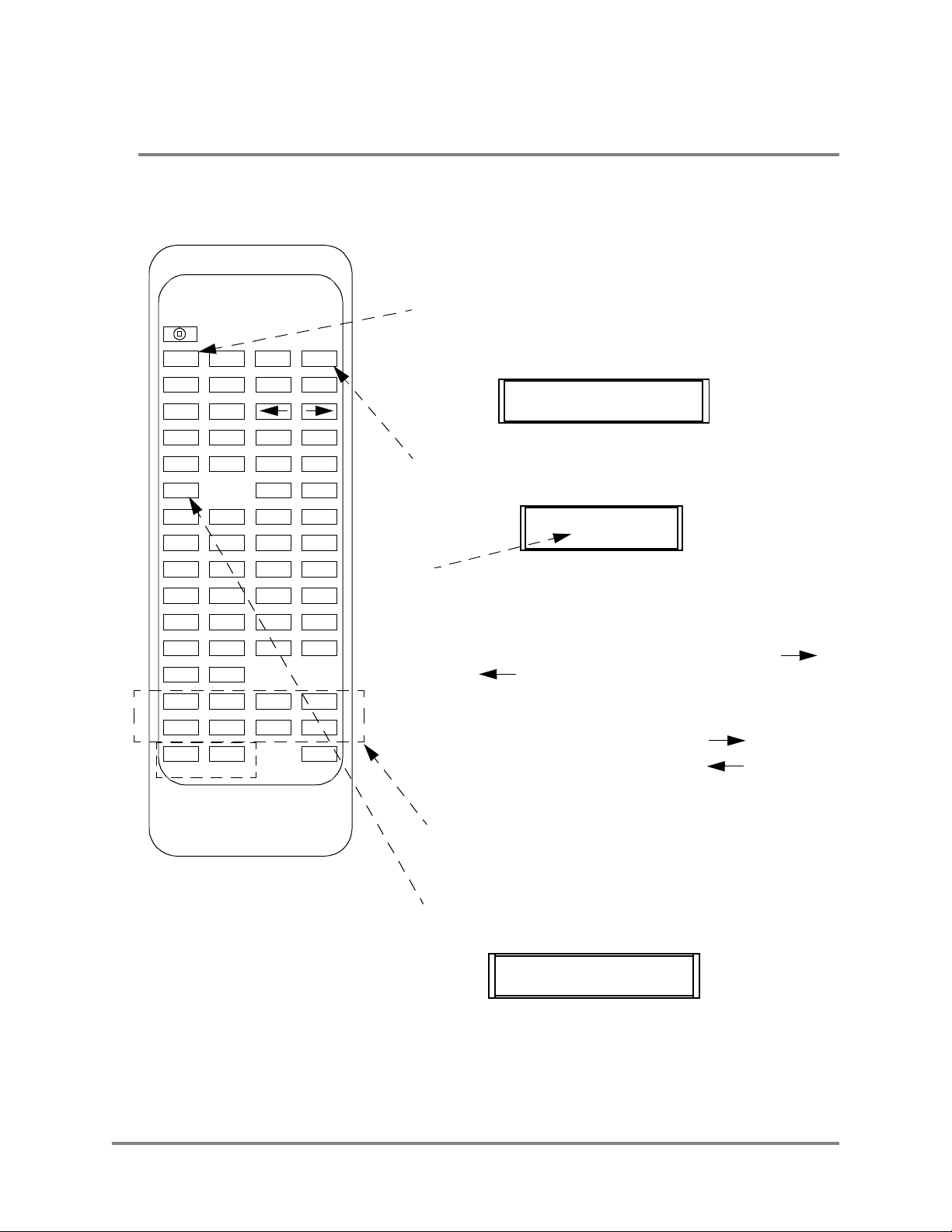

CPWPROG PREV NEXT
TIMEMET FONT COL
IP ADDRESS
1 92.168.1.200

Copyright © 2006 Operation Manual 7
Using The IR Remote
Maneuvering Through Setup Menus
Ounce in program mode, the user uses the PREV and NEXT keys to scroll through the setup menus.
By using these keys the user can select the menu item that is desired and take appropriate action. The
NEXT key takes the user to the next menu and the PREV key goes back to the previous menu. If
the user is on the last menu and presses the NEXT key the first menu item will be displayed. If the
user is on the first menu item and presses the PREV key the last menu item will be displayed.
CPWPROG PREV NEXT
SPEPAU
SYMCAP GRA PHR
BEEPCLR DEL ENT
TIMEMET FONT COL
NEXT
IP ADDRESS
1 92.168.1.200
NET MASK
2 55.255.255.0
SET GATEWAY
0. 0.0.0
SET TIME
1 2:10:05
SET DATE
1 0/10/06
PREV

8 Operation Manual Copyright © 2006
Using The IR Remote
Setting IP Address
The user can set the Ethernet IP address of the built in Ethernet port via the IR remote. Follow these
steps to accomplish this task.

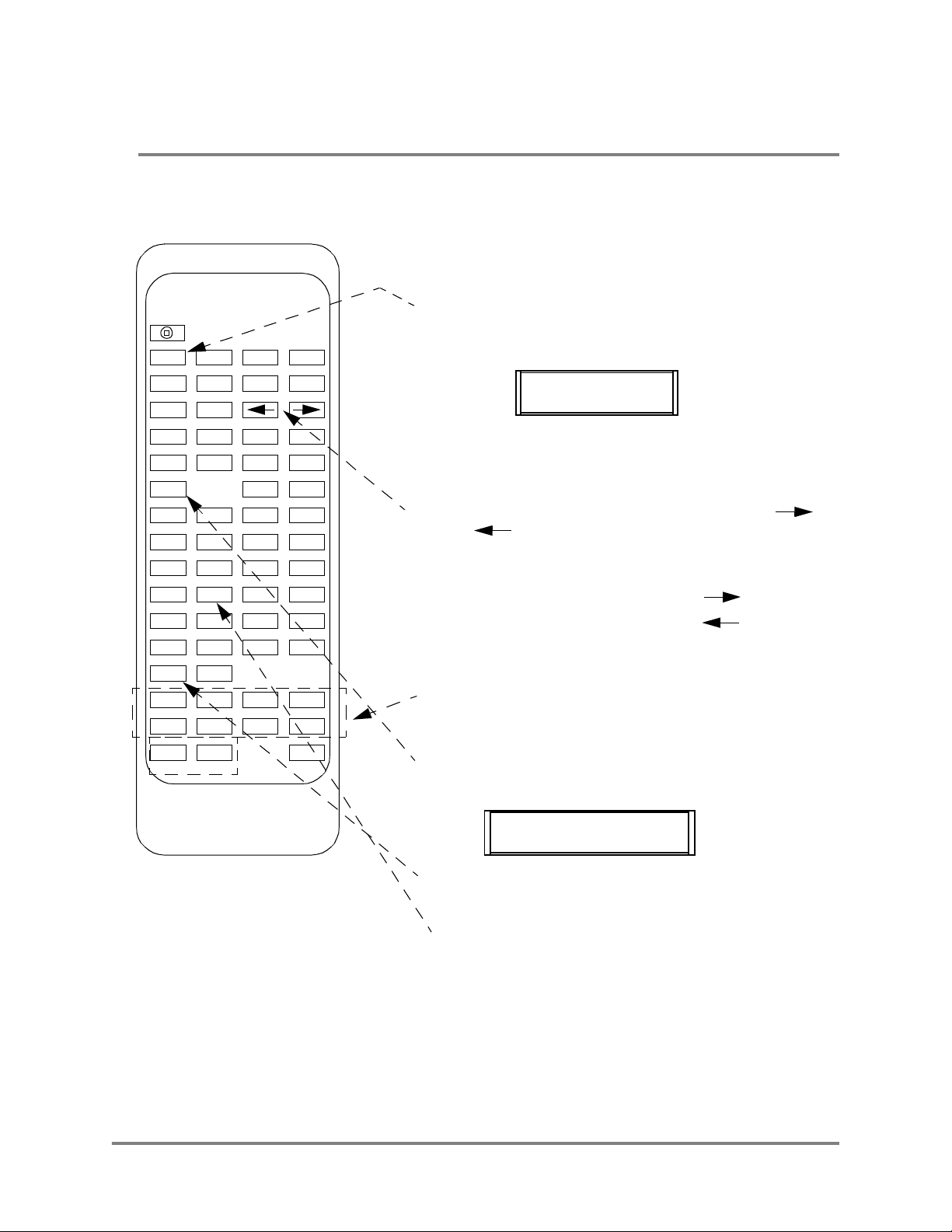

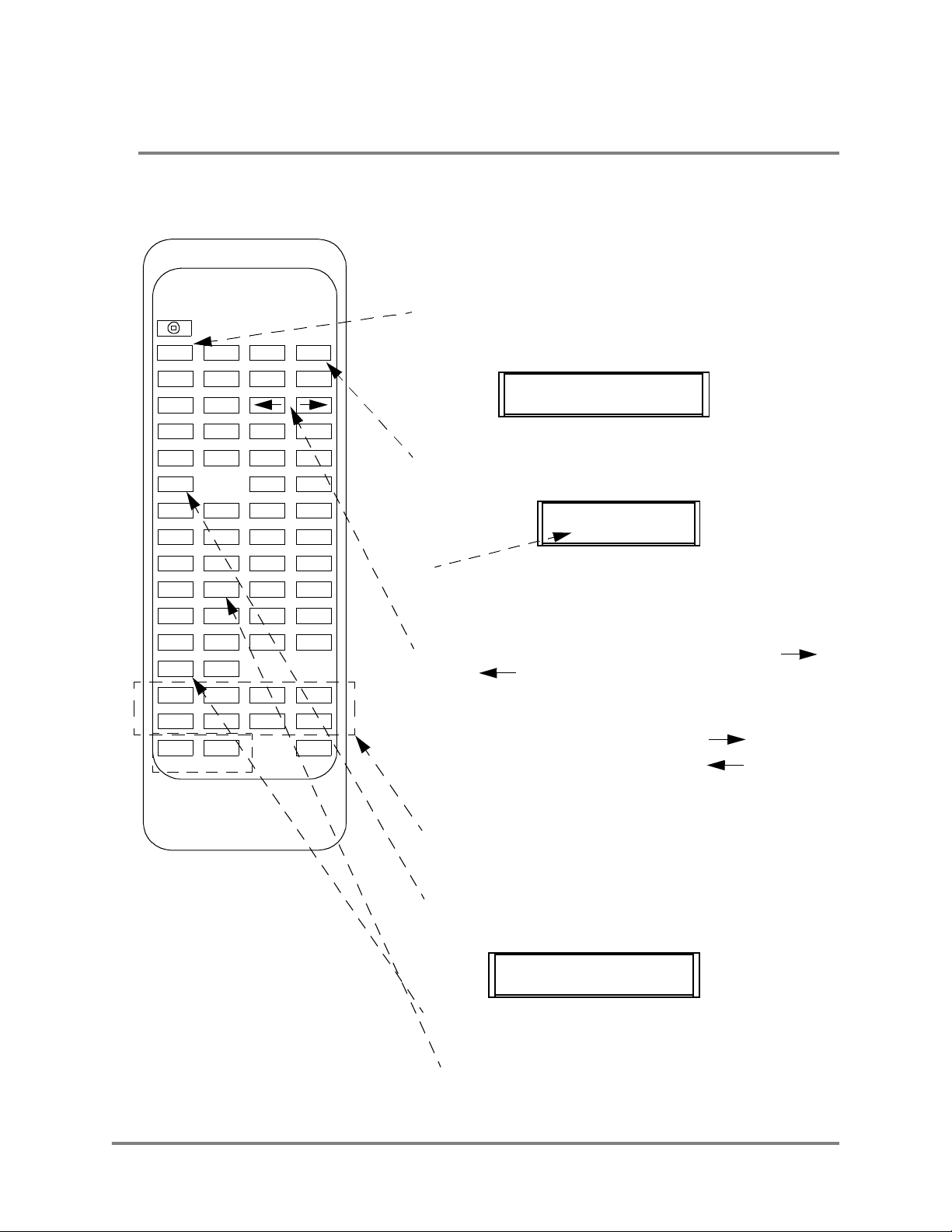

1. Press the PROG key to put Marquee into program mode.
2. The Following message will appear on the Marquee.
3. The user should notice that the first digit within the
IP address is larger than the reset. This indicates the
cursor position.
4. The cursor position can be moved by pressing the
or the key of the remote. As you move the cursor
the enlarged value will move across the Marquee to
indicate current cursor position.
Example: 1 92.168.1.200
Press
1 9 2.168.1.200
Press
5. By pressing any of the numeric keys will change the
value of the current position to that value and move
the cursor position to the right.
6. Once the proper IP address is displayed press the RUN
key. The confirmation message will be displayed.
IP ADDRESS
1 92.168.1.200
1 92.168.1.200
ACCEPT NEW IP
P RESS Y FOR YES
7. At this point pressing the Y key will change the
Marquees IP address and return the Marquee to
operating mode.
If the N key is pressed then the IP address will not be
changed and the Marquee will return to operating mode.
CPWPROG PREV NEXT
SPEPAU
SYMCAP GRA PHR
BEEPCLR DEL ENT
RUN INS ESC
BA C D
FE G H
JI K L
NM O P
RQ S T
VU W X
ZY
21 3 4
65 7 8
09 ALT
TIMEMET FONT COL

Copyright © 2006 Operation Manual 9
Using The IR Remote
Setting SubNET Mask
The user can set the Ethernet SubNet Mask of the built in Ethernet port via the IR remote. Follow
these steps to accomplish this task.
1. Press the PROG key to put Marquee into program mode.
2. The Following message will appear on the Marquee.
3. Press the NEXT key on the remote to go to the
NET MASK menu item. The follow will be displayed.
4. The user should notice that the first digit within the
mask is larger than the reset. This indicates the
cursor position.
5. The cursor position can be moved by pressing the
or the key of the remote. As you move the cursor
the enlarged value will move across the Marquee to
indicate current cursor position.
Example: 2 55.255.255.0
Press
2 5 5.255.255.0
Press
6. By pressing any of the numeric keys will change the
value of the current position to that value and move
the cursor position to the right.
7. Once the proper SubNet Mask is displayed press the RUN
key. The confirmation message will be displayed.
2 55.255.255.0
ACCEPT NEW IP
P RESS Y FOR YES
8. At this point pressing the Y key will change the
Marquees Subnet Mask and return the Marquee to
operating mode.
If the N key is pressed then the Subnet Mask will not be
changed and the Marquee will return to operating mode.
NET MASK
2 55.255.255.0
IP ADDRESS
1 92.168.1.200
CPWPROG PREV NEXT
SPEPAU
SYMCAP GRA PHR
BEEPCLR DEL ENT
RUN INS ESC
BA C D
FE G H
JI K L
NM O P
RQ S T
VU W X
ZY
21 3 4
65 7 8
09 ALT
TIMEMET FONT COL

10 Operation Manual Copyright © 2006
Using The IR Remote
Setting Default Gateway
The user can set the Ethernet Default Gateway of the built in Ethernet port via the IR remote. Follow
these steps to accomplish this task.
1. Press the PROG key to put Marquee into program mode.
2. The Following message will appear on the Marquee.
3. Press the NEXT key two times on the remote to go to the
GATEWAY menu item. The follow will be displayed.
4. The user should notice that the first digit within the
gateway is larger than the reset. This indicates the
cursor position.
5. The cursor position can be moved by pressing the
or the key of the remote. As you move the cursor
the enlarged value will move across the Marquee to
indicate current cursor position.
Example: 2 55.255.255.0
Press
2 5 5.255.255.0
Press
6. By pressing any of the numeric keys will change the
value of the current position to that value and move
the cursor position to the right.
7. Once the proper GATEWAY is displayed press the RUN
key. The confirmation message will be displayed.
2 55.255.255.0
ACCEPT NEW IP
P RESS Y FOR YES
8. At this point pressing the Y key will change the
Marquees Gateway and return the Marquee to
operating mode.
If the N key is pressed then the Gateway will not be
changed and the Marquee will return to operating mode.
SET GATEWAY
0. 0.0.0
IP ADDRESS
1 92.168.1.200
CPWPROG PREV NEXT
SPEPAU
SYMCAP GRA PHR
BEEPCLR DEL ENT
RUN INS ESC
BA C D
FE G H
JI K L
NM O P
RQ S T
VU W X
ZY
21 3 4
65 7 8
09 ALT
TIMEMET FONT COL

Copyright © 2006 Operation Manual 11
Using The IR Remote
Setting Time
The user can set the time of the built in real time clock via the IR remote. Follow these steps to
accomplish this task.
1. Press the PROG key to put Marquee into program mode.
2. The Following message will appear on the Marquee.
3. Press the NEXT key three times on the remote to go to the
SET TIME menu item. The follow will be displayed.
4. The user should notice that the first digit within the
time is larger than the reset. This indicates the
cursor position.
5. The cursor position can be moved by pressing the
or the key of the remote. As you move the cursor
the enlarged value will move across the Marquee to
indicate current cursor position.
Example: 1 2:10:05
Press
1 2 :10:05
Press
6. By pressing any of the numeric keys will change the
value of the current position to that value and move
the cursor position to the right.
7. Once the proper Time is displayed press the RUN
key which set the new time and put the Marquee
1 2:10:05
SET TIME
1 2:10:05
into operating mode.
IP ADDRESS
1 92.168.1.200
CPWPROG PREV NEXT
SPEPAU
SYMCAP GRA PHR
BEEPCLR DEL ENT
RUN INS ESC
BA C D
FE G H
JI K L
NM O P
RQ S T
VU W X
ZY
21 3 4
65 7 8
09 ALT
TIMEMET FONT COL

12 Operation Manual Copyright © 2006
Using The IR Remote
Setting Date
The user can set the date of the built in real time clock via the IR remote. Follow these steps to
accomplish this task.
1. Press the PROG key to put Marquee into program mode.
2. The Following message will appear on the Marquee.
3. Press the NEXT key four times on the remote to go to the
SET TIME menu item. The follow will be displayed.
4. The user should notice that the first digit within the
date is larger than the reset. This indicates the
cursor position.
5. The cursor position can be moved by pressing the
or the key of the remote. As you move the cursor
the enlarged value will move across the Marquee to
indicate current cursor position.
Example: 1 0/10/06
Press
1 0 /10/06
Press
6. By pressing any of the numeric keys will change the
value of the current position to that value and move
the cursor position to the right.
7. Once the proper Time is displayed press the RUN
key which set the new date and put the Marquee
1 0/10/06
into operating mode.
SET DATE
1 0/10/06
IP ADDRESS
1 92.168.1.200

Copyright © 2002 BookNameHere 13
—Chapter 2—
Making The Ethernet Connection
This chapter describes the steps that are taking in order to connect the Marquee to an ethernet network
or configuration PC to allow the configuration of the Marquee.
In most cases, the first step in configuring the Marquee is physically connecting the Marquee to what is
known as a configuration PC. A configuration PC can be a laptop or desk-top PC that is equipped with
an ethernet port and has WEB browser software installed. There are many different WEB browsers
available on the market today. Please refer to the documentation for WEB browser that is being used if
it is not clear what is needed to be accomplished.
The Marquee can be connected directly to a PC’s ethernet port or connected to the facility network. It
is recommended that the first time a user connects to the user connects directly to the Marquee and does
not connect to the facility network. By connecting directly, the user has more control over the ethernet
network settings and the need to consult with the IT department or network administrator of the facility.
Note: Prior to connecting to the facility network, it is highly recommended to consult the facility
IT department or the network administrator of the facility.

14 BookNameHere Copyright © 2002
Making The Ethernet Connection
Quick Setup
Quick Setup
This section is designed for the user who is familiar with connecting devices via ethernet. This section
assumes a direct connection between the ethernet port of a PC and the Ethernet port of the Marquee.
If the user is not familiar with connecting ethernet devices or configuring ethernet Parameters of the PC
it is highly recommended to go to the section Detailed Ethernet Setup section.
Required Equipment
•DataVisor Marquee
•PC with Ethernet port and a Web browser installed
Note: The user must have administrator rights on the PC
•An Ethernet cross cable or a switch with an Ethernet patch cable.
Steps To Connect The Marquee Via Ethernet
These steps use the factory default ethernet parameters that are set in the Marquee.
•IP Address 192.168.1.200
•Subnet Mask 255.255.255.0
1. Connect a ethernet cross-over cable between the PC and the Marquee
2. Apply power to the Marquee
Marquee Ethernet Port
120 Vac Power Connection

Copyright © 2002 BookNameHere 15
Making The Ethernet Connection
Quick Setup
3. Power the PC
4. Configure the PC’s ethernet port.
•IP address 192.168.1.100
•SubNet Mask 255.255.255.
Note: Refer to the section Set the PC for Fixed IP Address for detailed instructions.
4. Start the WEB browser application and enter the IP address of the Marquee in the address field.
In the address bar type http://192.168.1.200 then preset the ENTER key
Note: On many browsers the http:// is automatically added to the address so the user
does not need to type it in.

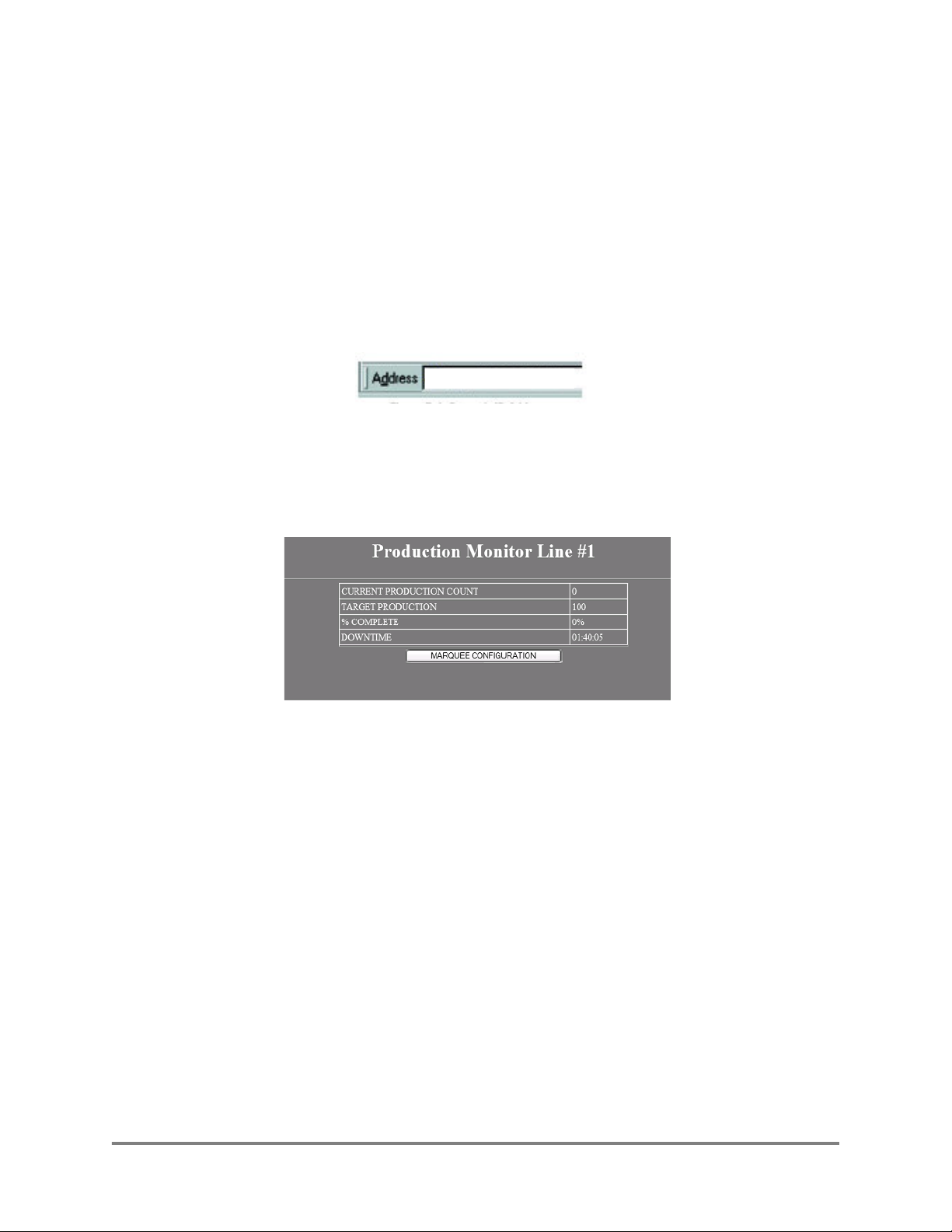

6. At this point the MONITOR page of the Marquee should be displayed in Internet Explorer
7. The user may now access the configuration WEB pages of the Marquee.
Note: Please refer to the section Marquee Configuration Pages for details on the
configuration pages.
If the user has problems accessing the Marquee’s WEB pages, please follow the detailed steps in the
following section.
http://192.168.1.200

16 BookNameHere Copyright © 2002
Making The Ethernet Connection
Detailed Ethernet Setup
Detailed Ethernet Setup
This section describes in detail the steps to establish an ethernet connection to the Marquee in order to
configure it’s operation. This section assumes the user will be using the default ethernet settings
Marquee. If the user changes the default ethernet settings, such as the IP address, the user must use the
new settings in place of the defaults when referenced in this section.
•Default IP address of Marquee 192.168.1.200
•Default SubNet Mask of Marquee 255.255.255.0
•Default Gateway of Marquee 0.0.0.0
This section is for connecting the Marquee directly to the PC. If the user wishes to connect the Marquee
to the facility network, it is highly advised that the network administrator or IT department is involved.
This is suggested so as the Ethernet network parameters of the Marquee can be configured to match the
facility network parameters.
Configuring the PC
The first step in making an Ethernet connection to the Marquee is to configure the PC so as the
Ethernet port of the PC can communicate to the Marquee. After the PC has been powered up follow
these steps to verify the configuration of the PC.
Note: Prior to making changes to the ethernet configuration of the PC the existing
configuration should be documented. The user may be required to revert back to the
existing configuration in order to connect to the facility network.

Copyright © 2002 BookNameHere 17
Making The Ethernet Connection
Detailed Ethernet Setup
Set the PC for a Fixed IP Address WINDOWS XP
Many facility networks in use today use what is known as DHCP to allow a server on the
network to assign ethernet parameters to the PCs that are connected to the network. When
connecting directly from the PC to another ethernet device such as the Marquee, the user must
assign the Ethernet parameters of the PC manually.
Step 1

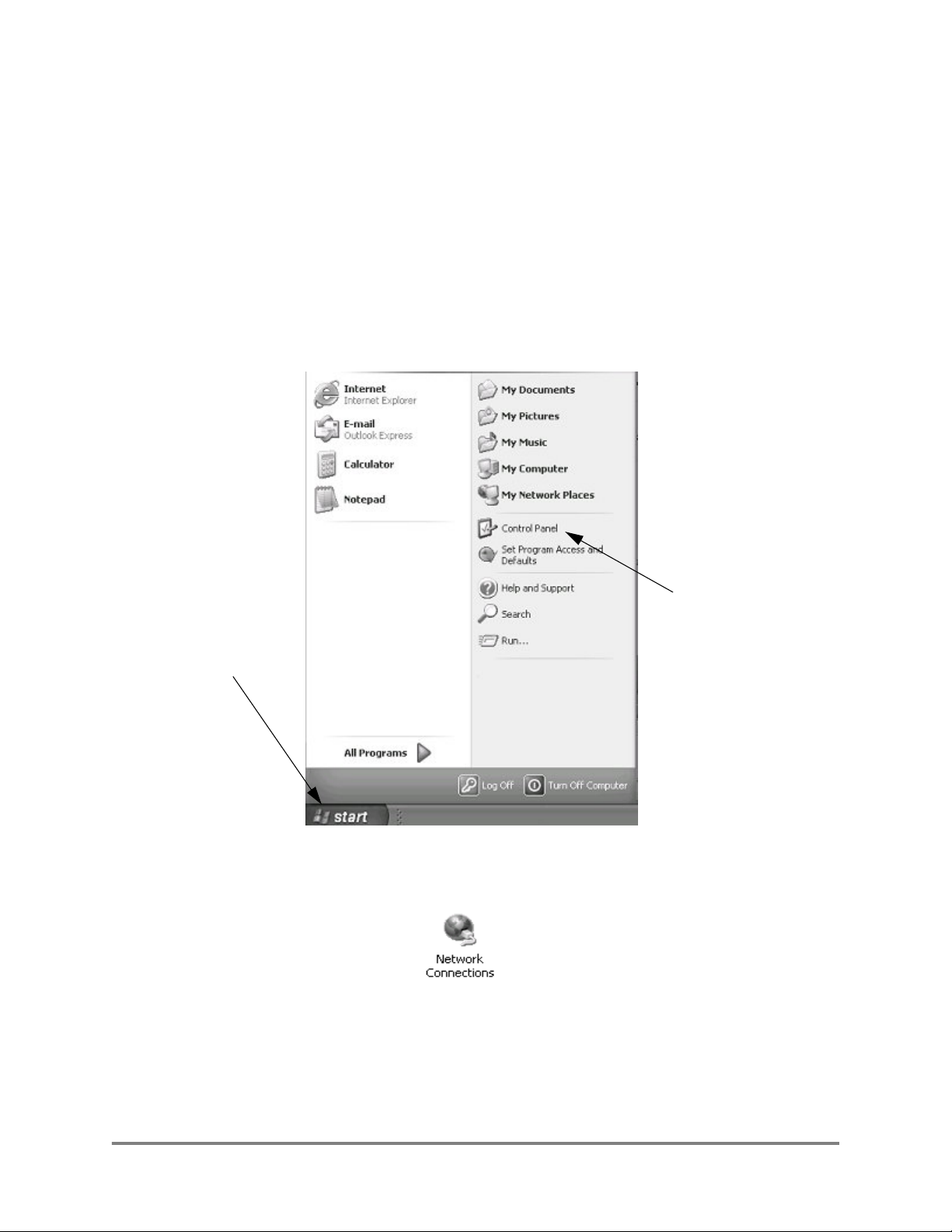

On the PC, click on START followed by CONTROL PANEL.
Note: Depending on the operation system of the PC the user may need to select
SETTINGS in order to access the CONTROL PANEL.
Step 2
In Control Panel double click on NETWORK CONNECTIONS.
START
CONTROL
PANEL

18 BookNameHere Copyright © 2002
Making The Ethernet Connection
Detailed Ethernet Setup
Step 3

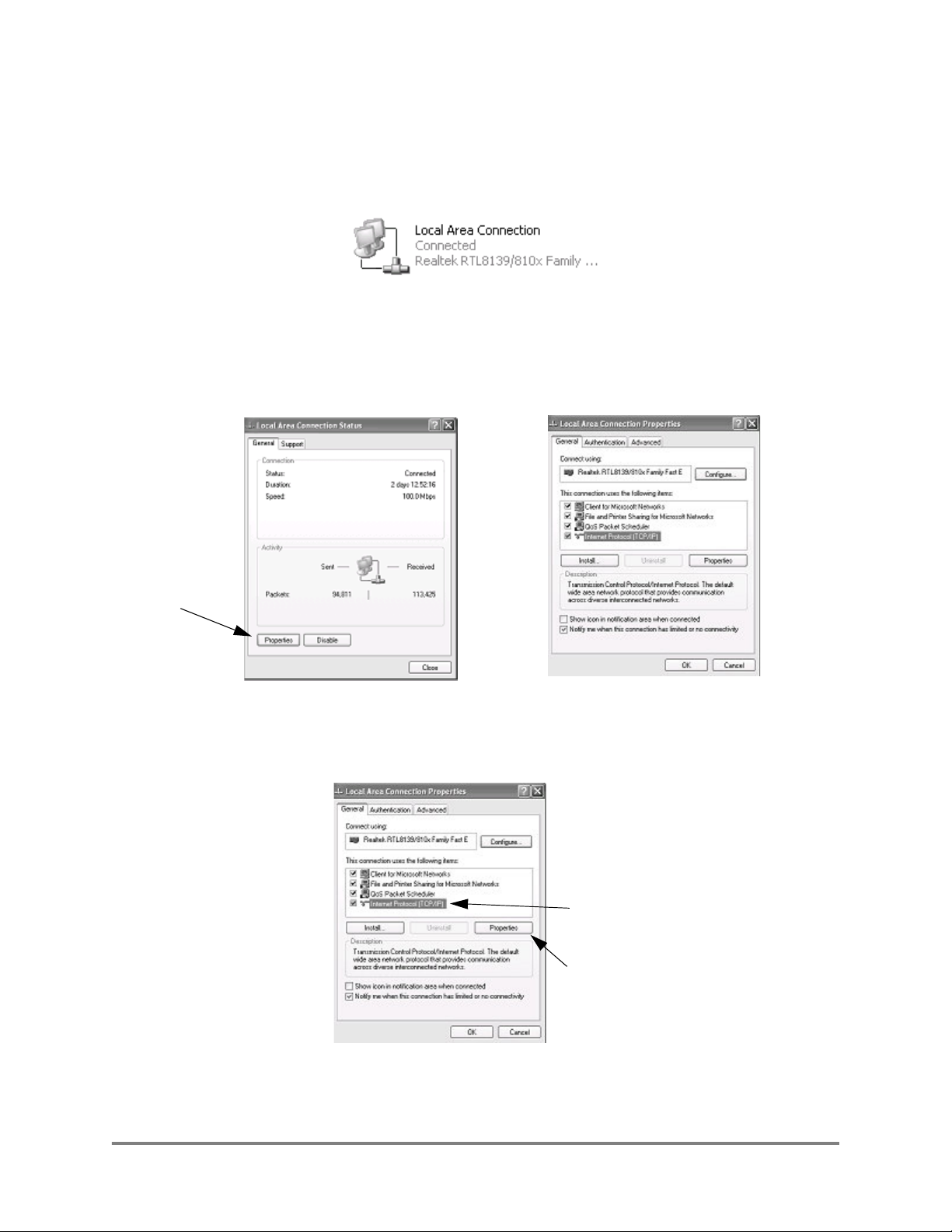

Under NETWROK CONNECTIONS find the ICOn that says LOCAL AREA NETWORK.
Then double click on this ICON.This allows the user to configuration the PCs ethernet port.
Step 4
One of two screens will be displayed. If the screen 1 is displayed, click the PROPERTIES
button and screen 2 will be displayed.
STEP 5
Select selection INTERNET PROTOCOL (TCP/IP) in the THIS CONNECTION USES
THE FOLLOWING ITEMS box. Then click the PROPERTIES button.
Properties Button
SCREEN TYPE 1 SCREEN TYPE 2
SELECT THIS
ENTRY
PROPERTIES
BUTTON
