Extraflame BABYFIAMMA User manual

Stufe a Pellet
PELLET STOVES
User Manual
VENTILATED STOVES
Read all instructions carefully before installation, use and maintenance
The instruction book is an integral part of the product.

2

3
Congratulations! You are now the owner of an EXTRAFLAME stove!
The EXTRAFLAME pellet stove is an ideal heating solution. It utilises the most advanced technology and is
manufactured to the highest standards with a contemporary design, allowing you to enjoy the ambience
and warmth of a natural ame in complete safety.
This manual tells you how to use your stove correctly. Please read the entire manual carefully before using
your stove.
IMPORTANT
Make sure that the dealer completes the following box with the details of the authorised specialist who
will help you if you have any problems in using your new pellet stove.
AUTHORISED SPECIALIST
COMPANY __________________________________________________________________
Full name __________________________________________________________________
Address ______________________________________________ No. __________________
Postal Code ____________ City __________________ County. ______________________
TEL. ________________________________ FAX __________________________________
All Extraame products are manufactured according to the following directives:
89/106 CEE (Construction Products)
89/366 CEE (EMC Directive)
2004/108 CE (EMC Directive)
2006/95 CE (Low Voltage Directive)
And the following standards:
EN 14785
EN 60335-1
EN 60335-2-102
EN 61000-3-2
EN 61000-3-3
EN 50366
EN 55014-1
EN 55014-2

4

5
Index
Chapter 1
PRECAUTIONS AND SAFETY.................................................................................................................... 7
Chapter 2
TECHNICAL FEATURES ............................................................................................................................. 8
Chapter 3
WHAT ARE PELLETS?...............................................................................................................................11
PELLET STORAGE.................................................................................................................................................................. 11
PELLET LOAD.......................................................................................................................................................................... 11
Chapter 4
SAFETY DEVICES.....................................................................................................................................12
WARM AIR BLOWER BREAKDOWN ................................................................................................................................12
FUME EXHAUSTER BREAKDOWN................................................................................................................................... 12
PELLET FEED MOTOR BREAKDOWN ............................................................................................................................. 12
LIGHTING FAILURE ............................................................................................................................................................... 12
TEMPORARY POWER FAILURE......................................................................................................................................... 12
ELECTRICAL SAFETY............................................................................................................................................................ 12
EXHAUST FUME SAFETY ................................................................................................................................................... 12
PELLET OVERHEATING SAFETY ...................................................................................................................................... 12
Chapter 5
ASSEMBLY AND INSTALLATION INSTRUCTIONS.................................................................................13
GLOSSARY ............................................................................................................................................................................... 13
INSTALLATION........................................................................................................................................................................ 14
ADMISSIBLE INSTALLATIONS.................................................................................................................................... 14
PROHIBITED INSTALLATIONS.................................................................................................................................... 14
CONNECTION TO THE EXHAUST VENTING SYSTEM ............................................................................................... 15
EXHAUST CHANNEL OR PIPE .................................................................................................................................... 15
CHIMNEY OR SINGLE FLUE ........................................................................................................................................ 16
CONNECTION TO THE FLUE AND COMBUSTION PRODUCT EXHAUST VENTING................................ 18
CHIMNEY CAP ................................................................................................................................................................. 18
CONNECTION TO EXTERNAL AIR INTAKES................................................................................................................. 19
INSULATION, TRIMS, FACINGS, AND SAFETY PRECAUTIONS.............................................................................. 19
NATIONAL, REGIONAL, PROVINCIAL AND MUNICIPAL LAWS............................................................................ 19
Chapter 6
DIVINA PLUS DISTRIBUTED HEATING ..................................................................................................20
DIVINA PLUS........................................................................................................................................................................... 20
TOSCA PLUS............................................................................................................................................................................ 20
Chapter 7
COMFORT MAXI INSTALLATION............................................................................................................21
MOUNTING ON EXISTING BASE...................................................................................................................................... 21
INSTALLATION WITH PEDESTAL OPTIONAL............................................................................................................ 22
EXTRACTING THE INSERT.................................................................................................................................................. 23
FITTING THE FRAMES.......................................................................................................................................................... 23
RECIRCULATION AIR PIPES ............................................................................................................................................... 24
Chapter 8
FALO’ 1XLP, FALO’ 1CP AND FALO’ 2CP .................................................................................................28

6
Chapter 9
PRODUCT FUNCTIONING....................................................................................................................... 29
CONTROL PANEL................................................................................................................................................................... 29
CURRENT TIME AND DAY SETTINGS............................................................................................................................. 30
FUNCTIONING CYCLE ......................................................................................................................................................... 30
BASIC INSTRUCTIONS.................................................................................................................................................. 30
LIGHTING........................................................................................................................................................................... 31
NORMAL OPERATION................................................................................................................................................... 31
SHUTDOWN..................................................................................................................................................................... 32
Chapter 10
REMOTE CONTROL OPTIONAL“ROSY“ ..............................................................................................33
Chapter 11
ROOM THERMOSTAT ..............................................................................................................................34
DIGITAL THERMOSTAT INCLUDED .............................................................................................................................. 34
MECHANICAL THERMOSTAT OPTIONAL .................................................................................................................. 34
INSTALLING A MECHANICAL THERMOSTAT OPTIONAL..................................................................................... 34
MECHANICAL THERMOSTAT WITH STANDBY FUNCTION CAN BE USED WITH TELEPHONE
ACTUATOR ............................................................................................................................................................................. 34
MECHANICAL THERMOSTAT OPERATION FOR HEAT DISTRIBUTION MOTOR DIVINA PLUS ONLY...35
Chapter 12
USER PARAMETERS ................................................................................................................................36
WEEKLY PROGRAMMER ..................................................................................................................................................... 36
DAY/NIGHT TEMPERATURE FUNCTION ....................................................................................................................... 39
PELLET FEED ADJUSTMENT ............................................................................................................................................. 40
HEAT DISTRIBUTION MOTOR PARAMETERS .............................................................................................................. 41
Chapter 13
STOVE CLEANING....................................................................................................................................42
ECOLOGICA  COMFORT MAXI....................................................................................................................................... 42
BELLA  BELLA LUX  DUCHESSA  DUCHESSA STEEL  CONTESSA  CLEMENTINA  DIVINA  DIVINA
STEEL  DIVINA PLUS  TOSCA PLUS CLEANING ..................................................................................................... 44
PULIZIA BABYFIAMMA  PREZIOSA  KAROLINA  ISABELLA  GRAZIOSA  ROSY................................. 46
FALÒ 1XLP  FALÒ 1CP  FALÒ 2CP  ESMERALDA CLEANING.......................................................................... 48
BURN POT PARTITION......................................................................................................................................................... 50
CHIMNEY CONNECTION.................................................................................................................................................... 50
Chapter 14
TABLE OF DISPLAY MESSAGES..............................................................................................................51
Chapter 15
WARRANTY..............................................................................................................................................54
Chapter 16
QUALITY CONTROL.................................................................................................................................56

7
PRECAUTIONS AND SAFETY
Chapter 1
The stoves manufactured in our factory are built
with the maximum dedication to the individual
components so as to protect both the user and the
installer from accidents. Authorized personnel are
therefore advised to pay special attention to the
electrical connections after any servicing operation
ontheproduct,especiallywithregardtothestripped
part of the wires, which must not protrude in any
way from the terminal block to prevent possible
contact with the live parts of the wire.
Installation must be carried out by authorized
personnel, who must issue the purchaser a
declaration of compliance of the system. The
purchaser shall assume responsibility for the
definitive installation and consequent proper
operationoftheproductinstalled.Itisimperative
to consider all national, regional, provincial and
communal laws and norms in the country where
the stove is installed. Extraflame S.p.A. may not
be held responsible in the event of failure to
observe these precautions.
This instruction manual constitutes an integral
part of the product. It must always accompany the
appliance, also when it is transferred to another
owner or user or moved to another location. If the
manual gets damaged or lost, ask your local service
centre for another copy.
This stove must only be used for the applications for
which it was expressly designed.
The manufacturer declines any responsibility,
contractually or extra-contractually, for any damage
caused to persons, animals or property by errors in
installation, adjustment, and maintenance, or by
improper use.
After removing the packaging, check to make sure
that the contents are intact and complete.
If this is not the case, contact the vendor from whom
the appliance was purchased.
The electrical components of the stove must only
be replaced with original spare by an authorized
service centre.
General stove maintenance must be carried out at
least once a year, scheduled suciently in advance
with the service centre.
The following safety precautions must be
observed:
Donotallowthestovetobeusedbyunattended
children or disabled persons.
Do not touch the stove if you are bare-footed
or if parts of your body are wet or damp.
Modifying the safety or adjustment devices
without the manufacturer’s approval or
instructions is forbidden.
Never pull, detach, or twist the electrical cables
coming out of the stove, even if it is disconnected
from the electrical power.
Do not plug or reduce the size of the air vents of
the room in which the stove is installed.
The air vents are critical for correct combustion.
Keep the packaging materials out of the reach
of children and unattended disabled persons.
During normal functioning of the product the
door of the furnace must always be closed.
Avoid direct contact with parts of the appliance,
which tend to heat up during functioning.
Check for the presence of any obstructions
before switching the appliance on following a
long standstill period.
The stove has been designed to function in any
climatic conditions (even critical), in particularly
adverse conditions (strong wind, freezing) safety
systems may intervene, which switch the stove
o.
If this happens, contact the after-sales service and
do not disable the safety systems in any case.
If the ue should catch re use adequate
systems to suocate the ames or request help
from the re brigade.
PRECAUTIONS AND SAFETY

8TECHNICAL FEATURES
Chapter 2
TECHNICAL FEATURES
Features U.M.
Babyamma
Preziosa
Preziosa Steel
Isabella
Rosy
Karolina
Graziosa
Bella
Bella Lux
Weight kg 98 103 103 95 90 115 115 134 137
Height mm 860 887 921 864 863 1021 1036 1041 1043
Width mm 438 446 446 455 452 488 494 520 520
Depth mm 503 498 498 497 493 510 498 582 582
Diameter of fume discharge pipe mm 80 80 80 80 80 80 80 80 80
Diameter of air intake pipe mm 50 50 50 50 50 50 50 50 50
Max. heating volume m 126 126 126 115 115 161 161 172 172
Max. global thermal power kW 6.0 6.0 6.0 5.8 5.8 8.0 8.0 8.8 8.8
Max. thermal power needed kW 5.5 5.5 5.5 5.0 5.0 7.0 7.0 7.5 7.5
- air power supply kW 5.5 5.5 5.5 5.0 5.0 7.0 7.0 7.5 7.5
- water power supply kW ---------
Min. thermal power needed kW 2.8 2.8 2.8 3.0 3.0 2.8 2.8 3.5 3.5
Min. useful thermal power kW 2.6 2.6 2.6 2.5 2.5 2.6 2.6 3.0 3.0
- air power supply kW 2.6 2.6 2.6 2.5 2.5 2.6 2.6 3.0 3.0
- water power supply kW ---------
Max. fuel combustion per hour kg/h 1.2 1.2 1.2 1.2 1.2 1.6 1.6 1.8 1.8
Min. fuel consumption per hour kg/h 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.7 0.7
Tank capacity kg ~ 11 ~ 11 ~ 11 ~ 11 ~ 11 ~ 15 ~ 15 ~ 25 ~ 25
Recommended chimney draught Pa ~ 10 ~ 10 ~ 10 ~ 10 ~ 10 ~ 10 ~ 10 ~ 10 ~ 10
Chimney draught at max. useful thermal power Pa 12 12 12 12 12 12 12 12 12
Chimney draught at min. useful thermal power Pa 10 10 10 10 10 10 10 10 10
Nominal electrical power W 300 300 300 300 300 300 300 300 300
Appliance electric power W 300 300 300 300 300 300 300 300 300
Nominal voltage Vac 230 230 230 230 230 230 230 230 230
Nominal frequency Hz 50 50 50 50 50 50 50 50 50
Diameter of water intake/output pipe “ ---------
Diameter of automatic discharge pipe “ ---------
Pump head m ---------
Max. working water pressure allowed bar ---------
The tank capacity depends on the type of pellet used.
Tests carried out using wooden pellets as fuel, with heating power of 4.9 kW/h/kg.
The data stated above is a reference and not binding. The manufacturer reserves the right to carry out any
modications in order to improve the performance of the product.
The electrical power of the appliance indicates the sum of the electrical absorption of the components
present, as per standard, inside the product. The nominal power is the maximum power value that the
appliance can absorb also considering the installation of various additional devices.

9
TECHNICAL FEATURES
Chapter 2
Features U.M.
Duchessa
Duchessa Steel
Comfort Maxi
Contessa
Falò 1XLP
Falò 1CP Falò 2CP
Tosca Plus
Weight kg 150 138 132 147 302 361 361 170
Height mm 1032 1032 606 1068 1522 1522 1522 1150
Width mm 538 538 640 522 950 1806 1806 560
Depth mm 541 541 717 547 618 800 800 568
Diameter of fume discharge pipe mm 80 80 80 80 80 80 80 80
Diameter of air intake pipe mm 50 50 50 50 50 50 50 50
Max. heating volume m 200 200 205 242 204 204 204 253
Max. global thermal power kW 10.0 10.0 10.0 12.0 10.0 10.0 10.0 12.0
Max. thermal power needed kW 8.7 8.7 8.9 10.5 8.9 8.9 8.9 11.0
- air power supply kW 8.7 8.7 8.9 10.5 8.9 8.9 8.9 11.0
- water power supply kW - - - - ----
Min. thermal power needed kW 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8
Min. useful thermal power kW 3.4 3.4 3.4 3.4 3.5 3.5 3.5 3.6
- air power supply kW 3.4 3.4 3.4 3.4 3.5 3.5 3.5 3.6
- water power supply kW - - - - ----
Max. fuel combustion per hour kg/h 2.0 2.0 2.0 2.5 2.0 2.0 2.0 2.5
Min. fuel consumption per hour kg/h 0.8 0.8 0.8 0.8 0.7 0.7 0.7 0.8
Tank capacity kg ~ 25 ~ 25 ~ 28 ~ 21 ~ 32 ~ 32 ~ 32 ~ 24
Recommended chimney draught Pa ~ 10 ~ 10 ~ 10 ~ 10 ~ 10 ~ 10 ~ 10 ~ 10
Chimney draught at max. useful thermal power Pa 12 12 12 12 12 12 12 12
Chimney draught at min. useful thermal power Pa 10 10 10 10 10 10 10 10
Nominal electrical power W 300 300 300 300 300 300 300 300
Appliance electric power W 300 300 300 300 300 300 300 300
Nominal voltage Vac 230 230 230 230 230 230 230 230
Nominal frequency Hz 50 50 50 50 50 50 50 50
Diameter of water intake/output pipe “ - -------
Diameter of automatic discharge pipe “ - -------
Pump head m - - - - ----
Max. working water pressure allowed bar - - - - ----
The tank capacity depends on the type of pellet used.
Tests carried out using wooden pellets as fuel, with heating power of 4.9 kW/h/kg.
The data stated above is a reference and not binding. The manufacturer reserves the right to carry out any
modications in order to improve the performance of the product.
The electrical power of the appliance indicates the sum of the electrical absorption of the components
present, as per standard, inside the product. The nominal power is the maximum power value that the
appliance can absorb also considering the installation of various additional devices.

10
Chapter 2
TECHNICAL FEATURES
Features U.M.
Esmeralda
Esmeralda Crystal
Clementina
Divina
Divina Steel
Divina Plus
Irina
Ecologica
Weight kg 188 178 137 175 149 190 140 159
Height mm 1011 1011 1068 1150 1150 1165 1053 955
Width mm 1249 1249 500 610 610 610 522 667
Depth mm 656 656 573 593 593 593 559 671
Diameter of fume discharge pipe mm 80 80 80 80 80 80 80 80
Diameter of air intake pipe mm 50 50 50 50 50 50 50 50
Max. heating volume m 204 204 242 242 242 242 242 237
Max. global thermal power kW 10.0 10.0 12.0 12.0 12.0 12.0 12.0 12.0
Max. thermal power needed kW 8.9 8.9 10.5 10.5 10.5 10.5 10.5 10.3
- air power supply kW 8.9 8.9 10.5 10.5 10.5 10.5 10.5 10.3
- water power supply kW - - - - - - - -
Min. thermal power needed kW 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8
Min. useful thermal power kW 3.5 3.5 3.4 3.4 3.4 3.4 3.4 3.4
- air power supply kW 3.5 3.5 3.4 3.4 3.4 3.4 3.4 3.4
- water power supply kW - - - - - - - -
Max. fuel combustion per hour kg/h 2.0 2.0 2.5 2.5 2.5 2.5 2.5 2.5
Min. fuel consumption per hour kg/h 0.7 0.7 0.8 0.8 0.8 0.8 0.8 0.8
Tank capacity kg ~ 26 ~ 26 ~ 25 ~ 30 ~ 30 ~ 30 ~ 21 ~ 35
Recommended chimney draught Pa ~ 10 ~ 10 ~ 10 ~ 10 ~ 10 ~ 10 ~ 10 ~ 10
Chimney draught at max. useful thermal power Pa 12 12 12 12 12 12 12 12
Chimney draught at min. useful thermal power Pa 10 10 10 10 10 10 10 10
Nominal electrical power W 300 300 300 300 300 400 300 300
Appliance electric power W 300 300 300 300 300 400 300 300
Nominal voltage Vac 230 230 230 230 230 230 230 230
Nominal frequency Hz 50 50 50 50 50 50 50 50
Diameter of water intake/output pipe “ - - - - - - - -
Diameter of automatic discharge pipe “ - - - - - - - -
Pump head m - - - - - - - -
Max. working water pressure allowed bar - - - - - - - -
The tank capacity depends on the type of pellet used.
Tests carried out using wooden pellets as fuel, with heating power of 4.9 kW/h/kg.
The data stated above is a reference and not binding. The manufacturer reserves the right to carry out any
modications in order to improve the performance of the product.
The electrical power of the appliance indicates the sum of the electrical absorption of the components
present, as per standard, inside the product. The nominal power is the maximum power value that the
appliance can absorb also considering the installation of various additional devices.

11
WHAT ARE PELLETS?
Chapter 3
WHAT ARE PELLETS?
Pellets are made by applying very high pressure to sawdust; i.e. the residue of raw timber (without paint)
produced by sawmills, carpentry works and other activities involved in processing wood.
This type of fuel is completely environmentally friendly, as no binders of any kind are used to keep it
compact. In fact, the compactness of the pellets over time is guaranteed by lignite, a natural substance
found in the wood itself.
As well as being an environmentally friendly fuel, since wood residues are exploited to the maximum,
pellets also have technical advantages.
While the heating power of wood is 4.4 kW/kg (with 15% humidity, after about 18 months seasoning), the
power of pellets is 5.3 kW/kg.
The density of the pellet is 650kg/m3 and the water content is 8% of its weight. For this reason, pellets do
not need to be seasoned to obtain a sucient heating yield.
Pellets used must be compliant with norms:
Ö-Norm M 7135
DIN plus 51731
UNI CEN/TS 14961
Extraame recommends using 6 mm pellets.
WARNINGS!!!
THE USE OF OUT OF DATE PELLETS OR ANY OTHER MATERIAL, DAMAGES YOUR STOVES’
FUNCTIONS AND CAN DETERMINE THE END OFTHE WARRANTY ANDTHE PRODUCER’S ANNEXED
RESPONSIBILITY.
PELLET STORAGE
To guarantee problem-free combustion, the pellets must be stored in a dry place.
PELLET LOAD
To load the pellets, open the tank cover positioned on the upper part of the stove and empty the bag of
pellets, paying attention not to let them escape.
For the Inserto Comfort Maxi model consult the“Inserto Comfort Maxi Installation” chapter.
For Falò models consult the “Falò 1XLP, Falò 1CP and Falò 2CP” chapter”.
gure 3.1

12 SAFETY DEVICES
Chapter 4
SAFETY DEVICES
WARM AIR BLOWER BREAKDOWN
If the blower stops for any reason, the stove automatically shuts down to prevent overheating.
FUME EXHAUSTER BREAKDOWN
If the exhauster stops, the electronic unit immediately prevents pellet feeding.
PELLET FEED MOTOR BREAKDOWN
If the motor stops, the stove continues to operate until the minimum cooling level is reached.
LIGHTING FAILURE
If no ame develops during the lighting stage, the stove display shows “NO ACC”. If you attempt to light
the stove again, the display shows“ATTE” which means “WAIT”.
This function reminds you that before lighting the stove, you must be sure that the burn pot is free of dirt
and debris.
TEMPORARY POWER FAILURE
The appliance will re-light automatically after a brief power failure. When the power goes o, the stove
may emit a minute quantity of smoke inside the house for a period of 3 to 5 minutes.
THIS DOES NOT POSE ANY SAFETY RISK.
ELECTRICAL SAFETY
The stove is protected against violent power swings by a master fuse on the rear of the stove (2A 250V
delayed).
EXHAUST FUME SAFETY
If the exhaust system fails, an electronic pressure switch stops the stove and an alarm is signalled.
PELLET OVERHEATING SAFETY
In case of overheating inside the pellet hopper, this safety device blocks stove operation; resetting is
manual and must be performed by an authorized technician.

13
ASSEMBLY AND INSTALLATION INSTRUCTIONS
Chapter 5Chapter 5
ASSEMBLY AND INSTALLATION INSTRUCTIONS
The installation must comply with:
UNI 10683 (2005) heat generators fed with wood and other solid fuels: installation.
The chimneys must comply with:
UNI 9731 (1990) chimneys: classication according to thermal resistance.
EN 13384-1 (2006) calculation method of the thermal and uid-dynamic features of the chimney.
UNI 7129 point 4.3.3 provisions, local rules and prescriptions of the re brigade.
UNI 1443 (2005) chimneys: general requirements.
UNI 1457 (2004) chimneys: internal ducts in terracotta and ceramics.
GLOSSARY
CLOSED HEARTH DEVICE
Heat generator that can only be opened to load fuel during use.
BIOMASS
Material of organic origin, excluding the material incorporated in geological formations and fossilised.
BIOFUEL
Fuel produced directly or indirectly from biomass.
FLUE or CHIMNEY
Vertical duct for collecting and expelling combustion products from a single appliance at a suitable height
from the oor.
EXHAUST CHANNEL OR PIPE
Duct or connecting element between the heat generating device and the chimney for extracting the
combustion products.
INSULATION
The series of measures taken and materials used to prevent heat transmission through a wall dividing
rooms at dierent temperatures.
CHIMNEY CAP
Device located at the top of the chimney that facilitates dispersion of the combustion products in the
atmosphere.
CONDENSATE
Liquid products that form when the temperature of the combustion gas is lower than or equal to the dew
point of the water.
HEAT GENERATOR
Device that permits the production of thermal energy (heat) by the rapid transformation of the chemical
energy of the fuel by means of combustion.
AIR LOCK
Mechanism for modifying the dynamic resistance of the combustion gasses.

14
Chapter 5
ASSEMBLY AND INSTALLATION INSTRUCTIONS
EXHAUST VENTING SYSTEM
A system for fume exhaust venting that is independent from the appliance, composed of a pipe or channel,
chimney or single ue, and chimney cap.
FORCED DRAUGHT
Air circulation by means of a fan driven by an electric motor.
NATURAL DRAUGHT
Draught resulting in a chimney/ue due to the dierence in the volume mass existing between the (hot)
fumes and the surrounding atmospheric air, without any mechanical suction aid installed inside or on top
of it.
RADIANCE AREA
Area immediately adjacent to the hearth in which the heat produced by combustion is diused; this area
must not contain any objects made of combustible material.
REFLUX AREA
Area in which the combustion products come out from the appliance towards the room in which it is
installed.
INSTALLATION
Before carrying out installation, it is necessary to check the positioning of the chimneys, ues or exhaust
terminal ducts of the appliance, keeping in mind the following:
Installation prohibitions
Legal clearances
Limitations set forth by local administrative regulations or specic regulations of the authorities.
Common limitations deriving from building regulations, and easement or contract regulations.
ADMISSIBLE INSTALLATIONS
Intheroominwhichtheheatgeneratoris tobeinstalled,anyexisting or installedappliancesmustbeairtight
to the room and must not cause depression in the room with respect to the external environment.
Appliances used for cooking foods and the related hoods without extractor can only be installed in rooms
used as kitchens.
PROHIBITED INSTALLATIONS
The room in which the heat generator is to be installed must not contain any of the following devices,
either pre-existing or installed:
Hoods with or without extractor;
Ventilation ducts of the collective type.
Should these devices be located in adjacent rooms communicating with the installation room, it is
forbidden to use the heat generator simultaneously where there is the risk that one of the two rooms may
be subject to depression with respect to the other.

45°
<45°
<
15
ASSEMBLY AND INSTALLATION INSTRUCTIONS
Chapter 5
CONNECTION TO THE EXHAUST VENTING SYSTEM
EXHAUST CHANNEL OR PIPE
For the assembly of the exhaust channels it is imperative to use non-ammable materials that are resistant to
combustion products and any condensates.
It is forbidden to use exible metal pipes and asbestos cement for connecting the stove to the ue, also for pre-
existing exhaust channels.
There must be continuity between the exhaust channel and the ue so that the ue does not lean on the stove.
The exhaust channels must not pass through rooms in which the installation of combustion devices is
forbidden.
The assembly of the exhaust channels must be carried out in such a way as to ensure that they are airtight for
the operating conditions of the appliance, as well as to limit the formation of condensates and prevent them
from being conveyed towards the appliance.
The assembly of horizontal sections must be avoided where possible.
Where roof or wall exhaust outlets have to be reached that are not coaxial in relation to the exhaust outlet
from the appliance, the direction changes must be made using open elbows no greater than 45° (see gures
below).
Insulation
Flue
Inspection
For heat generating devices equipped with an electric exhaust fan, i.e. all products made by Extraame, it
is necessary to observe the following instructions:
Horizontal sections must have a minimum slope of 3% upwards.
The length of the horizontal section must be as short as possible, and in any case no greater than 3
meters.
No more than four direction changes may be used, including the one resulting from the use of the“T”-
element. (When four bends are used, use double wall piping with a 120 mm diameter.)
In any case, exhaust channels must be sealed in relation to combustion products and condensates, as well
as insulated, if they pass outside the installation room.
It is forbidden to use elements in counter-slope.
The exhaust channel must allow soot recovery and cleaning using a swab.
The exhaust channel must have a constant cross-section. Any changes in cross-section are allowed only at
gure 5.1 gure 5.2

BC
20 cm
A
16
Chapter 5
ASSEMBLY AND INSTALLATION INSTRUCTIONS
the ue connection.
It is forbidden to run other air feed channels or piping for utilities inside the exhaust channels, even if
they are oversized. It is also forbidden to t manual draught adjustment devices on the forced draught
appliance.
CHIMNEY OR SINGLE FLUE
The chimney or ue must meet the following requirements:
be airtight to combustion products, waterproof and properly insulated according to the usage conditions;
be made of materials suitable to resist normal mechanical stress, as well as heat and the action of combustion
products and any condensates;
have a predominantly vertical layout with deviations from the axis no greater than 45°;
be situated at a proper distance from combustible or ammable materials by means of an air gap or suitable
insulation material;
Minimum80 cm2
Floor protection
REFERENCES Flammable
objects
Non-ammable
objects
A 200 100
B 1500 750
C 200 100
preferably have a round internal section: square or rectangular sections must have rounded edges
with radius no less than 20 mm;
have a constant, free and independent internal section;
have rectangular sections with a maximum ratio between sides of 1.5.
The exhaust duct should be equipped with a chamber for the collection of solid materials and any
condensates located below the mouth of the exhaust channel, so that it is easy to open and inspect from
the airtight hatch.
gure 5.3 gure 5.4

< 3 m
3 - 5 %
< 3 m
45°
45°
17
ASSEMBLY AND INSTALLATION INSTRUCTIONS
Chapter 5
Inspection
Windproof
chimney cap
Flue
Inspection
External
insulated
duct
Inspection
Inspection
gure 5.5 gure 5.6
gure 5.7 gure 5.8

50 cm
< 5 m > 5 m < 5 m
5
0
H min
β
18
Chapter 5
ASSEMBLY AND INSTALLATION INSTRUCTIONS
CONNECTION TO THE FLUE AND COMBUSTION PRODUCT EXHAUST VENTING
The ue must receive exhaust from a single heat generator.
Direct discharge towards enclosed areas, even when rooess, is forbidden.
Direct discharge of combustion products must take place on the roof and the exhaust duct must have the
features set forth in the section“Chimney or single ue”.
CHIMNEY CAP
The chimney cap must meet the following requirements:
have an internal section equivalent to that of the chimney;
have a useful outlet section no less than twice the internal section of the chimney;
be constructed in such a way as to prevent the penetration of rain, snow and foreign bodies into the
chimney, as well as to assure the discharge of the combustion products also in the presence of winds
coming from any direction and at any angle.
be positioned in such a way as to assure proper dispersion and dilution of the combustion products
and, in any case, outside the reux area in which the formation of counter-pressure is most likely to occur.
This area has dierent sizes and shapes depending on the slope of the roof; therefore, it is necessary to
use the minimum heights indicated in the gures below.
The chimney cap must not have any mechanical suction devices.

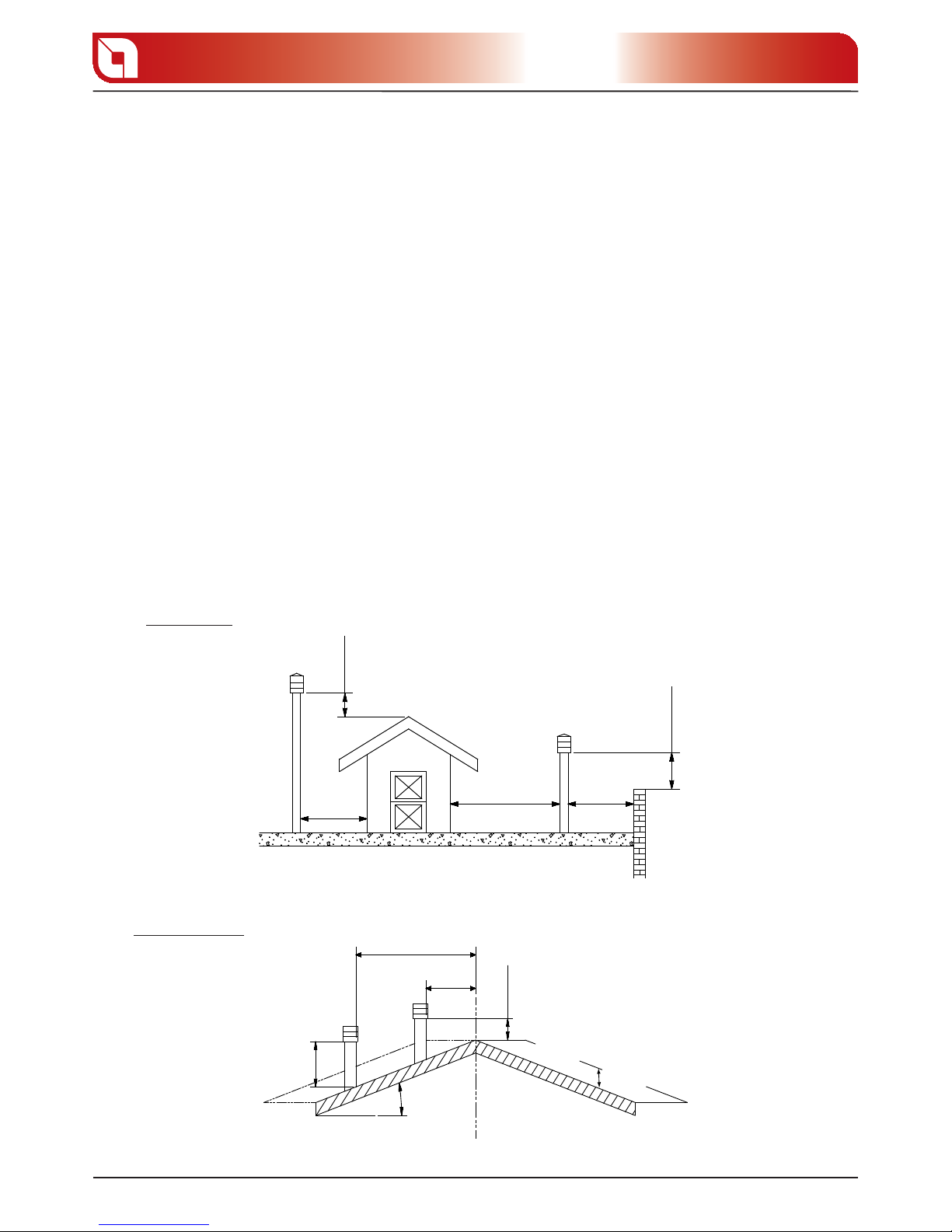

SLOPED ROOF
FLAT ROOF
Distance > A
Distance < A
50 cm beyond the ridge beam
REFLUX AREA
Reux area height
gure 5.9
gure 5.10

19
ASSEMBLY AND INSTALLATION INSTRUCTIONS
Chapter 5
CHIMNEYS, DISTANCES AND POSITIONING
Roof pitch Distance between the
crown and the chimney
Minimum height of the chimney
(measured from the outlet)
β A (m) H (m)
15° < 1,85 0,50 m beyond the crown
> 1,85 1,00 m from the roof
30° < 1,50 0,50 m beyond the crown
> 1,50 1,30 m from the roof
45° < 1,30 0,50 m beyond the crown
> 1,30 2,00 m from the roof
60° < 1,20 0,50 m beyond the crown
> 1,20 2,60 m from the roof
CONNECTION TO EXTERNAL AIR INTAKES
To ensure correct operation, the appliance must have sucient air available by means of external air intakes, which
must meet the following requirements:
They must have a total free section of at least 80 cm.1.
They must be protected by a grate, metal mesh, or other suitable protection provided that it does not reduce2.
the minimum section as per point a) and that it is positioned in such a way as to prevent the intakes from being
obstructed.
If the combustion air is collected directly from the outside by means of a pipe, it is necessary to t a downward bend or
a wind hood on the outside. In addition, no grating or similar device should be positioned. (Extraame S.p.A. suggests
creating an air intake directly communicating with the installation room, even if air is collected from outside by means
of a pipe).
Air inow can also be obtained from a room adjacent to the installation room, provided that the ow can occur freely
through permanent openings communicating with the outside.
The adjacent room must not be subject to depression with respect to the outside as a result of the opposing draught
caused by the presence of another utility device or suction device in this room.
In the adjacent room, the permanent openings must meet the requirements described above.
The adjacent room cannot be used as a garage, storage area for combustible material, or for activities involving re hazards.
INSULATION, TRIMS, FACINGS, AND SAFETY PRECAUTIONS
The facings, no matter what type of material they are made of, must constitute a self-bearing structure with reference
to the heating assembly and not in contact with it.
The beam and the trims in wood or combustible materials must be positioned outside of the radiant area of the hearth
or be properly insulated.
If the space above the heat generator has coverings made of combustible or heat-sensitive material, a protective
membrane made of non-combustible insulating material must be placed between it and the generator.
All elements made of combustible or ammable material, such as wooden furnishings, curtains, etc., that are directly
exposed to the radiance of the hearth must be placed at a safe distance.
The installation of the appliance must guarantee easy access for cleaning the appliance itself, of the waste gas pipes
and the ue.
NATIONAL, REGIONAL, PROVINCIAL AND MUNICIPAL LAWS
All the national, regional, provincial ad municipal laws of the country where the appliance has been installed must be
taken into consideration.

20 DIVINA PLUS DISTRIBUTED HEATING
Chapter 6
DIVINA PLUS DISTRIBUTED HEATING

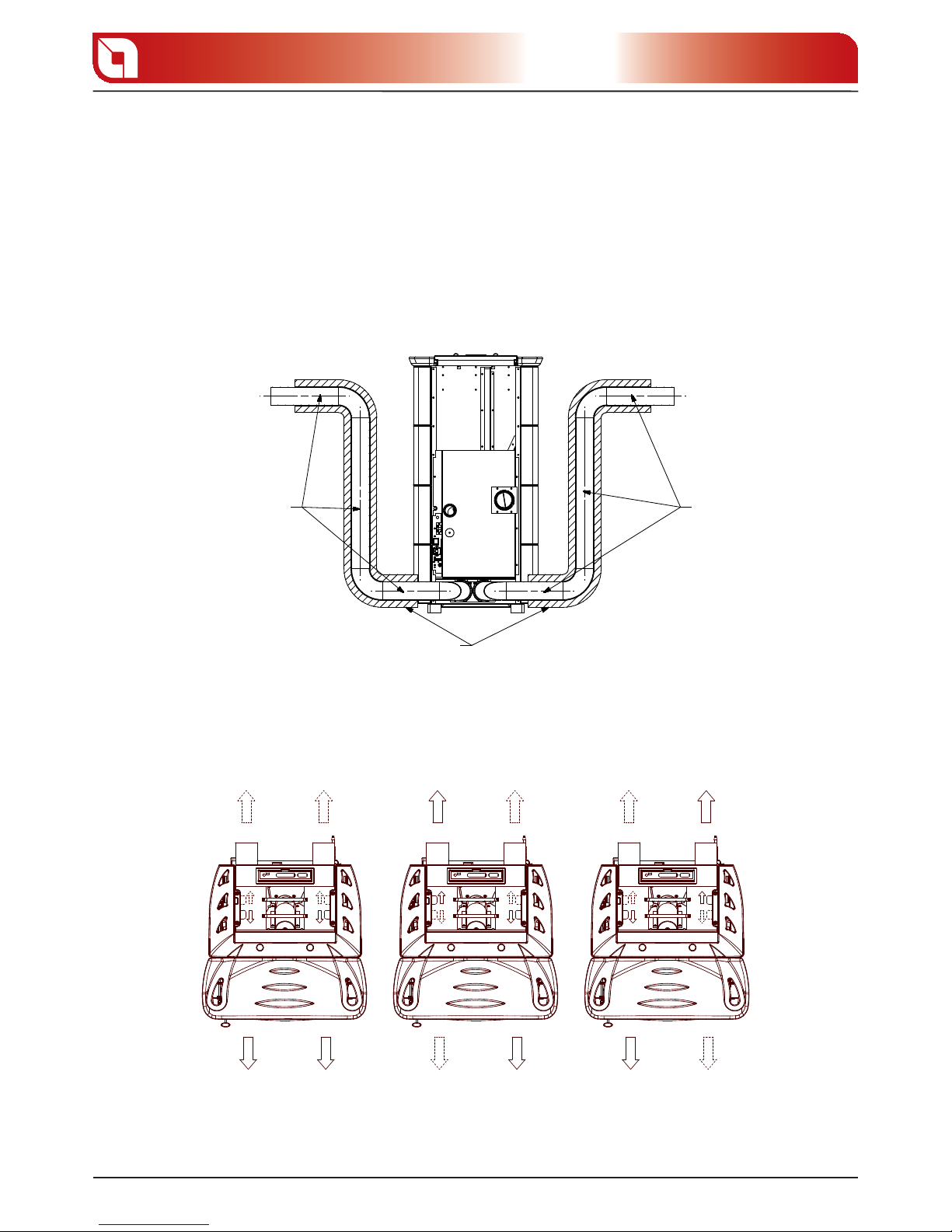

DIVINA PLUS
The DIVINA PLUS model is equipped with two pipe outlets situated on the back of the stove that allow the
heat produced by the stove to be distributed to other rooms. For this purpose, as you can see in the photo
below, we recommend using pipes with the following characteristics:
Internal diameter 80 mm
Insulated pipes (thermal insulation)
The pipe length connected to each opening must not be longer than 2 m.
MAXIMUM PIPE
LENGHT 2 METERS
MAXIMUM PIPE
LENGHT 2 METERS
INSULATING MATERIAL
TOSCA PLUS
The Tosca Plus model also has 2 tubes for channelling hot air placed at the rear. Unlike the Divina plus
model, the tubes escape from the top of the product.
Thanks to 2 shutters moved by 2 levers placed inside the pellet tank, which will have to be moved with the
poker supplied, (see illustration above), the Tosca Plus model, also oers the possibility to decide which
way to direct the hot air.
gure 6.1
gure 6.2
