Extraflame LUCREZIA IDRO LCD User manual

PELLET STOVES
Instruction Manual
LUCREZIA IDRO

Pagina 2
Congratulations! You are now t e owner of an EXTRAFLAME stove!
The EXTRAFLAME pellet stove is an ideal heating solution. It utilises the most advanced
technology and is manufactured to the highest standards with a contemporary design,
allowing you to enjoy the ambience and warmth of a natural flame in complete safety.
This manual tells you how to use your stove correctly. Please read the entire manual
carefully before using your stove.
IMPORTANT
Make sure that the dealer completes the following bo with the details of the authorised
specialist who will help you if you have any problems in using your new pellet stove.
AUTHORISED SPECIALIST
Company___________________________________________________________________
Full name __________________________________________________________________
Address ______________________________________________ No._________________
Postal Code _________________ City _________________________________________
TEL. _____________________________ FAX ____________________________________

Pagina 3

Pagina 4
Contents
1 PRECAUTIONS AND SAFETY 5
2 TECHNICAL SPECIFICATIONS 6
3 WHAT ARE PELLETS? 7
3.1 Pellet storage 7
4 SAFETY DEVICES 8
4.1 Warm air blower breakdown 8
4.2 Pellet feed motor breakdown 8
4.3 Lighting failure 8
4.4 Temporary power failure 8
4.5 Electrical safety 8
4.6 E haust system safety 8
4.7 Pellet overheating safety 8
4.8 System pressure safety 8
4.9 Water boil safety 8
4.10 E ternal devices 8
4.11 Installation and safety devices 8
4.12 Safety for open e pansion tank system 8
4.13 Safety for closed e pansion tank system 8
5 ASSEMBLY AND INSTALLATION INSTRUCTIONS 9
5.1 Glossary 9
5.2 Installation 10
5.2.1 Connection to the e haust venting system 11
5.2.2 Chimney or single flue 12
5.2.3 Connection to the flue and combustion product e haust venting 14
5.2.4 Chimney cap 14
5.2.5 Connection to e ternal air intakes 15
5.2.6 Insulation, trims, facings, and safety precautions 15
5.2.7 National, regional, provincial and municipal laws 15
6 CONTROL PANEL 16
6.1 Table of display messages 17
7 Language selection 20
8 Current day and time settings 20
9 OPERATING MODES 21
9.1 E ternal thermostat operation in STBY-TOFF mode 24
10 USING THE STOVE 25
11 LIGHTING 25
12 STOVE OPERATION 26
12.1 Normal operation 26
12.2 Shutdown 26
12.3 Remote control 26
13 REGULATING THE WATER TEMPERATURE 27
14 USER PARAMETERS 28
14.1 Weekly programmer 29
14.2 Pellet feed adjustment 31
14.3 Automatic cleaning schedule 32
15 STOVE CLEANING 33
15.1 Chimney connection 34
16 FIRST LIGHTING OPERATIONS 35
16.1 Fitting the tiles 35
16.2 Burn pot bracket 37
16.3 Burn pot positioning 37
17 WIRING DIAGRAM 38
18 WARRANTY 39
19 QUALITY CONTROL 41

Pagina 5
1. PRECAUTIONS AND SAFETY
The stoves manufactured in our factory are built
with the ma imum dedication to the individual
components so as to protect both the user and
the installer from accidents. Authorized personnel
are therefore advised to pay special attention to
the electrical connections after any servicing
operation on the product, especially with regard
to the stripped part of the wires, which must not
protrude in any way from the terminal block to
prevent possible contact with the live parts of the
wire.
Installation must be carried out by
aut orized personnel, w o must issue t e
purc aser a declaration of compliance of
t e system. T e purc aser s all assume
responsibility for t e definitive installation
and consequent proper operation of t e
product installed. Extraflame S.p.A. may
not be eld responsible in t e event of
failure to observe t ese precautions.
This instruction manual constitutes an integral
part of the product. It must always accompany
the appliance, also when it is transferred to
another owner or user or moved to another
location. If the manual gets damaged or lost, ask
your local service centre for another copy.
This stove must only be used for the applications
for which it was e pressly designed.
The manufacturer declines any responsibility,
contractually or e tra-contractually, for any
damage caused to persons, animals or property
by errors in installation, adjustment, and
maintenance, or by improper use.
After removing the packaging, check to make
sure that the contents are intact and complete.
If this is not the case, contact the vendor from
whom the appliance was purchased.
The electrical components of the stove must only
be replaced by an authorized service centre.
General stove maintenance must be carried out at
least once a year, scheduled sufficiently in
advance with the service centre.
T e following safety precautions must be
observed:
Do not allow the stove to be used by unattended
children or disabled persons.
Do not touch the stove if you are bare-footed or if
parts of your body are wet or damp.
Modifying the safety or adjustment devices without
the manufacturer’s approval or instructions is
forbidden.
Never pull, detach, or twist the electrical cables
coming out of the stove, even if it is disconnected
from the electrical power.
Do not plug or reduce the size of the air vents of
the room in which the stove is installed.
The air vents are critical for correct combustion.
Keep the packaging materials out of the reach of
children and unattended disabled persons.
Prior to installation, we recommend that you
thoroughly clean all the piping of the system to
remove any residues that could jeopardise the
efficient operation of the appliance.
During installation, the user should be informed
that:
a. In the event of water leakage, the water supply
must be closed off and the service centre must be
notified promptly.
b. The operating pressure of the system must be
checked periodically. When the stove is not used
for an e tended period of time, we recommend
asking the technical service to carry out at least
the following operations:
- Put the master switch in position 0.
- Close the water taps on both the heating and
plumbing systems.
- Empty the heating and plumbing systems if there
is a risk of freezing.

Pagina 6
2. TECHNICAL SPECIFICATIONS
Unit of
measurement Lucrezia Idro
Height mm 1330
Width mm 544
Depth mm 594
Weight kg 297
E haust pipe diameter mm 120
Air intake pipe diameter mm 60
Ma . heating volume m³ 480
Total power (heating power) kW/h 4.2 – 24.0
Water heating power kW/h 17.5
Pellet consumption per hour kg/h 1.0 – 5.0
Absorbed electrical power W 25 - 270
Lighting power W +280
Power supply V, Hz 230, 50
Hopper capacity kg ~43
Water in/out pipe diameter " 1
Diam. autom. discharge pipe w/valve 3 bar
" 1/2
Pump position / Return
Pump head m 4
All data are indicative and not binding. The manufacturer reserves the right to make
technical modifications for improving the product.
All E traflame products are manufactured according to
the following directives:
• 89/106 EEC (CPD) construction materials
• 73/23 EEC (LVD) electrical safety
• 98/37 EEC machinery
• 2004/108 EEC (EMC) electromagnetic
compatibility
And the following standards:
• prEN14785
• EN60335.1 EN50165 EN50366
• EN292 EN294
EN55014.1 EN55014.2 EN61000-3-2 EN61000-
3-3

Pagina 7

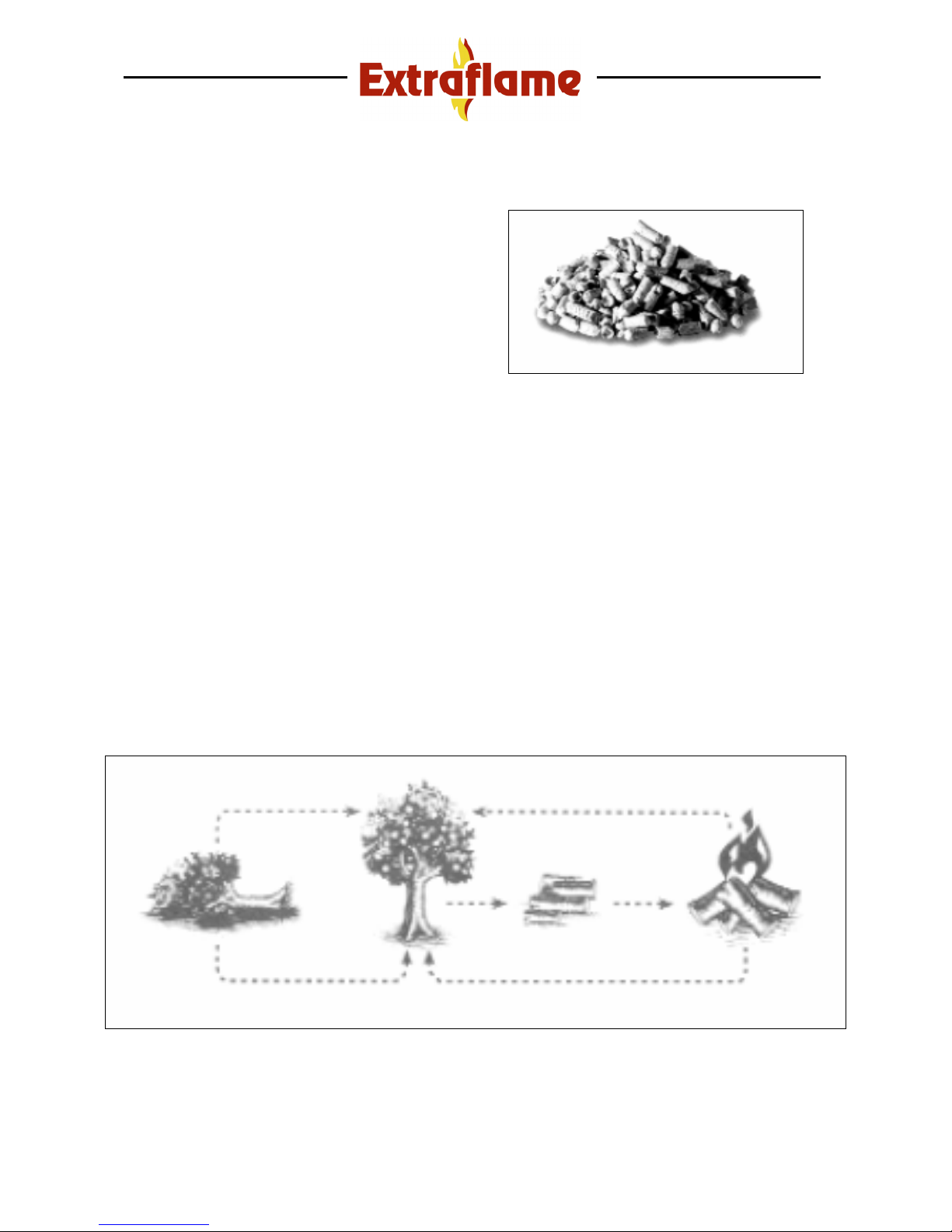

3. WHAT ARE PELLETS?
Pellets are made by applying very high
pressure to sawdust; i.e. the residue of raw
timber (without paint) produced by sawmills,
carpentry works and other activities involved
in processing wood.
This type of fuel is completely
environmentally friendly, as no binders of
any kind are used to keep it compact. In
fact, the compactness of the pellets over
time is guaranteed by lignite, a natural
substance found in the wood itself.
As well as being an environmentally friendly
fuel, since wood residues are e ploited to the
ma imum, pellets also have technical
advantages.
While the heating power of wood is 4.4
kW/kg (with 15% humidity, after about 18
months seasoning), the power of pellets is
5.3 kW/kg.
The density of the pellet is 650kg/m
3
and the
water content is 8% of its weight. For this
reason, pellets do not need to be seasoned
to obtain a sufficient heating yield.
Pellet diameters range from a minimum of 5
mm to a ma imum of 8 mm, though
E traflame recommends using 6 mm pellets.
3.1 Pellet storage
To guarantee problem-free combustion, the
pellets must be stored in a dry place.
WARNING
THE USE OF POOR QUALITY PELLETS OR ANY
OTHER MATERIAL MAY DAMAGE THE YOUR
STOVE AND MAY LEAD TO THE INVALIDATION
OF THE WARRANTY
AND THE RELATED RESPONSIBILITIES
OF THE MANUFACTURER.

Pagina 8
4. SAFETY DEVICES
4.1 Fume ex auster breakdown
If the e hauster stops, the electronic unit immediately prevents
pellet feeding.
4.2 Pellet feed motor breakdown
If the motor stops, the stove continues to operate until the
minimum cooling level is reached.
4.3 Lig ting failure
If no flame develops during the lighting stage, the stove display
shows “ NO ACC”. If you attempt to light the stove again, the
display shows “ATTE” which means “WAIT”. T is function
reminds you t at before lig ting t e stove, you must be
sure t at t e burn pot is free of dirt and debris.
4.4 Temporary power failure
The appliance will re-light automatically after a brief power
failure. When the power goes off, the stove may emit a minute
quantity of smoke inside the house for a period of 3 to 5
minutes.
THIS DOES NOT POSE ANY SAFETY RISK.
4.5 Electrical safety
The stove is protected against violent power swings by a
master fuse on the rear of the stove (2A 250V delayed).
4.6 Ex aust fume safety
If the e haust system fails, an electronic pressure switch stops
the stove and an alarm is signalled.
4.7 Pellet over eating safety
In case of overheating inside the pellet hopper, this safety
device blocks stove operation; resetting is manual and must be
performed by an authorized technician.
4.8 System pressure safety
A mechanical pressure switch blocks any over-pressure in the
system.
Reset is manual and must be carried out by an authorised
technician.
4.9 Water boil safety
In the event of a lack or minimum quantity of water, this
device blocks the pellet feed. Reset is manual and must be
carried out by an authorised technician.
4.10 External devices
During stove installation, it is MANDATORY to adapt the system
with a pressure gauge for viewing the water pressure and an
automatic blowdown valve calibrated at 3 bar pressure.
4.11 Installation and safety devices
The installation and respective system connections, the start-up
and final testing for correct operation must be carried out with
all due diligence by authorised professional technicians (Italian
Law no. 46 of 5 March 1990), in full respect for the regulations
in force, both national and regional, as well as for the
instructions given in this manual.
Extraflame S.p.A. declines any responsibility for
damage to objects and/or persons caused by t e
system.
4.12 Safety devices for open expansion tank system
Systems with open e pansion tank must be equipped with:
•Open e pansion tank
•Safety pipe
•Inlet pipe
•Thermostat for circulator control (e cluded for
systems with natural circulation)
•Circulation system (e cluded for systems with natural
circulation)
•Device for acoustic alarm activation
•Acoustic alarm
•Temperature indicator
•Pressure indicator
•Automatic cut-out switch only for stoves with
automatic feed
The temperature safety sensors must be on-board the heat
generator or at a distance no greater than 30 cm from the
delivery connection.
If the heat generators are not equipped with all the devices,
the missing ones can be installed on the delivery piping of the
generator, at a distance of no more than 1 m from the it.
4.13 Safety devices for closed tank system
Closed systems must be equipped with:
•Safety value
•Thermal blowdown valve (positive safety)
•Closed e pansion tank
•Adjustment thermostat connected to the circulator
•Thermostat connected to the acoustic alarm
•Thermal cut-out switch for regulation (limitation
thermostat)
•Thermal cut-out switch for blocking (blocking
thermostat)
•Thermometer and pressure gauge
•Circulation system
•
Safety dissipation system built into the generator with
thermal blowdown valve.
The temperature safety sensors must be on-board the heat
generator or at a distance no greater than 30 cm from the
delivery connection.
If the generators are not equipped with all the devices, the
missing ones can be installed on the delivery piping of the
generator, at a distance of no more than 1 m from the
machine.

Pagina 9
5. ASSEMBLY AND INSTALLATION INSTRUCTIONS
The installation must comply with:
UNI 10683 (2005) heat generators fed with wood and other solid fuels: installation.
The chimneys must comply with:
UNI 9731 (1990) chimneys: classification according to thermal resistance.
UNI 9615 (1995) calculation of the internal dimensions of the chimneys with single connection.
UNI 7129 point 4.3.3 provisions, local rules and prescriptions of the fire brigade.
UNI 1443 (2005) chimneys: general requirements.
UNI 1457 (2004) chimneys: internal ducts in terracotta and ceramics.
5.1 Glossary
CLOSED HEARTH DEVICE
Heat generator that can only be opened to load fuel during use.
BIOMASS
Material of organic origin, e cluding the material incorporated in geological formations and
fossilised.
BIOFUEL
Fuel produced directly or indirectly from biomass.
FLUE or CHIMNEY
Vertical duct for collecting and e pelling combustion products from a single appliance at a suitable
height from the floor.
EXHAUST CHANNEL OR PIPE
Duct or connecting element between the heat generating device and the chimney for e tracting
the combustion products.
INSULATION
The series of measures taken and materials used to prevent heat transmission through a wall
dividing rooms at different temperatures.
CHIMNEY CAP
Device located at the top of the chimney that facilitates dispersion of the combustion products in
the atmosphere.
CONDENSATE
Liquid products that form when the temperature of the combustion gas is lower than or equal to
the dew point of the water.
HEAT GENERATOR
Device that permits the production of thermal energy (heat) by the rapid transformation of the
chemical energy of the fuel by means of combustion.
AIR LOCK
Mechanism for modifying the dynamic resistance of the combustion gasses.

Pagina 10
EXHAUST VENTING SYSTEM
A system for fume e haust venting that is independent from the appliance, composed of a pipe or
channel, chimney or single flue, and chimney cap.
FORCED DRAUGHT
Air circulation by means of a fan driven by an electric motor.
NATURAL DRAUGHT
Draught resulting in a chimney/flue due to the difference in the volume mass e isting between the
(hot) fumes and the surrounding atmospheric air, without any mechanical suction aid installed
inside or on top of it.
RADIANCE AREA
Area immediately adjacent to the hearth in which the heat produced by combustion is diffused;
this area must not contain any objects made of combustible material.
REFLUX AREA
Area in which the combustion products come out from the appliance towards the room in which it
is installed.
5.2 Installation
Before carrying out installation, it is necessary to check the positioning of the chimneys, flues or
e haust terminal ducts of the appliance, keeping in mind the following:
•Installation prohibitions
•Legal clearances
•Limitations set forth by local administrative regulations or specific regulations of the
authorities.
•Common limitations deriving from building regulations, and easement or contract
regulations.
Admissible installations
In the room in which the heat generator is to be installed, any e isting or installed appliances must
be airtight to the room and must not cause depression in the room with respect to the e ternal
environment.
Appliances used for cooking foods and the related hoods without e tractor can only be installed in
rooms used as kitchens.
Pro ibited installations
The room in which the heat generator is to be installed must not contain any of the following
devices, either pre-e isting or installed:
- Hoods with or without e tractor;
- Ventilation ducts of the collective type.
Should these devices be located in adjacent rooms communicating with the installation room, it is
forbidden to use the heat generator simultaneously where there is the risk that one of the two
rooms may be subject to depression with respect to the other.

Pagina 11
5.2.1 Connection to t e ex aust venting system
Ex aust c annel or pipe
For the assembly of the e haust channels it is imperative to use non-flammable materials that are
resistant to combustion products and any condensates.
It is forbidden to use fle ible metal pipes and asbestos cement for connecting the stove to the
flue, also for pre-e isting e haust channels.
There must be continuity between the e haust channel and the flue so that the flue does not lean
on the stove.
The e haust channels must not pass through rooms in which the installation of combustion devices
is forbidden.
The assembly of the e haust channels must be carried out in such a way as to ensure that they
are airtight for the operating conditions of the appliance, as well as to limit the formation of
condensates and prevent them from being conveyed towards the appliance.
The assembly of horizontal sections must be avoided where possible.
Where roof or wall e haust outlets have to be reached that are not coa ial in relation to the
e haust outlet from the appliance, the direction changes must be made using open elbows no
greater than 45° (see figures below).
For heat generating devices equipped with an electric e haust fan, i.e. all products made by
E traflame, it is necessary to observe the following instructions:
•Horizontal sections must have a minimum slope of 3% upwards.
•The length of the horizontal section must be as short as possible, and in any case no
greater than 3 meters.
•No more than four direction changes may be used, including the one resulting from the use
of the “T”-element. (When four bends are used, use double wall piping with a 100 mm
diameter.)
In any case, e haust channels must be sealed in relation to combustion products and condensates,
as well as insulated, if they pass outside the installation room.
It is forbidden to use elements in counter-slope.
The e haust channel must allow soot recovery and cleaning using a swab.
The e haust channel must have a constant cross-section. Any changes in cross-section are allowed
only at the flue connection.

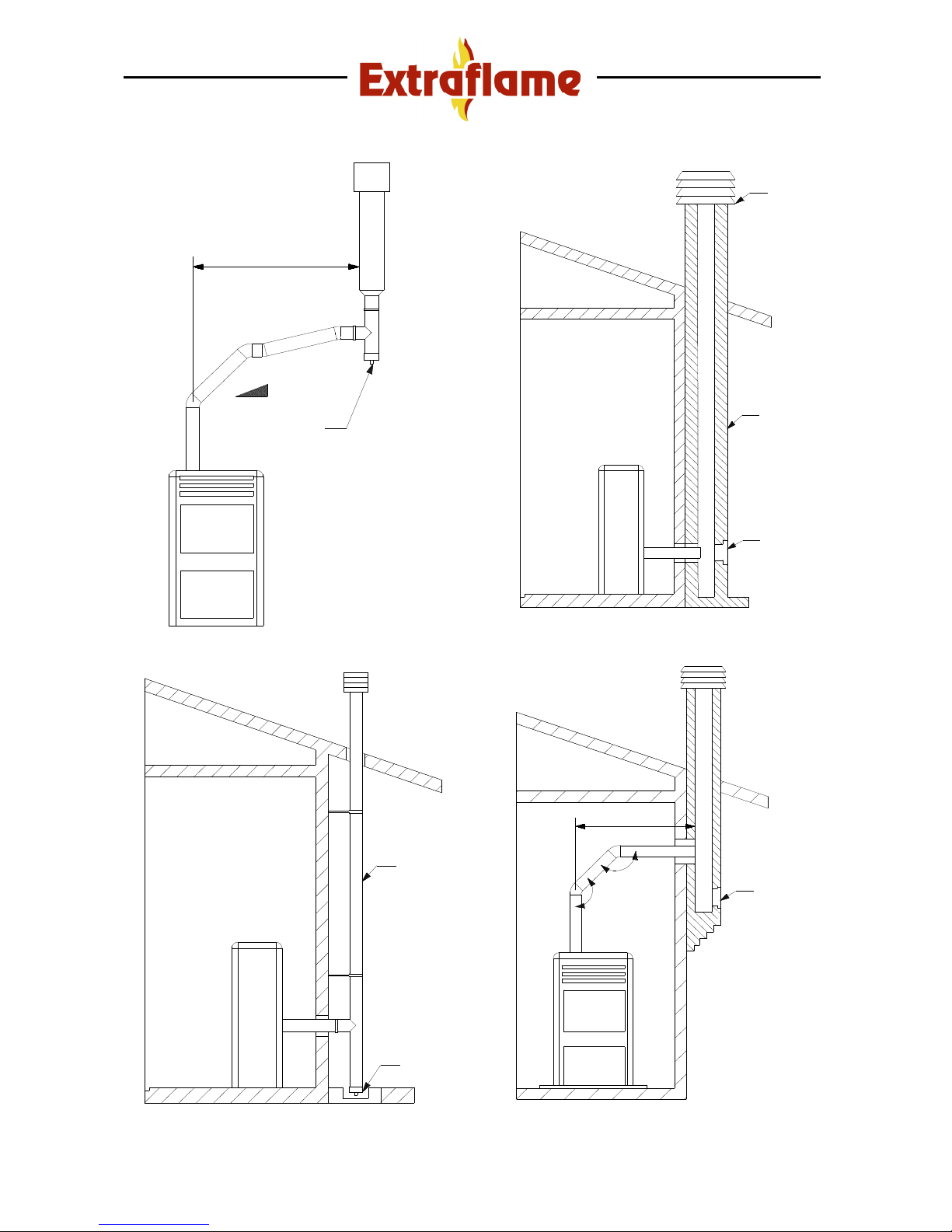

45°
45°
Insulation
Flue
Inspection

Pagina 12
It is forbidden to run other air feed channels or piping for utilities inside the e haust channels,
even if they are oversized. It is also forbidden to fit manual draught adjustment devices on the
forced draught appliance.

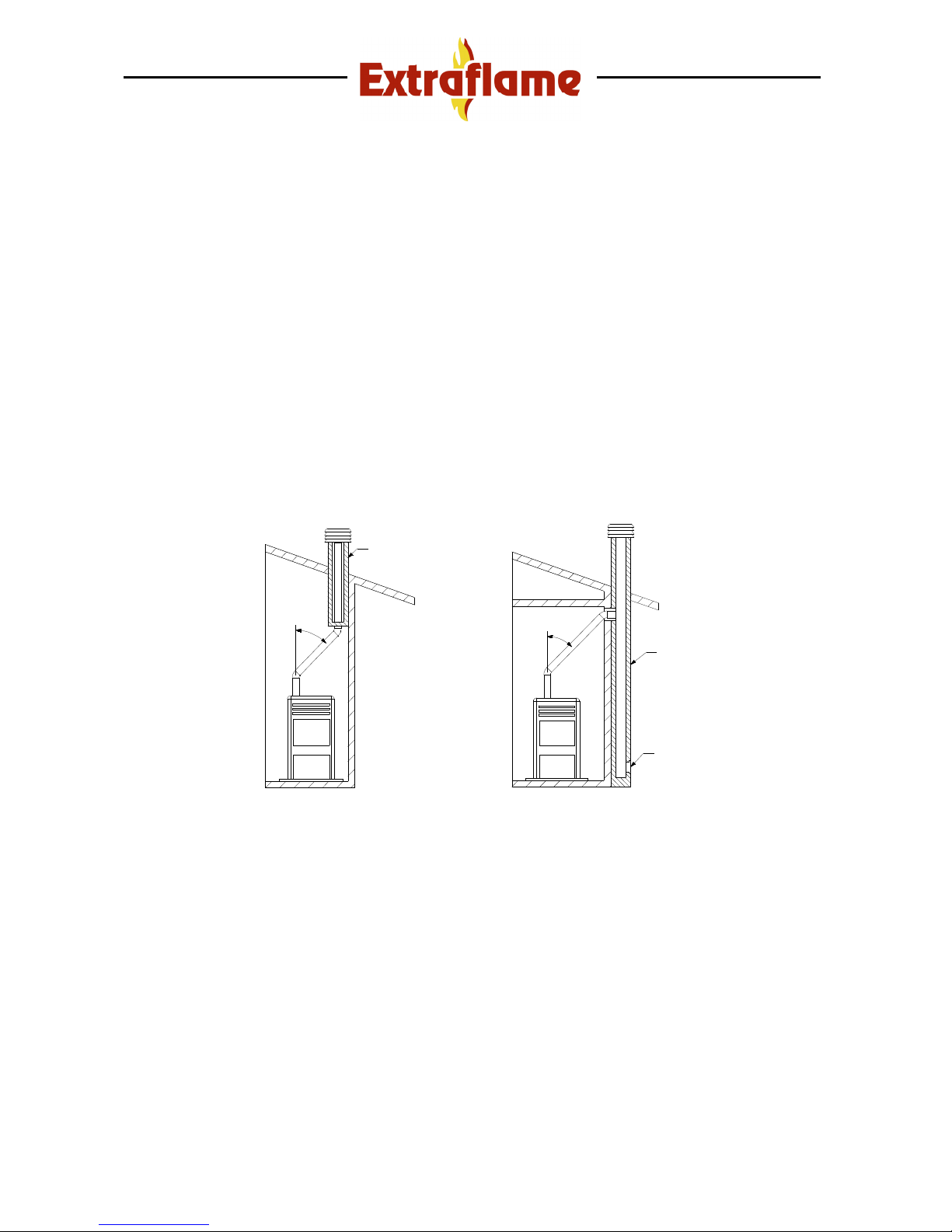

5.2.2 C imney or single flue
The chimney or flue must meet the following requirements:
- be airtight to combustion products, waterproof and properly insulated according to the usage
conditions;
- be made of materials suitable to resist normal mechanical stress, as well as heat and the action
of combustion products and any condensates;
- have a predominantly vertical layout with deviations from the a is no greater than 45°;
- be situated at a proper distance from combustible or flammable materials by means of an air gap
or suitable insulation material;
REFERENCES Flammable
objects
Non-
flammable
objects
A 200 100
B 1500 750
C 200 100
- preferably have a round internal section: square or rectangular sections must have rounded
edges with radius no less than 20 mm;
- have a constant, free and independent internal section;
- have rectangular sections with a ma imum ratio between sides of 1.5.
The e haust duct should be equipped with a chamber for the collection of solid materials and any
condensates located below the mouth of the e haust channel, so that it is easy to open and
inspect from the airtight hatch.
A
Minimum 80 cm²
Floor protection
B
20 cm
C

Pagina 13
Maximum 3 m
3
–
5 %
Inspe
ction
Windproof
c imney
cap
Flue
Inspection
External
insulated duct
Inspection
Maximum 3 m
45°
Inspection

Pagina 14
5.2.3 Connection to t e flue and combustion product ex aust venting
The connection between the appliance and the flue must only receive the discharge from a single
heat generator.
Direct discharge towards enclosed areas, even when roofless, is forbidden.
Direct discharge of combustion products must take place on the roof and the e haust duct must
have the features set forth in the section “Chimney or single flue” .
5.2.4 C imney cap
The chimney cap must meet the following requirements:
- have an internal section equivalent to that of the chimney;
- have a useful outlet section no less than twice the internal section of the chimney;
- be constructed in such a way as to prevent the penetration of rain, snow and foreign bodies into
the chimney, as well as to assure the discharge of the combustion products also in the presence of
winds coming from any direction and at any angle.
- be positioned in such a way as to assure proper dispersion and dilution of the combustion
products and, in any case, outside the reflu area in which the formation of counter-pressure is
most likely to occur. This area has different sizes and shapes depending on the slope of the roof;
therefore, it is necessary to use the minimum heights indicated in the figures below.
The chimney cap must not have any mechanical suction devices.
50 cm
> 5 m
< 5 m
50 cm
< 5 m
FLAT ROOF
SLOPED ROOF
Distance
> A
Distance
< A
50 cm beyond t e ridge beam
H min
β
REFLUX AREA
Reflux area eig t

Pagina 15
Roof slope
Horizontal widt of t e
reflux area from t e
axis of t e ridge beam
Minimum eig t of t e
outlet from t e roof Reflux area eig t
β A H min = Z + 50 cm Z
[°] [m] [m] [m]
15 1.85 1.00 0.50
30 1.50 1.30 0.80
45 1.30 2.00 1.50
60 1.20 2.60 2.10
5.2.5 Connection to external air intakes
To ensure correct operation, the appliance must have sufficient air available by means of e ternal
air intakes, which must meet the following requirements:
a) They must have a total free section of at least 80 cm².
b) They must be protected by a grate, metal mesh, or other suitable protection provided that it
does not reduce the minimum section as per point a) and that it is positioned in such a way as to
prevent the intakes from being obstructed.
If the combustion air is collected directly from the outside by means of a pipe, it is necessary to fit
a downward bend or a wind hood on the outside. In addition, no grating or similar device should
be positioned. (E traflame S.p.A. suggests creating an air intake directly communicating with the
installation room, even if air is collected from outside by means of a pipe).
Air inflow can also be obtained from a room adjacent to the installation room, provided that the
flow can occur freely through permanent openings communicating with the outside.
The adjacent room must not be subject to depression with respect to the outside as a result of the
opposing draught caused by the presence of another utility device or suction device in this room.
In the adjacent room, the permanent openings must meet the requirements described above.
The adjacent room cannot be used as a garage, storage area for combustible material, or for
activities involving fire hazards.
5.2.6 Insulation, trims, facings, and safety precautions
The facings, no matter what type of material they are made of, must constitute a self-bearing
structure with reference to the heating assembly and not in contact with it.
The beam and the trims in wood or combustible materials must be positioned outside of the
radiant area of the hearth or be properly insulated.
If the space above the heat generator has coverings made of combustible or heat-sensitive
material, a protective membrane made of non-combustible insulating material must be placed
between it and the generator.
All elements made of combustible or flammable material, such as wooden furnishings, curtains,
etc., that are directly e posed to the radiance of the hearth must be placed at a safe distance.
5.2.7 National, regional, provincial and municipal laws
All the national, regional, provincial ad municipal laws of the country where the appliance has been
installed must be taken into consideration.

Pagina 16
6. CONTROL PANEL
1  ON/OFF BUTTON
The stove can be turned on and off automatically by pressing button 1.
2-3 

WATER TEMPERATURE SETTING
Buttons 2 and 3 are used for adjusting the water temperature inside the stove.
4-5 

 OPERATING POWER
Buttons 4 and 5 are used for adjusting the heating power, which ranges from a minimum
of 4.2 kW/h to a ma imum of 24 kW/h.
Displays D1 and D2 for showing the various messages.
REMOTE CONTROL
SENSOR
D1
D2

Pagina 17
6.1 Table of display messages
INDICATIONS
Display
Message Cause Solution
ATTESA
RAFFREDDAMENTO
An attempt is made to switch on a
stove again when it has just been
shut down (normal shutdown or
caused by an alarm).
When the stove has just been shut down (normal
shutdown or caused by an alarm situation), you have to
wait until it is completely cold and then clean the burn
pot.
It is possible to re-start the stove only after having
carried out this operation.
ST-BY / TOFF
The rear input (STBY) is satisfied
and the stove is in standby to be
lit.
See the description “E ternal thermostat operation in
STBY/TOFF mode”.
To e clude this function, press button 1 to take the stove
to OFF status and disconnect the e ternal thermostat
from the stove.
HOFF
The water temperature has
e ceeded the threshold level set
by
more than 5°C.
The water has reached the
temperature of 85°C.
Check for correct operation of the plumbing system.
When the water temperature is lowered (5° below the
threshold set), the stove will start again in automatic
mode.
TOFF
The 2 rear inputs (
ING1 and ING2)
are both satisfied (contacts open).
Check the status of the 2 rear inputs (ING1 and ING2).
If one of the two e ternal thermostats is no longer
satisfied (contact closed), the stove will start again in
automatic mode.
To e clude stove re
-star
ting, just press and hold button 1
for 3 seconds to switch the stove off.
RAFFREDDA
BLACK OUT
No current on the general power
supply.
When the shutdown cycle is completed, the stove will
light again automatically.
PULIZIA
The automatic cleaning of the bu
rn
pot is in progress.
This indication appears on the display during automatic
burn pot cleaning.
PULITORE
SCAMBIATORE
BLOCCATO
Automatic spring cleaning block.
This is not an alarm situation, so the stove continues
with normal operation. If the automatic cleaning is
blocked, the display will show this indication alternating
with the working status of the stove.
T e resetting operation of t e automatic cleaning
system must be carried out by an aut orised
tec nician.
SANITARIO Indication of WINTER-WATER
HEATING mode. See the section
“WINTER - WATER HEATING” mode.

Pagina 18
ALARMS
Display D1
Message Cause Solution
Indicates the presence of an alarm
This indicator lights up when
one of the alarms described
below is in progress and is accompanied by t
he corresponding
indication on display D1. To reset the alarm, press button 1
and hold for three seconds when the stove is completely cold.
ASPIRATORE GUASTO
The
e haust motor is blocked.
The speed
control probe is faulty.
No power supply to the e haust
motor.
All restore operations must be carried out by an
aut orised tec nician.
SONDA FUMI
The
e haust fume probe is broken.
The
e haust fume probe is
disconnected from the board.
All restore operations must be carried out by an
aut orised tec nician.
SOVRATEMPERATURA
FUMI
The
blower is faulty.
E cessive pellet feed.
No power supply to the fan.
Adjust the flow of pellets (see “Pellet Feed Adjustment” ).
Ot er restore operations must be carried out by an
aut orised tec nician.
DEPRESSIONE KO
The
e haust pipe is obstructed.
The combustion chamber is dirty.
The pressure
sensor is faulty.
The ash drawer is not closed
properly.
The door is not closed properly.
Check to make sure that the e haust
outlet and the
combustion chamber are clean.
Check to see if the drawer is closed properly.
Check to see if the door is closed properly.
Ot er restore operations must be carried out by an
aut orised tec nician.
MANCATA
ACCENSIONE
The pellet
hopper is empty.
The
spark plug is faulty
or out of
position.
Inadequate pellet feed setting.
Check the level in the pellet hopper.
Check the procedures described in “ Lighting” .
Adjust the flow of pellets (see “Pellet Feed Adjustment” )
Ot er restore operations must be carried out by an
aut orised tec nician.
MANCANZA PELLET
The pellet
hopper is empty.
Pellet feeding is insufficient.
The
feed motor still has to settle in.
The gearmotor is not loading pellets.
A mechanical safety device related to
the water has been tripped.
Check the level in the pellet hopper.
Adjust the flow of pellets (see “Pellet Feed Adjustment” ).
Ot er restore operations must be carried out by an
aut orised tec nician.
SOVRATEMPERATURA
ACQUA
The circulation pump is blocked.
Insufficient system pressure.
Presence of air in the system.
Check the pressure of the water system.
Bleed the air from the system.
Ot er restore operations must be carried out by an
aut orised tec nician.
SPORTELLO
BLOCCATO
Automatic burn pot cleaning is
blocked.
All restore operations must be carried out by an
aut orised tec nician.
ATTESA + ALLARME
An attempt is made to reset an alarm
white the stove is still cooling.
Whenever one of the alarms described above is tripped, the
stove automatically shuts down.
During this phase, any attempt to reset the alarm will be
blocked, and the display wi
ll show the alarm and “ATTE” in
alternation.
Resetting the alarm by pressing button 1 is only possible after
the stove has completely shut down.
TELEFONO
- - - - - - - - - -
Display of the service centre
telephone number.
When an alarm occurs, the type of
alarm detected and the
telephone number of the service centre flash on the display in
alternation.
If the number has not been entered, the display shows a
series of dashes.

Pagina 19
INDICATOR LIGHTS
LED indicator
lig t
Meaning Description
Weekly Programmer function
This LED is on/off when
Weekly programmer
is on/
off.
For all the settings regarding this function, see the
section Weekly programmer .
Room Thermostat function
This LED is on/
off
when the room temperature is
lower/higher than the temperature set.
To modify the temperature setting, use buttons 2
and 3 during normal operation.
Not used Not used
Spark plug deactivation
This LED is on/off when the spark plug is
active/inactive.
To reactivate t e spark plug, contact an
aut orised tec nician.
E haust motor operation
This LED is on/off
when the e haust motor is
running/not running.
Pump operation
This LED is on/off when the pump is running/not running.
Pellet feed motor operation
This LED is on/off when the pellet feed motor is
running/not running.
During normal operation, thi
s LED lights up
intermittently.
Does not indicate any function
This LED should always be off.
Indicates the status of outputs OUT3
and OUT4 according to the status of
the e ternal thermostats ING1 and
ING2.
If on, it indicates operation of the priority output (OUT4).
If blinking, it indicates operation of the secondary output
(OUT3).
If off, it indicates that the 2 outputs are off.
Indicates the status of automatic burn
pot cleaning
The LED blinks/is on
stably when the automatic burn pot
cleaning is activated/deactivated.
Reception of remote control signal
This LED is on during communication between remote
control and stove.

Pagina 20
7. LANGUAGE SELECTION
To select the language, proceed as follows:
1. Switch the power supply to the stove on and then off again using the master switch or the
power cable.
2. The display will show the following items in sequence, before arriving at “SPENTO” (OFF):
•Microprocessor version (EXTRAH2O_2 or later)
•Mode selection (INVERNO – WINTER factory-set)
•Language (LINGUA)
•Current day and time adjustment (OROLOGIO)
•Level (LIVELLO – setting reserved to the authorised technician)
3. When the word “LINGUA” appears, press button 5 to access the language selection
function.
4. Display D1 will show the language currently selected; D2 will show “LING”: use buttons 2
and 3 to select the desired language: ITALIANO – ENGLISH – DEUTSCH – FRANCAIS
5. When you have made your selection, press button 1 to confirm and e it.
8. CURRENT DAY AND TIME SETTINGS
To set the current time, proceed as follows:
1. Switch the power supply to the stove on and then off again using the master switch or the
power cable.
2. The display will show in sequence, before arriving at “SPENTO” (OFF), the following items:
•Microprocessor version (EXTRAH2O_2 or later)
•Mode selection (INVERNO – WINTER factory-set)
•Language (LINGUA)
•Current day and time adjustment (OROLOGIO)
•Level (LIVELLO – setting reserved to the authorised technician)
3. When the word “OROLOGIO” appears, press button 5 to access the setting mode.
4. Display D1 will show a day of the week (from DAY1 to DAY7): use the buttons 2 and 3 to
set the current day, and confirm with button 5.
Display D1 Meaning
DAY 1 Monday
DAY 2 Tuesday
DAY 3 Wednesday
DAY 4 Thursday
DAY 5 Friday
DAY 6 Saturday
DAY 7 Sunday
5. On display D1, the hour is blinking, whereas the minutes are stable. Enter the current hour
using buttons 2 and 3. Confirm with button 5.
6. On display D1, the hours are now stable and the minutes are blinking. Enter the current
minutes using buttons 2 and 3.
To go back to hour setting, press button 4; otherwise confirm and e it with button 1.
