Extron electronics MLC 62 IR D User manual

IMPORTANT:
Go to www.extron.com for the
complete user guide and installation
instructions befor
e connecting the
pr
oduct to the power sour
ce.
MLC 60 Series • Setup Guide
for the MLC 62 RS D, MLC 62 IR D, and MLC 64 RS VC D

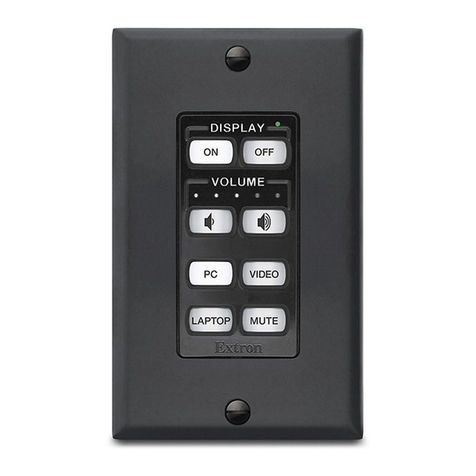

The MLC 60 Series are keypad controllers for
use in classrooms and meeting facilities. These
products mount to decorator-style wallplates and
one-gang or two-gang junction boxes, and include
black and white color options. The controllers have
backlit soft touch buttons and can control common
AV functions, including power, input switching, and
volume. The MLC RS models provide RS-232 serial
and IR ports for universal display control. In addition,
a digital input and two relays are included for
monitoring and controlling other systems in the room.
The MLC 64 RS VC D has a volume control module
that lets you raise and lower the volume on an Extron
amplier with a remote volume control port, such as
the MPA 152 Plus or MPA 401. The MLC 62 IR D provides IR control only.
NOTES:
• Installation and service must be performed by experienced personnel only.
• Check that the installation meets the local and state regulatory requirements, including building, electrical, and safety
codes, as well as UL and ADA accessibility requirements.
• For installation, conguration, and operation details, see the MLC 60 Series User Guide, available at www.extron.com.
Installation Steps
MLC 62 RS D
COM
PORT A
Tx G
IR/S
PORT B RS-232
SG
D IN
IN G
RELAYS
12C
REMOTE
Tx Rx G
PWR
12V
0.4 A MAX
MLC 64 RS VC D
GND
VOL
10V
Rear Panels
MLC 62 IR D
REMOTE
RS-232
Tx Rx G
IR
PORT A
SG
PWR
12V
0.4 A MAX
COM
PORT A
Tx G
IR/S
PORT B RS-232
SG
D IN
IN G
RELAYS
12C
REMOTE
Tx Rx G
PWR
12V
0.4 A MAX
1. Prepare the installation site. The MLC 60 D models can be installed in a standard US one-gang or two-gang electrical
junction box or mounting bracket (“mud ring”).
a. Install the electrical box, following the instructions provided with it, or the provided mounting bracket.
ATTENTION:
• Ensure that the electrical box is properly grounded.
• Assurez vous que le boîtier d’encastrement est correctement mis à la terre.
b. Prepare and pull the cables through the electrical box or mounting bracket.
VOLUME
E
DISPLAY
ON OFF
VIDEO
PC
MLC 62 IR D
VOLUME
E
DISPLAY
ON OFF
PC VIDEO
LAPTOP MUTE
MLC 62 RS D
AUX
LAPTOP
PC
MUTE
E
DISPLAY
VOLUME
ON OFF
MUTE
V
O
LUM
E
F
F
VIDEO
MLC 64 RS VC D
1

MLC 60 Series • Setup Guide (Continued)
2. Change the faceplate, buttons, and volume control knob as needed.
a. (MLC 64 RS VC D only) If changing the faceplate on the MLC 64 volume
control module, rst remove the volume knob (see Removing the Volume
Control Knob on page 4).
b. Remove the faceplate from the MLC module (see Removing the Faceplate on
page 4).
c. If desired, replace the buttons in the faceplate (see Replacing the Buttons on
page 4).
d. Reattach the faceplate as follows (see the illustration at right): Making sure that
both the MLC and the board are upright, line up the tabs at the top and bottom
of the faceplate with the slots on the board, and press the faceplate into the
board until the tabs snap into place. The pegs in the upper-left and lower-right
corners of the faceplate should be seated in the two diagonal holes on the MLC
board.
e. (MLC 64 RS VC D only) If changing the volume control knob, press the new
knob onto the spindle of the volume control module, making sure that the
spindle is turned all the way to the left and that the dot on the knob is aligned
with the bottom edge of the volume icon on the faceplate. Tighten the hex
screw by rotating it one-half turn clockwise.
3. Connect the cables to the rear panel ports. Attach the cables and IR emitters to the rear panel of the MLC and to the
display device or switcher as required.
• Port A Com (RS models only) — Connect a display device or switcher to this serial port to be controlled via RS-232.
MLC RS D Rear Panel
COM
PORT A
Tx G
IR/S
PORT BR
S-232
SG
D IN
IN G
RELAYS
12C
REMOTE
Tx Rx G
PWR
12V
0.4 A MAX
Ground ( )
Transmit (Tx)
Ground ( )
Receive (Rx)
Display Device
• Port B IR/S (RS models) or Port A IR (IR models) — Connect a display device, switcher, or up to two IR emitters to
this port. On RS models, you can congure Port B IR/S for either serial or IR communication, using the MLC 60 Series
conguration program. On IR-only models, Port A IR supports only an IR connection.
COM
PORT A
Tx G
IR/S
PORT BR
S-232
SG
D IN
IN G
RELA
YS
12
C
REMOTE
Tx Rx G
PWR
12V
0.4 A MAX
MLC 62 RS D Rear Panel
Unidirectional IR Output
via White Striped Wire
100'
(30.5 m)
Ground ( )
IR Signal
IR Emitter
• Relays port (RS models only) — The Relays port provides connections for two relays. Connect one or two devices
(such as a low-voltage controller and a motorized screen, shown in the example below) to this port. The relay ports are
normally open and rated for 24 VDC, 1 A (see the example below).
NOTE: If you are using both relay ports, connect the ground wires of both devices to common pin 3.
Ground Ground
Signal 110/220 V
Low Voltage
Screen Control Motorized
Screen
Power
Supply
1
2
3
Pin:
COM
PORT
A
Tx
G
IR/S
PORT BRS-232
SG
D IN
IN G
RELAYS
12C
REMOTE
Tx Rx G
PWR
12V
0.4 A MAX
MLC RS D Rear Panel
VOLUME
DISPLAY
OFF
ON
MUTE
LAPTOP
VIDEO
PC
Insert peg
on faceplate
into hole.
Peg
Insert peg
on faceplate
into hole.
Insert tab on
faceplate
into slot.
Ta b
2

• Digital Input port (RS models only) — The Digital Input port enables you to connect a switch or sensor to control
other devices in the room that are connected to the MLC serial, IR, or relay ports. The port measures the high and low
states of the connection between the switch or sensor and the connected device. For the voltage thresholds, a voltage
below 1.0 VDC is measured as logic low, and a voltage above 1.5 VDC as logic high. When a threshold between the
states is crossed (from high to low and vice versa), the selected action occurs.
By default, this port is congured with a 5 V pull-up for use with basic non-powered switches. If the device being
connected has its own power source, congure the port to disable the pull-up mode (see the conguration program help
le for port conguration procedures). To wire this port, see the example below.
COM
PORT A
Tx G
IR/S
PORT BR
S-232
SG
D IN
IN G
RELA
YS
12
C
REMOTE
Tx Rx G
PWR
12V
0.4 A MAX
Ground ( )
Digital Input 1
MLC 62 RS D Rear Panel
Two-position Switch
1
2
Pin:
• Wire the volume control module (MLC 64 RS VC D only) —
Connect the remote volume control port of an Extron amplier to
the 3-pole captive screw connector on the rear panel of the MLC 64
volume control module, as shown at right. No software conguration
is required for this module.
In the illustration at right, GND = ground, VOL = Volume and mute
control, and 10V = 10 VDC reference voltage.
NOTES:
• Choose an Extron amplier that is capable of remote volume control and muting.
Not all Extron ampliers have remote volume control ports. The MPA 152 Plus or
MPA401 are examples of the type of amplier to use.
• The MLC 64 RS VC D is backwards compatible, able to control existing ampliers
and preampliers as well as new ampliers and preampliers.
• Models of the MLC 64 RS VC D with an E number before E30472 are not compatible
with newer amplier models. The E number is located next to the device serial
number.
• Use shielded cable for audio connections to avoid inducing noise.
4. Connect and apply power. Connect the included power supply to the MLC as shown below, then connect power to all
devices in the system.
SECTION A–A
Ridges
Smooth
Power Supply Output Cord
AA
3/16” (5 mm) Max.
5. Configure the MLC buttons and ports (see the MLC 55, 62 and 64 Series Configuration Program Help File for the
procedures):
a. Load and install the conguration software from the Extron website.
b. Obtain device drivers. Drivers for the devices that will be connected to the MLC rear panel IR and serial ports can
be downloaded from the Extron website. You can also obtain them using the conguration software if an Internet
connection is available.
c. Connect the MLC to the computer, using a USB A to USB mini-B cable between the MLC front panel USB port and the
computer USB port. Alternatively, use an RS-232 cable to connect the MLC rear panel Host/Cong port to the computer
serial port.
d. Upload the conguration to the MLC.
NOTE: The volume control module of the MLC 64 RS VC D is standalone and requires no configuration.
6. Test the system to ensure that the MLC is functioning properly.
Amplifier
Rear Panel
MLC 64 VCM
Rear Panel
10V
Vol/Mute
12310 V
Vol/Mute
Ground
GND
VOL
10V
3

Extron Headquarters
+800.633.9876 Inside USA/Canada Only
Extron USA - West Extron USA - East
+1.714.491.1500 +1.919.850.1000
+1.714.491.1517 FAX [phone] FAX
Extron Europe
+800.3987.6673
Inside Europe Only
+31.33.453.4040
+31.33.453.4050 FAX
Extron Asia
+65.6383.4400
+65.6383.4664 FAX
Extron Japan
+81.3.3511.7655
+81.3.3511.7656 FAX
Extron China
+86.21.3760.1568
+86.21.3760.1566 FAX
Extron Middle East
+971.4.299.1800
+971.4.299.1880 FAX
Extron Australia
+61.8.8113.6800
+61.8.8351.2511 FAX
Extron India
1800.3070.3777
(Inside India Only)
+91.80.3055.3777
+91.80.3055.3737 FAX
© 2017 Extron Electronics All rights reserved. All trademarks mentioned are the property of their respective owners. www.extron.com 68-2166-50 Rev. D
06 17
7. Mount the MLC to an electrical box or a mounting bracket.
• Secure the MLC unit into a mounted electrical box
using the provided screws in the oval slots at the
top and bottom of the unit (follow the instructions
provided with the electrical box), or
• Mount the MLC to a mounting bracket (see the
illustration at right). For the detailed procedure,
see the MLC 60 Series User Guide, available at
www.extron.com.
Removing the Volume Control Knob
1. Rotate the knob until the dot on the knob is aligned with
the bottom edge of the volume icon on the faceplate. The
notches in the edge of the knob and the notch in the edge
of the hole in the faceplate should be aligned, enabling
you to access the hex screw that holds the knob in place.
2. Insert the small Allen wrench (provided) into the opening.
3. Rotate the Allen wrench one-half turn counterclockwise to
loosen the hex screw, then lift off the knob.
MUTE
VOLUME
Turn Knob to
Expose Screw
Use Allen Wrench
to Loosen Screw
Removing the Faceplate
1. Insert the at end of a small screwdriver into each of the holes at the top and
bottom of the faceplate.
2. Press each tab inward until the faceplate is released (see the illustration at right).
Replacing the Buttons
1. From the front of the faceplate, press the button membrane to be replaced backward through its slots in the
faceplate until it comes free. If replacing the faceplate, repeat this step until all the buttons are removed.
2. On the back of the faceplate, set the new button membrane at the desired location, with the two pegs in the
upper-left and lower-right corners of the membrane (shown at right) in the holes at opposite corners of the row.
Press the pegs and buttons of the membrane into the faceplate.
Wall
2.16"
3.88"
Wall Mounting
Bracket
VOLUME
DISPLAY
OFF
ON
MUTE
LAPTOP
VIDEO
PC
Wallplate
MLC 62 RS D
VOLUME
Extron
DISPLAY
VIDEO
PC
ON OFF
MUTE
LAPTOP
Pegs (2)
4
