Ezee-On 1450 User manual

Ezee-On
OPERATOR'S MANUAL
MODEL 1450 SKID-STEER
POST DRIVER
includes
ASSEMBLY INSTRUCTIONS
and
PARTS LIST
Manufactured Vegreville, Alberta
By Ezee-On Manufacturing Canada
PRINTED IN CANADA 723G

EZEE-ON MANUFACTURING
Limited Warranty Policy
Ezee-On Manufacturing’s products are warranted to the original non-commercial purchaser to be free from defects in material and workmanship for
a minimum period of twelve (12) months from the original date of purchase.
Ezee-On Manufacturing’s obligation under this warranty shall be limited to the repair or exchange, at Ezee-On’s option, free of charge to the
original purchaser, any part or component that, in our judgment, shows evidence of such defect. Further, that such part shall be returned
within thirty (30) days from date of failure to Ezee-On Manufacturing, routed through the dealer and distributor from whom the equipment
was purchased, transportation charges prepaid.
This warranty shall not be interpreted to render Ezee-On Manufacturing liable for injury or damages of any kind or nature to person or property. This
warranty does not include claims for, or extend to the loss or damage of crops, loss because of delay in seeding/ planting or harvesting, or any
expense or loss incurred for labor, substitute machinery, rental, transportation expense or for any other reason.
Except as set forth above, Ezee-On Manufacturing shall have no obligation or liability of any kind on account of any of its equipment and shall not be
liable for special or consequential damages. Ezee-On Manufacturing makes no other warranty, expressed or implied, and, specifically, Ezee-On
Manufacturing disclaims any implied warranty or merchantability or fitness for a particular purpose. The purchaser is solely responsible for
determining suitability of Ezee-On equipment purchased. This warranty is subject to any existing conditions of supply, which may directly affect our
ability to obtain materials or manufacture replacement parts.
Ezee-On reserves the right to make improvements in the design of products and/ or changes in specifications at any time, without incurring any
obligation to owners of units previously sold. No one other than Ezee-On Manufacturing is authorized to alter, modify or enlarge this warranty.
Genuine Ezee-On replacement parts and components will be warranted for 90 days from date of purchase, or the remainder of the original equipment
warranty period, whichever is longer.
Under no circumstances will this warranty cover any merchandise or components thereof, which, in the opinion of the Company, has been subjected
to misuse, unauthorized modifications, alteration, an accident or if repairs have been made with parts other than those obtainable through Ezee-On
Manufacturing.
Commercial Use: Warranty for commercial, rental or custom use of any Ezee-On product is limited to 90 days, parts and labor.
Twelve Months Warranty:
All Ezee-On manufactured products are warranted for twelve consecutive months from the date of delivery of the new Ezee-On product to the original
non-commercial purchaser.
•1-12 Months: 100% parts and labor coverage

Extended Coverage Limited Warranty (24 additional months):
Air Drills, Coulter Drills, Air Carts, Cultivators, Chisel Plows, Offset and Tandem Discs and Post Drivers carry limited extended warranty. Ezee-On
Manufacturing’s obligations under this extended warranty coverage shall be limited to repair or exchange, at Ezee-On Manufacturing’s option, for the
original, non-commercial owner:
•13-24 Months: 100% Ezee-On manufactured components only, NO labour – see below for description
•25-36 Months: 50% Ezee-On manufactured components only, NO labour – see below for description
Ezee-On manufactured components are, but not limited to: frames, axles, hitches, castor assemblies, packers, turnbuckles, rockshafts, packer
frames, packers – steel, tanks – air cart seed and fertilizer tanks, seed cups, metering rollers.
NON Ezee-On manufactured components are, but not limited to: Monitors, tires, rims, bearings, hydraulics: motors, pumps, controls, cylinders, hoses
and valves; sprockets, chain, rubber packer wheel tires, polyurethane wheel mounted packers, coulter blades, shanks, springs, bolts, pulleys, air
hoses, sweeps, spikes, spoons, seals, power wheels, hitch jacks, hubs and wheels.
The Company in no way warrants engines, batteries, coulter assemblies, rubber tires, or other trade accessories since these items are warranted
separately by their respective manufacturers.
T2-215 Bearing Extended Coverage Limited Warranty:
Seven year limited warranty: Extended coverage (13-84 months) on T2-215 Series bearing is limited to the replacement of ball bearings
and seals for the original, non-commercial owner. Associated bearing parts, labor, freight, etc., are not covered.
Warranty Limitations and/ or Exclusions:
1. Buckets & bucket tines, bale spears & tines, grapple tines, pallet forks, shanks, all ground engaging tools, disc openers and disc blades, air
seeder hose and normal wear parts/ items carry NO warranty.
2. There is no warranty coverage if parts or attachments, other than those made or marketed by Ezee-On Manufacturing have been used in
connection with the unit, and in the sole judgment of Ezee-On, such use affects its performance or reliability.
3. If the equipment has been altered or repaired in a manner which, in the sole judgment of Ezee-On, affects its performance, stability or
reliability.
4. The purchaser shall be responsible for dealer travel time to the machine or to deliver the machine to the dealer’s service shop for repair.
Ezee-On Manufacturing does not cover delivery charges or travel time.
This warranty policy is subject to change without prior written notice at Ezee-On Manufacturing’s sole discretion.
Revision: September 1, 2004

5110 – 62n
d
Street
Vegreville, AB T9C 1N6
Canada
Ph: [phone]
Fx: [phone]
www.ezeeon.com
Post Driver Pre-Delivery Inspection/ Warranty Registration
Dealership ______________________________ Location __________________________Delivery Date: ___.___.___
mm dd yyyy
Model __________________________________ Serial #_____________________ New Machine Demo Unit
Items for Dealership technician to inspect prior to delivery: see Operator’s Manual for detailed instructions
Torque all wheel bolts/ lug nuts to specifications (Model 2400) Check hydraulic hoses are leak free and hydraulic cylinders are filled with oil
Check tire pressures are correct @ 28 psi (Model 2400) Model 2400: Ensure minimum 250 lbs of ballast is in trailer weight box
Check engine fluid levels (if equipped) and hydraulic fluid in reservoir Model 1450: Do not mount on tractor weighing less than 3,000 lbs (1365 kg)
Lubricate the entire machine as recommended in the Operator’s Manual Model 1450: ensure all pins are properly secured with cotter pins, especially the
Check all bolts for tightness and cotter pins are installed 3-point hitch pins (which also secure post driver to skid-steer mount frame)
Ensure both sides of hammer slide are greased before first use Model 1450: raise front leg of stand assembly and lock in raised position before
Ensure the rubber bumpers on upper & lower hammer stops are in place operating post driver
Check Operator’s Manual to ensure all decals are correctly installed Ensure Post Holder tool is present and Post Guide installed correctly (if equipped)
Ensure hammer does not rise too slowly or stick while rising
Pre-Delivery completed by _______________________________________(signature) Date _____/_____/_____
mm dd yyyy
Items for Dealership staff to cover with customer upon delivery:
Give the Operator’s Manual to your customer Connect PTO pump to tractor’s PTO, connect safety chain (if equipped)
Inform your customer of all safety precautions, maintenance Ensure machine functions properly. (Raise/ lower hammer, slide, tilt, etc)
procedures, and demonstrate proper & safe operation of the Post Driver Start tractor or engine & run all controls so your customer understands correct
Verify correct serial number operation of the Post Driver and ensure all functions are working properly.
Attach Post Driver to your customer’s tractor, skid-steer, or vehicle Explain limited warranty and fill out registration form. Fax to the Factory
Ensure hitch jack is in transport position (if equipped) Ezee-On Fax: [phone]
Warranty Registration
Owner’s Name ____________________________ Address __________________________ Town___________________
Province/ State____________________________ Country __________________ Postal/ Zip Code___________________
Home Phone #______________________ Cell Phone #__________________ Email Address _______________________
*The owner hereby acknowledges receipt of the Operator’s Manual and that all delivery checks have been completed as listed above. Owner furthermore
acknowledges that the Operator’s Manual is an integral part of the purchased equipment and it contains information important to the proper operation,
maintenance, and safety procedures of this machine.
Owner’s signature __________________________________________________ Date ____/_____/_______
mm dd yyyy
Dealer’s signature __________________________________________________ Date ____/_____/_______
mm dd yyyy
-
Mail or Fax the original copy of this Warranty Registration and Pre-Delivery/Delivery Inspection to Ezee-On Manufacturing immediately after delivery.
Warranty Registration is mandatory. Failure to complete and return this form will delay the processing of warranty claims

INTRODUCTION
THANK YOU for choosing to purchase this Ezee-On implement, we are confident you will be impressed with its performance.
In addition to the traditional values of simplicity, reliability and durability, your new EZEE-ON implement incorporates a number of
operational and safety features. We urge you to familiarize yourself with the maintenance and operation of your implement by reading
this Manual thoroughly and completely. Failure to do so could result in personal injury or equipment damage.
THIS MANUAL contains important information regarding assembly, maintenance, operating instructions, and troubleshooting problems,
and should be considered a permanent part of your implement.
Remember that it is the responsibility of the Operator to ensure that the implement is field ready, prior to first operation. However,
should you encounter a problem, please contact your dealer immediately.
READ THIS MANUAL CAREFULLY TO ENSURE THAT YOUR NEW IMPLEMENT IS ASSEMBLED AND ADJUSTED CORRECTLY PRIOR TO FIRST
OPERATION.
RIGHT and LEFT is determined by standing behind the machine and facing FORWARD, in the direction of travel.
This symbol is used to identify safety messages. When you see this symbol, read the safety message carefully.
TABLE OF CONTENTS
DESCRIPTION PAGE
SAFETY
ASSEMBLY INSTRUCTIONS
OPERATING INSTRUCTIONS
MAINTENANCE
STORAGE
SEASONAL SERVICE
PARTS LIST INDEX
2
5
10
17
18
19
EZEE-ON MANUFACTURING RESERVES THE RIGHT to make improvements in design and changes in specifications at any time without
notice and without incurring any obligation to install them on units previously sold. Specifications, descriptions, and illustrative material
herein are as accurate as known at time of publication, but are subject to change without notice.
SPECIFICATIONS
• Minimum Skid-Steer Loader Weigh – 3000 lbs (1360 Kgs) HYDRAULICS
• Hammer Face 9” x 12 –1/2” •Hammer Cylinder- 1-5/8" x 64" Stroke
• Maximum Hammer Height – 112” •Hammer Tilt Cylinder- 2" x 8" Stroke
•HammerSwivelCylinder-2"x8"Stroke
•Hydraulic Oil Reservoir-2.1 Imperial Gallons
•Hydraulic Pump- 4.5 U.S. Gal/Min @ 540 r.p.m
•Hydraulic Motor – 4.9 cu.in.
•Minimum Skid-Steer Hydraulic Requirements to Operator
Hydraulic Motor – 6 to 8 U.S. Gal/Min
Page 1

SAFETY RECOMMENDATIONS
Watch for this symbol. It identifies important safety messages. When you see this symbol, read the safety message carefully.
GENERAL SAFETY
1. Do not mount post driver on skid-steer loaders weighing less than 3000 lbs (1360 Kgs). Operating or transporting post driver mounted
on a skid-steer loader weighing less than 3000 lbs (1360. Kgs) could result in loader roll over causing serious injury or death to operator
and person(s) nearby.
2. Never mount post driver on skid-steer loaders without ROPS protection.
3. Only one person, the operator, should be allowed to operate the post driver.
4. Never ride or permit others to ride on the post driver.
5. Never allow anyone, other than the operator, on the skid-steer loader when operating or transporting the post driver.
6. Follow all safety precautions in your skid-steer loader manual.
7. Keep a first aid kit in the skid-steer loader at all times.
ASSEMBLY SAFETY
1. Use an aligning punch to line up holes. Keep fingers out of these holes. Any sudden movement of heavy components will severely
injure or sever your fingers.
2. Use a hoist or adequate manpower to lift the heavy components into place. Use adequate jacks or support materials. Attempting to
lift heavy components by yourself could cause serious injury.
3. Be sure all bolts and hydraulic fittings are tight, and all cotter pins are installed in pins.
4. Before applying pressure to hydraulic system, be sure all connections are tight and components are not damaged.
5. Use cardboard or wood as a backstop when searching for hydraulic leaks. Escaping hydraulic oil under pressure can cause serious
injury if it penetrates the skin. See a doctor immediately if injured.
6. Relieve hydraulic pressure before disconnecting hydraulic components. Hydraulic components under pressure, may cause parts and
hydraulic fluid to fly out at a high velocity which could cause serious injury.
7. Always stay clear of post driver hydraulic motor drive shaft when it is running. Serious injury or death will result if clothing, hair or
limbs were caught in hydraulic motor drive coupler shaft.
8. Be sure all hammer tilt cylinder pins are properly installed and secured with retainers. Serious injury or death may occur to operator
or person(s) nearby if cylinder pin(s) fell out and hammer fell.
Page 2

OPERATING SAFETY
1. Never allow anyone near the post driver when you are performing operating functions.
2. When tilting, raising or lowering the hammer, keep all persons away from the post driver.
3. Wear safety glasses and hand wear to protect against splinters.
4. Make certain everyone is clear before operating or moving the post driver.
5. Keep all untrained personnel away from the post driver at all times. Only personnel knowledgeable in the operation should be allowed
near or in control of the post driver.
6. Contact local utility companies for underground services before installing posts.
7. Never place your hand on top of the post at any time during operation. Serious injury may occur.

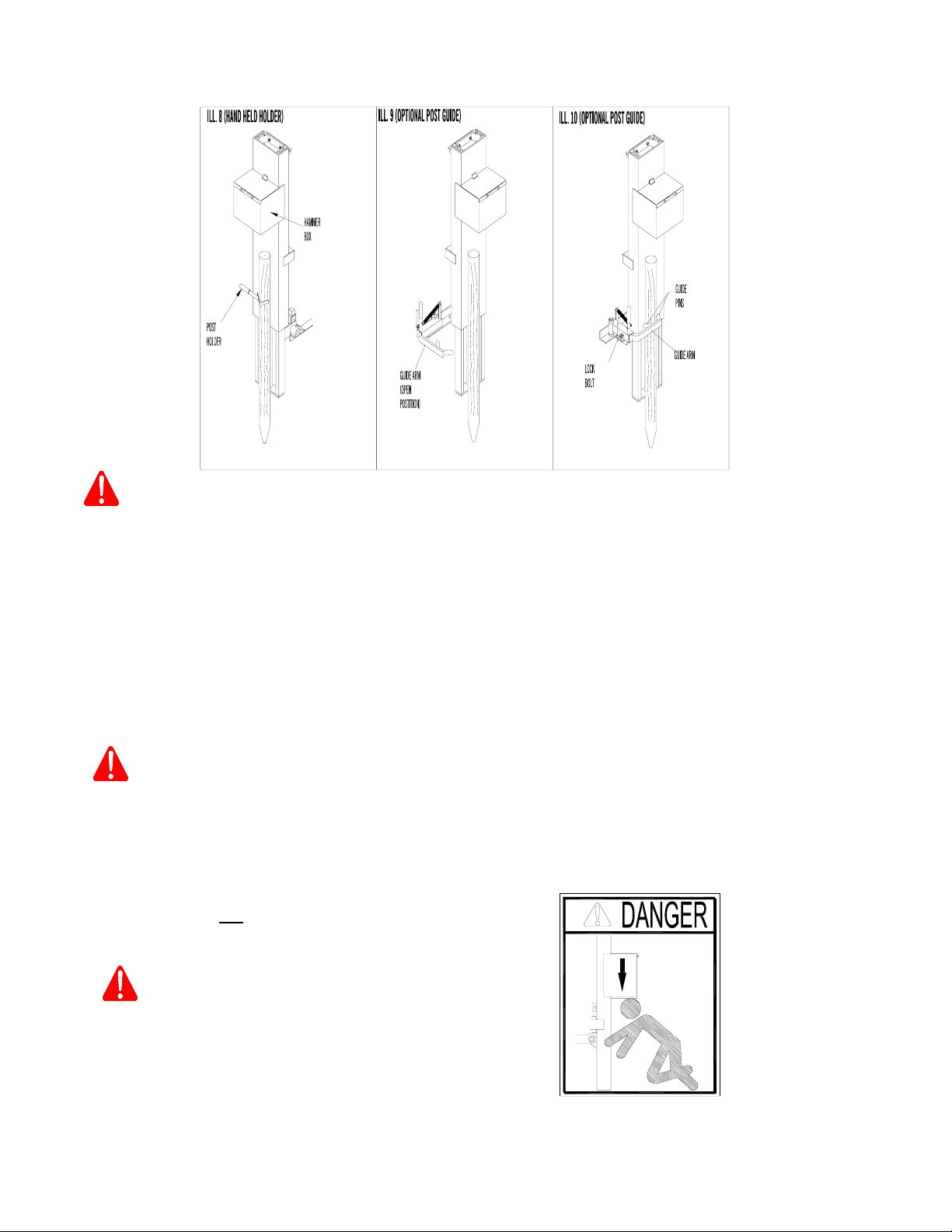

8. Always use hand held post holder or optional post guide to position post under hammer when driving posts. Using one of these
devices may prevent injury to hand or arm.
9. Know the functions of each operating lever of hydraulic controls before proceeding with operations. Never use the valve to stop the
hammer except in extreme emergency. The resulting extreme hydraulic pressure may seriously damage hydraulic system.
10. Fluid escaping from a very small hole can be almost invisible. Use a piece of cardboard or wood, rather than hands, to search for
suspected leaks. If injured by escaping fluid, see a doctor at once. Serious infection or reaction can develop if proper medical
treatment is not administered immediately.
11. Always stay clear of hydraulic motor drive shaft when it is running. Serious injury or death will result if clothing, hair or limbs are
caught in drive coupler.
12. To avoid serious injury or death, use discretion if adding ballast to hammer as both skid-steer loader and post driver may become
unstable during either operation or transporting unit. (It is not recommended to add ballast to hammer).
13. Never allow any other person or persons to stand near hammer when post driver is being operated. This post driver is designed to be
operated by one person only. Serious injury or death will result if a person is struck by a falling or tilting hammer.
14. Never allow another person to hold the post when post driver is being operated. Serious injury or death will result if a person is struck
by a falling or tilting hammer.
15. Always lower post driver stand to ground and shut off power when post driver is left unattended or is not in operation. Serious injury
or death may result if hammer fell unexpectedly and struck person(s) nearby.
16. Always use extra care when operating post driver with optional mast extension installed. The extra height of the hammer may cause
tractor and post driver to become unstable.
17. Use extra care when operating post driver in uneven terrain. Skid-steer loader and post driver may become unstable and roll over
causing serious injury or death.
18 Do not raise loader arms and stand under post driver to adjust or service post driver. Always lower loader arms when servicing or
adjusting post driver.
TRANSPORT SAFETY
1. Reduce speed when transporting post driver over uneven or rough terrain.
2. Shift the tractor into a lower gear when transporting post driver down hills or steep slopes.
3. Be sure SMV (slow moving vehicle) emblem is clean and visible before transporting post driver. The SMV emblem warns other
vehicles approaching from rear.
4. Always comply with all State, Provincial, Federal and local laws when transporting post driver on roadways.
5. Retract hammer cylinder and upper tilt cylinder before transporting post driver.
6. When transporting the post driver on a public road or highway by night or during the day, use accessory lights and devices to give
adequate warning to the operators of other vehicles. Check local regulations.
Page 3

MAINTENANCE
1. Never work on the hammer when it is in the raised or partially raised position. If hammer fell, operator or person(s) nearby could be
seriously injured or killed.
2. Escaping hydraulic fluid under pressure can have sufficient force to penetrate the skin, causing serious personal injury. Before
disconnecting lines, be sure to relieve all pressure. Before applying pressure to the system, be sure all connections are tight and that
all lines, pipes and hoses are not worn or damaged.
3. Fluid escaping from a very small hole can be almost invisible. Use a piece of cardboard or wood, rather than hands, to search for
suspected leaks. If injured by escaping fluid, see a doctor at once. Serious infection or reaction can develop if proper medical
treatment is not administered immediately.
4. If spray-can paint is used, be careful when discarding empty cans. Do not incinerate or puncture can.
5. Do not permit smoking, sparks, or open flame where combustible lubricants or liquids are being used.
6. Replace any worn or damaged hydraulic hoses and keep all hydraulic hoses and hydraulic fittings tight.
7. Shut off all power and lock brakes before adjusting, servicing or cleaning the post driver.
8. Do not lubricate or adjust post driver when it is being operated or while it is in motion.
9. Always retract all cylinders, shut off skid-steer engine and lock brakes before lubricating post driver.
10. Replace any safety decals that are damaged or are illegible.
STORAGE SAFETY
1. Do not store the post driver with the hammer raised. If hammer fell person(s) nearby could be seriously injured.
2. Always close both tilt cylinders when storing post driver.
NOTE: An accident is usually caused by someone's carelessness, neglect, or oversight. Remember, safety comes first.
AN ACCIDENT NOT ONLY HURTS,
BUT ALSO COSTS YOU VALUABLE LOST TIME.
Page 4

ASSEMBLY INSTRUCTIONS
CAUTION: USE A HOIST OR ADEQUATE MANPOWER TO LIFT HEAVY COMPONENTS IN PLACE. ATTEMPTING TO LIFT
HEAVY COMPONENTS BY YOURSELF COULD CAUSE SERIOUS INJURY.
1. See ILL. 1. Join 2 spool valve, arrow 1, and single spool valve, arrow 2, with one (1) 3/4" N.P.T. x 2" nipple, arrow 3.
Next, fasten three (3) control levers, arrow 4, to the two valves. Attach handles so they point up. Fasten valve
assembly to top of valve bracket, arrow 5, with four (4) 3/8" x 2" N.C. hex bolts c/w nuts, lockwashers and flatwasher.
Place flatwashers on bottom of valve mount
plate. Tighten bolts.
CAUTION: WHEN ASSEMBLING POST DRIVER,
USE ALIGNING PUNCH TO LINE UP
HOLES. KEEP FINGERS OUT OF
HOLES. ANY SUDDEN MOVEMENT
OF HEAVY COMPONENTS WILL
SEVERELY INJURE OR SEVERE YOUR
FINGERS.
2. See ILL. 2. Fasten barrel end of a 2" x 8" cylinder, arrow 1, to cylinder lug, arrow 2, of hydraulic support bar. Position
so ports are facing away from hammer. Fasten shaft end of same cylinder to lug, arrow 3, under swivel table. Fasten
barrel end of the other 2” x 8” cylinder, arrow 4, to cylinder lug, arrow 5, on swivel table. Position so ports are facing
hydraulic valves. Fasten shaft end of cylinder to lug, arrow 6, on hammer. Secure each cylinder with two (2) cylinder
pins. Secure each cylinder pin with two (2) clips.
Page 5

3. MODEL 1450 SKID-STEER KIT ASSEMBLY INSTRUCTIONS – See ILL. 3
a) Remove ½” x 3-1/2” hex bolt which fastens adjustable stub, arrow 1, on back side of post driver frame. Next slide each
adjustable stub “IN”.
b) Position skid-steer adapter frame so lower lugs, arrow 2, are over adjustable stubs, arrow 1, and top lug, arrow 3, is
positioned between upper lugs, arrow 4, of post driver frame. Secure adapter frame to post driver by moving adjustable
stubs, arrow 1, out so pins move into hole of lower lugs, arrow 2. Reinstall ½” x 3-1/2” hex bolt in each side of lower tube of
post driver frame and secure each bolt with (1) nut. Then install lynch pin in hole of pin of each adjustable stub, arrow 1.
Next, secure top lug, arrow 3, of adapter frame to post driver frame with one ¾” x 4-3/4” pin. Secure pin with (1) lynch pin.
c) Motor/Pump Assembly - See ILL. 4
Hold drive coupler assembly, arrow 1, between side
plates of pump/motor support bracket with 1” bore
facing outer plate. Next, mount hydraulic motor,
arrow 2, to outer side plate. As motor shaft is
being installed through hole in outer plate, place
drive coupler assembly, arrow 1, over motor shaft.
Be sure key is installed on motor shaft. Position
motor with ports facing up. Next, fasten motor to
outer plate with four (4) 7/16” x 1-3/4” hex bolts
c/w nuts and lockwashers. Tighten bolts.
Mount 1.99 cu. in. hydraulic pump, arrow 3, to
inner side plate. As pump is being installed, insert
pump shaft into coupler, arrow 1. Position pump
so 7/8” port face hammer of post driver. Next,
fasten motor to inner side plate with two (2)
3/8” x 1-3/4” hex bolt c/w nuts and lockwashers.
Tighten bolts. Finally, lock coupler assembly, arrow 1, to pump and motor shafts by tightening set screws on both hubs.
Page 6

Page 7

ASSEMBLY CONTINUED:
4. Attaching hydraulic hose and fittings. See ILL. 5 on page 7.
IMPORTANT: DO NOT USE TEFLON TAPE TO SEAL HYDRAULIC HOSES AND FITTINGS. IF PIECES OF TAPE GETS INTO THE HYDRAULIC
SYSTEM THEY MAY PLUG SMALL ORIFICES.
IMPORTANT: CLEANLINESS IS ABSOLUTELY NECESSARY TO PREVENT CONTAMINATION WHEN HOOKING UP THE HYDRAULIC
SYSTEM COMPONENTS. HANDLE FITTINGS CAREFULLY.
h) Attach hoses and fittings to hydraulic pump, filter, valves, cylinders oil reservoir and hydraulic motor as shown in
ILL. 5.
IMPORTANT: BE SURE THE 3/8" MALE - FEMALE SWIVEL ADAPTORS WITH RESTRICTED ORIFICE, (PAINTED BLACK), ARE INSTALLED
IN THE 2" x 8" HAMMER TILT CYLINDER AND IN THE 2" x 8" HAMMER SWIVEL CYLINDER. TWO FITTINGS ARE
REQUIRED PER CYLINDER.
i) IMPORTANT NOTE: WHEN THE POST DRIVER HAS BEEN IDLE FOR A PERIOD OF TIME, THE HAMMER TILT
CYLINDERS MAY CREEP CAUSING A VOID IN THE CYLINDERS. THIS CYLINDER MOVEMENT
IS CAUSED BY A LACK OF OIL PRESSURE IN CYLINDERS WHEN THE POST DRIVER IS NOT
BEING USED. FOR PISTON SEALS TO HOLD OIL THERE MUST BE ENOUGH HYDRAULIC
PRESSURE IN THE CYLINDERS TO DEFORM THE SEAL. THIS SEAL DEFORMATION PUSHES
THE SEAL AGAINST THE WALL OF THE CYLINDER AND PISTON BLOCK, GIVING AN OIL TIGHT
SEAL.
WARNING: USE CARDBOARD OR WOOD AS A BACKSTOP WHEN SEARCHING FOR HYDRAULIC LEAKS. ESCAPING
HYDRAULIC OIL UNDER PRESSURE CAN CAUSE SERIOUS INJURY IF IT PENETRATES THE SKIN. SEE A
DOCTOR IMMEDIATELY IF INJURED.
WARNING: RELIEVE HYDRAULIC PRESSURE BEFORE DISCONNECTING HYDRAULIC COMPONENTS. HYDRAULIC
COMPONENTS UNDER PRESSURE MAY CAUSE PARTS AND HYDRAULIC FLUID TO FLY OUT AT A HIGH
VELOCITY WHICH COULD CAUSE SERIOUS INJURY.
CAUTION: DO NOT MOUNT POST DRIVER ON SKID-STEER LOADER WEIGHING LESS THAN 3000 LBS (1360 KGS).
OPERATING OR TRANSPORTING POST DRIVER MOUNTED ON A TRACTOR WEIGHING LESS THAN 3000
LBS (1360 KGS) COULD RESULT IN TRACTOR ROLL OVER CAUSING SERIOUS INJURY OR DEATH TO
OPERATOR OR PERSON(S) NEARBY.
CAUTION: NEVER MOUNT POST DRIVER ON SKID-STEER LOADERS WITHOUT ROPS PROTECTION.
Page 8

5. Drive skid-steer up to post driver. Attach post driver to loader by engaging quick-tach carrier on loader arms with post driver frame.
Activate quick-tach lock mechanism. .
6. See ILL. 5. Identify hydraulic supply lines (2) that run to front of loader lift arms. Select line which will supply pressure and install (1)
one flat face male tip to front end of line. Next, install (1) one female coupler on front end of return line.
7. See ILL. 5. Connect hydraulic motor pressure and return hoses to remote couplers on loader lift arms that were installed in section 6.
8. Filling Hydraulic System.
a) Fill post driver oil reservoir with hydraulic oil, use Esso Hydro 56 or use a grade of hydraulic oil that is approved for tractor
hydraulic systems.
b) Start post driver hydraulic pump by activating hydraulic lever in skid-steer loader which controls oil flow to post driver’s hydraulic
motor. If lever is not moved in correct direction, hydraulic motor will NOT START. Run skid-steer engine at HALF IDLE. Using
hydraulic valve control levers on post driver, see section 1 of Operating Instructions, pump hydraulic oil into all cylinders. Extend
and contract cylinders until completely filled with oil. Add oil to reservoir as required. The level should be one inch from top of
tank. (Oil reservoir is shown in ILL. 5 on page 7).
IMPORTANT: BEFORE APPLYING PRESSURE TO HYDRAULIC SYSTEM, BE SURE ALL CONNECTIONS ARE TIGHT AND COMPONENTS
ARE NOT DAMAGED.
CAUTION: BE SURE ALL BOLTS AND HYDRAULIC FITTINGS ARE TIGHT, AND ALL COTTER PINS ARE INSTALLED IN PINS. UNIT
COULD BE DAMAGED IF ANY COMPONENT CAME LOOSE.
CAUTION: BE SURE ALL HAMMER TILT CYLINDER PINS ARE PROPERLY INSTALLED AND SECURED WITH RETAINERS.
SERIOUS INJURY OR DEATH MAY OCCUR TO OPERATOR OR PERSON(S) NEARBY IF CYLINDER PINS(S) FELL OUT
AND HAMMER FELL
Page 9

OPERATING INSTRUCTIONS
1. PREPARING POST DRIVER FOR OPERATION
a) To mount post driver to skid-steer loader, refer to section 5, 6 and 7 of assembly instructions.
CAUTION: DO NOT MOUNT POST DRIVER ON SKID-STEER LOADER WEIGHING LESS THAN 3000 LBS (1360 KGS) AND SKID-
STEER LOADER NOT EQUIPPED WITH ROPS PROTECTION.
b) Check the oil level in oil reservoir. The level should be 1 inch from top of reservoir. If filling is required, use ESSO Hydro 56 or a
grade of hydraulic oil that is approved for tractor hydraulic systems.
c) Check that the rubber bumpers on upper and lower hammer stops are in place and in good condition.
d) Ensure both sides of hammer slide are greased before activating controls.
e) Check all bolts and hydraulic fittings for tightness.
f) Be sure all pins are properly secured with cotter pins, especially the three point hitch pins which secure post driver to skid-steer
mount frame.
2. OPERATION OF HYDRAULIC CONTROLS - See ILL. 6.
ILL.6
The three control levers operate post driver as follows:
1) Lever, arrow 1, raises and lowers hammer.
2) Lever, arrow 2, tilts hammer IN and OUT.
3) Lever, arrow 3, rotates hammer towards the left or right
when viewing from rear of tractor.
CAUTION: KNOW THE FUNCTIONS OF EACH HYDRAULIC LEVER BEFORE PROCEEDING WITH OPERATIONS.
WARNING: FLUID ESCAPING FROM A VERY SMALL HOLE CAN BE ALMOST INVISIBLE. USE A PIECE OF CARDBOARD OR
WOOD, RATHER THAN HANDS, TO SEARCH FOR SUSPECTED LEAKS. IF INJURED BY ESCAPED FLUID, SEE A
DOCTOR AT ONCE. SERIOUS INFECTION OR REACTION CAN DEVELOP IF PROPER MEDICAL TREATMENT IS NOT
ADMINISTERED IMMEDIATELY.
Page 10

OPERATING INSTRUCTIONS CONTINUED:
3. SEE ILL. 7 Before operating post driver raise front leg of stand assembly and lock in raised position with pin.
CAUTION: DO NOT RAISE LOADER ARMS AND STAND UNDER POST DRIVER TO ADJUST OR SERVICE POST DRIVER. ALWAYS
LOWER LOADER ARMS WHEN SERVICING OR ADJUSTING POST DRIVER.
4. Start post driver pump by activating proper hydraulic lever in cab of skid-steer loader. Note: If lever is not moved to correct position,
hydraulic motor on post driver will not start. Run skid-steer engine at half throttle to start with. If post driver hydraulics raise
hammer too fast or too slowly, adjust skid-steer engine R.P.M. as required.
5 DRIVING POSTS - See ILL. 7.
a) Before starting to drive posts, fully cycle both tilt
cylinders. If post driver has been idle for a period of time,
the tilt cylinder may creep causing a void in cylinders.
The cylinder movement is caused by a lack of oil pressure
in cylinder. For piston seals to hold oil there must be
enough hydraulic pressure in the cylinders to deform seal.
This seal deformation pushes the seal against the wall of
the cylinder and piston block, giving an oil tight seal.
Cycling tilt cylinders will fill void in cylinders which will
prevent cylinder movement when driving posts.
When cycling or operating tilt cylinder, push or pull valve
levers to maximum position. DO NOT FEATHER.
Feathering or holding valve levers in a partially open
position will also cause a void in tilt cylinders
DANGER: ALWAYS STAY CLEAR OF HYDRAULIC MOTOR SHAFT WHEN IN OPERATION. SERIOUS INJURY OR DEATH WILL
RESULT IF CLOTHING, HAIR OR LIMBS ARE CAUGHT IN DRIVE COUPLER.
b) Locate post driver where post is to be driven.
c) Using loader arms lower post driver so rear legs of stand rest on the ground.
d) Tilt and rotate hammer by operating valve levers, arrow 2, and 3, shown in ILL. 6 on page 11. These levers will locate
hammer in desired working position. See Section 2 of OPERATING INSTRUCTIONS on page 11.
e) Raise hammer approximately 12 inches above post as shown in ILL. 7.
CAUTION: MAKE CERTAIN EVERYONE IS CLEAR BEFORE OPERATING OR MOVING THE POST DRIVER.
CAUTION: WHEN TILTING, RAISING OR LOWERING THE HAMMER, KEEP ALL PERSONS AWAY FROM POST DRIVER.
Page 11

SECTION 2 OF OPERATING INSTRUCTIONS CONTINUED:
DANGER: NEVER ALLOW PERSON OR PERSONS TO STAND NEAR HAMMER WHEN POST DRIVER IS BEING OPERATED. THIS
POST DRIVER IS DESIGNED TO BE OPERATED BY ONE PERSON ONLY . SERIOUS INJURY OR DEATH WILL RESULT
IF A PERSON IS STRUCK BY A FALLING OR TILTING HAMMER.
f) HOLDING POST UNDER HAMMER - USE SUBSECTION f1 or f2.
f1) HAND HELD HOLDER - See ILL. 8. Position post under hammer. Using the hand held post holder, hold post against hammer.
Start to drive post, see Paragraph h, i and j below.
f2) OPTIONAL POST GUIDE - SEE ILL. 9 and 10.
Step 1 - Place guide arm in open position and place post under hammer. ILL. 9 shows guide arm in open position.
Step 2 - See ILL. 10. Close Post Guide over post so guide pins hold post.
Step 3 - See ILL. 10. If necessary, loosen lock bolt and adjust guide arm ΑIN≅or ΑOUT≅so guide pins hold post securely.
Tighten lock bolt.
Step 4 - Start to drive post. See Paragraphs g, h and i below.
CAUTION: ALWAYS USE HAND HELD POST HOLDER OR OPTIONAL POST GUIDE TO POSITION POSTS UNDER HAMMER
WHEN DRIVING POSTS. USING HAND HELD POST HOLDER OR POST GUIDE MAY PREVENT INJURY TO HAND.
g) Push hammer valve lever, arrow 1 (ILL. 6 on Page 10), "IN" to drop hammer on post. Use 12" strokes to start driving post and
increase stroke as required.
h) IMPORTANT: DO NOT USE TOO MUCH FORCE WHEN OPERATING HAMMER VALVE LEVER. HANDLE MOUNT BRACKETS WILL BE DAMAGED IF
LEVER IS PUSHED TOO HARD TO DROP HAMMER.
i) IMPORTANT: IT IS NOT RECOMMENDED TO ADD BALLAST
TO HAMMER BOX. THE ADDITIONAL
WEIGHT MAY CAUSE POST DRIVER AND
SKID-STEER LOADER TO BECOME UNSTABLE.
DANGER: NEVER ALLOW ANOTHER PERSON TO
HOLD THE POST UNDER HAMMER
WHEN POST DRIVER IS BEING
OPERATED. SERIOUS INJURY OR DEATH
WILL RESULT IF A PERSON IS STRUCK
BY A FALLING HAMMER.
Page 12

SECTION 3 OF OPERATING INSTRUCTIONS CONTINUED:
DANGER: CONTACT LOCAL UTILITY COMPANIES FOR UNDERGROUND SERVICES BEFORE INSTALLING POSTS.
DANGER: WHEN DRIVING POSTS, ALWAYS WATCH FOR OVERHEAD POWER LINES. IF POST DRIVER MAKES CONTACT WITH
POWER LINES , OPERATOR OR THOSE NEARBY COULD BE SERIOUSLY INJURED OR KILLED.
DANGER: NEVER PLACE YOUR HAND ON TOP OF POST.
WARNING: USE SAFETY GLASSES AND HAND WEAR TO PROTECT AGAINST SPLINTERS.
CAUTION: NEVER USE THE VALVE TO STOP THE HAMMER UNLESS IN EXTREME EMERGENCY. THE RESULTING EXTREME
HYDRAULIC PRESSURE MAY SERIOUSLY DAMAGE HYDRAULIC SYSTEM.
CAUTION: KEEP ALL UNTRAINED PERSONNEL AWAY FROM THE POST DRIVER AT ALL TIMES. ONLY PERSONNEL
KNOWLEDGEABLE IN THE OPERATION SHOULD BE ALLOWED NEAR OR IN CONTROL OF THE POST DRIVER.
WARNING: TO AVOID SERIOUS INJURY OR DEATH. USE DISCRETION WHEN ADDING BALLAST TO HAMMER AS BOTH TRACTOR
AND POST DRIVER MAY BECOME UNSTABLE DURING EITHER OPERATION OR TRANSPORTING UNIT.
DANGER: ALWAYS LOWER POST DRIVER STAND TO GROUND, LOWER HAMMER AND SHUT OFF POWER WHEN POST DRIVER
IS LEFT UNATTENDED OR IS NOT IN OPERATION. SERIOUS INJURY OR DEATH MAY RESULT IF HAMMER FELL
UNEXPECTEDLY AND STRUCK PERSON(S) NEARBY.
Page 13

OPERATING INSTRUCTIONS CONTINUED:
6. To transport post driver, proceed as follows:
See ILL. 11.
a) Lower hammer cylinder to bottom.
b) Rotate hammer by activating lower cylinder, arrow 1, so top of
hammer is in 12 o’clock position. (Viewed from rear of tractor).
c) Tilt hammer in by contracting upper tilt cylinder, arrow 2.
d) Stop post driver hydraulic pump.
e) Using skid-steer loader arms, raise Post Driver.
CAUTION: NEVER ALLOW ANYONE NEAR THE POST DRIVER WHEN YOU ARE PERFORMING OPERATING FUNCTIONS.
CAUTION: WHEN TRANSPORTING THE POST DRIVER ON A PUBLIC ROAD OR HIGHWAY BY NIGHT OR DURING THE DAY, USE
ACCESSORY LIGHTS AND DEVICES TO GIVE ADEQUATE WARNING TO THE OPERATORS OF OTHER VEHICLES. CHECK
LOCAL REGULATIONS.
CAUTION: BE SURE SMV (SLOW MOVING VEHICLE) EMBLEM IS CLEAN AND VISIBLE BEFORE TRANSPORTING POST DRIVER.
THE SMV EMBLEM WARNS OTHER VEHICLES APPROACHING FROM REAR.
CAUTION: REDUCE SPEED WHEN TRANSPORTING POST DRIVER OVER UNEVEN OR ROUGH TERRAIN.
CAUTION: SHIFT SKID-STEER LOADER INTO A LOWER GEAR WHEN TRANSPORTING POST DRIVER DOWN HILLS OR STEEP
SLOPES.
CAUTION: COMPLY WITH ALL STATE, FEDERAL, AND LOCAL LAWS WHEN TRANSPORTING POST DRIVER ON ROADWAYS.
WARNING: RETRACT HAMMER CYLINDER AND UPPER TILT CYLINDER BEFORE TRANSPORTING POST DRIVER.
Page 14

OPERATING INSTRUCTIONS CONTINUED:
7. MAST EXTENSION KIT (INSTALLATION) - Instructions to convert from low hammer to high hammer. (OPTIONAL)
IMPORTANT: TO PREVENT POST DRIVER FROM FALLING WHILE CONVERTING HAMMER, ATTACH POST DRIVER TO SKID-STEER
LOADER.
a) See ILL. 12. With post driver mounted on skid-steer loader, position hammer so it is in a vertical position, then raise hammer
so rubber bumpers are above bracket, arrow 5. Next, place a safety block between bottom of hammer and bottom of mast.
CAUTION: PLACE A BLOCK BETWEEN BOTTOM OF HAMMER AND BOTTOM OF MAST. IF HYDRAULIC SYSTEM FAILED OR IF
HYDRAULIC LEVER WAS ACCIDENTLY OPERATED, HAMMER COULD FALL CAUSING SERIOUS INJURY OR DEATH.
b) Remove top angle iron bumper stop, arrow 1, from bracket, arrow 6, at top of mast. Next install same bumper stop, lower
bracket, arrow 5, at mid point of mast. Position bumper as shown. Fasten with (2) 1/2" x 1-1/2" hex bolts c/w nuts and locks.
c) Remove safety block and lower hammer so rubber bumpers rest on bumper stop, arrow 6.
d) See ILL. 12. Insert mast extension, arrow 2, into top of mast. Secure to bracket, arrow 7, with (2) 1/2" x 1-1/2" hex bolts c/w
nuts and lockwashers.
e) Remove nut from top of hammer cylinder and allow shaft to retract into cylinder.
f) See ILL. 12. Install lift spacer, arrow 3, inside the hammer lift bracket as shown. Fasten top of lift spacer with (1) 3/4" x 2"
hex bolt c/w nut and lockwasher. Fasten center of lift spacer to front of hammer lift bracket with one (1) backing plate, arrow
4, and one (1) 1/2" x 1-3/4" bolt c/w nut and lockwasher. Locate backing plate, arrow 4, over front of hammer lift bracket.
f) See ILL. 12. Next install hammer cylinder shaft in hole in bottom of lift spacer, arrow 3. Secure shaft with three (3) 3/4" nuts,
one 3/4" locknut on top of lift spacer and two (2) 3/4" jam nuts at bottom of lift spacer. Turn locknut until 1/4" of thread
extends beyond nut. Next tighten top jam nut against bottom of lift spacer. Then lock top jam nut by tightening bottom jam nut
against it, See ILL. 13 , Detail “A”.
IMPORTANT: BE SURE ALL BOLTS AND CYLINDER SHAFT NUTS ARE TIGHT BEFORE USING POST DRIVER.
CAUTION: ALWAYS USE EXTRA CARE WHEN OPERATING POST DRIVER WITH MAST EXTENSION INSTALLED. THE EXTRA
HEIGHT THE HAMMER IS RAISED MAY CAUSE SKID-STEER LOADER AND POST DRIVER TO BECOME UNSTABLE.
Page 15

OPERATING INSTRUCTIONS CONTINUED:
8. MAST EXTENSION KIT (REMOVAL) - Instructions to convert from high hammer to low hammer position. (OPTIONAL)
IMPORTANT: TO PREVENT POST DRIVER FROM FALLING WHILE CONVERTING HAMMER, ATTACH POST DRIVER TO SKID-STEER
LOADER.
a) See ILL. 14. With post driver mounted on skid-steer loader, position hammer so it is in a vertical position and lower hammer on
to bumper stop, arrow 6.
b) Remove mast extension, arrow 2, from top of mast.
c) See ILL. 14. Remove nut from top of hammer cylinder and allow shaft to retract into cylinder.
d) See ILL. 14. Remove lift spacer, arrow 3, front top of hammer.
e) See ILL. 14. Next, pull shaft out of cylinder and insert it through hole in hammer lift bracket, arrow 9. Shaft is secured with three
(3) 3/4" nuts, one 3/4" locknut on top of bracket and two (2) 3/4" jam nuts at bottom of bracket. Turn locknut until 1/4" of
thread extends beyond nut. Next, tighten top jam nut against bottom of lift bracket. Then lock top jam nut by tightening bottom
jam nut against it. See ILL. 15, Detail “A”.
f) See ILL. 14. Use hydraulic system, raise hammer so rubber bumpers are above top bracket, arrow 6. Then place a safety block
between bottom of hammer and bottom of mast.
CAUTION: PLACE A BLOCK BETWEEN BOTTOM OF HAMMER AND BOTTOM OF MAST. IF HYDRAULIC SYSTEM FAILED OR IF
HYDRAULIC LEVER WAS ACCIDENTLY OPERATED, HAMMER COULD FALL CAUSING SERIOUS INJURY OR DEATH.
g) See ILL. 14. Remove lower bumper stop, arrow 6, from bracket, arrow 5. Next remove safety block and lower hammer so rubber
stops rests on bottom stop, arrow 8.
h) See ILL. 14. Fasten hammer stop, arrow 1, to bracket, arrow 7, with two (2) 1/2" x 1-1/2" bolts c/w nuts and lockwashers. (This
is the same bracket (arrow 6) that was removed earlier).
IMPORTANT: BE SURE ALL BOLTS AND CYLINDER SHAFT NUTS ARE TIGHT BEFORE USING POST DRIVER.
Page 16
