EZZY SAILS Power Carve 1999 Quick start guide

Rigging and sail tuning for the 1999 Ezzy Power Carve
1999 Ezzy Power
Carve
Rigging & Fine Tuning
Guide
These tuning tips will make your sail work the way
I designed it to. Use them to find your own perfect
settings. Be sure to rig and de-rig in the same
order as outlined in this guide; you not only get on
the water faster, but you will also extend the life of
your sail.
See you on the water,
David Ezzy

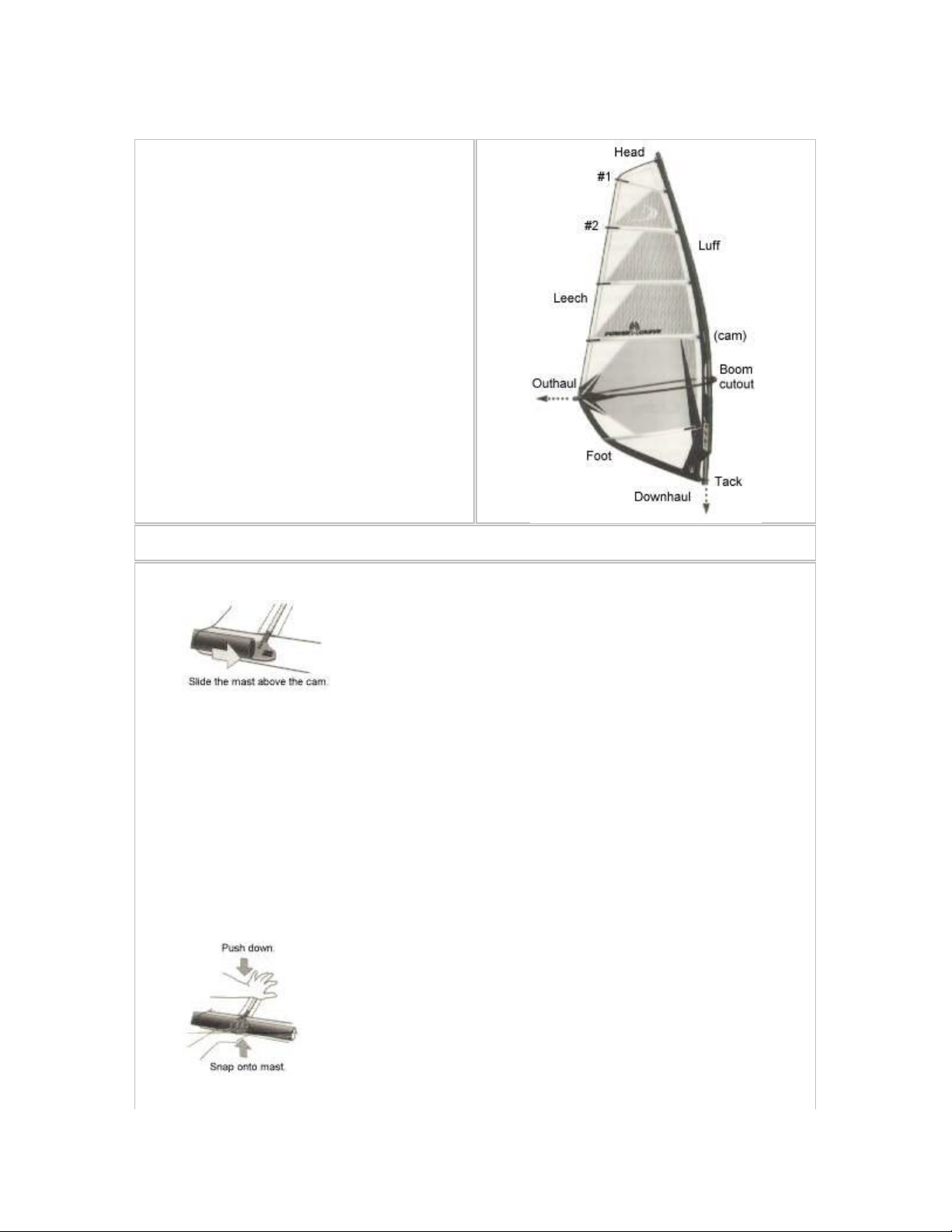

Rigging:
Slide the mast through the luff sleeve. Note: do not slide the mast through the cam, it
should go above the cam.
Attach the mast extension and cleat off the downhaul without tensioning.
Quick Tip -It is easier to attach your boom onto the mast with no downhaul tension.
Attach the boom and outhaul the sail to the boom length (printed on the sail). At this
early stage of rigging, the sail should be outhauled flat in the boom area.
Quick Tip -The boom length is the distance from the clew to the front of the mast at the
center of the boom cutout.
Attach the cam to the mast by pushing down on the batten with the palm of your hand,
approximately 12" (30cm) from the luff sleeve, and snap the cam onto the mast with your
other hand,
Quick Tip -If the cam is difficult to put on the mast, check that the batten tension webbing
is loosened until the Velcro touches the buckle. This will allow the cam to slide further from
4.
3.
2.
1.
Page 1

Rigging and sail tuning for the 1999 Ezzy Power Carve
is loosened until the Velcro touches the buckle. This will allow the cam to slide further from
the mast and will make it easier to get the cam onto the mast. Also, make sure thesail is
outhauled flat before attempting to snap the cam onto the mast.
Downhaul the sail until the leech goes loose between battens #1 and #2. Use the
diagonal seam and the sail logo as a reference. For light wind, the looseness should extend to
the diagonal seam. For strong wind, the looseness should extend to the back edge of the
Carve logo.
Quick Tip -The amount of downhaul tension will vary for different wind conditions: A high-wind
setting requires more downhaul tension to loosen the leech and give more twist. For lighter
wind, the sail will perform better with less downhaul. This gives the sail a tighter leech and
better low-end power.
Quick Tip -Normally, when changing the downhaul setting, the outhaul must also be
adjusted. For example, in strong wind, you will add more downhaul and more outhaul and in
light wind you will reduce the downhaul and outhaul.
Quick Tip -Always keep your base extension at its shortest possible setting. If there is not
enough space for downhauling and you have mast extending from the top, use the adjustable
top to raise the sail up on the mast rather than extend you base.
Now, tension all of the battens. Start at the batten above the boom, pull on the batten
strap while pushing the palm of your other hand against the batten end-cap. Tension
all battens until the vertical wrinkles running through the pockets disappear.
Quick Tip -It is possible to over-tension the cam batten, which will cause the cam not ot
rotate. A quick check of this can be done by holding the sail up onland and rotating the cam
by pumping the sail. The cam should rotate smoothly; if it doesn't, decrease the batten
tension.
Quick Tip -The foot batten can be tensioned without opening the foot batten protector. To
tension, place one hand on the mast while pulling the batten tensioner strap with your other
hand.
Release the outhaul totally and then re
-
tension it. For light wind, pull the clew out
7.
6.
5.
Page 2

Rigging and sail tuning for the 1999 Ezzy Power Carve
Release the outhaul totally and then re
-
tension it. For light wind, pull the clew out
approximately 1.0cm (3/8"). For stronger wind pull the clew our approximately 2.5cm
(1").
Quick Tip -Before adjusting the outhaul, push the cam to make sure it is rotated to one side
of the mast.
Check that the camber is not over-rotated. Over rotation can fatigue the cam and the
batten and lead to possible breakage. If the cam is over-rotated, you need more downhaul.
Tension the tack-strap until the edge of the sail beside the tack grommet touches the
side of the mast.
Quick Tip -The correct shape in the lower part of the sail will be attained when the tack of the
sail is pulled up against the mast.
To Change from Cambered Sail to Full Battened Sail:
Outhaul sail fully.
Release cam batten tension at leech end.
Release ALL downhaul tension.
From the opening in the luff sleeve, pull out the camber and batten
From the leech end, insert the tapered end of the batten into the lower of the two
batten pocket openings.
Downhaul until the upper leech goes loose (see again Rigging, step #5).
Tension the batten.
Release the outhaul totally (make sure all battens are rotated ontothe same side of the
mast) and then re-tension it. For light wind, outhaul approximately 2.5cm (1"). For
stronger wind, outhaul approximately 4.0cm (1 1/2").
Quick Tip -With the correct downhaul tension, the luff end of the batten above the boom
should rest approximately 2 cm to 4 cm behind the mast. If it is touching the mast, you need
more downhaul.
9.
8.
7.
8.
7.
6.
5.
4.
3.
2.
1.
Page 3

Rigging and sail tuning for the 1999 Ezzy Power Carve
more downhaul.
De-Rigging:
Quick Tip -To increase the life of your sail, it is recommended that you de-rig in the following order:
Release the cam batten tension (push the release lever located on the center of the
buckle) and tack-strap.
Release downhaul.
Snap cam off of mast
Release outhaul and remove boom.
Slide mast out of luff sleeve without creasing sail.
Roll sail from the top and use the strap we've provided to tie the sail.
Insert the sail into the sail bag with the sleeve-end first.
Sail Care:
Sunlight:
Sunlight will break down all sailcloth in a relatively short time (300 hours of direct sunlight).
Don't dry off your sails in the sun! It is better tot dry them in the shade, or to roll up wet.
Creasing:
Creasing damages sail cloth. When rigging and de-rigging, try not to crease your sail or let it
flap in the wind.
Sand:
Sand will scratch the sailcloth film and can clog the batten tensioners. Try to roll your sail
sand-free.
Cleaning:
Use a mild soap and water with a rag to clean your sail. Harsh solvents may damage the sail
cloth.
Contrary to what most people think, you do not need to fresh-water rinse your sail.
The vinyl window can be cleaned by washing with fresh-water and polishing with dry towel.
Storage:
It will not damage your sail to store it with the battens fully tensioned.
If storing your rolled sail vertically, make sure the sleeve-end is supporting the weight. This
prevents the clew from getting damaged.
Trouble-Shooting:
Problem:
Possible Solution:
7.
6.
5.
4.
3.
2.
1.
Page 4

Rigging and sail tuning for the 1999 Ezzy Power Carve
Problem:
Possible Solution:
Foot batten does not flip:
1. Foot batten has too much curve, give more
downhaul and outhaul.
2.Foot batten is over-tightened, release some
batten tension.
Camber is difficult to get on the mast:
1. Make sure the batten tensioner is completely
released while snapping cam on.
2. Make sure the sail has NO downhaul tension
and is outhauled fully before snapping cam on.
Sail feels too powerful:
1. Sail is too deep, try more outhaul and
downhaul.
2. Mast is too stiff, check that you are using the
correct mast.
Sail lacks power:
1. Sail is too flat, try less outhaul and less
downhaul.
2. Mast is too soft, check that you are using the
correct mast.
Camber does not flip: 1. Camber batten too tight, release a little batten tension.
2. Cam is under-rotated, need less downhaul.
Camber comes off of mast: 1. Camber is over-bending, need more downhaul. 2. Mast diameter is larger than normal, lengthen
the webbing straps on the cam.
Sail feels heavy: 1. Leech is too tight, try more downhaul.
Page 5
