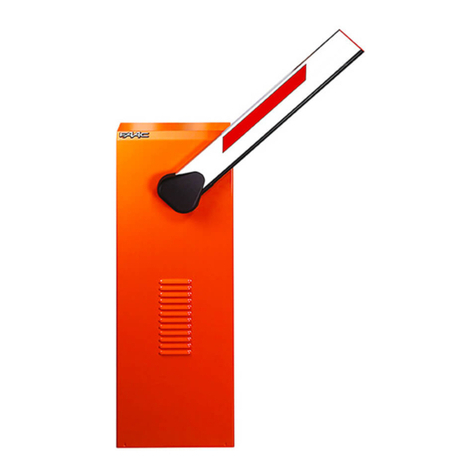

FAAC 630 Series User manual

630
630
ist umweltfreundlich
100% Altpapier
pour la nature
papier recyclé 100%
for nature
recycled paper 100%
per la natura
carta riciclata 100% para la naturaleza
100% papel reciclado
C
E
R
M
E
T
A
Z
I
E
N
D
A
C
E
R
T
I
F
I
C
A
T
A
UNI EN ISO 9001-085

para la naturaleza
100% papel reciclado
ist umweltfreundlich
100% Altpapier
pour la nature
papier recyclé 100%
for nature
recycled paper 100%
per la natura
carta riciclata 100%
FAAC écologique
• La présente notice a été réalisée 100% avec du papier recyclé.
• Nepasjeterdanslanaturelesemballagesdescomposantsdel’automatisme,
mais sélectionner les différents matériaux (ex.: carton, polystyrène) selon la
législation locale pour l’élimination des déchets et les normes en vigueur.
FAAC por la naturaleza.
• El presente manual de instrucciones se ha realizado, al 100%, en papel
reciclado.
• Los materiales utilizados para el embalaje de las distintas partes del sistema
automático (cartón, poliestireno) no deben tirarse al medio ambiente, sino
seleccionarse conforme a las prescripciones locales y las normas vigentes
para el desecho de residuos sólidos.
Die Beschreibungen und Abbildungen in vorliegendem Handbuch sind
unverbindlich. FAAC behält sich das Recht vor, ohne die wesentlichen
Eigenschaften dieses Gerätes zu verändern und ohne Verbindlichkeiten in Bezug
auf die Neufassung der vorliegenden Anleitungen, technisch bzw. konstruktiv/
kommerziell bedingte Verbesserungen vorzunehmen.
Las descripciones y las ilustraciones de este manual no comportan compromiso
alguno. FAAC se reserva el derecho, dejando inmutadas las características
esencialesdelosaparatos,deaportar,encualquiermomentoysincomprometerse
a poner al día la presente publicación, todas las modificaciones que considere
oportunas para el perfeccionamiento técnico o para cualquier otro tipo de
exigencia de carácter constructivo o comercial.
Le descrizioni e le illustrazioni del presente manuale non sono impegnative. La FAAC
si riserva il diritto, lasciando inalterate le caratteristiche essenziali dell’apparecchia-
tura, di apportare in qualunque momento e senza impegnarsi ad aggiornare la
presentepubblicazione, le modificheche essa ritieneconvenienti per miglioramenti
tecnici o per qualsiasi altra esigenza di carattere costruttivo o commerciale.
Thedescriptionsandillustrationscontainedinthepresentmanualarenotbinding.
FAAC reserves the right, whilst leaving the main features of the equipments
unaltered, to undertake any modifications it holds necessary for either technical
or commercial reasons, at any time and without revising the present publication.
Les descriptions et les illustrations du présent manuel sont fournies à titre indicatif.
FAAC se réserve le droit d’apporter à tout moment les modifications qu’elle
jugera utiles sur ce produit tout en conservant les caractéristiques essentielles,
sans devoir pour autant mettre à jour cette publication.
FAAC per la natura
• La presente istruzione è realizzata al 100% in carta riciclata.
• Nondisperdetenell'ambientegliimballaggideicomponentidell'automazio-
ne bensì selezionate i vari materiali (es. cartone, polistirolo) secondo
prescrizioni locali per lo smaltimento rifiuti e le norme vigenti.
FAAC for the environment
• The present manual is produced in 100% recycled paper
• Respect the environment. Dispose of each type of product packaging
material (card, polystyrene) in accordance with the provisions for waste
disposal as specified in the country of installation.
FAAC der Umwelt zuliebe
• Vorliegende Anleitungen sind auf 100% Altpapier gedruckt.
• Verpackungsstoffe der Antriebskomponenten (z.B. Pappe, Styropor) nach
den einschlägigen Normen der Abfallwirtschaft sortenrein sammeln.
DECLARACIÓN DE CONFORMIDAD
SEGÚN LAS NORMAS ISO/IEC GUÍA 22 EN 45014
NOMBRE DEL FABRICANTE: FAAC S.p.A.
DIRECCIÓN DEL FABRICANTE: FAAC S.p.A.
Via Benini, 1
40069 - Zola Predosa
BOLOGNA - ITALIA
Declara, bajo su propia y exclusiva responsabilidad, que los productos
Modelos/Serie: 402- 422 - 400 -750-760 - 746 - 844-820- 860 - 590.1-593
- 580 - 595 - 550 - 500 RC - 503 RC - 560 - 630 - 620 - 640 -
642-770-748-412-401MPS-402MPS-444MPS-440MPS
-844MP - 844 MPS -844B/C-400B/C - INTELLIGENT LAMP
- T 10 - T 11 - T 20 -T 21 - FAAC SWITCH - METAL DIGIKEY -
DIGICARD - DECODER - DETECTOR F4 - MINISERVICE -
GRUPPO ANTIPANICO - SCHEDA RELE - SCHEDA FSW -
SCHEDA SLAVE - SCHEDA RSA - SCHEDA PRELAMP -
FOTOSWITCH-MINIBEAM-FAACLAMP-FAACMULTILAMP
- FAAC BILAMP - FAAC MINILAMP - 226 L - 226 M - 226 T -
220 M - 220 T - 227 - 200 B.T. - 200 MPS - UNIDEC - 900
a los cuales esta declaración se refiere son conformes a las normas:
EN 50081-1 (1992)
EN 50082-1 (1992)
con arreglo a lo dispuesto por la directiva EMC 89/336/CEE.
Nota:
los productos mencionados han sido sometidos a pruebas en una
configuración típica homogénea (todo producto fabricado por FAAC S.p.A.).
Bologna, 20 de diciembre de 1995.
Presidente Administrador
Delegado
KONFORMITÄTSERKLÄRUNG
NACH ISO/IEC NORM, RICHTLINIE 22 EN 45014
HERSTELLERNAME: FAAC S.p.A.
HERSTELLERANSCHRIFT: FAAC S.p.A.
Via Benini, 1
40069 - Zola Predosa
BOLOGNA - ITALY
Hiermit erklären wir eigenverantwortlich, daß die Produkte:
Modelle/Serie: 402-422 - 400 - 750 -760 -746 -844 -820 -860-590.1-593
- 580 - 595 - 550 - 500 RC - 503 RC - 560 - 630 - 620 - 640 -
642-770-748-412-401MPS-402MPS-444MPS-440MPS
-844 MP -844MPS-844 B/C-400B/C- INTELLIGENTLAMP
- T 10 - T 11 - T 20 -T 21 - FAAC SWITCH - METAL DIGIKEY -
DIGICARD - DECODER - DETECTOR F4 - MINISERVICE -
GRUPPO ANTIPANICO - SCHEDA RELE - SCHEDA FSW -
SCHEDA SLAVE - SCHEDA RSA - SCHEDA PRELAMP -
FOTOSWITCH-MINIBEAM-FAACLAMP-FAACMULTILAMP
- FAAC BILAMP - FAAC MINILAMP - 226 L - 226 M - 226 T -
220 M - 220 T - 227 - 200 B.T. - 200 MPS - UNIDEC - 900
auf welche sich diese Erklärung bezieht, den Normen:
EN 50081-1 (1992)
EN 50082-1 (1992)
entsprechen, wie in der Richtlinie EMC 89/336/EWG vorgesehen.
Anmerkung:
Die o.g. Produkte sind in einer typischen und einheitlichen Weise getestet
(alle von FAAC S.p.A. gebaute Produkte).
Bologna, 20. Dezember 1995
Der Vorsitzende Der Geschäftsführer
DECLARATION OF CONFORMITY
IN ACCORDANCE WITH ISO/IEC STANDARDS GUIDE 22 EN 45014
NAME OF MANUFACTURER: FAAC S.p.A.
ADDRESS OF MANUFACTURER: FAAC S.p.A.
Via Benini, 1
40069 - Zola Predosa
BOLOGNA - ITALY
Theabove company attests,underitssole responsibility,thattheproducts:
Model / Series: 402 - 422 - 400 - 750 - 760 - 746 - 844 - 820 - 860 - 590.1 -
593 - 580 - 595 - 550 - 500 RC - 503 RC - 560 - 630 - 620 -
640 - 642 - 770 - 748 - 412 - 401 MPS - 402 MPS - 444 MPS
- 440 MPS - 844 MP - 844 MPS - 844 B/C - 400 B/C -
INTELLIGENT LAMP - T 10 - T 11 - T 20 -T 21 - FAAC SWITCH
- METAL DIGIKEY - DIGICARD - DECODER - DETECTOR F4
- MINISERVICE - GRUPPO ANTIPANICO - SCHEDA RELE -
SCHEDA FSW - SCHEDA SLAVE - SCHEDA RSA - SCHEDA
PRELAMP - FOTOSWITCH - MINIBEAM - FAAC LAMP -
FAACMULTILAMP-FAACBILAMP-FAACMINILAMP-226
L - 226 M - 226 T - 220 M - 220 T - 227 - 200 B.T. - 200 MPS
- UNIDEC - 900
referred to in this declaration, meet the following standards:
EN 50081-1 (1992)
EN 50082-1 (1992)
in accordance with the provisions as specified in the EMC directive 89/
336/CEE.
Notes:
These products have been subject to testing procedures carried out
under standardised conditions (all products manufactured by FAAC
S.p.A.).
Bologna, 20 December 1995
The Chairman The Managing
DICHIARAZIONE DI CONFORMITÀ
SECONDO LE NORME ISO/IEC GUIDA 22 EN 45014
NOME DEL FABBRICANTE: FAAC S.p.A.
INDIRIZZO DEL FABBRICANTE: FAAC S.p.A.
Via Benini, 1
40069 - Zola Predosa
BOLOGNA - ITALY
Dichiara, sotto la propria esclusiva responsabilità, che i prodotti:
Modelli/Serie: 402- 422 -400-750- 760-746-844 -820-860- 590.1
- 593 - 580 - 595 - 550- 500 RC - 503 RC - 560 - 630 -
620 - 640 - 642 - 770 - 748 - 412 - 401 MPS - 402 MPS
- 444 MPS - 440 MPS - 844 MP - 844 MPS - 844 B/C -
400 B/C - INTELLIGENT LAMP - T 10 - T 11 - T 20 -T 21
- FAAC SWITCH - METAL DIGIKEY - DIGICARD -
DECODER - DETECTOR F4 - MINISERVICE - GRUPPO
ANTIPANICO-SCHEDARELE- SCHEDA FSW - SCHE-
DA SLAVE - SCHEDA RSA - SCHEDA PRELAMP -
FOTOSWITCH - MINIBEAM - FAAC LAMP - FAAC
MULTILAMP-FAAC BILAMP -FAACMINILAMP -226
L - 226 M - 226 T - 220 M - 220 T - 227 - 200 B.T. - 200
MPS - UNIDEC - 900
ai quali questa dichiarazione si riferisce, sono conformi alle norme:
EN 50081-1 (1992)
EN 50082-1 (1992)
in base a quanto previsto dalla direttiva EMC 89/336/CEE.
Note aggiuntive:
questi prodotti sono stati sottoposti a test in una configurazione tipica
omogenea (tutti prodotti di costruzione FAAC S.p.A.).
Bologna, 20 Dicembre 1995
Il Presidente L'Amministratore
Delegato
DECLARATION DE CONFORMITE
SUIVANT ISO/IEC GUIDE 22 EN 45014
NOM DU FABRICANT: FAAC S.p.A.
ADRESSE DU FABRICANT: FAAC S.p.A.
Via Benini, 1
40069 - Zola Predosa
BOLOGNA - ITALIE
atteste sous sa propre responsabilité, que les produits:
Modèles/Série: 402 - 422 - 400 - 750 - 760 - 746 - 844 - 820 - 860 - 590.1 - 593
- 580 - 595 - 550 - 500 RC - 503 RC - 560 - 630 - 620 - 640 - 642
-770-748- 412 - 401 MPS - 402 MPS -444 MPS -440 MPS -844
MP - 844 MPS - 844 B/C - 400 B/C - INTELLIGENT LAMP - T 10
-T11-T20-T21-FAACSWITCH-METALDIGIKEY-DIGICARD
- DECODER - DETECTOR F4 - MINISERVICE - GRUPPO
ANTIPANICO - SCHEDA RELE - SCHEDA FSW - SCHEDA
SLAVE - SCHEDA RSA - SCHEDA PRELAMP - FOTOSWITCH -
MINIBEAM-FAAC LAMP - FAAC MULTILAMP -FAAC BILAMP
- FAAC MINILAMP - 226 L - 226 M - 226 T - 220 M - 220 T - 227
- 200 B.T. - 200 MPS - UNIDEC - 900
faisant l’objet de cette déclaration, répondent aux normes:
EN 50081-1 (1992)
EN 50082-1 (1992)
conformément à la directive EMC 89/336/CEE.
Note supplémentaire:
ces produits ont été soumis à des essais dans une configuration typique
homogène (tous les produits sont fabriqués par FAAC S.p.A.).
Bologna, le 3 décembre 1995
Le Président L'Administrateur
délégué
FAAC S.p.A.
Via Benini, 1
40069 Zola Predosa (BO) - ITALIA
Tel.: [phone] - Tlx.: 521087
Fax: [phone]
Timbro del Rivenditore:/Distributor’s Stamp:/Timbre de l’Agent:
Fachhändlerstempel:/Sello del Revendedor:

1
fig. 4 fig. 5
fig. 6
fig. 8
fig. 9
fig. 7/B
fig. 7/A
5
64
3
1
2
8
7
45°
56
4
3
1
2
8
7
45°

8
ENGLISH
EC MACHINE DIRECTIVE COMPLIANCE DECLARATION
(DIRECTIVE 89/392 EEC,APPENDIX II,PART B)
Manufacturer: FAAC S.p.A.
Address: Via Benini, 1
40069 - Zola Predosa
BOLOGNA - ITALY
Hereby declares that: the 630 automation system
•is intended to be incorporated into machinery, or to be assembled with
othermachinerytoconstitutemachineryincompliancewiththerequirements
of Directive 89/392 EEC, and subsequent amendments 91/368 EEC, 93/44
EEC and 93/68 EEC;
•complieswiththeessentialsafetyrequirementsinthefollowingEECDirectives:
73/23 EEC and subsequent amendment 93/68 EEC.
89/336 EEC and subsequent amendments 92/31 EEC and 93/68 EEC.
and furthermore declares that unit must not be put into service until the
machinery into which it is incorporated or of which it is a component has
been identified and declared to be in conformity with the provisions of
Directive89/392EECandsubsequentamendmentsenactedbythenational
implementing legislation.
Bologna, 1 January 1997
Managing
Director
A. Bassi

9
ENGLISH
IMPORTANT NOTICE FOR THE INSTALLER
GENERAL SAFETY REGULATIONS
1) WARNING! FAAC strongly recommends to follow these instructions literally for the safety of persons. Improper
installation or misuse of the product will cause very serious damages to persons.
2) Packaging material (plastic, polystyrene etc.) is a potential hazard and must be kept out of reach of children.
3) Read the instructions carefully before installing the product.
4) Keep these instructions for future reference.
5) Thisproduct has been designedand manufactured only forthe use stated inthis manual. Anyother use not expressly
set forth will affect the reliability of the product and/or could be source of hazard.
6) FAAC S.p.A. cannot be held responsible for any damage caused by improper use or different from the use for which
the automation system is destined to.
7) Do not use this device in areas subject to explosion: the presence of flammable gas or fumes is a serious hazard.
8) Mechanical constructive elements must comply with UNI8612, CEN pr EN 12604 and CEN pr EN 12605 standards.
Countries outside the EC shall follow the regulations above besides their national normative references in order to
offer the utmost safety.
9) FAAC cannot be held responsible for failure to observe technical standards in the construction of gates and doors,
or for any deformation of the gates which may occur during use.
10) Installation must comply with UNI8612, CEN pr EN 12453 and CEN pr EN 12635.
The degree of safety of the automation must be C+E.
11) Before carrying out any operations, turn off the system’s main switch.
12) An omnipowerswitchshall beprovided forthe installationwithanopeningdistance ofthe contactsof 3mmor more.
Alternatively, use a 6A thermomagnetic breaker with multi-pole switching.
13) Ensure that there is a differential switch up-line of the electrical system, with a trip threshold of 0.03A.
14) Check thatthe earthing plantisin perfect conditionand connect itto the metallicparts. Also earththe yellow/green
wire of the operator.
15) The automation is fitted with an anti-crush safety system that is a torque control device. In any case, further safety
devices shall be installed.
16) The safety devices (e.g. photocells, safety edges, etc.) protect areas wherethere is a mechanical movement
hazard, e.g. crushing, entrapment and cutting.
17) Each installation must be fitted with at least one flashing light (e.g. FAAC LAMP, MINILAMP etc.) as well as a warning
plate suitably fixed to the gate, besides the safety devices as per point 16. above.
18) FAAC cannot beheld responsible regardingsafety and correctfunctioning of the automationin the eventthat parts
other than FAAC original parts are used.
19) Use only FAAC original spare parts for maintenance operations.
20) Do not carry out any modifications to automation components.
21) The installer must supply all information regarding manual operation of the system in the event of an emergency
and provide the end-user with the leaflet attached to the product.
22) Keep out of persons when the product is in operation.
23) Keep out of reach of children the remote radio controls and any control devices. The automation could be
operated unintentionally.
24) The end-user must avoid any attempt to repair or adjust the automation personally. These operations must be
carried out exclusively by qualified personnel.
25) What is not explicitly stated in these instructions is not permitted.

10
ENGLISH
THE 630 AUTOMATION SYSTEM
The 630 system consists of a white aluminium beam fitted
with reflectors and a cataphoresis-treated steel housing
with a polyester finish that holds the hydraulic operator
and is also designed to hold the electronic control unit.
The beam is raised and lowered by the operator which is
a single hydraulic unit consisting of an electric pump and
a piston/rack group.
The system has an adjustable anti-crushing safety system,
a device that stops and locks the beam in any position,
and a convenient manual release device to be used in
the event of a power failure or malfunction.
The beam balance spring and the electronic control unit
(not provided) must be ordered with reference to the
price list.
The 630 system has been designed and constructed for
vehicle access control. It must not be used for any other
purpose.
1. DESCRIPTION AND TECHNICAL CHARACTERISTICS
abase plate
bbarrier housing
celectronic control unit
(not provided)
doil level inspection
window
ecentral breather screw
foil filler cap
gend stop screw
hupper breather screw
ibeam
jemergency release key
kpivot arm
ltorque setting screws
mbalance spring
nspringadjustmenttie-rod
Fig.1
Table 1Technicalcharacteristicsofthe630automationsystem
BARRIER MODEL 630/25 630/35 630/40
Max. beam length (m) 2.5 3.5 4
Maximum open time (s) 358
Angularvelocity (rpm) 532
Pump flow rate (l/min.) 3 1.5 1
Maxtorque(Nm) 110 230 320
Type of beam Rigid/With Skirt/Articulated
Dutycycle 50%
Powersupply 230V~(+6 -10 %) 50Hz
Absorbed power (W) 220
Oiltype FAAC XD 220
Oil quantity (l) 1.2
Motor winding thermal 120°C
cutout
Anti-crushingsystem bypass valve fitted as std.
Temperaturerange -20 ÷ +55 °C
Casingprotectivetreatment cataphoresis
Casingfinish polyester paint, RAL 2004
Housingprotection IP 55
Weight(kg) 43
Housingdimensions 270 x 990 x 171.5
LxHxP(mm)
Technical characteristics of electric motor
Speed(rpm) 2800 1400
Power (W) 200 200
Current drawn (A) 1 1.2
Powersupply 230V~(+6 -10 %) 50Hz
1.1. MAXIMUM DUTY CYCLE CURVE
The curve allows the maximum working time (T) to be
obtained as a function of duty cycle (F).
Forexample,the630operatorscanoperateuninterruptedly
at a duty cycle of 50%.
To ensure good operation, keep to the field of operation
lying below the curve.
Important: The curve refers to a temperature of 24°C.
Exposure to direct sunlight can result in a reduction in duty
cycle to as low as 20%.
Calculating duty cycle
The duty cycle is the percentage of effective working time
(opening + closing) with respect to the total cycle time
(opening + closing + pause times).
It is calculated using the following formula:
Ta + Tc
%F = X 100
Ta + Tc + Tp + Ti
10
7
11
12
13
14
9
8
7
6
5
4
3
2
1
where:
Ta = opening time
Tc = closing time
Tp = pause time
Ti = interval between
one complete
cycle and the
next.
10
20
30
40
50
60
70
80
90
100
012345678910
10 11 12
Percentuale
di lav. %
Tiempo (h)
% Duty cycle % Fréquence
d'utilisation % Benutzungs-
frequenz % Frecuencia
de utilización
Zeit (Std.)
Temps (h)
Time (h)Tempo (h)

11
ENGLISH
2. STANDARD INSTALLATION LAYOUT
4.2. INSTALLING THE BASE PLATE
1) Prepare a foundation plinth as shown in fig. 4 (for soft
ground).
2) Install the base plate as shown in fig. 4, providing one
or more conduits for electrical cables. Use a level to
checkthat the plateis perfectlyhorizontal and waitfor
the cement to set.
4.3. MECHANICAL INSTALLATION
1) Fix the housing to the base plate using the four nuts
provided,asshowninfig.5.Thehousingshouldnormally
be installed with the door on the premises side.
2) Setupthe operatorfor manualoperationas described
in section 6.
3) Remove the two breather screws as shown in fig. 6 and
keep them in a safe place.
4) Determine whether installation is right-handed (Fig. 7/
A) or left-handed (Fig. 7/B) for subsequent reference.
5) Insert the splined shaft (1, fig. 7) into the seat in the
operator; turn it manually as far as it will go in the
opening direction, then turn it back in the opposite
direction by about 10°.
6) Fit the pivot arm (2, fig. 7) onto the splined shaft, tilting
it by 45° as shown in fig. 7.
7) Fit the flange (3, fig. 7) onto the beam (4, fig. 7) using
the screws provided.
8) Keeping the beam vertical, fit it onto the part of the
splined shaft that protrudes outside the housing. The
rubber strip on the bar must be on the closure side.
9) Fasten the beam to the shaft by inserting the screw,
the washer and the centring bushing (5, fig. 7).
10) Fit the cap over the hole (6, fig. 7).
11) Tighten up the screws that secure the pivot arm and
the beam to the shaft.
12) Fit and adjust the balance spring.
4.4. FITTING AND ADJUSTING THE BALANCE SPRING
1) Check that the balance spring is suitable for the type
of beam installed: see section 8.
2) Check that the operator is unlocked: see section 6.
3) Keeping the beam in a vertical position, fit the tie-rod
(7, fig. 7) in such a way as to allow the spring (8, fig. 7)
to be connected to the pivot arm and the tie-rod.
4) Positionthe barat 45°and adjustthe tie-rodso thatthe
spring balances the weight of the bar in this position.
5) Tighten up the two nuts that secure the tie-rod to the
housing.
6) Return to normal operation as described in section 7.
5. START-UP
5.1. CONNECTINGELECTRONICCONTROLUNIT
The electronic control unit must be ordered separately.
Install the electronic control unit following the instructions
provided.
5.2. ADJUSTING TRANSMITTED TORQUE
Usethetwoby-passscrews(fig.8)toregulatethehydraulic
transmitted torque adjustment system.
The red screw adjusts torque during closure.
The green screw adjusts torque during opening.
Turn the screws clockwise to increase torque.
Turn the screws anticlockwise to reduce torque.
a630 operator
bPhotocells
cKey switch
dFlashing light
eReceiver
N.B.: 1) Use suitable rigid and/or flexible conduits for
installation of the electrical cables.
2) Always route the low voltage accessory
connection cables separately from the 230 V~
power supply cables. Use separate sheaths to
avoid any interference.
3. DIMENSIONS
Values are expressed in mm.
4. INSTALLING THE SYSTEM
4.1. PRELIMINARYCHECKS
For safe, correct operation of the automation system,
make sure that the following requirements are met:
•During its movement the beam does not strike against
obstacles or overhead power cables.
•Thecharacteristicsof thegroundmustensure sufficient
support for the foundation plinth.
•There must be no pipes or electrical cables in the area
to be dug for installing the foundation plinth.
•If the housing is located in a vehicle transit area, it is a
good idea to provide protection against accidental
collisions.
•Check that the housing is provided with an efficient
earth connection.
fig.2
fig.3
25
105,3
90

12
ENGLISH
5.3. ADJUSTING END STOP SCREWS
Adjust the position of the beam in the maximum opening
and closing positions by setting the end stop screws as
shown in fig. 9.
5.4 TESTING BARRIER UNIT
Once installation is complete, affix the danger warning
adhesive on the top of the housing (fig. 10).
Carry out a thorough functional check of the barrier unit
andallaccessoriesconnectedtoit.Givethepageentitled
“End-user guide” to the customer and demonstrate how
to operate the barrier correctly, drawing the customer’s
attention to the points of potential danger.
BLOCCA / LOCK
BLOQUE / VERRIEGELT
BLOQUEAR
S
BLOCCA / UNLOCK
DEBLOQUE / ENTRIEGELT
DESBLOQUEAR
BLOCCA / LOCK
BLOQUE / VERRIEGELT
BLOQUEAR
SBLOCCA / UNLOCK
DEBLOQUE / ENTRIEGELT
DESBLOQUEAR
fig. 11-A
fig. 11-B
6. MANUAL OPERATION
If the barrier needs to be operated manually as a result of
a power failure or malfunction, use the unlock device as
follows.
The key provided can be triangular (standard) or
personalised (optional).
- Insert the standard key (fig. 11-A) or the personalised key
(fig. 11-B) in the lock and turn anticlockwise by one
revolution.
- Open or close the barrier manually.
fig. 10
7. RETURNING TO NORMAL OPERATION
To prevent an accidental impulse from activating the
barrier,turn off the system’selectrical power supplybefore
returning to normal operation.
triangular key (standard):
- turn the key clockwise until it stops, then remove it.
personalised key (optional):
- turn the key clockwise until it stops.
- turn the key anticlockwise very slowly to the point where
it can be removed.
8. BALANCE SPRINGS
The 630 barrier unit requires a beam balance spring which
must be ordered separately. The spring varies according
to the length and type of beam (rigid, with skirt or
articulated).
Refer to the tables below to determine the type of spring
required.
8.1. SPRINGS FOR RIGID BEAMS AND BEAMS WITH SKIRTS
Table 2
BALANCE SPRING
Ørigid beam with code
beam skirt
5.5 up to 2.5 m up to 2.5 m 721008
6 2 ÷ 2.5 m 721005
6.5 2.5 ÷ 3 m 2.5 ÷ 3 m 721013
7 3 ÷ 4 m 721006
7.5 3 ÷ 4 m 721007
A = H - 780 mm
B = L - A
A MAX= 2250 mm
8.2. SPRINGS FOR ARTICULATED BEAMS
Table 3
Balancespring table
L (mm) A (mm) code
Up to 2000 1000 ÷1500 721008
1500 ÷2000 721005
1000 ÷1500 721008
2000 ÷3000 1500 ÷ 2000 721005
2000 ÷2250 721013
3000 ÷4000 1000 ÷ 2000 721013
2000 ÷2250 721006

13
ENGLISH
fig. 14
9. ACCESSORIES
SKIRTKIT
The skirt kit serves to increase barrier visibility.
It is available in lengths 2 m and 3 m.
IMPORTANT: If a skirt is fitted the balance spring will have
to be adapted.
SUPPORTFORK
The support fork performs two functions:
- Itpreventsthebeamfrombendingorbreakingifexcessive
force is applied at its end.
- It acts as a rest for the beam in the closed position and
prevents the beam from flexing downwards.
ARTICULATIONKIT
The articulation kit allows the rigid beam to be articulated
to a maximum ceiling height of 3 metres.
IMPORTANT : If the articulation kit is fitted the balance
spring will have to be adapted.
fig. 13
fig. 12 fig. 15
Values are expressed in mm .
15
P2
P1
305 A90
L
To position the support fork base plate, refer to fig. 15,
where:
P1 = barrier base plate
P2 = support fork base plate
L = beam length (in mm)
A = L - 395 (in mm)
10. MAINTENANCE
When performing maintenance always check that the by-
pass screws are set correctly, that the system is balanced
and that the safety devices operate correctly.
10.1. TOPPING UP WITH OIL
Check periodically the quantity of oil inside the tank.
For medium/low duty cycles a yearly check is sufficient; for
more severe operation it is advisable to check every 6
months.
Thelevelmustnotfallbelowthelevelmarkontheinspection
window (4, fig. 1).
To top up, unscrew the filler cap (6, fig. 1) and pour in oil
up to the correct level.
Use exclusively FAAC XD 220 oil.
10.2. BLEEDING AIR FROM HYDRAULIC CIRCUIT
If the beam moves in an irregular manner, this may be due
to the presence of air in the hydraulic circuit.
If it is necessary to bleed the air, proceed as follows:
1) Check that the breather screws have been removed
(fig. 6).
2) Disassemble the beam and the spring / pivot arm unit
from the splined shaft.
3) Set an operating time of about 1 minute on the
electronic control unit.
4) Activate the operator electrically so that it turns to the
end of its travel in both directions of rotation.
5) Repeat this operation several times if necessary.
6) Follow the installation instructions to reassemble.
11. REPAIRS
For repairs, contact an authorised FAAC Service Centre.
POSITIONING OF SUPPORT FORK BASE PLATE

14
ENGLISH
END-USER GUIDE
THE 630 AUTOMATION SYSTEM
Readthe enduser guide carefullybefore using the product
and keep it in a safe place for future reference.
GENERAL SAFETY INSTRUCTIONS
If correctly installed and operated, the 630 automation
system ensures a high level of safety.
However, some simple rules should be followed to avoid
accidents:
- Do not transit underneath the beam while it is moving.
Wait until it is completely raised before transiting
underneath.
- Do not remain stationary under the beam.
- Do not stand in the vicinity of the barrier or allow anyone
else, especially children, to do so and do not place
objects in the vicinity of the barrier. This is particularly
important during operation.
- Keep remote controls or any other control device out of
the reach of children to prevent them from accidentally
operating the barrier unit.
- Do not allow children to play with the barrier unit.
- Do not deliberately obstruct the movement of the beam.
- Make sure that branches or bushes do not interfere with
the movement of the beam.
- Keep the luminous signalling systems efficient and clearly
visible.
- Do not attempt to operate the beam manually without
first unlocking it.
- In the event of a malfunction, unlock the beam to allow
access and call a qualified technician for service.
- After manual operation, disconnect the electrical power
supply from the system before returning to normal
operation.
- Donotmakeanymodificationstocomponentsbelonging
to the barrier unit system.
- Donotattemptto performanyrepairwork ortamperwith
the barrier unit. Call qualified personnel for repairs.
- At least once every six months have the barrier unit, the
safety devices and the earth connection checked by a
qualified technician.
DESCRIPTION
The 630 barrier unit is ideal for controlling vehicle access
areas up to 4 metres wide and with medium transit
frequencies.
The housing contains an extremely compact hydraulic
unit and a beam balance spring.
The beam consists of a white painted aluminium bar with
red reflectors to ensure good visibility even in the dark.
Barrier operation is controlled by an electronic control unit
mounted in an enclosure which assures adequate
protection against atmospheric agents and can be fitted
inside the housing.
The normal position of the beam is closed in a horizontal
position. When the electronic control unit receives an
opening command from the remote radio control or any
other control device, it activates the hydraulic system and
causes the beam to rotate upwards by 90° to the vertical
position and thereby allow access. If automatic operation
has been selected, the beam closes automatically after
the selected pause time.
If semiautomatic operation has been selected, a second
impulse must be sent to close the beam.
An open command given while the beam is closing
causes the beam to reverse direction of movement.
A stop command (if available) stops movement at any
time. For detailed information on barrier operation in the
various operating modes, contact the installation
technician.
The barrier units have safety devices (photocells) that
prevent the beam from closing when they are darkened
by an obstacle. The 630 barrier unit is fitted as standard
with an anti-crushing safety device that limits the torque
transmitted to the beam.
The hydraulic system ensures that the beam can be
locked in any position.
Thebeam canthen beopened manually onlyby usingthe
unlocking device.
The light flashes while the beam is moving.
MANUALOPERATION
If the barrier has to be operated manually due to a power
failure or malfunction, use the unlocking device as follows.
The key provided can be triangular (standard) or
personalised (optional).
- Insertthe standard key(fig. 1)or the personalisedkey (fig.
2) in the lock and turn anticlockwise by one revolution.
- Open or close the barrier manually.
RETURNING TO NORMAL OPERATION
To prevent an accidental impulse from activating the
barrier,turn off the system’selectrical power supplybefore
returning to normal operation.
triangular key (standard):
- turn the key clockwise until it stops, then remove it.
personalised key (optional):
- turn the key clockwise until it stops.
- turn the key anticlockwise very slowly to the point where
it can be removed.
BLOCCA / LOCK
BLOQUE / VERRIEGELT
BLOQUEAR
S
BLOCCA / UNLOCK
DEBLOQUE / ENTRIEGELT
DESBLOQUEAR
fig. 1
BLOCCA / LOCK
BLOQUE / VERRIEGELT
BLOQUEAR
SBLOCCA / UNLOCK
DEBLOQUE / ENTRIEGELT
DESBLOQUEAR
fig. 2
