FAAC 630 Series User manual

1
ENGLISH
CE DECLARATION OF CONFORMITY FOR MACHINES................................................................................................. 2
WARNINGS FOR THE INSTALLER ................................................................................................................................. 2
1. DESCRIPTION AND TECHNICAL SPECIFICATIONS ................................................................................................... 3
1.1 MAXIMUM USE CURVE............................................................................................................................................. 4
6 MANUAL MODE OPERATION .................................................................................................................................. 7
7 RESTORING NORMAL OPERATION MODE................................................................................................................ 7
8 MAINTENANCE ...................................................................................................................................................... 7
8.1 TOPPING UP OIL ...................................................................................................................................................... 7
8.2 BLEEDING OPERATION ............................................................................................................................................. 7
9 REPAIRS ................................................................................................................................................................. 8
10 CHANGING THE RH (LH) VERSION OF THE BARRIER INTO THE LH (RH) VERSION ...................................................... 8
11 AVAILABLE ACCESSORIES .................................................................................................................................... 8
12 DETAILED TECHNICAL SPECIFICATIONS................................................................................................................. 10
INDEX
2 ELECTRIC PREPARATIONS (standard system) ..........................................................................................................4
3 DIMENSIONS ......................................................................................................................................................... 4
3.1 BARRIER 630.................................................................................................................................................... 4
3.2BARRIER 630PLUS - 640..................................................................................................................................4
4 INSTALLING THE AUTOMATED SYSTEM....................................................................................................................4
4.1 PRELIMINARY CHECK..............................................................................................................................................4
4.2 MASONRY FOR FOUNDATION PLINTH......................................................................................................................4
4.3 MECHANICAL INSTALLATION ..................................................................................................................................5
4.3.1 BARRIER 630...................................................................................................................................................5
4.3.2 BARRIER 630PLUS - 640................................................................................................................................6
4.4 ADJUSTING THE BALANCING SPRING.......................................................................................................................6
5 START-UP................................................................................................................................................................. 6
5.1 CONNECTION TO CONTROL BOARD ....................................................................................................................... 6
5.2 ADJUSTING THE TRANSMITTED TORQUE.................................................................................................................... 6
5.3 ADJUSTING THE TRAVEL LIMIT SLOW DOWN............................................................................................................. 6
5.4 AUTOMATED SYSTEM TEST........................................................................................................................................ 7

2
ENGLISH
CE DECLARATION OF CONFORMITY FOR MACHINES
(DIRECTIVE 98/37/EC)
Manufacturer: FAAC S.p.A.
• conforms to the essential safety requirements of the other following EEC directives:
.
Bologna, 01 June 2007
The Managing Director
A. Bassi
1) ATTENTION! To ensure the safety of people, it is important that you read
all the following instructions. Incorrect installation or incorrect use of the
product could cause serious harm to people.
2) Carefully read the instructions before beginning to install the product.
3) Do not leave packing materials (plastic, polystyrene, etc.) within reach
of children as such materials are potential sources of danger.
4) Store these instructions for future reference.
5) This product was designed and built strictly for the use indicated in this
documentation. Any other use, not expressly indicated here, could
compromise the good condition/operation of the product and/or be
a source of danger.
6) FAAC declines all liability caused by improper use or use other than that
for which the automated system was intended.
7) Do not install the equipment in an explosive atmosphere: the presence
of inflammable gas or fumes is a serious danger to safety.
8) The mechanical parts must conform to the provisions of Standards
EN 12604 and EN 12605.
For non-EU countries, to obtain an adequate level of safety, the
Standards mentioned above must be observed, in addition to national
legal regulations.
9) FAAC is not responsible for failure to observe Good Technique in
the construction of the closing elements to be motorised, or for any
deformation that may occur during use.
10) The installation must conform to Standards EN 12453 and EN 12445.
For non-EU countries, to obtain an adequate level of safety, the
Standards mentioned above must be observed, in addition to national
legal regulations.
11) Before attempting any job on the system, cut out electrical power.
12) The mains power supply of the automated system must be fitted with
an all-pole switch with contact opening distance of 3mm or greater.
Use of a 6A thermal breaker with all-pole circuit break is
recommended.
13) Make sure that a differential switch with threshold of 0.03 A is fitted
upstream of the system.
14) Make sure that the earthing system is perfectly constructed, and connect
metal parts of the means of the closure to it.
15) The automated system is supplied with an intrinsic anti-crushing safety
device consisting of a torque control. Nevertheless, its tripping threshold
must be checked as specified in the Standards indicated at point 10.
16) The safety devices (EN 12978 standard) protect any danger areas
against mechanical movement Risks, such as crushing, dragging, and
shearing.
17) Use of at least one indicator-light (e.g. FAACLIGHT) is recommended
for every system, as well as a warning sign adequately secured to the
frame structure, in addition to the devices mentioned at point “16”.
18) FAAC declines all liability as concerns safety and efficient operation of
the automated system, if system components not produced by FAAC
are used.
19) For maintenance, strictly use original parts by FAAC.
20) Do not in any way modify the components of the automated
system.
21) The installer shall supply all information concerning manual operation
of the system in case of an emergency, and shall hand over to the user
the warnings handbook supplied with the product.
22) Do not allow children or adults to stay near the product while it is
operating.
23) Keep radiocontrols or other pulse generators away from children, to
prevent the automated system from being activated involuntarily.
24) Transit is permitted only when the automated system is idle.
25) The user must not attempt any kind of repair or direct action whatever
and contact qualified personnel only.
26) Maintenance: check at least every 6 months the efficiency of the
system, particularly the efficiency of the safety devices (including, where
foreseen, the operator thrust force) and of the release devices.
27) Anything not expressly specified in these instructions is not permitted.
WARNINGS FOR THE INSTALLER
GENERAL SAFETY OBLIGATIONS
73/23/EEC and subsequent amendment 93/68/EEC.
89/336/EEC and subsequent amendment 92/31/EEC and 93/68/EEC
Furthermore, the manufacturer declares that the machinery must not be put into service until the machine into
which it will be integrated or of which it will become a component has been identified and its conformity to the
conditions of Directive 89/392/EEC and subsequent modifications assimilated in Italian National legislation under
Presidential Decree No. 459 of 24 July 1996 has been declared.
• is built to be integrated into a machine or to be assembled with other machinery to create a machine under
the provisions of Directive 98/37/EEC and subsequent amendments 91/368 EEC, 93/44 EEC and 93/68 EEC;
Address: Via Benini, 1 - 40069 Zola Predosa BOLOGNA - ITALY
Declares that: Barrier mod.630, 630 PLUS,mod. 642

3
ENGLISH
The automated system consists of a white beam in aluminium,
with reflex reflectors and a steel upright. The operator is located
inside the upright, and consists of a hydraulic control unit and two
plunging pistons which, by means of a rocker, rotate the beam.
The beam stays balanced thanks to a balancing spring assembled
on one of the plunging pistons. The electronic control unit is also
housed in the upright, inside a waterproof compartment.
The system is supplied with an adjustable anti-crushing safety
device. It also includes a device stopping and locking the beam
in any position, and a handy manual release for use in case of
power cuts or faults.
Fig. 1

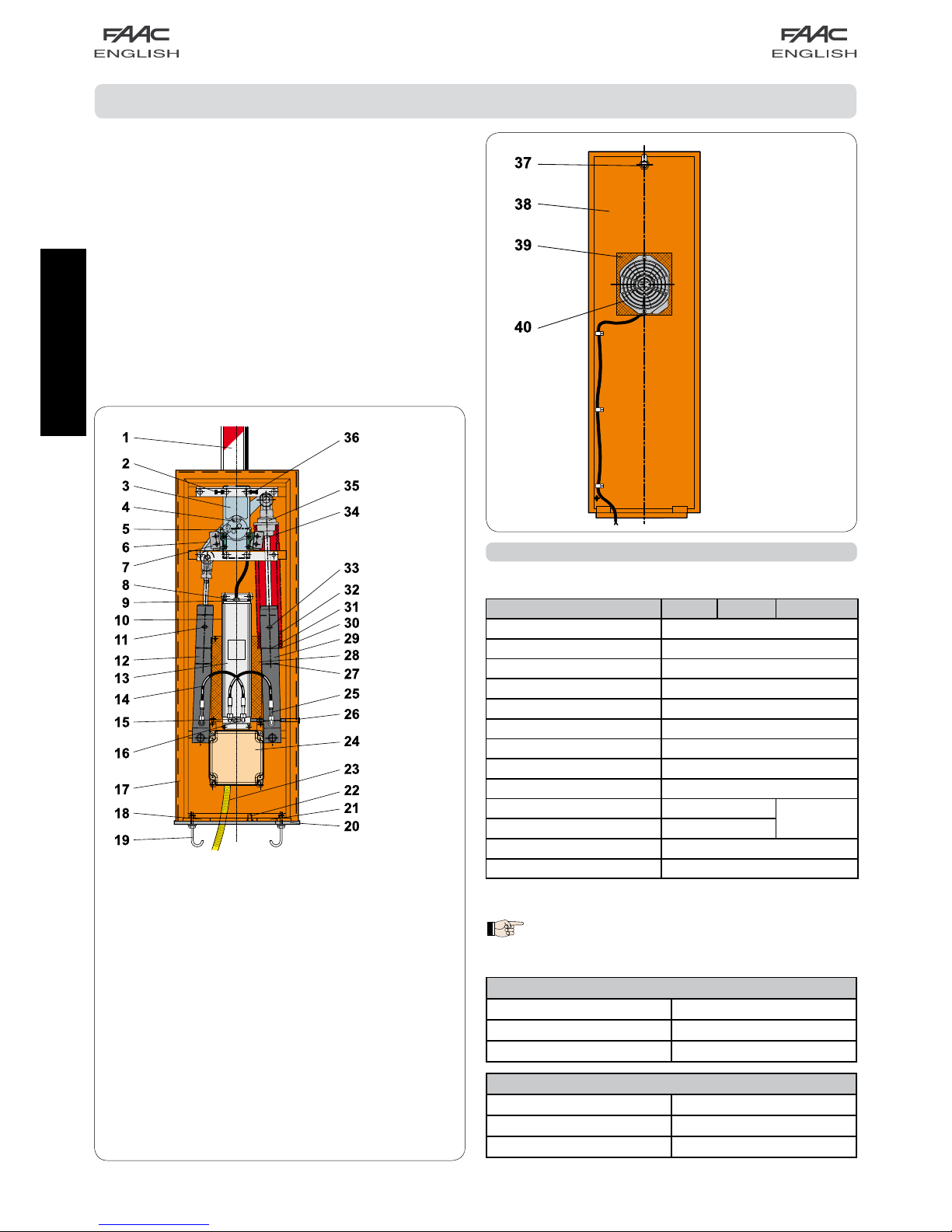

1Beam
2Travel limit mechanical stop device
3Drive transmission unit
4Adjustable travel limit cam RH
5Adjustable travel limit cam LH
6Rocker
7LH travel limit device
8Oil filling plug
9Breather screw
10 Cooling fins
11 Piston bleed screw LH
12 Plunging piston LH
13 Hydraulic control unit
14 Feeder pipe LH
15 CLOSING by-pass screw
16 OPENING by-pass screw
17 Upright
18 Hole for cables LH
19 Tie rod
20 Foundation plate
21 Hole for cables RH
22 Earth connector securing screw
23 Cable routing sheath
24 Electronic control board
25 Feeder pipe RH
26 Manual release
27 Spring support position length: 460 mm
28 Protective grid for air intakes
29 Plunging piston RH
30 Spring support position length: 400 mm
31 Balancing spring support
32 Balancing spring
33 Piston bleed screw RH
34 Travel limit device RH
35 Balancing adjustment ring-nut
36 Travel limit mechanical stop device
Fig. 2
37 Lock
38 Hatch
39 Protective grid for air intakes
40 Cooling fan
(sonly 620 rapid, 640 and 642)
1. DESCRIPTION AND TECHNICAL SPECIFICATIONS
TAB. 1 Technical specifications (*)
Hood protective treatment Cataphoresis AISI 316 L
stainless steel
Hood painting Polyester RAL 2004
Protection class IP44
Upright dimensions LxHxP (mm) see Fig. 4 and 5
(*) For more details about the selected barrier model,
refer to chapter 12
TECHNICAL DETAILS OF 1400 rpm ELECTRIC MOTOR
Power supply (Vac{+6%/ -10%}/Hz)
230 / 50
Absorbed power (W)
200
Absorbed current (A)
1
TECHNICAL DETAILS OF 2800 rpm ELECTRIC MOTOR
Power supply (Vac{+6%/ -10%}/Hz)
230 / 50
Absorbed power (W)
200
Absorbed current (A)
1
AUTOMATED SYSTEM 630 - 630PLUS - 640
The 630-630 PLUS-640 automated systems weredesigned
andbuilt to control vehicle access.Do not use for any other
purpose.
BARRIER MODEL 630630PLUS 640
Power supply (Vac / Hz) 230 {+6%/ -10%} / 50
Absorbed power (W) 220
Absorbed current (A) 1
Type of oil FAAC HP OIL
Oil quantity (Lt) ~ 1.8
Winding heat protection (°C) 120
Anti-crushing system standard by-pass valves
Type of slow-down Electronic
Operating ambient temperature (°C) -20 / +55

4
L
380
230
50
1080
390
850
50
100
200
25 165
Ø 85
144
1080
L
LP=L-144
25
105,3
90
Ø 85
ENGLISH
1.1 MAXIMUM USE CURVE
Use frequency graph
Important: The curve is obtained at a temperature of 24 °C.
Exposure to the direct sun rays can reduce use frequency down
to 20%
Calculation of use frequency
The percentage of effective work time (opening + closing)
compared to total time of cycle (opening + closing + pause
times).
Calculation formula:
Ta + Tc
%F = X 100
Ta + Tc + Tp + Ti
where:
Ta = opening time
Tc = closing time
Tp = pause time
Ti = interval time between one complete cycle and another
2 ELECTRIC PREPARATIONS (standard system)
Fig. 3
Notes:
1) To lay cables, use adequate rigid and/or flexible tubes.
2) Always separate connection cables of low voltage
accessories from those operating at 230v~. To prevent any
interference whatever, use separate sheaths.
3 BARRIER DIMENSIONS
Fig. 4
Dimensions are in mm.
Fig. 5
Dimensions are in mm.
4 INSTALLING THE AUTOMATED SYSTEM
4.1 PRELIMINARY CHECKS
To ensure safety and an efficiently operating automated system,
make sure the following conditions are observed:
• When moving, the beam must not, on any account, meet
any obstacles or overhead power cables.
• The soil must permit sufficient stability for the foundation
plinth.
• There must be no pipes or electrical cables in the plinth
excavation area.
• if the barrier body is exposed to passing vehicles, install, if
possible, adequate means of protection against accidental
impact.
• Check if an efficient earth socket is available for connecting
the upright.
e Radio receiver
f Magnetic loops
4.2 MASONRY FOR FOUNDATION PLINTH
WALL THE FOUNDATION PLATE TO ALLOW EASY ACCESS
TO THE BARRIER HATCH.
The curve makes it possible to establish maximum work time (T)
according to use frequency (F).
E.g.: Operators 630,630PLUS, 640R/40 and 640/70 can
operate non-stop at 100% use frequency as they are provided
with a cooling fan. Models 630 standard and 640 std/40 can
operate non-stop at 70% use frequency.
To ensure efficient operation, operate in the work range under
the curve.
 Barriers mod. 630 / 630 PLUS / 640
b Photocells
c Key push-button
d Flashing light

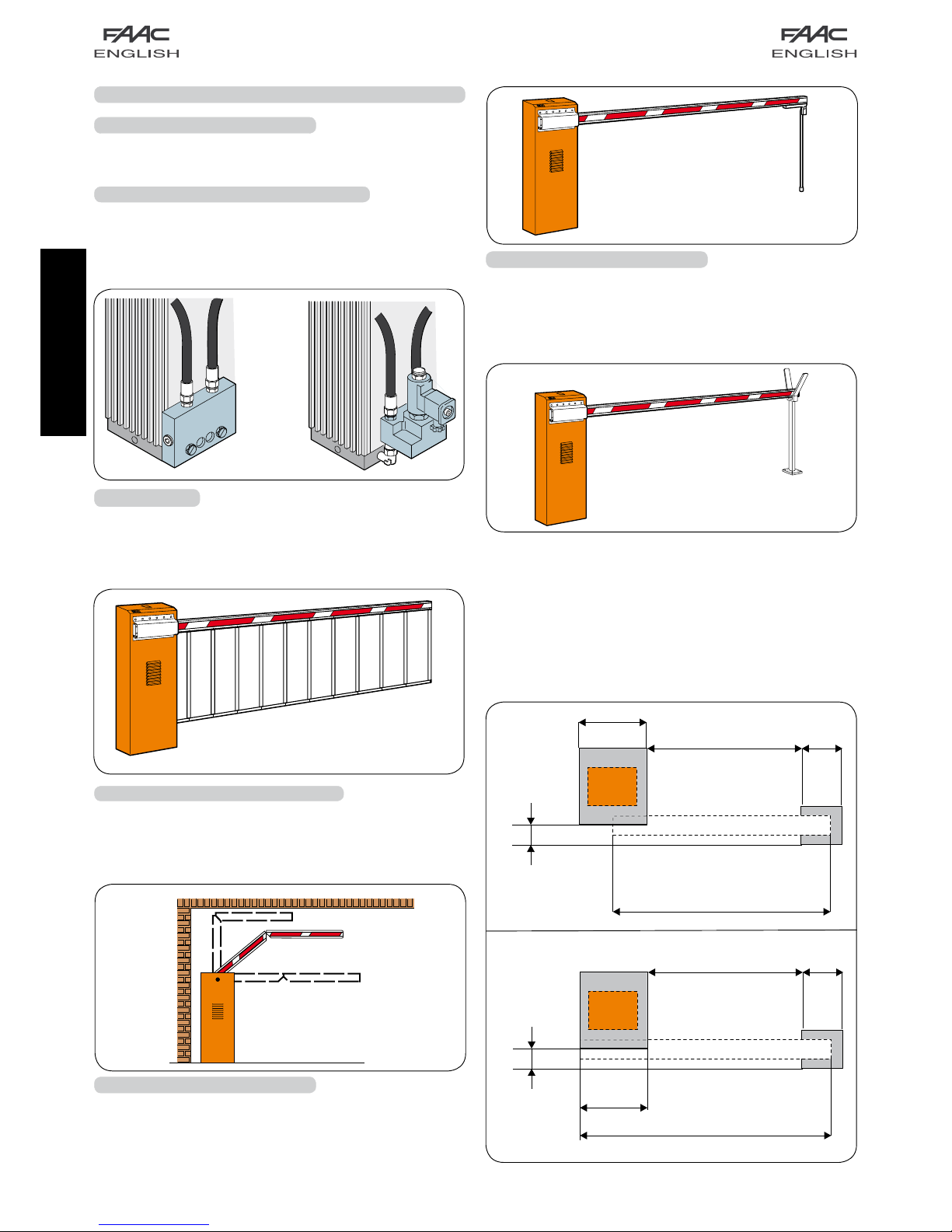

3.1 BARRIER 630
3.2 BARRIERS 630 PLUS - 640

5
A
600 mm
400 mm
500 mm
5 mm
==
==
B
A
D
C
BA B
C
D
ENGLISH
1) Fasten the upright on the foundation plate using the four
supplied nuts (fig.8) and checking the configuration of the
barrier as in figure 7.
Remember that the hatch of the upright should normally
face the building.
2)
Set the operator for manual operation as described in chapter 6.
3) Remove and store the breather screws as shown in Fig.9.

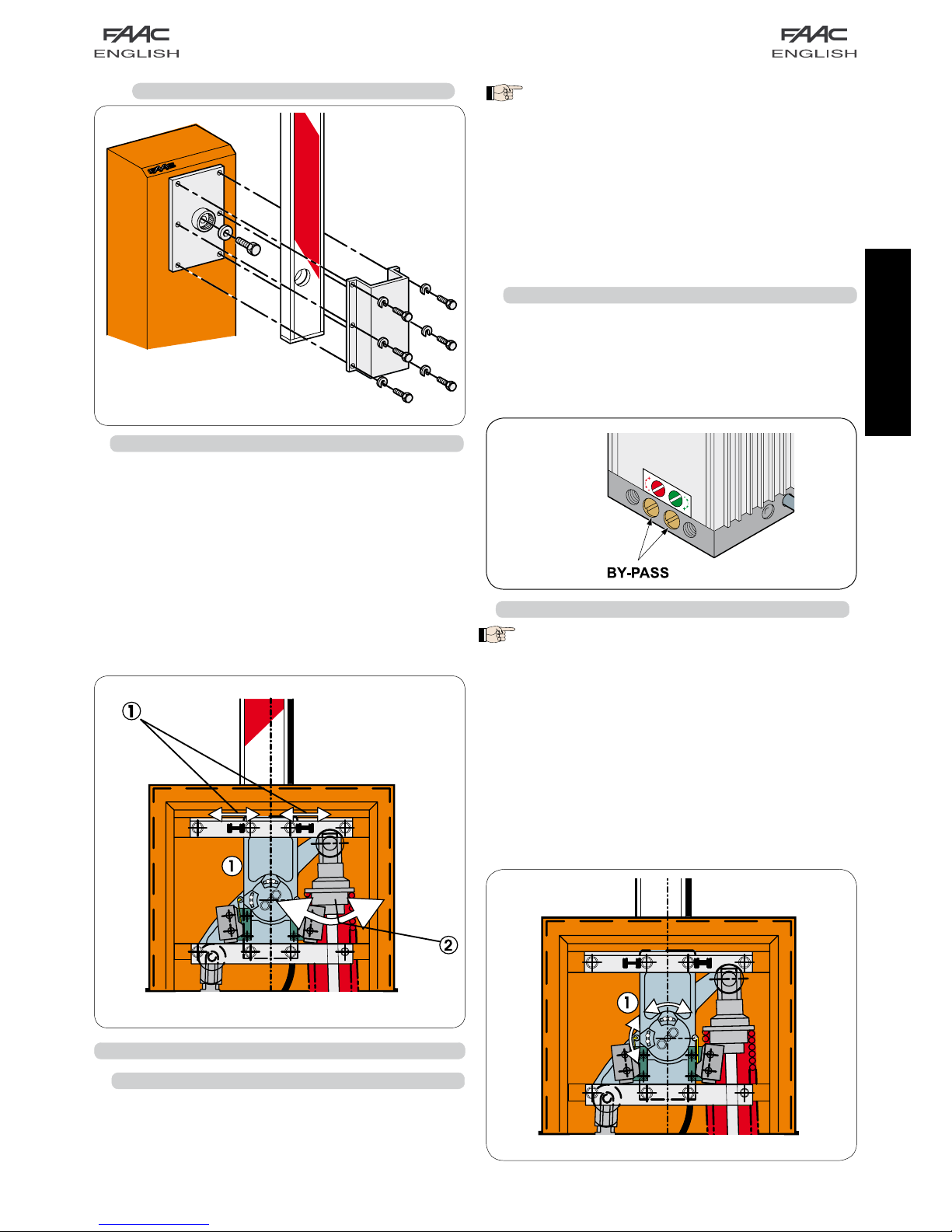

4) Assemble the beam, using the supplied screws, as shown in
figures 10 or 11 (The rubber profile of the beam must face
in closing direction).
5) Adjust the opening and closing travel limit mechanical stops
as per fig.12 . and verify beam balancing following the
instructions in paragraph 4.4.
1) Assemble the foundation plate as in fig.6. ref. 
2) Make a foundation plinth as shown in fig.4 ref.b(referred to
clayey soil)
3) Wall the foundation plinth as shown in fig.6, ref.b, supplying
one or more sheaths for routing electrical cables. Using a
spirit level, check if the plate is perfectly level. Wait for the
cement to set.
Fig. 6
Fig. 7
4.3 MECHANICAL INSTALLATION
Fig. 9
Fig. 8
Fig. 10
When the barrier
is open, the spring
MUST NOT be
compressed
RH LH
DIMENSION
630 630P-640
A360 390
B290 320
C200 230
D94 124
4.3.1 BARRIER 630

6
ENGLISH
4.4 ADJUSTING THE BALANCING SPRING.
IMPORTANT: The barrier is supplied already balanced for the
exact length of the beam indicated in the order.
(The barrier is balanced when the beam stays idle in the 45°
position)
For any fine tuning of barrier balancing, proceed as follows:
1) Make sure that the operator is released: see chapter 6.
2) If the barrier tends to close, turn the spring pre-loading
ring-nut (Fig.12 ref.b) clockwise, if it tends to open, turn it
anti-clockwise.
Fig. 12
5 START-UP
5.1 CONNECTION TO CONTROL BOARD
IMPORTANT: Before attempting any work on the control board
(connections, maintenance, etc), always turn off power.
5.2 ADJUSTING THE TRANSMITTED TORQUE
To set the hydraulic system for controlling transmitted torque, turn
the two by-pass screws (Fig. 13).
The red screw controls closing movement torque.
The green screw controls opening movement torque.
To increase torque, turn the screws clockwise.
To reduce torque, turn the screws anti-clockwise.
5.3 ADJUSTING THE TRAVEL LIMIT SLOW DOWN
For beams with a length of over 4 m, we advise you
not to set too brief a slow down.
1) Adjust the cams of the travel limit device as shown in Fig.14
ref.  by loosing the two Allen screws. To increase the slow
down angle, take the cam close to the relevant travel limit
device. To reduce the slow down angle, take the cam away
from the relevant travel limit device.
2) Set the slow down time of the control unit by adjusting the
dedicated parameters.
3) Relock the system (see chap.6) and run a few operational
tests to verify correct registration of the travel limit devices,
of spring balancing, and of the adjustment of transmitted
force.
For the electrical connections, refer to the dedicated
instructions of the control board.
Observing the indications in fig.3, install the raceways and make
the electrical connections from the electronic appliance to the
selected accessories.
Always separate power cables from control and safety cables
(push-button receiver, photocells, etc.).
Fig. 13
Fig. 14
Fig. 11
4.3.1 BARRIER 630 PLUS- 640

7
ENGLISH
8 MAINTENANCE
Whenever doing 6-monthly maintenance, always check correct
settings of the by-pass screws, system balancing, and efficiency
of safety devices.
8.1 TOPPING UP OIL
Periodically check the quantity of oil inside the tank.
An annual check is sufficient for low to medium use frequency;
for heavier duty, check every 6 months.
The level must not drop below the notch of the control stick
(Fig.18 ref. ) .
To top-up, unscrew the filling plug (fig.18) and pour in oil up to
correct level.
Use FAAC HP OIL and no other.
5.4 AUTOMATED SYSTEM TEST
After installation, apply the danger sticker on the top of the upright.
Check operating efficiency of the automated system and all
accessories connected to it.
Hand over the “User manual” to the customer, as well
as the documentation required by current laws, and
illustrate the correct operation of the barrier, pointing
out the potential danger zones.

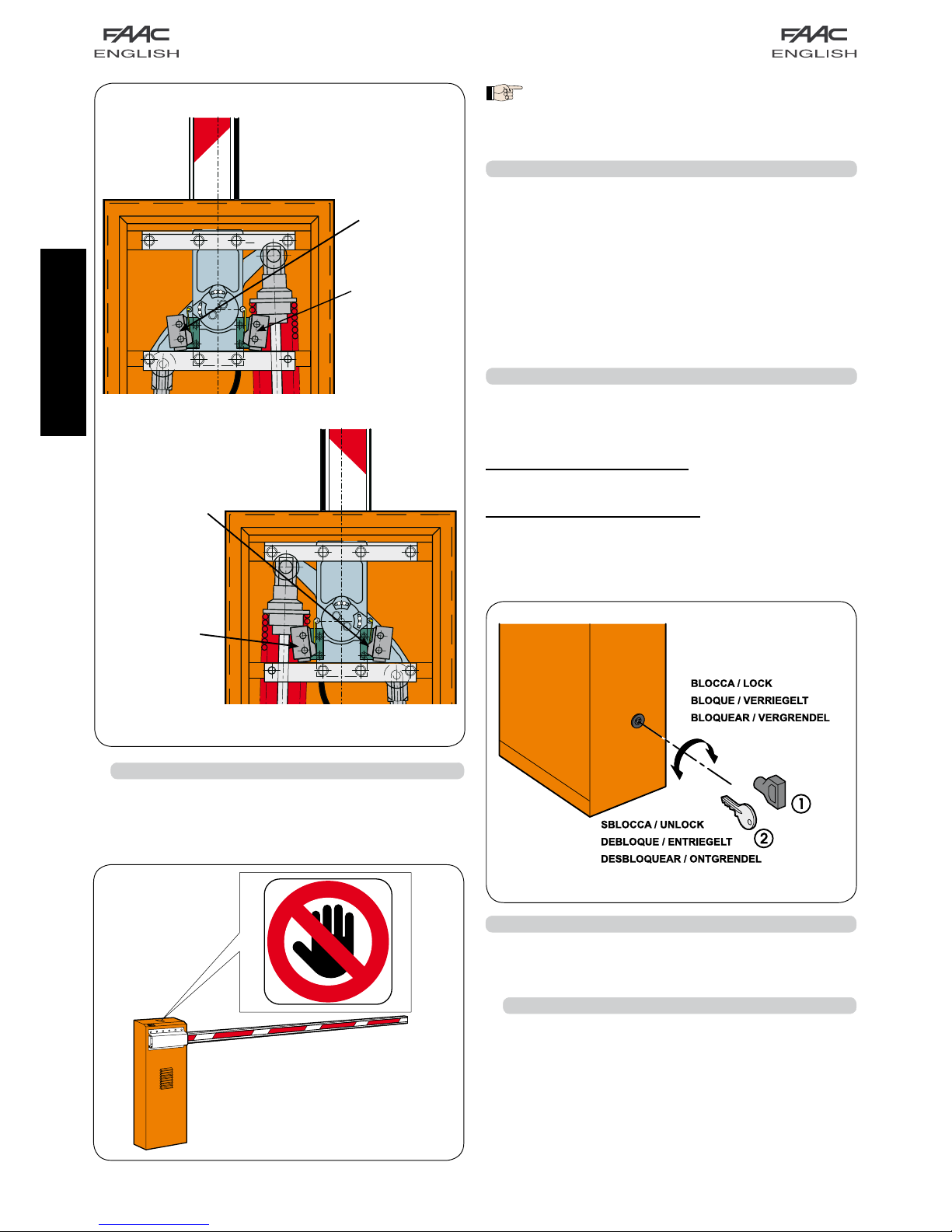

6 MANUAL MODE OPERATION
If the barrier has to be moved manually due to a power cut or
fault of the automated system, operate the release device with
the supplied key.
The supplied release key can be triangular (Fig. 17 ref.) or
customised (Fig. 17 ref.boptional).
- Insert the release key in the lock and turn it anti-clockwise
through one complete rev. as shown in Fig. 17.
- Open or close the barrier manually.
7 RESTORING NORMAL OPERATION MODE
To prevent an involuntary pulse from activating the gate during
the manoeuvre, cut power to the system before activating the
locking system.
triangular release key (standard):
- turn the key clockwise until it stops and remove it (Fig. 17
ref. )
customised release key (optional):
- turn the key clockwise until the point where it can be removed.
(fig. 17 ref. b).
CLOSING
TRAVEL-LIMIT
DEVICE
CLOSING
TRAVEL-LIMIT
DEVICE
OPENING
TRAVEL-LIMIT
DEVICE
OPENING
TRAVEL-LIMIT
DEVICE
Fig. 15
Fig. 16
Fig. 17
RIGHT BARRIER
LEFT BARRIER

8
1
2
36
5
4
1
2
3
6
5
4

ENGLISH
9 REPAIRS
For any repairs, contact FAAC’s authorised Repair Centres.
Fig. 19
WHEN THE BARRIER IS OPEN, THE
SPRING MUST NOT BE
COMPRESSED

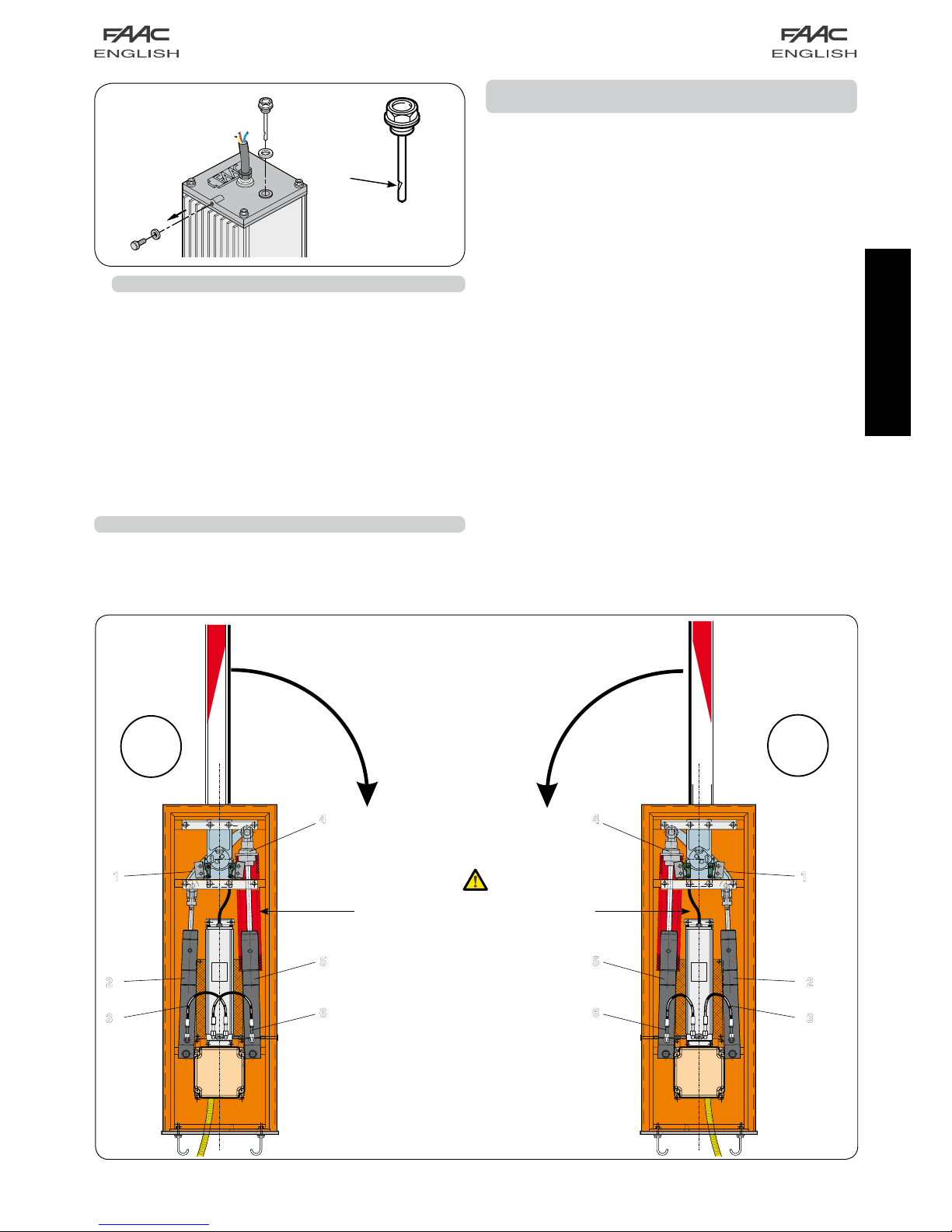

10 CHANGING THE RH (LH) VERSION OF THE BARRIER INTO
THE LH (RH) VERSION
Procedure for converting an RH (LH) version barrier into an LH
(RH) version:
Release the barrier as shown in Chap.6.
Position the beam in opening position and remove it
from the pocket as shown in Fig. 10 or FIg.11.
Re-lock the barrier as shown in Chap.7.
Screw the bleed screw on the control unit (FIg.9).
Fully loosen the spring adjustment ring-nut (Fig.19
ref.d).
Detach the feed pipes (Fig.19 ref.cand f) from the
two pistons and plug the unions.
Remove the two pistons (Fig. 19 ref. band e) from the
upper and lower fittings and reverse their position, taking
the rocker (Fig.18 ref. ). against the opening travel limit
mechanical stop.
Remove the pinion pocket and re-install it to set the
barrier at opening as in figure 19.
Fit the feed pipes as shown in Fig. 19, according to the
configuration of the barrier (RH or LH).
Reverse the travel limit connectors on the control unit.
Remove the bleed screw (Fig.9) and carry out the air
bleed operations as indicated in paragraph 8.2.
Check the balance of the spring as indicated in
paragraph 4.4.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
8.2 BLEEDING OPERATION
If beam movement is incorrect, air must be bled from the
hydraulic system.
Procedure:
1) Make sure that the bleed screw was eliminated (Fig.9)
2) Activate the beam electrically:
- during opening, slightly loosen and re-screw the bleed
screw of the piston with the balancing spring (Fig.1 ref. 33)
- during closure, slightly loosen and re-screw the bleed screw
of the piston without the balancing spring (Fig.1 ref.11) .
3) If necessary, repeat the operation several times, until you
obtain correct beam movement.
Fig. 18
LH
RH

9
71.5
84
360
390
90
90
L
A = L-450
L
ENGLISH
NB.: Dimensions are in mm.
Fig. 25
Fig. 24
Fig. 22
Fig. 23
Fig. 21
To position the fork support foundation plate, refer to fig.23
where:
P1 = barrier foundation plate
P2 = fork support foundation plate
L = beam length (in mm)
A = Distance between foundation plates
SKIRT KIT
The skirt kit increases visibility of the beam.
It is available in lengths 2m and 3m.
IMPORTANT: If a skirt kit is installed, the balancing spring must
be adapted if possible.
The articulation kit makes it possible to articulate the rigid beam
to a maximum ceiling height of 3.2 m.
IMPORTANT: If the articulated kit is installed, the balancing spring
must be adapted if possible.
END FOOT
The end foot allows the beam to rest when closed and thus
prevents the profile bending downward.
IMPORTANT: If a foot is installed, the balancing spring must be
adapted if possible.
FORK SUPPORT
The fork has two functions:
- it prevents the beam, when closed, from bending and splitting
if its end is stressed by extraneous forces.
- it allows the beam to rest when closed and thus prevents the
profile bending downward
11 AVAILABLE ACCESSORIES
ANTI-VANDAL VALVE (Fig. 20a)
It protects the hydraulic system if the beam is forced.
AUTOMATIC EMERGENCY RELEASE (Fig. 20b)
During a power cut, the automatic emergency release allows
you to manually lift the beam without accessing the release lever
of the hydraulic control unit. A hydraulic system guarantees that
the beam is stopped in opening position.
Fig. 20b
Fig. 20a
ARTICULATION KIT (mod. 630 only)
630+
630
A = L-240
