FAAFTECH FT-VIDEO-LVDS AUD4 User manual

INSTALLATION MANUAL
FT-VIDEO-LVDS
AUD4
REV 161117

• Congratulations for purchasing the video interface FT-LVDS-AUD4.
• Please, read this manual with attention before installing your new device.
• Keep this manual with you in order to check the functioning procedures and the
security information.
• We recommend that a professional, with experience in the field of installation of
vehicle devices, is the one to install this interface.
• The car ignition must be off during all the installation process.
CHARACTERISTICS
• Unblocks video while moving (DVD / TV / Original USB Video)
• Enables 3 AV inputs
• Enables front camera and rear camera inputs*
• DVD and TV can be controlled via steering wheel commands and iDrive
• 12V, ACC and CAMERA output
• Plug and play connections
• 1-year warranty against manufacturer defect
• Compatible vehicles: www.faaftech.com/produtos/interface-de-video/ft-lvds-aud4
*3rd AV input can be setup to be used as AV, NAV or Front Camera.
PRESENTATION
1

Set up the interface’s DIP Switches while the equipment is unplugged from the
whip, and while the car ignition is off.

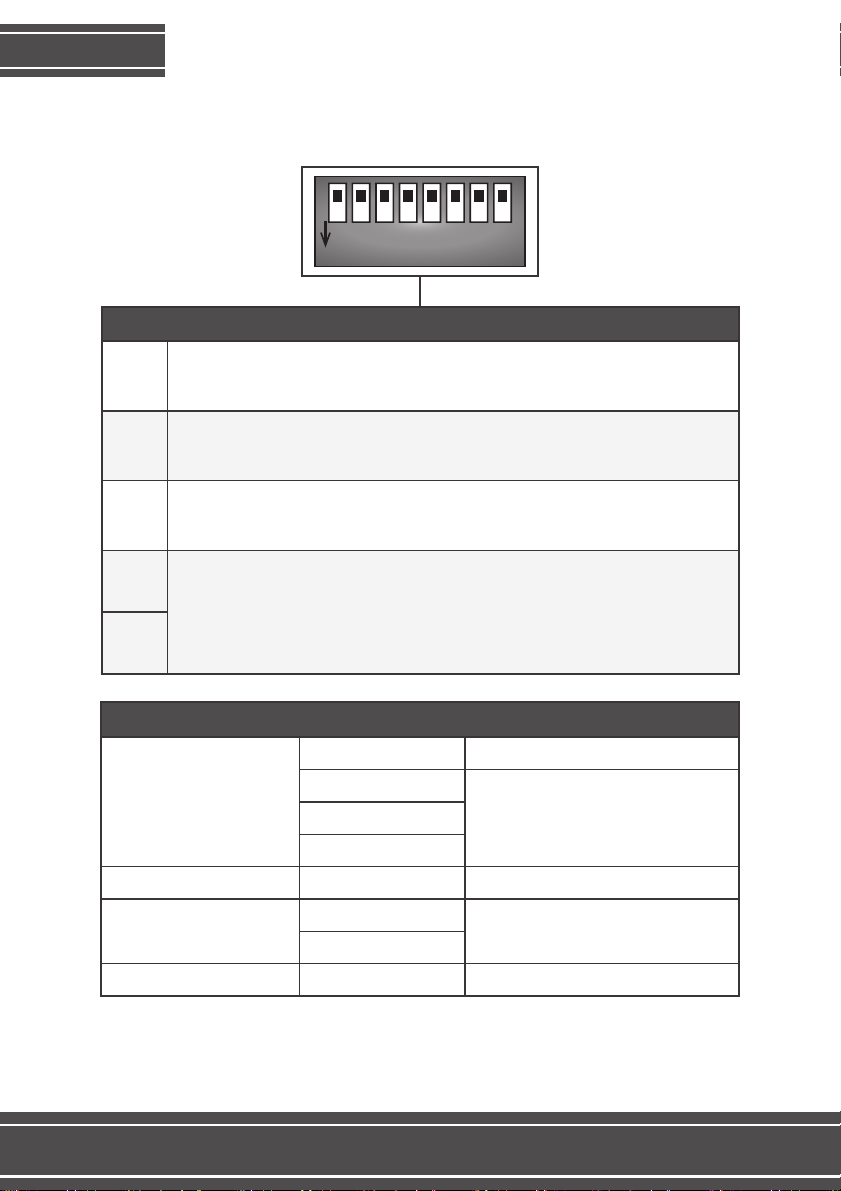

DIP Switches
ON
1 2 3 4 5 6 7 8
DIP 1
SETUP
UP enables AV2 (TV) input
DOWN disables AV2 input
UP enables AV1 (DVD) input
DOWN disables AV1 input
DIP 2
UP enables AV3, NAV or FRONT CAM input (check pages 11-12)
DOWN disables AV3 input
Cars with an 8,2” screen: DIP 4 and DIP 5 UP
Cars with a 7,0” screen: DIP 4 UP, DIP 5 DOWN
Cars with a 5,8” screen: DIP 4 and DIP 5 DOWN
DIP 3
DIP 5
DIP 4
TV and DVD selection
TV FAAFTECH
DVD FAAFTECH
FT-DVD II
VDVD-155DVD SOUNDSTREAM
FT-TV-1SEG DIP 6 up DIP 7 down
DIP 6 down DIP 7 down
DIP 8 up
DIP 8 down
FT-TV-1SEGII
FT-TV-1SEG III
FT-TV-HD II
TV LBSAT DIP 6 down DIP 7 downLBCR-1100
FT-DVD-1/2DIN
2

CONNECTIONS
Plug in to
the whip
Plug in to
the whip
Plug in to the radio located
inside the glove compartment
Plug in to the Pink or Gray
LVDS plug on the radio
Salida Audio
Modelo: FT-LVDS-AUD4
Versão: xx
S/N: xxxxxxxxxx
DATA OUT/
ANTENA
AV
IN/OUT
LVDS
IN/OUT
CAN/POWER
IN
POWER
OUT
UPDATE
DIP
SELECT
Connect to the AUX input in the
console or in the glove compartment
3

ACCESSORY CONNECTIONS

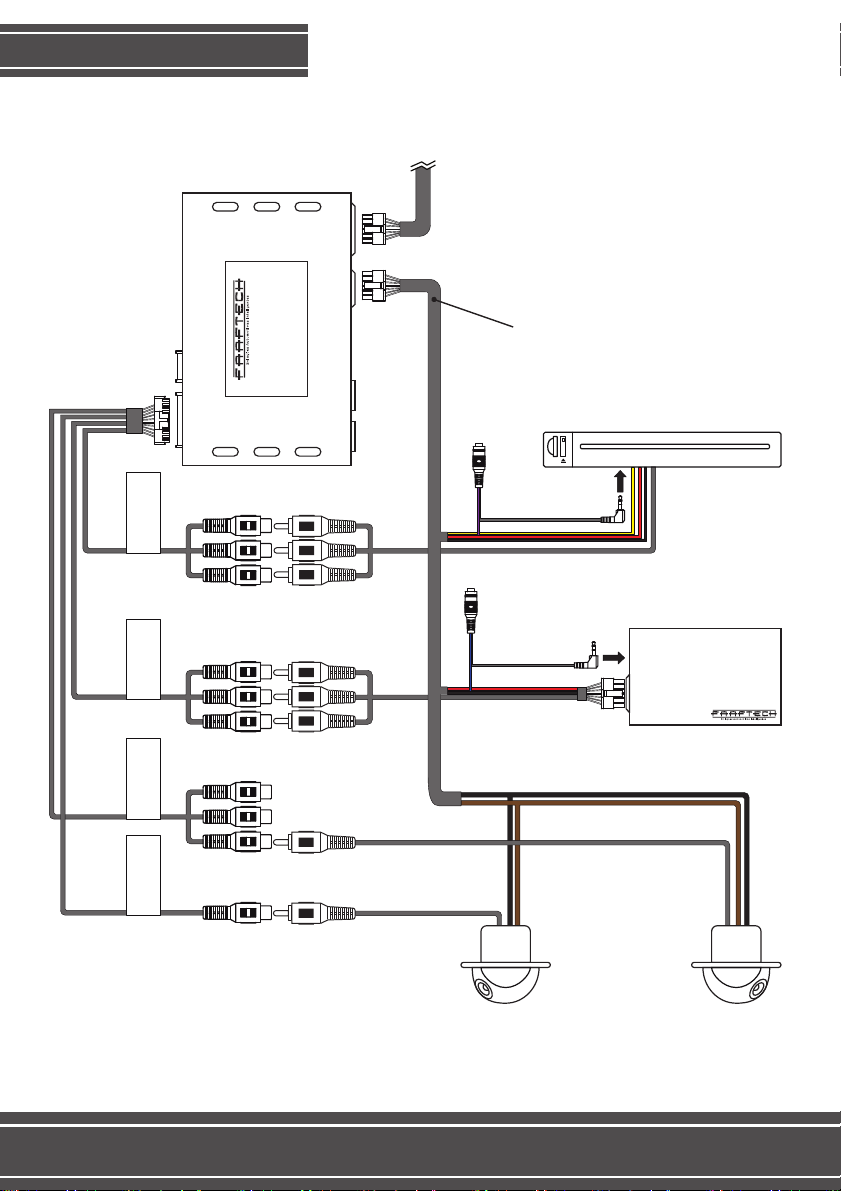

Check an example of an installation with a DVD, TV, front camera in the AV3
input, and a rear camera.
Accessories such as DVD, TV and cameras are sold separately.
Modelo: FT-LVDS-AUD4 Versão: xx S/N: xxxxxxxxxx
DATA OUT/
ANTENA
AV
IN/OUT
LVDS
IN/OUT
CAN/POWER
IN
POWER
OUT
UPDATE
DIP
SELECT
Entrada TV
(AV2)
Entrada AV3
Entrada Video Camera
Use the auxiliary outputs to power
the accessories, such as DVD, TV
and camera, in case they are being
installed
Front CameraRear Camera
MOBILE MULTI-MEDIA PLAYER
SD DVD
Digital TV Receptor
Entrada DVD
(AV1)
4

Follow the steps below in order to access the accessories you have installed on
the interface’s AV inputs.
1° Select the AUX audio input on the multimedia;
2° Press and hold the button on the steering wheel commands or the MENU
button on the central console to access the interface’s AV mode;
3° Simply touch that same button to flip between DVD (AV1), TV (AV2) and AV3;
4° To return to the original menu, press and hold one of those buttons again for
2 seconds
FUNCTIONING
Button on the steering wheel
Menu button on the central console
5

Check below the commands available to control the DVD and the TV through the
vehicle’s original commands.
FUNCTIONING
DVD COMMANDSTV COMMANDS
Spin right
MOVEMENT
Spin left Channel - Menu navigation
Quick press List/Enter Enter
Long press List Menu
Menu navigationChannel +
iDrive commands
DVD COMMANDSTV COMMANDS
Push right
MOVEMENT
Push right and hold Scan --------
Push left Canal - Banda -
Track +Channel +
Console button commands
DVD COMMANDS
TV COMMANDS
Simply touch button 1
MOVEMENT
Simply touch button 2 Channel + Track +
Hold button 2 for 3 sec Scan --------
Track -Channel -
Steering wheel commands
12
6

The parking guides are not 100% precise regarding to the way they show.
Use the parking guides only as an auxiliary resource while parking.
Important Notice
Rear Camera

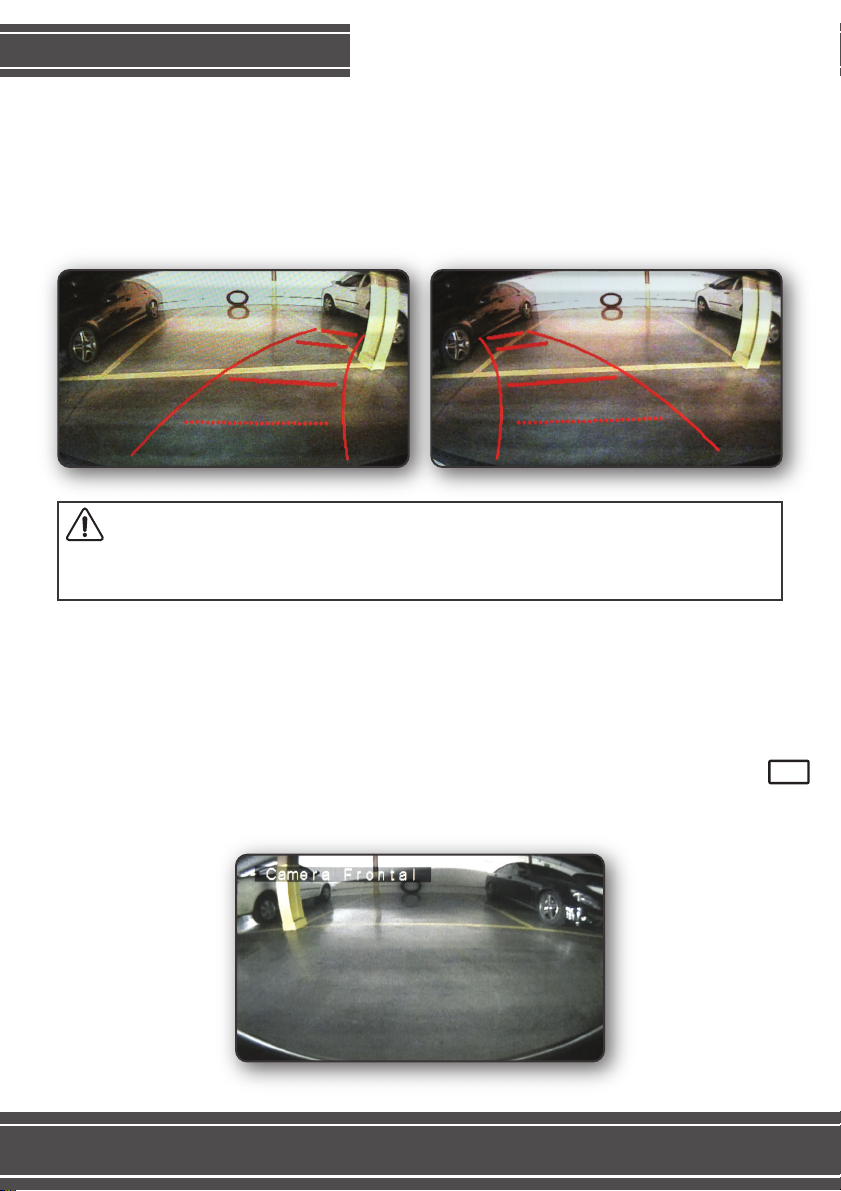

The rear camera will show automatically once you put the car on the reverse
gear.
When you spin the steering wheel, the parking guide lines will move, showing
the approximate direction the vehicle will go to.
Front Camera
The front camera will show automatically once you put the car on the reverse
gear and then put it on N or D. The camera will stay on for 30 seconds, or until
the car reaches the speed of 15km/h (9.32mph), or until you press the OK
button on the steering wheel (see image of the OK button on the next page).
FUNCTIONING OF THE CAMERAS
7

Camera Viewing
You can view the installed cameras at any time by following the steps below:
• Press and hold the OK button on the steering wheel for 3 seconds to view the
rear camera;
• Simply touch the OK button to switch between the rear and the front camera (in
case both are installed);
• Press and hold the OK button for 3 seconds to leave the camera viewing and
return to the original menu.
Note: the rear camera viewing is not compatible with the OEM camera.
FUNCTIONING OF THE CAMERAS

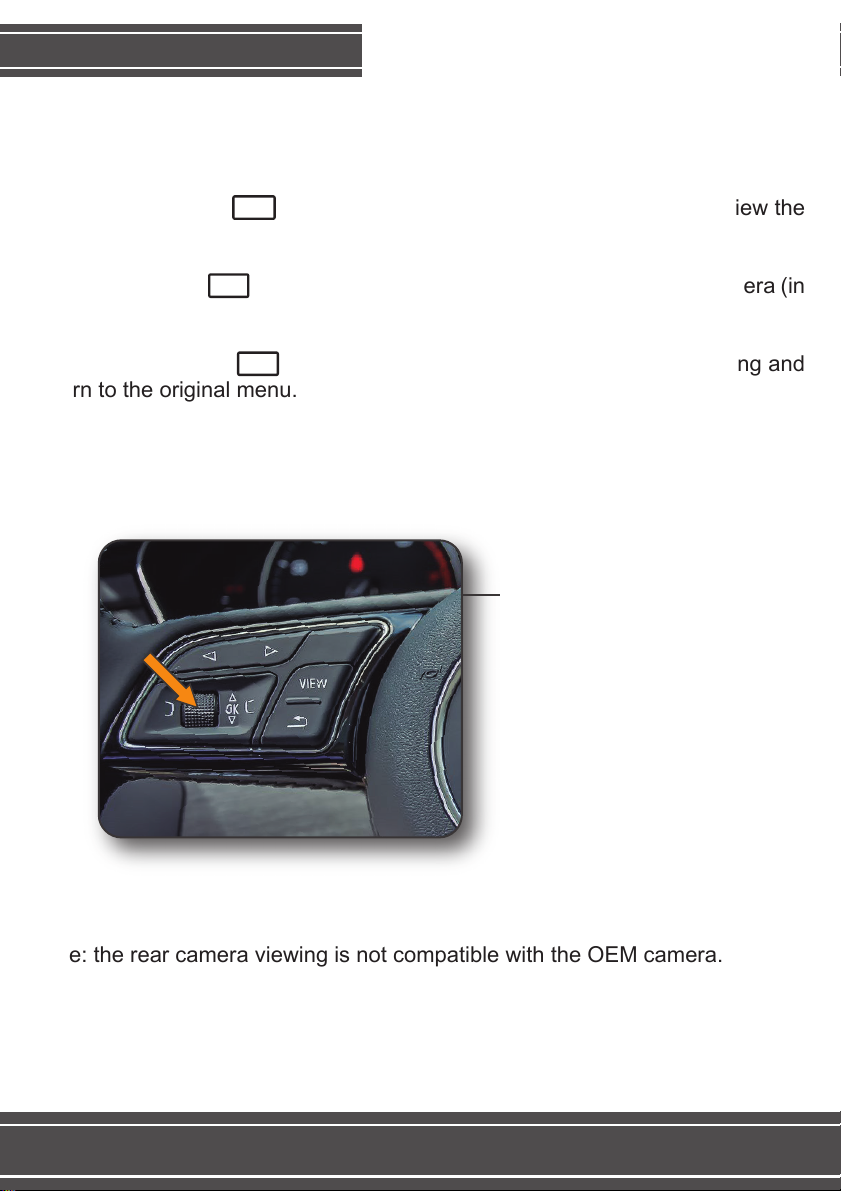

OK button on the
steering wheel
8

Video while Moving
BACK button on the
central console
This interface has a function to toggle (blocked/unblocked) the video while
moving function on the DVD / TV / original USB video (when those are
equipped).
• Press the BACK button on the central console for 3 seconds to
block/unblock the video while moving.
The vehicle’s original GPS may not work correctly if the video while moving is
unblocked. We recommend that you block the video while moving when you use
the GPS.
The utilization of the video while moving function is strictly forbidden to the driver
and restricted to the passengers. FAAFTECH will not be held accountable for any
damages caused by the misusage of this function.
Important Notice
9

SETUP MENU
Check below how to access the setup menu of the FT-LVDS-AUD4:
1. Access the AV1 (DVD), AV2 (TV) or AV3 input;
2. After selecting one of those sources, press the iDrive and hold it for about 5
seconds to view the setup menu;
3. Use the iDrive to access the options you wish:
Camera Tras (Rear Camera):
ON – If you are installing a rear camera.
OFF – If you aren’t installing a rear camera.
OEM – If the car already has an OEM rear camera.
Linhas Est. (Parking Lines):
ON – Enables the parking lines when the rear camera is being viewed.
OFF – Disables the parking guide lines.
AV1:
Select the name of the auxiliary input AV1 (DVD or AV1).
Cámara tras
Linhas Est.
AV1
AV2
AV3
Idioma
Cambio
Reset
ON
ON
DVD
TV
AV3
PORTUGUES
AUTOMATICO
10

SETUP MENU
AV2:
Select the name of the auxiliary input AV2 (TV or AV2).
AV3:
AV3 – Select to use AV3 as the third audio/video input.
NAV – Select to use AV3 as GPS.
CAM FRONT – Select to use AV3 as a front camera input.
Idioma (Language):
PORTUGUES – Change the setup menu language to Portuguese.
ENGLISH – Change the setup menu language to English.
Cambio (shift gear):
AUTO – Select for cars with automatic transmission.
MANUAL – Select for cars with a manual (stick) transmission.
Reset:
Restore every options on the setup menu to the original manufacturer’s config-
urations.
11

TROUBLESHOOTING
1. After installing the interface, the multimedia won’t turn on.
• Review the installation process and check if the connections have been done
according to the images shown on pages 3 and 4;
• Check if the connectors are plugged in tightly and if there are no wires loose on
the connectors.
2. When I put the car on reverse, the camera image won’t show.
• Check on the setup menu if the “Camera Tras” (Rear Camera) option is set up
properly.
3. When I put the car on reverse, I see an “incompatible video” message.
• Check if the rear camera installed is compatible. LVDS will only accept
cameras that work with the NTSC video system. Other formats are incompatible.
4. I have installed a front camera, but it won’t show after I take the car off
of reverse.
• Access the Setup Menu (page 11), go to the AV3 option and set it up as CAM
FRONTAL (FRONT CAM).
5. I see the accessories (DVD, TV, et. al.) images, but I can hear no audio.
• Before accessing the accessories, you need to select the AUX audio source
from the multimedia menu.
12

13
WARRANTY
813
FAAFTECH assures their clients a 01 (one) year period against defects in mate-
rials and workmanship, proved by presenting both the receipt of purchase from
the reseller to the costumer and the present Warranty Certificate filled, observ-
ing the following:
1. FAAFTECH will null the warranty if Faaftech or their authorized technical
assistance concludes that the equipment suffered from damage caused by poor
usage, by inadequate installing, by accidents (crashes, falls, and others), or if
there are any signs of the product having been violated, adjusted or fixed by
non-authorized personnel;
2. The Warranty Certificate is only valid when filled and presented together with
the receipt from the reseller to the costumer, as well as the attendance number
that is generated by our Technical Support, which can be reached from the num-
bers: [phone] (landlines only) or [phone]. From Mondays
to Fridays, from 8 a.m. to 6 p.m. (GMT -03:00).
3. Any repairs and maintenances of the equipment still covered by the warranty
will be exclusively handled by FAAFTECH.
4. This warranty will not cover any products with unreadable or adulterated serial
code numbers.
5. The expenses with shipping, securing and packaging are not covered by this
warranty, and they are the full responsibility of the owner of this equipment.
Warranty Certificate
Equipment: FT-LVDS-AUD4 1 Year
Buyer’s name:
Phone number: ( ) City: State/Province:
Address:
Date of purchase: Receipt number:
Serial Number: Attendance number:
Attention: This Warranty Certificate is only valid when filled and presented together with the receipt from the
reseller to the costumer. Keep this in a safe place.

[phone] or [phone]
[email protected]
www.faaftech.com.br
Available from Monday to Friday, from 8 a.m. to 6 p.m. Brasilia time
TECHNICAL SUPPORT Follow us on social media
