FAAFTECH SHIFTPOWER-USA User manual

Rev 110420
USER MANUAL

Keep this manual to reference the
password of your ShiftPower
WARNINGWARNING

Table of Contents
Disclaimer
Contents
Installation
Operation
Driver Modes
Valet Mode
Lock Mode
ShiftPower App
Downloading the App
Connecting the Smartphone
Initial Menu
Settings
Troubleshooting
Warranty
04
05
06
09
09
10
10
11
11
11
13
14
20
21
03

Disclaimer
Before installing ShiftPower, carefully read the operating
instructions and safety information in this manual.
1. This product is designed to improve your vehicle's
throttle response. By installing this device you agree to
exempt ShiftPower USA and Faaftech from any
responsibility when interacting with ShiftPower while
driving;
2. Using ShiftPower, the driver must drive responsibly,
ShiftPower USA and Faaftech are not responsible for the
driver's decision to drive in a dangerous or illegal manner;
3. When using the product, never exceed the speed limits
determined by the local traffic laws;
4. When using the ShiftPower App, follow local laws and
use responsibly. ShiftPower USA and Faaftech
recommends using it only while the car is parked in a safe
place;
5. Installation must be performed by professionals with
training and experience in electronics and automotive
accessories. Damage caused by incorrect or improper
installation will not be covered by the product warranty;
6. Do not stick adhesive tapes on the interface information
label to avoid loss of information and consequently loss of
the product warranty. The label contains information such
as serial number, software version and Bluetooth
password;
7. ShiftPower USA and Faaftech reserves the right to
change the general, technical and aesthetic characteristics
of its products without prior notice;
04

05
Contents
Wire harness
Interface
Mode button / Indicator LED
User manual
User Manual
2 Tie wrap (15cm)

06
Installation
Follow the instructions below to ensure that the product
is installed correctly and to prevent vehicle warning
lights.
1. Turn off the ignition and remove the key from inside
the vehicle;
2. Keep only the driver's door open for 10 minutes for
the vehicle system to enter Stand-By mode;

07
3. Remove the original accelerator pedal connector,
connect to the female interface connector and connect
the male connector to the accelerator pedal;
Note: Make sure that the connectors are securely locked to
prevent malfunctions.
Original connector
Female connector
Mode button / Indicator LED
Male connector
Accelerator pedal
Interface

08
Note: Use the included tie wraps to secure the module and wire
harness in place to not interfere with the drivers feet or operation
of the vehicle’s pedals or steering.
4. Choose a location on the panel, clean well and stick
the Mode button / Indicator LED;

09
Operation
1. Driver Modes
When the ignition is switched on, the Mode button will
indicate the current driving mode through the LED
illumination.
To switch among driving modes, simply tap the Mode
button / Indicator LED or use the ShiftPower App.
Super Sport Mode
Fast response
Race Mode
Aggressive response
OFF Mode
Original response
Dynamic Mode
Soft response
Sport Mode
Medium response

Lock Mode
Lock the gas pedal response
10
2. Valet Mode
The Valet Mode limits the throttle response to 30% and can
be adjusted between 15 to 45% through the ShiftPower App.
To activate/deactivate the Valet mode, press and hold the
Mode button until the illumination LED turns Blue (5 seconds)
or through the ShiftPower App.
3. Lock Mode
Lock mode works as an anti-theft device, canceling all
throttle response.
To activate/deactivate the Lock mode, press and hold the
Mode button for 10 seconds or via the ShiftPower App.
When activated, the illumination LED will flash Blue and
White. When deactivating, the ShiftPower will return to the
last selected mode before activating the Lock mode.
Valet Mode
Limits the acceleration

Model: SP04
SW: 4.7 HW: 2.0
BT: ShiftPower00
Password: 528889
Batch: 2557020919
S/N: 1909020001
11
ShiftPower App
1. Downloading the App
Go to the Apple Store (iOS) or Google Play Store
(Android), search for ShiftPower then click Install.
2. Connecting the Smartphone
1. Turn on the vehicle ignition;
2. Make sure that the smartphone Bluetooth is turned
on, then open the ShiftPower App, click on and
select the corresponding ShiftPower device with the
one described on the interface label;
Touch and slide the screen down to update the device
list in case your device is not listed on the screen.
Scan this QR Code to download
the ShiftPower App

12
4. Finalize the pairing by inserting the vehicle data;
3. Enter the password located on the interface label and
at the beginning of this manual to pair the smartphone;
Select the Make;
Select the Vehicle;
Select the Model Year;
Model: SP04
SW: 4.7 HW: 2.0
BT: ShiftPower00
Password: 528889
Batch: 2557020919
S/N: 1909020001

Bluetooth connection
1
Settings
2
Shows throttle response level.
Touch and move the arrow to
select a customized gain
3
Indicates the current driving
mode
4
Activate/Deactivate theValet
mode
5
Switch among the driver
modes
6
Activate/Deactivate the Lock
mode
7
Shows the ShiftPower versus
original response
8
13
3. Initial Menu
1 2
3
4
5
6
7
8

14
4. Settings
On the initial menu, touch in to access the settings
menu.

15

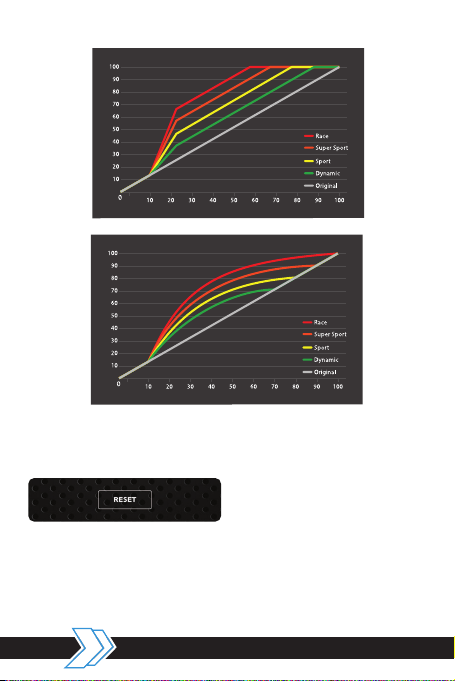

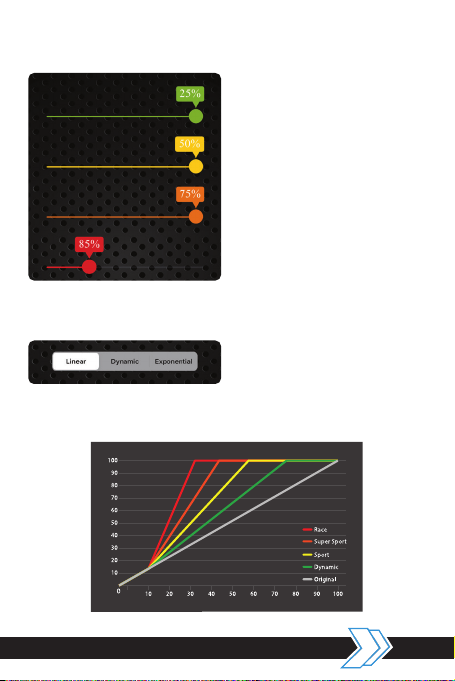

4.1 Mode Settings
Customizes the response gain of the Dynamic, Sport,
Super Sport and Race driving modes.
Change the ShiftPower response curve as shown in the
graphs below:
Accelerator pedal position
ORIGINAL vs LINEAR RESPONSE
Throttle response

16
Accelerator pedal position
ORIGINAL vs EXPONENTIAL RESPONSE
Throttle response
Accelerator pedal position
ORIGINAL vs DYNAMIC RESPONSE
Throttle response
Returns all settings to the default mode.
*Illustrative graphics based on a reference vehicle, with slight
differences depending on the vehicle.

4.2 Vehicles
View ShiftPower modules and registered vehicles.
4.3 Illumination
Once activated, the Mode button / Indicator LED
automatically adjusts between day and night modes.
*Function available only while the smartphone is paired and
ShiftPower App is running.
Adjusts the brightness of the Mode button. Turn off the
automatic option to adjust the brightness manually.
17

4.4 Safety
Turning on Unlocking by Presence, ShiftPower will
disable Lock mode automatically when reconnecting
with the Smartphone.
By turning on Maneuver by Presence, ShiftPower will
disable Valet mode automatically when reconnecting
with the Smartphone.
18
Turning on the Password to Lock, ShiftPower will ask
for the smartphone password or biometric confirmation
to activate Lock mode.
Turning on Password to Valet, ShiftPower will ask for
the smartphone password or biometric confirmation to
activate Valet mode.
Important Note: For security, we recommend keeping the
Password to Lock and Password to Valet functions on to avoid
undesired activation.

19

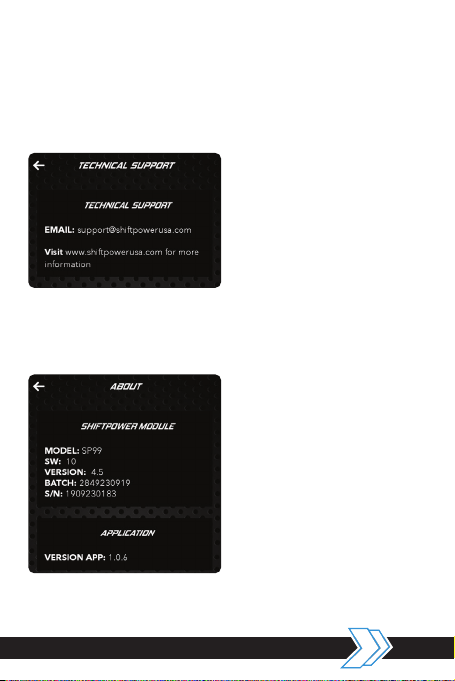

4.6 Technical Support
4.7 About
4.5 Legal Terms
View the terms of use for App and ShiftPower device.
Displays the channels for contact if you have any
questions about the operation of the product.
View module and App information.

20
Problem Solution
After the ShiftPower is
installed, the accelerator does
not work and the instrument
panel indicates several
operating errors
The vehicle has limited
acceleration
Check that connectors are
securely locked at the
accelerator pedal and the
interface module
Confirm the model number of
the ShiftPower is correct for
the vehicle it is installed. Visit
Shiftpowerusa.com
Turn off valet mode. When
activated, the mode button
LED illuminates blue (see
page 10)
The vehicle does not respond
to the accelerator pedal
Turn off the Lock mode.
When activated, the mode
button LED switches between
blue and white (see page 10)
When pairing the Smartphone
with the ShiftPower, a
password is required
The password is printed on the
information label of the
ShiftPower module and at the
beginning of this manual
Troubleshooting
If you are experiencing one of the problems listed below, check
this guide for a quick fix. If the problem persists, contact
technical support.
