Faber BF110V/Straight Assembly instructions

Natural Fires
BF110V / Straight and BF120H / Relaxed
Installation Guide and
User Manual
40010550
0441

UK/IRL
2< < <<

UK/IRL
>>>>3
Content
Content....................................................................... 1
Content....................................................................... 3
1. Introduction.......................................................... 5
2. Safety instructions.................................................. 6
3. Installation requirements.......................................... 7
3.1 Builders opening and surround.................................................. 7
3.2 Dimensions of the fire place....................................................10
3.3 Flue requirements................................................................17
3.3.1 Terminal position.......................................................................20
3.3.2 Using an existing chimney as air inlet............................................... 21
4. Instalation-instructions ...........................................22
4.1 Gas connection ...................................................................22
4.2 Preparing the appliance.........................................................22
4.3 Installing the appliance with the Faber false chimney breast ............23
4.4 Installing the appliance in an existing or different false chimney breast.23
4.4.1 Preparing the surround....................................................................23
4.4.2 Installing the appliance ................................................................... 24
4.4.3 levelling and fixating the appliance.....................................................24
4.4.4 Building the false chimney breast ....................................................... 24
4.5. Removing/placing the glass ...................................................25
4.5.1 Removing/placing the glass of the BF110V / Straight................................25
4.5.2 removing/placing the glass of the BF120H / Relaxed ................................26
4.6 placing and adjusting the frame...............................................27
4.7 Placing the log set with the log burner.......................................28
4.8 Placing the pebbles with pebble burner......................................28

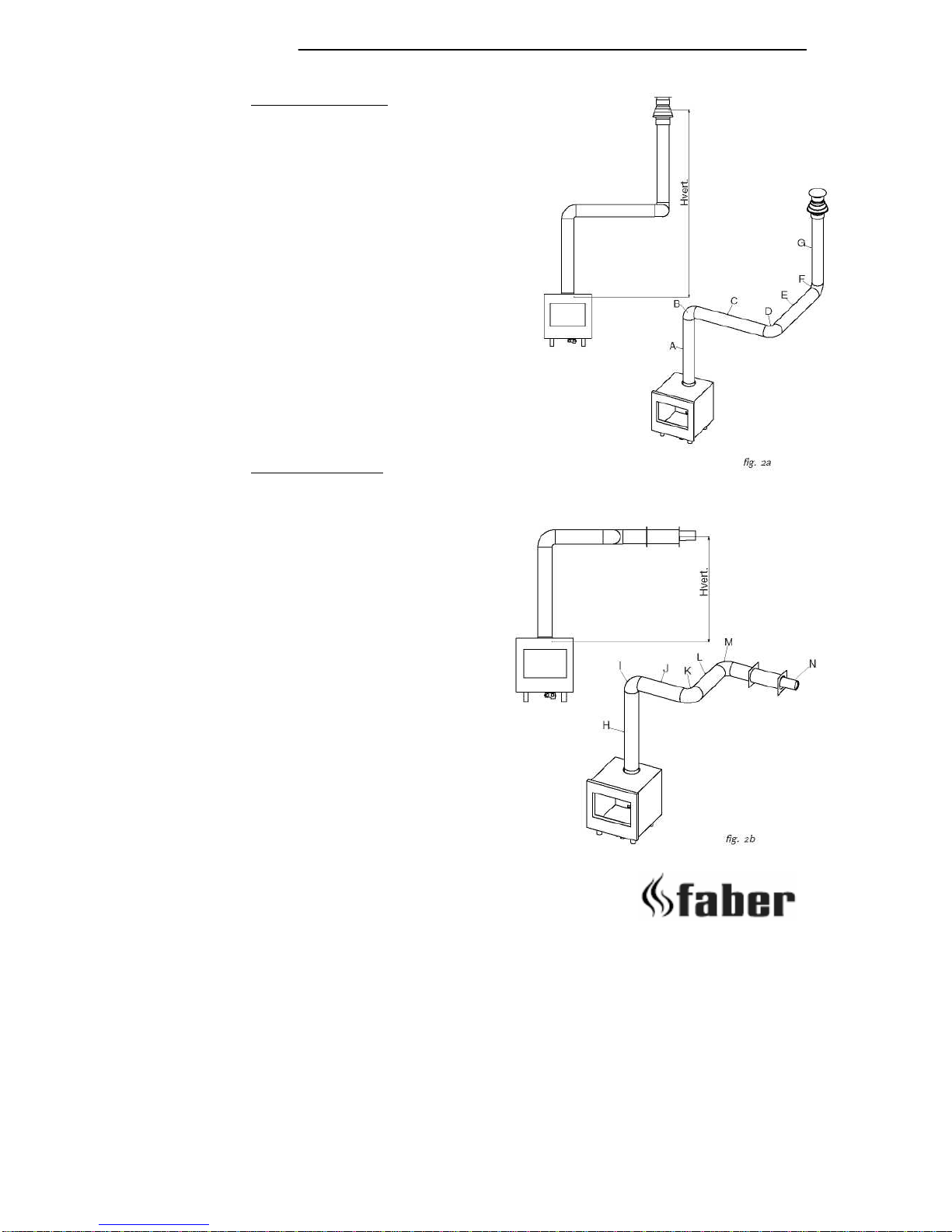

5. Installation of the flue ............................................29
5.1 Connections with use of concentric duct material..........................29
5.2 Connection onto an existing chimney.........................................29
5.3 Remote control...................................................................30
5.3.1 Installation remote control...............................................................31
6. Commisioning (functional checks) ..............................33
6.1. Check pilot ignition .............................................................33
6.2 Functional burner check ........................................................33
6.3 Functional balanced flue check................................................34
6.4 Check reference pressure and burner pressure .............................34
7. Final check and handing over....................................36

UK/IRL
4< < <<
8. Servicing.............................................................37
8.1 Routine servicing.................................................................37
8.1.1 Cleaning the glass ..........................................................................37
8.1.2 Cleaning the combustion chamber and burner ........................................ 38
8.1.3 Burner tray (dis)assembly.................................................................39
8.1.4 Gas control block...........................................................................39
8.2 Propane conversion ..............................................................39
8.3 Combustion test..................................................................39
8.4 List of spare parts................................................................40
User guide...................................................................41
9. Safety instructions for the user .................................43
9.1 General safety instructions.....................................................43
10. Controlling the appliance.........................................45
10.1 General...........................................................................45
10.2 To light ...........................................................................46
10.3 To extinguish ....................................................................46
10.3.1 When the pilot extinguishes.............................................................46
10.4 Remote control version........................................................47
10.4.1 Using the remote control................................................................47
10.4.2 Setting the right transmission code....................................................48
10.4.3 Changing the batteries...................................................................48
11. Cleaning and service instructions...............................49
12. Disposal of packaging and appliance ...........................50
Appendix: technical data.................................................51

UK/IRL
>>>>5
1.Introduction
Note: these instructions should be read carefully and retained for future reference.
Please leave these instructions with the user.
This guide is concerning the following types of appliances:
•BF110V / Straight frameless with log burner (Faber false chimney breast optional);
•BF110V / Straight frameless with pebble burner(Faber false chimney breast optional);
•BF110V / Straight with frame and log burner;
•BF110V / Straight with frame and pebble burner;
•BF120H/Relaxed frameless with flat fibre burner and logset;
•BF120H/Rlaxed frameless with pebble burner;
•BF120H/Relaxed with frame and flat fibre burner and logset;
•BF120H/Relaxed with frame and pebble brander.
Special features:
- The frameless models of the Natural Fires feature a patented window construction;
- A specially designed Faber prefab false chimney breast is optional (only for the
frameless versions of the Natural Fires);
- Realistic flame and glow effect because of the "Log burner" technology;
- Room sealed appliance, inlet and outlet are led to the outside using a natural draught
concentric pipe system (100 mm/150 mm). No additional ventilation required;
- Air supply and flue-gases go to outside atmosphere through wall or roof. A maximum
horizontal extension of 6 meters is possible;
- Remote Control option on all appliances;
- Meets the essential requirements of the European Gas Appliance Directive (GAD) and
carries the CE mark according the NEN 613 standard.

UK/IRL
6< < <<
2.Safety instructions
Before installation, ensure that the local distribution conditions (identification of the type
of gas and pressure) and the adjustment of the appliance are compatible. This information
can be found on the data plate. This gas appliance is factory set and shall not be adjusted.
This appliance does not contain any component manufactured from asbestos or any asbestos
related products.
The pilot and flame sensing device fitted to this fire is also a safety device. If for any
reason any part of the pilot assembly is to be replaced, the entire assembly, including the
pilot burner, thermocouple, electrode and injector, must be exchanged complete for a pilot
assembly from the original manufacturer only.
Do not put extra (glow-)elements in the combustion chamber. This could affect the burning
process in a negative way.
This appliance is room-sealed and doesn't require purpose provided ventilation.
It is the law in the UK that all gas appliances are installed and checked by a competent
person in accordance with the Gas Safety (Installation and Use) Regulations (as amended),
the relevant British Standards for Installation work, Building Regulations, Codes of Practice,
and the manufacturer’s instructions.
The installation should also be carried out in accordance with the following where relevant:
•British Standards: BS5871 Part1, BS5440 Parts 1 & 2 and BS1251;
•Building Regulations Document J (as applicable);
•Building Regulations and Standards issued as relevant by the Department of the
Environment or the Scottish Development Department.
In the Republic of Ireland installation should be carried out in accordance with IS813, ICP3,
IS327, Building Regulations, Codes of Practice, the manufacturer’s instructions and any
other rules in force.
Failure to comply with the above could leave the installer liable to prosecution and
invalidate the appliance warranty.
The construction of the fire place is not to be altered.
Safety instructions for the user can be found in chapter 9.

UK/IRL
>>>>7
3.Installation requirements
Note: Since the appliance is a source of heat, circulation of air occurs. Therefore it is of
importance that you do not use the appliance shortly after a renovation of the home. Because
of the natural circulation of air, moist and volatile components from paint, building materials,
carpet etc. will be attracted. These components can settle themselves down onto cold
surfaces in the form of soot.
As on all heat producing appliances, soft furnishings such as blown vinyl wallpaper placed too
near to the appliance may become scorched or discoloured. This should be born in mind
when installing the appliance.
3.1 Builders opening and surround
Both the BF110V/Straight frameless and the BF110V/Straight frameless can be build in an
optional Faber prefab false chimney breast made of promatec. This false chimney breast is
specially designed to accommodate this type (NOT for the models with frame) and is
applicable for ceiling heights up to 2,9m. It consists of a base part and either a top part
made of promatec or an ornamental flue pipe made of stainless steel.
The fire place can also be build in a non-combustible fire place or builders opening. This
could be either an existing builders opening or a new made prefab builders opening. For the
measurements, see paragraph 3.2.
When you apply your own false chimney breast design to all models of the BF110V/Straight
or BF120H/Relaxed, you have to meet these general requirements:
•The false chimney breast has to be made of inflamable material;
•The minimum inner width of the false chimney breast has to be at least 976mm (see
paragraph 3.2) and is secured by the floor plate;
•Minimum distance from the back of the appliance to the wall has to be 10mm;
•Always install the fire place first, before building up the false chimney breast;
•Always ventilate the space above the appliance using vents to assure a good air-
circulation;
•If the appliance is to be fitted against a wall with combustible cladding, the cladding
must be removed from the area covered by the surround;
•The plaster of the outside has to be resistant to a high temperature. Therefore use the

UK/IRL
8< < <<
plaster materials especially made for this, to prevent discoloring (min. 100 °C
temperature resistant);
•Make sure the plaster dries well before using the appliance. Let the thickness in mm
be the number of days the plaster has to dry, e.g. 3 mm plaster has to dry for 3 days.
•Although the appliance is tested for installation without a hearth, the appliance must
not stand on combustible materials or carpets. If the appliance is placed on a
combustible floor first place a fibrelux or similar heatproof board of 12 mm thickness.
Any under floor vents or openings within the builders opening should be sealed off;
•If the floor will be adjusted (e.g. by applying carpet or parquet), the floor under the
false chimney breast has to be adjusted to match the future floor height;
•Do not place any material directly onto the appliance. If possible, apply a lintel made
of cement or something similar;
•Make sure that both the gas control block and the main gas valve are easy accessable
at all times and can be operated if necessary.

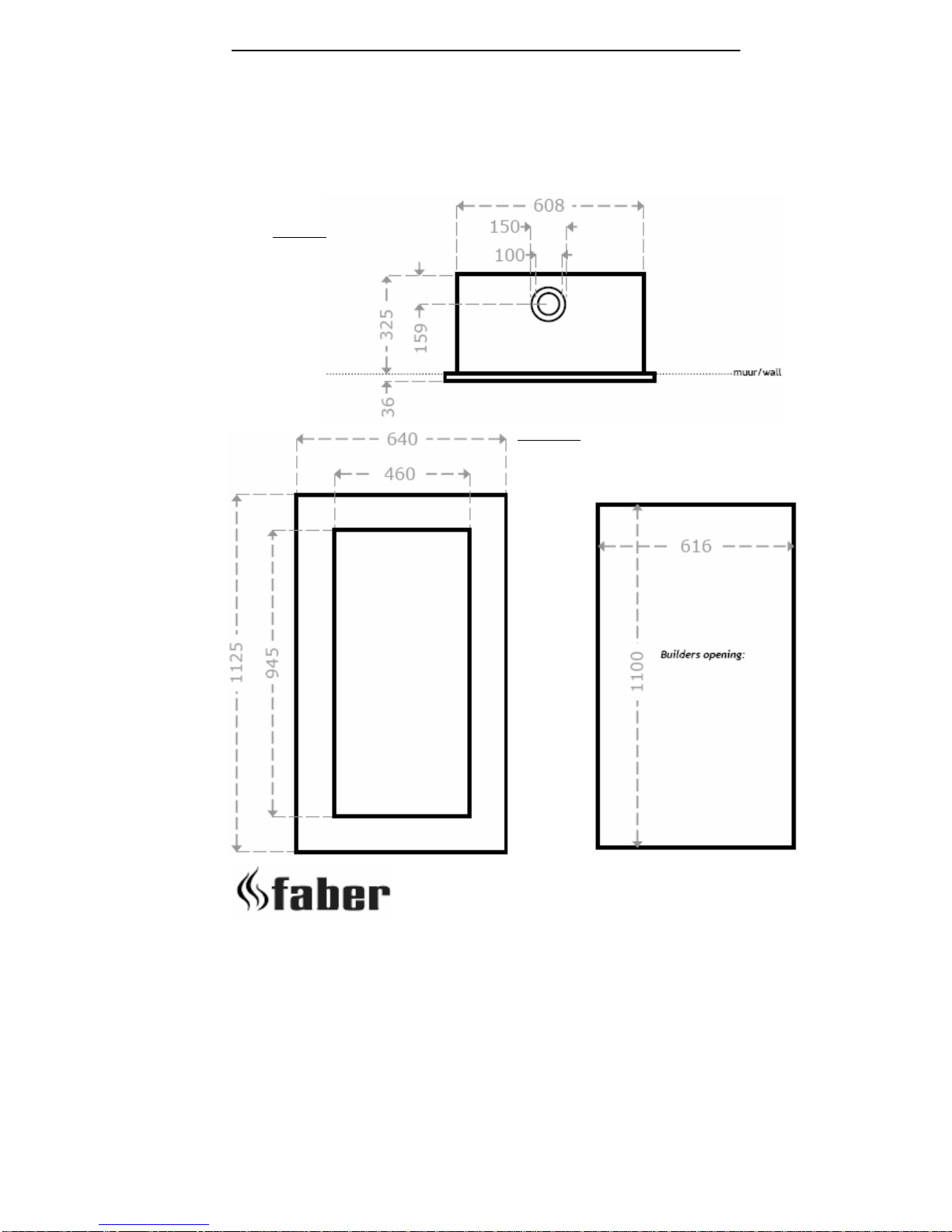

Specific requirements for making a false chimney breast for the BF110V / Straight
frameless:
•The front opening of the false chimney breast has to be at least 460mm wide and
1100mm high, measured from the underside of the floor plate;
•Minimum distance from the glass to any of the construction parts of the false chimney
breast should be at least 12 mm. This is the minimum distance with which the glass
can still be taken out;
•When using a material thicker than 12mm, e.g. 50mm thick stony material, the floor
plate has to be adjusted according to the indicated pattern (see paragraph 3.2 for
construction details and dimensions);
Specific requirements for a false chimney breast for the BF110V / Straight with frame:
•The wall opening has to be 620x1100 mm. This is smaller than the appliance!!!
•The gas control block can be mounted on either the left or right side of the floor plate,
depending on which side makes it easier to acces it.
Specific requirements for a false chimney breast for the BF120H / RELAXED frameless:
•The (wall) opening has to be 1050x425 mm. This is smaller than the appliance;
•The (wall) opening depth is 50 mm. The distance between the opening and the glass
should be at least 12 mm. This is measured after finishing!

UK/IRL
>>>>9
•Use 12 mm Promatec for the front of the false chimney breast. Building up the false
chimney breast with e.g. Ytong blocks is not possible;
•The gas block is normally mounted on the right side of the appliance but can be place
elsewhere, thanks to a 1.2 m flexible gas line;
•Make sure the that the top ridge of the (wall) opening is left out! (see drawings in
§3.2). This is necessary to be able to remove the glass and assure a good air
circulation!

UK/IRL
10 < < <<
3.2 Dimensions of the fire place
* frame thickness with 3mm play
** distance higher than the floor plate
*** Width floor plate / with DC-box
**** Depth builders opening including distance to the glass
On the next few pages the dimensions of the BF110V / Straight and BF120H / Relaxed are
visualised in drawings.
Model/dimensions BF110V /
Straight
frameless
BF110V /
Straight
with frame
BF120H /
Relaxed
frameless
BF120H /
Relaxed
with frame
Steel door
Frames
Max width outer frame n/a 640 n/a 1180 250
Max. height outer frame n/a 1125 n/a 650 300
Width opening inner frame n/a 460 n/a 960 150
Height opening inner frame n/a 945 n/a 430 200
Frame thickness n/a 36 n/a 38* n/a
Distance bottom appliance - bottom frame n/a 62 n/a 41** free
Installation Dimensions
Width wall opening/width dag 460 616 1050 1166 224
Height wall opening/height dag 1100 1100 425 636 270
Max. wall thickness/depth fireplace opening 75**** 24 62**** 24 zelf bepalen
Bottom applicance - bottom wall opening n/a 74 159 43** n/a
Max. width applicance 976/608*** 976/608*** 1600/1155**
*
1600/1160**
*
n/a
Max. height applicance 1181 1181 688 688 12
Min. depth applicance (from wall) 348 309 388 310 12
Flue Dimensions
Distance wall - flue pipe 159 159 135 135 n/a
Distance wall - DC-connection n/a n/a 139 139 n/a

UK/IRL
>>>>11
[ BF110V / Straight ]
Frameless
Top view false chimney breast:
Top view of the appliance:

UK/IRL
12 < < <<
Front view false chimney breast:
[ BF110V / Straight ]
Frameless

UK/IRL
>>>>13
[BF110V / Straight ]
With frame
Top View:
Front View:

UK/IRL
14 < < <<
[BF120H / Relaxed ]
Frameless
Top view:
Front view:
Cross section side view:
Cross section side view detail:

UK/IRL
>>>>15

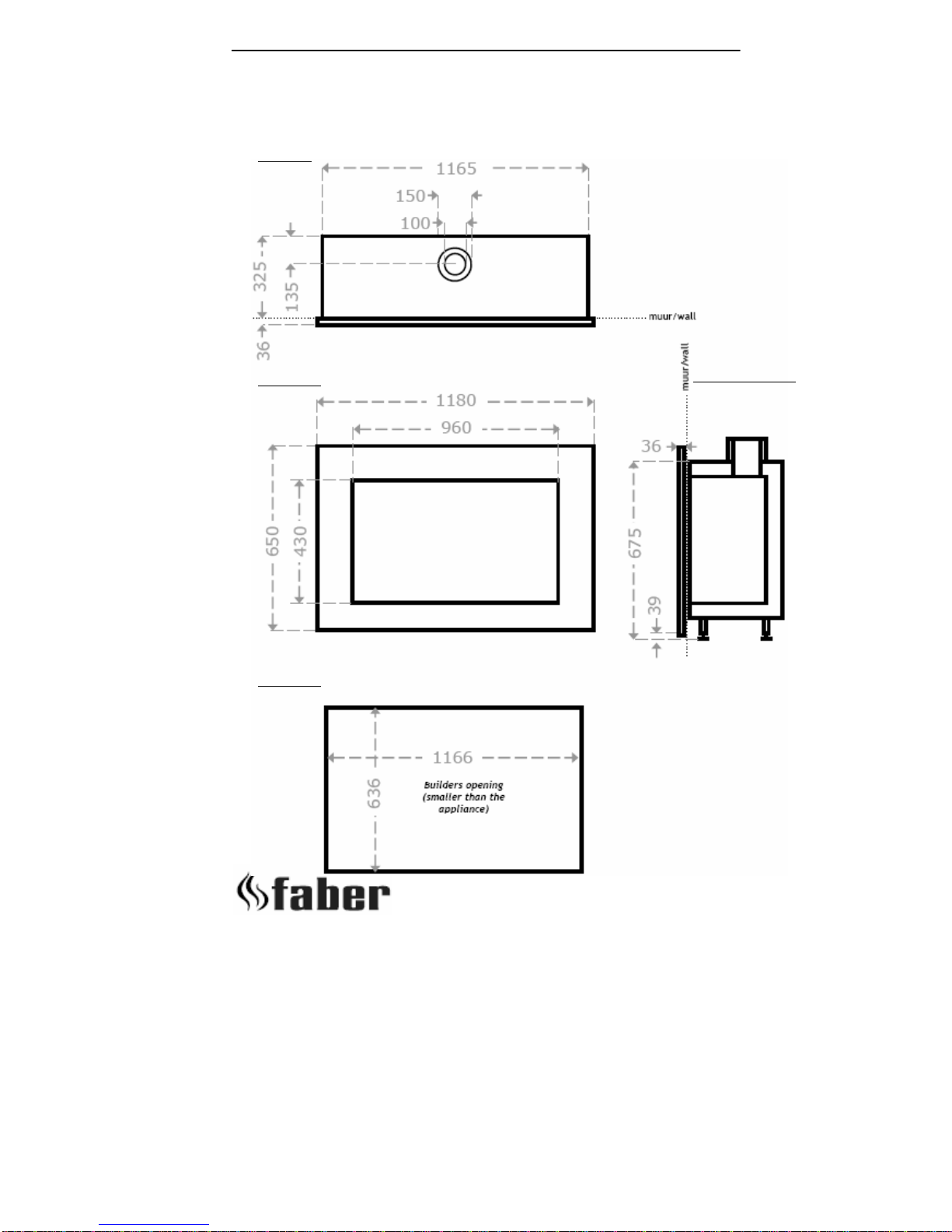

Top View:
Front View:
Front View:
Cross section side:
[BF120H / Relaxed ]
With frame

UK/IRL
16 < < <<
[Operation door ]

UK/IRL
>>>>17
3.3 Flue requirements
The appliance is of the type C11/C31. The appliance will need to be supplied with the
approved flue pipes and terminal, it is not possible to supply your own.
The minimum effective height of the flue system must be 0.5 or 1 meter, depending on the
appliance.
Flue routing;
- The terminal locations, through the wall as well as through the roof;
- A horizontal extension with elbows is allowed for a maximum of 6 meters (depending
on the type and situation);
- Vertical max. 12 meters.
Determine on the base of the table 2 and 3, depending on the type and terminal position, if
the desired situation is possible. To establish this you will need to calculate:
- The effective height (this is the real difference in height between the upper side of
the appliance and the terminal);
- The total horizontal extension. This is the total horizontal flue length where:
oEach elbow, which is in the horizontal area, counts for 2 meters;
oEach 45-degree bend, which is in the horizontal area, counts for 1 meter;
oElbows and bends at the transition of horizontal to vertically are not to be
counted;
oThe wall mounted terminal counts for 1 meter.
Flue restrictor
If applicable, in the table is also stated the size of a flue restrictor. This restrictor needs
to be fitted in the combustion chamber when placing the appliance (see chapter 4.2).
Normally the smallest flue restrictor is fitted.

UK/IRL
18 < < <<
Example calculation 1:
Calculating horizontal extension fig. 2a:
Flue lenght C + E = 1m + 1m 2 m
Elbows D = 2m 2 m
Total horizontal extension 4 m
Measure or calculate effective height (Hvert)
Flue lenght A 1 m
Roof mounted terinal 1 m
Total effective height 2 m
When calculating on basis of the
Widescreen table nr. 2: It is allowed. Remove
the flue restrictor!
When calculating on basis of the
MV100 table nr. 3: Allowed but without flue
restrictor. Remove the flue restrictor!
When calculating on basis of theMV150 table
nr. 4: Allowed but without flue restrictor.
Remove the flue restrictor!
When calculating on basis of the Roundscreen
table nr. 5: Allowed but without flue restrictor.
Remove the flue restrictor!
Example calculation 2
Calculati0n horizontal extension fig. 2b:
Flue lenght J + L = 0,5 + 0,5 1 m
Elbows K + M = 2m + 2m 4 m
Terminal 1 m
Total horizontal extension 6 m
Vertical
Flue lenght H 1 m
When calculating on basis of the
Widescreen table nr. 2: Combination not
allowed.
When calculating on basis of the MV100
table nr. 3: Allowed but without flue
restrictor. Remove the flue restrictor!
When calculating on basis of the MV150
table nr. 4: Combination not allowed.
When calculating on basis of the
Roundscreen table nr. 5: Combination not
allowed.

UK/IRL
>>>>19
BF110V with logburner
Note:the BF110V / Straight with logburner can be lead directly to the wall, using a pipe
bend.
Determine according to the table 2 the right total horizontal and vertical length. When
meeting an x, and when the values are outside the table, the combination is not allowed.
The 30 mm flue restrictor is normally preinstalled.
*The BF110V / Straight with logburner can be lead directly to the wall, using a bend pipe.
0 1 2 3 4 5 6 0 1 2 3 4 5 6
0 x
0* x x x x x x x x x x x x
0,5 x 30 x x x x x x 0 x x x x x
1 x
30 0 0 0 x x x 0 0 0 x x x
1,5 40 30 0 0 0 0 x 30 30 0 0 0 x x
2 40 30 0 0 0 0 0 30 30 0 0 0 0 0
3 40 40 30 0 0 0 0 30 30 0 0 0 0 0
4 50 40 40 30 0 0 0 40 40 30 0 0 0 0
5 50 50 40 40 30 30 0 50 50 40 30 0 0 0
6 50 50 50 40 40 30 0 50 50 50 30 30 0 0
7 60 50 50 40 40 40 x 50 50 40 30 30 0 x
8 60 60 50 50 50 x x 50 40 30 30 0 x x
9 60 60 60 50 x x x 50 50 40 30 x x x
10 65 60 60 x x x x 55 55 50 x x x x
11 65 65 x x x x x 55 55 x x x x x
12 65 x x x x x x 55 x x x x x x
Tabel 2: Possible lenth and height combinations
Hoogteverschil in meters
BF110V / Straight
BF120
H
/ Relaxed

UK/IRL
20 < < <<
3.3.1 Terminal position
Verify if the required terminal position meets the local installation regulations regarding
disturbance, good functioning and ventilation (Also see: safety requirements).
Note:
The terminal must be located so that the outlet is not obstructed. If the flue terminal is
located within 2 meters of a footway, path or where people could come into contact with it
then a suitable terminal guard must be fitted.
Terminals located close to shared walkways, footpaths etc. could be subject to legal
constraints and this should be pointed out to the customer before installation. If in any
doubt about flue location advice should be sought from local building control, or if
appliance-related, from the manufacturer including wherever possible a dimensioned
sketch.
Avoid locating the terminal in close proximity to plastic materials such as gutters or other
combustibles. If this is unavoidable then a suitable deflector should be made.
Some important requirements for a good functioning are:
- The wall-mounted terminal has to be at a distance of at least 0.5 meters off:
oCorners of the building;
oBelow eaves;
oBalcony's etc. unless the duct is dragged to the front side of the overhanging
part.
- The roof mounted terminal has to be at a distance of at least 0.5 meters of the sides
of the roof, excluded the ridge.
