Faber MatriX 800/500 RD H User manual

Installation manual
MatriX 800/500 RD H
MatriX 800/500 ST H
MatriX 1050/500 RD H
MatriX 1050/500 ST H
ENG
40011991-2201

Installation manual MatriX 800/500 RD H, ST H & MatriX 1050/500 RD H, ST H
2 < <<<

Installation manual MatriX 800/500 RD H, ST H & MatriX 1050/500 RD H, ST H
3 < <<<

Installation manual MatriX 800/500 RD H, ST H & MatriX 1050/500 RD H, ST H
4 < <<<
1.0
1.1
1.2
1.3
1.4

Installation manual MatriX 800/500 RD H, ST H & MatriX 1050/500 RD H, ST H
5 < <<<
1.5a
1.5b
1.6
1.7
1.8
1.9a
1.9b
1.9c
1.9d
1.9e
1.9f
1.9g
1.9h

Installation manual MatriX 800/500 RD H, ST H & MatriX 1050/500 RD H, ST H
6 < <<<
2.1a
2.1b
3.0a
3.0b
3.1a
3.1b
4.0
4.1

Installation manual MatriX 800/500 RD H, ST H & MatriX 1050/500 RD H, ST H
7 < <<<
4.2
4.3
4.4
4.5
4.6
4.7
4.8
4.9

Installation manual MatriX 800/500 RD H, ST H & MatriX 1050/500 RD H, ST H
8 < <<<
5.0
6.0
6.1

Installation manual MatriX 800/500 RD H, ST H & MatriX 1050/500 RD H, ST H
9 < <<<
1Dear user
Congratulations on your purchase of a Faber fire! A
quality product from which you will experience
warmth and atmosphere for many years. We
recommend that you read this manual carefully
before using the fireplace. If any problem arises
despite our strict quality control, you can always
contact your dealer.
For any warranty claims, it is essential you first
register your fireplace.
Please note!
The details of your fireplace can be found in
the user manual.
You can register your fire at: www.faberfires.com
Glen Dimplex Benelux B.V.
Address: Saturnus 8
NL-8448 CC
Heerenveen
Tel: [phone]
Email: [email protected]
Info: www.faberfires.com
1.1 Introduction
Installation and maintenance of the appliance must
be carried out by a professional with proven
knowledge and competence. A professional takes
into account all technical aspects such as heat
radiation and gas connection as well as flue gas
exhaust requirements.
Where the installation instructions are not clear,
national/local regulations must be followed.
1.2 Check
Check the fireplace for transport damage and
immediately report any damage to your supplier.
1.3 CE Declaration
We hereby declare that Glen Dimplex Benelux B.V.
released Faber gas-atmosphere heating appliance
by its design and construction method complies
with the Regulation (EU): 2016/426 and (EU)
2015/1188.
Product: gas room heater
Model: MatriX 800/500-RD H
MatriX 800/500-ST H
MatriX 1050/500-RD H
MatriX 1050/500-ST H
This declaration will become null and void as soon
as the unit is in any way modified without written
authorization of Glen Dimplex Benelux B.V.
2Safety instructions
Please note!
It is advisable to always install a screen for the
fireplace if children, elderly or disabled people are
present in the same room as the fireplace. If
regularly vulnerable persons can be present in the
room without supervision, sufficient protection
must always be placed around the fireplace.
This appliance must be installed according
with the rules in force and used only in a
sufficiently space.
The appliance must be checked annually
in accordance with this installation
manual and the applicable national and
local regulations.
Ensure that the data on the type label
matches the local gas type and pressure.
The appliance is designed for atmosphere
and heating purposes. This means that all
visible surfaces, including the glass, can
become hotter than 100°C. An exception
by free standing models is the underside
of the fireplace and the control buttons.
The settings and the construction of the
fireplace must not be changed!
Do not place extra imitation wood or
other material on the burner or in the
combustion chamber.
Do not place any combustible materials
within 0,5m of the radiation area of the
fire.
Through the natural air circulation of the
fireplace moisture and uncured volatile
components from paint, building
materials and carpeted floors, etc. are
attracted. These parts can settle as soot
on cold surfaces. Therefore do not light
the fireplace shortly after installation.
2.1 Using the fire for the first time
Provide extra ventilation and open all the windows
of the room during the initial start-up of the fire.
Let the fire burn at the highest setting for a few
hours so that the paint gets the chance to harden
and any released vapours are safely removed. Keep
vulnerable people and pets out of this room during
this process.

Installation manual MatriX 800/500 RD H, ST H & MatriX 1050/500 RD H, ST H
10 < <<<
3Installation requirements
3.1 Appliance
This appliance may not be installed in a
chlorine-containing environment. (Pools
etc.).
This appliance must be built into an
existing or new false chimney.

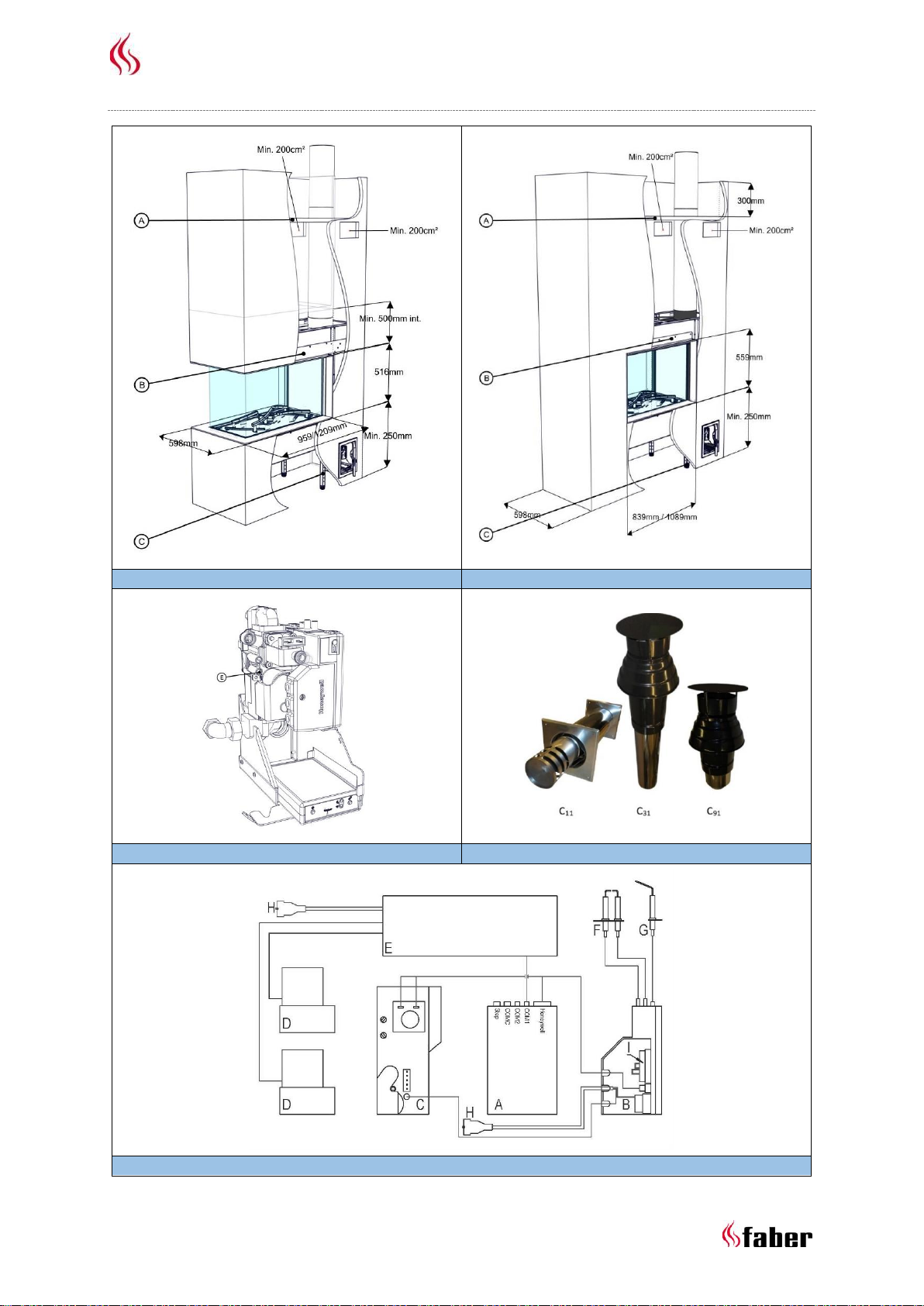

For appliances with flexible gas pipes, the
control unit (fig. 1.2) is mounted at the
bottom of the crate. Detach and mount it
together with the control box and
remote access door in as low as possible
position in the false chimney. (See
supplied instruction manual 40011721).
(To prevent damage to cables and pipes
during transport, they are bound together
by tie wraps. Remove these to ensure
proper operation of the appliance.)
The MatriX 800-1050x500-RD,ST H comes
standard with a 2 meter pipe set (article
number 20901589).
3.2 False chimney
The false chimney should be of non-
combustible material.
The space above the fire should always be
ventilated using grids with minimal free
passage of 200cm² per grid.
The false chimney construction should not
rest on the build-in frame of the fireplace.
3.3 Discharge and outlet requirements
First, carry out a flue calculation (see chapter 11)
and adjust the correct restrictor value before
installing the outlet! (Generally the flue restrictor is
adjust to 60, see fig. 1.5b).
For supply and discharge always use the
prescribed and to be supplied Faber flue
materials. Please contact Glen Dimplex
Benelux B.V.. Only with use of these
materials Faber can guarantee proper
performance.
The distance to combustible materials
must be min. 50mm, calculated from
outside of the flue material (EN 1856-1
T600 N1 D Vm –L20040 O(50)).
Outlets (fig. 1.3)
The balanced flue pipe for combined air supply and
discharge can use a wall terminal or a roof
terminal. Verify that the desired outlet meets the
local regulations regarding pollution and
ventilation openings.
Please note!
For proper functioning, the outlet must at
least be 0,5m away from:
Corners of the building;
Roof overhangs and balconies;
Roof edges (with the exception of the
ridge edge, see chapter 15).
C11, outlet via facade
Through a wall or façade, use a Faber wall outlet
130/200mm.
C31, outlet via roof
For a (flat) roof, use a Faber roof outlet with a
diameter of 100/150mm.
C91, existing chimney
For an existing chimney, use a Faber chimney
outlet with a diameter of 100/150mm.
In this case the existing chimney acts as air inlet an
inserted flexible stainless steel pipe discharges the
flue gas. The top (Faber chimney cover plate) and
the bottom (Faber chimney connection set) should
be airtight.
Depending on the calculated flue diameter, you
must use a flexible stainless steel pipe of
Ø100mm (article number AJ005503) or Ø130mm
(article number AJ005603) as specified by Faber.
For this, contact Glen Dimplex Benelux B.V.
Please note!
The minimum chimney diameter for a
130mm flexible stainless steel pipe must
be 200x200mm and for a 100mm flexible
stainless steel pipe and 150x150mm.
Don’t connect more than one fire at the
existing chimney.
The chimney must be in good condition:
oNo leakage;
oWell cleaned.
For more information about the connections to
existing chimney ducts, please request the
installation instructions “Chimney Connection Set”.

Installation manual MatriX 800/500 RD H, ST H & MatriX 1050/500 RD H, ST H
11 < <<<
4Preparation and installation
instructions
4.1 Gas connection
The gas connection must comply with the
applicable local standards.
Please note!
Provide a flexible gas connection with at
least 0,5m extra length, so that the
control unit can be removed for
installation and service!
Calculate the gas pipe so that no
pressure drop occurs.
We advise using a gas connection directly from the
gas meter to the appliance, with a shut-off valve in
the proximity of the appliance, which must always
be freely accessible. Position the gas connection so
that it is easily accessible for service and the
burner unit can be disassembled at any time.
4.2 Electrical connection
Place a double wall socket 230VAC - 50Hz near the
fire for connecting the step module or HPL module
and the controller (control box FAB1806).
See fig. 1.4 for the wiring diagram:
A = I.T.C. (Intelligent Technical Controller)
B = electronics
C = gas valve
D = solenoid valve
E = Step module or HPL module (optional)
F = ignition pin
G = ionization pin
H = connection cable
I = configuration plug
4.3 Smart Home installation
The controller can be connected to an external
source, such as a Domotica system, by using a
Faber Interface Unit (article number A9323000).
4.4 Preparing the fireplace
Remove the fireplace from its packaging.
Ensure that the gas supply pipes under
the appliance are not damaged.
Prepare the gas connection on the gas
valve.
4.5 Setting the restrictor plate
The flue calculation indicates which restrictor plate
setting is required for the correct operation of the
fireplace. See chapter 11.
The restrictor plate has a scale from 0 to 110 in
steps of 10. Standard the restrictor value is set to
60. (See fig. 1.5b and 1.6).
To get good access to the restrictor, you can
consider sliding out the top plate, even with the
top plate there is a good access to the restrictor.
See fig. 1.5a.
Loosened the two screws to adjust the restrictor
plate. Move the restrictor plate to the left and slide
it to the correct setting. Tighten the screws.
When the calculation shows 0, the restrictor must
be set to the top position.
When the calculation indicates 110, the restrictor
should be set to the bottom position.
For all other values the intermediate positions
must be used.
4.6 Positioning the fireplace
Take into account the installation requirements
(see chapter 3). Place the fireplace at the right
place and level it.
Rough height adjustment:
With the adjustable (optional) legs.
Accurate height adjustment:
With the adjustable feet.
4.7 HPL module (Hybrid Pro Light)
Place the power supply (see fig. 1.7) of the HPL
module in a cool place and near to the controller
(control box).
Please note!
Before installing the false chimney, a
functional test of the HPL module is
recommended.
Physical check HPL module
Switch on the HPL module with the remote control
and check whether the LED spots are on (fig. 1.8).
Electronic check HPL module in the ITC-V2 App
(Only possible in dealer setting).
Make sure the ITC-V2 App is connected to the fire,
see fig. 1.9a.
1. Switch on the glow effect, see fig. 1.9b.
2. Navigate to:
Menu (top left) -> Diagnostics -> Realtime
Monitor -> HPL MODULE.
3. Click on “TEST LED SPOTS”, see fig. 1.9c.
If any LED spots are defective, this will be indicated
in the App. Use the overview in section 16.1 or
16.3 for the position.

Installation manual MatriX 800/500 RD H, ST H & MatriX 1050/500 RD H, ST H
12 < <<<
Testing burner sections (step valves)
Activate the sectional burner by clicking at
the "step symbol", see fig. 1.9d.
Switch the various modes, see fig. 1.9e.
If a step valve is defective, this will be indicated in
the App.
4.8 Installing the flue pipes
Install the flue pipes according to the installation
manual supplied with the appliance (40011968)!
The distance to combustible materials
must be min. 50mm, calculated from the
outside of the flue pipe.
Never start immediately with an
adjustable flue pipe on the appliance.
Horizontal sections should be installed to
allow a slope towards the appliance
(3 degrees).
Built the system from the appliance. If this
is not possible you can make use of an
adjustable flue pipe.
For fitting of the flue system, the 0,5m
length-adjustable pipe must be used.
Make sure that the inner pipe is always
15mm longer than the outer pipe. Wall-
and roof terminal can also be cut. These
components must be secured with a self-
tapping screw.
4.9 Constructing the false chimney
Before positioning the false chimney, we advise to
perform a functional test with the fireplace as
defined in chapter 7 “Checking the installation”.
False chimney
Construct the false chimney of non-
combustible material in combination with
metal profiles or of masonry/concrete
blocks.
Always use a lintel or reinforcing bars
while bricking the false chimney. They
should not be placed directly on the
fireplace.
Make sure that the fireplace never
functions as a load-bearing construction,
because of the expansion of the fireplace
through warmth.
Ventilation
Correct ventilation prevents damaging overheating
of the gas control block and its electronics and also
limits the temperature of the convection air. Use
the (optional) Faber ventilation grids (article
number A9296400) or a similar alternative with a
minimum free passage of 200cm² per grid, in the
space above the fire, when building the false
chimney. Within the false chimney, an horizontal
screen plate, made of non-combustible material,
must be installed just above the ventilation
openings. (see “A”in fig. 1.0 or 1.1).
Installation and finishing
Please note!
Take into account a minimum distance of
2mm due to expansion of the fireplace.
Take into account the thickness of any
finishing layer!
Method I: installation WITH cover strip (fig. 3.0a)
For installation and finishing the following points
are of interest (fig. 3.0b):
G = Built-in frame
H = Spacer profile
Build the false chimney against the built-in
frame Gand the spacer profile H(fig.
3.0b).
Do not build the false chimney
(underneath the appliance) higher than
the top of the spacer profile H.
Method II: installation WITHOUT cover strip (fig.
3.1a)
For installation and finishing the following points
are of interest (fig. 3.1b):
I = Built-in frame
J = Glass support
K = Upper side of the combustion
chamber setting.
Remove all-round spacer profile H(fig.
3.0b).
Please note!
Ensure that the screws of the spacer profiles H
are replaced to ensure the air tightness of the
device.
For the height of the plateau, observe
point K(fig. 3.1b).
Due to the expansion of the fireplace,
there should be at least 2mm play
between the platform and the glass
supports J(fig. 3.1b).

Installation manual MatriX 800/500 RD H, ST H & MatriX 1050/500 RD H, ST H
13 < <<<
5Removing glass
5.1 MatriX 800-1050/500 RD H
To take out the front glass, the side glass must be
removed first.
Removing the side glass (see fig. 4.0):
Remove cover strip “A”;
Place a suction cup on the glass;
Open both glass clamps at the top;
Move the glass upwards so that the
underside is released from the grooves
and pull the glass downwards.
Remove the front glass
Remove cover strip “B” see fig. 4.1;
Place the suction cups on the glass;
Open the glass clamps (see fig. 4.2);
Push up frame “C” and move slightly
forward so that it remains in the open
position (see fig. 4.3).
See fig. 4.4:
Move the glass upwards so that the
bottom side is released from the groove.
Move the glass slightly to the left or right;
Pull out the glass and store it at a safe
place.
For replacing the glass repeat the steps in reverse
order. (If necessary, use the tool provided to pull
the "C" frame back down, see fig. 5.0).
Adjusting the front glass to the side glass
If the front glass does not fit properly
the side glass, the glass can be adjusted by means
of adjusting screws (see fig. 4.5).
Please note!
Avoid fingerprints on the glass, these are no
longer removable once the fire is used.
5.2 MatriX 800-1050/500 ST H
Remove cover strips “A” (fig. 4.6).
Open the glass clips (fig. 4.7).
Place the suction cups on the glass and
slide the upper frame “C” upward (fig.
4.8).
See fig. 4.9:
1. Slide the glass to the top so that the
bottom is released from the slot.
2. Now carefully slide the glass to the
left or right.
3. Bring the released side towards you
and store the glass at a safe place.
For replacing the glass repeat the steps in reverse
order. (If necessary, use the tool provided to pull
the "C" frame back down, see fig. 5.0).
Please note!
Avoid fingerprints on the glass, these are no
longer removable once the fire is used.
6Placing decoration material
Attention!
It is not allowed to add other or more
decoration material in the combustion
chamber.
Scan the QR code for a clear video instruction on
how to decorate the burner:
Keep the included decoration instruction card
close.
Chapter 17 provides an overview of the complete
wood log setup.
6.1 Switching on HPL module (optional)
To get the right glow effect, the HPL module must
be switched on at 100% intensity.
Make sure the ITC-V2 App is connected to the fire,
see fig. 1.9a.
Switch on the glow effect, see fig. 1.9b.
Click on the “flame” in the circle, see fig.
1.9f.
Click on the “settings” in the circle, see fig.
1.9g.
Set “Wood glow” and “Ash bed glow” to
maximum, see fig. 1.9h.
Tip:
Regularly check the glow effect on the wooden
logs while decorating.
6.2 Installing HPL light guides
Insert the light guides through a slotted opening of
the burner plate into a matching recess in the
bottom, see chapter 16 and fig. 6.0.
With LED spot Gtwo light guides must be placed in
one recess, see chapter 16 and fig. 6.1.

Installation manual MatriX 800/500 RD H, ST H & MatriX 1050/500 RD H, ST H
14 < <<<
When the light guide is placed correctly, light will
shine from the top side of the glass. If this is not
the case, the light guide must be repositioned.
6.3 Creating ash bed
Spread the glass granules over the entire
bottom plate, with a slightly increasing
thicker layer towards the center burner.
Attention!
Keep some glass granules for correction later
on.
By simultaneously placing (large) chips in
front of the light guides (standing
between the light guide and the glass
granules), this can be largely hidden from
view. Cut or break the chips so that they
do not protrude higher than the light
guide itself, to the detriment of the glow
effect on the logs. (See instruction video!)
Divide the grey mini chips from the center
over the glass granules.
6.4 Placing log set
Place wood log 7 over the center burner.
Make sure the ignition and ionization pin
are not obstructed by the wood log. Keep
checking during decorating!
Place wood log 9 in the back, under wood
log 7.
Place the wooden logs 1 through 4 over
the curved burner tubes.
Attention!
The wood logs should be able to slide slightly
over the burner tubes.
Place the remaining wood logs.
Distribute the black mini chips around the
edge of the bottom plate.
Distribute the large chips (grey and black)
over the bottom plate.
6.5 Checkpoints
Check:
1. That the ignition and ionization pin do not
make contact with ash material or a
wooden log.
2. The glow effect on the wooden logs:
That all wooden logs have the right
position.
That the light guides are not
covered by ash material.
3. That no glow effect is visible at the back
wall.
4. On an even ash bed glow.
Attention!
Start the fire for the first time without the
glass installed!
Start the fire as described in the user manual.
Assess the flame distribution and the glow
effect on the wooden logs. Move or remove
chips if necessary to create an even ash bed
glow.
Switch off the fire.
Place the glass (see chapter 5).

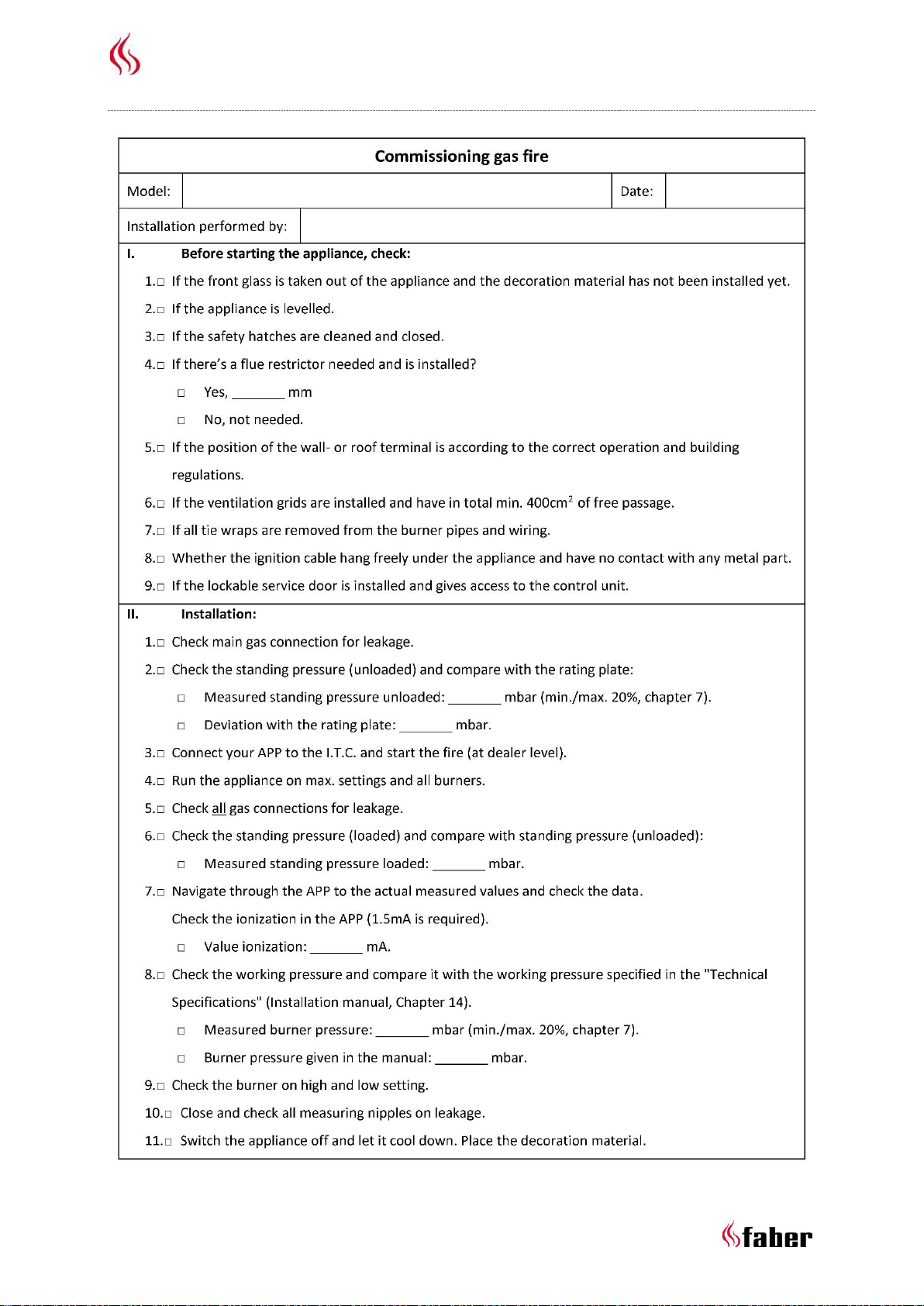

7Checking the installation
Checking for gas leaks
Check with a gas leak finder all connections and
pipes for gas leakage.
Check inlet pressure
Check if the inlet pressure correspond to the data
on the rating plate.
Measuring the inlet pressure:
Close the shutoff valve. Turn the
measuring nipple “E”(fig. 1.2) a few turns
to open and connect a measuring hose to
the gas valve.
Take this measurement when the
fireplace runs at high and low settings.
Do not use the device if the inlet pressure
deviates (+20% and -20%).
Please note!
Close the pressure measuring nipple and check
for gas leakage.
Check ignition and burner
Ignite the fire by using the remote control as
described in the user manual.
Check:
All section settings of the burner.
Now repeat the above check using the ITC-V2 App.
(App set at Dealer level).
Navigate to: Menu (top left) -> Diagnostics and:
Diagnostic messages;
Realtime Monitor.
Now use a gas leak finder to check all gas pipes
from the gas valve to the burner.

Installation manual MatriX 800/500 RD H, ST H & MatriX 1050/500 RD H, ST H
15 < <<<
7.1 Checking the flame image
Let the fireplace burn for at least 20 minutes at
highest setting and check the flame for:
flame distribution;
colour of the flames.
When the fire image is acceptable let the fireplace
burn at the maximum setting for at least 4 hours.
See chapter 2.1.
If one or both points are not acceptable then
check:
The position of the logs and/or the
amount of glass granulates;
The pipe connections for leaks.
(in case of blue flames);
That the flue restrictor is set to the right
value (see fig. 1.5a,b);
The outlet:
oWall terminal has the correct
position and side up;
oRoof terminal has the correct
position.
If the maximum lengths of the flue gas
outlet is not exceeded.
If possible, carry out a flue gas analysis
(see section 7.2).
7.2 Flue gas analysis
It is possible to check the combustion gases and
supply air with a CO/CO2flue gas analyser.
There are two measuring pipes between the built-
in frame and the front glass (fig. 2.1a and b).
X = measuring pipe air supply
Y = measuring pipe flue gas
The ratio CO2 and CO must not be greater than
1:100.
Example:
CO2 is 4% and CO is 400ppm, measured at the
highest point. If the ratio is greater than 1:100 or
flue gases are measured in the air supply, check
the points in section 7.1.
8Instructions for client
Recommend that the fire should be
checked annually by a qualified specialist
to ensure the safe use and to guarantee a
long service life.
Provide instructions on the operation of:
othe appliance;
othe remote control;
oif present, the App and its
settings.
Give advice and instructions on care and
cleaning of the glass:
Emphasize the danger of fingerprint burns
at the glass.
Handover to customer:
oinstallation manual;
ouser manual;
odecoration instruction card;
osuction cups;
osample Faber glass polish.
9Annual maintenance
Check
Check and clean if necessary:
the combustion chamber;
the burner
the wooden logs for breakage;
the glass(es);
the outlet.
Replace ash material and/or glass granulate if
necessary.
Cleaning
Remove the front glass (see chapter 5).
You can clean the glass with Faber glass polish.
This is a specially formulated cleaning agent that
can be ordered at authorized Faber dealers.
Never use aggressive cleaning agents or abrasive
products.
Please note!
Avoid fingerprints on the glass; these are no
longer removable once the fire is used.
Now carry out check-up as described in chapter 7.
For an extensive maintenance instruction
"maintenance protocol gas fires" see:

Installation manual MatriX 800/500 RD H, ST H & MatriX 1050/500 RD H, ST H
16 < <<<
10 Conversion to other gas type
This can only be done by replacing the burner. To
do so, please contact your dealer. Always provide
the type and serial number of the appliance when
ordering.
11 Flue calculation
A simple way to calculate whether the exhaust
configuration is possible in combination with your
fireplace, use the “Faber Flue App V2”:
This is available free of charge and can be
downloaded via:
Internet:
Android and PC (Windows Store, (Windows 10)).
App Store:
iPhone, iPad and Mac.
Google Play:
Android smart phones and Android tablets.
Alternatively, you can use the calculation sheet
(see chapter 13).
The options for flue lengths and any flue restrictors
are defined in a restrictor table, see 11.1 and 11.2.
Start Length (STL), Total Vertical Height (TVH) and
Total Horizontal Length (THL) are used in the table.
Start length (STL):
The first part that is placed on the
fireplace and represents a certain value
(fig. 12.1, 12.2 and 12.3 A, N and F). You
can find this value in the upper row of the
restrictor table.
Total Vertical Height (TVH):
TVH is the height difference measured
from the top of the appliance to the
outlet. This can be measured or
determined in the building plan. For
clarification, see also the TVH indication in
the drawings (fig. 12.1, 12.2 and 12.3).
Total Horizontal Length (THL):
THL is the Total Horizontal Length and
consists of elbows and pipes entirely in
the horizontal plane. See elbows I, K and Q
and the elements H, J, L, M, P and R
(fig. 12.1 and 12.2).
Horizontal length:
The Horizontal Length consists of the
elements H, J, L, M, P and R
(fig. 12.1 and 12.2).
Elbows 90° in the horizontal plane:
Horizontal elbows are elbows entirely in
the horizontal plane
(fig. 12.1, 12.2 and 12.3 I, K and Q).
Elbows 45° or 30° in the horizontal plane.
Horizontal elbows are elbows entirely in
the horizontal plane.
Elbows 90° vertical to horizontal:
These are 90° elbows, which proceed from
horizontal to vertical (fig. 12.2 and 12.3 G,
O and S).
Elbows 45° or 30° vertical to horizontal
plane:
These are 30° or 45° elbows vertically
offset less than 45° (fig. 12.1 B and D).
Pipes at an angle of inclination:
These are pipes vertically ascending at an
angle of 30° or 45° (fig. 12.1 C). Fill in only
in combination with at least two 30° or
45° elbows in the vertical part.
Restrictor table:
See restrictor table for the correct vertical
(TVH) and horizontal length (THL).
In case of an “X” or if the values are outside the
restrictor table, the combination is not permitted.
Then adjust TVH or THL.
If a value is indicated, check that the calculated STL
value is not lower than indicated in the restrictor
table. In this case STL must be adjusted.
The value found indicates the setting of the flue
restrictor value.
When the calculation shows 0, the restrictor must
be set to the top position.
When the calculation indicates 110, the restrictor
should be set to the bottom position.
For all other values the intermediate positions
must be used.
The default value is set to 60, see fig. 1.5b and 1.6.

Installation manual MatriX 800/500 RD H, ST H & MatriX 1050/500 RD H, ST H
17 < <<<
11.1 Restrictor table (100/150) MatriX 800/500 RD H, ST H and MatriX 1050/500 RD H, ST H
Start length (STL) Vertical (TVH) and Horizontal (THL)
0,2
0 1 2 3 4
0x x x x x
0,5 x x x x x
1x x x x x
1,5 x x x x x
20,2 x x x x
30,2 x x x x
460,2 x x x x
570,2 x x x x
680,2 x x x x
790,2 x x x x
890,2 x x x x
9100,2 x x x x
10 100,2 x x x x
11 110,2 x x x x
12 110,2 x x x x
13 110,2 x x x x
14 110,2 x x x x
15 110,2 x x x x
16 110,2 x x x x
17 110,2 x x x x
18 110,2 x x x x
19 110,2 x x x x
20 110,2 x x x x
21 110,2 x x x x
22 110,2 x x x x
23 110,2 x x x x
24 110,2 x x x x
25 110,2 x x x x
26 110,2 x x x x
27 110,2 x x x x
28 110,2 x x x x
29 110,2 x x x x
30 110,2 x x x x
STL
THL
TVH

Installation manual MatriX 800/500 RD H, ST H & MatriX 1050/500 RD H, ST H
18 < <<<
11.2 Restrictor table (130/200) MatriX 800/500 RD H, ST H and MatriX 1050/500 RD H, ST H
Start length (STL) Vertical (TVH) and Horizontal (THL)

Installation manual MatriX 800/500 RD H, ST H & MatriX 1050/500 RD H, ST H
19 < <<<
12 Examples flue materials

Installation manual MatriX 800/500 RD H, ST H & MatriX 1050/500 RD H, ST H
20 < <<<
13 Calculation sheet
Starter length (STL)
First part on top of the appliance
Value
Value
Flue length from 0,1m till 0,45m
0,2
Flue length from 0,5m till 0,90m
0,5
Flue length from 1m till 1,4m
1
Flue length from 1,5m till 2m
1,5
Flue length 2m or more
2
Bend 90°
0,1
Bend 45°, 30° or 15°
0,2
Roof terminal
1
Wall terminal
0
……………………..
Total Vertical Height (TVH)
measured height
rounded value
…………………………………………………… meter
……………. meter
Total Horizontal Length (THL)
Calculation
Part
number
x
value
result
rounded value
Total Length in meters
………
x
1
……………..
90° Bend, vertical to
horizontal
………
x
0,4
……………..
45° Bend, vertical to
horizontal
………
x
0,2
……………..
90° Bend in horizontal
direction
………
x
1,5
……………..
45° Bend in horizontal
direction
………
x
1
……………..
flue pipes at an angle in
meters
………
x
0,7
……………..
Total
……………+
………………….. meter
