Faber MatriX 450/500 III User manual

Installation manual
MatriX 450/500 III
MatriX 450/650 III
ENG
40011653-2017

Installation manual Matrix 450/500 III and MatriX 450/650 III
2 < <<<

Installation manual Matrix 450/500 III and MatriX 450/650 III
3 < <<<

Installation manual Matrix 450/500 III and MatriX 450/650 III
4 < <<<
1.0
1.1
1.2
1.3

Installation manual Matrix 450/500 III and MatriX 450/650 III
5 < <<<
1.4
2.0
2.1
2.2
F
G
Y
X

Installation manual Matrix 450/500 III and MatriX 450/650 III
6 < <<<
2.3
2.4
2.5
2.6
2.7
H
H
I
I
J
H
H
L
K

Installation manual Matrix 450/500 III and MatriX 450/650 III
7 < <<<
2.8
2.9

Installation manual Matrix 450/500 III and MatriX 450/650 III
8 < <<<
3.0
3.1
3.2
3.3
1
1
c
3
3
2

Installation manual Matrix 450/500 III and MatriX 450/650 III
9 < <<<
1Dear user
Congratulations on your purchase of a Faber fire! A
quality product from which you will experience
warmth and atmosphere for many years. We rec-
ommend that you read this manual carefully be-
fore using the fireplace. If any problem arises de-
spite our strict quality control, you can always con-
tact your dealer or Glen Dimplex Benelux B.V.
For any warranty claims, it is essential you first
register your fireplace. During this registration,
you’ll find all information regarding our warranty.
Please note!
The details of your fireplace can be found in
the user manual.
You can register your fire at: www.faberfires.com
Glen Dimplex Benelux B.V.
Address: Saturnus 8
NL-8448 CC
Heerenveen
Tel: [phone]
Email: [email protected]
Info: www.faberfires.com
1.1 Introduction
Installation and maintenance of the appliance must
be carried out by a professional with proven
knowledge and competence. A professional takes
into account all technical aspects such as heat radi-
ation and gas connection as well as flue gas ex-
haust requirements.
Where the installation instructions are not clear,
national/local regulations must be followed.
1.2 Check
Check the fireplace for transport damage and im-
mediately report any damage to your supplier.
1.3 CE Declaration
We hereby declare that Glen Dimplex Benelux B.V.
released Faber gas-atmosphere heating appliance
by its design and construction method complies
with the Regulation (EU): 2016/426 and (EU)
2015/1188.
Product: gas room heater
Model: MatriX 450/500 III
MatriX 450/650 III
This declaration will become null and void as soon
as the unit is in any way modified without written
authorization of Glen Dimplex Benelux B.V.
2Safety instructions
Please note!
It is advisable to always install a screen for the fire-
place if children, elderly or disabled people are
present in the same room as the fireplace. If regu-
larly vulnerable persons can be present in the
room without supervision, sufficient protection
must always be placed around the fireplace.
This appliance must be installed according
with the rules in force and used only in a
sufficiently space.
The appliance must be checked annually
in accordance with this installation man-
ual and the applicable national and local
regulations.
Ensure that the data on the type label
matches the local gas type and pressure.
The appliance is designed for atmosphere
and heating purposes. This means that all
visible surfaces, including the glass, can
become hotter than 100°C. An exception
by free standing models is the underside
of the fireplace and the control buttons.
Do not use the remote control and / or
app outside the room where the fire is lo-
cated. So that you are always aware of the
situation around the fireplace when it is
being operated.
The settings and the construction of the
fireplace must not be changed!
Do not place extra imitation wood or
other material on the burner or in the
combustion chamber.
Do not place any combustible materials
within 0,5m of the radiation area of the
fire.
Through the natural air circulation of the
fireplace moisture and uncured volatile
components from paint, building materi-
als and carpeted floors, etc. are attracted.
These parts can settle as soot on cold sur-
faces. Therefore do not light the fireplace
shortly after installation.
2.1 Using the fire for the first time
Provide extra ventilation and open all the windows
of the room during the initial start-up of the fire.
Let the fire burn at the highest setting for a few
hours so that the paint gets the chance to harden
and any released vapours are safely removed. Keep
vulnerable people and pets out of this room during
this process.

Installation manual Matrix 450/500 III and MatriX 450/650 III
10 < <<<
3Installation requirements
3.1 Appliance
This appliance may not be installed in a
chlorine-containing environment. (Pools
etc.).
This appliance must be built into an exist-
ing or new false chimney.
For appliances with flexible gas pipes, the
control unit (fig. 1.1) is placed on the right
side of the crate for transport reasons.
Detach and mount it together with the re-
mote access door in as low as possible po-
sition in the false chimney.
(To prevent damage to cables and pipes
during transport, they are bound together
by tie wraps. Remove these to ensure
proper operation of the appliance.)
3.2 False chimney
The false chimney should be of non-com-
bustible material.
The space above the fire should always be
ventilated using grids with minimal free
passage of 200cm² per grid.
The false chimney construction should not
rest on the built-in frame of the fireplace.
3.3 Discharge and outlet requirements
First, carry out a flue calculation (see chapter 11)
and place the right flue restrictor before installing
the outlet! (Generally a 30mm flue restrictor is in-
stalled).
For supply and discharge always use the
prescribed and to be supplied Faber flue
materials. Please contact Glen Dimplex
Benelux B.V.. Only with use of these mate-
rials Faber can guarantee proper perfor-
mance.
The distance to combustible materials
must be min. 50mm, calculated from out-
side of the flue material (EN 1856-1 T600
N1 D Vm –L20040 O(50)).
Outlets (fig. 1.4)
The balanced flue pipe for combined air supply and
discharge can use a wall terminal or a roof termi-
nal. Verify that the desired outlet meets the local
regulations regarding pollution and ventilation
openings.
Please note!
For proper functioning, the outlet must at
least be 0,5m away from:
Corners of the building;
Roof overhangs and balconies;
Roof edges (with the exception of the
ridge edge, see chapter 15).
C11, outlet via facade
Through a wall or façade, use a Faber wall outlet.
Depending on the flue calculation this can be
100/150mm or 130/200mm.
C31, outlet via roof
For a (flat) roof, use a Faber roof outlet with a di-
ameter of 100/150mm.
C91, existing chimney
For an existing chimney, use a Faber chimney out-
let with a diameter of 100/150mm.
In this case the existing chimney acts as air inlet an
inserted flexible stainless steel pipe discharges the
flue gas. The top (Faber chimney cover plate) and
the bottom (Faber chimney connection set) should
be airtight.
Depending on the calculated flue diameter, you
must use a flexible stainless steel pipe of
Ø100mm (article number AJ005503) or Ø130mm
(article number AJ005603) as specified by Faber.
For this, contact Glen Dimplex Benelux B.V.
Please note!
The minimum chimney diameter for a
130mm flexible stainless steel pipe must
be 200x200mm and for a 100mm flexible
stainless steel pipe and 150x150mm.
Don’t connect more than one fire at the
existing chimney.
The chimney must be in good condition:
oNo leakage;
oWell cleaned.
For more information about the connections to ex-
isting chimney ducts, please request the installa-
tion instructions “Chimney Connection Set”.

Installation manual Matrix 450/500 III and MatriX 450/650 III
11 < <<<
4Preparation and installation instruc-
tions
4.1 Gas connection
The gas connection must comply with the applica-
ble local standards.
Please note!
Provide a flexible gas connection with at
least 0,5m extra length, so that the con-
trol unit can be removed for installation
and service!
Calculate the gas pipe so that no pres-
sure drop occurs.
We advise using a gas connection directly from the
gas meter to the appliance, with a shut-off valve in
the proximity of the appliance, which must always
be freely accessible. Position the gas connection so
that it is easily accessible for service and the
burner unit can be disassembled at any time.
4.2 Electrical connection
Install a 230VAC/50Hz wall socket near the fire-
place for connecting the control unit.

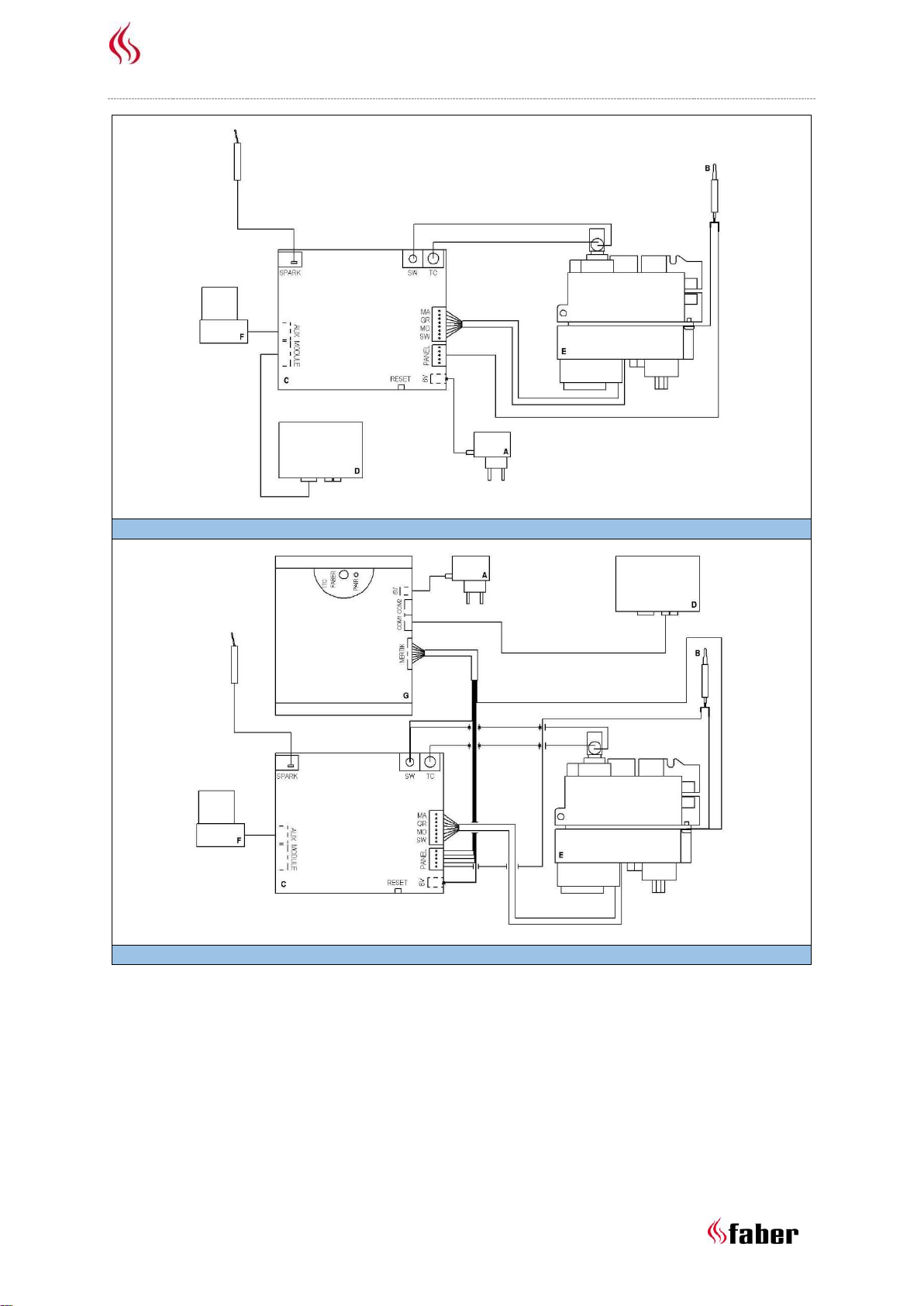

See fig. 2.8 for the wiring diagram:
A= Adapter (6V)
B = 2nd thermocouple
C = Receiver
D = LED Symbio module (optional)
E = Gas valve
F = Solenoid valve
See fig. 2.9 for the wiring diagram with I.T.C. (Op-
tional):
A= Adapter (6V)
B = 2nd thermocouple
C = Receiver
D = LED Symbio module (optional)
E = Gas valve
F = Solenoid valve
G = I.T.C. (optional)
4.3 Smart Home installation
Please note
This is only possible if the fire is equipped
with I.T.C!
The controller can be connected to an external
source, such as a Domotica system, by using a Fa-
ber Interface Unit (article number A9323000).
4.4 Preparing the fireplace

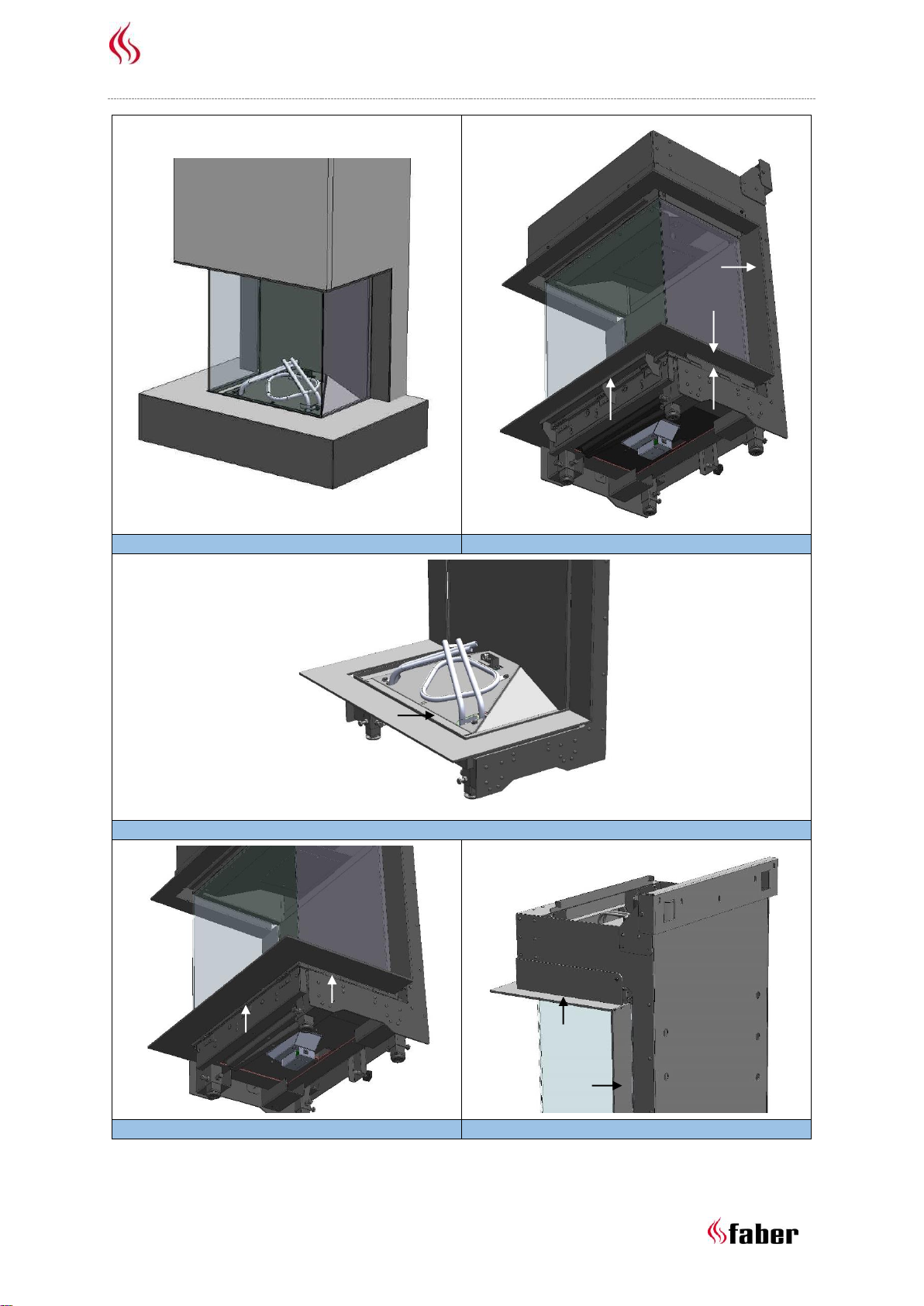

Remove the fireplace from its packaging.
Ensure that the gas supply pipes under
the appliance are not damaged.

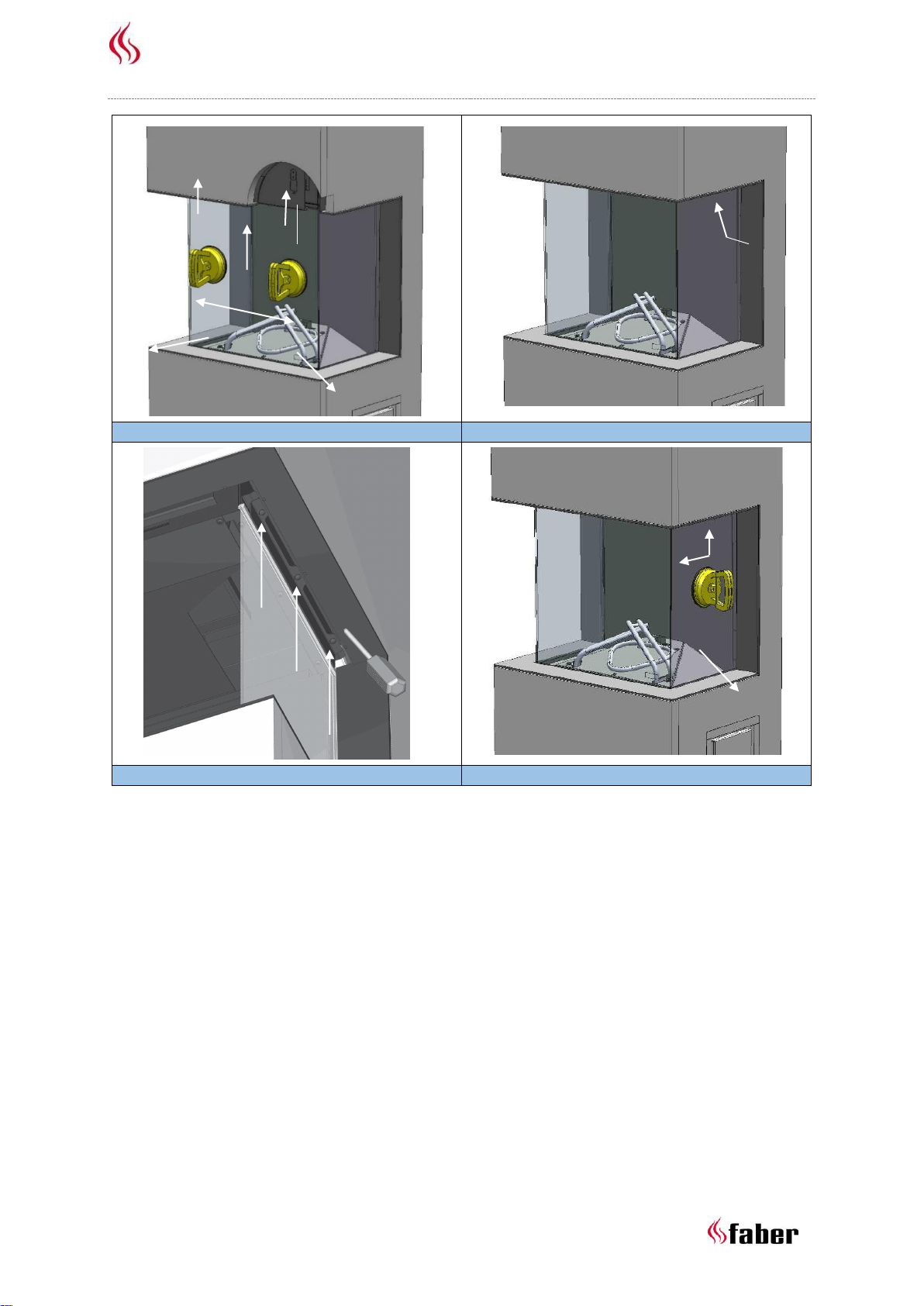

Remove the glass and any mouldings,
store them at a safe place and remove the
packaged parts from the fireplace.
Prepare the gas connection on the gas
valve.
4.5 Positioning the fireplace
Take into account the installation requirements
(see chapter 3). Place the fireplace at the right
place and level it.
Rough height adjustment:
With the adjustable (optional) legs.
Accurate height adjustment:
With the adjustable feet.
Hanging on the wall
The fireplace can also be mounted on the wall us-
ing the optional wall bracket set, see Appendix
17.3 (article number A9323296). Therefore, re-
move the existing fittings and use the provided
spacer for vertical alignment, see fig. 1.3.
4.6 Installing the flue pipes
Install the flue pipes according to the installation
manual supplied with the appliance (article num-
ber 40011968)!
The distance to combustible materials
must be min. 50mm, calculated from the
outside of the flue pipe.
Never start immediately with length-ad-
justable concentric flue pipe on the appli-
ance.
Horizontal sections should be installed to
allow a slope towards the appliance (3
degrees).
Built the system from the appliance. If this
is not possible you can make use of an ex-
tendable adapter section.
For fitting of the flue system, the 0,5m
length-adjustable pipe must be used.
Make sure that the inner pipe is always
15mm longer than the outer pipe. Wall-
and roof terminal can also be cut. These
components must be secured with a self-
tapping screw.
4.7 Constructing the false chimney
Before positioning the false chimney, we advise to
perform a functional test with the fireplace as de-
fined in chapter 7 “Checking the installation”.

Installation manual Matrix 450/500 III and MatriX 450/650 III
12 < <<<
False chimney
Construct the false chimney of non-com-
bustible material in combination with
metal profiles or of masonry/concrete
blocks.
Always use a lintel or reinforcing bars
while bricking the false chimney. They
should not be placed directly on the fire-
place.
Make sure that the fireplace never func-
tions as a load-bearing construction, be-
cause of the expansion of the fireplace
through warmth.
Ventilation
Correct ventilation prevents damaging overheating
of the gas control block and its electronics and also
limits the temperature of the convection air. Use
the (optional) supplied Faber ventilation grids (arti-
cle number A9296400) or a similar alternative with
a minimum free passage of 200cm² per grid, in the
space above the fire, when building the false
chimney. Within the false chimney, an horizontal
screen plate, made of non-combustible material,
must be installed just above the ventilation open-
ings. (see “A”in fig. 1.0).
Installation and finishing
Please note!
Take into account a minimum distance of
2mm due to expansion of the fireplace.
Take into account the thickness of any fin-
ishing layer!
The following points are important for installation
and finishing.
H. = Cover trim (fig. 2.4 and 2.7)
I. = Spacer (fig. 2.4)
J. = Upper flange of the combustion cham-
ber (fig. 2.5).
K. = Spacer / glass support (fig. 2.6)
L. = Spacer / glass support (fig. 2.6)
Method I: Installation WITH the cover trim (fig. 2.2)
Build the false chimney or platform against the
decorative strips “H” and the spacers “I” (see fig.
2.4 and 2.7).
Method II: Installation WITHOUT the cover trim
(fig. 2.3).
Remove the distance profiles “I” (see fig. 2.4).
Please note!
Make sure that the distance profile screws “I”
are replaced at the front to ensure that the ap-
pliance is air tight.
Build the platform against the glass sup-
ports “K” and “L” (see fig. 2.6)
Hold point “J” for the height off the plat-
form.
5Removing glass
5.1 Front glass
Place the suction cups on the glass and
slide frame ”C” upwards (fig. 3.0).
See fig. 3.0, number:
1Slide the glass upwards to release the
bottom from the frame.
2Now gently pull the bottom towards
you.
3Take the exposed side towards you
and place the glass in a safe place.
For replacing the glass repeat the steps in reverse
order.
Please note!
Avoid fingerprints on the glass, these are no
longer removable once the fire is used.
5.2 Side glass
For cleaning only it’s not necessary to remove the
side glass.
Remove the front glass (see chapter 5.1).
Remove the glass strip at the top (fig. 3.1
and 3.2).
Place a suction cup and remove the side
glass (fig. 3.3).
To do this, see fig. 3.3, number:
1Slide the glass upwards to release the
bottom from the frame.
2Then pull the bottom towards you
and place the flass in a safe place.
For replacing the glass repeat the steps in reverse
order.
Please note!
Avoid fingerprints on the glass, these are no
longer removable once the fire is used.
6Placing decoration material
It is not permitted to use other or to add more ma-
terial in the combustion chamber.
See the supplied decoration instruction card or
chapter 18:
Divide the glass granulate on the perfo-
rated bottom plate.
Place the 2 large wood blocks and make
sure there is no glass granulate under-
neath.

Installation manual Matrix 450/500 III and MatriX 450/650 III
13 < <<<
Place the other wood blocks.
Divide the ash material over the entire
bottom.
Please note!
Keep the pilot flame and both burners free
from glass granulate and ash material!
Start the fireplace as described in the user
manual.
Assess whether the flame distribution and
if present, the Symbio effect (glow bed), is
good. Move or remove any ash mate-
rial/glass granulate to create a nice glow
bed.
Install the front glass and check the fire
image.

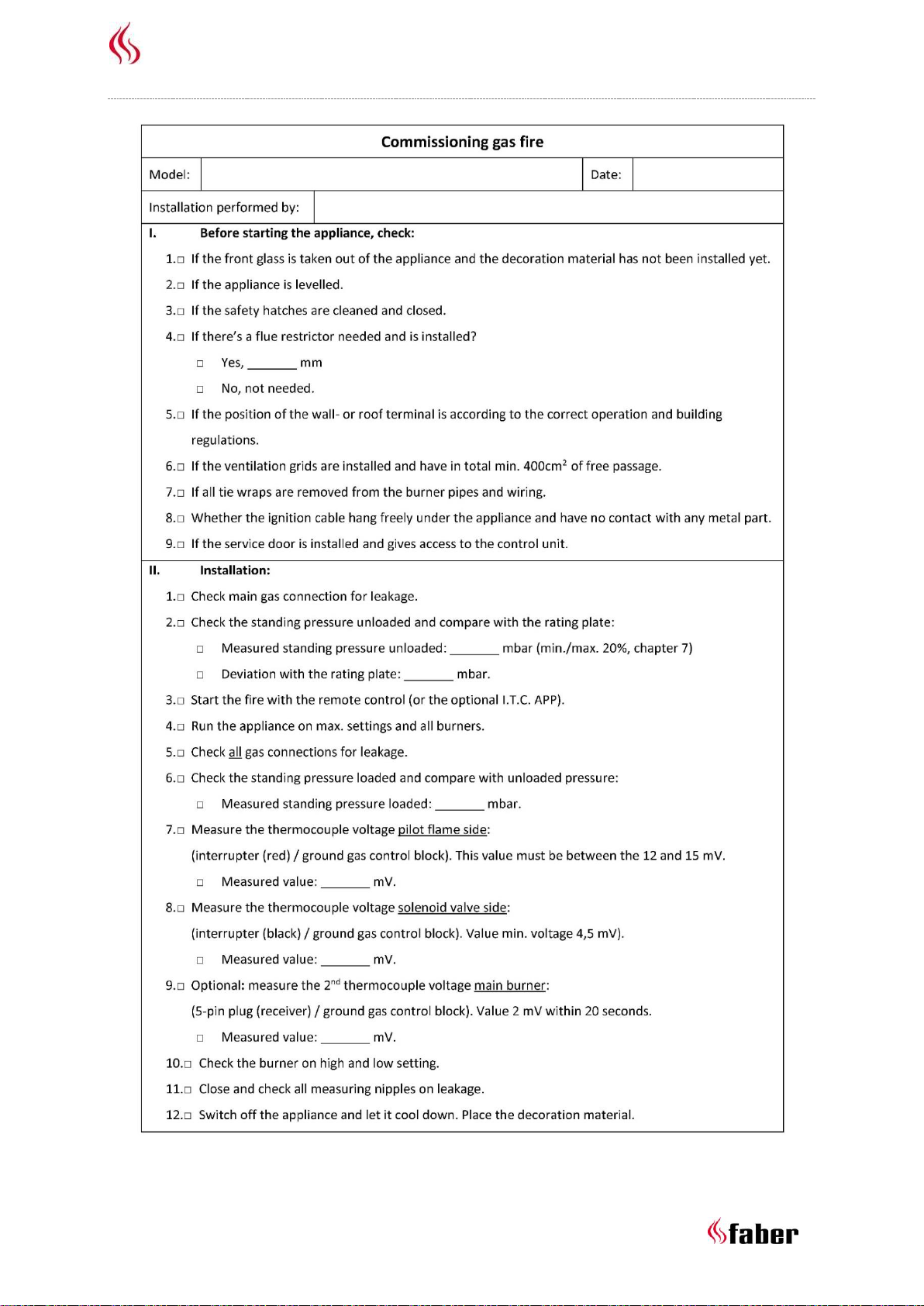

7Checking the installation
Checking for gas leaks
Check with a gas leak finder all connections and
pipes for gas leakage.
Check primary- and burner pressure
Check if the primary pressure correspond to the
data on the rating plate.
Measuring the primary pressure:
Close the shutoff valve. Turn the measur-
ing nipple “A” (fig. 1.2) a few turns to
open and connect a measuring hose to
the gas valve.
Take this measurement when the fire-
place runs at high and low settings.
Do not connect the unit if the pressure is
too high (+20% and -20%).
Measuring the burner pressure:
Check the burner pressure only with proper pri-
mary pressure.
Turn measuring nipple “B” (see fig. 1.2)
some turns open and connect a measuring
hose to the gas valve.
The pressure must correspond to the
value indicated in the technical specifica-
tions of this manual. In case of deviation
contact the manufacturer.
Please note!
Close both pressure measuring nipples and
check for gas leakage.
Check ignition and burner
Ignite the fireplace by using the remote control as
described in the user manual and test all burner
possibilities.
Check the ignition of the burner at high and small
settings. (The ignition must be smooth and quiet).
7.1 Checking the flame image
Let the fireplace burn for at least 20 minutes at
highest setting and check the flame for:
flame distribution;
colour of the flames.
If one or both points are not acceptable then
check:
The position of the logs and/or the
amount of chips/glass granulates.
The pipe connections for leaks.
(in case of blue flames);
That the correct flue restrictor is fitted
(see fig. 2.0-F);
The outlet:
oWall terminal has the correct po-
sition and side up;
oRoof terminal has the correct po-
sition.
If the maximum lengths of the flue gas
outlet is not exceeded.
If possible, carry out a flue gas analysis
(see section 7.2).
7.2 Flue gas analysis
It is possible to check the combustion gases and
supply air with a CO/CO2flue gas analyser.
There are two measuring pipes between the built-
in frame and the front glass (fig. 2.1).
X = measuring pipe air supply
Y = measuring pipe flue gas
The ratio CO2 and CO must not be greater than
1:100.
Example:
CO2 is 4% and CO is 400ppm, measured at the
highest point. If the ratio is greater than 1:100 or
flue gases are measured in the air supply, check
the points in section 7.1.
8Instructions for client
Recommend that the fire should be
checked annually by a qualified specialist
to ensure the safe use and to guarantee a
long service life.
Provide instructions on the operation of:
othe appliance;
othe remote control;
oif present, the App and its set-
tings.

Installation manual Matrix 450/500 III and MatriX 450/650 III
14 < <<<
Give advice and instructions on care and
cleaning of the glass:
Emphasize the danger of fingerprint burns
at the glass.
Handover to customer:
oinstallation manual;
ouser manual;
odecoration instruction card;
osuction cups;
osample Faber glass polish.
9Annual maintenance
Check
Check and clean if necessary:
the combustion chamber;
the burner
the pilot flame;
the wooden logs for breakage;
the glass(es);
the outlet.
Replace chips and/or glass granulate if necessary.
Cleaning
Remove the front glass (see chapter 5).
You can clean the glass with Faber glass polish.
This is a specially formulated cleaning agent that
can be ordered at authorized Faber dealers.
Never use aggressive cleaning agents or abrasive
products.
Please note!
Avoid fingerprints on the glass; these are no
longer removable once the fire is used.
Now carry out check-up as described in chapter 7.
For an extensive maintenance instruction "mainte-
nance protocol gas fires" see:
10 Conversion to other gas type
This can only be done by replacing the burner. To
do so, please contact your dealer. Always provide
the type and serial number of the appliance when
ordering.
11 Flue calculation
A simple way to calculate whether the exhaust
configuration is possible in combination with your
fireplace, use the “Faber Flue App V2”:
This is available free of charge and can be down-
loaded via:
Internet:
Android and PC (Windows Store, (Windows 10)).
App Store:
iPhone, iPad and Mac.
Google Play:
Android smart phones and Android tablets.
Alternatively, you can use the calculation sheet
(see chapter 13).
The options for flue lengths and any flue restrictors
are defined in a restrictor table, see 11.1. Start
Length (STL), Total Vertical Height (TVH) and Total
Horizontal Length (THL) are used in the table.
Start length (STL):
The first part that is placed on the fire-
place and represents a certain value (fig.
12.1, 12.2 and 12.3 A, N and F). You can
find this value in the upper row of the re-
strictor table.
Total Vertical Height (TVH):
TVH is the height difference measured
from the top of the appliance to the out-
let. This can be measured or determined
in the building plan. For clarification, see
also the TVH indication in the drawings
(fig. 12.1, 12.2 and 12.3).
Total Horizontal Length (THL):
THL is the Total Horizontal Length and
consists of elbows and pipes entirely in
the horizontal plane. See elbows I, K and Q
and the elements H, J, L, M, P and R
(fig. 12.1 and 12.2).

Installation manual Matrix 450/500 III and MatriX 450/650 III
15 < <<<
Horizontal length:
The Horizontal Length consists of the ele-
ments H, J, L, M, P and R (fig. 12.1 and
12.2).
Elbows 90° in the horizontal plane:
Horizontal elbows are elbows entirely in
the horizontal plane (fig. 12.1, 12.2 and
12.3 I, K and Q).
Elbows 45° or 30° in the horizontal plane.
Horizontal elbows are elbows entirely in
the horizontal plane.
Elbows 90° vertical to horizontal:
These are 90° elbows, which proceed from
horizontal to vertical (fig. 12.2 and 12.3 G,
O and S).
Elbows 45° or 30° vertical to horizontal
plane:
These are 30° or 45° elbows vertically off-
set less than 45° (fig. 12.1 B and D).
Pipes at an angle of inclination:
These are pipes vertically ascending at an
angle of 30° or 45° (fig. 12.1 C). Fill in only
in combination with at least two 30° or
45° elbows in the vertical part.
Restrictor table:
See restrictor table for the correct vertical
(TVH) and horizontal length (THL).
In case of an “X” or if the values are outside the re-
strictor table, the combination is not permitted.
Then adjust TVH or THL.
If a value is indicated, check that the calculated STL
value is not lower than indicated in the restrictor
table. In this case STL must be adjusted.
The value found indicates the width of the flue re-
strictor to be placed (“0” means no flue restrictor).
Generally a 30mm flue restrictor is installed (fig.
2.0-F), first remove hatch “G”.

Installation manual Matrix 450/500 III and MatriX 450/650 III
16 < <<<
11.1 Restrictor table (100/150) MatriX 450/500 III and MatriX 450/650 III
Start length (STL) Vertical (TVH) and Horizontal (THL)
0,1 0,2 0,5 0,5 1 1 1
012345678910
0x x x x x x x x x x x
0,5 30 x x x x x x x x x x
140 0 0,5 0,5 0,5 0,5 x x x x x
1,5 40 0 0 0 0 0 0 x x x x
245 0 0 0 0 0 0 x x x x
350 30 0 0 0 0 0 x x x x
450 30 30 0 0 0 0 x x x x
550 40 30 30 0 0 0 x x x x
660 40 40 30 30 0 0 x x x x
760 50 40 40 30 30 0 x x x x
860 50 50 40 40 30 0 x x x x
960 50 50 50 40 30 30 x x x x
10 60 60 50 50 40 30 30 x x x x
11 60 60 60 50 40 40 30 x x x x
12 60 60 60 50 50 40 30 x x x x
13 60 60 60 50 50 40 30 x x x x
14 60 60 60 50 50 40 30 x x x x
15 60 60 60 50 50 40 30 x x x x
16 60 60 60 50 50 40 30 x x x x
17 60 60 60 50 50 40 30 x x x x
18 60 60 60 50 50 40 30 x x x x
19 60 60 60 50 50 40 30 x x x x
20 60 60 60 50 50 40 30 x x x x
21 60 60 60 50 50 40 30 x x x x
22 60 60 60 50 50 40 30 x x x x
23 60 60 60 50 50 40 30 x x x x
24 60 60 60 50 50 40 30 x x x x
25 60 60 60 50 50 40 x x x x x
26 60 60 60 50 50 x x x x x x
27 60 60 60 50 x x x x x x x
28 60 60 60 x x x x x x x x
29 60 60 x x x x x x x x x
30 60 x x x x x x x x x x
STL
THL
TVH

Installation manual Matrix 450/500 III and MatriX 450/650 III
17 < <<<
12 Examples flue materials

Installation manual Matrix 450/500 III and MatriX 450/650 III
18 < <<<
13 Calculation sheet
Starter length (STL)
First part on top of the appliance
Value
Value
Flue length from 0,1m till 0,45m
0,2
Flue length from 0,5m till 0,90m
0,5
Flue length from 1m till 1,4m
1
Flue length from 1,5m till 2m
1,5
Flue length 2m or more
2
Bend 90°
0,1
Bend 45°, 30° or 15°
0,2
Roof terminal
1
Wall terminal
0
……………………..
Total Vertical Height (TVH)
measured height
rounded value
…………………………………………………… meter
……………. meter
Total Horizontal Length (THL)
Calculation
Part
number
x
value
result
rounded value
Total Length in meters
………
x
1
……………..
90° Bend, vertical to
horizontal
………
x
0,4
……………..
45° Bend, vertical to
horizontal
………
x
0,2
……………..
90° Bend in horizontal
direction
………
x
1,5
……………..
45° Bend in horizontal
direction
………
x
1
……………..
flue pipes at an angle in
meters
………
x
0,7
……………..
Total
……………+
………………….. meter

Installation manual Matrix 450/500 III and MatriX 450/650 III
19 < <<<
Search in the table at TVH and THL and enter the value that is found.
found value
………………………………
If the detected value is a number, check whether the completed STL is higher or equal to the value in
the table.
Is the STL value lower as specified in the table then the installation is not possible.
Solution: Start length to low, see for the minimum length in the top row of the table.
Is the found value X, then the installation is not possible.
Solution: Change the TVH or THL.
Results
Restrictor size = Value for the comma
………………….. mm
Extra information = Value behind the comma
mark
Install the air restrictor plate, see installation manual
0,1
Install adapter 100/150 direct on top of the fire
0,2
In case of wall terminal, install adapter 100/150 before the
last bend, in case of roof terminal just before the terminal.
0,3
In case of roof terminal (always size 100/150) install the
100/150 adapter just before the terminal.
Wall terminal 130/200
0,4
From the fire first an adjuster to 130/200 and 1 meter
130/200, after that reduce to 100/150 and everything
100/150.
0,5

Installation manual Matrix 450/500 III and MatriX 450/650 III
20 < <<<
14 Technical data
Symbol Unit
Reference gas/inlet pressure G20-20 G30-30 G31-37 mbar
Emissions in space heating NOx 82 90 90 mg/kWhinput (GVC)
Direct heating output
Nominal heat output Pnom 6,8 6,8 6,8 kW
Minimum heat output (indicative) Pmin 3,2 3,2 3,2 kW
Useful efficiency (NCV)
At nominal heat output ꞃth,nom 93,2 93,2 93,2 %
At minimum heat output (indicative) ꞃth,min 90,1 90,1 90,1 %
Appliance input data
Input Hi 7,3 7,3 7,3 kW
0,78 0,22 0,29 m³/h
0,55 0,54 kg/h
Burner pressure at full mark 12,8 20 28,3 mbar
Power requirement for permanent pilot light
Additional electricity consumption
At nominal heat output elmax 0 0 0 kW
At minimum heat output elmin 0 0 0 kW
In standby mode elSB 0 0 0 kW
Energy-efficiency
Energy-efficiency class A A A
Energy-efficiency index EEI 90 90 90
Type heating output/control room temperature
no
no
no
no
no
yes
Glen Dimplex Benelux Saturnus 8 Heerenveen The Netherlands
With mechanical control of the room temperature by
thermostat
Control of room temperature, with open
window detection
no
With electronic control of the room temperature
With electronic control of the room temperature plus day-
time switch
With optional remote control
yes
With electronic control of the room temperature plus week-
time switch
0,15
0,15
kW
Other control options
One step heat output, no control of room temperature
Control of room temperature, with
presence detection
no
Two or more manually adjustable stages, no control of room
temperature
0,15
Gas rate at full mark
Power requirement for permanent pilot light
(if applicable)
Ppilot
Gas connection
3/8"
Indirect heating functionality
no
Category
II2H3+, II2H3P
Diameter outlet/inlet
130/200
Technical data
Type indication(s)
MatriX 450x500 I,II,III MatriX 450x650 I,II,III
Type appliance
C11/C31/C91
