1Introduction
Note: these instructions should be read carefully and retained for future reference. Please
leave these instructions with the user.
There are two models of the Spectra Frameless:
•Spectra Frameless with steelplated interior
•Spectra Frameless Nostalgic with bricklining
This manual covers both models. Both are developed to be installed in 3 ways:
•Frameless in an existing builders opening or false chimney breast
•in combination with the Jellum surround
•in combination with the Wirdum surround
Specific information about the installation of both surrounds can be found in the
installation guide delivered with the Jellum and Wirdum surround. Details concerning the
installation of the appliance in relation to the surrounds are explained in this installation
guide.
Special features:
•Realistic flame and glow effect because of the "Log Burner" technology
•Room sealed appliance, inlet and outlet are led to the outside using a natural
draught concentric pipe system (100 mm/150 mm) (no power fan required)
•Air supply and flue-gases go to outside atmosphere through wall or roof. A
maximum horizontal extension of 6 meters is possible
•Remote Control standard on both models
•Meets the requirements of the European Gas Appliance Directive (GAD) and carries
the CE mark

>>>>2
UK
IRL
2Safety and general information
Before installation, ensure that the local distribution conditions (identification of the type
of gas and pressure) and the adjustment of the appliance are compatible.
This gas appliance is factory set and can not be adjusted.
This appliance does not contain any component manufactured from asbestos or any
asbestos related products.
The pilot and flame sensing device fitted to this fire is also a safety device. If for any
reason any part of the pilot assembly is to be replaced, the entire assembly, including the
pilot burner, thermocouple, electrode and injector, must be exchanged complete for a
pilot assembly from the original manufacturer only.
Ventilation
This appliance is room-sealed and doesn't require purpose provided ventilation.
Never use the appliance if it has a broken glass.
General safety
It is the law in the UK that all gas appliances, are installed by a competent person in
accordance with the Gas Safety (Installation and Use) Regulations (as amended), the
relevant British Standards for Installation work, Building Regulations, Codes of Practice and
the manufacturers instructions.
Always use an additional guard if there are elderly, infirm or children in the same room of
the appliance.
The installation should also be carried out in accordance with the following where
relevant:
•BS5871 Part1
•BS5440 Parts 1 & 2
•BS1251
•Building Regulations Document J (as applicable)
•Building Regulations and Standards issued as relevant by the Department of the
Environment or the Scottish Development Department
•In the Republic of Ireland installation should be carried out in accordance with
IS813, ICP3, IS327, Building Regulations, Codes of Practice, the manufacturers
instructions and all other regulations in force
Failure to comply with the above could leave the installer liable to prosecution and
invalidate the appliance warranty.

3 <<<<
UK IRL
3Installation requirements
Note: Since the appliance is a source of heat, circulation of air occurs. Therefore it is of
importance that you do not use the appliance shortly after a renovation of the home. Due
to the natural circulation of air, moist and volatile components from paint, building
materials, carpet etc. will be attracted to the lit appliance. These components can settle
onto cold surfaces in the form of soot.
As on all heat producing appliances, soft furnishings such as blown vinyl wallpaper placed
too near the appliance may become scorched or discoloured. This should be born in mind
when installing the appliance.
3.1 Builders opening and surround
The appliance can be installed in the following situations:
In a non-combustible fireplace or builders opening. This could be either an existing
builders opening or a new made prefab builders opening.
In both cases keep the following in mind:
•do not place the appliance on combustible materials or carpets
•the (false) chimney breast has to be made of non-combustible material (e.g.
Promatect)
•do not place the lintel, surround or marble stone directly onto the appliance. If
possible, apply a lintel made of cement or something similar
•always ventilate the space above the appliance. Use a Faber ventilation grid
•to avoid cracking, the plaster has to dry for at least 1 day per millimetre plaster
•to avoid discolouring the plaster has to be heat resistant to min. 100 °C
•in case of a surround the front of the appliance has to stick sufficiently out of the
wall:
oJellum surround: 50mm
oWirdum surround: 166mm

>>>>4
UK
IRL
3.2 Dimensions of the appliance
Builders opening
(
mm
)
Wirdum surround Jellum surround
No surround
A
Opening width 1070 1070 1070
B
Opening height 1050 1050 1050
C
Opening depth 290 410 465
D
Min. Height shelf
from top opening
N.a. N.a. 350
E
Shelf depth N.a. N.a. 150
Dimensions of the
appliance
F
Box width 1024 1024 1024
G
Box depth 276 396 442
H
Box height 990 990 960
I Frame width 1440 1440 N.a.
J
Frame height 1100 1090 N.a.
K
Frame thickness 370 370 N.a.
L
Position flue collar
measured from frame
143 263 313
M
Position flue collar
measured from the
back of the box
147 147 147

5 <<<<
UK IRL
Surround
Wall
Close builders opening
with promatect

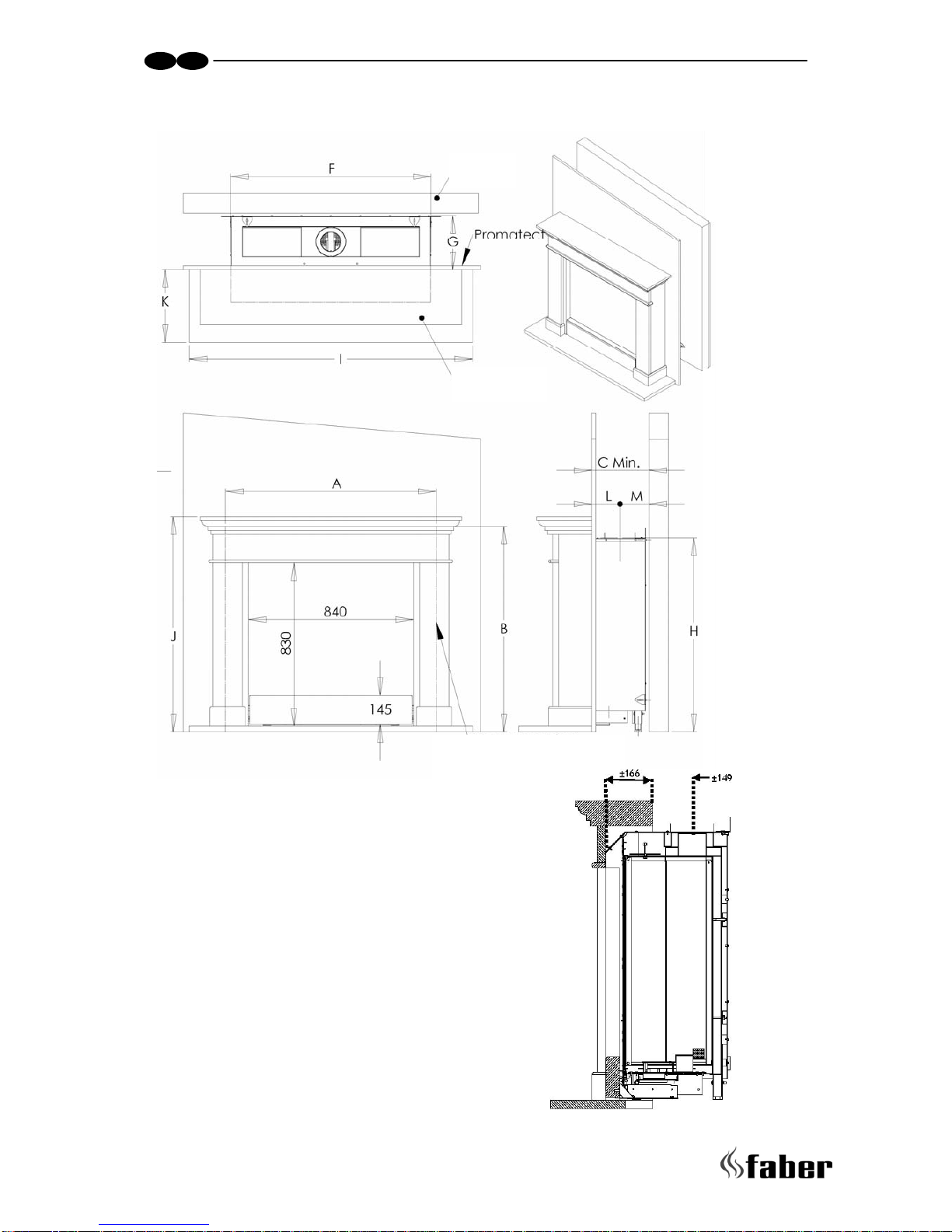

3.2.1 Appliance with Wirdum surround

>>>>6
UK
IRL
Wall
Surround

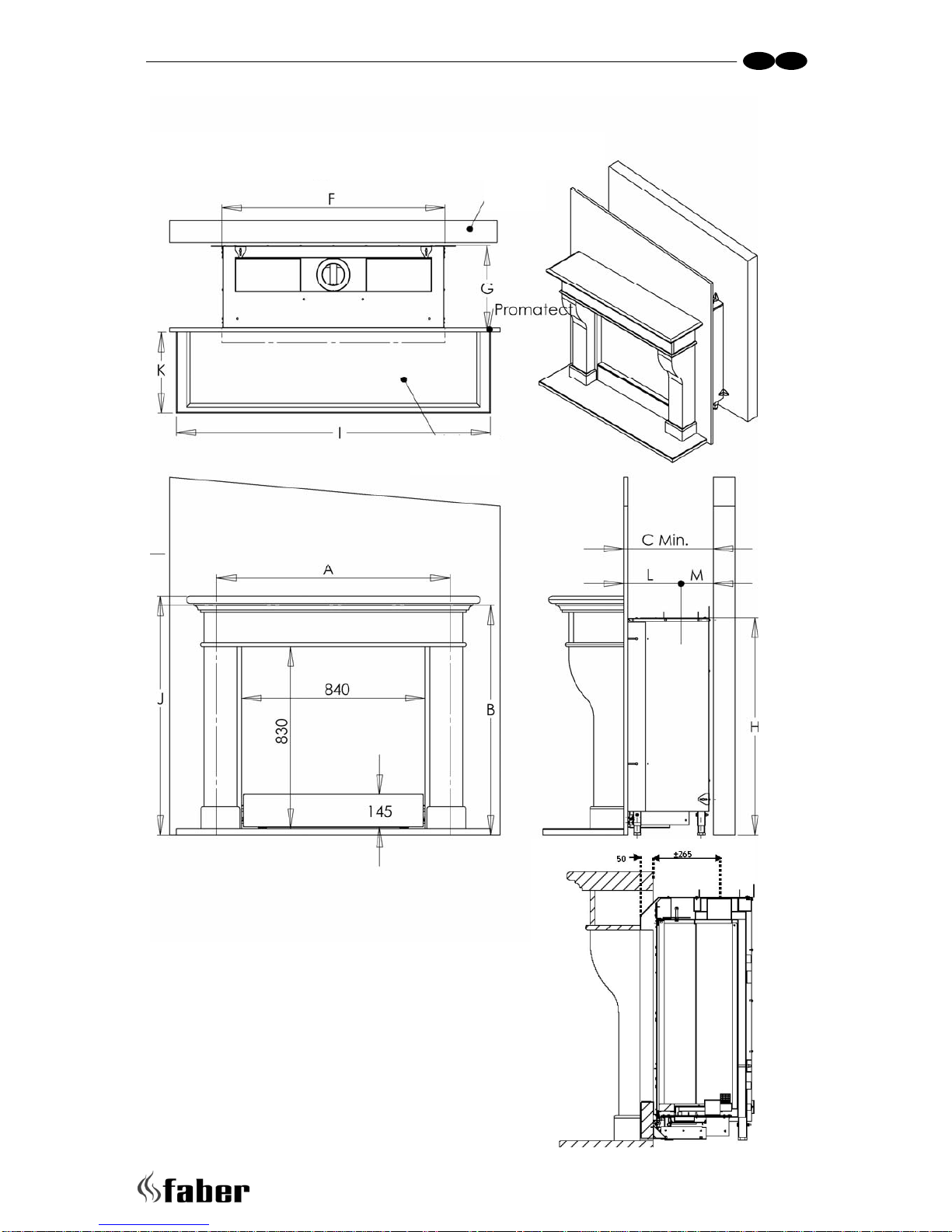

3.2.2 appliance with Jellum surround

7 <<<<
UK IRL
Close builders
opening using
promatect
Window
opening
Threshold
3.2.3 Appliance without surround

>>>>8
UK
IRL
3.3 Flue requirements
The appliance is of the type C11/C31. The appliance will need to be supplied with the
approved Faber flue pipes and terminal, it is not possible to supply your own. The
minimum effective height of the flue system must be 0,5 or 1 meter, depending on the
appliance.
Flue routing:
•a horizontal extension with elbows is allowed for a maximum of 6 meters
(depending on the routing)
•vertical max. 12 meters
Determine, depending on the type and terminal position, if the desired routing is possible.
To establish this you will need to calculate:
The effective height (this is the real difference in height between the upper side of
the appliance and the terminal)
The total horizontal extension. This is the total horizontal flue length where:
1. each elbow, which is in the horizontal area, counts for 2 meters
2. each 90-degree bend, which is in the horizontal area, counts for 2 meter
3. each 45-degree bend, which is in the horizontal area, counts for 1 meter
4. elbows and bends at the transition from horizontal to vertically are not to
be counted
5. the wall mounted terminal counts for 1 meter
Flue restrictor
If applicable, in the table is also stated the size of a flue restrictor. This restrictor needs
to be fitted in the combustion chamber when placing the appliance (see chapter 4.2).
Normally the smallest flue restrictor is fitted at production.

9 <<<<
UK IRL

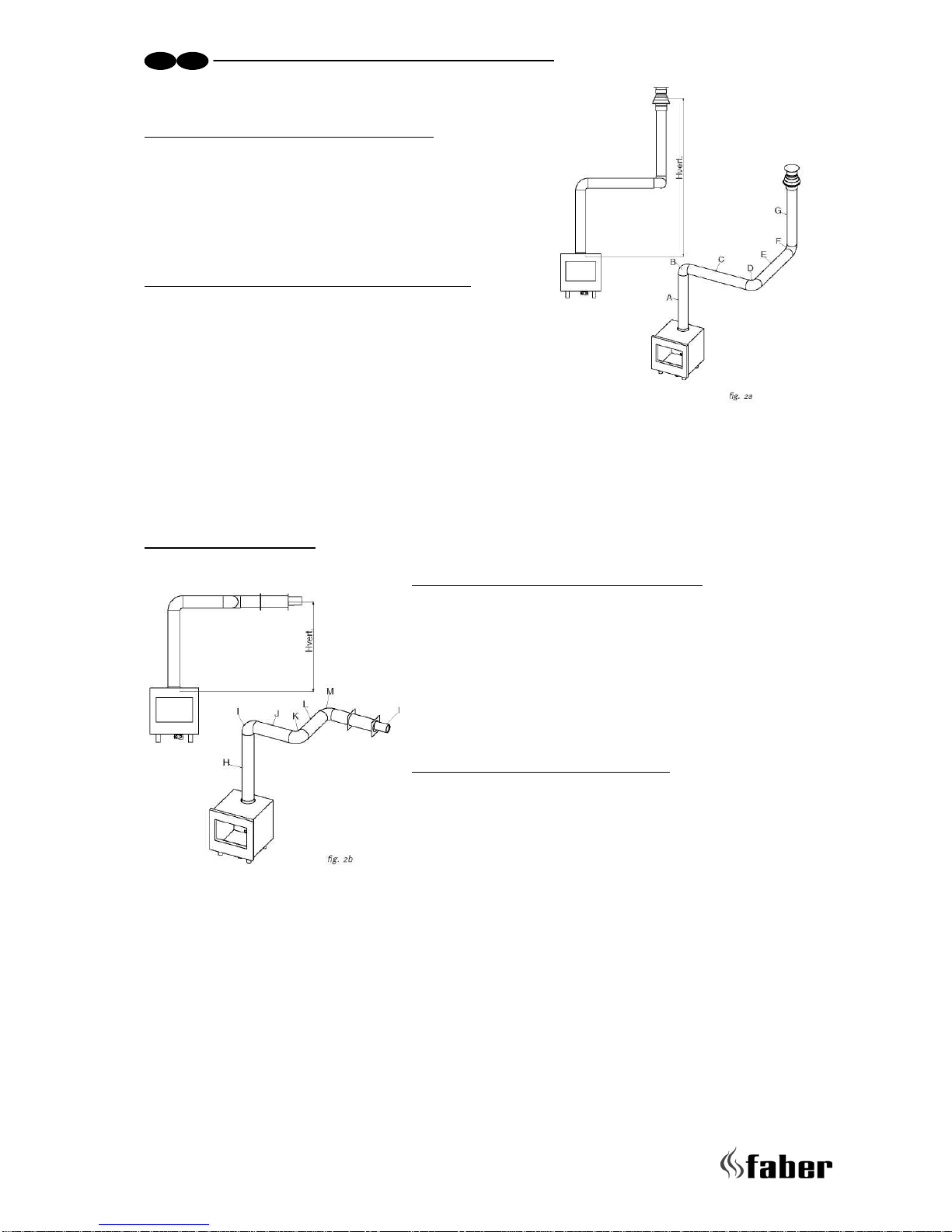

Example calculation 1:
Calculating horizontal extension fig. 2a:
Flue lenght C + E = 1m + 1m 2 m
Elbows D = 2m 2 m
Total horizontal extension 4 m
Measure or calculate effective height (Hvert)
Flue lenght A 1 m
Roof mounted terinal 1 m
Total effective height 2 m
When calculating table 2: It is allowed.
Remove the flue restrictor!
Example calculation 2:
Calculation horizontal extension fig. 2b:
Flue lenght J + L = 0,5 + 0,5 1 m
Elbows K + M = 2m + 2m 4 m
Terminal 1m
Total horizontal extension 6 m
Calculation effective height (Hvert)
Flue lenght H 1 m
When calculating table nr. 2: Combination not
allowed.

>>>>10
UK
IRL
Determining of the right flue restrictor
Calculate the total horizontal- and vertical
length of the flue, according to the
calculations displayed above.
Determine according to the table the right
flue restrictor size.
When meeting an X, and when the values are
outside the table, the combination is not
allowed.
Normally the 30 mm flue restrictor is
preinstalled.
3.3.1 Terminal position
Verify if the required terminal position meets the local installation regulations regarding
disturbance, good performance and ventilation. (Also see: safety requirements).
The terminal must be located so that the outlet is not obstructed. If the flue
terminal is located within 2 meters of a footway, path or where people could come
into contact with it, then a suitable terminal guard must be fitted.
Terminals located close to shared walkways, footpaths etc. could be subject to
legal constraints and this should be pointed out to the customer before installation.
If in any doubt about flue location advice should be sought from local building
control, or if appliance-related, from the manufacturer including wherever possible
a detailed sketch showing all relevant dimensions.
Avoid locating the terminal in close proximity to plastic materials such as gutters or
other combustible materials. If this is unavoidable then a suitable deflector should
be made.
Some important requirements for good performance are: The wall-mounted terminal
has to be at least 0,5 m off:
Corners of the building
Below eaves
Balcony's etc. unless the duct is dragged to the front side of the overhanging part
The roof mounted terminal has to be at a distance of at least 0.5 meters of the
sides of the roof, excluded the ridge
Horizontal extension (m)
Spectra
Frameless 0 1 2 3 4 5 6
0 X X X X X X X
0,5
X
0
X X X X
X
1
0
0
0 0 X X
X
1,5
30
30
0 0 0 X
X
2 30 30 30 0 0 0 0
3 40 30 30 30 0 0 0
4 40 40 30 30 30 0 0
5 50 40 40 30 30 30 0
6 50 50 40 40 30 30 0
7 50 50 50 40 40 40 X
8 60 50 50 40 40 X X
9 60 60 50 50 X X X
10 65 60 60 X X X X
11 65 65 X X X X X
Effective height (m)
12 65 X X X X X X

11 <<<<
UK IRL
3.3.2 Using an existing chimney as air inlet
You can connect the appliance onto an existing chimney. The existing chimney then
functions as air supply, where a flexible stainless steel liner (to BS715) of 100 mm performs
the flue function.
Requirements:
Any existing chimney used as an air supply must only service this appliance.
A chimney that has previously been used for solid fuel must be swept before use.
The existing chimney needs to be airtight.
The existing chimney needs to have an opening of min. 150 x 150 mm.
The chimney needs to be intact and well looked after.
Use the Faber adjustable roof-mounted-terminal especially made for this purpose, and the
chimney connection set.
The min. distance between two terminals should be at least 450 mm.
Dimension Terminal position
(kW input 7.5 kW expressed in net) Balanced flue room sealed
Natural Draught
A Direct below an opening, airbrick, opening windows, etc. 300 mm
B Above an opening, airbrick, opening window, etc. 300 mm
C Horizontally to an opening, airbrick, opening window, etc. 300 mm
D Below gutters, soil pipes or drain pipes 500 mm
E Below eaves 500 mm
F Below balconies or carport roof 600 mm
G From a vertical drain pipe or soil pipe 300 mm
H From an internal or external corner 600 mm
I Above ground roof or balcony level 300 mm
J From a surface facing the terminal 600 mm
K From a terminal facing a terminal 600 mm
L From an opening in the carport into the dwelling 1200 mm
M Vertically from a terminal on the same wall 1500 mm
N Horizontally from a terminal on the same wall 300 mm
P From a vertical structure on the roof 600 mm
Q Above intersection with roof 500 mm

>>>>12
UK
IRL
4Instruction for Installation
4.1 Gas Connection
Installation pipes should be in accordance with BS 6891. Pipe work from the meter to the
appliance must be of adequate size.
The complete installation including the meter must be tested for soundness and purged as
described in the above code.
A means of isolation must be provide in the supply to facilitate servicing. The connection
should be made in 8 mm copper or similar semi flexible tube. (max 1 meter). Ensure that
the gas pipe does not interfere with the removal or replacement of the burner tray or of
the controls. The gas connection is nut and olive suitable for 8 mm pipe.
4.2 Preparing the appliance
Remove the packaging and the pallet under the appliance.
Adjust the total height of the appliance considering the way the appliance will be placed
(see table 1 , row H). For reasons of transportation the height is pre-adjusted to high.
There are two ways to adjust the height:
Rough adjustment; by removing the nut and bolt. Shift the leg 30mm and replace
the nut and bolt.
Fine adjustment; by adjusting the couple legs
4.3 Placing the appliance
Check paragraph 3.1 before
commencing installation
If possible, first place the appliance
before assembling the flue
Check if the floor and wall are
sufficiently level and perpendicular.
If not, you should fix this
Prepare the gas connection, see
paragraph 4.1
Position the firebox in the fireplace
opening. Make sure that the appliance is level
Check the appliance height by moving the control cover drawer. There should be a
clearance of minimal 5 mm between the drawer and the floor
(Appliance without surround ) Fasten the appliance to the back wall using the four
slidable positioning lips on top and on either side of the appliance
Assemble the flue system onto the firebox (see chapter 5).
Rough
adjustment
Fine
adjustment
Fig. 4.1: height adjustable couple leg
Bolt & Nut

13 <<<<
UK IRL
4.4 False chimney Brest without surround
Remove the knock-outs in the DC-box and place vertically the metal studs in the
knock-outs
Build the false chimney using Promatect
The measure in the clear of the false chimney Brest has to be 840x830 (width x
height). These sizes are including the finishing layers
The minimal necessary distance between the glass and the appliance should be at
least 12 mm
Check regularly and before the finishing layer if the glass can be replaced
4.5 False chimney with surround
The surround has to be placed against the wall and has to have a tight fit to the appliance
In case of the Jellum: the distance between the wall and the protruded part of the
appliance surround has the be 50 mm
In case of the Wirdum: the distance between wall and the protruded part of the
appliance surround has the be 166 mm
4.5.1 Placing the surround
See the manual included with the surround before placing
Note: Both the posts and the cap piece of the Jellum surround have to be mounted
to the wall
At both sides of the appliance there are two stop brackets for placing the legs of
the surround.
Check the distance between the filler pieces to achieve a trouble free removal of
the glass
The drawer is to be mounted hand-tightened only with M6 bolts at the slider
Fig. 4.7
Stopbracket

>>>>14
UK
IRL

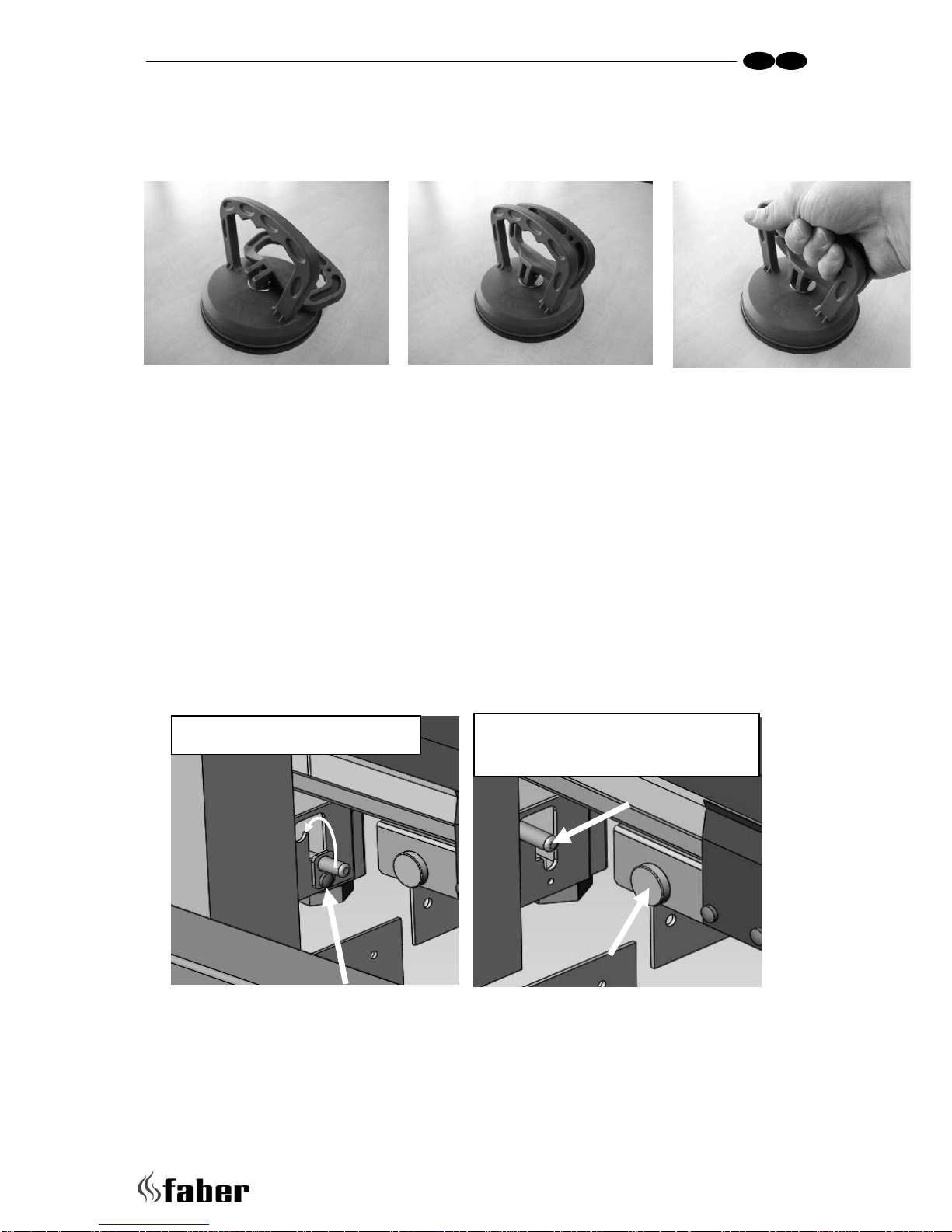

Removal of the glass
Two suction pads are delivered with the appliance to make removal easier.
Always clean the suction lifters before use
Place the suction lifters at the glass
Remove the glass-clamp at the bottom side after removing the knurled screws (see
figure 10)
Place the suction lifters on the glass and bring the handles towards each other
Move the glass carefully to the left till it stops
Turn the glass simultaneously with right edge forwards and in total downwards
The glass is now in front of the glass-clamps and can be removed
Fig 4.8: move handles
Fig 4.9 Remove glass
Kartel moer
Fig. 4.4: Suction pad
open Fig. 4.5: Suction pad
closed
Fig. 4.6: Suction pad
in use

15 <<<<
UK IRL
Replacing the glass happens in reversed order
Turn the glass carefully with the leftside towards the appliance
Be sure that the glass slides behind the glass clamps at the left side
Slide the glass as far as possible to the left
Simultaneously turn and lift the glass towards the appliance till it closes the
combustion chamber. Check that the glass is positioned on the upperside of the
glass-clamp
Slide the glass as much as possible to the right till it stops
Push carefully with one hand and close with the other both handles till the clamp-
system closes
Replace the glass-clamp at the bottom side and tighten the knurled screws
4.6 Placing the log set
Place the log set as shown in the figures 4.10 till 4.12 Optionally the embers can be
dispersed over the stoke hole. Be careful not to cover the mesh at the backside.
Note: The two logs at the back (see figure 4.12) of the Spectra Frameless Nostalgic don’t
have to be
placed!
Fig. 4.12
Fig. Fig. 4.11

>>>>16
UK
IRL
5Installation of the flue
5.1 Connection with use of concentric duct material
Make a hole of ø 153 mm for the wall or roof mounted terminal
The horizontal pipes need to rise at an angle from the appliance at the rate of 3
degrees per metre
Build the system starting from the appliance
Make sure you place the pipes in the right direction, the narrow end towards the
appliance.
Make sure the pipes are fixed sufficiently, a wall clamp every 2m, so the weight of
the pipes is not resting onto the appliance.
The outside of the pipe can become hot (140 degrees). Stay 50 mm away from wall
surface or sealing. Make sure to provide sufficiently heat resistant isolation when
going through the wall or roof.
Because of expansion or cooling down the concentric pipes can become loose. It is
recommended to fix the spring clip with a self tapping screw at inaccessible places.
To get the exact measure flue length you can use cut down concentric pipe, wall
mounted terminal or roof mounted terminal. To obtain a smoke sealed connection,
the inner pipe must be 20 mm longer then the outside pipe.
5.2 Connection onto an existing chimney
You can connect the appliance onto an existing chimney. The existing chimney then
functions as air supply, where a flexible stainless steel liner (to BS715) of 100 mm performs
the flue function.
Requirements:
Enough free space above the appliance
The chimney only supply’s air to this appliance
The existing chimney needs to be clean and very well swept
The existing chimney needs to be airtight
The existing chimney needs to have an opening of min. 150 x 150 mm

17 <<<<
UK IRL
1. Place the aluminium closure plate
(A) onto the chimney.
Permanently attach and make
airtight.
2. Pull the liner (C) through the
chimney.
3. Connect the liner onto the roof
terminal and fix this with the
clamp provided with the chimney
connection set.
4. Fixing the chimney sealing plate
(D) and place the 150 mm
grommet into the hole of the
sealing plate.
5. Fix the sealing plate air tight into
the builders opening (use
insulation rope from the chimney
connection set to make the plate
air tight).
6. Slide pipe (E) into the sealing
plate. Slide this pipe so that you
have enough space later on to
assemble the liner.
7. Install the appliance.
8. Connect the flexible stainless
steel liner onto the appliance
using the 100mm pipe (F) as
adapter.
9. If the distance from the flue outlet to the sealing plate is bigger then 300 mm, you
have to use a concentric pipe first.
10. Slide the outside pipe onto the appliance or concentric extension so that you have a
air tight connection.
Fig. 5.1

>>>>18
UK
IRL
6Commissioning (functional checks)
6.1 Pilot ignition check
•Ignite the pilot light as described in the user manual.
•Check if the pilot burner stays alight.
•Extinguish the pilot burner.
6.2 Check functional burner and pilot burner
The appliance is preset to give the correct heat input. No further adjustment is necessary.
Always check the inlet pressure and burner pressure:
•Turn off the gas valve on the appliance;
•Turn the inlet pressure test point B and apply the manometer;
•Check if the measured pressure is the same as the prescribed pressure;
•Perform this measuring when the appliance burns on full capacity and when only
the pilot ignition burns;
•When the pressure is too low, check if the gas pipes are made of material with the
right diameter;
•When the pressure is too high (more than 5 mbar overpressure) you can’t install the
appliance and you should contact your gas company;
•Always check the burner pressure when the functional pressure is right;
•Open the burner pressure test point C;
•The pressure should match the described pressure. If this is not the case, then
contact the supplier.
Note: After checking the burner pressure, the inlet pressure test point has to be shut and
checked for gas-tightness.
A. Governor
B. Inlet Pressure Testpoint
C. Burner Pressure Testpoint
A
B C
