1Dear user
Congratulations on purchasing your Faber
product, a quality product that will provide
you with the warmth and atmosphere for
many years. Please read the user manual
before using the fire. Should a malfunction
occur despite the careful final checks, then
you can always contact your Faber dealer.
In order to claim the guarantee, it is
important that you register the fire. For this
we have created a special site. You will find
all information regarding the warranty
during registration.
Please note:
The data of your fire is available in
the user manual.
You can register your fire at:
www.faber-fires.eu
1.1 Introduction
Installation and maintenance of the fire must
be carried out by a professional expert who
has proven knowledge and demonstrable
competence. A professional craftsman takes
into account all technical aspects such as
heat delivery, gas connection as well as flue
gas discharge requirements.
Where the installation instructions are not
clear, you must follow national / local
regulations.
1.2 Please check
Check the fire for transport damage and
report any damage immediately to your
dealer.
1.3 CE Declaration
Glen Dimplex Benelux certifies that this Faber
fire complies with the essential requirements
of the gas appliances directive.
Product: gas room heater
Model: Fyn 600
This appliance complies with the Gas
Appliance Regulation (EU) 2016/426.
Harmonized standards applied:
EN 613 2000/A1 2003.
This declaration is invalid, if without the
written permission of Glen Dimplex Benelux:
•Changes are made to the appliance.
•The fire is connected to other exhaust
materials than specified.
2Safety instructions
Please note:
It is advisable to always install a screen for
the fireplace if children, elderly or disabled
people are present in the same room as the
fireplace. If regularly vulnerable persons
can be present in the room without
supervision, sufficient protection must
always be placed around the fireplace.
The appliance is designed for
atmospheric and heating purposes,
meaning that all visible surfaces,
including the glass, can become
hotter than 100°C.
Do not use the remote control and /
or app outside the room where the
fire is located. So that you are always
aware of the situation around the
fireplace when it is being operated.
The appliance should be placed,
connected and annually checked in
accordance with these installation
instructions and valid national and
local Gas Safety (Installation and Use)
Regulations.
Check whether the data on the
registration plate are in agreement
with the local type of domestic gas
and pressure.
The fitter is not permitted to change
these adjustments or the construction
of the appliance!
Do not place any additional imitation
logs or glowing coals on the burner or
in the combustion chamber.
Do not place any inflammable
materials within a of 0,5m. of the
radiation of the appliance and
ventilation grills.
Due to natural air circulation of the
appliance, moisture and volatile
components from paint, building
materials, floor coverings etc. that
haven’t yet set, can be drawn through
the convection system and can be
deposited on cold surfaces as soot.
That is why you should not use the
appliance shortly after a renovation.
The first time the appliance is
switched on, Let the fire run on
maximum setting for several hours so
that the lacquer coating will have an
opportunity to set and possible
vapours released can be safely
removed by ventilation. We advise
you to be outside the room as much
as possible during this process!

5 < <<<
L
Please note:
1. All transport packaging should be
removed.
2. Children or pets should not be
present in the room.
3Installation requirements
3.1 The fire
This appliance must be installed in a
chlorine-free environment.
The appliance must be built into an
existing or a newly to be constructed
false chimney breast.
3.2 False Chimney breast
The false chimney breast must be
constructed of an non-combustible
material.
Always ventilate the space above the
appliance by means of the grills or a
comparable alternative with a
minimum air supply of 200cm².
Keep a free distance of min. 50mm on
the back site of the fire.
The false chimney breast and its
construction may not rest on the
appliance
For the finish, use special stucco
(min. 100°C resistant) or glass fibre
wallpaper to prevent discoloration or
cracks etc. Recommended drying
time: for plaster is a minimum of 24
hours per mm of coat applied.
3.3 Requirements flue system and
outlets
You should always make use of the
materials prescribed by Faber. Only
by using these materials can Faber
guarantee a proper functioning.
The outside of the concentric flue
material can reach a temperature of
Approx 150°C. Make sure of proper
insulation and protection in case of
transit through combustible wall or
ceiling constructions. And observe
sufficient distance.
Make sure that the concentric flue
materials are bracketed every 2m.
When they have an extended length,
so that the weight of the flue
material is not resting on the
appliance itself.
You may never start with a cut-down
concentric pipe directly on to the
appliance.
3.4 terminals
The flue outlet can end on an external
wall or a roof. Check whether the outlet
desired by you complies with local
requirements concerning good function
and ventilation systems .
Please note:
For a proper functioning the terminal
should be at least 0,5m. away from:
Corners of the building.
Roof overhangs and balconies.
Eaves (with the exception of the
roof ridge, see chapter 15).
3.5 Existing chimney
You can also connect the appliance to an
existing chimney. The existing chimney will
function as an air supply and a flexible
stainless steel pipe drawn up through the
chimney will remove the combustion gas.
The flexible stainless steel pipe of Ø100mm
should have a CE mark for temperatures up to
600°Celsius.
The chimney should comply with the following
requirements:
The diameter of the flue system
must be at least 150x150mm.
There should be no more than 1
appliance connected to a flue pipe.
The chimney must be in good
condition
oNo leakage and
oIt should be properly swept.
For more information about connections to
existing flue systems, see the manual
“connections”.
4Preparation and Installation
instructions
4.1 Gas connection
The gas connection must comply with locally
valid standards.
We advise pipe work from the meter to the
appliance must be of adequate size, with near
the appliance a shut-off valve that should
always be accessible. Place the gas
connection in such a way that this is easily
accessible, and that before service, the
burner unit can be disconnected at all times.
4.2 Electric connection
If an adapter is used for the power supply,
then a wall socket 230VAC –50Hz must be
mounted in the close neighbourhood of the
hearth.

6 < <<<
L
4.3 Preparation of the appliance
Remove the packaging of the
appliance . Make sure the gas pipes
underneath the appliance are not
damaged.
Clear a safe space to store the cover
lists and the glass.
Remove the cover lists and the glass
and take the separately wrapped
parts out of the appliance
Prepare the gas connection to the gas
control valve.
4.4 Placing the appliance
Take the installation requirements into
account (see chapter 3).
Place the appliance into the proper
position.
There is no possibility to adjust the
height of the fire.
4.5 Mounting the smoke emission outlet
materials
In case of a wall or roof terminal, the
hole must be at least 5mm bigger
than the diameter of the flue
material.
Horizontal parts must be installed at a
(3 degree) slope up away the
appliance.
Build up the system from the
appliance. If this is not possible, you
should make use of an adjustable
pipe.
For fitting the system an 0,5m. cut-
down pipe should be used. Make sure
the inner pipe is always 2cm longer
than the outer pipe. Wall and roof
terminal are also shortened. These
parts must be secured with a self-
tapping screw.
Do not insulate but ventilate build-in
flue material (approx.100cm²).
4.6 Building a false chimney breast
Before constructing the chimney breast we
advise you to perform a function test with the
appliance as described in chapter 7 “Checking
the installation”.
Construct the false chimney breast
from non-combustible material in
combination with metal profiles or of
brickwork / aerated concrete bricks.
Take the grills into account. (see fig.
1.1 and 1.2). Place a protective shield
made of non-inflammable material
above the grills. (see fig. 1.1A).
Always use a lintel if the chimney
breast is constructed of brickwork.
These should not be placed directly
onto the appliance.
Construct the chimney breast against
the build-in frame (see fig. 1.1B).
Keep a minimum margin of 3 mm
between chimney breast and the
appliance in connection with the
expansion of the appliance
The depth of the recess into the
chimney breast has no influence on
the removal of the glass.
5Removing the glass
Remove the cover strips left and
right. (See fig. 2.1).
Remove cover strip on the bottom.
(See fig. 2.2).
Remove the cord list on both sides.
(See fig. 2.3).
Place the suction discs onto the glass.
(See fig. 1.5).
Remove the sealing cord from the
groove.
Slide the glass upwards so that it is
released from the groove. Now
gradually move the glass outwards
and downwards. (See fig. 2.4).
To replace the glass repeat the process in
reverse order.
Remove all fingerprints from the glass, these
will be burned into it once the hearth is used.
6Placing the decorative material
It is not allowed to add different or more
materials to the combustion chamber.
Always keep the pilot burner free from
decorative material!
Do not toss all the decorative material onto
the burner all at once, as the very fine dust
may block the holes in the burner.
6.1 Imitation logs
Preferably distribute the vermiculite
granules by hand over the tube
burner. The surface of the granules
may protrude above the burner plate
but must be flat over the entire
length.

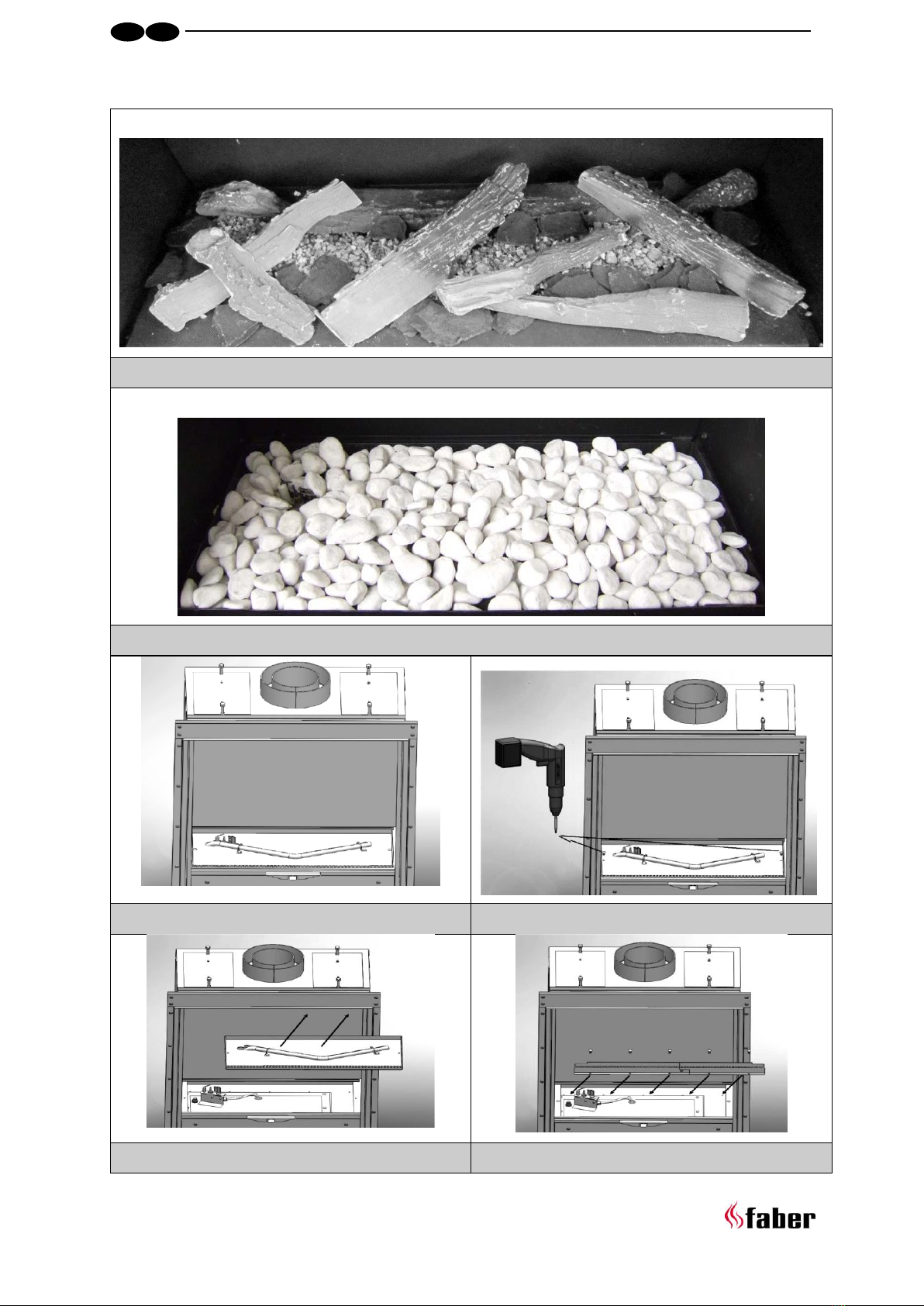

Place the imitation logs according to
instructions. (see fig. 3.1. or the log
set instruction card).
Place the supplied chips. Prevent
chips from covering the burner, this
has a negative effect on the fire
image.

7 < <<<
L
Start the fireplace as described in the user
manual. Move chips until a good flame
distribution occurs. Place the front glass and
check the fire image again.
6.2 Pebbles
Place the pebbles over the burner and
the bottom. Spread the pebbles
evenly to a double layer. The surface
of the pebbles may be very slightly
higher than the burner tube (see fig.
3.2).
Place the glass and check the flame
picture into the appliance.
Start the pilot and main burner according to
the instructions in the user’s manual. Assess
whether the flame distribution is correct.
Place the glass and check the flame picture
again.
7Checking the installation
7.1 Checking the ignition of the pilot
burner, main burner
Start the pilot and main burner according to
the instructions in the user’s manual.
Check whether the pilot light is
properly positioned above the main
burner and is not covered by chips, an
imitation log or pebbles.
Check the ignition of the main burner
at full mark or low mark.
(the ignition should take place quickly
and easily).
7.2 Checking for gas leakage
Check all connections and joins for possible
gas leaks by means of a gas leak detector or
spray.
7.3 Checking the burner pressure and the
pre-pressure
Check that the burner pressure and the inlet
pressure correspond to the data stated in this
manual, chapter 14 “Technical data”.
Measuring the inlet-pressure:
Turn off the gas control tap.
Open the pressure gauge nipple A (see
figure 1.4) a few turns and connect a
pressure gauge hose to the gas control
valve.
Carry out this measurement when the
appliance is on at full gas mark and
when it is on the pilot light.
If the inlet pressure is too high you
are not permitted to connect the
appliance.
Measuring the burner pressure:
Only perform this measurement if the inlet-
pressure is correct.
Open the pressure gauge nipple B (see
fig. 1.4) a few turns and connect a
pressure gauge hose to the gas control
valve.
The pressure must correspond with
the value indicated in the technical
info of this manual (Chapter 13). In
case of deviations, get in touch with
the manufacturer.
Please note:
Close the pressure gauge nipples and
check these for gas leaks.
7.4 Checking the flame picture
Allow the appliance to burn for at least 20
minutes at full and then check the flame
picture for:
1. Distribution of the flames.
2. Colour of the flames.
If either one or both points are unacceptable,
then check:
The positioning of the imitation logs
and/or the quantity of pebbles or
chips on the burner.
The connections of the Flue materials
for leakage (in case of blue flames)
Whether the correct flue restrictor
has been mounted.
The outlet:
oWall terminal is installed
correctly
oRoof terminal is fitted and
sited correctly
oThe flue system is correctly
calculated.
7.5 Flue gas analyser
With CO/CO2 measure equipment you have
the possibility to measure the quality of the
flue gases and fresh air.
There are two measure points between the
glass and build-in frame.
One for measuring the air intake B (fig. 2.6)
and one for the flue gases A. (fig. 2.6).
The ratio of CO2 and CO level may not exceed
1:100.
Example:
If CO2 is 4,1 % max CO 410ppm
If the ratio exceeds 1:100 or flue gases are
measured in the fresh air you should also
check the above points.

8 < <<<
L
8Instructing the client
Recommend that the appliance be
serviced annually by a competent
person in order to guarantee a safe
use and a long lifespan.
Advise and instruct the client about
maintenance and cleaning of the
glass. Emphasize the risk of burning in
fingerprints.
Instruct the client about the
operation of the appliance and the
remote control unit, including the
replacement of the batteries and
adjusting the receiver for initial use.
Hand over to the client:
oInstallation manual
oUser’s manual
oImitation logs instruction card
oSuction lifters
9Annual maintenance
9.1 Service and cleaning:
Check and clean if necessary after
checking:
oThe pilot light
oThe burner
oThe combustion chamber
oThe glass
oThe logs for possible fractures
oThe outlet
Replace if necessary:
ochips/embers.
9.2 Cleaning the glass
Most of the deposits can be removed with a
dry cloth. Clean the glass with Faber glass
polish.
Note:
prevent fingerprints on the glass. these will
be burned into it once the appliance is used
and cannot be removed anymore!
Carry-out the check-up according to the
instructions in chapter 7 “checking the
installation’.
10 Conversion to a different type of
gas (e.g. propane)
This can only be done by installing the proper
burner unit. for this purpose get in touch with
your supplier.
Always mention the type and serial number of
the appliance when ordering.

9 < <<<
L
11 Calculation of flue system
A simple way to calculate whether the
exhaust configuration is possible in
combination with your fire, use the free
“Faber Flue App” and download it from:
INTERNET:
BlackBerry, Android, PC (Windows Store)
APP store:
iPhone, iPad and Mac.
Google Play:
Android smartphones and Android tablets.
Alternatively use the exhaust calculation
table (see chapter 13).
The alternatives of outlet lengths and any
restrictors are set out in the restrictor table,
see 11.1. In the table we work with start
length (STL), total vertical height (TVH) and
total horizontal length (THL).
Start length (STL):
This is the first part that is placed on the fire
and represents a certain value (fig. 12.1, 12.2
and 12.3 A, N and F). This value is in the top
row of the table (see restrictor table 11.1 and
11.2).
Total vertical height (TVH):
TVH is the difference in height measured from
the top of the unit to the outlet; it can be
measured or determined from the building
plan. For clarification see the TVH indication
in the drawings (fig. 12.1, 12.2 and 12.3).
Total horizontal length (THL):
THL is the total horizontal length and consists
of elbows and pipes which are entirely in the
horizontal plane. Elbows I, K and Q and the
elements H, J, L, M, P and R (fig. 12.1 and
12.2).
Length horizontal plane:
The horizontal length consists of the elements
H, J, L, M, P and R (fig. 12.1 and 12.2).
Elbows 90° in the horizontal plane:
Horizontal bends are bends which are entirely
in the horizontal plane (fig. 12.1, 12.2 and
12.3 I, K and Q).
Bends 45° or 30° in the horizontal
plane:
Horizontal bends are bends which are entirely
in the horizontal plane.
Elbows 90° vertical to horizontal
plane:
These are 90° elbows, which proceed from
horizontal to vertical (fig. 12.2 and 12.3 G, O
and S).
Bends 45° or 30 °vertical to
horizontal plane:
These are 30° or 45° bends with a vertical
offset of less than 45° (fig.12.1 B and D).
Pipes under a tilt angle:
These are pipes which are vertically
ascending at an angle of 30° or 45° (fig. 12.1
C). Fill in only in combination with at least 2x
30 or 45° bends in the vertical part.
Restrictor table (see 11.1):
See the restrictor table at the right vertical
(TVH) and horizontal length (THL).
For “x” and if the values are outside the
table, then the combination is not allowed.
Only then adjust the TVH or THL.
If a value is indicated, check that the
calculated STL value is not lower than
indicated in the table. In this case STL must
be adjusted.
The found value indicates the width of the
restrictor (“0” means no restrictor).
Generally a 30mm restrictor is pre-installed
(fig. 2.5).
Note:
When only a vertical flue length is used, than
you most install the additional air restrictor
under in the appliance (see fig. 4.1 up to
4.4).

10 < <<<
L
11.1 Restrictor table Fyn 600
STL
0,1
0,1
0,2
0,5
1
1
1
TVH
0
1
2
3
4
5
6
7
8
9
10
THL
0
x
x
x
x
x
x
x
x
x
x
x
0,5
30
30
x
x
x
x
x
x
x
x
x
1
30,1
30
30
0
0
0
0
x
x
x
x
1,5
30,1
30
30
30
0
0
0
x
x
x
x
2
30,1
40
30
30
30
0
0
x
x
x
x
3
40,1
50
40
30
30
30
0
x
x
x
x
4
50,1
50
50
40
30
30
30
x
x
x
x
5
50,1
60
50
50
40
30
30
x
x
x
x
6
60,1
60
60
50
50
40
30
x
x
x
x
7
60,1
60
60
60
50
50
30
x
x
x
x
8
60,1
65
60
60
60
50
30
x
x
x
x
9
65,1
65
65
60
60
50
40
x
x
x
x
10
65,1
65
65
60
60
50
40
x
x
x
x
11
65,1
65
65
60
60
50
40
x
x
x
x
12
65,1
65
65
60
60
50
40
x
x
x
x
13
65,1
65
65
60
60
50
40
x
x
x
x
14
65,1
65
65
60
60
50
40
x
x
x
x
15
65,1
65
65
60
60
50
40
x
x
x
x
16
65,1
65
65
60
60
50
40
x
x
x
x
17
65,1
65
65
60
60
50
40
x
x
x
x
18
65,1
65
65
60
60
50
40
x
x
x
x
19
65,1
65
65
60
60
50
40
x
x
x
x
20
65,1
65
65
60
60
50
40
x
x
x
x
21
65,1
65
65
60
60
50
40
x
x
x
x
22
65,1
65
65
60
60
50
40
x
x
x
x
23
65,1
65
65
60
60
50
40
x
x
x
x
24
65,1
65
65
60
60
50
40
x
x
x
x
25
65,1
65
65
60
60
50
x
x
x
x
x
26
65,1
65
65
60
60
x
x
x
x
x
x
27
65,1
65
65
60
x
x
x
x
x
x
x
28
65,1
65
65
x
x
x
x
x
x
x
x
29
65,1
65
x
x
x
x
x
x
x
x
x
30
65,1
x
x
x
x
x
x
x
x
x
x

11 < <<<
L
12 Examples flue materials

12 < <<<
L
13 Calculation sheet
Starter length (STL)
First part on top of the appliance
Value
Value
Flue length from 0,1m till 0,45m
0,2
Flue length from 0,5m till 0,90m
0,5
Flue length from 1m till 1,4m
1
Flue length from 1,5m till 2m
1,5
Flue length 2m or more
2
Bend 90°
0,1
Bend 45°, 30° or 15°
0,2
Roof terminal
1
Wall terminal
0
……………………..
Total Vertical Height (TVH)
measured height
rounded value
…………………………………………………… meter
……………. meter
Total Horizontal Length (THL)
Calculation
Part
number
x
value
result
rounded value
Total Length in
meters
………
x
1
……………..
90° Bend, vertical
to horizontal
………
x
0,4
……………..
45° Bend, vertical
to horizontal
………
x
0,2
……………..
90° Bend in
horizontal direction
………
x
1,5
……………..
45° Bend in
horizontal direction
………
x
1
……………..
flue pipes at an
angle in meters
………
x
0,7
……………..
Total
……………+
…………………..
meter

13 < <<<
L
Search in the table at TVH and THL and enter the value that is found.
found value
………………………………
If the detected value is a number, check whether the completed STL is higher or equal to the value in
the table.
Is the STL value lower as specified in the table then the installation is not possible.
Solution: Start length to low, see for the minimum length in the top row of the table.
Is the found value X, then the installation is not possible.
Solution: Change the TVH or THL.
Results
Restrictor size = Value for the comma
………………….. mm
Extra information = Value behind the comma
mark
Install the air restrictor plate, see installation manual
0,1
Install adapter 100/150 direct on top of the fire
0,2
In case of wall terminal, install adapter 100/150 before the
last bend, incase of roof terminal just before the terminal.
0,3
In case of roof terminal (always size 100/150) install the
100/150 adapter just before the terminal.
Wall terminal 130/200
0,4
From the fire first an adjuster to 130/200 and 1 meter
130/200, after that reduce to 100/150 and everything
100/150.
0,5

14 < <<<
L
14 Technical data
Symbol Unit
Reference gas/inlet pressure G20-20 G30-30 G31-37 mbar
Emissions in space heating NOx 110 120 115 mg/kWhinput (GVC)
Direct heating output
Nominal heat output Pnom 4,5 4,5 4,5 kW
Minimum heat output (indicative) Pmin 1,9 1,9 1,9 kW
Useful efficiency (NCV)
At nominal heat output ꞃth,nom 91,0 91,0 91,0 %
At minimum heat output (indicative) ꞃth,min 87,0 87,0 87,0 %
Appliance input data
Input Hi 5 5 5 kW
0,549 0,148 0,19 m³/h
0,37 0,36 kg/h
Burner pressure at full mark 9 21 25,8 mbar
Power requirement for permanent pilot light
Additional electricity consumption
At nominal heat output elmax 0 0 0 kW
At minimum heat output elmin 0 0 0 kW
In standby mode elSB 0 0 0 kW
Energy-efficiency
Energy-efficiency class B B B
Energy-efficiency index EEI 87 87 87
Type heating output/control room temperature
no
no
no
no
yes
no
Diameter outlet/inlet
100/150
Technical data
Type indication(s)
Fyn 600
Type appliance
C11/C31/C91
Gas connection
3/8"
Indirect heating functionality
no
Category
II2H3+
Gas rate at full mark
Power requirement for permanent pilot light
(if applicable)
Ppilot
0,11
0,11
kW
Other control options
One step heat output, no control of room temperature
Control of room temperature, with
presence detection
no
Two or more manually adjustable stages, no control of room
temperature
0,11
Glen Dimplex Benelux Saturnus 8 Heerenveen The Netherlands
With mechanical control of the room temperature by
thermostat
Control of room temperature, with open
window detection
no
With electronic control of the room temperature
With electronic control of the room temperature plus day-
time switch
With optional remote control
yes
With electronic control of the room temperature plus week-
time switch

15 < <<<
L
15 Terminal position
Location
Position outlet
Distance mm
D
Under a gutter
500
E
Under a roof edge
500
F
Under a carport or balcony
500
G
Vertical downpipe
300
H
Inside and outside corners
500
J
From wall surface to a wall outlet
1000
K
Two gable outlets against over each other
1000
L
Distance between two roof outlets
450
M
Two roof outlets above each other on a pitched roof
1000
N
Two gable outlets next to each other
1000
Short roof terminal.
Only for existing
Chimney connection
Extension pipe over roof

16 < <<<
L

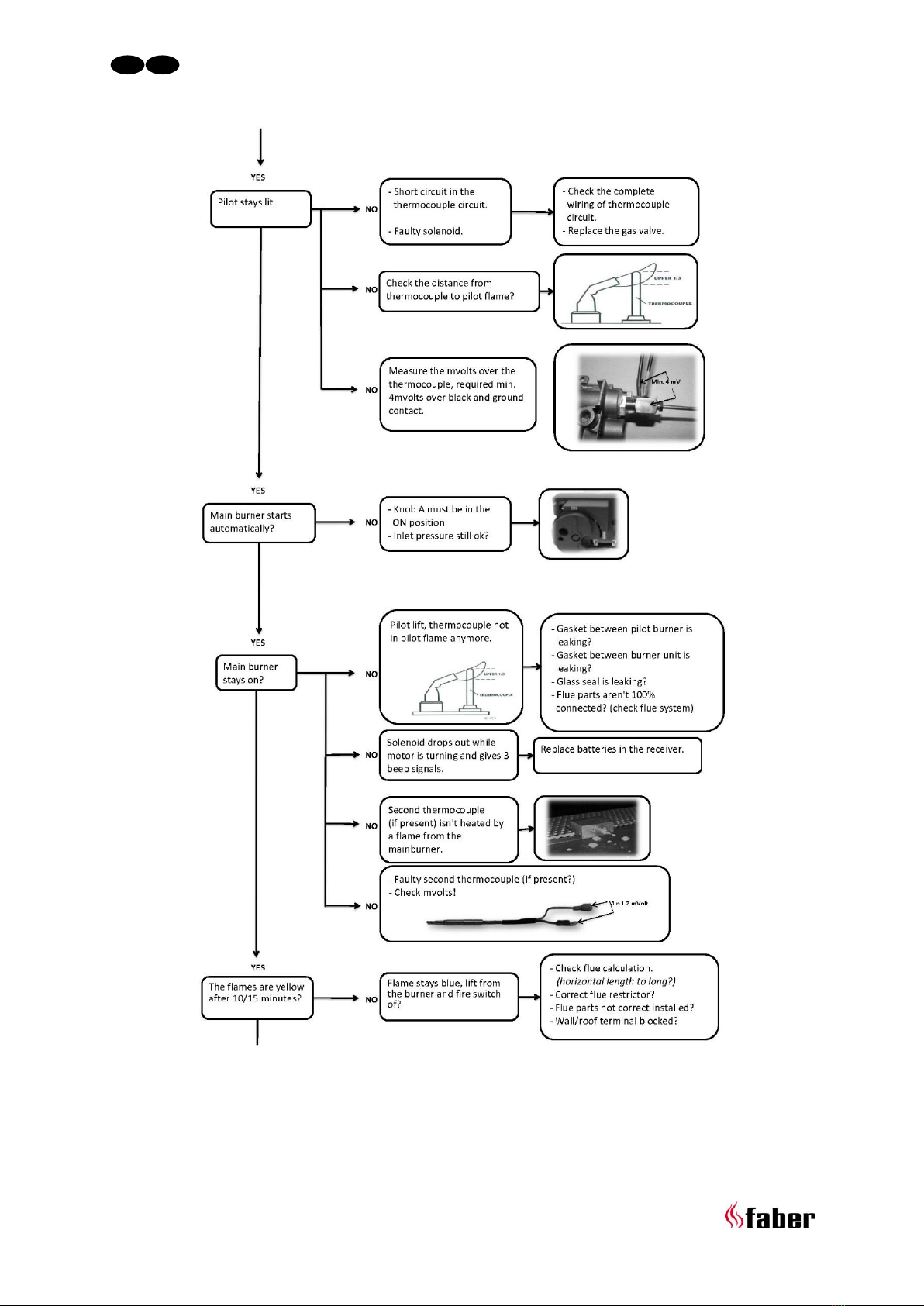

16 Troubleshooting guide

17 < <<<
L

18 < <<<
L

19 < <<<
L
17 Dimensional drawings
17.1 Fyn 600
