FAFREES F26 PRO User manual

Smart EV/Moped
User Manual
(Model: F26 PRO/ F28 PRO)
EN DE FR IT ES

Congratulations
on your purchase!
Please write down your frame number
in the blank space below in case of
future need.
Bitte notieren Sie Ihre Rahmennummer
in das leere Feld unten, falls Sie dies in
Zukunft benötigen.
Veuillez noter votre numéro de cadre
dans l'espace vide ci-dessous en cas
de besoin futur.
Si prega di annotare il numero di telaio
della bicicletta nello spazio vuoto
sottostante per esigenze future.
Escriba el número de cuadro de su
bicicleta en el espacio en blanco a
continuación en caso de que lo
necesite en el futuro.

Model: F26 PRO
Model: F28 PRO

CONTENTS
English··························1-20
Deutsch························21-40
Français·······················41-60
Italiano·························61-80
Español························81-100

PRECAUTIONS
Battery and charging:
Charge at 0℃～45℃, discharge at -20℃～60℃,
not put the battery in acidic or alkaline liquid, avoid rain, keep away from
fire, heat and high temperature environment. It is strictly forbidden to
connect the positive and negative poles of the battery reversely, and it is
strictly forbidden to damage, insert the battery or short-circuit the battery.
Please use the original special charger when charging, do not exceed 6
hours, and the charging current does not exceed 2A. When not in use for
a long time, please store the battery in a cool and dry place, and charge
the battery for five hours a month. The user must follow the instructions
for use when charging, otherwise the consequences will be borne by the
user. Pay attention to the battery type and applicable voltage that the
charger can charge, and it is strictly forbidden to mix them. When charging,
it should be placed in a ventilated environment, and it is strictly prohibited
to charge in a confined space or in a hot sun or high temperature
environment. When charging, first connect the battery and the charger, and
then the power supply; when the battery is fully charged, first cut off the
power supply, and then unplug the charger connector. When the green light
is on, the power supply should be cut off in time. It is forbidden to connect
the charger to the power supply for a long time without charging. During
the charging process, if the indicator light is abnormal, a peculiar smell
appears, or the charger casing is overheated, stop charging immediately
and repair or replace the charger. During the use and storage of the charger,
pay attention to avoid the entry of foreign objects, especially avoid the
inflow of water or other liquids, so as not to cause a short circuit inside the
charger. Try not to carry the charger with the bicycle. If you really need to
carry it, you should place it in the toolbox after the shock absorption
treatment is done. Do not disassemble or replace the accessories in the
charger by yourself.
keep the battery dry, do
Riding:
Do not use it until you read the instructions carefully and understand
the performance of the product; do not lend it to someone who can't
manipulate the product for riding. Before riding the bicycle, check
whether the brakes are working. Pay attention to the brake tightness.
If the brake is too loose, use an Allen key to tighten it. Pay attention to
increasing the braking distance when riding in rain or snow.
Applicable age: 16 to 65 years old.
EN 01

Please be sure to wear a safety helmet when riding a bicycle, follow the
traffic rules, and do not drive on motorized lanes and roads with many
pedestrians. Please check the tire pressure before riding, the
recommended tire pressure is 40～65PSI.
Downhill and non-paved roads do not exceed 15KM/h.
When using the motor, please be careful not to hit it vigorously and keep
the rotating shaft lubricated.
Riding beyond the maximum load is not allowed
(the maximum load is 120KG)
After use, the car can not be parked in the building hall, evacuation stairs,
safety exits, and must be parked correctly in accordance with the safety rules.
One-handed riding is prohibited!
After riding, please store the bike in a place without sunlight and rain, not in
residential buildings; always check the motor and brake; check the screws and
the places that need to be fastened regularly, and tighten them regularly.
Recommended torque: (unit: kgf.cm) handlebar screw 60-80, handle screw
175-200, seat cushion screw 175-200, wheel screw 320-450;
The front and rear wheels of the vehicle should be located in the center of the
front fork or frame;
Always check the tire for scratches, cracks or excessive wear. The inner tube
and the valve should be perpendicular to the wheel hub. Damaged or
excessively worn tires need to be replaced immediately. Please find a
professional technician to replace your tire. If your tire accidentally punctures
and leaks, please contact a professional technician for repair or replacement.
Disclaimer:
Maintenance and care:
For the product model, specifications or related information mentioned in this
User Manual, the company reserves the right of modification and final
interpretation; the functions of the specific model mentioned in this User
Manual are only applicable to that specific model;
The product models, specifications, or related information mentioned in the
User Manual may be changed without notice; without prior written permission
of the company, the User Manual may not be copied, modified, reproduced,
transmitted, or published in any form. Please read the Manual carefully before
using the product, and operate in accordance with the Manual, otherwise the
company will not be liable for product damage or personal or property damage
caused by improper use or error.
EN 02

EN 03
26
27
Product function illustration
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
(F26PRO)Model:
26

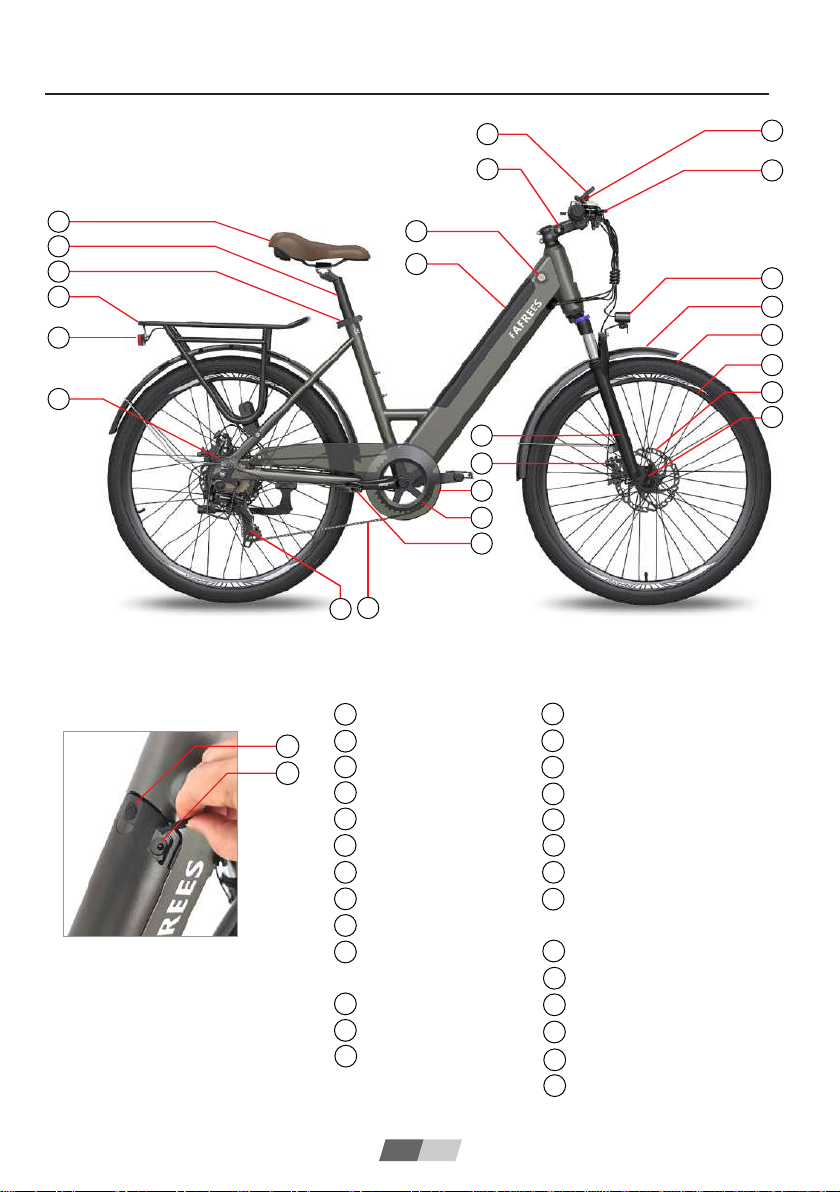

Figure 1 (Bicycle Diagram)
Shift Lever
Central Display
Brake Lever
Stem
Headlight
Tire
Rim
Brake Disc
Front Fork
brake Disc
Chainwheel
Pedal
Chain
Rear Derailleur
Motor
Seat Tube Adjustment
Quick Release
Seat Tube
Tail light
Saddle
Lithium Battery
Battery charging hole
Battery Lock Key Hole
Figure 2 (Right
side of the frame)
Front fender
Front wheel
quick release
Chain cover
Rear carrier
27
Power light switch button
1
3
2
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
25
24

EN 04
Product installation：
1.The state of the bicycle after being taken out of
the carton is as shown in the figure above. First,
cut all the nylon straps to ensure that the front
wheel can be smoothly separated from the frame
when the rear wheel can rotate freely.
2.Turn the bicycle upside down as shown above to
facilitate the installation of the front wheels.
3.Loosen the fixing screws of
the front fork protection rod
with an adjustable wrench,
and remove the front fork
protection rod.
4.Place the front wheel on the front fork for
installation, pay attention to the disc brake pad
and the disc brake to match in place.
5.Open the accessory small carton, take out the front axle quick
release inside, loosen the nut and separate it from the screw.
6.Insert the front axle quick release screw into
the front axle core, tighten it with the nut, and
then press the quick release handle to lock the
front fork.
7.After the front wheel is installed, remove all the
protective foams, and then place the bicycle as
shown above.

EN 05
8.Loosen the 4 screws of the handlebar stem, place the handlebar and adjust
the horizontal angle of the handlebar, and then fix it with the pipe clamp screws.
9.Tighten each fixing screw with a hexagonal key to fix the handlebar stem to ensure that there is
no looseness of the handlebar.
10.Loosen the headlight fixing screw on the front fork, fix the front mudboard fixing hook and the
headlight bracket together with the screw on the front fork, and then use the screw to fix the front
mudboard support on the front fork, as shown in the right picture above.
11.Place the wheel reflector on the spoke, press the clip into the hole, and use a tool to rotate the clip to lock.

EN 06

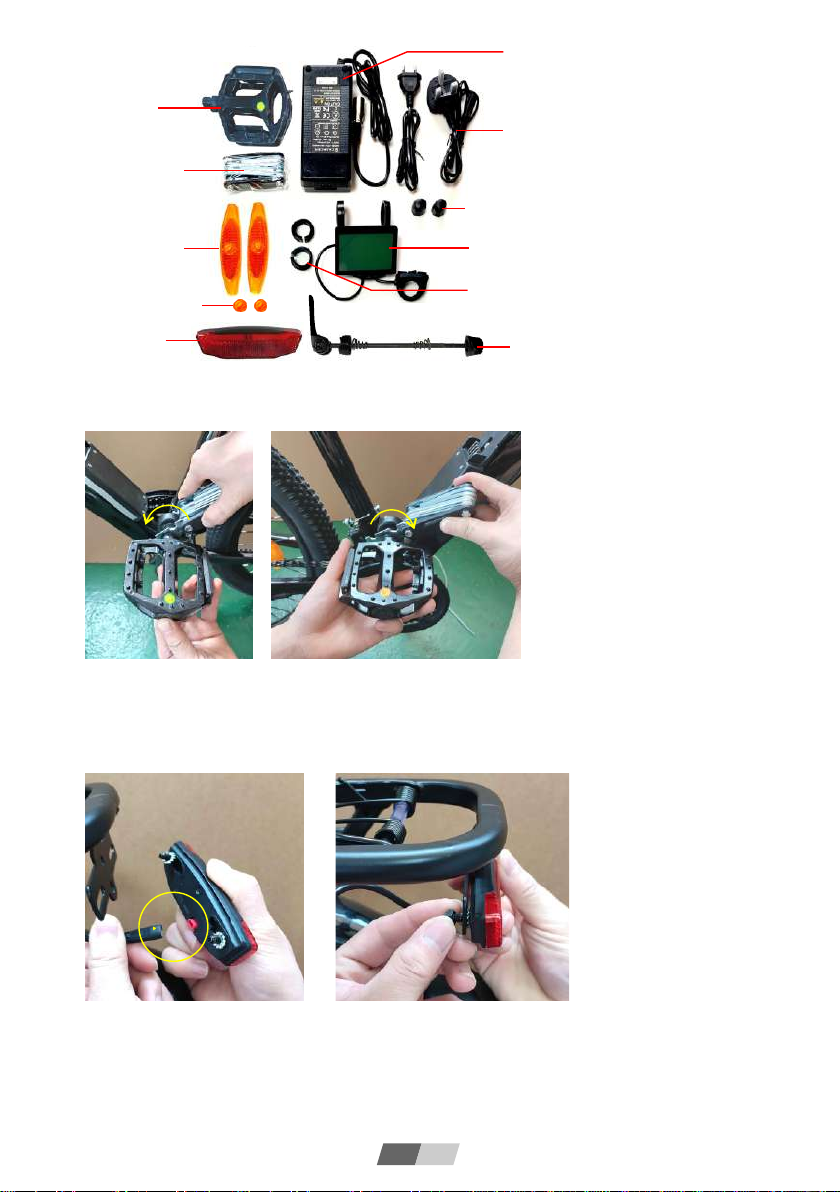

Accessories list, as shown above.
12. When installing the pedals, pay attentionto the port of the pedal shaft. The pedal with "L"
stamp is the left pedal, the stamp with "R" is the right pedal, and the right pedal is installed
on the side of the sprocket.
Note: The left pedal is tightened to the left, and the right pedal is tightened to the right.
Pedals
Tool
Wheel reflector
Reflector clip
Front wheel quick release
Display Pipe Clamp Gasket
Display
Shaft protection cap
Charger cable
Charger
Tail light
13. Install the tail light : first connect the control wire of the tail light to the tail light, and then fix the
tail light to the rear hanger with screws.

EN 07
Display installation：
1.The display can be installed only after the handlebar is installed. For the convenience of installation,
as shown in the left picture above, one of the pipe clamps of the instrument can be completely
removed first.
3.Tighten the screws behind the pipe clamps of the display to fix it, as shown in the right picture below.
4.Loosen the fixing clip of the button unit, click it into the handlebar tube, and then tighten the fixing
screw, as shown in the figure below.
2.Gently open the fixing pipe clamp of the instrument first, in order to install it firmly, first place the
pipe clamp gasket on the handlebar tube, and then clamp the pipe clamp into the handlebar tube,
as shown in the middle picture above.

EN 08

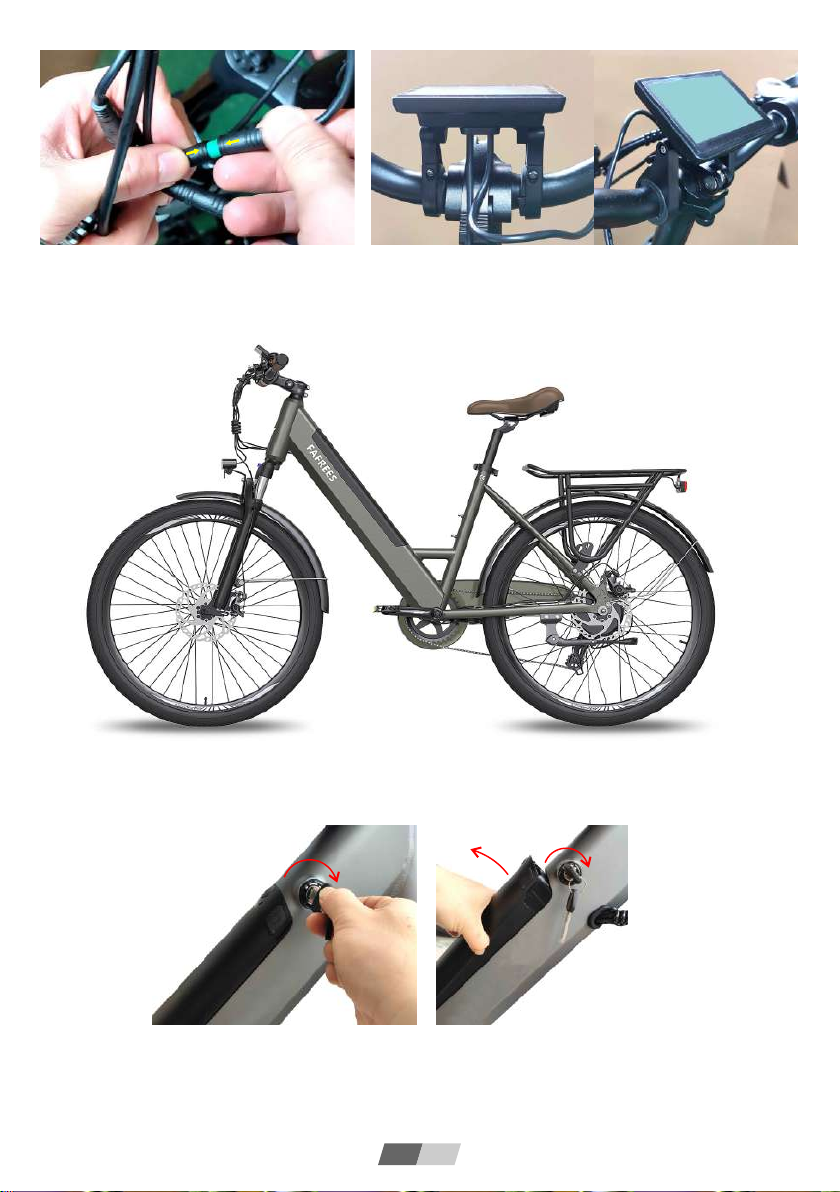

5.Connect the cable of the display, as shown
in the figure above; pay attention to the
arrow marks of the two connectors.
The state of the display after installation is as
shown in the figure above.
The state of the bicycle after the installation is completed,
as shown in the figure above.
Removing the battery: Insert the key, twist it to the right with your
right hand, and pull the battery out with your left hand.
After the battery is removed, it can be charged alone with the charger.

Function introduction:
1. Charging: Refer to item 27 of Figure 2, the charging hole can be seen on the right
side of the battery in the frame, and it can be charged by connecting the charger.
When the battery is full and the charger indicator turns from red to yellow-green, it
means it is fully charged.
2. Turn on/off: refer to Figure 4 and press and hold the " " button to turn on/off
the power of the display.
3. Display: The display screen lights up after power on, displaying information such
as power, speed, motor speed, mileage, etc. The power speed is initially 0. Press the
"+" and "-" buttons to increase and decrease the power speed of electric drive mode.
4. Front light: Refer to Figure 4, long press the "+" button to turn on/off the front light.
5. Power-assisted mode: power-assisted riding, step on the pedals of the bicycle, and
automatically start electric power after a certain speed. If you don't need assistance,
you can turn off the power of the display.
6. Speed transmission: Refer to Figures 4 and 5, when the bicycle is running, you can
change the mechanical speed by flipping the shift levers.
7. Electric mode: Refer to Figure 5, press the thumb throttle, and the bicycle can
accelerate forward. The greater the pressing range, the faster the bicycle will run. For
safety reason, please press the thumb throttle lightly and accelerate slowly.

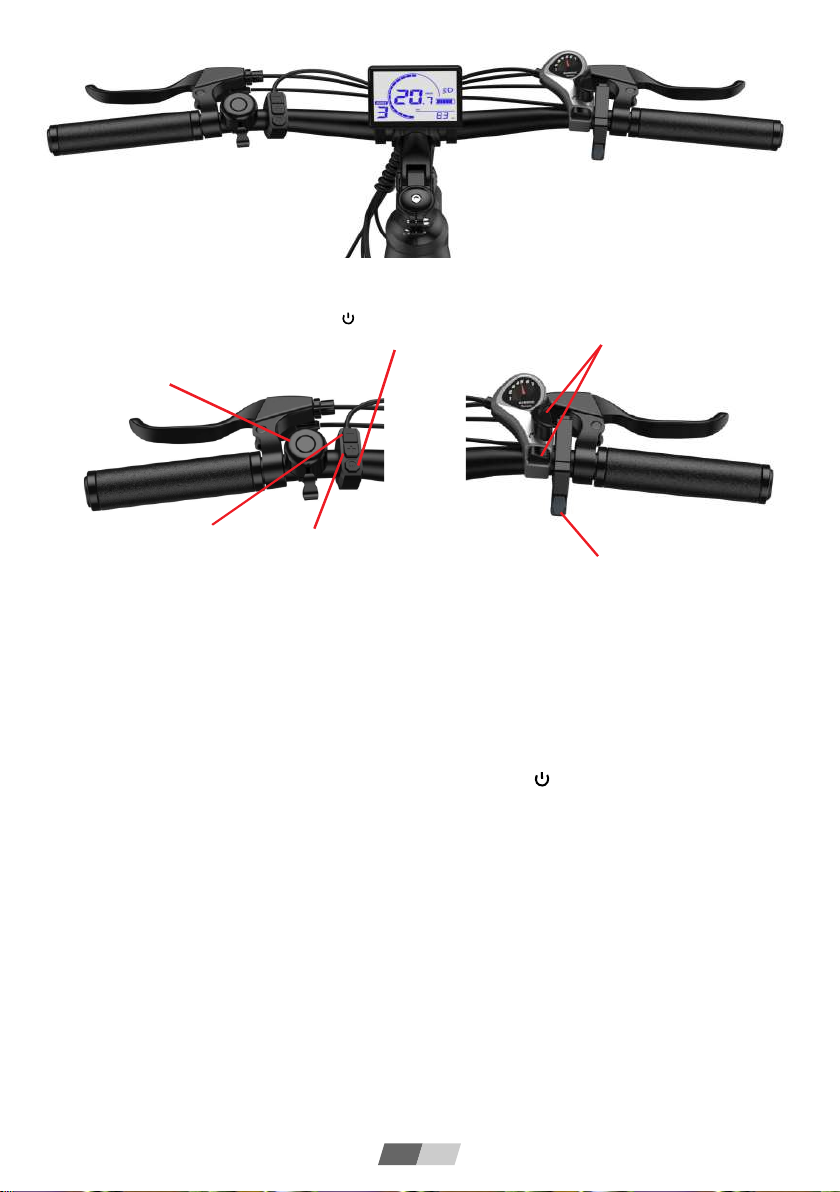

Figure 3 (Handlebar)
Figure 4 (Left Handlebar) Figure 5 (Right Handlebar)
EN 09
Mechanical bell
Long press the " " button
to turn on/off the power
"+" is the speed shift
button; long press it to
turn on the front light
"-" is the speed downshift
button; long Press it to push
the bicycle with power
Thumb throttle
Rear gear shift lever

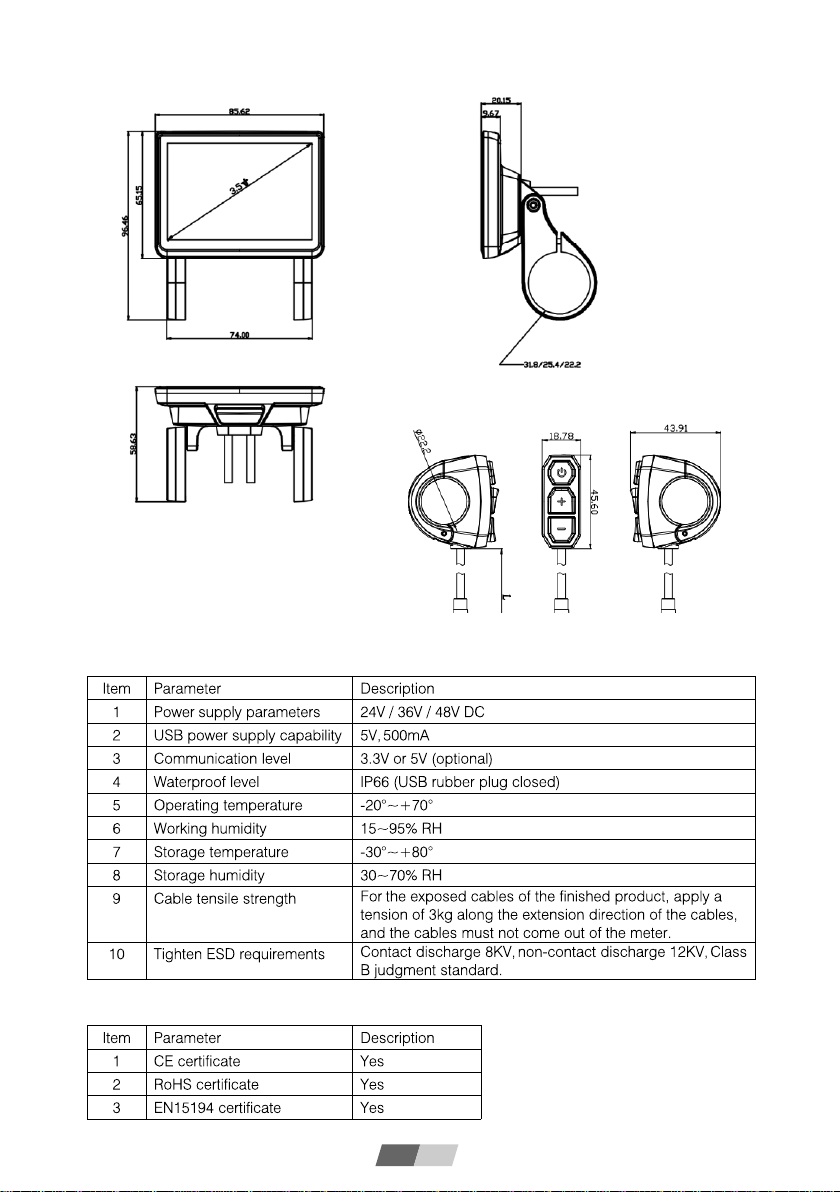

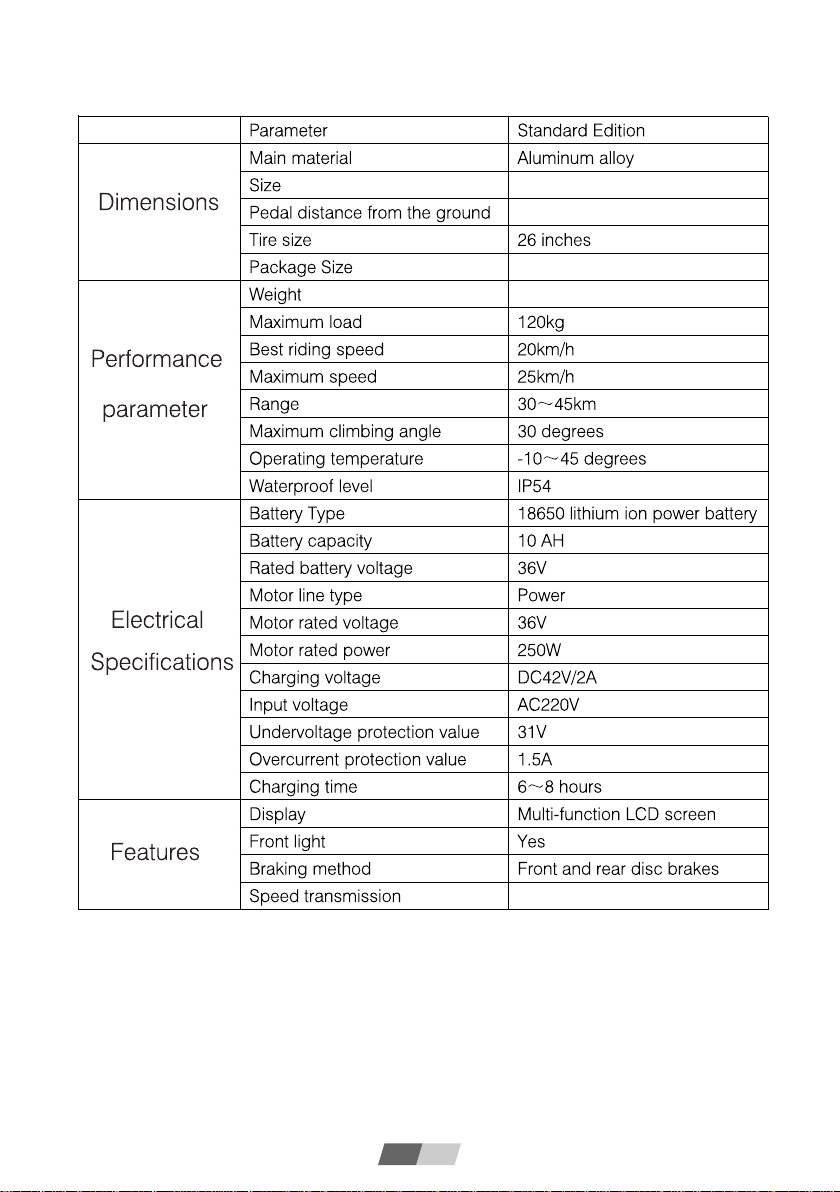

Product parameter
Remarks: Electricity, load, tire pressure, road environment, chain and wheel axle
lubrication, etc. will affect the maximum speed; the range refers to the data
obtained from continuous testing from fully charged to completely exhausted
with a riding speed of 15-25km/h and a load of 60kg on a flat hardened road;
driving habits, temperature, load, tire pressure, road environment and other
factors will affect the range.
173*67*109cm
(148*25*83cm)
7 SPEEDS
EN 10
10cm
23.2kg
145*25*78cm
(27.5 inches)
(178*67*110cm)
(24.7kg)
(14.5AH)
Note: The parameters in brackets belong to F28 PRO.
(55～65km)

EN 11

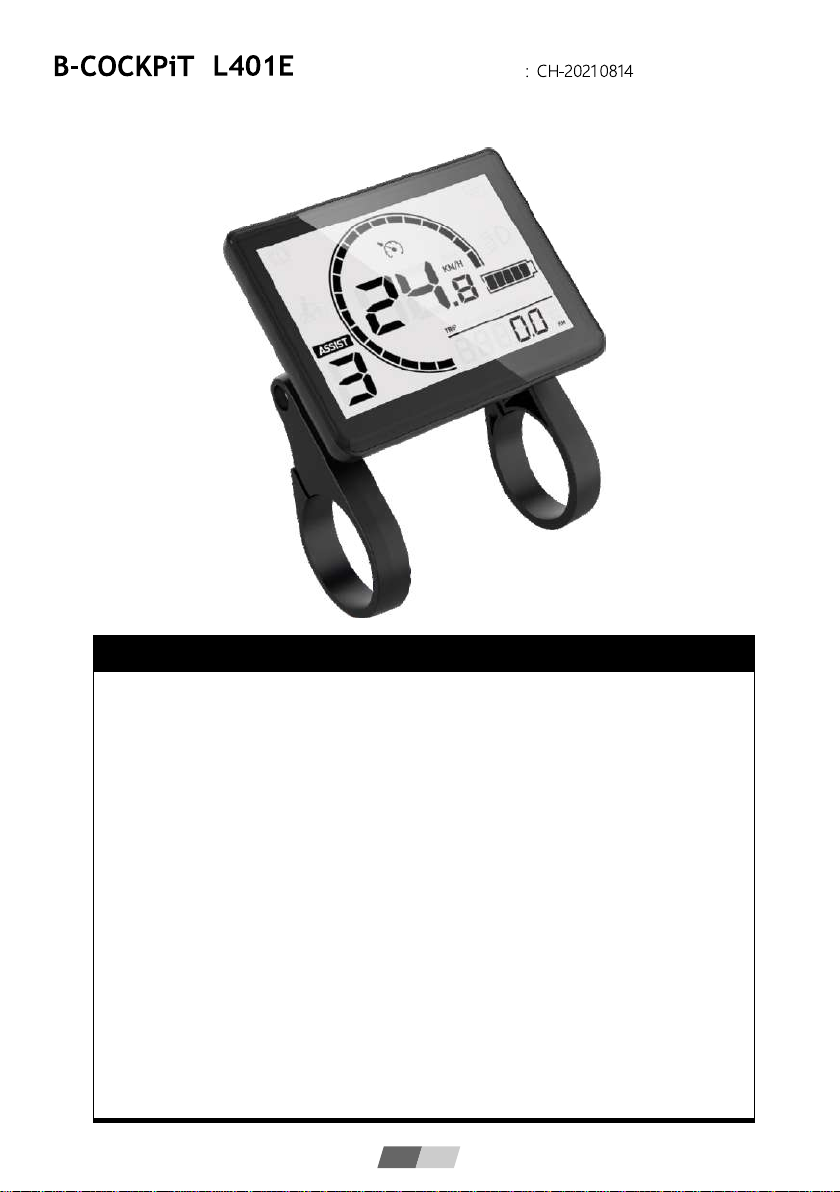

SERIES Version
Display user instructions
Important information about safe use:
1. Before plugging or unplugging the display, please make sure to cut off
the power supply of Ebike first. Plugging or unplugging with power will
cause permanent electrical damage to the display;
2. When installing the display on the handlebar, do not over tighten the
hexagon socket screws. Normally, 0.2N.m of torque can securely install the
instrument on the handlebar. Excessive tightening will cause damage to
the instrument structure.
3. Do not immerse the display in water or use water spray to clean the
meter. When cleaning, please use a soft cloth dampened with water to
wipe. Do not use any cleaning agents to wipe.
4. The USB charging port on the display cannot provide waterproof
protection when in use. When riding in the rain, please make sure that the
protective rubber of the USB port is closed tightly. It is forbidden to use
the display to connect external devices in the rain.
5. Do not dispose of the display or any other Ebike accessories as
residential garbage. Please abide by local laws and regulations, and dispose
of or recycle Ebike accessories in an environmentally friendly manner.
6. The damage or failure of the display caused by improper installation or
use is not covered by the after-sales warranty.

◼
⚫
⚫
3
1
2
4
132 4 5 6
EN 12

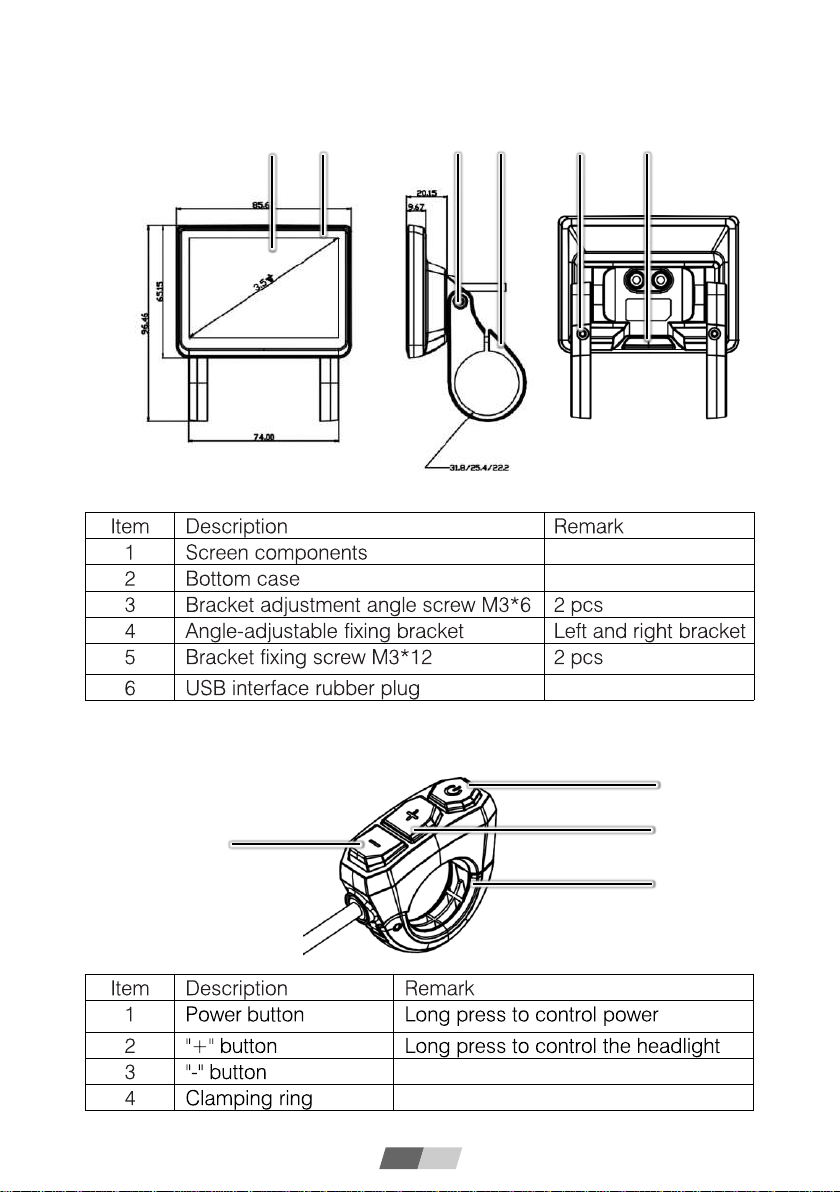

Parts description and specifications
Parts description
DTK3 Buttons

⚫
⚫
⚫
Dimensions
Display Dimensions
DTK3 Dimensions
Reliability
Conformities
EN 13

◼
⚫
⚫
1-1 1-2
2-1 2-2
3
Installation
Install the display unit
1. Use two M3*12 hexagon socket screws 1-1 and 1-2 to lock the left and right
brackets to the handlebars. Tightening torque: 0.2N.m. Do not over-tighten,otherwise
it will cause damage to the display.
2. After adjusting the display to a proper angle, use two M3*6 hexagon socket screws
2-1 and 2-2 to tighten it.
3. If you want to install it on a 22.2mm or 25.4mm handlebar,
please use the attached adapter rubber ring.
fixing
Install the button unit
1. Use one M3 hexagon socket screw 3 to lock the control
unit on the left handlebar, the recommended position: the
right side of the brake fixing ring.
2. Tightening torque: 0.2N.m. Do not over-tighten, otherwise
it will cause damage to the instrument.
Arrow mark
Arrow mark
1. Align the arrow marks on the outlet connector of the meter and the Ebike outlet
connector, and insert the two cables firmly
EN 14
⚫Connect the cable
