Fanmaster 3 Series User manual

FA NM A ST E R
cooling heating ventilation extraction
INSTRUCTION MANUAL
MODEL: IDH3-20, IDH3-30, IDH3-50
INDUSTRIAL DIESEL FAN HEATER (DIRECT-FIRED)
TO PREVENT SERIOUS INJURY, READ & UNDERSTAND ALL WARNINGS &
INSTRUCTIONS BEFORE USE. PLEASE KEEP THIS DOCUMENT FOR YOUR RECORDS
FOR INDUSTRIAL USE ONLY
MUST BE USED IN WELL VENTILATED AREAS
SERIES 3

FOR YOUR INFORMATION
Thank you for purchasing a Fanmaster diesel heater. Please read this instruction
manual carefully before using this heater.
Disclaimer:
Fanmaster reserves the right to make alterations to specications, quantities,
dimensions, for production or other reasons, subsequent to publication.
While we believe the information is accurate and complete, we make no warranty
or representation for any particular purposes. The information is offered in good faith
and with the understanding that any use of the units or accessories in breach of the
directions and warnings in this document is at the sole discretion and risk of the user
Disposal Guidelines:
Do not dispose of this product with general household waste. This product must be
disposed according to the laws governing Waste Electrical and Electronic Equipment.
If required, contact your local authorities for information regarding the available
disposal facilities.

1. GENERAL SAFETY RULES & WARNINGS
• PLEASE READ INSTRUCTIONS CAREFULLY.
• PLACE INSTRUCTION MANUAL IN A SAFE PLACE FOR FUTURE REFERENCE. DO NOT
ALLOW ANYONE WHO HAS NOT READ THESE INSTRUCTIONS TO ASSEMBLE, ADJUST
OR OPERATE THIS HEATER.
• IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED EXACTLY, A FIRE OR
EXPLOSION MAY RESULT IN CAUSING PROPERTY DAMAGE, SERIOUS INJURY OR
LOSS OF LIFE.
• FAILURE TO COMPLY WITH THE PRECAUTIONS AND INSTRUCTIONS PROVIDED WITH
THIS HEATER, CAN RESULT IN DEATH, SERIOUS INJURY AND PROPERTY LOSS OR
DAMAGE FROM HAZARDS OF FIRE, EXPLOSION, BURN, ASPHYXIATION, CARBON
MONOXIDE POISONING, AND/OR ELECTRICAL SHOCK.
• ONLY PERSONS WHO CAN UNDERSTAND AND FOLLOW THE INSTRUCTIONS SHOULD
USE OR SERVICE THIS HEATER. IF YOU NEED ASSISTANCE OR REQUIRE HEATER
INFORMATION SUCH AS AN INSTRUCTION MANUAL, LABELS, ETC. CONTACT
FANMASTER.
• ADEQUATE VENTILATION IS REQUIRED. DO NOT USE IN ENCLOSED ENVIRONMENTS.
• UNVENTED PORTABLE HEATERS USE AIR (OXYGEN) FROM THE EXISTING AREA.
ADEQUATE COMBUSTION & VENTILATION AIR MUST BE PROVIDED.
• DO NOT STORE OR USE GASOLINE, PETROL OR ANY OTHER FLAMMABLE OR
COMBUSTIABLE VAPORS AND LIQUIDS IN THE VICINITY OF THIS HEATER.
• FIRE, BURN, INHALATION, AND EXPLOSION HAZARD. KEEP SOLID COMBUSTIBLES,
SUCH AS BUILDING MATERIALS, PAPER OR CARDBOARD, A SAFE DISTANCE
AWAY FROM THE HEATER AS RECOMMENDED BY THE INSTRUCTIONS. NEVER USE
THE HEATER IN SPACES WHICH DO OR MAY CONTAIN VOLATILE OR AIRBORNE
COMBUSTIBLES, OR PRODUCTS SUCH AS GASOLINE, SOLVENTS, PAINT THINNER,
DUST PARTICLES OR UNKNOWN CHEMICALS
• DIRECT-FIRED HEATERS MAY CAUSE CARBON MONOXIDE (CO) POISONING WHEN
INCORRECTLY USED, E.G INDOORS WITHOUT ADEQUATE AIR CIRCULATION, OR IF
NOT PROPERLY WORKING. CO POISONING MAY LEAD TO DEATH.
• NOT FOR DOMESTIC OR RECREATIONAL VEHICLE USE
• THE ELECTRICAL SYSTEM TO WHICH THE APPLIANCE IS CONNECTED MUST COMPLY
WITH LOCAL REGULATIONS. A RESIDUAL-CURRENT DEVICE (RCD) MUST BE
INSTALLED.
• UNPLUG THE APPLIANCE BEFORE PERFORMING ANY MAINTENANCE OPERATIONS.
• ALWAYS CHECK THE POWER CABLE BEFORE USING THE APPLIANCE. IT MUST NOT BE
BENT, TAUT, STRETCHED, CRUSHED OR ANY WAY DAMAGED.
• IF THE POWER CORD AND/OR PLUG IS DAMAGED, IT MUST BE REPLACED BY
FANMASTER, A SERVICE AGENT OR A QUALIFIED PERSONS.
• THE FRONT OUTLET IS VERY HOT DURING OPERATION. DO NOT TOUCH! BURN
DANGER.
• DO NOT LEAVE THE HEATER UNATTENDED WHEN IN USE.
• NEVER USE THE HEATER WITH WET HANDS OR WHEN EITHER THE HEATER OR THE
POWER CABLE IS WET.
• CHILDREN SHOULD BE SUPERVISED TO ENSURE THAT THEY DO NOT PLAY WITH THE
HEATER.
• THE HEATER IS NOT INTENDED FOR USE BY PERSONS (INCLUDING CHILDREN) WITH
REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES, OR LOCK OF EXPERIENCE
& KNOWLEDGE.
FOR YOUR INFORMATION

2. PRODUCT DESCRIPTION & SPECIFICATIONS
PRODUCT DESCRIPTION
Industrial diesel or kerosene direct red portable space/fan heater with open
combustion chamber, series 3.
SPECIFICATIONS
MODEL IDH3-20 IDH3-30 IDH3-50
Heat Output* 20KW
68,240 BTU
30KW
102,360 BTU
50KW
170,600 BTU
Air Flow (L/s) 153 208 305
Fuel Type Diesel or Kerosene Diesel or Kerosene Diesel or Kerosene
Fuel Consumption
(L/h) 1.65 2.4 4
Fuel Nozzle Size (gph) 0.50 0.80 1.20
Voltage (V/Hz) AC220-240V/50 AC220-240V/50 AC220-240V/50
Air Pressure Setting
(bar) 0.32 0.31 0.45
Current Rating (A) 1.1 1.1 1.5
Electrical Power (W) 230 230 340
Fuse Rating T3.15A T3.15A T3.15A
Net Weight (kg) 14.9 22.2 27.8
Dimensions (mm) 750(L)*315(W)*415(H) 880(L)*456(W)*590(H) 1090(L)*490(W)*585(H)
Tank Capacity (L) 19 34 50
Operating Range (H) ~10 ~12 ~11
Standard Accessories
Fuel Gauge Yes Yes Yes
Handle Yes Yes Yes
Ambient Thermostat Built-in Built-in Built-in
Malfunction detec-
tion light Built-in Built-in Built-in
*Based on Gross Caloric Value (Hrs)
MAINTENANCE KIT
This heaters comes with a maintenance kit.

3. ASSEMBLING INSTRUCTIONS
Remove the heater from the carton. If the heater is damaged, please
contact Fanmaster or where you purchased the heater from.
2. PRODUCT DESCRIPTION & SPECIFICATIONS
The following parts are supplied in the carton:
Pos. Description Qty
A Handle 1
BWasher ø6 4
C Clamping Screw 4
D Wheel 2
E Wheel Shaft 1
F Washer ø12 2
G Nut M12 2
H Wheel Cover 2
I Cotter 2
J Caster Fixing Plate 2
Fig 2.
To assemble the heater, proceed as follows (see Fig 2.)
1. Insert the wheel shaft (E) into the corresponding hole of the caster xing
plate (J).
2. Insert the cotter (I) to the corresponding holes of the wheel shaft, place
the washer (F) to the two sides of the shaft.
3. Slide the wheel (D) over the wheel shaft (E), scren the nut (G) to x the
wheel. Install wheel cover (H).
4. Use the clamping screws (C) & washer (B) to install the handle (A) into the
corresponding hole of the caster xing plate (J).

4. OPERATING INSTRUCTIONS
• Position the heater on a at, level, non-ammable & solid surface.
• Direct-red heaters are intended for use in outdoor open areas or
in indoor well ventilated areas. For indoor use, provide permanent
ventilation openings of at least 25 cm²/kW, equally distributed between
oor and high level, with a minimum of 250 cm².
• Only position the heater in the normal upright position (on the wheels)
• Do not place the heater near walls, corners or low ceilings.
• Do not place the heater below a power socket outlet.
• Do not place the heater on moving vehicles or where it can tip over.
• Keep the heater away from ammable, combustible, explosive or
corrosive materials.
• Keep the heater away from curtains or similar materials that could block
the air inlet and outlet.
• Never block or restrict the air inlet and outlet for any reason.
• Keep the power cable away from heat sources, sharp edges, cutting and
moving parts.
• Do not expose directly to the weather or to excessive humidity.
• Do not place the heater in the immediate surroundings of a bath, shower
or swimming pool.
• Ensure the following minimum safety clearances from materials or objects
in the surroundings of the heater:
Side: 0.6m
Air inlet side: 1m
Top: 1.5m
Hot air outlet side: 3m
• Do not connect direct-red heaters to air ducts
IDH3-20 IDH3-30 IDH3-50
Minimum Opening Size 600cm2 800cm2 1250cm2

4. OPERATING INSTRUCTIONS - CONTINUED4. OPERATING INSTRUCTIONS
START-UP
• Fill the tank with clean fuel. ONLY USE Diesel or Kerosene
• The fuel gauge on top of the tank allows you to check the fuel level
• Connect the plug to the relevant power source
• The left display will show “- -”, the right display will show the ambient
temperature.
• Push the power switch to “ON”.
• The default temperature setting is 20’C (left display)
• If the ambient temperature is lower than the default temperature, the
electrodes will start sparking & after 7 seconds the heater will start.
• If the ambient temperature is higher than the default temperature, turn the
thermostat control knob to the desired temperature. The electrodes will
start sparking & after 7 seconds the heater will start.
COLD START-UP
In low temperature, in Alpine/Highland/Inland regions, unseasonably cold weather.
Block the air vent hole on the air pump (see Fig. 4) by using your nger during ignition
to make start-up easier.
ABNORMAL OPERATION:
In case of malfunction (ame failure, reduced air ow, bad combustion) the heater
stops and the indicator light starts FLASHING (THE LOCK-OUT MODE code will be
showed on the display window).
MANUAL RESET/RESTART
If the heater is in lock-out mode, check and remove the cause of lock-out before
restarting the heater. To reset, turn the ON/OFF switch to 0 and then again to I. If
problem continues please contact Fanmaster. Turning the thermostat control knob
will NOT reset the heater.
SHUTDOWN
Move switch to “OFF” (O) position.
• Never disconnect the heater from mains to stop it while in operation.
• Always allow the cooling sequence to be completed, otherwise the residual heat
could damage internal components.
• Do not cover the heater. Do not block the air inlet and outlet.
• The heater outlet is very hot during operation and after use. Do not touch! Use
personal protecting equipment if needed.
• Unplug the heater before moving it. Never pull the cable to unplug or move the
unit.

Please refer to the Maintenance Schedule & Logbook that came with this heater.
• Before starting any maintenance task, shut down, unplug and let the heater cool
down for at least 15 minutes.
• Do not attempt any electrical repair yourself. If the heater needs service or repair,
contact a qualied person.
• When cleaning, make sure that water does not enter the unit.
• Do not open the enclosure to clean the inner parts. Do not spray water into the
heater.
• Never use solvents, gasoline, toluene and similar aggressive chemicals to clean
the heater.
Regularly wipe the enclosure using a soft sponge or cloth. For very dirty parts, use a
sponge wetted with lukewarm water and a mild detergent, then dry using a clean
cloth. Keep air inlet and fan free from dust and dirt. To clean inner parts, gently blow
compressed air through air inlet. Regularly inspect the power cable: if worn, cracked
or damaged have it replaced by a qualied persons only.
Before storing the heater, make sure it is perfectly cool and dry. Cover the unit with a
blanket or tarp and store it in a dry, ventilated plac
The following checks are recommended before every seasonal use:
Nozzle
Carefully unscrew nozzle from nozzle tting. Blow compressed air through nozzle
orice to free it from dirt. Replace nozzle if necessary.
Air Filters
Clean air lters. Remove lter end cover (11), wash air intake lter (10) using a light
detergent and dry it thoroughly before re-installing. Replace air delivery lter (9) once
a year (Fig.3)
Fig 3.
5. CLEANING, MAINTENANCE & STORAGE 5. CLEANING, MAINTENANCE & STORAGE - CON

5. CLEANING, MAINTENANCE & STORAGE - CON
Air Pump Pressure Adjustment (Fig 4.)
The Air Pump pressure is factory set and must be checked and adjusted by qualied
technicians only. Tampering with the unit may be dangerous.
Remove pressure gauge cap. Connect a pressure gauge on the pressure measuring
port on the rear guard. Start heater and read air pressure value. If necessary adjust
pressure to the correct value turning the adjusting screw (the air vent hole in the
adjusting screw middle) clockwise to increase, anticlockwise to decrease the
pressure:
Ignition Electrodes (qualied perons only)
Clean, adjust, & if necessary replace ignition electrode. For electrode gaps see Fig.4-
5 (dimensions in mm)
Model Air Pressure (bar)
IDH3-20 0.32
IDH3-30 0.31
IDH3-50 0.45
Fig 4.
Fig 5. Fig 6.

6. WIRING DIAGRAM
IDH3-20 & IDH3-30
IDH3-50

7. SPARE PARTS
PART NO. DESCRIPTION TO SUIT
SP-IDH320-MK Maintenance Kit - Fuel Nozzle, Fuel Filter & Fuel Line IDH3-20
SP-IDH330-MK Maintenance Kit - Fuel Nozzle, Fuel Filter & Fuel Line IDH3-30
SP-IDH350-MK Maintenance Kit - Fuel Nozzle, Fuel Filter & Fuel Line IDH3-50
SP-IDH3-FN1 Fuel Nozzle IDH3-20
SP-IDH3-FN2 Fuel Nozzle IDH3-30
SP-IDH3-FN3 Fuel Nozzle IDH3-50
SP-IDH3-FF1 Fuel Filter (main) IDH3-20
SP-IDH3-FF2 Fuel Filter (main) IDH3-30 & 50
SP-IDH3-FFT Fuel Filter Inlet Tank ALL
SP-IDH3-FL Fuel Line ALL
SP-IDH3-FB1 Fan Blade IDH3-20
SP-IDH3-FB2 Fan Blade IDH3-30& 50
SP-IDH3-FM1 Fan Motor IDH3-20 & 30
SP-IDH3-FM2 Fan Motor IDH3-50
SP-IDH3-PC1 Photocell/Magic Eye IDH3-20 & 30
SP-IDH3-PC2 Photocell/Magic Eye IDH3-50
SP-IDH3-CB1 Circuit Board (pcb) IDH3-20 & 30
SP-IDH3-CB2 Circuit Board (pcb) IDH3-50
SP-IDH3-TR1 Thermostat Reset IDH3-20 & 30
SP-IDH3-TR2 Thermostat Reset IDH3-50
SP-IDH3-IGN Ignition Needles ALL
SP-IDH3-IGT Ignition Transformer ALL
SP-IDH3-PUMP Pump Assembly ALL
SP-IDH3-PF Pump Filter ALL

8. TROUBLESHOOTING
PROBLEM CAUSE SOLUTION
Motor does not start
E1 displayed on the
screen
No power or low voltage
Check power supply &
voltage
Check fuse & replace if
necessary
Faulty or damaged power
cord Check & replace
Faulty motor/capacitor Check & if necessary replace
Lock-out mode due to
previous overheating
Detect the cause of
overheating. Shut the heater
down. Check air inlet &
outlet. Wait 5 minutes &
restart the heater.
E2 displayed on the
screen
The temperature probe is
faulty or the connector is
loose
Check & replace
Check & replace PCB if
needed
Motor runs but the
heater does not ignite
& locks out after a short
time.
E1 displayed on the
screen
Empty fuel tank, dirty or
wrong fuel
Check fuel level, ll the tank
with clean diesel or kerosene
if required. Remove wrong or
dirty fuel.
Fuel lters clogged Clean or replace tlers
Air leaks in fuel line
Check fuel lines, connections
are tight, no cracks. Replace
if required
Fuel Nozzle clogged
Clean nozzle by blowing
compressed air or replace if
required
Fuel viscosity increased at
low temperature Blend diesel with kerosene
Flame comes out of
body
E1 displayed on the
screen
Insufcient air ow into
combustion chamber
Check air pump, air inlet, fan
& motor
Air pressure too high Check air pump pressure
Heater stops during
operation
Ambient temperature
displayed on the screen
The room temperature set
has been acheived
Adjust the thermostat control
knob clockwise for higher
setting
Heater stops during
operation
E1 displayed on the
screen
Flame failure Check & remove the
cause(s) of the malfunction
Reset, turn the ON/OFF
switch to 0 and then again
to I.
Bad combustion
Reduced air ow
Overheating
8. TROUBLESHOOTING - CONTINUED

8. TROUBLESHOOTING - CONTINUED
NO REASON PROCESS SOLUTION
1 Fuel Exhausted Check Fuel
Remove the fuel cap & add enough fuel.
2Thermostat
cut-out
Check
Thermostat
Using a mult-meter, check both ends of
thermostat. If there is a resistance value
showing the thermostat is working. If there is no
resistance, replace thermostat.
3Photocell
break down
Check Photocell
assembly
Pull out the photocell & let it sense light. Using
a multi-meter connect both ends, if there is no
resistance showing the photocell is good. If there
is a resistance replace.

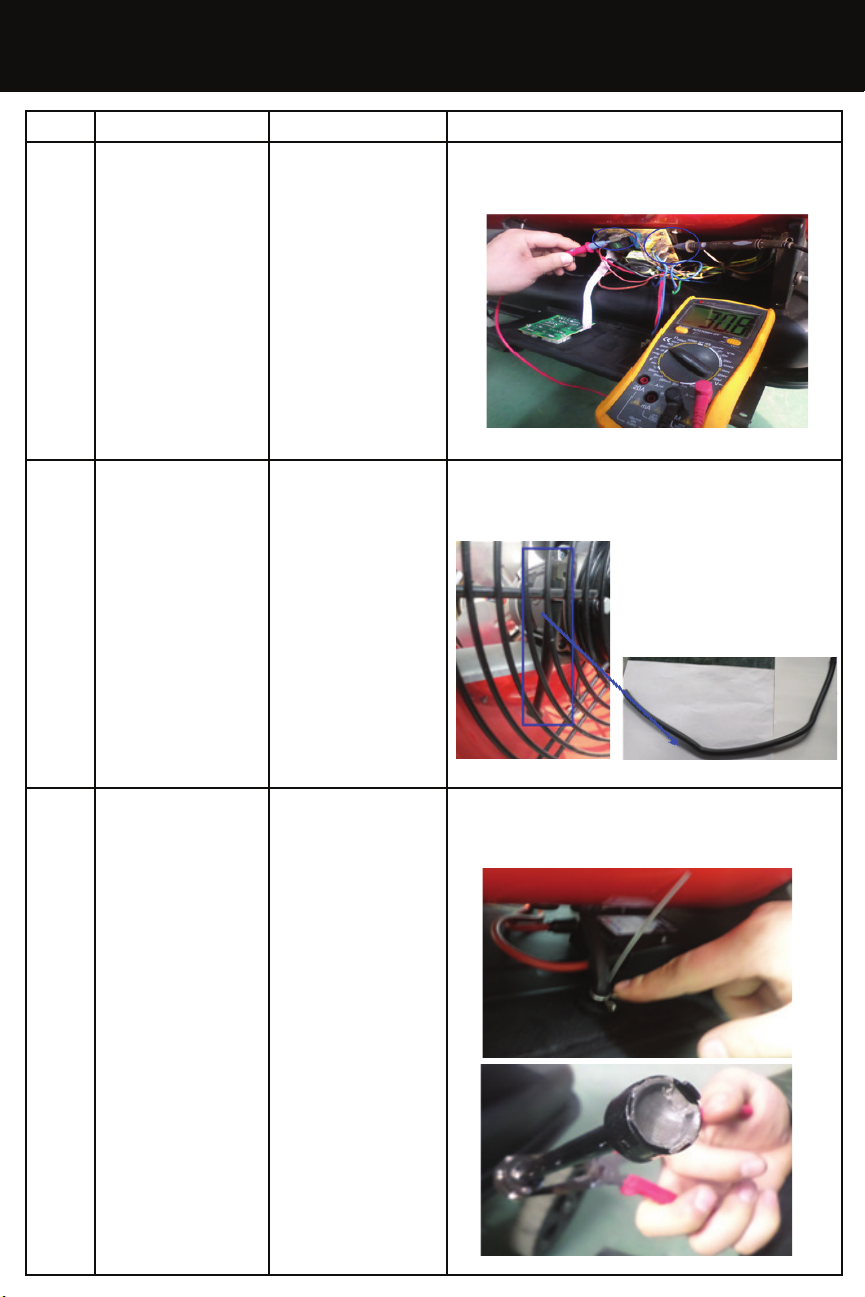

NO REASON PROCESS SOLUTION
4Motor not
working
Check Motor
Condition
Open the control panel. Using a multi-meter
check motor circuit.
5Air Line
Leakage Check Air Line
Take out the air line. Carefully check the line
surface. Replace if there are any cracks or
damages.
6Fuel Filters
Blocked
Check Fuel
Filters
Tale out the fuel lter. If blocked clean it out then
rinse & soak in diesel or kerosene. If blockage is
too thick, replace fuel lter.
8. TROUBLESHOOTING - CONTINUED 8. TROUBLESHOOTING - CONTINUED

8. TROUBLESHOOTING - CONTINUED 8. TROUBLESHOOTING - CONTINUED
NO REASON PROCESS SOLUTION
7Air Pump
Leakage Check Air Pump
Connect a pressure gauge. While the heater is
running block the air outlet & pressure adjusting
point. If the pressure gauge needle reaches
14PSI the air pump is good. If it fails to reach this
point, replace air pump.
Factory setting is 5-6 PSI
8Fuel Nozzle
Blocked
Check & Clean
the nozzle
If there is black smoke or ash re, check &
clean fuel nozzle, if the same symptoms keep
occuring replace the fuel nozzle.
9Prob damage
(E2) Check probe
Open the control panel, check the condition of
the probe & connection point. If the probe end
is damaged replace it. If it is not connected,
reconnect.

9. WARRANTY
Any claim under this warranty must be made within 12 months of the date of
purchase of the product. To make a claim under the warranty, take the product
(with proof of purchase) to the store where you purchased the product or go to
https://www.fanmaster.com.au/support.
This warranty is given by Fanmaster Pty Ltd
ABN: 45 353 934 457
Unit 1/6-8 Yalgar Rd, KIRRAWEE NSW 2232
P: 1300 900 345
E: [email protected]
This warranty is provided in addition to other rights and remedies you have under law:
Our goods come with guarantees which cannot be excluded under the Australian
Consumer Law. You are entitled to replacement or refund for a major failure and
to compensation for other reasonably foreseeable loss or damage. You are also
entitled to have the goods repaired or replaced if the goods fail to be of acceptable
quality and the failure does not amount to a major failure.
Exclusions: This warranty does not cover:
• Any defects caused by an accident, misuse, abuse, improper installation or
operation, lack of reasonable care, unauthorized modication, loss of parts,
tampering or attempted repair by a person not authorized by the distributor.
• Any product that has not been installed, operated or maintained to a
satisfactory level.
• Any damage caused by improper power input or improper cable connection.

8. TROUBLESHOOTING - CONTINUED9. WARRANTY

N11664
MADE IN CHINA
Fanmaster Pty Ltd | 1/6-8 Yalgar Road, KIRRAWEE NSW 2232
1300 900 345 | [email protected] | www.fanmaster.com.au
FA NM A ST E R
cooling heating ventilation extraction
