Fanmaster CF2000 User manual

INSTRUCTION MANUAL
MODEL: CF2000
ELECTRIC PEDESTAL/WALL CARBON FIBRE HEATER
TO PREVENT SERIOUS INJURY, READ & UNDERSTAND ALL WARNINGS &
INSTRUCTIONS BEFORE USE. PLEASE KEEP THIS DOCUMENT FOR YOUR RECORDS
1 YEAR WARRANTY

FOR YOUR INFORMATION
Thank you for purchasing a Fanmaster diesel heater. Please read this instruction
manual carefully before using this heater.
Disclaimer:
Fanmaster reserves the right to make alterations to specications, quantities,
dimensions, for production or other reasons, subsequent to publication.
While we believe the information is accurate and complete, we make no warranty
or representation for any particular purposes. The information is offered in good
faith and with the understanding that any use of the units or accessories in breach
of the directions and warnings in this document is at the sole discretion and risk of
the user.
Disposal Guidelines:
Do not dispose of this product with general household waste. This product must
be disposed according to the laws governing Waste Electrical and Electronic
Equipment. If required, contact your local authorities for information regarding the
available disposal facilities.

PLEASE READ INSTRUCTIONS CAREFULLY.
• PLACE INSTRUCTION MANUAL IN A SAFE PLACE FOR FUTURE REFERENCE. DO NOT ALLOW ANYONE
WHO HAS NOT READ THESE INSTRUCTIONS TO ASSEMBLE, ADJUST OR OPERATE THIS HEATER.
• IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED EXACTLY, A FIRE OR EXPLOSION MAY RESULT
IN CAUSING PROPERTY DAMAGE, SERIOUS INJURY OR LOSS OF LIFE.
• FAILURE TO COMPLY WITH THE PRECAUTIONS AND INSTRUCTIONS PROVIDED WITH THIS HEATER,
CAN RESULT IN DEATH, SERIOUS INJURY AND PROPERTY LOSS OR DAMAGE FROM HAZARDS OF FIRE,
EXPLOSION, BURN, AND/OR ELECTRICAL SHOCK
• ONLY PERSONS WHO CAN UNDERSTAND AND FOLLOW THE INSTRUCTIONS SHOULD USE OR SERVICE
THIS HEATER. IF YOU NEED ASSISTANCE OR REQUIRE HEATER INFORMATION SUCH AS AN INSTRUCTION
MANUAL, LABELS, ETC. CONTACT FANMASTER.
• DO NOT STORE OR USE GASOLINE, PETROL OR ANY OTHER FLAMMABLE OR COMBUSTIABLE VAPORS
AND LIQUIDS IN THE VICINITY OF THIS HEATER.
• FIRE, BURN, INHALATION, AND EXPLOSION HAZARD. KEEP SOLID COMBUSTIBLES, SUCH AS BUILDING
MATERIALS, PAPER OR CARDBOARD, A SAFE DISTANCE AWAY FROM THE HEATER AS RECOMMENDED
BY THE INSTRUCTIONS. NEVER USE THE HEATER IN SPACES WHICH DO OR MAY CONTAIN VOLATILE
OR AIRBORNE COMBUSTIBLES, OR PRODUCTS SUCH AS GASOLINE, SOLVENTS, PAINT THINNER, DUST
PARTICLES OR UNKNOWN CHEMICALS
• NOT FOR DOMESTIC OR RECREATIONAL VEHICLE USE
• THE ELECTRICAL SYSTEM TO WHICH THE APPLIANCE IS CONNECTED MUST COMPLY WITH LOCAL
REGULATIONS. A RESIDUAL-CURRENT DEVICE (RCD) MUST BE INSTALLED
• UNPLUG THE APPLIANCE BEFORE PERFORMING ANY MAINTENANCE OPERATIONS.
• ALWAYS CHECK THE POWER CABLE BEFORE USING THE APPLIANCE. IT MUST NOT BE BENT, TAUT,
STRETCHED, CRUSHED OR ANY WAY DAMAGED.
• IF THE POWER CORD AND/OR PLUG IS DAMAGED, IT MUST BE REPLACED BY FANMASTER, A SERVICE
AGENT OR A QUALIFIED PERSONS.
• DO NOT COVER THE FAN HEATER
• THE FRONT OUTLET IS VERY HOT DURING OPERATION. DO NOT TOUCH! BURN DANGER.
• DO NOT LEAVE THE HEATER UNATTENDED WHEN IN USE.
• NEVER USE THE HEATER WITH WET HANDS OR WHEN EITHER THE HEATER OR THE POWER CABLE IS WET.
• CHILDREN SHOULD BE SUPERVISED TO ENSURE THAT THEY DO NOT PLAY WITH THE HEATER.
• THE HEATER IS NOT INTENDED FOR USE BY PERSONS (INCLUDING CHILDREN) WITH REDUCED PHYSICAL,
SENSORY OR MENTAL CAPABILITIES, OR LOCK OF EXPERIENCE & KNOWLEDGE.
• Parts of the heater may exceed 200° , contact with the heating tube, reector, or metal parts near
the heating tube, may cause severe BURNS . To avoid burns, do not let bare skin touch hot surface
• NEVER place hands under the heating elements. ALWAYS allow heating element to cool at least 10
minutes before touching the heating tube or adjacent parts.
• This product contains recyclable materials. Do not dispose this product as unsorted municipal
waste. Please contact your local municipality for the nearest collection point
• A heater has hot and arcing or sparking parts inside. Do not use it in areas where gasoline, paint, or
ammable liquids are used or stored.
1. GENERAL SAFETY RULES & WARNINGS

2. PRODUCT DESCRIPTION & SPECIFICATIONS
PRODUCT DESCRIPTION
ELECTRIC PEDESTAL/WALL CARBON FIBRE HEATER
SPECIFICATIONS:
Replacement element: SP-CF2000-ELEMENT
SAFETY DEVICES
This heater has the following protection devices:
• Tilt Switch - this will automatically turn the heater off if it is not in the
appropriate operating position, fallen over on its front or side.
Model CF2000
Heat Output 2000W
6824.28 BTU
Element Type Carbon Fibre Lamp
Control Settings Remote Contol, 4 Power
Settings, Timer Control
Settings (W) 2000
Voltage (V/Hz) 50-60
Current Rating (A) 10
Net Weight 2.8
Dimensions (mm) 910 x 175 x 10

3. GETTING TO KNOW YOUR HEATER
1 SWITCH
2HEATING ELEMENT
3BRACKET
4CABLE
5SAFETY BAR
6COVER/GRILLE
7 REMOTE

3. GETTING TO KNOW YOUR HEATER

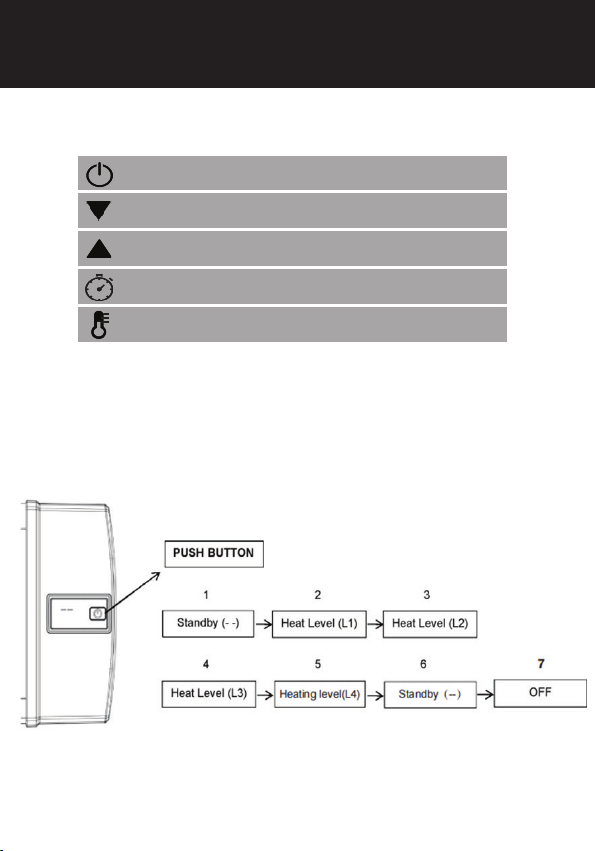

CONTROL FUNCTIONS
Turn ON or turn OFF the heater
Push the button repeatedly to decrease power level/timer
Push the button repeatedly to increase power level/timer
Set the time from 0H-24H, when the timer ends, the heater
will stop automatically. To cancel, set the time to 0 hour.
Set the power level from L1-L4
PUSH BUTTON: The heater can be operated manually by pressing the push button
on the right side of the heater.

4. ASSEMBLING & OPERATING INSTRUCTIONS
• The heater must be properly installed before use.
• The heater can be used indoors or in a well-protected outdoor
area.
• User-operated equipment intended to decrease the risk of re,
electric shock, or personal damage; must be used in accordance
with instructions.
• Do not alter the heater structure without the guidance of a
licenced electrician.
** Please note any modications to unit will void warranty **
• Position the heater so it stands upright & is on a rm surface (when
used as a pedestal) and at a safe distance from wet environments
and ammable objects.
• Connect the plug to the relevant power source.
• Set the thermostat knob to the MAX & let the heater operate on full
power for 2 minutes then adjust accordignly.
• DO NOT TURN THE HEATER OFF FROM THE POWER SOURCE

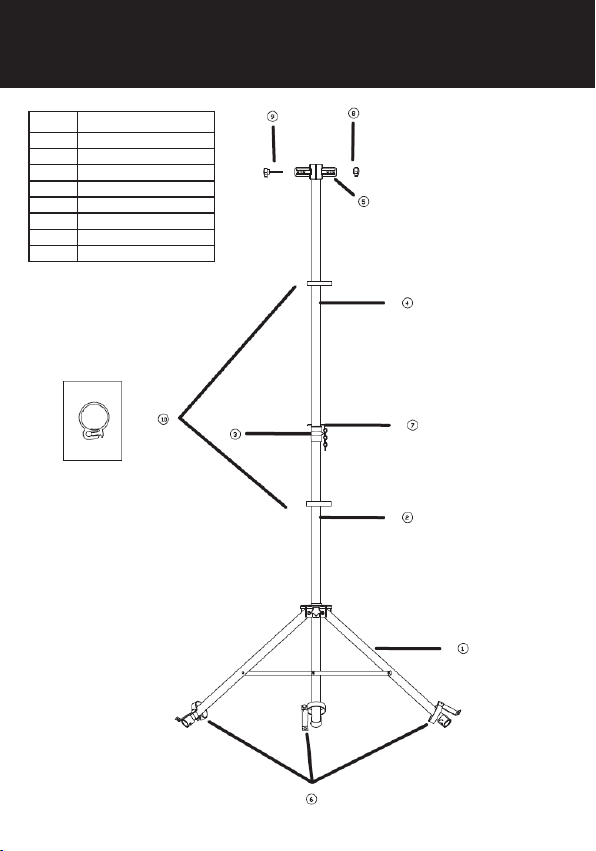

1 FOOT
2LOWER TUBE
3ADJUSTMENT HAND KNOB
4TOP TUBE
5L SHAPE BRACKET
6FIX BRACKET & SCREWS
7 FIXED AXEL PIN
8+9 NUT
10 LEAD CLIP
4. ASSEMBLING & OPERATING INSTRUCTIONS

4. ASSEMBLING & OPERATING INSTRUCTIONS

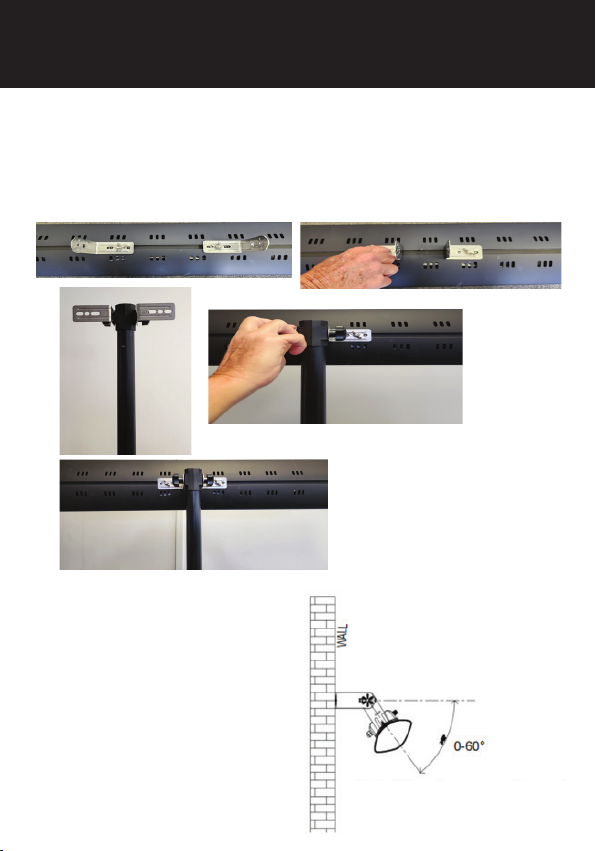

Tripod Installaton:
(1) Loosen the screws on the back of the heater head.
(2) Fix brackets to the back of the heater head.
(3) Loosen the knobs (5)
(4) Attached brackets to knob
(5) Tighten adjustment knob and screws.
Wall Mounted Installation:
Install between a 0° to 60°
angle. Anything past this
point will engage the tip
switch (E2), turning off the
heater.
Ensure heater is switched off before installation

5. CLEANING, MAINTENANCE & STORAGE
MAINTENANCE
Attention! Maintaining your heater regularly and carefully according
to our guidelines is crucial if you want to ensure its long and reliable
service life. Make sure the Reector and IR-Filament are cleaned at least
once a month. Observe upkeep and cleaning procedures whenever
required. Due to the high levels of dust in the air, it is possible that the
frequency of inspections will need to be increased. While cleaning
the device, visually inspect the Reector, Wire, and Frame for signs of
deformation.
In the event of distortion, contact customer care for assistance. When
you’re cleaning the device, give the power cord and plug a quick
visual inspection. Get in touch with your technical support team if you
notice any deformation.
CLEANING
Frequent and meticulous cleaning keeps your infrared heater running
smoothly for many years. Follow the procedures below to clean your
heater:
1. To ensure your safety, unplug the power cord before cleaning your
appliance.
2. Before proceeding, ensure that the heater is completely cool.
3. To maintain the heater clean, use a soft, wet cloth to clean the
outer shell. If necessary, use a mild detergent. After cleaning, use a soft
cloth to dry the unit. (WARNING: DO NOT ALLOW LIQUIDS TO ENTER THE
HEATER).
4. DO NOT clean the heater with alcohol, gasoline, abrasive powders,
furniture polish, or rough brushes. This may cause damage or
deterioration to the heater’s surface.
5. DO NOT put the heater in water.
6. Do not use the heater until it is entirely dry. While not in use, keep the
heater in a cool, dry place to avoid dust and grime build up. To store,
use a packaging carton.

PROBLEM CAUSE SOLUTION
E1 ERROR UNIT OVERHEATING Step 1: Wait an hour until heater has cooled down.
Step 2: The product will be in standby mode (- -);
Step 3: Readjust the heating level by the remote
control
E2 ERROR TIP OVER FUNCTION Step 1: Make sure the installation angle of the heater
is correct
2. Press PUSH BUTTON and repress this button
3. Continue to use the heater by PUSH BUTTON or
remote control
6. TROUBLESHOOTING

6. WARRANTY
Any claim under this warranty must be made within 12 months of the
date of purchase of the product. To make a claim under the warranty,
take the product (with proof of purchase) to the store where you
purchased the product or go to https://www.fanmaster.com.au/
warranty-claims-returns.
This warranty is given by Fanmaster Pty Ltd ABN: 45 353 934 457 Unit 1/6-8
Yalgar Rd, KIRRAWEE NSW 2232 P: 1300 900 345 E: warranties@fanmaster.
com.au This warranty is provided in addition to other rights and remedies
you have under law: Our goods come with guarantees which cannot
be excluded under the Australian Consumer Law. You are entitled to
replacement or refund for a major failure and to compensation for other
reasonably foreseeable loss or damage. You are also entitled to have
the goods repaired or replaced if the goods fail to be of acceptable
quality and the failure does not amount to a major failure.
Exclusions: This warranty does not cover: • Any defects caused by an
accident, misuse, abuse, improper installation or operation, lack of
reasonable care, unauthorized modication, loss of parts, tampering
or attempted repair by a person not authorized by the distributor. •
Any product that has not been installed, operated or maintained to a
satisfactory level. • Any damage caused by improper power input or
improper cable connection.

Fanmaster Pty Ltd | 1/6-8 Yalgar Road, Kirrawee NSW 2232
1300 900 345 | [email protected] | www.fanmaster.com.au
N11664
MADE IN CHINA
