Farm King Allied 80 Series Product manual

122019FK345
OPERATOR AND PARTS MANUAL
80 Series Rear Blade
8084, 8096, 80108 Models

80 Series Rear Blade
1
Manufacturer’s Statement: For technical reasons, Buhler Industries Inc. reserves the right to modify
machinery design and specifications provided herein without any preliminary notice. Information provided
herein is of descriptive nature. Performance quality may depend on soil fertility, applied agricultural
techniques, weather conditions, and other factors.
Table Of Contents
WARRANTY REGISTRATION FORM 3
INTRODUCTION 5
Owner’s Information 7
Equipment Identification 8
SAFETY 9
Safety Instructions 11
Decal Identification 14
Safety Sign-Off Form 15
ASSEMBLY 17
Component Unloading And Identification 19
Blade 20
Arm 20
Linkages 21
Gauge Wheel (Optional) 22
OPERATION 23
General Information 25
Tractor Requirements 25
Entering And LeavingThe Operator’s Position 26
ConnectingToTractor 26
Field Operation 28
Transporting 29
MAINTENANCE 31
Service Schedule Chart 33
Lubrication 35
Decal Identification 36
Storage And ReturnTo Service 37
Cleaning 37
PARTS IDENTIFICATION 39
General Parts Information 40
Blade, arm, hitch 40

80 Series Rear Blade
2
Linkages, hydraulic cylinders 42
Gauge Wheel 44
Gauge Wheel - Ratchet Jack 46
Gauge Wheel - Hydraulic Cylinder 47
SPECIFICATIONS AND SHIPPING KIT NUMBERS 49
Specifications 51
HardwareTorque Values 53
WARRANTY 55
Warranty 57

Warranty Registration Form - 80 Series Rear Blade
3
WARRANTY REGISTRATION FORM
This form must be filled out by the dealer and signed by both the dealer and the customer at the
time of delivery.
Customer Name:
Customer Address:
City: Prov / State:
Postal / Zip Code: Phone:
Dealer Name:
Dealer Address:
City: Prov / State:
Postal / Zip Code: Phone:
Equipment Model: Serial Number: Delivery Date:
I have thoroughly instructed the buyer on the above described equipment which review included the Operator and Parts
Manual content, equipment care, adjustments, safe operation and applicable warranty policy.
Date: Dealer Rep. Signature:
The above equipment and Operator And Parts Manual have been received by me and I have been thoroughly instructed as to
care, adjustments, safe operation and applicable warranty policy.
Date: Customer / Owner Signature:
Remove this Warranty Registration Form from the Operator And Parts Manual. Make two copies of
the form. Send original Warranty Registration Form to Farm King. Give one copy to the customer
and the dealer will keep one copy.
Dealer Inspection Report
Check tilt, angle, and offset linkages
Check hitch and mounting pins
Check hydraulic hoses (if available)
Fasteners tightened
Grease points lubricated
Check wheel bolt torque and tire pressure (if available)
Safety
Safety chain on hitch
Decals installed
Guards and shields installed
Lights and reflectors installed
Review operating and safety instructions

Warranty Registration Form - 80 Series Rear Blade
4

Introduction - 80 Series Rear Blade
5
INTRODUCTION
This Operator And Parts Manual was written to give the owner / operator instructions on the safe
operation, maintenance and part identification of the Farm King equipment. READ AND UNDERSTAND
THIS OPERATOR AND PARTS MANUAL BEFORE OPERATING YOUR FARM KING EQUIPMENT. If you
have any questions, see your Farm King dealer. This manual may illustrate options and accessories not
installed on your Farm King equipment.
OWNER’S INFORMATION 7
Serial Number Location 7
Manual Storage 7
EQUIPMENT IDENTIFICATION 8

Introduction - 80 Series Rear Blade
6

Introduction - 80 Series Rear Blade
7

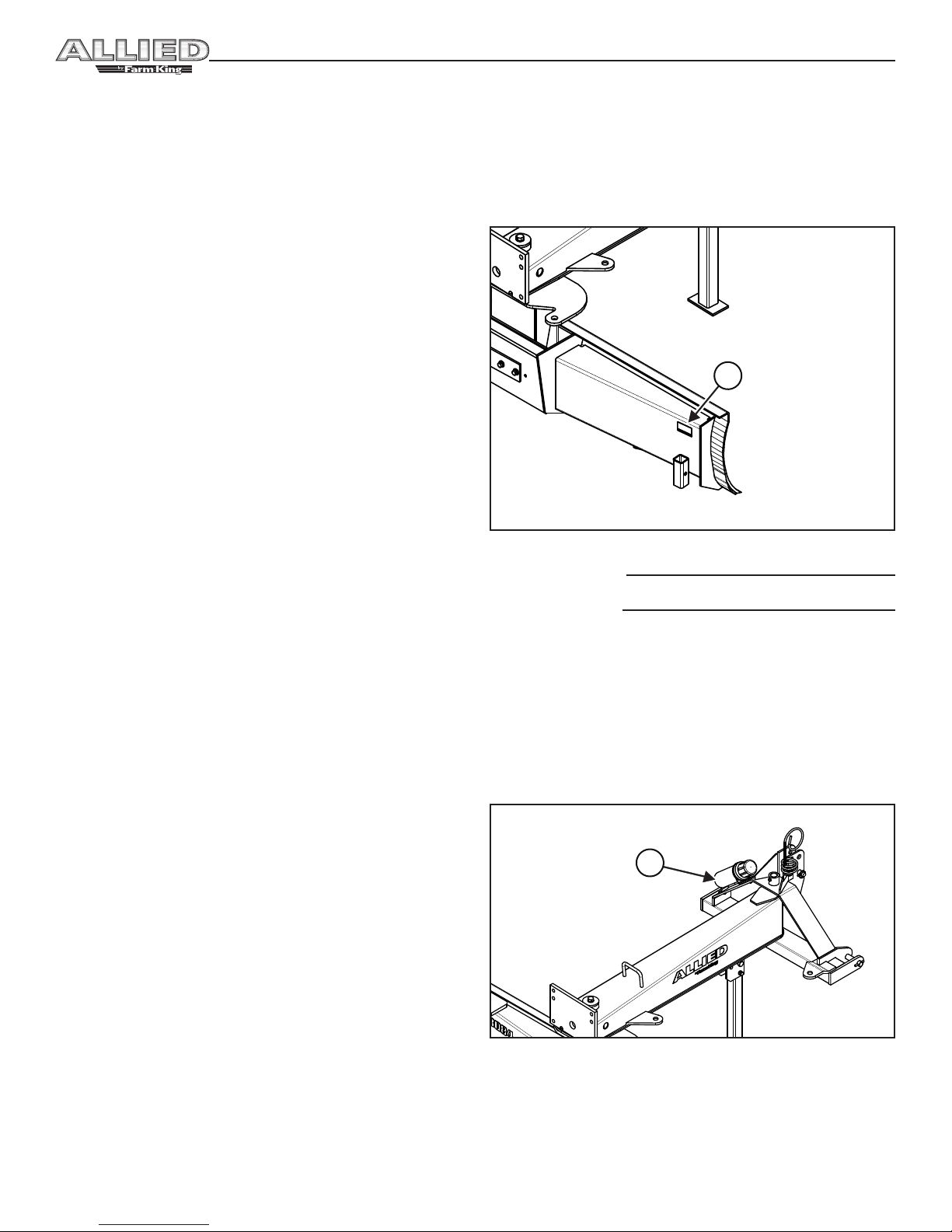

Serial Number Location
Please enter the model and serial number in the
space provided for easy reference.
Figure 1
Model Number:
Serial Number:
The serial number plate (Item 1) [Figure 1] is
located on the RH side of the blade.
Always use your serial number when requesting
information or when ordering parts.
Manual Storage
Figure 2
The Operator And Parts Manual and other
documents can be stored in the canister (Item 1)
[Figure 2] located on the hitch weldment.
1
1
OWNER’S INFORMATION
Thank you for your decision to purchase a
Farm King Rear Blade. To ensure maximum
performance of your equipment, it is mandatory
that you thoroughly study the Operator And
Parts Manual and follow the recommendations.
Proper operation and maintenance are essential
to maximize equipment life and prevent personal
injury.
Operate and maintain this equipment in a safe
manner and in accordance with all applicable
local, state, and federal codes, regulations
and / or laws. Follow all on-product labeling
and instructions. Make sure that all personnel
have read this Operator And Parts Manual and
thoroughly understand safe and correct operating,
installation and maintenance procedures.
Farm King is continually working to improve its
products. Farm King reserves the right to make
any improvements or changes as deemed practical
and possible without incurring any responsibility
or obligation to make any changes or additions to
equipment sold previously.
Although great care has been taken to ensure the
accuracy of this publication, Farm King makes
no warranty or guarantee of any kind, written or
expressed, implied or otherwise with regard to the
information contained within this manual. Farm
King assumes no responsibility for any errors
that may appear in this manual and shall not be
liable under any circumstances for incidental,
consequential or punitive damages in connection
with, or arising from the use of this manual.
Keep this manual available for frequent reference.
All new operators or owners must review the
manual before using the equipment and annually
thereafter. Contact your Farm King Dealer if you
need assistance, information, or additional copies
of the manual.
Visit our website at www.farm-king.com for a
complete list of dealers in your area.
The directions left, right, front and rear, as
mentioned throughout this manual, are viewed
as the operator sitting in the tractor seat while
towing the implement.

Introduction - 80 Series Rear Blade
8
EQUIPMENT IDENTIFICATION
HYDRAULIC
CONNECTIONS
THREE-POINT
MOUNTS
OFFSET
ADJUST LINK
ANGLE ADJUST
LINK
GAUGE
WHEELS HEIGHT
ADJUST LINK
TILT ADJUST
LINK
KING
PIN
CUTTING
EDGE
BLADE

Safety - 80 Series Rear Blade
9
SAFETY
SAFETY INSTRUCTIONS 11
Safety Rules 12
Transport Safety 12
Machine Requirements And Capabilities 13

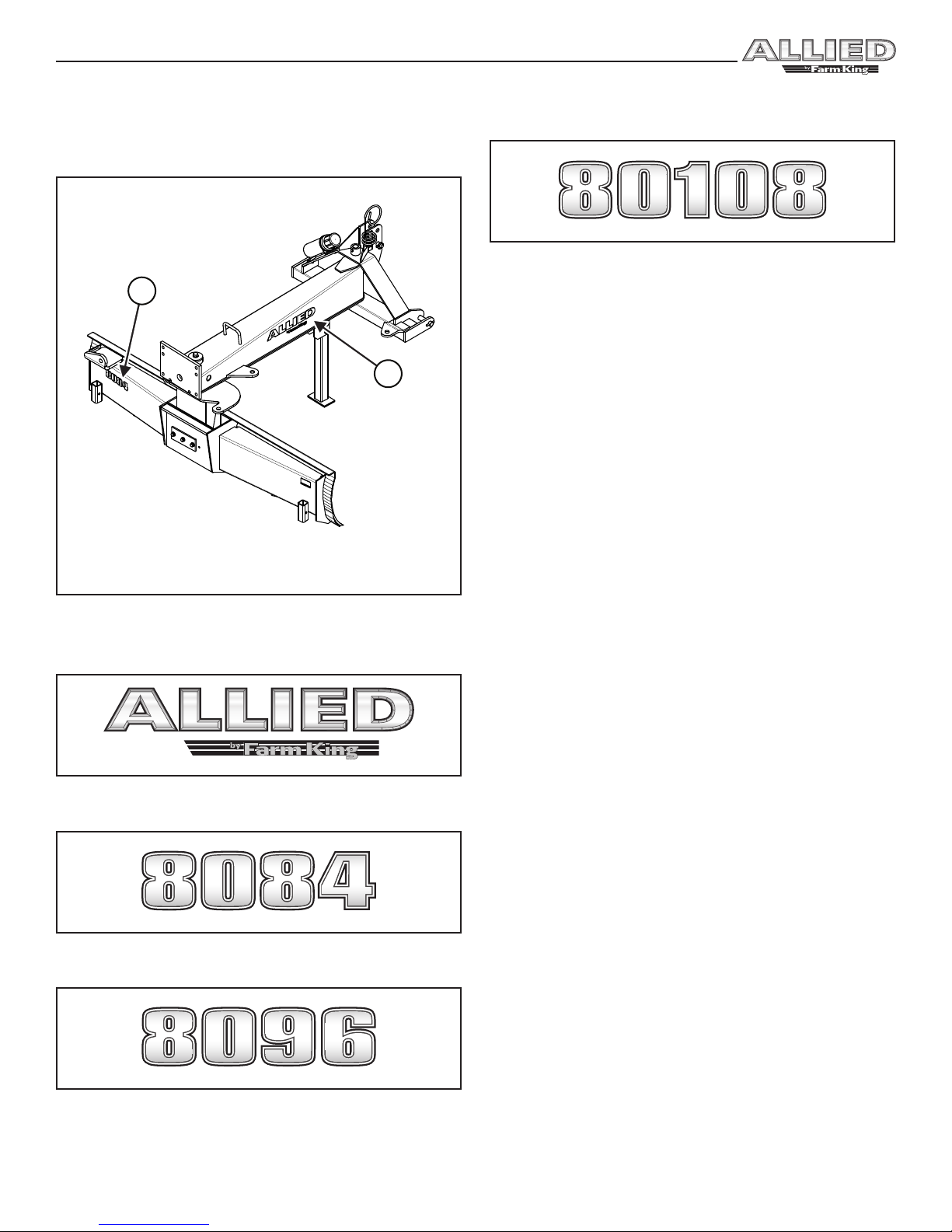

DECAL IDENTIFICATION 14
SAFETY SIGN-OFF FORM 15

Safety - 80 Series Rear Blade
10

Safety - 80 Series Rear Blade
11
SAFETY INSTRUCTIONS
Safety Alert Symbol
This symbol with a warning statement means:
“Warning, be alert! Your safety is involved!”
Carefully read the message that follows.
CAUTION
The signal word CAUTION on the machine and
in the manuals indicates a potentially hazardous
situation which, if not avoided, may result in
minor or moderate injury. It may also be used to
alert against unsafe practices.
DANGER
The signal word DANGER on the machine and
in the manuals indicates a hazardous situation
which, if not avoided, will result in death or
serious injury.
WARNING
The signal word WARNING on the machine and
in the manuals indicates a potentially hazardous
situation which, if not avoided, could result in
death or serious injury.
IMPORTANT
This notice identifies procedures which must be
followed to avoid damage to the machine.
WARNING
Operators must have instructions before
operating the machine. Untrained operators can
cause injury or death.
For an operator to be qualified, he or she must
not use drugs or alcohol which impair alertness or
coordination while working. An operator who is
taking prescription drugs must get medical advice
to determine if he or she can safely operate a
machine and the equipment.
A Qualified Operator Must Do The Following:
Understand the written instructions, rules and
regulations:
• The written instructions from Farm King include the
Warranty Registration, Dealer Inspection Report,
Operator And Parts Manual and decals.
• Check the rules and regulations at your location.
The rules may include an employer’s work safety
requirements. Regulations may apply to local driving
requirements or use of a Slow Moving Vehicle (SMV)
emblem. Regulations may identify a hazard such as
a utility line.
Have training with actual operation:
• Operator training must consist of a demonstration
and verbal instruction. This training is given by the
machine owner prior to operation.
• The new operator must start in an area without
bystanders and use all the controls until he or she
can operate the machine safely under all conditions
of the work area. Always fasten seat belt before
operating.
Know the work conditions:
• Clear working area of all bystanders, especially small
children and all obstacles that might be hooked or
snagged, causing injury or damage.
• Know the location of any overhead or underground
power lines. Call local utilities and have all
underground power lines marked prior to operation.
• Wear tight fitting clothing. Always wear safety
glasses when doing maintenance or service.

Safety - 80 Series Rear Blade
12
Safety Rules
• Read and follow instructions in this manual and the
tractor’s operators manual before operating.
• Under no circumstances should young children be
allowed to work with this equipment.
• This equipment is dangerous to children and persons
unfamiliar with its operation.
• If the elderly are assisting with work, their physical
limitations need to be recognized and accommodated.
• Check for overhead and / or underground lines before
operating equipment (if applicable).
• In addition to the design and configuration of
equipment, hazard control and accident prevention
are dependent upon the awareness, concern,
prudence and proper training of personnel involved
in the operation, transport, maintenance and storage
of equipment.
• Check that the equipment is securely fastened to the
tractor.
• Make sure all the machine controls are in the
NEUTRAL position before starting the machine.
• Operate the equipment only from the operator’s
position.
• When learning to operate the equipment, do it at a
slow rate in an area clear of bystanders, especially
small children.
• DO NOT permit personnel to be in the work area
when operating the equipment.
• The equipment must be used ONLY on approved
tractors.
• DO NOT modify the equipment in any way.
Unauthorized modification may impair the function
and / or safety and could affect the life of the
equipment.
• DO NOT make any adjustments or repairs on the
equipment while the machine is running.
• Keep shields and guards in place. Replace if damaged.
• When operating on hillsides, use extreme care. The
tractor may tip over if it strikes a hole, ditch or other
irregularity.
Transport Safety
• Do not exceed 20 mph (32 kph). Reduce speed on
rough roads and surfaces.
• Comply with state and local laws governing highway
safety and movement of machinery on public roads.
• Use the SMV emblem and warning light. Local
laws should be checked for all highway lighting and
marking requirements.
• Check all reflectors for visibility and cleanliness
before transport.
• Always attach a safety chain to the tractor drawbar
and the equipment hitch before transport.
• Always yield to oncoming traffic in all situations and
move to the side of the road so any following traffic
may pass.
• Always enter curves or drive up or down hills at a
low speed and at a gradual steering angle.
• Never allow riders on either tractor or equipment.
• Keep tractor in a lower gear at all times when
traveling down steep grades.
• Maintain proper brake settings at all times (if
equipped).

Safety - 80 Series Rear Blade
13
Machine Requirements And Capabilities
• Stop the machine and engage the parking brake.
Install blocks in front of and behind the rear tires of
the machine. Install blocks underneath and support
the equipment securely before working under raised
equipment.
• Keep bystanders clear of moving parts and the work
area. Keep children away.
• Use increased caution on slopes and near banks and
ditches to prevent overturn.
• Make certain that the Slow Moving Vehicle (SMV)
emblem is installed so that it is visible and legible.
When transporting the equipment, use the flashing
warning lights (if equipped) and follow all local
regulations.
• Operate this equipment with a machine equipped
with an approved Roll-Over Protective Structure
(ROPS). Always wear seat belt when the ROPS is up.
Serious injury or death could result from falling off
the machine.
• Before leaving the operator’s position:
1. Always park on a flat level surface.
2. Place all controls in neutral.
3. Engage the parking brake.
4. Stop engine.
5. Wait for all moving parts to stop.
• Carry passengers only in designated seating areas.
Never allow riders on the machine or equipment.
Falling off can result in serious injury or death.
• Start the equipment only when properly seated in
the operator’s seat.
• Operate the machine and equipment from the
operator’s position only.
• The parking brake must be engaged before leaving
the operator’s seat. Roll away can occur because the
transmission may not prevent machine movement.

Safety - 80 Series Rear Blade
14
DECAL IDENTIFICATION
Figure 3
Identification [Figure 3]:
ALLIED 16.5” x 3.8” PN: 815035 (Item 1)
7 Ft. Model 8084 PN: 815031 (Item 2)
8 Ft. Model 8096 PN: 815032 (Item 2)
1
2
9 Ft. Model 80108 PN: 815033 (Item 2)

Safety - 80 Series Rear Blade
15
SAFETY SIGN-OFF FORM
WARNING
Instructions are necessary before operating or servicing equipment. Read and understand the Operator
And Parts Manual and safety signs (decals) on equipment. Follow warnings and instructions in the
manuals when making repairs, adjustments or servicing. Check for correct function after adjustments,
repairs or service. Untrained operators and failure to follow instructions can cause injury or death.
Farm King follows the general Safety Standards specified by the American Society of Agricultural and
Biological Engineers (ASABE) and the Occupational Safety and Health Administration (OSHA). Anyone
who will be operating and / or maintaining the equipment must read and clearly understand ALL Safety,
Operating and Maintenance information presented in this manual.
Annually review this information before the season start-up and make these periodic reviews of SAFETY
and OPERATION a standard practice for all of your equipment. An untrained operator is unqualified to
operate this machine.
The following sign-off sheet is provided for your record and to show that all personnel who will be
working with the equipment have read and understand the information in this Operator And Parts
Manual and have been instructed in the operation of the equipment.
SIGN-OFF SHEET
Date Employee’s Signature Employer’s Signature

Safety - 80 Series Rear Blade
16

Assembly - 80 Series Rear Blade
17
ASSEMBLY
COMPONENT UNLOADING AND IDENTIFICATION 19
BLADE 20
ARM 20
LINKAGES 21
GAUGE WHEEL (OPTIONAL) 22

Assembly - 80 Series Rear Blade
18
