Farmet Triolent TX 800PS User manual

Edition No.3 , effective from 1st September 2012
O
OP PE ER RA AT TI IN NG G M MA AN NU UA AL L
T
TR RI IO OL LE EN NT T
T
TX X 6 60 00 0- -8 80 00 0 P PS S
Farmet a.s.
Jiřinková 276
552 03 Česká Skalice
Czech Republic
Phone:[phone]
00420 491 450 122
Fax: [phone]
E-mail:[email protected]
[email protected]
http: www.farmet.cz

Manual TRIOLENT TX600-800PS
- 2 -
Dear customer,
Semi-carried cultivators TRIOLENT are quality products of Farmet a.s. Ceska Skalice.
You can fully utilise the advantages of your machine after thoroughly studying the operating manual.
The serial number of the machine is punched on the production label and written in the operating manual
(see Table 1). This machine serial number must be stated whenever ordering spare parts for possible repairs. The
production label is located on the middle frame near the tow bar.
Use only spare parts for these machines according to the Spare parts catalogue officially issued by the
manufacturer, Farmet a.s. Ceska Skalice.
Possibilities of Use of Your Cultivator
The TRIOLENT cultivator is designed for cultivation of all types of soils up to a processing depth of
300mm.

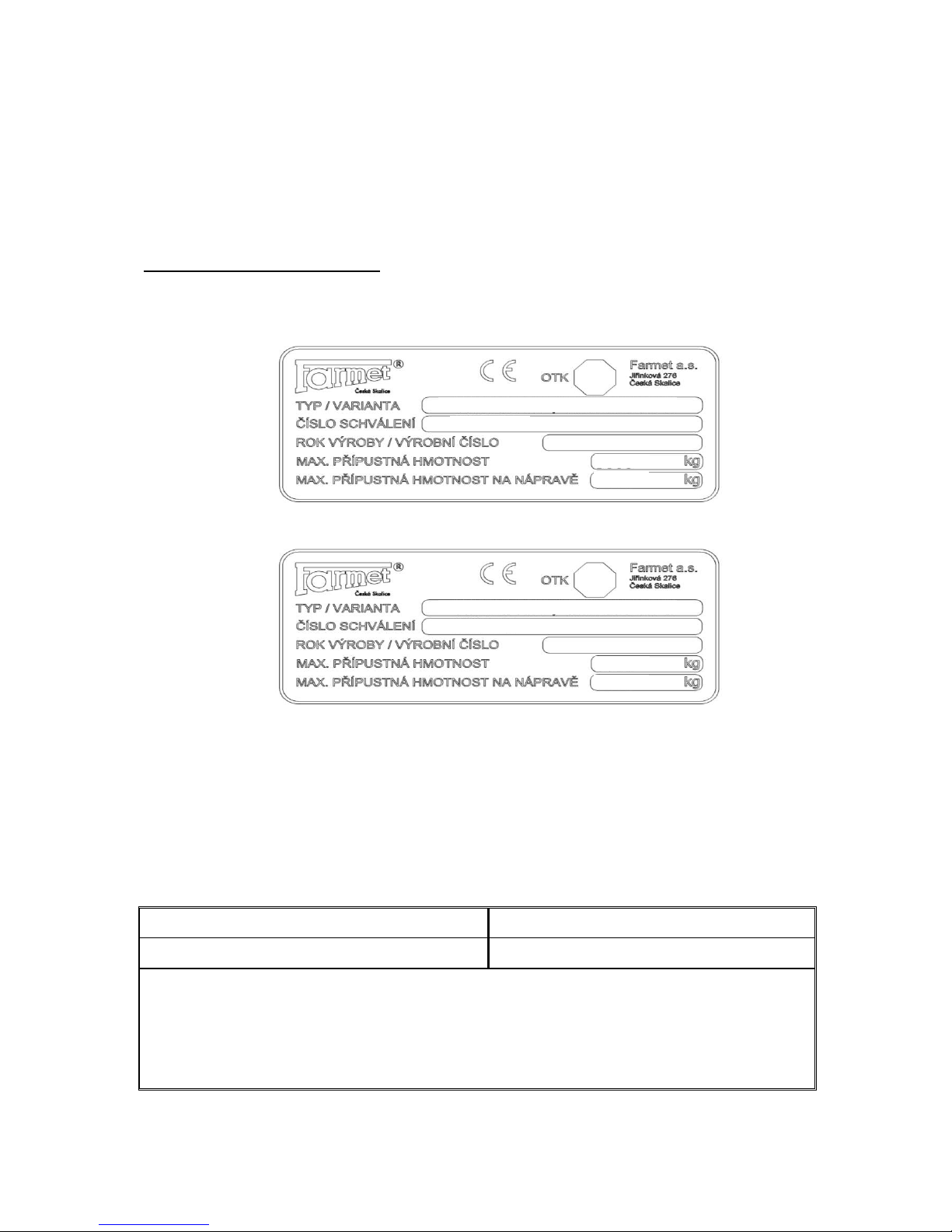

Production label of the machine TRIOLENT TX600PS
Production label of the machine TRIOLENT TX800PS
Table 1 - Your Machine Characteristics
MACHINE TYPE
MACHINE SERIAL NUMBER
SPECIAL DESIGN OR ACCESSORIES
.......................................................................................................................................................
.......................................................................................................................................................
.......................................................................................................................................................
......................................................................................................……………………………….
7620
4920
TRIOLENT / TX 800 PS
6780
4380
TRIOLENT TX 600 PS

Manual TRIOLENT TX600-800PS
- 3 -
TABLE OF CONTENS
MACHINE LIMIT PARAMETERS..........................................................................................4
Technical parameters..............................................................................................................4
Safety statement .....................................................................................................................4
A. GENERAL INSTRUCTIONS FOR USE...........................................................................5
Protective tools.......................................................................................................................5
B. MACHINE TRANSPORT USING TRANSPORT MEANS.............................................6
C. MACHINE HANDLING USING LIFTING EQUIPMENT..............................................6
D. WORK SAFETY LABELS ................................................................................................6
1. DESCRIPTION...................................................................................................................9
Working parts of the machine................................................................................................9
Hydraulics ..............................................................................................................................9
2. MACHINE ASSEMBLY AT THE CUSTOMER............................................................10
3. COMMISSIONING..........................................................................................................10
3.1 Agregation to a tractor...............................................................................................11
3.2 Hydraulics CONNECTION.......................................................................................11
3.3 Folding and unfolding of the machine.......................................................................12
4. MACHINE TRANSPORT ON ROADS ..........................................................................15
5. MACHINE ADJUSTMENT.............................................................................................16
5.1 Machine working depth adjustment ..........................................................................16
5.2 Machine adjustment using tractor´s tps arms ............................................................17

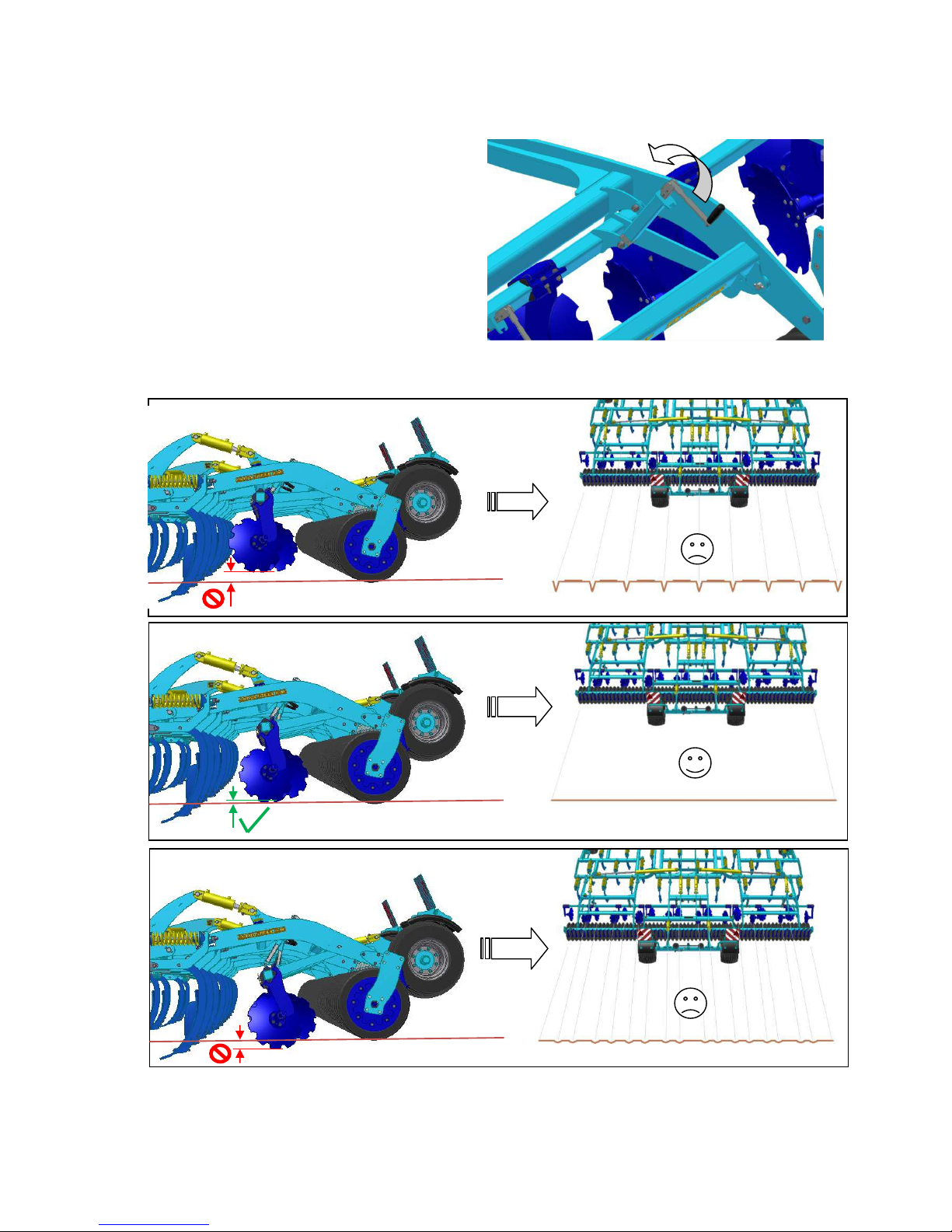

5.3 Setting the leveling discs...........................................................................................18
6. MACHINE MAINTENANCE AND REPAIRS...............................................................19
7. MACHINE STORAGE.....................................................................................................19
8. MACHINE LUBRICATION SCHEDULE......................................................................19
9. ENVIRONMENTAL PROTECTION ..............................................................................20
10. MACHINE DISPOSAL AFTER SERVICE LIFE EXPIRY............................................20
11. SERVICING AND WARRANTY CONDITIONS..........................................................21
L
LE ET TT TE ER R O OF F G GU UA AR RA AN NT TE E......................................................................................................22
CE Certificate of Conformity ..........................................................................................23

Manual TRIOLENT TX600-800PS
- 4 -
MACHINE LIMIT PARAMETERS
(x) The machine is designed for soil cultivation up to a depth of 30cm when agricultural soil cultivation.
Another type of use exceeding the determined purpose is considered as disallowed.
(x) Machine operation is performed by the tractor operator.
(x) Machine operator must not use the machine in a different way, especially:
(x) Transport of persons on the machine structure,
(x) Transport of burdens on the machine structure,
(x) Aggregation of the machine with another towing equipment than stated in Chapter "3.1./p. 11“.
* Recommended towing means, the real towing force may significantly vary according to the processing depth,
soil conditions, land slope, working body wear and adjustment.
SAFETY STATEMENT
TECHNICAL PARAMETERS
Table 2 - Cultivator Technical Parameters
PARAMETERS
TX600PS
TX800PS
Working width (mm)
6 200
7 900
Transport width (mm)
3 000
3 000
Transport height (mm)
3 255
4 000
Machine total length (mm)
7 493
7 493
Working depth (mm)
60 –300
60 –300
Number of shares
19
25
Working performance (ha/h)
5,3 –7,5
7 - 10
Towing means (kW)
245-370
295-440*
Working speed (kph)
8 –12
Maximum transport speed (kph)
25
Maximum slope grade (°)
6
Tyre dimensions - transport
Tyre pressure (kPa)
19.0/45-17 14PR
400 kPa
Machine weight (kg)
6 780
7 620
This warning sign warns about an immediate dangerous situation
ending with death or severe injury.
This warning sign warns about a dangerous situation ending with death
or severe injury.
This warning sign warns about a situation that may end with a smaller
or slight injury. It also warns about dangerous actions related to the
activity that could lead to an injury

Manual TRIOLENT TX600-800PS
- 5 -
A. GENERAL INSTRUCTIONS FOR USE
A.1 (x) The machine is made in accordance with the latest equipment state and approved safety regulations.
However, dangers of user or third person injury or machine damage or creation of other material damage
may arise during use.
A.2 (xx) Use the machine only in a technically sound condition, in accordance with its purpose, aware of
possible dangers, and while adhering to the safety instructions of this operating manual!
Immediately remove especially the failures that may negatively affect safety!
A.3 (7) Machine operation may be performed by a person authorised by the operator under these conditions:
(8) It must own a valid driver's licence of the corresponding category,
(9) It must be demonstrably familiarised with the safety regulations for work with the machine and
must practically master the machine operation,
(10) The machine may not be operated by juveniles,
(11) It must know the meaning of the safety signs located on the machine. Their respecting is
important for safe and reliable machine operation.
A.4 (12) Maintenance and servicing repairs on the machine may only be performed by a person:
(13) Authorised by the operator,
(14) Educated in the machinery field with knowledge of repairs of similar machines,
(15) Demonstrably familiarised with safety regulations for work with the machine,
(16) During a repair of a machine connected to a tractor, it must own a driver's licence of the
corresponding category.
A.5 (17) Machine operator must secure the safety of other persons when working with the machine or
transporting the machine.
A.6 (18) During machine work in the field or during transport, operator's presence on the machine structure is
not required the operator must control the machine from the tractor's cabin.
A.7 (19) The operator may enter the machine structure only with the machine at rest and blocked against
movement, namely only for these reasons:
(20) Adjustment of the machine working parts,
(21) Repair and maintenance of the machine,
(29) Release and securing of spherical valves of the axle,
(27) Securing of spherical valves of the axle before folding the side frames,
(28) Adjustment of the working parts of the machine after unfolding the side frames.
A.8 (xxx) When stepping on the machine, do not step on roller tyres or other rotary parts. Those may turn and
you can cause very serious injuries by the subsequent fall.
A.9 (22) Any changes or modifications of machine may be performed only with written consent of the
manufacturer. For possible damage arisen due to ignoring this instruction, the producer bears no
responsibility. The machine must be maintained equipped with prescribed accessories and equipment
including safety marking. All warning and safety signs must be legible and in their places. In case of
damage or loss, these signs must be immediately renewed.
A.10 (23) The operator must have the Operating Manual with the work safety requirements available at any time
when working with the machine.
A.11 (24) The operator must not consume alcohol, medicines, narcotic and hallucinogenic substances that
decrease his attention and coordination capabilities while using the machine. If the operator must use
medicines prescribed by a physician or uses freely sold medicines, he must be informed by a physician,
whether he is capable of responsible and safe operation of the machine under these circumstances.
PROTECTIVE TOOLS
For the operation and maintenance, you need:
Tight clothes
Protective gloves and goggles for protection against dust and sharp parts of
the machine

Manual TRIOLENT TX600-800PS
- 6 -
B. MACHINE TRANSPORT USING TRANSPORT MEANS
B.1 (1) The transport means designed for machine transport must have the load capacity minimally identical
with the weight of the transported machine. The total weight of the machine is stated on the production
label.
B.2 (2) The dimensions of the transported machine including the transport means must comply with the valid
regulations for road traffic (decrees, laws).
B.3 (3) The transported machine must be always fastened to the transport means so that its spontaneous
loosening could not happen.
B.4 (4) The carrier is responsible for damage caused by the loosening of incorrectly or insufficiently fastened
machine to the transport means.
C. MACHINE HANDLING USING LIFTING EQUIPMENT
C.1 (1) The lifting equipment and tying means designed for handling of the machine must have their load
capacity at least identical with the weight of the handled machine.
C.2 (2) Machine fastening for handling may only be performed in places designed for that and marked with
self-adhesive labels showing the "chain" symbol.
C.3 (3) After fastening (suspending) at designated points, it is forbidden to move in the space of possible reach
of the handled machine.
D. WORK SAFETY LABELS
Warning safety labels serve for operator protection.
General:
A) Strictly observe the warning safety labels.
B) All safety instructions also apply to other users.
C) Upon damage or destruction of the aforementioned "SAFETY LABEL" located on the machine, THE
OPERATOR IS OBLIGED TO REPLACE IT WITH A NEW ONE!!!
The position, appearance, and precise meaning of work safety labels on the machine is determined in
the following tables (Tab. 3/p. 6-7) and in the figure (Fig. 1/p. 8).

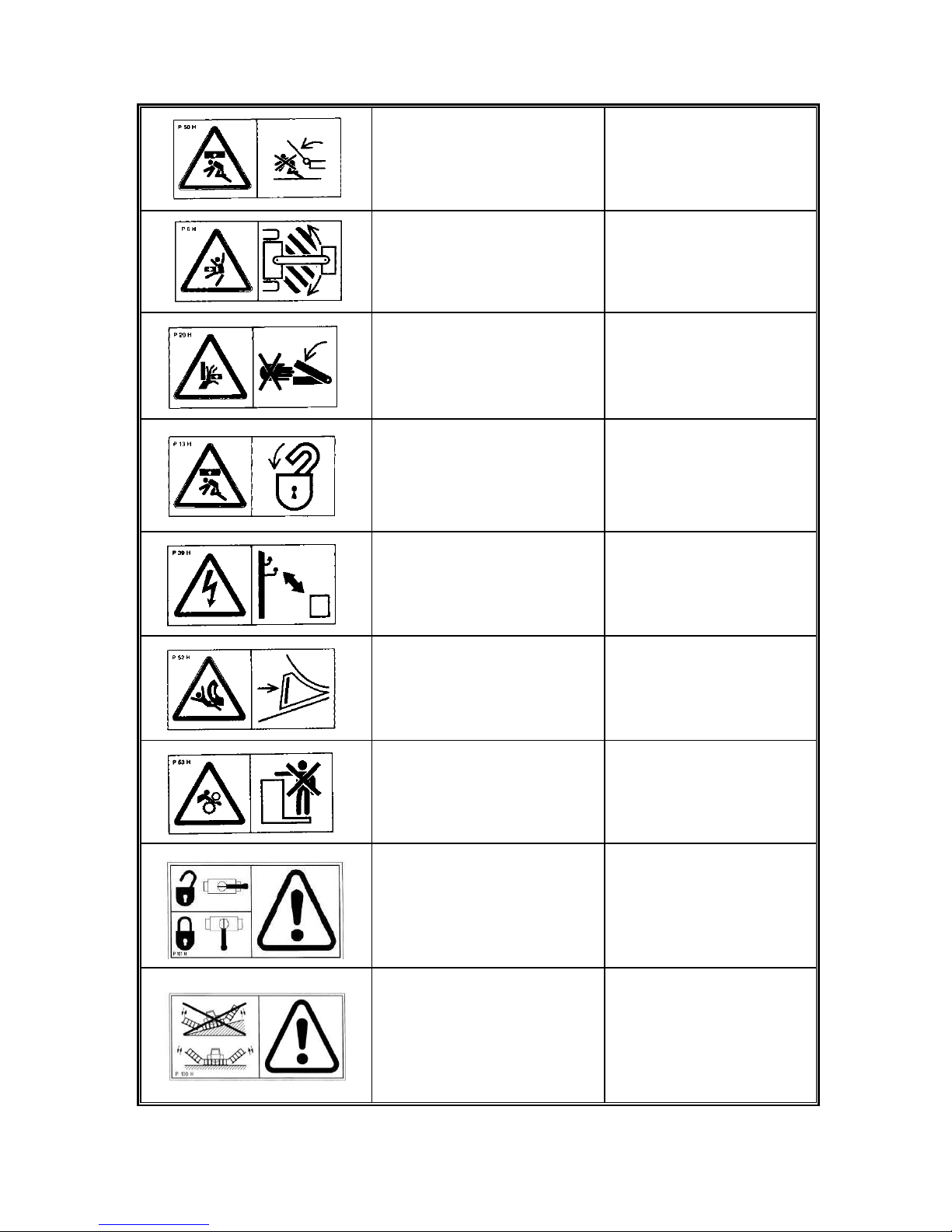

Table 3 –Self-adhesive warning safety labels located on the cultivator
WARNING SAFETY LABEL
LABEL TEXT
MACHINE POSITION
Before handling the machine,
carefully read the operating manual.
Observe the instructions and safety
regulations for machine operation
during use.
P 1 H
Travelling and transport on the
machine structure is strictly
forbidden.
P 37 H
When connecting or disconnecting,
do not step between the tractor and
the machine, also do not enter this
space, if the tractor and the machine
are not at rest and the engine is not
turned off.
P 2 H

Manual TRIOLENT TX600-800PS
- 7 -
When folding and unfolding the side
frames, stay outside their reach.
P 50 H
Stay outside the reach of the tractor -
agricultural machine set, if the tractor
engine is in operation.
P 6 H
When folding the side frames, do not
reach into the space of the machine
folding joints.
There is a danger of cutting when
setting the depth of the machine.
P 20 H
Before commencing the machine
transport, secure the axle with
spherical valves against unexpected
drop.
P 13 H
When working and transporting the
machine, maintain safe distance from
the electric appliances.
P 39 H
Secure the machine against unwanted
movement by positioning on its
working bodies (shares).
P 52 H
Do not approach the rotary parts of
the machine, if these are not at rest,
i.e. they do not turn.
P 53 H
The shown positions of the lever and
the function of the hydraulic
spherical valve located on the piston
rod.
P 101 H
It is strictly folding and unfolding the
side frames on slopes or inclined
surfaces.
P 100 H

Manual TRIOLENT TX600-800PS
- 8 -

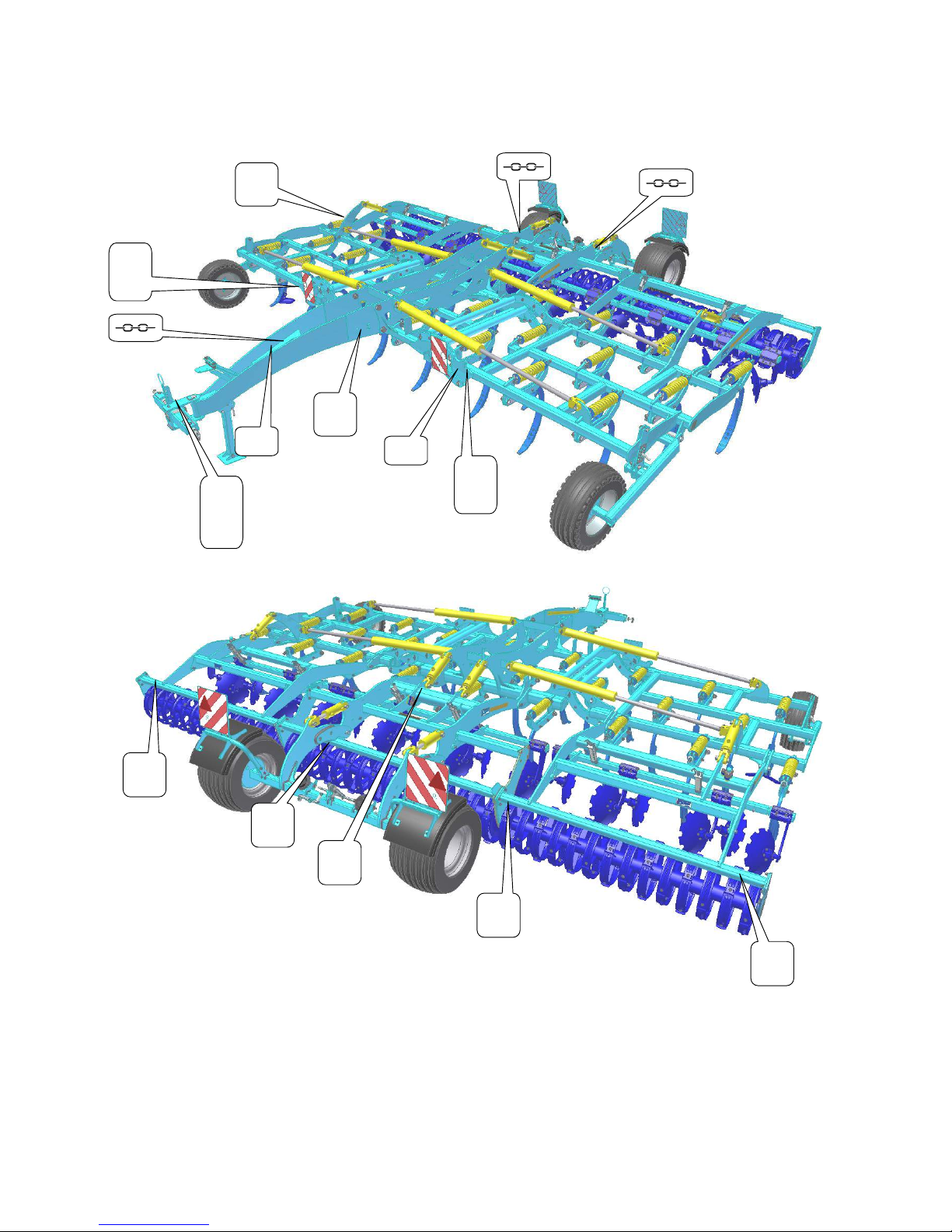

Fig. 1 - Location of safety labels on the TRIOLENT machine
P1H
P2H
P37H
P52H
P13H
P101H
P39H
P50H
P53H
P100H
P39H
P50H
P53H
P20H
P1H
P20H
P37H
P53H
P37H
P53H
P37H
P53H
P37H
P53H
P1H
P20H

Manual TRIOLENT TX600-800PS
- 9 -
1.1.9
1. DESCRIPTION
The TRIOLENT TX600-800 machine is constructed as semi-carried. The basic version consists of
a tow bar with a TPS suspension bar with 36mm pivots for the TPS 3 category (resp. draught eye 50mm), a
central frame with the transportation axle and two side frames. There are three rows of shares with automatic
spring protection located on the central frame and on the side frames. There is a row of rectifying discs that level
out the soil. There are rollers in the rear that compact the loosened soil.

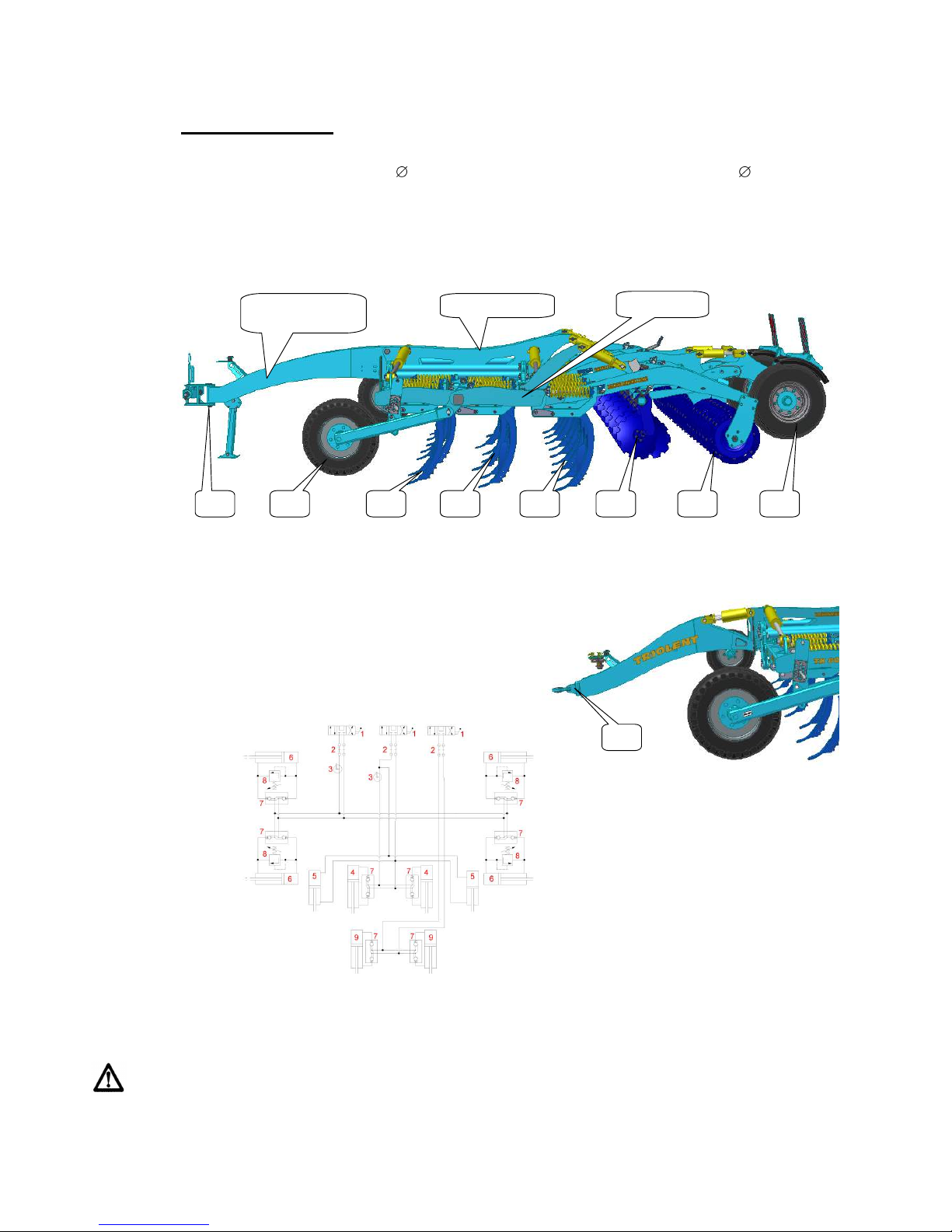

WORKING PARTS OF THE MACHINE
Fig. 2 –Work Parts of the Machine
1.1.1 Tow bar with draught bar
1.1.2 Copy wheel
1.1.3 Front shares row
1.1.4 Second shares row
1.1.5 Third shares row
1.1.6 Levelling discs
1.1.7 Roller for soil compaction
1.1.8 Transport axle
1.1.9 Tow bar with draught eye
HYDRAULICS
Hydraulic diagram of the machine TRIOLENT:
1. Control distributor (tractor)
2. Hydraulic coupling
3. Closing cock
4. Hydraulic roller (lifting the central roller with the axle)
5. Hydraulic cylinder (side Rubber-tyred roller)
6. Hydraulic cylinder (folding side frames)
7. Hydraulic closing valve
8. Safety valve
9. Hydraulic cylinder (control of axle)
Parts of the hydraulic system of the machine, which are under pressure, are forbidden to disassemble.
Hydraulic oil that penetrates the skin under high pressure causes severe injuries. In case of injury, seek a
physician immediately.
1.1.6
Tow bar with a
suspension bar
Central frame
Side frames
1.1.1
1.1.5
1.1.4
1.1.7
1.1.3
1.1.8
1.1.2

Manual TRIOLENT TX600-800PS
- 10 -
2. MACHINE ASSEMBLY AT THE CUSTOMER
The operator must perform the assembly according to the instructions of the producer, best in cooperation
with the expert servicing technician determined by the producer.
The operator must secure a functional test of all assembled parts after the completion of the machine
assembly.
The operator must secure that the handling of the machine using lifting equipment during its assembly is
in accordance with chapter "C".
3. COMMISSIONING
Before taking over the machine, test and check, whether damage occurred during transport and whether
all parts contained in the bill of delivery were supplied.
Before commissioning the machine, carefully read this operating manual, especially Chapters A-D p. 4-8.
Before the first use of the machine, familiarise yourselves with its controls and overall function.
During work with the machine, observe not only the instructions of this operating manual but also
generally valid regulations of work safety, health protection, fire and transport safety, and environmental
protection.
The operator must check the machine before every use (commissioning) from the standpoint of
completeness, work safety, work hygiene, fire safety, transport safety, and environmental protection.
A machine showing signs of damage must not be commissioned.
Aggregation of the machine with the tractor is to be performed on a flat and hardened surface.
When working on slopes, observe the lowest slope grade of the set TRACTOR - MACHINE.
Before starting the tractor motor, check whether no person or animal is in the working space of the set and
push the warning sound signal.
The operator is responsible for the safety and all damage caused by the operation of the tractor and the
connected machine.
The operator is obliged to adhere to the technical and safety regulations of the machine determined by the
producer when working.
The operator is obliged to retract the working bodies of the machine from the ground when turning at the
headland.
The operator is obliged to observe the prescribed working depths and speeds stated in the manual in Tabl.
2/p. 4 when.
The operator is obliged to lower the machine to the ground and secure the set against movement before
leaving the tractor cabin.
DECREASE OF SOIL PRESSURE TO A VALUE LOWER THAN 200kPa
- To decrease the specific pressure on soil (below 200kPa) at the turns on the headland, raise the machine on
the pole by using the hydraulic tractor shoulders and rear wheels. Turn around when the machine is unfolded
and resting on all rear wheels.

Manual TRIOLENT TX600-800PS
- 11 -
3.1 AGREGATION TO A TRACTOR
The machine can be connected only to a tractor, whose curb weight is identical or higher than the overall
weight of the connected machine.
The machine operator must observe all generally valid regulations of work safety, health protection, fire
safety, and environmental protection.
The operator may connect the machine exclusively to a tractor that is equipped with a rear three-point
suspension and a functional undamaged hydraulic system.
The table of requirements for the towing means for work with the machine:
(5)Requirement for the tractor engine power for cultivator
TRIOLENT
TX600
245-370 kW
(5)Requirement for the tractor engine power for cultivator
TRIOLENT
TX800
295-440 kW
(6)Requirement for the tractor's TPS
(7)Spacing of the lower suspension
joints (measured at the joint axes)
1010±1,5 mm,
(possible to set also 910±1,5
mm)
(8)of the hole of the lower
suspension joints for the machine
suspension pivots
37,5 mm
(9)Requirement for the tractor's hydraulic
system
(10)Side frame folding circuit
(14)Circuit pressure 200 bar,
2 pcs of quick-coupler sockets
ISO 12,5
(11)Circuit for lifting the machine on
the rollers
(15)Circuit pressure 200 bar,
2 pcs of quick-coupler sockets
ISO 12,5
Axle lifting circuit
Circuit pressure 200 bar,
2 pcs of quick-coupler sockets
ISO 12,5
(12)Requirement for the pneumatic tractor
system
(13)Machine axle braking circuit
(16)Circuit pressure min. 6
bar –max. 8,5 bar, 2 pc
coupling head of single-hose
brakes
Connect the machine using the TPS suspension bar to the lower arms of the rear TPS of the tractor, secure
the TPS arms using pins against disconnecting.
When connecting, no persons may stay in the space between the tractor and the
machine.
3.2 HYDRAULICS CONNECTION
Connect the hydraulics only when the hydraulic circuits of the machine and the tractor (aggregate) are in a
pressure-less condition.
The hydraulic system is under high pressure. Regularly check for leaks and immediately remove obvious
damage of all lines, hoses, and pipe unions.
When seeking and removing leaks, use only the suitable tools.
For connecting the hydraulic system of the machine to the tractor, use the plug (on the machine) and the
socket (on the tractor) of the quick-couplers of the same type. Perform the connection of the quick-
couplers of the machine to the hydraulic circuits of the tractor so that the folding of the side frames (RED
CIRCUIT) is on one control circuit, axle lifting (YELLOW CIRCUIT) on the other control circuit and
the separate axle control (GREEN CIRCUIT) on the third control circuit.

Manual TRIOLENT TX600-800PS
- 12 -
Red Circuit
1 tape –for folding side frames into the transport position
2 tapes –for unfolding side frames into the working position
Yellow Circuit
1 tape –lifting the machine
2 tapes –recessing the machine
Green Circuit
1 tape –lowering the machine from the axle
2 tapes –lifting the machine on the axle
In order to prevent accidental or foreign person (children, passengers) caused movement of the
hydraulics, the control switchboards on the tractor must be secured or blocked in the transport
position.
3.3 FOLDING AND UNFOLDING OF THE MACHINE
The hydraulics for the folding and unfolding must be connected to the double-action control unit.
The operator must ensure that during folding and unfolding of the side frames, no person or animal is
within their reach (i.e. at the place of their impact) or vicinity
Perform folding and unfolding on flat and solid surfaces or laterally to the slope with the fully open
control unit.
Only perform folding or unfolding with a machine that is lifted on the axle and the side rubber-tyres of the
rollers are recessed, i.e. their piston-rods are retracted.
Remove stuck soil from folding points, soil may impair function and cause damage to the mechanics.
During folding or unfolding, check the side frames and have them continuously fold into the end position
to the stoppers.
CAUTION!!! The machine always has to be lifted on the axle prior to the start of
folding and when folded!

Manual TRIOLENT TX600-800PS
- 13 -
Procedure for folding the machine
Position of
valves
Pressure in
the hose
1
green
2
red
3
yellow
4

Manual TRIOLENT TX600-800PS
- 14 -
Procedure for unfolding the machine
1
2
red
3
yellow
4
green

Manual TRIOLENT TX600-800PS
- 15 -
4. MACHINE TRANSPORT ON ROADS
Transport Position of TRIOLENT TX600-800
oConnect the machine by suspending on the tractor using the two-point suspension equipment (TPS 3).
oConnect the machine brakes to the tractor with the use of the brake head: release the brakes before raising
the machine on the axle.
oLift the machine on the axle, set the spherical valve of the axle into the closed position.
oFold the side frames into the transportation position.
oThe machine must be equipped with removable shields with marking of contours, functional lighting, and
the board of the rear marking for slow vehicles (according to ECE No. 69).
oThe lighting must be activated during travelling on roads.
oThe tractor must be equipped with a special light device of an orange colour, which must be activated
during travelling on roads.
oThe maximum transport speed during travelling on roads is 25 kph.
Ban of transport with decreased visibility!
Bring the machine into the transport position.
The operator is obliged to pay increased attention during transport on roads, due to the transport
dimensions of the machine.
The operator must observe the valid regulations for transport on roads (laws, decrees) after connecting the
machine to the tractor, for reason of a change of the axle load. The driving properties of the set also
change depending on the terrain nature, adapt the manner of driving to these conditions.
The operator is obliged to present the machine certificate of roadworthiness as needed, according to the
valid regulations for road traffic (decree, law) (only in the Czech Republic).
The operator is obliged to secure sufficient outlook during reversing from his position of the tractor
driver. In case of insufficient outlook, the operator is obliged to call a competent and informed person.
The operator must fold the side frames for transport and secure then against unwanted unfolding by
disconnecting the hydraulic circuit of the machine and the tractor.
The operator must secure the arms of the rear TPS of the tractor in the transport position during road
transport, i.e. prevent unexpected arm drop using the hydraulic arm control lever. At the same time, the
arms of the rear TPS of the tractor must be secured against side swinging.
During machine transport on roads, the operator must observe the valid laws and decrees that deal with
this topic and which specify the relationships of the tractor axle load depending on transport speed.

Manual TRIOLENT TX600-800PS
- 16 -
5. MACHINE ADJUSTMENT
Fig. 3 –Machine adjustment
5.1 MACHINE WORKING DEPTH ADJUSTMENT
Setting of soil processing depth is executed on lifted machine through adding or removing of distance
washers on hydraulic cylinders.
Tow bar –Adjustment of machine
longitudinal plane
Levelling discs
Axle –lifted for work
Spots for setting the working depths
Setting the working depth of tracing wheels

Manual TRIOLENT TX600-800PS
- 17 -
The same combination of washers
(number and force) must be set on all
piston rods!!!
Transfer ratio between thickness of distance
elements and working depth is approximately
1:3.
E.g.: Adding or removal of distance pieces of
total thickness 1.3 cm (1x dark blue or 2x
yellow) changes the working depth by 4 cm.
The table shows individual working positions
and colour combinations of distance washers.
Specified working depths at individual positions
are only for information. They may vary
according to particular soil conditions. Required
number of distance washers may be
added/removed as needed.
5.2 MACHINE ADJUSTMENT USING TRACTOR´S TPS ARMS
Use the TBZ arms of the tractor to set the machine so that the shares in all rows work in the same depth.
MACHINE ADJUSTMENT ON THE BAR TO LOWER HITCH
Working
Depth [cm]
Colour Combination - Amount
Distance
thickness
[mm]
Yellow
6,35mm
Light
Blue
9,5mm
Dark
Blue
12,7mm
Silver
25,4mm
6
1
1
2
70
8
1
1
2
67
10
2
2
64
12
1
2
60
14
1
2
57
16
1
1
1
1
54
18
2
1
1
51
20
1
1
1
48
22
1
1
1
44
24
1
1
1
41
26
2
1
38
28
1
1
35
30
1
1
32
TBZ tractor arms –
height adjustment
Soil
Rám stroje v rovině s půdou
Setting the depth of the
rollers
Machine frame on the plane –same depth in all rows
Setting the depth of the
tracing wheels
Rám stroje v rovině – stejná prac.hloubka všech řad
Machine frame on the plane –same depth in all rows
Setting the depth of the
rollers
Setting the depth of the
tracing wheels
Setting the depth
of the tow bar

Manual TRIOLENT TX600-800PS
- 18 -
5.3 SETTING THE LEVELING DISCS
Set the working depth of the levelling discs by
using the lever for setting discs. Be careful when
executing the adjustment.
Correctly set discs will provide the perfect
levelling and overlapping with soft soil along the
entire width of the working coverage. Too
shallow disc setting leaves lines after the rear
ploughshares; too deep disc setting creates traces
of accumulated soil after the machine. Check the
correct disc setting during work –the setting may
differ according to the soil conditions and disc
wear and tear.

Manual TRIOLENT TX600-800PS
- 19 -
6. MACHINE MAINTENANCE AND REPAIRS
Observe the safety instructions for treatment and maintenance.
If it is necessary to weld during the repair and have the machine connected to the tractor, it must have
disconnected supply cables from the alternator and the accumulator.
Check the tightening of all screw and other assembly connections at the machine before every use of the
machine, furthermore continuously as needed.
Continuously check the wear of the working bodies of the machine, possibly replace these worn working
bodies with new ones.
Adjustment, cleaning, and lubrication of the machine may only be performed with the machine at rest (i.e.
the machine is standing and not working).
When working on a lifted machine, use suitable support equipment supported at marked points or at points
suitable for that.
During adjustment, cleaning, maintenance, and repair of the machine, you must secure those parts of the
machine that could endanger the operator by falling or another movement.
For catching the machine during handling using lifting equipment, use only the places marked with self-
adhesive labels with the chain sign " ".
Upon a failure or damage of the machine, immediately turn off the tractor's engine and secure against
restarting, secure the machine against movement only then you can remove the failure.
During repairs of the machine, use exclusively the genuine spare parts, suitable tools and protective
equipment.
Regularly check the prescribed pressure in the machine tyres and the condition of the tyres. Perform
possible repairs of the tyres in an expert workshop.
Keep the machine clean.
Do not clean hydraulic cylinders and bearings with a high-pressure cleaner or direct water stream. The
seals and bearings are not watertight at high pressure.
7. MACHINE STORAGE
Long-term machine shutdown:
Store the machine under a roof if possible.
Store the machine on a flat and solid surface with sufficient load capacity.
Clean the machine before storing and conserve so that it is not damaged in any way during storage. Pay special
attention to all marked lubrication points and properly lubricate them according to the lubrication plan.
Store the machine in the position with folded frames in the transport position. Store the machine on the axle and
the storage leg, secure the machine against spontaneous movement using scotches or another suitable tool.
When storing, lower the machine into the lower position using hydraulics.
The machine shall not be supported by chisels, otherwise there is a risk of their damage.
Secure the machine against access of unauthorised persons.
8. MACHINE LUBRICATION SCHEDULE
During machine maintenance and its lubrication, it is necessary to observe the safety regulations.
Table 4 –Locations and Intervals of the Machine Lubrication
LUBRICATION POINT
INTERVAL
LUBRICANT
Tow bar joint
Fig4
- Daily, always before the work with the
machine.
- Always after the end of the season and
before storing the machine.
Plastic grease
Rubber-tyred rollers bearings
Fig.6
Disc bearings
Fig.5
- Always after the end of the season and
before storing the machine.

Manual TRIOLENT TX600-800PS
- 20 -
Fig. 4 - Tow bar joint Fig. 5 - Disc bearings
Fig. 6 –Rubber-tyred rollers bearings
Lubricant handling:
Protect yourselves against direct contact with oils
by using gloves or protective creams. Thoroughly
wash oil spots on the skin using warm water and
soap. Do not clean the skin with petrol, engine
diesel fuel or other solvents.
Oil is poisonous. If you swallowed the oil,
immediately seek a physician.
Protect the lubricants against children.
9. ENVIRONMENTAL PROTECTION
Regularly check the tightness of the hydraulic system.
Preventively replace or repair hydraulic hoses, possibly further parts of the hydraulic system showing signs
of damage, before oil leaks occur.
Check the condition of hydraulic hoses and perform their timely replacement. The service life of hydraulic
hoses includes the time, when they were stored.
Handle oils and greases according to valid waste laws and regulations.
10. MACHINE DISPOSAL AFTER SERVICE LIFE EXPIRY
The operator must secure during machine disposal that steel parts and parts, in which hydraulic oil or
lubricating grease moves are differentiated.
Steel parts must be cut by the operator while observing safety regulations and handed over to the secondary
raw material collection point. He must proceed with other parts according to valid laws about waste.
