OPERATING MANUAL
DDUUOOLLEENNTT
DDXX 338800 NNSS |DDXX 446600 NNSS
DDXX 555500 NNSS

2 | 38
Prepared by: Technical Department, Farmet a.s.
on 01.02.2022, changes reserved

PREFACE
3 | 38
PREFACE
Dear customer,
The agricultural machine you have purchased is a high-quality product of Farmet a.s. Česká Skalice.
You can fully utilise the advantages of your machine after thoroughly studying the operating manual.

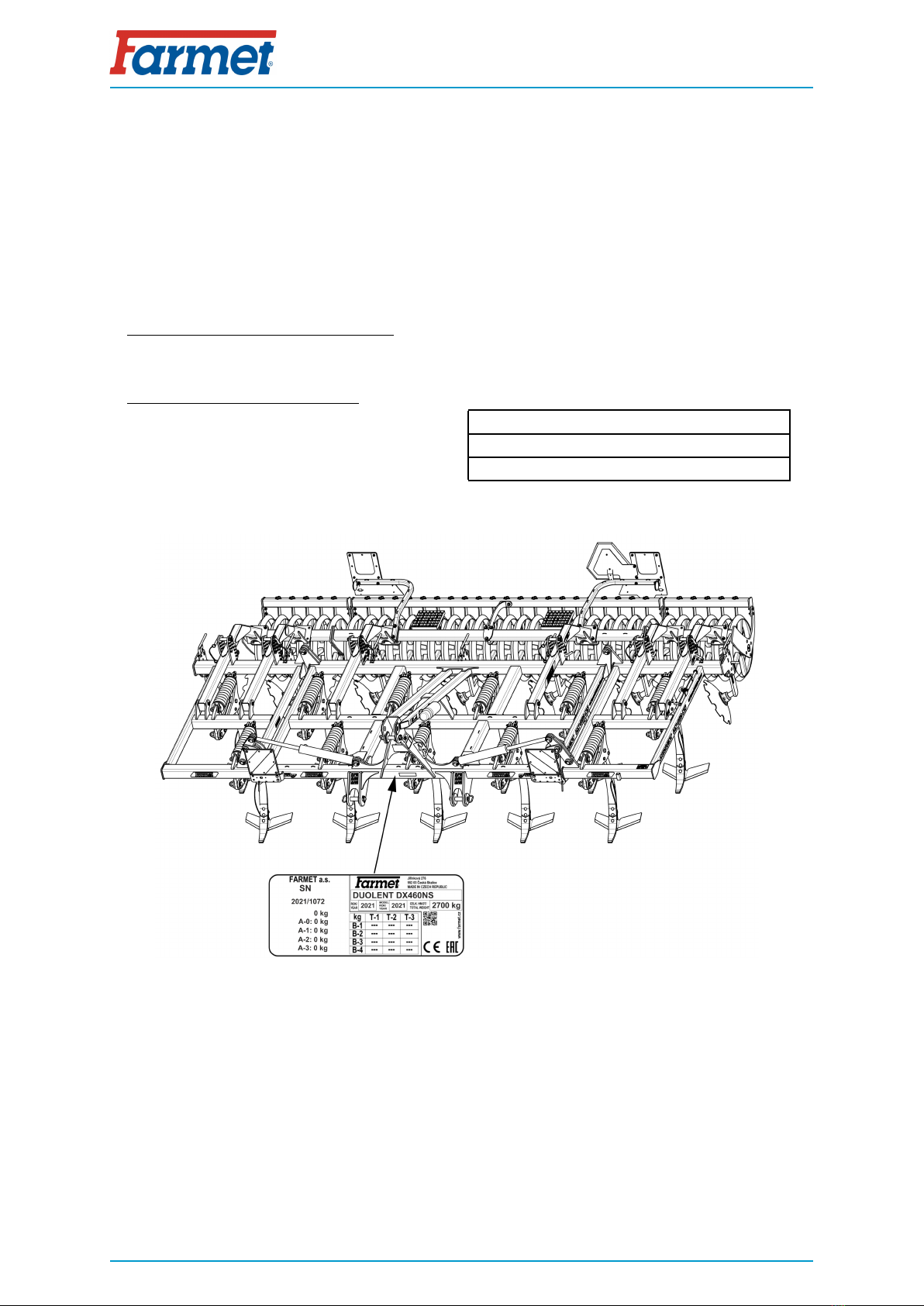

The serial number of the machine is punched on the production label and written in the operating
manual (Your Machine Characteristics). This machine serial number must be stated whenever ordering spare
parts for possible repairs. The production label is located on the frame .
Use only spare parts for these machines according to the Spare parts catalogue officially issued by
the manufacturer, Farmet a.s. Česka Skalice.
POSSIBILITIES OF USE OF YOUR MACHINE
The cultivator DUOLENT is designed for cultivation of all types of soils.
YOUR MACHINE CHARACTERISTICS :
MACHINE TYPE :
MACHINE SERIAL NUMBER :
SPECIAL DESIGN OR ACCESSORIES :

PREFACE
4 | 38
IMPORTANT
READ CAREFULLY BEFORE USE
KEEP FOR FUTURE REFERENCE

PREFACE
5 | 38
Contents
PREFACE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1 MACHINE LIMIT PARAMETERS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
1.1 Technical parameters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
1.2 Safety statement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2 GENERAL INSTRUCTIONS FOR USE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3 MACHINE TRANSPORT USING TRANSPORT MEANS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4 MACHINE HANDLING USING LIFTING EQUIPMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
5 WORK SAFETY LABELS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
6 DESCRIPTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
6.1 Working parts of the machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
6.1.1 Description and setting of the ring roller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
7 MACHINE ASSEMBLY AT THE CUSTOMER. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
8 COMMISSIONING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
8.1 Agregation to a tractor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
8.2 Hydraulics connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
8.3 Folding and unfolding of the machine. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
9 MACHINE TRANSPORT ON ROADS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
10 MACHINE ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
10.1 Adjusting the working depth of the machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
10.2 Share securing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
10.3 Placement of top left and right shares on the machine. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
11 MACHINE MAINTENANCE AND REPAIRS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
12 MACHINE STORAGE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
13 MACHINE LUBRICATION SCHEDULE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
14 ENVIROMENTAL PROTECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
15 MACHINE DISPOSAL AFTER SERVICE LIFE EXPIRY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
16 SERVICING AND WARRANTY CONDITIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
16.1 Servicing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
16.2 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

PREFACE
6 | 38

7 | 38
MACHINE LIMIT PARAMETERS
1 MACHINE LIMIT PARAMETERS
• The machine is designed for soil cultivation agricultural soil cultivation. Another type of use exceeding
the determined purpose is forbidden.
• The machine is only operated by one person – the tractor driver.
• Machine operator must not use the machine in a different way, especially:
• Transport of persons and animals on the machine structure,
• Transport of burdens on the machine structure,
• Aggregation of the machine with another towing equipment than stated in Chapter
8.1.

MACHINE LIMIT PARAMETERS
1.1 Technical parameters
PARAMETERS DUOLENT DX 380 NS DUOLENT DX 460 NS DUOLENT DX 550 NS
Working width 3,78 m (12,4 ft) 4,62 m (15,16 ft) 5,46 m (17,9 ft)
Transport width 2,2 m (7,2 ft) 3 m (9,84 ft) 3m (9,84 ft)
Transport height 2,5 m (8,2 ft)
Machine total length 3,35 m (11 ft)
Working depth max 35 cm (13,8 in)
Number of shares 9 11 13
Working performance 3,1 – 4,5 ha/h
(7,6 – 11,1 ac/h)
3,7 – 5,5 ha/h
(9,1 – 13,6 ac/h)
4,4 – 6,6 ha/h
(10,9 – 16,3 ac/h)
Towing means 120 - 210 kW
(161 - 282 HP)*
150 - 270 kW
(201 - 362 HP)*
180 - 320 kW
(241 - 429 HP)*
Working speed 8–12 kph (5 - 7,5 mph)
Maximum transport speed 20 kph (12,4 mph)
Maximum slope grade 6 (°)
Machine weight 2220 kg
(4894 lb)
2570 kg
(5666 lb)
1475 – 1585 kg
(6437 lb)
* Recommended towing means, the real towing force may significantly vary according to the processing
depth, soil conditions, land slope, working body wear and adjustment.
1.2 Safety statement
This warning sign warns about an immediate dangerous situation ending with death or
severe injury.
This warning sign warns about a dangerous situation ending with death or severe injury.
This warning sign warns about a situation that may end with a smaller or slight injury. It
also warns about dangerous actions related to the activity that could lead to an injury.
8 | 38

9 | 38
GENERAL INSTRUCTIONS FOR USE
2 GENERAL INSTRUCTIONS FOR USE
• The machine is made in accordance with the latest equipment state and approved safety
regulations. However, dangers of user or third person injury or machine damage or
creation of other material damage may arise during use.
• Use the machine only in a technically sound condition, in accordance with its purpose,
aware of possible dangers, and while adhering to the safety instructions of this operating
manual!
The Manufacturer is not liable for damages caused by the use of the machine that is in
contradiction with the limit parameters of the machine and with the instructions for the
use of the machine. The User bears the risk.
Immediately remove especially the failures that may negatively affect safety!
• Machine operation may be performed by a person authorised by the operator under
these conditions:
• It must own a valid driver's licence of the corresponding category,
• It must be demonstrably familiarised with the safety regulations for work with the
machine and must practically master the machine operation,
• The machine may not be operated by juveniles,
• It must know the meaning of the safety signs located on the machine. Their respecting
is important for safe and reliable machine operation.
• Maintenance and servicing repairs on the machine may only be performed by a person :
• Authorised by the operator,
• Educated in the machinery field with knowledge of repairs of similar machines,
• Demonstrably familiarised with safety regulations for work with the machine,
• During a repair of a machine connected to a tractor, it must own a driver's licence of
the corresponding category.
• Machine operator must secure the safety of other persons when working with the
machine or transporting the machine.
• During machine work in the field or during transport, the operator must control the
machine from the tractor's cabin.
• The operator may enter the machine structure only with the machine at rest and blocked
against movement, namely only for these reasons:
• Adjustment of the machine working parts,
• Repair and maintenance of the machine,
• When stepping on the machine, do not step on roller tyres or other rotary parts. Those
may turn and you can cause very serious injuries by the subsequent fall.
• Any changes or modifications of machine may be performed only with written consent of
the manufacturer.
For possible damage arisen due to ignoring this instruction, the producer bears no
responsibility.
The machine must be maintained equipped with prescribed accessories and equipment
including safety marking.
All warning and safety signs must be legible and in their places. In case of damage or loss,
these signs must be immediately renewed.
• The operator must have the Operating Manual with the work safety requirements
available at any time when working with the machine.

GENERAL INSTRUCTIONS FOR USE
• The operator must not consume alcohol, medicines, narcotic and hallucinogenic
substances that decrease his attention and coordination capabilities while using the
machine.
If the operator must use medicines prescribed by a physician or uses freely sold
medicines, he must be informed by a physician, whether he is capable of responsible and
safe operation of the machine under these circumstances.
Protective tools :
For operation and maintenance use:
• tight clothes
• protective gloves and goggles against dust and
sharp parts of the machine
10 | 38

11 | 38
MACHINE TRANSPORT USING TRANSPORT MEANS
3 MACHINE TRANSPORT USING TRANSPORT MEANS
• The transport means designed for machine transport must have the load capacity minimally
identical with the weight of the transported machine. The total weight of the machine is stated
on the production label.
• The dimensions of the transported machine including the transport means must comply with
the valid regulations for road traffic (decrees, laws).
• The transported machine must be always fastened to the transport means so that its
spontaneous loosening could not happen.
• The carrier is responsible for damage caused by the loosening of incorrectly or insufficiently
fastened machine to the transport means.

12 | 38
MACHINE HANDLING USING LIFTING EQUIPMENT
4 MACHINE HANDLING USING LIFTING EQUIPMENT
• The lifting equipment and tying means designed for handling of the machine must have their
load capacity at least identical with the weight of the handled machine.
• Machine fastening for handling may only be performed in places designed for that and
marked with self-adhesive labels showing the "chain" symbol.
• After fastening (suspending) at designated points, it is forbidden to move in the space of
possible reach of the handled machine.

13 | 38
WORK SAFETY LABELS
5 WORK SAFETY LABELS
Warning safety labels serve for operator protection.
General:
• Strictly observe the warning safety labels.
• All safety instructions also apply to other users.
• Upon damage or destruction of the aforementioned "SAFETY LABEL" located on the machine, THE
OPERATOR IS OBLIGED TO REPLACE IT WITH A NEW ONE!!!
• The position, appearance and the precise meaning of the work safety labels on the machine are
determined in the following tables and the figure .
WARNING SAFETY LABEL LABEL TEXT MACHINE
POSITION
Before handling the machine, carefully read the
operating manual.
Observe the instructions and safety regulations
for machine operation during use. P 1 H
When connecting or disconnecting, do not step
between the tractor and the machine, also do
not enter this space, if the tractor and the
machine are not at rest and the engine is not
turned off.
P 2 H
Stay out of reach of the drawn-up machine. P 4 H
Stay outside the reach of the tractor -
agricultural machine set, if the tractor engine is
in operation. P 6 H
The side extensible disc must be secured with
the stopper for transport and during work.
The rear twin roller must be secured with the
stopper for transport.
Before commencing the machine transport,
secure the axle with spherical valves against
unexpected drop.
P 13 H
When folding the side frames, do not reach
into the space of the machine folding joints.
There is a danger of cutting when setting the
depth of the machine. P 20 H

WORK SAFETY LABELS
Travelling and transport on the machine
structure is strictly forbidden. P 37 H
When working and transporting the machine,
maintain safe distance from the electric
appliances. P 39 H
When folding and unfolding the side frames,
stay outside their reach. P 50 H
Secure the machine against unwanted
movement by positioning on its working bodies
(shares). P 52 H
Do not approach the rotary parts of the
machine, if these are not at rest, i. e. they do
not turn. P 53 H
It is strictly folding and unfolding the side
frames on slopes or inclined surfaces.
P 100 H
The shown positions of the lever and the
function of the hydraulic spherical valve
located on the piston rod. P 101 H
14 | 38

WORK SAFETY LABELS
Fig. 1 - Location of safety labels on the machine
15 | 38

16 | 38
DESCRIPTION
6 DESCRIPTION
The machine DUOLENT DX 380 NS, DX 460 NS, DX 550 NS is structurally solved as carried.
Machine DX 380 NS is equipped with TPS 2 and TPS 3 suspension. Machines DX 460 NS and DX 550 NS
are equipped with TPS 3 and „KIROVEC“ suspension. DUOLENT consists of a central framework and two fold-
ing side frameworks with two rows of shares with an automatic spring securing. There is a row of discs on
the rear crossbar of the framework. There are also swinging rear frames equipped with the rear roller at-
tached to the main frame . Side frameworks are unfolded with the use of rectilinear hydraulic motors con-
nected to the external hydraulic circuit.
6.1 Working parts of the machine

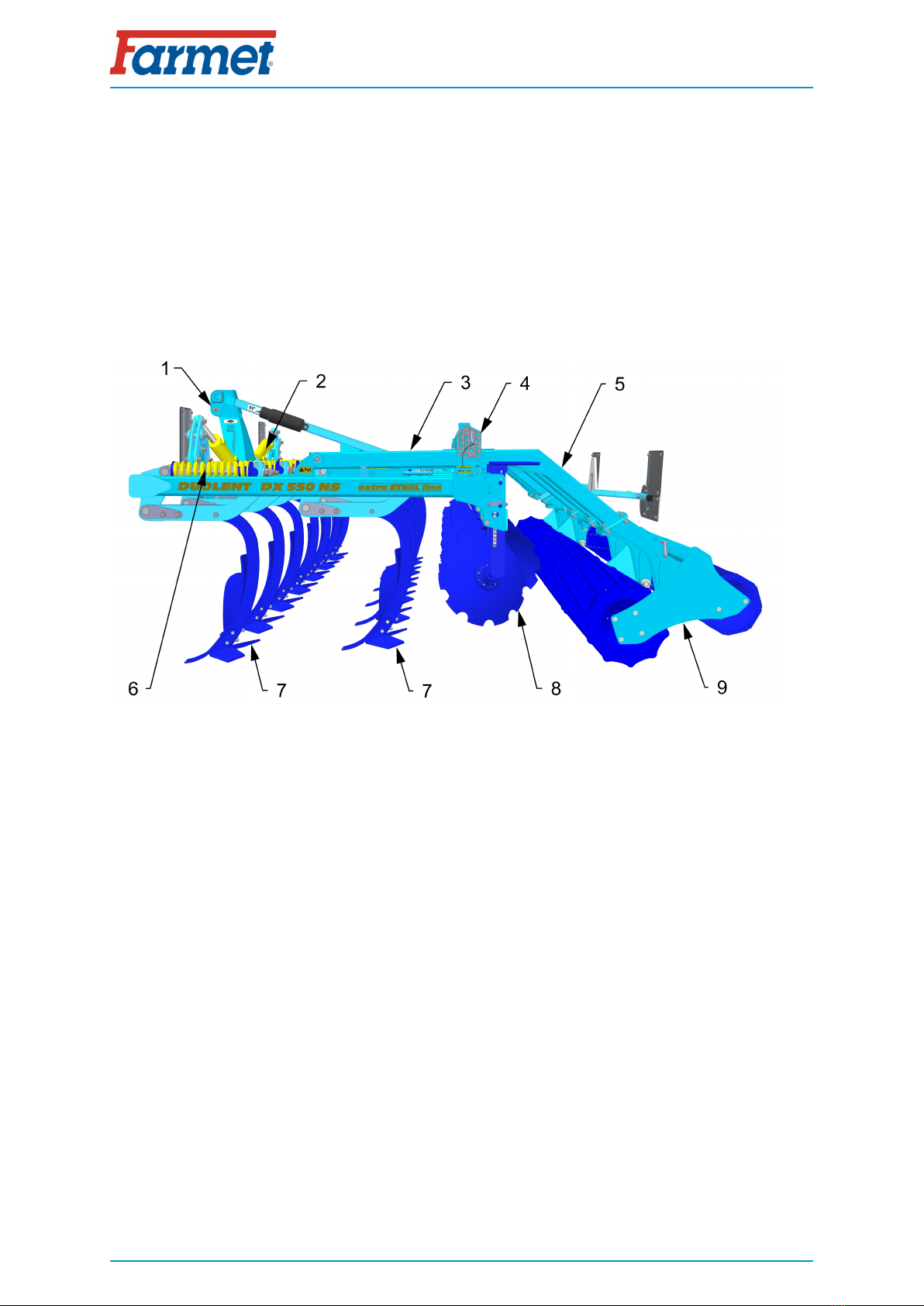

1. TPS towing suspension
2. Hydraulic motor
3. Machine framework
4. Setting the depth of the rollers
5. Rear roller framework
6. Spring protection
7. Sections of shares in 2 rows; screwed chisels with cutting wings
8. Sections of angle discs
9. Rear roller

DESCRIPTION
6.1.1 Description and setting of the ring roller
The roller with wheels consisting of ring segments is attached to the frame. There is a row of leveller
blades in front of the roller. The height as well as angle of the blades can be adjusted. The correct setting of
the blades is essential for the correct function of the roller. The setting of the blades must be first tested
and adjusted under factual conditions.
1. Roller frame 4. Front leveller blades
2. Roller cleaner 5. Bolts for adjusting leveller blades
3. Roller
Possibilities for setting front leveller blades
1. Front leveller blades located in front of the roller wheels throw clods directly under the wheels that
crush them.
2. Front leveller blades located between the roller wheels throw soil inside the wheels. Clods of soil are
thus partially crushed by the wheels and partially crushed inside the wheels. With this setting, the surface is
covered with soft soil after work.
17 | 38

18 | 38
MACHINE ASSEMBLY AT THE CUSTOMER
7 MACHINE ASSEMBLY AT THE CUSTOMER
• The operator must perform the assembly according to the instructions of the producer,
best in cooperation with the expert servicing technician determined by the producer.
• The operator must secure a functional test of all assembled parts after the completion
of the machine assembly.
• The operator must secure that the handling of the machine using lifting equipment during
its assembly is in accordance with chapter „4“.

19 | 38
COMMISSIONING
8 COMMISSIONING
• Before taking over the machine, test and check, whether damage occurred during transport
and whether all parts contained in the bill of delivery were supplied.
• Before commissioning the machine, carefully read this operating manual, especially Chapters 1–
5. Before the first use of the machine, familiarise yourselves with its controls and overall
function.
• During work with the machine, observe not only the instructions of this operating manual, but
also generally valid regulations of work safety, health protection, fire and transport safety, and
environmental protection.
• The operator must check the machine before every use (commissioning) from the standpoint
of completeness, work safety, work hygiene, fire safety, transport safety,
and environmental protection. A machine showing signs of damage must not be commissioned.
• Aggregation of the machine with the tractor is to be performed on a flat and hardened surface.
• When working on slopes, observe the lowest slope grade of the set TRACTOR - MACHINE.
• Before starting the tractor motor, check whether no person or animal is in the working space
of the set and push the warning sound signal.
• The operator is responsible for the safety and all damage caused by the operation of the tractor
and the connected machine.
• The operator is obliged to adhere to the technical and safety regulations of the machine
determined by the producer when working.
• The operator is obliged to retract the working bodies of the machine from the ground when
turning at the headland.
• The operator is obliged to observe the prescribed working depths and speeds stated in the
manual in Chap.1 when working with the machine.
• The operator is obliged to lower the machine to the ground and secure the set against
movement before leaving the tractor cabin.
• Lower the machine with caution so that the chisels and shares are not damaged by sharp
lowering to the ground. Position the machine on a flat ground so that the weight of the machine
is evenly transferred to all shares

COMMISSIONING
8.1 Agregation to a tractor
• The machine can be connected only to a tractor, whose curb weight is identical or higher than
the overall weight of the connected machine.
• The machine operator must observe all generally valid regulations of work safety, health
protection, fire safety, and environmental protection.
• The operator may connect the machine exclusively to a tractor that is equipped with a rear
three-point suspension and a functional undamaged hydraulic system.
• The table of requirements for the towing means for work with the machine:
Requirement for the tractor engine power for cultivator DX 380 NS 120-210 kW* (161-282 HP)*
Requirement for
the tractor's TPS
Spacing of the lower
suspension joints (measured
at the joint axes)
TPS 2 870+/- 1,5 mm (34,25 in)
TPS 3 1010+/- 1,5 mm (39,76 in)
ø of the hole of the lower
suspension joints for the
machine suspension pivots
TPS 2 28,7 – 29,03 mm (1,13 – 1,14 in)
TPS 3 37,4 - 37,75 mm (1,472 – 1,486
in)
ø of the hole of the upper
suspension joint for the
machine suspension pivot
TPS 2 25,7 – 25,91 mm (1,012 – 1,020
in)
TPS 3 32,0 – 32,25 mm (1,260 – 1,270
in)
Requirement for the tractor engine power for cultivator DX 460 NS 150-270 kW* (201-362 HP)*
Requirement for the tractor engine power for cultivator DX 550 NS 180-320 kW* (241-429 HP)*
Požadavek na
TBZ traktoru
Spacing of the lower
suspension joints (measured
at the joint axes)
TPS 3 895±1,5 mm (35,24 in)
KIROVEC 1110±1,5 mm (43,7 in)
ø of the hole of the lower
suspension joints for the
machine suspension pivots
TPS 3 37,4 – 37,75 mm (1,472 – 1,486
in)
KIROVEC 60,5 – 61 mm (2,381 – 2,401 in)
ø of the hole of the upper
suspension joint for the
machine suspension pivot
TPS 3 32,0 – 32,25 mm (1,260 – 1,270
in)
KIROVEC 39,5 – 40 mm (1,555 – 1,574 in)
Requirement for
the tractor's
hydraulic system
Side frame folding circuit
Circuit pressure 200bar (2900
Psi), 2 pcs of quick-coupler
sockets ISO 12,5
* Recommended towing means, the real towing force may significantly vary according to the processing
depth, soil conditions, land slope, working body wear and adjustment.
• Connect the machine using the TPS suspension bar to the lower arms of the rear TPS of the
tractor, secure the TPS arms using pins against disconnecting.
• Connect the third point of the tractor only to the circular hole both for work and transport.
(concerns machine DX 380 NS).
• The machine aggregated with the tractor changes the distribution of the weight to the
individual axles of the tractor. The weight of the front axle is reduced and therefore the
controllability gets worse. It also affects braking properties.
When connecting, no persons may stay in the space between the tractor and the machine.
20 | 38
