FCC BBQ Supreme 4.1 Instructions for use

Sare  u  cookin!
FCC-G-20000-4.1 / GD4842S -SS
!
Instructions and maintenance
MANUAL
OUTDOORUSEONLY
READTHEOPERATINGINSTRUCTIONS
BEFOREUSINGTHEAPPLIANCE.

Contents
Warnings
Technical data
Exploded drawing
Parts list
Assembly
Regulator and hose
Check for leaks
Lighting instructions
Last check
Maintenance
Troubleshooting
Consumer contact
3
4
5
6
7
14
15
16
17
18
19
20

Warnings
• THIS PRODUCT IS DESIGNED AS A HOME APPLICANCE AND NOT SUITABLE
FOR PROFFESIONAL USE IN A RESTAURANT OR SIMILAR.
• FAILURE TO FOLLOW THE INSTRUCTIONS PROVIDED CAN IMPLY A RISK OF
SERIOUS INJURY TO PERSONNEL AND FIXED INSTALLATIONS.
• THE BBQ IS INTENDED FOR OUTDOOR USE ONLY IN WELL-VENTILATED
AREAS. NEVER BBQ IN ENCLOSED SPACES OR UNDER A ROOF, DUE TO THE
DANGER OF THE LACK OF OXYGEN.
• NEVER MOVE THE BBQ WHILE IN USE OR CONNECTED TO THE GAS BOTTLE.
• SHUT OFF THE GAS ON THE REGULATOR AFTER USE AND DISCONNECT FROM
THE GAS BOTTLE.
• MODIFICATION OF THE BBQ CAN CAUSE DANGER AND WILL INVALIDATE THE
WARRANTY.
• ALWAYS KEEP AN EYE ON THE BBQ WHEN IN USE. ACCESSIBLE PARTS OF THE
BBQ BECOME VERY HOT DURING USE. NEVER ALLOW CHILDREN OR OTHERS
WHO REQUIRE SUPERVISION NEAR THE BBQ WHEN IN USE.
• THIS BBQ IS ONLY INTENDED FOR OUTDOOR USE AND MUST NOT BE
USED UNDER A ROOF. DO NOT USE UNDER NORMAL GROUND LEVEL.
GAS CAN ACCUMULATE AND REPRESENT A DANGER OF EXPLOSION. GAS
ACCUMULATION CAN ALSO CAUSE OXYGEN DEFICIENCY.
• PERFORM THE LEAK TEST REGULARLY AND ALWAYS WHEN CHANGING THE
GAS BOTTLE AFTER A LONG TIME IN STORAGE. ALWAYS CHECK THE GAS
HOSE FOR DAMAGE AND CRACKS EACH TIME YOU USE THE BBQ.
• IF STORING THE BBQ IN A GARAGE OR BASEMENT BELOW GROUND LEVEL,
DO NOT STORE THE GAS BOTTLE THE SAME PLACE, AS IT MUST BE STORED
ABOVE NORMAL GROUND LEVEL.
• MAKE SURE THE BBQ IS COMPLETELY COOLED OFF BEFORE A COVER IS PUT
ON.
!
3

Tekniske data
Total Heat input: 17.2 kW (main burner: 14kW + side burner: 3.2kW)
Gas consumption: 1252 gram/hour (main burner: 1019 g/h + side burner: 233 g/h)
Gasbottle (not included): Use standard bottle approved for use in the Nordic Region.
Even though butane and propane gas can be used, we recommend propane for use in the
Nordic Region. Approved hoses and regulators are available from most outlets selling gas
equipment.
NB! Gas hoses used for this product must not exceed 120 cm in length.
2531-19
This product is produced according to
EUROPEAN GAS APPLIANCE
STANDARD EN498 and EN¤484 and is CE certified
Technical Data
ONLY THE GAS TYPE AND GAS CATEGORY LISTED IN THE RATING LABLE
SHOULD BE USED ON YOUR APPLIANCE.
LU, NL, DK, FI, SE, CY,
CZ, EE, LT, LV, MT, SK, SI,
BG, IS, NO, TR, HR, RO,
IT, and HU
Ø 0.91 mm main burner
Ø 0.86 mm side burner
G30(Butane
G31(Propane)
and their mixtures
I3B/P(30)
!
DESTINATION OF
COUNTRIES TO USE GAS TYPEVALVE SIZE GAS CATEGORY
GAS GRILL ASSEMBLY, USE AND CARE MANUAL GD4842S-AA
FOR OUTDOOR
USE ONLY
Do not attempt to assemble and use this grill unless you read this entire manual thoroughly.
Keep it in a handy place as it has answers for questions that may occur in your future use.
NOTE: THIS APPLIANCE IS NOT INTENDED TO INSTALL IN OR ON RECREATIONAL
VEHICLES OR BOATS.
Reminder : As the products have been renewing,if you find the real products are different from the manual's, pls.in kind prevail.
h: 120 cm
150
d: 64 cm
4

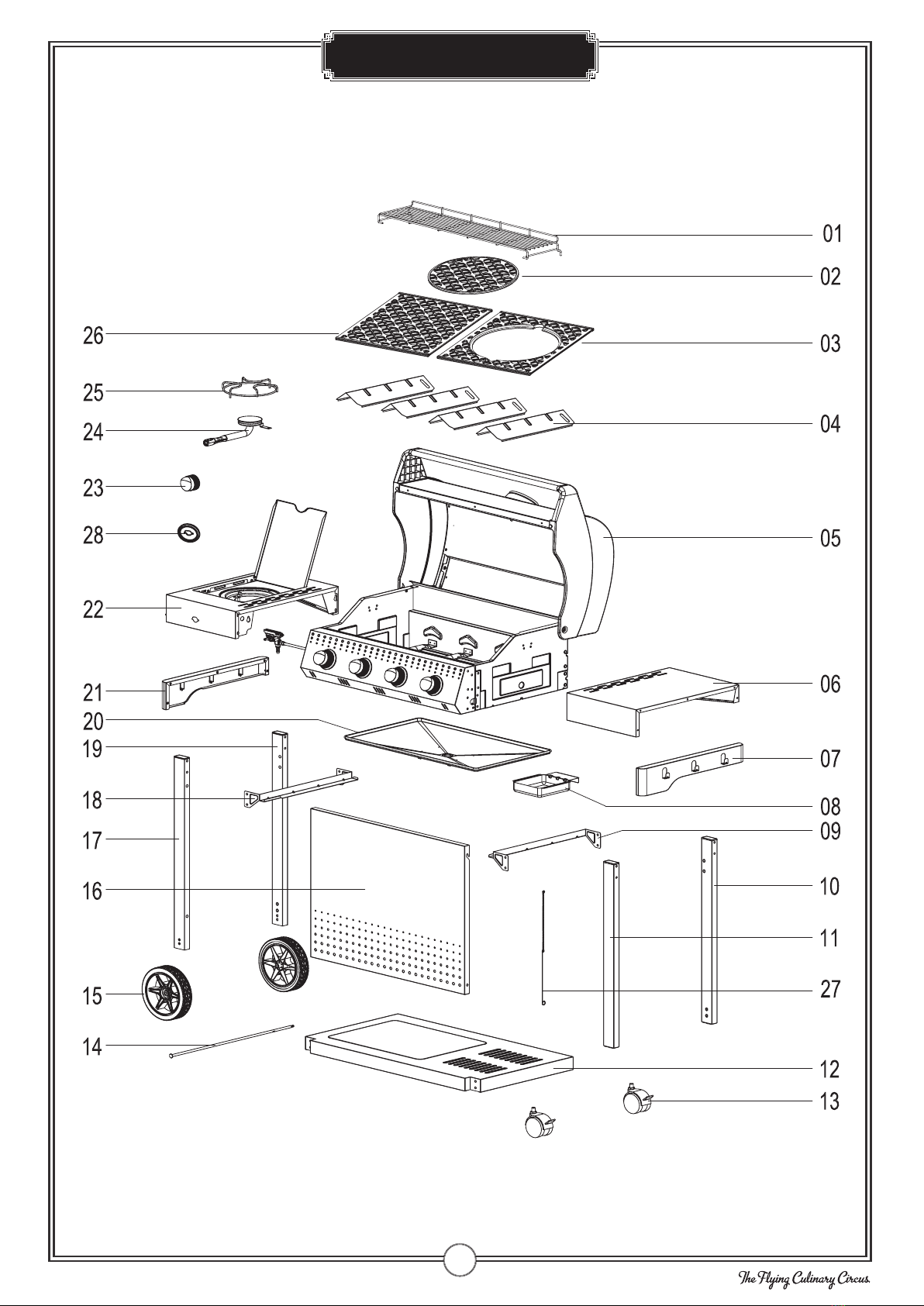

Exploded Drawing
5

Assembly
CODE hard ware QTY
AM x 60 SCREW 8
BM LOCKNUT 1
CGASKETS 1
DM x 12 SCREW 24
EM x 8 SCREW 12
CODE DESCRIPTION QTY
1WARMINGRACK 1
2COOKINGGRILL 1 1
3COOKINGGRILL 2 1
4FMETAMER 4
5BODYASSEMBLY 1
6RIGHTSIDETABLE 1
7DECORSHEETRIGHTSIDETABLE 1
8GREASECUP 1
9OILTRAY, SUPPORTRIGHTSIDE 1
10 RIGHTBACKFOOT 1
11 RIGHTFRONTFOOT 1
12 BOTTOMPANEL 1
13 LOCKABLECASTER 2
14 WHEELAXLE 1
15 WHEEL 2
16 FRONTPANEL 1
17 LEFTFRONTFOOT 1
18 OILTRAY, SUPPORTLEFTSIDE 1
19 LEFTBACKFOOT 1
20 OILTRAY 1
21 DECORSHEETLEFTSIDETABLE 1
22 SIDEBURNERASSEMBLY 1
23 KNOB 1
24 SIDEBURNER 1
25 POTSUPPORT 1
26 COOKINGGRILL 3 1
27 MATCHSTICKHOLDERASSEMBLY 1
28 KNOBBEZEL 1
PLEASE FOLLOW THESE INSTRUCTIONS STEP BY STEP. A SCREWDRIVER AND A
(ADJUSTABLE) WRENCH IS NECESSARY WHEN ASSEMBLING THE BBQ. THE BBQ SHOULD
BE ASSEMBLED BY TWO PERSONS. EXERCISE CAUTION WHEN USING ELECTRIC TOOLS
– THEIR STRENGTH CAN DAMAGE THE SCREWS.
!
Parts List
6

Assembly
— 4 —
GAS GRILL ASSEMBLY, USE AND CARE MANUAL GD4842S-AA

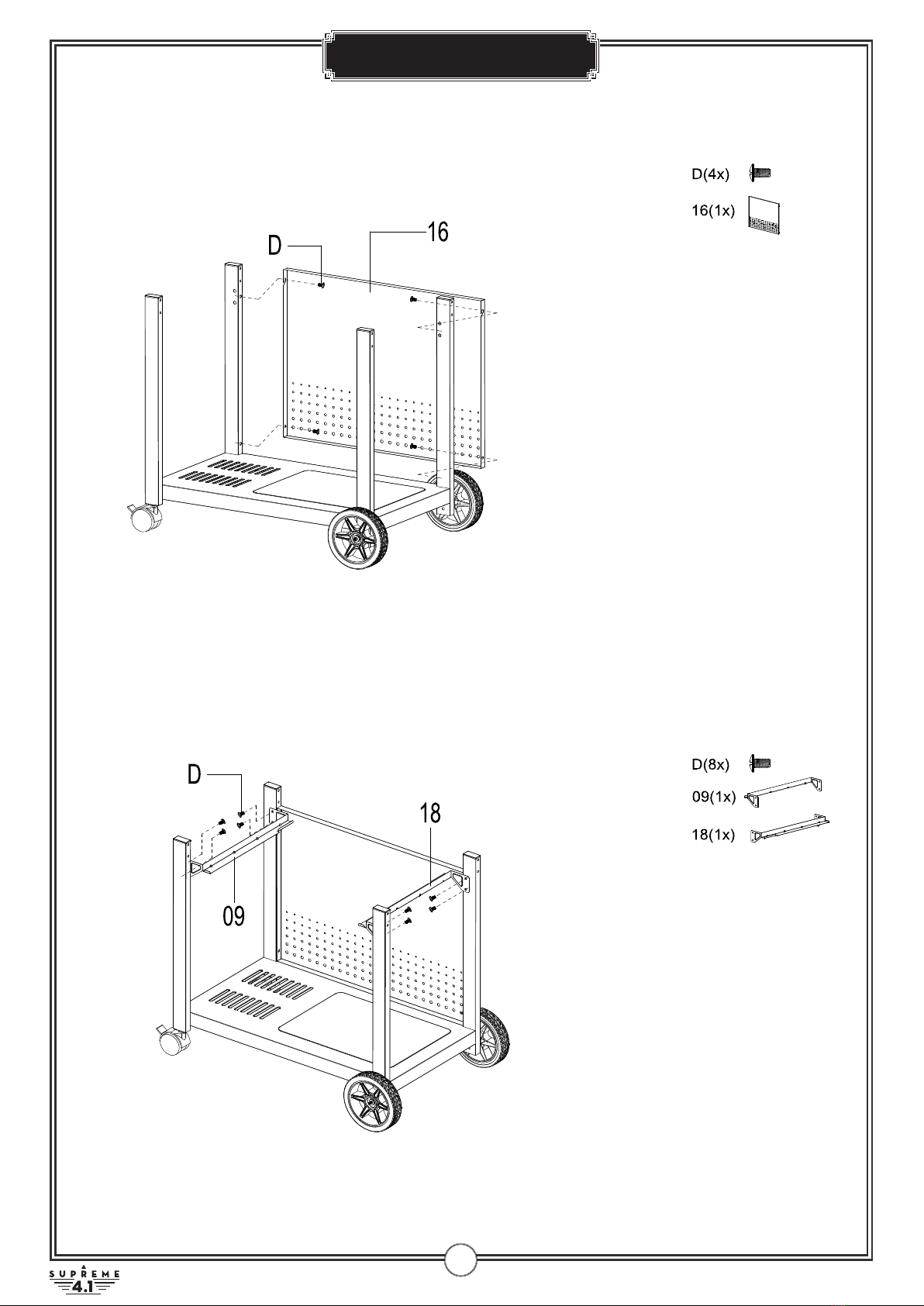

Assemble the legs and bottom panel
Assemble the wheels and castors
STEP 1 Assemble the legs and bottom panel
STEP 2 Assemble the wheels and castors
7

Assembly
— 5 —
GAS GRILL ASSEMBLY, USE AND CARE MANUAL GD4842S-AA
Install the front panel
Install the drip tray brackets
STEP 3 Install the front panel.
STEP 4 Install the drip tray brackets.
8

Assembly
— 6 —
GAS GRILL ASSEMBLY, USE AND CARE MANUAL GD4842S-AA
Install the firebox
Install the tooling hook panels to the
side burner table and side table
STEP 5 Install the firebox.
STEP 6 Install the tooling hook panels to the
side burner table and side table.
9

Assembly
— 7 —
GAS GRILL ASSEMBLY, USE AND CARE MANUAL GD4842S-AA
Install the right side table assy
Install the side burner assy
STEP 7 Install the right side table assy.
STEP 8 Install the side burner assy.
10

Assembly
— 8 —
GAS GRILL ASSEMBLY, USE AND CARE MANUAL GD4842S-AA

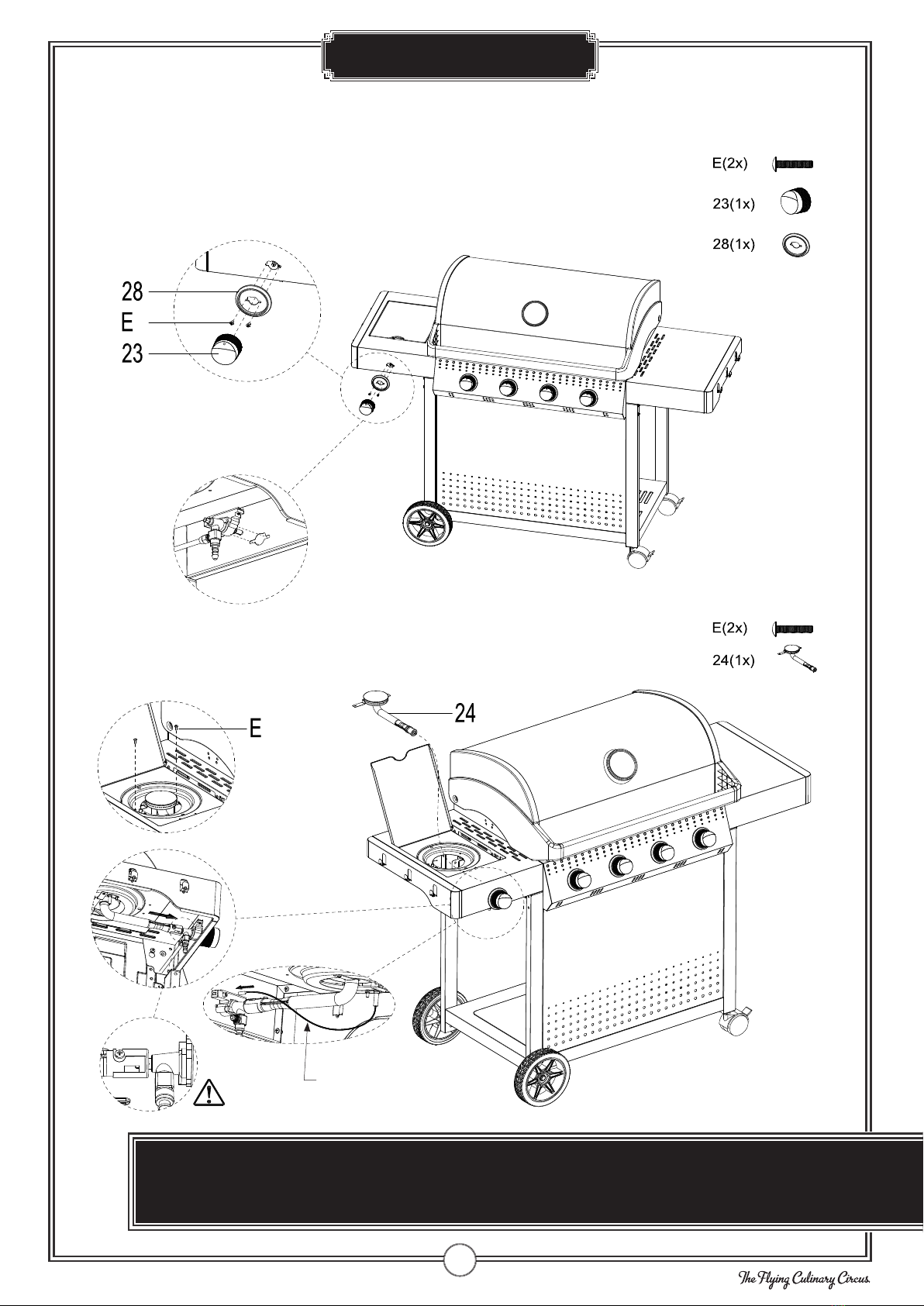

Assemble the valve and knob of
side burner
Assemble the side burner
STEP 9 Assemble the valve and knob of side burner..
Assembly
— 8 —
GAS GRILL ASSEMBLY, USE AND CARE MANUAL GD4842S-AA
Assemble the valve and knob of
side burner
Assemble the side burner
STEP 10 Assemble the side burner
NOTE: WHEN INSTALLING THE SIDE BURNER , THE SIDE BURNER
BODY MUST BE INSERTED CORRECTLY INTO THE BURNER. !
Ignition wire connection
11

Assembly
STEP 11 Place the grills / warmin rack / pot support.
STEP 12 Insert the drip tray and grease cup.
Place the matchstick holder assy.
12

Assembly
— 10 —
GAS GRILL ASSEMBLY, USE AND CARE MANUAL GD4842S-AA
Finish the BBQ's assembly
STEP 13 Finish the BBQ’s assembly.
13

Regulator and hose
Follow these instructions carefully to avoid
serious damage your barbecue and causing injury
to yourself and to property.
HOSE
•Connect the gas hose to the gas rail inlet on the left hand side of the
barbecue. Do not overtighten.
•Fit the regulator and the hose. Follow the assembly instructions
supplied with the regulator set.
•Do not use any sealing tape, paste or liquid on the connection.
•Gas hoses used for this product must not exceed 120 cm in length
•Check the gas hose regularly for cracks, damage and decay. Never
use a damaged gas hose.
REGULATOR
•Confirm all barbecue control knobs are OFF
•Connect the regulator to the gas bottle according to your regulator
and bottle dealer’s instructions.
•We recommend propane gas for use in the Nordic Region, but butane
can also be used.Butane is not very suitable for low temperatures.
•Check that the movable plastic collar on the regulator is intact and
that it has not been damaged by hot BBQ parts.
•Check that the gas bottle stands on a firm, flat surface and is lower
than the connector.
•Use an approved gas bottle that fits the regulator supplied. Bottles of
10 kg or above are recommended.
NEVER STORE THE GAS BOTTLE UNDER THE BBQ WHEN IN USE.
IF THE GAS BOTTLE IS BEING STORED UNDER THE BBQ WHEN NOT IN USE,
DISCONNECT THE REGULATOR.
NEVER MOVE THE BBQ WHILE IT IS IN USE, OR CONNECTED TO THE GAS BOTTLE.
!
14

Check for leaks
Before use please check for leaks
Never check for leaks with a naked flame, always
use a soapy water solution
1. Make a mixed solution (water and liquid detergent / soap).
2. Ensure that there are no naked flames, heat sources and cigarettes in
the vicinity when performing a leak test.
3. Check that the control valve on the BBQ is ”OFF”.
4. Connect the regulator to the cylinder and ON/OFF valve to the
burner, ensure the connections are secure then turn ON the gas.
5. Brush the soapy solution on to the hose and all joints. If bubbles
appear you have a leak, which must be rectified before use.
6. Retest after fixing the fault. Turn OFF the gas at the cylinder after
testing.
7. IF BUBBLES APPEAR, SWITCH OFF THE GAS SUPPLY AND REPAIR
THE PROBLEM. PERFORM A NEW LEAK TEST. DO NOT USE THE
BBQ BEFORE YOU ARE SURE THAT THERE ARE NO LEAKS.
8. If detected leakage cannot be rectified, do not attempt to cure
leakage but consult your gas dealer.
ALL JOINTS AND CONNECTIONS MUST BE LEAK TESTED BEFORE
USING THE BBQ. LEAK TEST ANNUALLY, AND WHENEVER
THE GAS BOTTLE IS REMOVED OR REPLACED. !
15

!
Lighting Instructions
IF BURNER FAILS TO IGNITE, TURN THE CONTROL KNOB AND THE CYLINDER
VALVE OFF (CLOCKWISE). WAIT FIVE MINUTES BEFORE ATTEMPTING TO
RELIGHT WITH IGNITION SEQUENCE. IF THE BBQ STILL WILL NOT LIGHT
USING NORMAL OR MANUAL LIGHTING, REFER TO THE TIPS SECTION IN THE
TROUBLESHOOTING MANUAL, OR CONTACT YOUR DEALER.
LIGHTING INSTRUCTIONS
1. The lid must be open when lighting the burner. Do not stand with your
face directly over the gas grill when lighting it. YWith all gas controls on
the gas grill in the “OFF” position, turn the gas cylinder valve to the ON
position at the regulator.
2. To create a spark you must push the control knob in and hold in this
position for 3-5 seconds to allow gas flow and then turn anticlockwise
to” HI”. It can spark to the burner lighting tube. You will hear a “snap”
from the igniter and you will also see a 3”-5” orange flame coming from
the burner lighting tube at the left side of the burner. Continue to hold
the burner control knob in for two seconds after the “snap”, this will
allow gas to flow completely down the burner tube and insure ignition.
3. When the burner is alight, adjacent burners will cross light when their
controls are turned to “HI”. At “HI” setting the burner flame should be
approximately 12-20mm long with a minimum of orange flame. Turn the
gas control fully anticlockwise for minimum setting.
4. Should you have any difficulty lighting your gas grill following the above
steps, contact your dealer for advice.
5. After completion of preheating, turn all burners to the low position for
best cooking results.
IGNITION OF SIDE BURNER
To get the maximum yield with the minimum consumption of gas it is handy
to keep the following points in mind:
1. Once the burner has been alighted, adjust the flame according to your
needs, from “Maximum” to “Minimum” position.
2. Use proper pan size (with flat bottom only) for each burner.
3. When the content of the pan start to boil, turn the knob down to
“Reduced rate position” (small flame).
4. Always put a lid on the pan.
!
16

Last Check
PLACEMENT OF THE BBQ
GOOD ADVICE
FINAL CHECK
• Ensure that the BBQ is placed at least 150cm in all directions from house walls,
trees, plants and other flammable materials or liquids when in use.
• Do not place the BBQ under a roof or overhang.
• Ensure the BBQ is placed where there is plenty of ventilation.
• Do not BBQ below normal ground level.
• Check that the control knobs work
normally.
• Check that the gas hose is free of
cracks and damage (it should always
be done before using the BBQ)
• Check that the gas bottle and hose
do not come into contact with hot
objects.
• A CLEAN BBQ WORKS BETTER,
causes less smoke and will last
longer.
• PREHEAT THE BBQ for 5 minutes
at full power prior to placing food
on the BBQ. This gives a better
result, and cuts BBQing time.
17

CLEANING
All cleaning and maintenance should be
carried out when the appliance is cool and
with the fuel supply turned OFF at the gas
cylinder after each time use.
DO NOT mistake brown or black
accumulation of grease and smoke for paint.
Interiors of gas BBQs are not painted at
the factory (and should NEVER be painted).
Apply a strong solution of detergent and
water or use a BBQ cleaner with scrub brush
on insides of BBQ lid and bottom. Rinse and
allow to completely air dry.
DO NOT apply a caustic BBQ / oven cleaner
to painted surfaces.
DO NOT use abrasive or flammable cleaners,
as it will damage the parts of the product and
may start a fire.
PLASTIC PARTS
Wash with warm soapy water and wipe dry.
BBQ BODY
Lack of maintenance / cleaning, can lead
to the BBQ rust. To keep the barbecues
beautiful and long lasting, it is recommended
to use mild detergents and hot water. Wipe
the surface with a non-abrasive wash cloth.
Acid-free oil is recommended to avoid rust.
COOKING GRIDS and flame tamer
Use a mild soapy water solution. Non-abrasive
scouring powder can be used on stubborn
stains, then rinse with water. Make sure the
cooking grids are well dried before storage.
INSECTS AND VERMIN
•After long-term storage, insects and other
vermin can be found in the BBQ. If you
experience problems with lighting or
irregular flames, it can be due to unwanted
guests blocking the gas supply.
•Remove the burners and clean these on
suspicion of pests in the grill. Reassemble
the burners when completely dry.
•Check regularly that the gas hose is not
damaged.
Keep the barbecue body and the accessories clean to avoid grease fire.
IN CASE OF GREASE FIRE
In case of grease fire, close the gas supply and
disconnect the controller and wait until the fire
goes out by itself.
FIRES CAUSE BY FAT, WILL DAMAGE
THE METAL. DAMAGE TO THE BBQ
CAUSED BY GREASE FIRES ARE NOT
COVERED BY THE WARRANTY AS IT
IS DUE TO INCORRECT USE.
NEVER USE WATER TO EXTINGUISH
A GREASE FIRE! CLEAN THE BBQ
REGULARLY TO AVOID GREASE FIRE
!
!
Maintenance
MAINTENANCE
•Check that the burners are burning
correctly regularly.
•Remove the BBQ grate and flame guards.
•Light the BBQ normally.
•Turn the controls from low to high, check
there is a difference in flame strength and
that the flames are blue, not orange. If
the burners act abnormally, refer to the
troubleshooting chapter.
•Remove any fat or deposits from previous
use with a BBQ brush.
Maintenance of burners
1. Turn gas off at control knobs and LP Tank.
2. Remove cooking grates and grease tray.
3. Remove screw at end of burner using a
screwdriver.
4. Carefully lift each burner up and away from
valve openings.
5. Wire brush entire outer surface of burner
to remove food residue and dirt.
6. Clean any blocked ports with a stiff wire
such as an open paper clip.
7. Check burner for damage, due to normal
wear and corrosion some holes may
become enlarged. If any large cracks or
holes are found replace burner.
8. Carefully refit burners.
9. Replace flametamer and cooking grid.
18

Troubleshooting
PROBLEM POSSIBLE CAUSE SOLUTION
BURNER WILL NOT
LIGHT
Gas bottle is empty Replace gas bottle
Damaged regulator Check/replace the regulator
Burner is blocked Clean the burner
Gas supply is blocked Clean gas ventury or hose
Electrode is broken or dirty Clean the electrode
Ignition knob is broken Contact your dealer
Windy conditions Place the BBQ in a less
exposed position
Ignition wire is damaged or
fitted incorrectly
Make sure wire is
mounted correct
Battery in ignitor box
is empty Change batteries
BURNER WILL
NOT LIGHT WHEN
PERFORMING MANUAL
LIGHTING
Empty gas bottle Replace gas bottle
Irregular gas supply Check/replace the regulator
The burner is blocked Clean the burner
Gas supply or hose
is blocked Clean gas ventury or hose
LOW FLAME OR
BACKFIRE
Gas bottle is too small 10 kg or larger bottle
is recommended
Burner is blocked Clean the burner
Gas supply or hose
is blocked Clean gas ventury or hose
Windy conditions Place the BBQ in a less
exposed position
TROUBLE TURNING THE
KNOBS Gas valve jammed
Replace gas valve.
NB! Knobs should be
pressed in and turned
HEAVY SMOKE Fatty foods on the BBQ Trim away excess fat from
meat. Clean the fat tray.
19

Consumer Contact
Always attach your receipt and product serial number when making a
warranty claim. Serial number is located on the side of the BBQ.
Produced in China for FCC Products Co., Ltd.
This product is covered by a warranty in accordance with consumer legislation. It has
undergone strict quality controls and testing at the factory. If there are any parts missing or
the product has been damaged, please contact your dealer or the consumer contact below for
help.
Faults due to misuse, lack of maintenance or modification of the product will invalidate the
warranty. Damaged parts not due to a fault with the product will be invoiced according to our
price list + carriage and administration fee.
If new parts are needed or in the event of a warranty claim, please contact your dealer or
consumer contact:
FCC PRODUCTS AS
KJELLER VEST 3, 2007 KJELLER, NORWAY
[phone]
[e-mail]
www.fccproducts.no
We are always looking for ways we can improve our products. Therefore, we reserve the right to change technical
specifications at any time. You will always find the latest manual on www.fccproducts.no.
20
