Federal Signal Corporation SIFMH Manual

Installation, Maintenance,
and Service Manual
25500676
Rev. A0 1020
Printed in U.S.A.
© Copyright 2020 Federal Signal Corporation
Models SIFMH, SIFMR (Discrete) and
Models SIFMJH,SIFMJR FSJoin™(Serial)
Rear ILS Light Bar

Limited Warranty
This product is subject to and covered by a limited warranty, a copy of which can
be found at www.fedsig.com/SSG-Warranty. A copy of this limited warranty can
also be obtained by written request to Federal Signal Corporation, 2645 Federal
Signal Drive, University Park, IL 60484, email to [email protected] or call +1 708-
534-3400.
This limited warranty is in lieu of all other warranties, express or implied, con-
tractual or statutory, including, but not limited to the warranty of merchantability,
warranty of tness for a particular purpose and any warranty against failure of its
essential purpose.
blank page
2645 Federal Signal Drive
University Park, Illinois 60484-3167
www.fedsig.com
Customer Support
Police/Fire-EMS: 800-264-3578 • [phone]
Work Truck: 800-824-0254 • [phone]
Technical Support 800-433-9132 • [phone]
All product names or trademarks are properties of their respective owners.

3
Installation, Maintenance, and Service Manual
Federal Signal www.fedsig.com
Contents
Safety Message to Installers and Service Personnel.......................................................................... 5
Safety Message to Operators of Warning Light Equipment............................................................... 7
Unpacking the Light Bar........................................................................................................................ 9
Introduction to the SIFM Series SpectraLux........................................................................................ 9
FSJoin.................................................................................................................................................................................9
Control Wires for the Serial Interface Module ................................................................................... 11
Control Wires for the Discrete-Wire SIFM ILS ................................................................................... 11
Programming the Discrete-Wire SIFM ILS ......................................................................................... 12
Testing the Serial SIFM ILS Controls.................................................................................................. 13
Wiring the SIFM ILS in the Vehicle...................................................................................................... 13
Maintaining the SIFM ILS..................................................................................................................... 14
Cleaning the Shrouds....................................................................................................................................................14
Cleaning the Reflectors ................................................................................................................................................14
Servicing the SIFM ILS......................................................................................................................... 15
Replacing a PCB ............................................................................................................................................................ 15
Getting Technical Support and Service.............................................................................................. 17
Getting Repair Service......................................................................................................................... 17
Ordering Replacement Parts............................................................................................................... 18
Figures

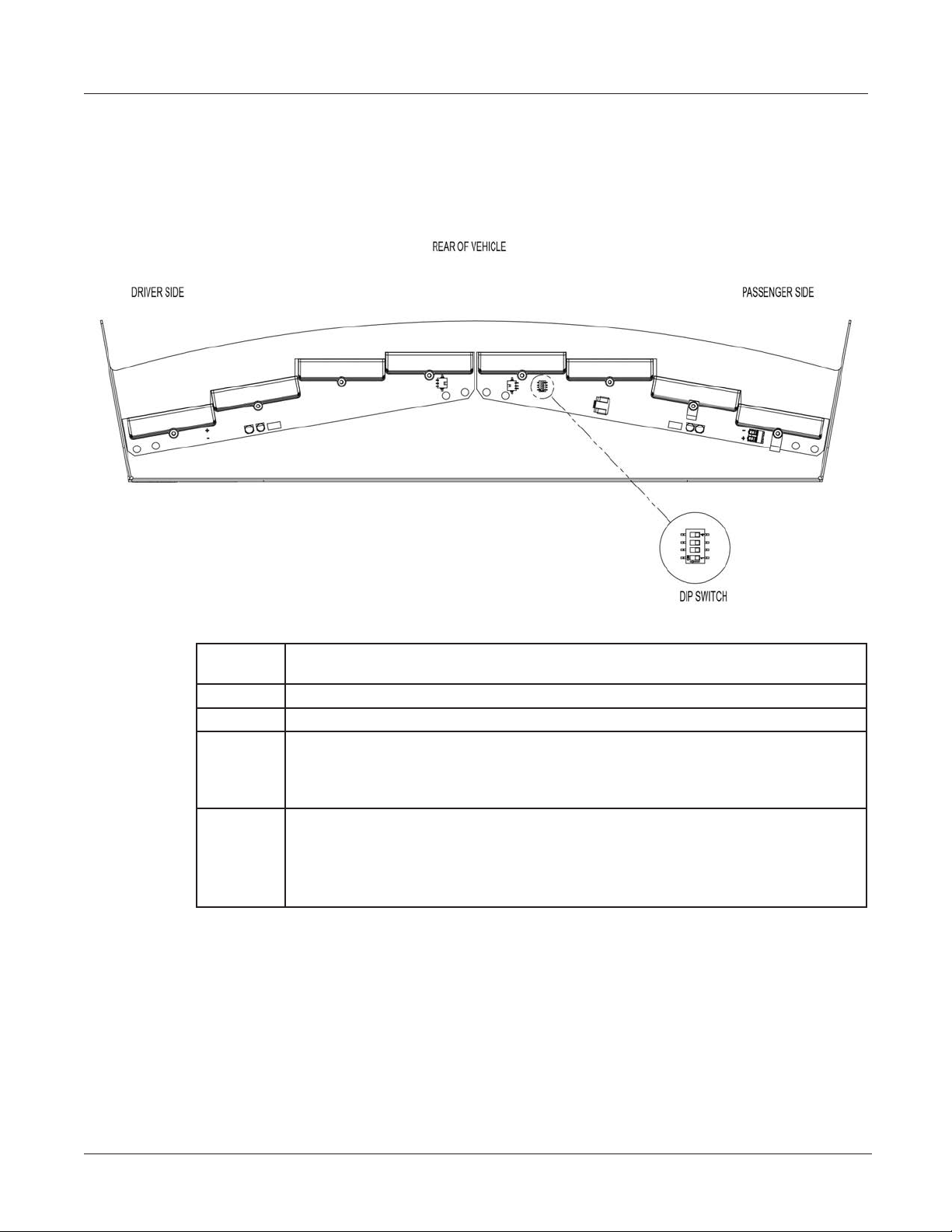

Figure 1 DIP switch locations the control boards of the serial controlled ILS.............................. 10
Figure 2 Discrete-wire control cable...................................................................................................11

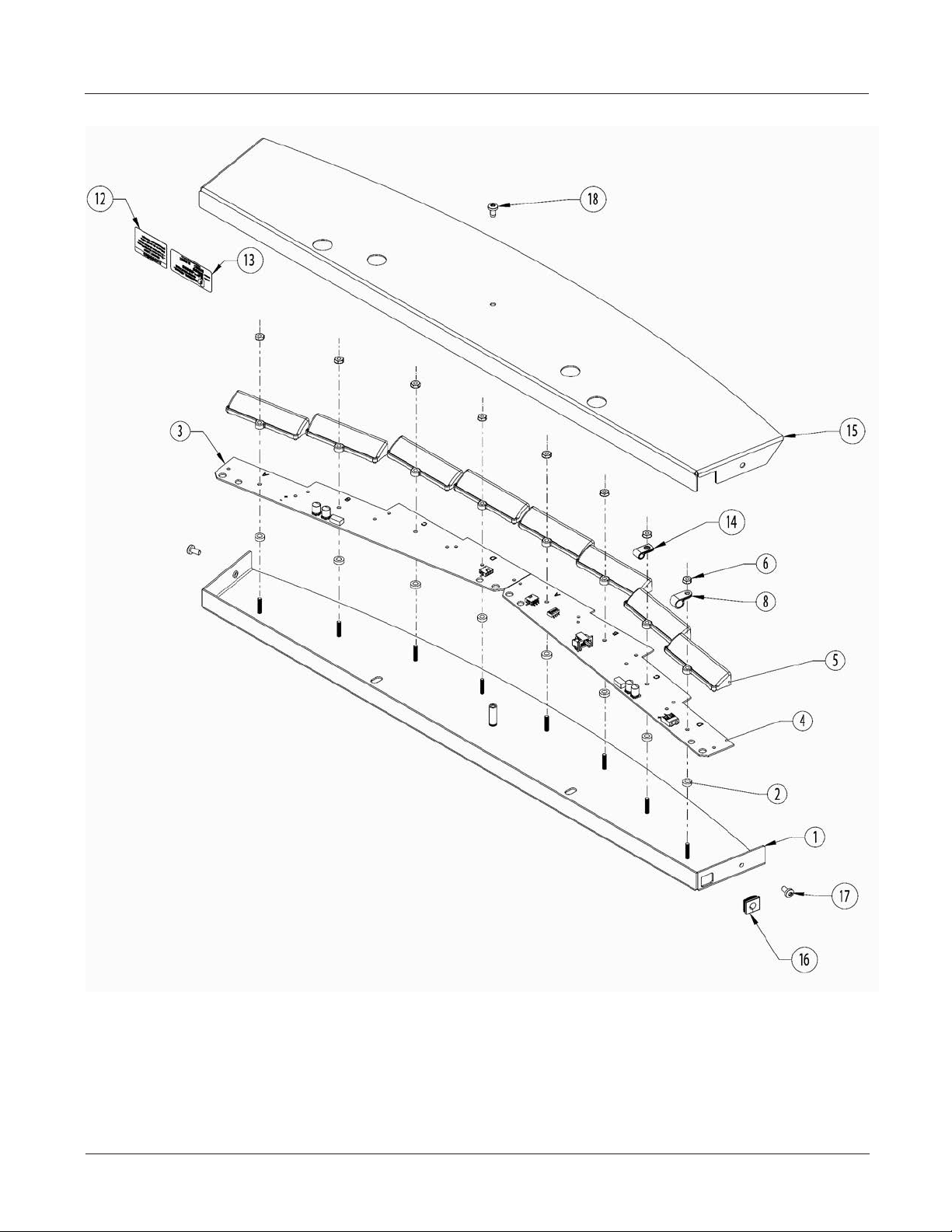

Figure 3 Exploded view of SIFMH ILS (vehicle-specic) ................................................................. 16
Figure 4 Rear SIFM shroud assembly ............................................................................................... 18

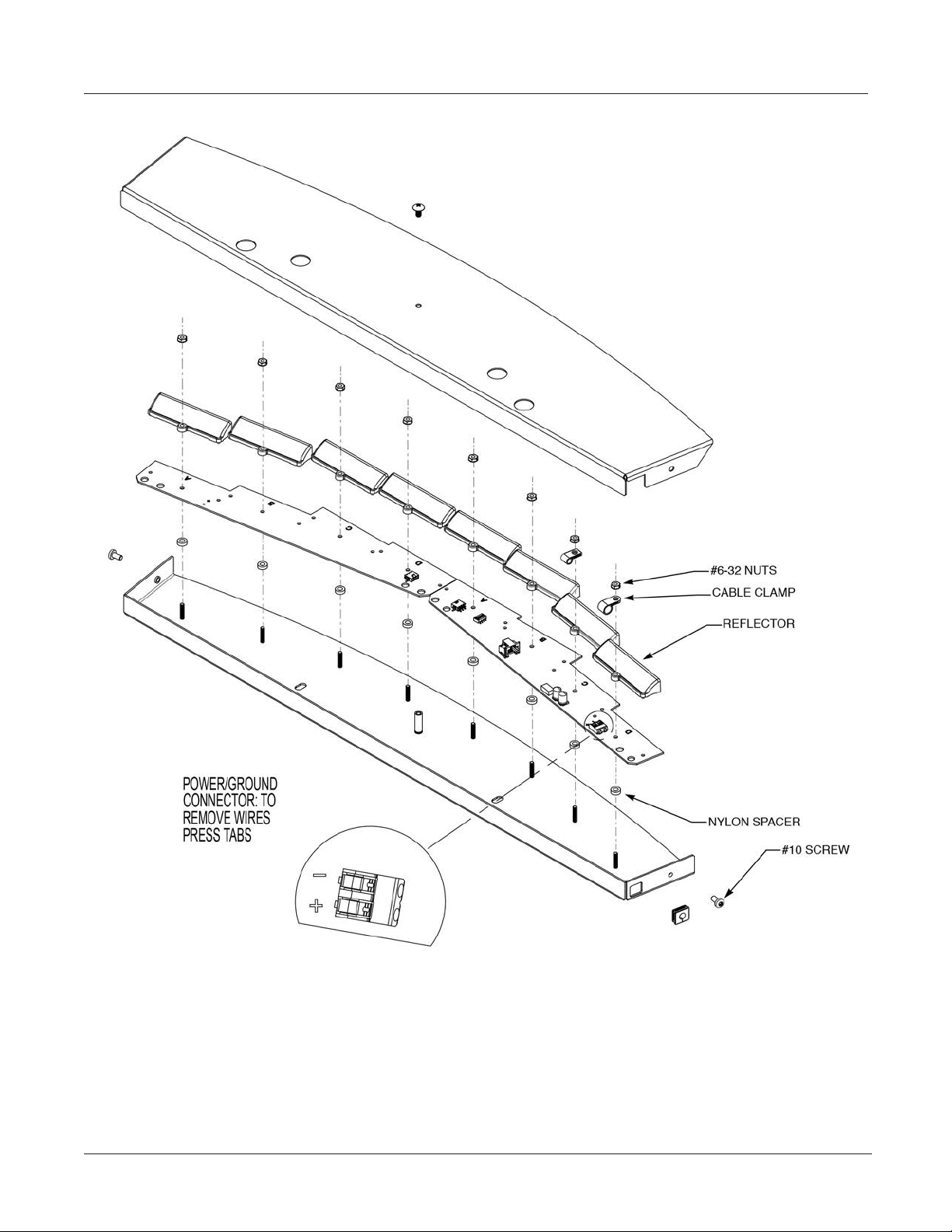

Figure 5 Exploded view of Rear SIFM................................................................................................ 19

4SIFMH, SIFMR (Discrete) and SIFMJH,SIFMJR FSJoin™(Serial) Rear ILS Light Bar
Federal Signal www.fedsig.com
Tables
Table 1 Switch settings on the control board of the serial-controlled ILS.................................... 10
Table 2 SIFM Rear light bar controls and wires from the Serial Interface Module ........................11
Table 3 Description of SIFM SpectraLux ILS control wires ............................................................ 12
Table 4 Discrete-Wire SIFM light bar controls ................................................................................. 12
Table 5 Replacement parts for Rear SIFM light bar (Figures 4 and 5)........................................... 18

5
Installation, Maintenance, and Service Manual
Federal Signal www.fedsig.com
Safety Message to Installers and Service Personnel
Safety Message to Installers and Service Personnel
People’s lives depend on your proper installation and servicing of Federal Signal
products. It is important to read and follow all instructions shipped with this product.
Listed below are some other important safety instructions and precautions you should
follow:
Before Installation or Service
Qualifications
• To properly install or service this equipment, you must have a good understanding of
automotive mechanical and electrical procedures and systems, along with proficiency
in the installation and service of safety warning equipment. Always refer to the
vehicle’s service manuals when performing equipment installations on a vehicle.
Light Hazards
• To be an eective warning device, this product produces bright light that can be
hazardous to your eyesight when viewed at a close range. Do not stare directly into
this lighting product at a close range, or permanent damage to your eyesight may
occur.
• Do not install the light system in an area that would block, impair, or blind the driver’s
vision. Ensure that the light system is mounted in a position that is outside of the
driver’s field of vision, so the driver can safely operate the vehicle.
• Federal Signal power supplies and light heads are designed to work together as
a system. Combining light heads and a power supply from dierent manufacturers
may reduce the warning eectiveness of the lighting system and may damage the
components. Verify or test your combination to ensure that the system works together
and meets federal, state, and local standards or guidelines.
Electrical Hazards
• Strobe systems present a shock hazard because they use high voltage to operate.
Do not handle strobe cables, the power supply, or bulbs or remove the lens while
the equipment is connected. Strobe systems can hold their charge even after they
have been turned o. After disconnecting power to the unit, wait five minutes before
handling any parts of the strobe system.
• A light system is a high current system. In order for the system to function properly,
a separate negative (–) connection and positive (+) connection must be made. All
negative connections should be connected to the negative battery terminal and a
suitable fuse should be installed on the positive battery terminal connection as close
to the battery as possible. Ensure that all wires and fuses are rated correctly to handle
the device and system amperage requirements.
• Never attempt to install aftermarket equipment that connects to the vehicle wiring
without reviewing a vehicle wiring diagram available from the vehicle manufacturer.
Ensure that your installation will not aect vehicle operation or mandated safety
functions or circuits. Always check the vehicle for proper operation after installation.

6SIFMH, SIFMR (Discrete) and SIFMJH,SIFMJR FSJoin™(Serial) Rear ILS Light Bar
Federal Signal www.fedsig.com
Safety Message to Installers and Service Personnel
• The lighting system components, especially light bulbs, strobe tubes, LEDs, and the
outer housing, get hot during operation. Disconnect power to the system and allow
the system to cool down before handling any components of the system.
• Do not mount a radio antenna within 18 inches (45.7 cm) of the lighting system.
Placing the antenna too close to the lighting system could cause the lighting system
to malfunction or be damaged by strong radio fields. Mounting the antenna too close
to the lighting system may also cause the radio noise emitted from the lighting system
to interfere with the reception of the radio transmitter and reduce radio reception.
• Do not attempt to wash any unsealed electrical device while it is connected to its
power source.
During Installation and Service
• DO NOT get metal shavings inside the product. Metal shavings in the product can
cause the system to fail. If drilling must be done near the unit, place an ESD-approved
cover over the unit. Inspect the unit after mounting to be sure there are no shavings
present in or near the unit.
• DO NOT connect this system to the vehicle battery until ALL other electrical connections
are made, mounting of all components is complete, and you have verified that no shorts
exist. If the wiring is shorted to the vehicle body or frame, high current conductors can
cause hazardous sparks resulting in electrical fires or flying molten metal.
• DO NOT install equipment or route wiring (or the plug in cord) in the deployment path
of an airbag.
• Before mounting any components, check the manual to enure that the component
you are installing is suitable for use in that area of the vehicle. Many components
are not suitable for use in the engine compartment or other extreme environmental
exposure areas.
• When drilling into a vehicle structure, ensure that both sides of the surface are clear
of anything that could be damaged. Remove all burrs from drilled holes. To prevent
electrical shorts, grommet all drilled holes through which wiring passes. Ensure that
the mounting screws do not cause electrical or mechanical damage to the vehicle.
• Refer to the manual packed with the lighting system for proper electrical connections,
additional precautions, and information.
• Because vehicle roof construction and driving conditions vary, do not drive a vehicle
with a magnetically mounted warning light installed. The light could fly o the vehicle,
causing injury or damage. Repair of damage incurred because of ignoring this
warning shall be the sole responsibility of the user.
• To avoid denting the roof of the vehicle, place the light bar mounting feet as close to
the outer edge of the roof as possible.
• Locate the light system controls so the VEHICLE and CONTROLS can be operated
safely under all driving conditions.

7
Installation, Maintenance, and Service Manual
Federal Signal www.fedsig.com
Safety Message to Operators of Warning Light Equipment
After Installation or Service
• After installation, test the light system to ensure that it is operating properly.
• Test all vehicle functions, including horn operation, vehicle safety functions, and
vehicle light systems, to ensure proper operation. Ensure that the installation has not
aected the vehicle operation or changed any vehicle safety function or circuit.
• Scratched or dull reflectors, mirrors, or lenses will reduce the eectiveness of the
lighting system. Avoid heavy pressure and use of caustic or petroleum based products
when cleaning the lighting system. Replace any optical components that may have
been scratched or crazed during system installation.
• Do not attempt to activate or deactivate the light system control while driving in a
hazardous situation.
• Frequently inspect the light system to ensure that it is operating properly and that it is
securely attached to the vehicle.
• After installation and testing are complete, provide a copy of these instructions to
instructional sta and all operating personnel.
• File these instructions in a safe place and refer to them when maintaining and/or
reinstalling the product.
Failure to follow all safety precautions and instructions may result in property damage,
serious injury, or death.
RETAIN AND REFER TO THIS MESSAGE
Safety Message to Operators of Warning Light Equipment
People’s lives depend on your safe use of our products. Listed below are some important
safety instructions and precautions you should follow:
• Do not attempt to activate or deactivate the light system control while driving in a
hazardous situation.
• Although your warning system is operating properly, it may not be completely
eective. People may not see or heed your warning signal. You must recognize this
fact and continue to drive cautiously.
• Situations may occur that obstruct your warning signal when natural and man-made
objects are between your vehicle and others, such as raising your hood or trunk lid. If
these situations occur, be especially careful.
• The eectiveness of an interior mounted warning light depends on the clarity, the
tinting, and the angle of the glass it is being placed behind. Tinting, dirt defects, and
steeply angled glass reduce the light output of the warning light. This may reduce the
eectiveness of the light as a warning signal. If your vehicle has dirty, tinted, or steeply
angled glass, use extra caution when driving your vehicle or blocking the right of way
with your vehicle.

8SIFMH, SIFMR (Discrete) and SIFMJH,SIFMJR FSJoin™(Serial) Rear ILS Light Bar
Federal Signal www.fedsig.com
All eective sirens and horns produce loud sounds that may cause, in certain situations,
permanent hearing loss. You and your passengers should consider taking appropriate
safety precautions, such as wearing hearing protection.
• In order to be an eective warning device, this product produces bright light that can be
hazardous to your eyesight when viewed at a close range. Do not stare directly into this
lighting product at a close range, or permanent damage to your eyesight may occur.
• It is important that you fully understand how to safely operate this warning system
before use.
• Operate your vehicle and its light/sound system in accordance with your department’s
Standard Operating Procedures.
• If a selected function does not perform properly or if any of the lamps remain illuminated
when the control is o, disconnect the power connector from the control unit and
contact the nearest service center.
• At the start of your shift, ensure that the entire warning light system and the siren
system are securely attached and operating properly.
• Suction cup mounting is for temporary applications only. The unit should be removed
from the window and stored securely when not in use. Temperature changes and
sunlight can cause suction cups to lose holding power. Periodically check the unit to
make sure the suction cups have a firm grip on the mounting surface. An improperly
secured light could fall o of the vehicle causing injury and damage.
• The holding power of magnetic mounting systems is dependent upon surface finish,
surface flatness, and thickness of the steel mounting surface. Therefore, to promote
proper magnetic mounting:
• Keep the mounting surface and magnets clean, dry, and free of foreign particles
that prevent good surface contact.
• Ensure that mounting surface is flat.
• DO not use a magnet mounting system on vehicles with vinyl tops.
• To prevent sliding of light assembly on mounting surface, avoid quick acceleration
and hard stops.
Failure to follow these precautions may result in property damage, serious injury,
or death.
RETAIN AND REFER TO THIS MESSAGE.

9
Installation, Maintenance, and Service Manual
Federal Signal www.fedsig.com
Introduction to the SIFM Series SpectraLux
Unpacking the Light Bar
After unpacking the ILS light assembly, inspect it for damage that may have occurred in
transit. If it has been damaged, do not install it. File a claim immediately with the carrier,
stating the extent of damage. Carefully check all envelopes, shipping labels, and tags
before removing or destroying them. Ensure that the parts listed in kit contents list are
included in the package. If you are missing any parts, contact Customer Support at
1-800-264-3578, 7 a.m. to 5 p.m., Monday through Friday (CT).
Introduction to the SIFM Series SpectraLux
The SIFM SpectraLux ILS is a center-focused, single-level LED light bar that mounts on
the inside of the rear window. It uses ROC (Reliable On Board Circuitry) technology, and
Solaris®S2 reflectors. Deck (SIFMR) and Hatch (SIFMH) models are available. The light bar
operates at a nominal input of 13.6 Vdc (11 Vdc minimum). Both Discrete (SIFMH,SIFMR)
and Serial (SIFMJH, SIFMJR FSJoin™) control are available as configured options
Discrete models have eight control inputs that connect to the user-supplied low current
switches. Serial models are controlled through the CAT5 serial communication cable. The
cable connects to Federal Signal Convergence network controllers, or the Convergence
Serial Interface Module (Part Number 858303641). With the Serial Interface Module, the
light bar can be activated by Federal Signal light bar controllers or individual low current
switches.
The backbone is a powder coated aluminum shroud. The light bar has 15-foot power and
ground cables and a 25-foot control cable. Mounting hardware is a configured option.
Refer to mounting instructions supplied with mounting hardware. The light bar has an
operating temperature range of –30°C to +65°C (–22°F to +149°F).
FSJoin
Spectralux SIFxJ ILS models with FSJoin allow flash patterns to synchronize with other
FSJoin compatible devices. You can program light bar patterns and features on an
individual light head basis with the Convergence Network Configuration Software.
Outputs or light heads set to the same flash rate automatically synchronize. You can
program a variety of system features with the Convergence Network Configuration
Software (available on the Federal Signal website at www.fedsig.com). Programming
requires an FSJoin compatible controller such as a Pathfinder®Siren/Light Controller.
Programming does not require disassembling or removing any hardware from the vehicle.

10 SIFMH, SIFMR (Discrete) and SIFMJH,SIFMJR FSJoin™(Serial) Rear ILS Light Bar
Federal Signal www.fedsig.com
Introduction to the SIFM Series SpectraLux
Selecting Conguration Options for the Serially-Controlled SIFM
The serial controlled ILS has three configuration options that are selectable with DIP
switches on the light bar control board. The options are described in Table 1.
Figure 1 DIP switch locations the control boards of the serial controlled ILS
Table 1 Switch settings on the control board of the serial-controlled ILS
DIP Switch
Position Function
1 Not used
2 Not used
3Activating a Front- or Rear-Mounted SIFM
• To activate a front-mounted SIFM: set Switch 3 OFF.
• To activate a rear-mounted SIFM: set Switch 3 ON.
4 Sets the ability to power the network cable for other devices. The default is OFF.
Switch 4 should only be set if the main power cables are turned on through an
ignition-activated relay. If powering other devices, such as the Six-Button Serial
Controller, set DIP Switch 4 to ON. For more information, see the instructions
included with the network-powered device.

11
Installation, Maintenance, and Service Manual
Federal Signal www.fedsig.com
Control Wires for the Discrete-Wire SIFM ILS
Control Wires for the Serial Interface Module
The serially controlled SIFM SpectraLux®ILS connects to a Federal Signal Convergence
Network Siren/Controller or to the Serial Interface Module. Table 2 shows the default
functions of control wires from the Serial Interface Module. The first color of wire is the
wire predominant color and additional colors are stripes. For programming options, see
the instructions included with the Interface Module or the Federal Signal Convergence
Network Siren/Controller.
Table 2 SIFM Rear light bar controls and wires from the Serial Interface Module
Light Bar Control Wire Color Description of Function
Mode 1 Blue Lowest priority
Mode 2 Blue/White Overrides Mode 1
Mode 3 Black/Red Overrides Modes 1 and 2
Rear Cuto󰀨 Orange/Black Turns OFF power to the Split Front ILS
Rear Enable Turns ON power to the Rear ILS
Intersection
(SW-2 Switch 3 in the
Serial Interface Module is
in the UP position)
Blue/Black Typically a high activity pattern. Overrides all three
priority modes. Scene Light, Left is unavailable.
Low Power White/Black/
Red
Dims the lights approximately 50 percent to
prevent blinding approaching drivers. Low Power
is available only in Modes 1 and 2 and is disabled
when switched to another ash pattern, including
Mode 3 and Intersection.
See Serial Interface Module Instructions for more information on programming.
Control Wires for the Discrete-Wire SIFM ILS
The SIFM SpectraLux ILS is controlled through an eight-conductor discrete wire cable
that connects to user-supplied, low current switches.
Figure 2 Discrete-wire control cable

12 SIFMH, SIFMR (Discrete) and SIFMJH,SIFMJR FSJoin™(Serial) Rear ILS Light Bar
Federal Signal www.fedsig.com
Programming the Discrete-Wire SIFM ILS
Table 3 Description of SIFM SpectraLux ILS control wires
Light Bar Control Wire Color Function
Mode 1 Flash Orange Lowest priority.
Mode 2 Flash Yellow Overrides Mode 1
Left SignalMaster Black Applying +12 Vdc provides left directional.
Overrides ashing lights. Apply 12 Vdc to both
Left and Right for Center out.
Right SignalMaster Light Blue Applying +12 Vdc provides right directional. Apply
12 Vdc to both Left and Right for Center out.
Dimming Light Brown Applying +12 Vdc dims the light bar 50 percent.
Cruise Red Cruise by applying +12 Vdc to the control wire.
Light Green N/A
Programming White Up to six operational settings can be selected
by applying +12 Vdc to the control wire for the
setting. See “Programming the Discrete-Wire
SIFM ILS” on page 12.
Programming the Discrete-Wire SIFM ILS
The white programming wire enables you to program the functions of the control wires. A
description of each function is listed in Table 4. Only one control wire can be modified at a
time. If more than one control wire is active, the programming wire is disabled.
To modify the function of a control wire:
1. Connect the black wire from the light bar to ground (–GND), then apply 12 Vdc (+BAT)
to the 16 AWG red wire and the wire you want to modify.
2. Cycle through functions by tapping the white programming wire from the light bar to
12 Vdc (+BAT).
3. To save the setting, let the function run for five seconds before removing power. The
available programming functions are listed in Table 4.
Table 4 Discrete-Wire SIFM light bar controls
Light Bar Programming Wire Color Programming Functions
Mode 1 Flash Orange 28 ash patterns, four cruise patterns, Mode 2
ash pattern overrides Mode 1.
Mode 2 Flash Yellow 28 ash patterns (dimming disabled)
Left SML Black N/A
Right SML Light Blue N/A
Dimming Light Brown N/A
Cruise Red Four cruise patterns
Light Green N/A
Programming White Hold the wire to 12 Vdc (+BAT) more than
ve seconds to reset all settings to the factory
defaults and also perform an LED scan.

13
Installation, Maintenance, and Service Manual
Federal Signal www.fedsig.com
Wiring the SIFM ILS in the Vehicle
Testing the Serial SIFM ILS Controls
LIGHT HAZARD: To be an eective warning device, an emergency warning system
produces bright light that can be hazardous to your eyesight when viewed at a
close range. Do not stare directly into this lighting product at a close range, or
permanent damage to your eyesight may occur.
NOTE: After the installation, check the entire system to be sure the lights are flashing
properly and all light systems are operating properly.
To test the light bar controls:
1. Connect the 16 AWG black lead from the light bar to the ground (–NEG) terminal of the
vehicle battery and the 16 AWG red lead to the positive terminal.
2. Connect the black and black/white wires from the Serial Interface Module to the
ground (–NEG) terminal of the vehicle battery.
3. Apply 12 Vdc to a control wire and to the ignition wire from the Serial Interface
Module.
4. After the installation, check the entire system to be sure the lights flash properly and
all light system functions operate properly.
Wiring the SIFM ILS in the Vehicle
INSTALLATION PRECAUTIONS: The warning system and/or two-way radio system
may operate improperly if a two-way radio antenna is installed on or within
18 inches of the light bar. Before permanently installing the light bar or a two-
way radio antenna, test the warning system and two-way radio system. Some
installations may require the relocation of the two-way radio antenna to the trunk
or fender. DO NOT drill holes in the light bar or install auxiliary devices on the light
bar, or the warning system may fail.
LOCATING OPERATOR CONTROLS: The controls for the light system must be
located so that the VEHICLE and CONTROLS can be operated safely under all
driving conditions.
REVERSE POLARITY/MISWIRING: Reverse polarity may damage the siren
amplier. To avoid damage to the siren/amplier, ensure that the battery voltage
is the same voltage as the rating of the light and that the correct polarity is
observed.
Before proceeding, ensure that the light bar has been installed inside the vehicle in
accordance with the instructions included with the mounting kit.

14 SIFMH, SIFMR (Discrete) and SIFMJH,SIFMJR FSJoin™(Serial) Rear ILS Light Bar
Federal Signal www.fedsig.com
Maintaining the SIFM ILS
To wire the light bar in the vehicle:
1. Ensure that the lines are adequately fused. From the light bar, route the CAT5 control
cable into the vehicle cab or trunk near the planned location of a control head that is
compatible with the light bar or Serial Interface Module.
2. Connect the 16 AWG black lead to the battery ground (–NEG) terminal.
3. Connect the 16 AWG red lead through the supplied 15 A fuse at the source to the
positive (+BAT) terminal.
Maintaining the SIFM ILS
PERIODICALLY CHECK THE GLASS: The eectiveness of the ILS light bar
depends on the clarity of the glass it is being placed behind. Dirt and defects in
the glass reduces the light output. The reliability of light for emergency signaling
purposes may be reduced if the glass is dirty, cracked, or not clear. Be sure to
periodically check the glass for cleanliness to ensure maximum light output of the
light bar.
Establishing a regular maintenance schedule for the ILS light bar extends its life and
ensures safety. Periodically check that the light bar operates properly and that all
mounting hardware is securely fastened to the vehicle. Also, inspect the reflectors for
cracks, crazing (hairline cracks), discoloration, and other defects.
Cleaning the Shrouds
To clean the shrouds:
1. Remove the light bar from the vehicle according to the vehicle-specific installation
instructions included with the ILS light bar.
2. Use a soft tissue to clean the shroud. If needed, you can use a solution of mild soap
and water, but take care not to get water on the PCBs.
3. When finished, make sure the light bar is completely dry before reinstalling it
according the vehicle-specific installation instructions.
Cleaning the Reectors
CRAZING HAZARD: Crazed, cracked, or faded domes or reectors reduce the light
output and the eectiveness of the lighting system. Tops or reectors showing
this type of aging must be replaced. Failure to follow this warning may result in
bodily injury or death to you or others.
CLEANING SOLUTION WARNING: The use of cleaning solutions, such as strong
detergents, solvents, and petroleum products, can cause crazing (cracking) of the
domes and reectors. Failure to follow this warning can damage the domes and
reectors and may result in bodily injury or death to you or others.

15
Installation, Maintenance, and Service Manual
Federal Signal www.fedsig.com
Servicing the SIFM ILS
To clean the reflectors:
1. Remove the light bar from the vehicle according to the vehicle-specific installation
instructions included with the SIFM ILS.
2. Use a soft tissue to clean the reflectors. If needed, you can use a solution of mild soap
and water, but take care to avoid getting the PCBs wet. Avoid heavy pressure and the
use of caustic, abrasive, or petroleum-based cleaners, which will scratch or dull the
reflectors.
3. When you are finished, make sure the light bar is completely dry before reinstalling it
according to the vehicle-specific instructions.
Servicing the SIFM ILS
This section has instructions for replacing the light bar PCBs and reflectors. For additional
service and support, call the Federal Signal Service Department at 800-433-9132, 7 a.m.
to 5 p.m., Monday through Friday (Central Time). For lists of common replacement parts,
see “Ordering Replacement Parts” on page 18.
Replacing a PCB
NOTE: After replacing an LED board an LED scan may be necessary. For the serially
controlled model, see Table 1 on page 10 for the DIP switch setting. For the
discrete-wire model, see “Programming the Discrete-Wire SIFM ILS” on page 12 for
information on cycling through the flash patterns using the white programming wire.
To replace a PCB:
1. Remove the light bar from the vehicle according to the vehicle-specific installation
instructions included with the SIFM ILS.
2. See Figure 3 on page 16. Remove the cover on SIFMH models.
3. Disconnect the cables. For the power/ground connector, press the tabs with a pen or
small screwdriver and remove the wires.
4. Remove the #6-32 nuts that hold down the cable clamps, reflectors, and PCB.
Lift o the parts and remove the PCB.
5. Reassemble the light bar. Twist the power and ground cables to ensure there are no
stray wires.

16 SIFMH, SIFMR (Discrete) and SIFMJH,SIFMJR FSJoin™(Serial) Rear ILS Light Bar
Federal Signal www.fedsig.com
Servicing the SIFM ILS
Figure 3 Exploded view of SIFMH ILS (vehicle-specic)

17
Installation, Maintenance, and Service Manual
Federal Signal www.fedsig.com
Getting Repair Service
Getting Technical Support and Service
For technical support and service, please contact:
Service Department
Federal Signal Corporation
Phone: [phone]
Fax: [phone]
Email: [email protected]
www.fedsig.com
Getting Repair Service
The Federal Signal factory provides technical assistance with any problems that cannot
be handled locally.
Any units returned to Federal Signal for service, inspection, or repair must be
accompanied by a Return Material Authorization (RMA). Obtain a RMA from a local
Distributor or Manufacturer’s Representative.
Provide a brief explanation of the service requested, or the nature of the malfunction.
Address all communications and shipments to the following:
Federal Signal Corporation
Service Department
2645 Federal Signal Drive
University Park, IL 60484-3167

18 SIFMH, SIFMR (Discrete) and SIFMJH,SIFMJR FSJoin™(Serial) Rear ILS Light Bar
Federal Signal www.fedsig.com
Ordering Replacement Parts
Ordering Replacement Parts
To order replacement parts, call the Federal Signal Service Department at 1-800-433-9132
or 1-708-534-3400, 7.. to 5 .., Monday through Friday (Central Time) or contact your
nearest distributor.
For the vehicle-specific part numbers, see the mounting instructions supplied with the
SIFM ILS.
For complete SIFM ILS systems, see the illustrations and parts lists starting on this page.
The figures are for reference only and are subject to change.

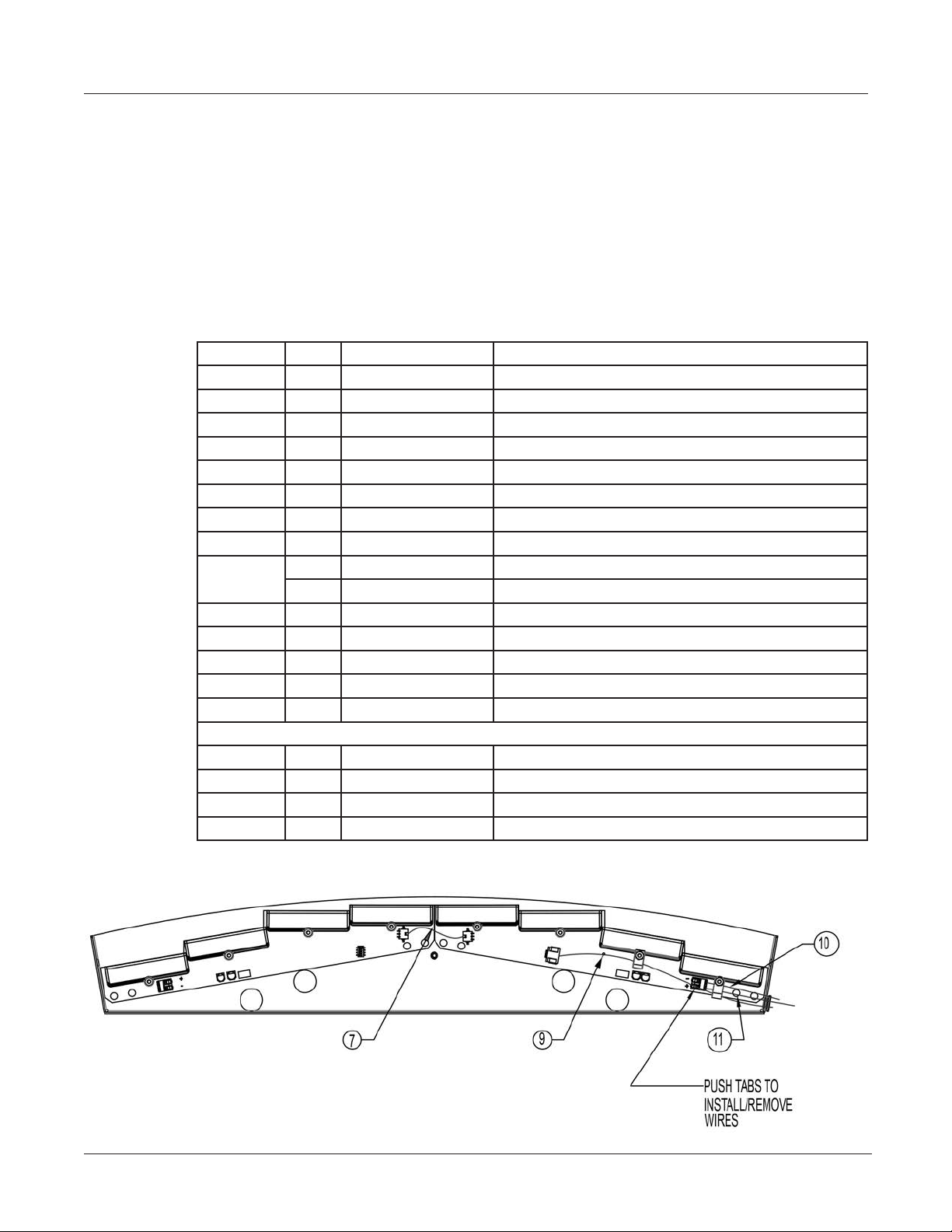

Table 5 Replacement parts for Rear SIFM light bar (Figures 4 and 5)
Item No. Qty. Part No. Description
1 1 8624xxxxx Shoud Assembly (congured)
2 8 77700356 Nylon Spacer
3 1 20000252-xxx Driver Side PCB Asssembly (congured)
4 1 20000258-xxx Passenger Side PCB Assembly (congured)
5 8 862400828 ZILS Wide Reector
6 8 7058A035 #6-32 Steel KEPS®Nut
7 1 17500009-05 SILS Board-to-Board Cable
8 1 77700488 5/16-inch Nylon Clamp (EXC UNIV)
9 1 1751357-02 25-foot CAT5 Cable (Serial)
1 17500274-300 SIFZ ILS DSC Cable(Discrete)
10 1 C300216-02-079 180-inch C-Wire (3/8-inch NT/3/8-inch NT)
11 1 C300216-10-102 180-inch (3/8-inch NT/3/8-inch NT)
12 1 1612358 Eye Damage Warning Label
13 1 81462266 ILS Nameplate
14 1 8240A072 3/16-inch Clamp Cord
Items Below are SIFMH Only
15 1 8624xxxxx SIFMH Hatch Cover (congured)
16 1 228140 Square Split Grommet
17 2 7011246A-06 #10 Type B Steel Pan Head Torx Screw
18 1 7011162-06 10-32 TT Black Pan Head 6-Lobe Screw
Figure 4 Rear SIFM shroud assembly

19
Installation, Maintenance, and Service Manual
Federal Signal www.fedsig.com
Ordering Replacement Parts
Figure 5 Exploded view of Rear SIFM

2645 Federal Signal Drive
University Park, Illinois 60484-3167
www.fedsig.com
Customer Support
Police/Fire-EMS: 800-264-3578 • [phone]
Work Truck: 800-824-0254 • [phone]
Technical Support 800-433-9132 • [phone]
