Fein 9-11-55 Assembly instructions

SERVICE
Toolserviceandmaintenancemustbeperformedonlybyqualified
repairpersonnel.
When servicing a tool, only use identical replacement parts available
from FEIN.
Repairs on FEIN Power Tools required the use of special tools (pulling devices
and bearing press). Authorized repair centers have trained repair technicians
andequipmentnecessaryto per-formthese repairs.Service orrepairs performed
by unqualified persons could result in operator injury.
For the location of the repair center near you, please call 1-800-441-9878.
Monday thru Friday, 9AM to 5PM EST. Or, look on our web site at
www.feinus.com and follow the link to “Authorized Warranty Repair Centers”
Phone: [phone] Fax: [phone] Toll Free: 1-800-441-9878
FEIN Power Tools
1030 Alcon Street
Pittsburgh, PA 15220
November 29, 2005
9-11-55

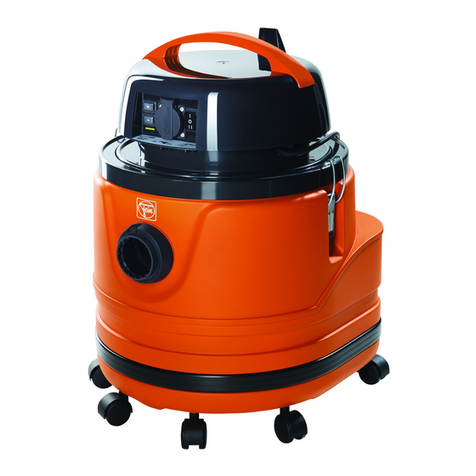

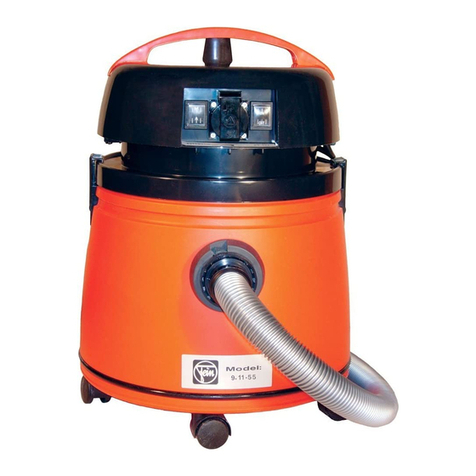

Turbo I Vac

Fein Power Tools
9-11-55 Parts List
Item Item Number Description Reqd
11 3-07-05-065-99-9 GROUNDED PLUG 1
12 901A11A89 SCREW 1
13 101035K00 CABLE CLAMP 1
16 901A19A89 SCREW 13
17 901D07AG87 WASHER 1
18 905217000 TERMINAL BLOCK 1
35 901A16A89 SCREW 7
42 905391000 CABLE 1
44 920056000 BUNGEE 1
53 521006K13 FACE PLATE 1
57 905278K15 RECEPTACLE COVER 1
73 905331R00 AUTO START SWITCH 1
107 905306000 SWITCH (ON/OFF) 1
111 905398K13 RECEPTACLE 1
112 905307A000 SWITCH (M/A)-WIDE 1
200 521049AK50 HANDLE 1
201 521049B50 COVER WITH HANDLE 1
202 920021B00 COVER GASKET 1
203 902033000 COVER SOUND PROOFING 1
205 521002K13 COVER BAFFLE 1
206 902048000 SIDE SOUND PROOFING 3
209 920042000 MOTOR GASKET 1
210 920039000 CHAMBER MOTOR GASKET 2
212 918M5602U MOTOR (110V) 1
213 905317G02 CARBON BRUSHES (2) 1
216 902036000 MOTOR SOUND PROOFING 1
217 521003K13 MOTOR COVER 1
218 902032A00 MOTOR FILTER 1
219 920038000 GASKET (110V) 1
220 521010K00 FLOAT 1
222 521007K13 FLOAT VALVE CAGE 1
252 521023W13 SWIVEL WHEELS 5
255 920060000 PLUG 1
279 521301A15 BUMPER 1
280 920065000 PLUG 1
285 523040J50 TANK 1
427 521016A13 HOSE RECEPTACLE 1
448 521017A13 LOCK LEVER 2
500 921049GN1 16' HOSE 1
501 921047K13 SLEEVE - VAC END 1
502 921048K13 SLEEVE - TOOL END 1
504 919067K13 CONNECTING RING 1
505 919066A13 RING - HOSE 1
