Fein Dustex 25L 9 20 27 User manual

© C. & E. FEIN GmbH. Printed in Romania. Abbildungen unverbindlich. Technische Änderungen vorbehalten. 3 41 01 211 06 0 BY 2014.02 DE.
EN 60335, EN 55014, EN 61000-3-2, EN 61000-3-3
2011/65/EU, 2006/95/EG, 2004/108/EG
FEIN Service
C. & E. FEIN GmbH
Hans-Fein-Straße 81
D-73529 Schwäbisch Gmünd-Bargau
www.fein.com
 Dustex 25L 9 20 27
 Dustex 35L 9 20 28
Hammersdorf
Quality
Manager
Dr. Schreiber
Manager
of R&D department
OBJ_DOKU-0000003708-002.fm Page 1 Thursday, February 27, 2014 7:57 AM

2

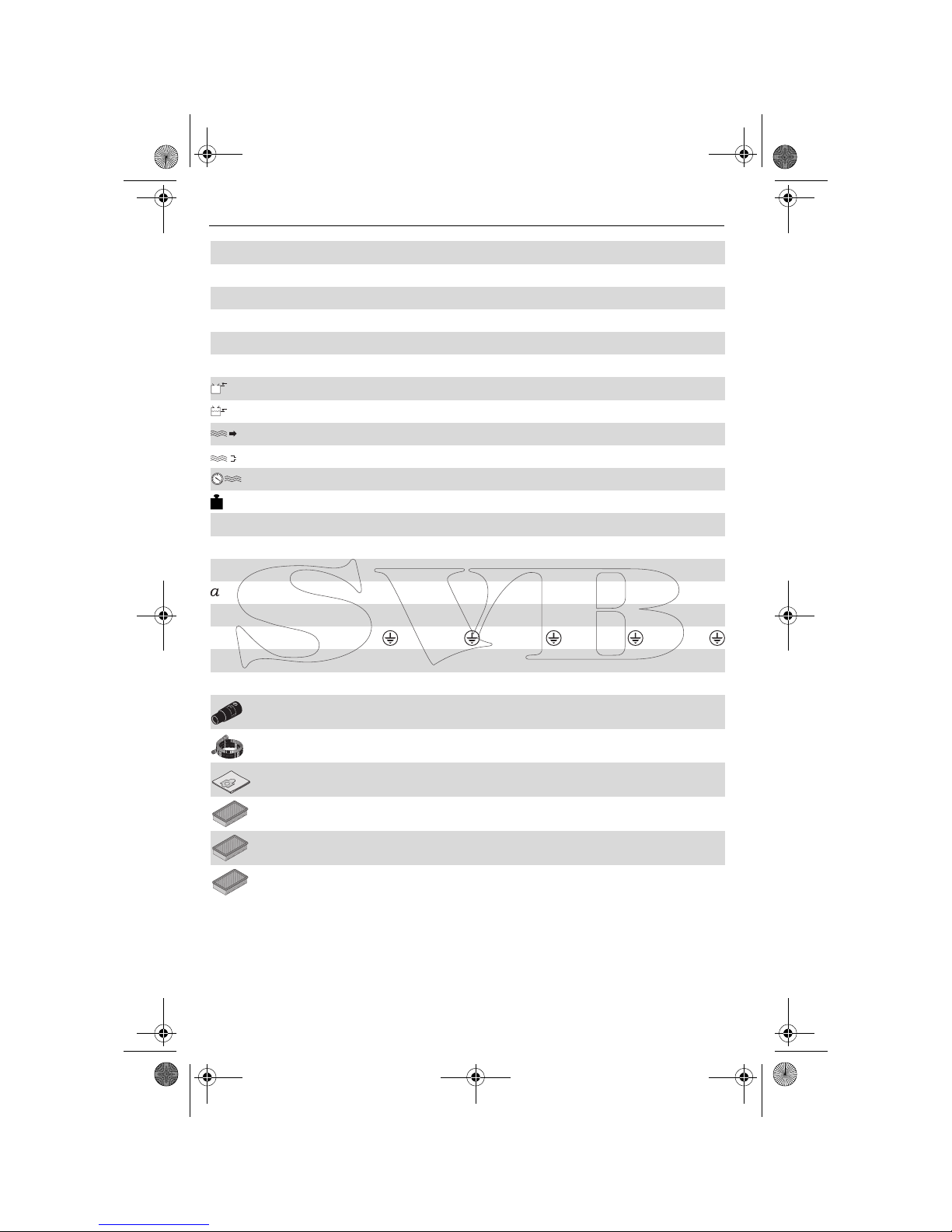

Dustex 25L 9 20 27 ...
... 211240 ... 223000 ... 223060 ... 223080 ... 223240
P
1
W1000 1200 1200 1200 1200
P
A
W 750 2200 1200 1100 1800
UV 110 220–240 240 220–240 220–240
fHz 50/60 50/60 50/60 50/60 50/60
l 22 22 22 22 22
l1313131313
l/s 30 33 33 33 33
l/s6872727272
hPa 213 253 253 253 253
kg 8,6 8,6 8,6 8,6 8,6
L
pA
dB 68 68 68 68 68
K
pA
dB22222
L
wA
dB 81 81 81 81 81
h
m/s2< 2,5 < 2,5 < 2,5 < 2,5 < 2,5
K
am/s20,2 0,2 0,2 0,2 0,2
IPX4 IPX4 IPX4 IPX4 IPX4
LxBxH
mm 440 x 380 x 471
3 13 45 078 01 0
3 13 45 066 01 0
3 13 45 061 01 0
CELLULOSE 3 13 45 012 01 0
PES 3 13 45 059 01 0
HEPA 3 13 45 060 01 0
OBJ_BUCH-0000000148-001.book Page 2 Tuesday, February 25, 2014 12:35 PM

3
Dustex 35L 9 20 28 ...
... 211240 ... 223000 ... 223060 ... 223080 ... 223240
P
1
W1000 1200 1200 1200 1200
P
A
W 750 2200 1200 1100 1800
UV 110 220–240 240 220–240 220–240
fHz 50/60 50/60 50/60 50/60 50/60
l 32 32 32 32 32
l2626262626
l/s 30 33 33 33 33
l/s6872727272
hPa 213 253 253 253 253
kg 9,6 9,6 9,6 9,6 9,6
L
pA
dB 68 68 68 68 68
K
pA
dB22222
L
wA
dB 81 81 81 81 81
h
m/s2< 2,5 < 2,5 < 2,5 < 2,5 < 2,5
K
am/s20,2 0,2 0,2 0,2 0,2
IPX4 IPX4 IPX4 IPX4 IPX4
LxBxH
mm 440 x 380 x 569
3 13 45 078 01 0
3 13 45 066 01 0
3 13 45 062 01 0
CELLULOSE 3 13 45 012 01 0
PES 3 13 45 059 01 0
HEPA 3 13 45 060 01 0
OBJ_BUCH-0000000148-001.book Page 3 Tuesday, February 25, 2014 12:35 PM

4
5
de
16
tr
107
et
203
en
24
hu
114
lt
210
fr
31
cs
123
lv
217
it
39
sk
130
zh(CM)
225
nl
47
pl
138
zh(CK)
231
es
54
ro
147
ko
237
pt
62
sl
155
th
244
el
70
sr
162
ja
250
da
79
hr
169
hi
258
no
86
ru
176
ar
272
sv
93
uk
186
fi
100
bg
194
OBJ_BUCH-0000000148-001.book Page 4 Tuesday, February 25, 2014 12:35 PM

5
15
14
13
8
6
910
8
8
7
9
10
8
7
12 13
11
OBJ_BUCH-0000000148-001.book Page 5 Tuesday, February 25, 2014 12:35 PM

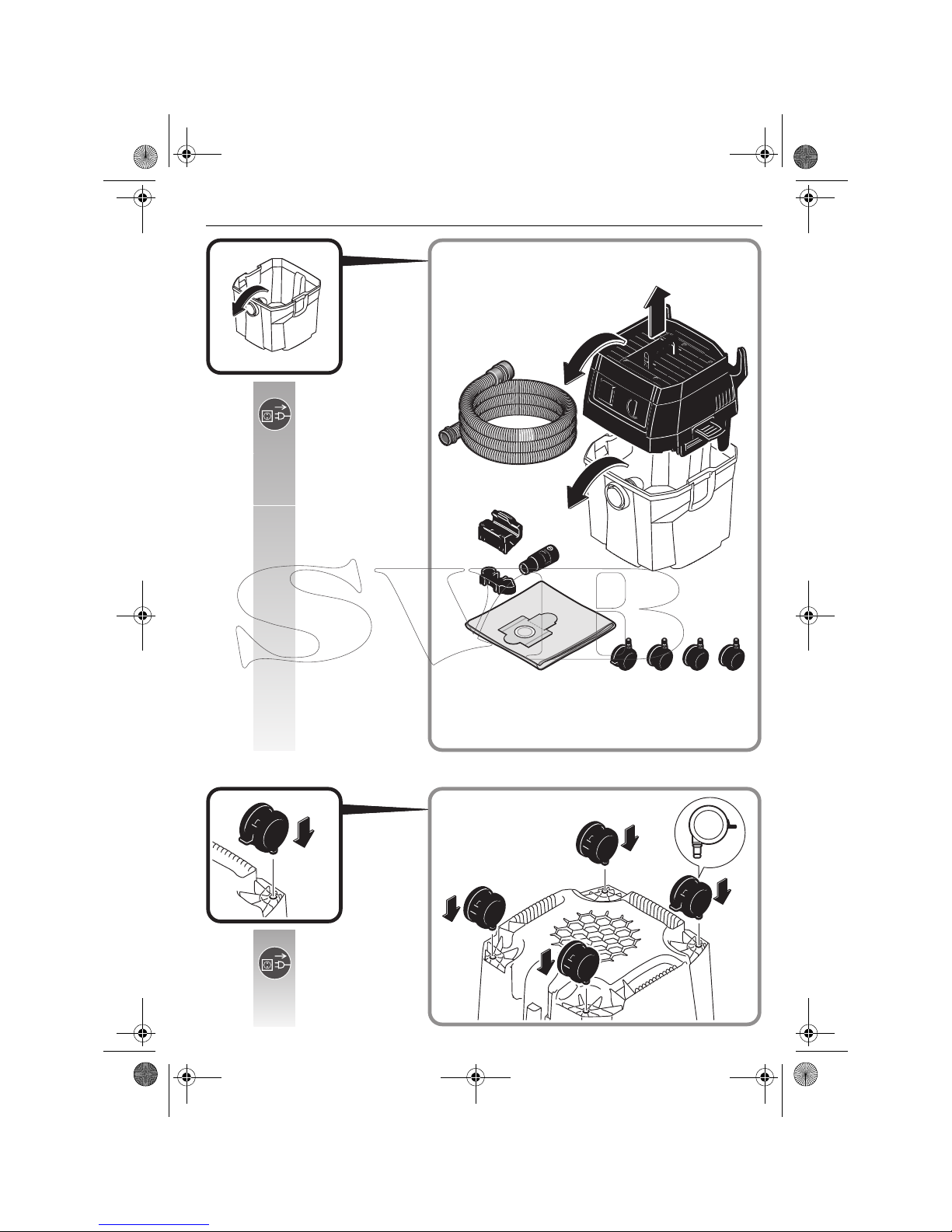

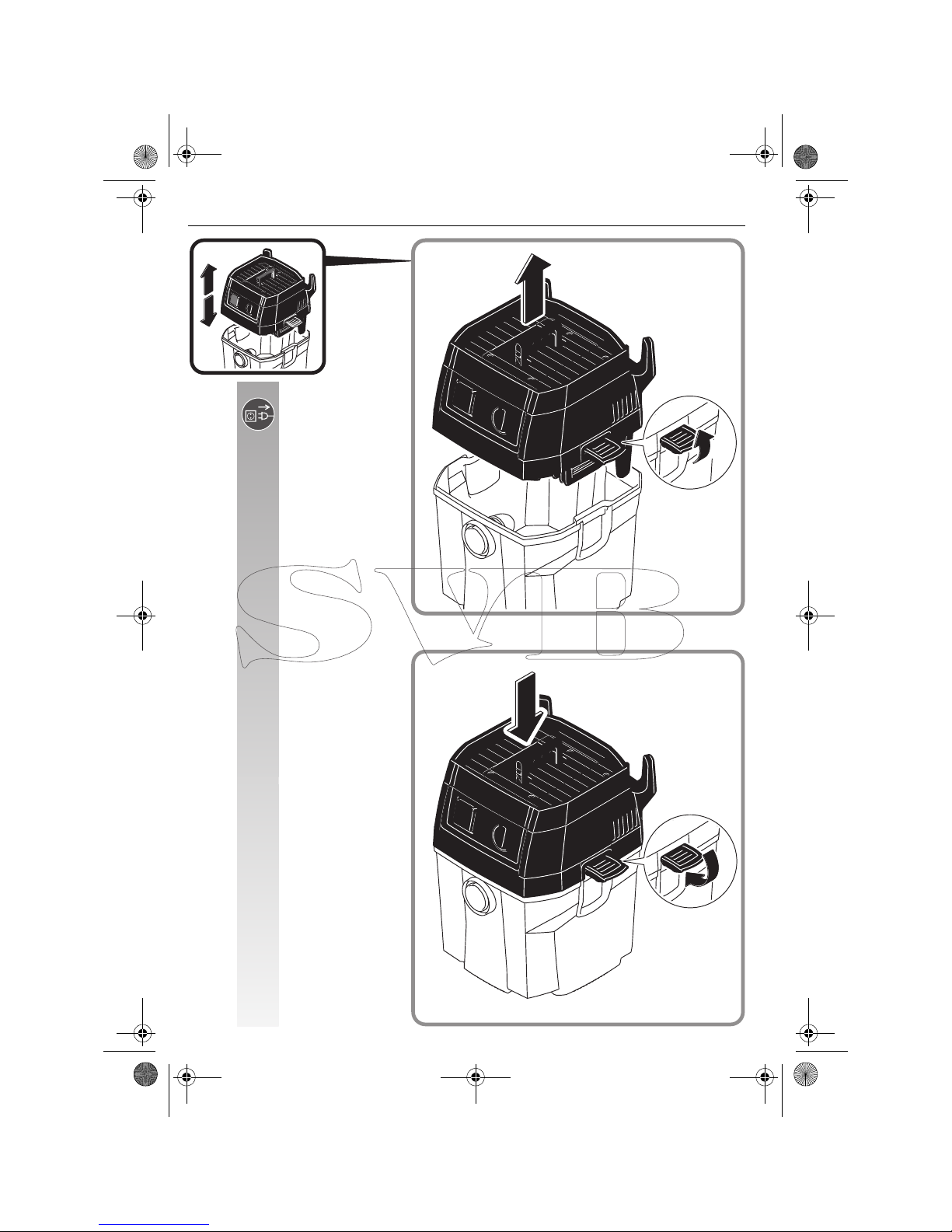

6
1.
2.
2.
1.
OBJ_BUCH-0000000148-001.book Page 6 Tuesday, February 25, 2014 12:35 PM

7
1.
3.
2.
1x
OBJ_BUCH-0000000148-001.book Page 7 Tuesday, February 25, 2014 12:35 PM

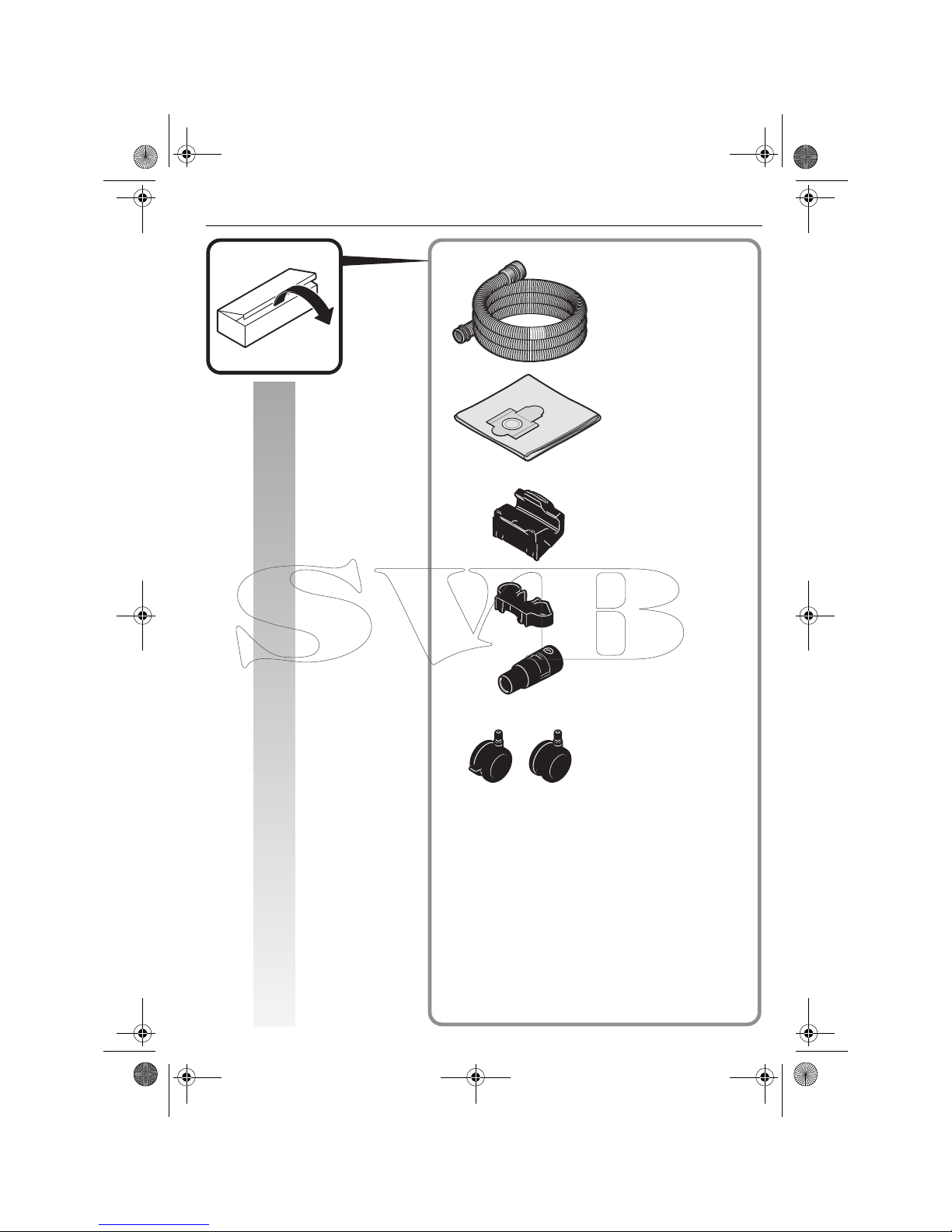

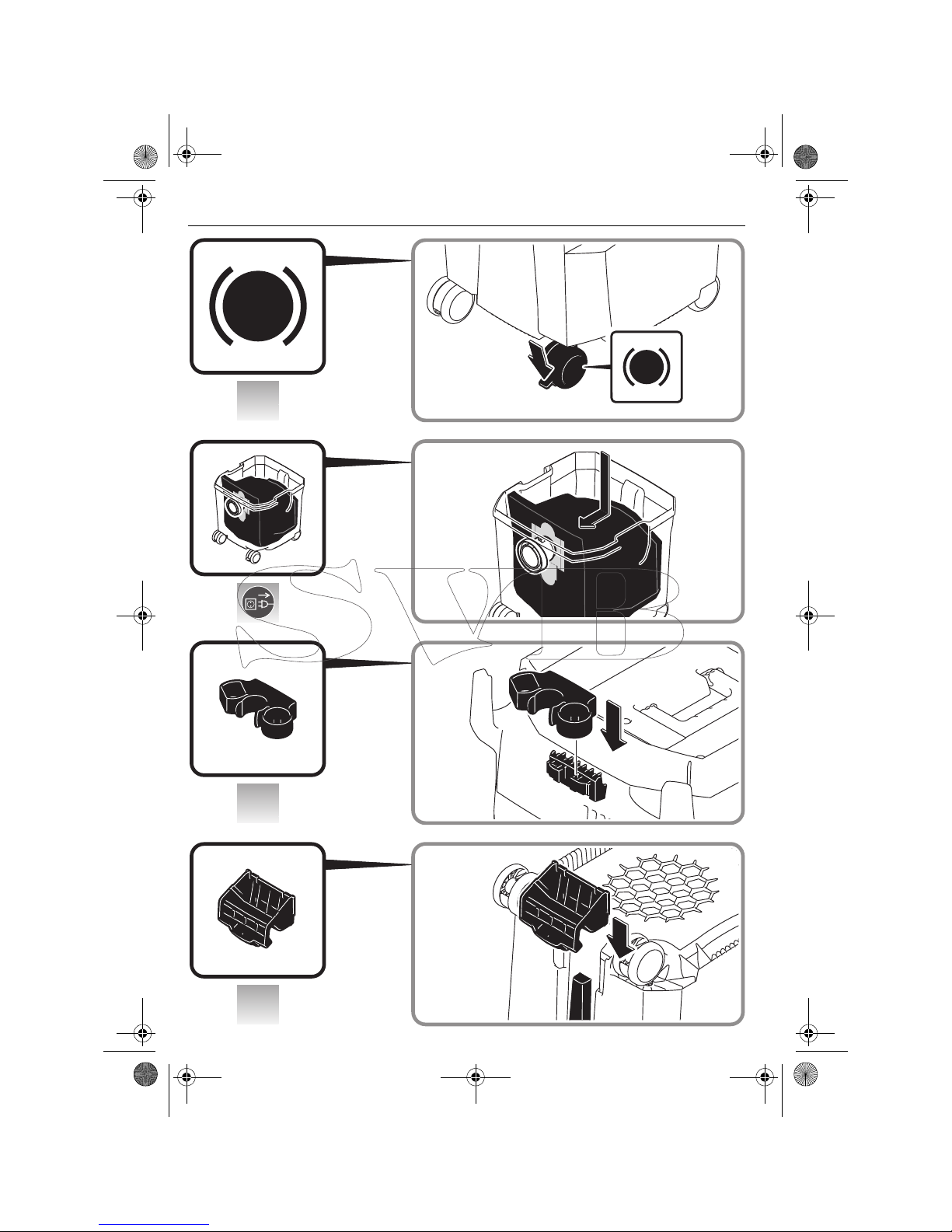

8
OBJ_BUCH-0000000148-001.book Page 8 Tuesday, February 25, 2014 12:35 PM

9
1. 1.
2.
2.
OBJ_BUCH-0000000148-001.book Page 9 Tuesday, February 25, 2014 12:35 PM

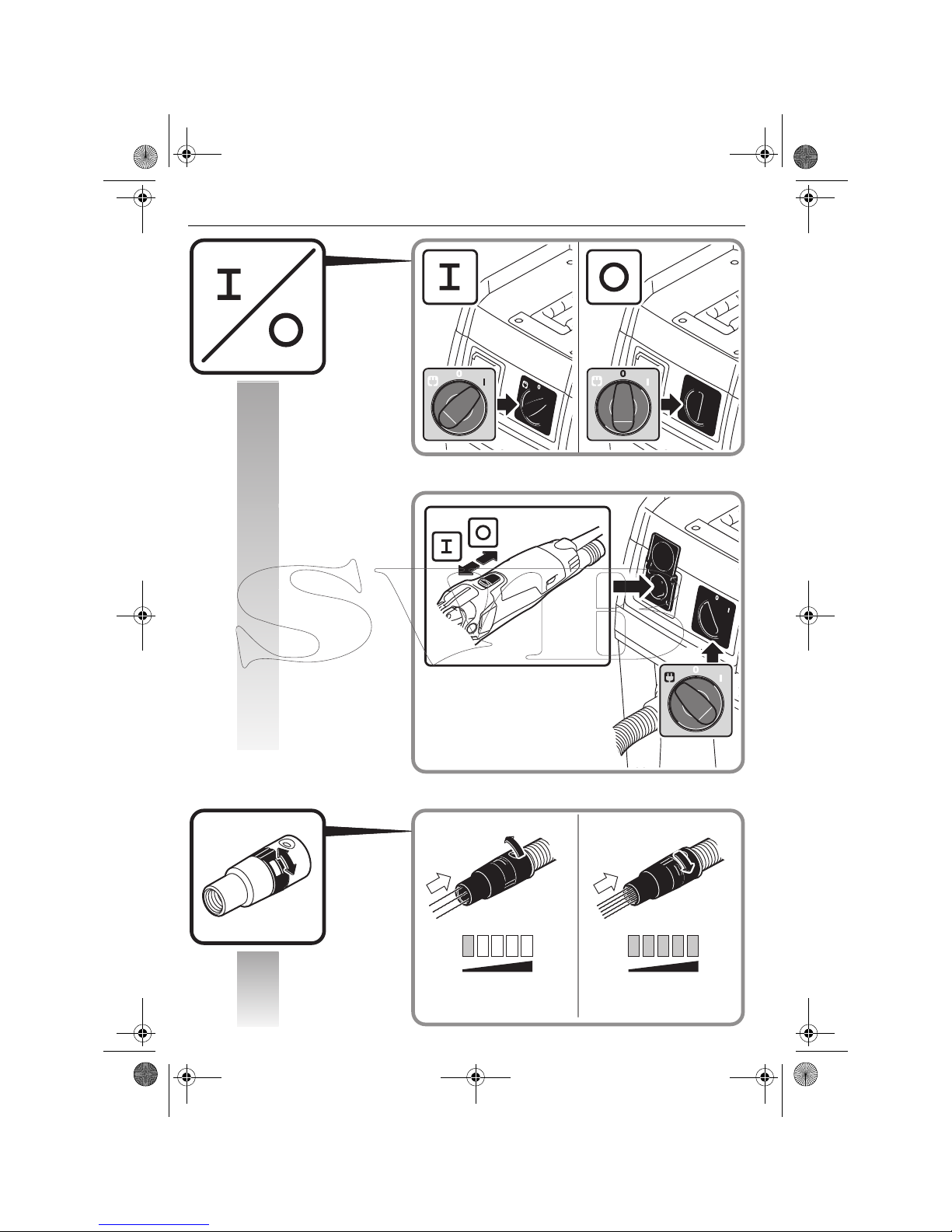

10
1.
2.
3.
4.
OBJ_BUCH-0000000148-001.book Page 10 Tuesday, February 25, 2014 12:35 PM

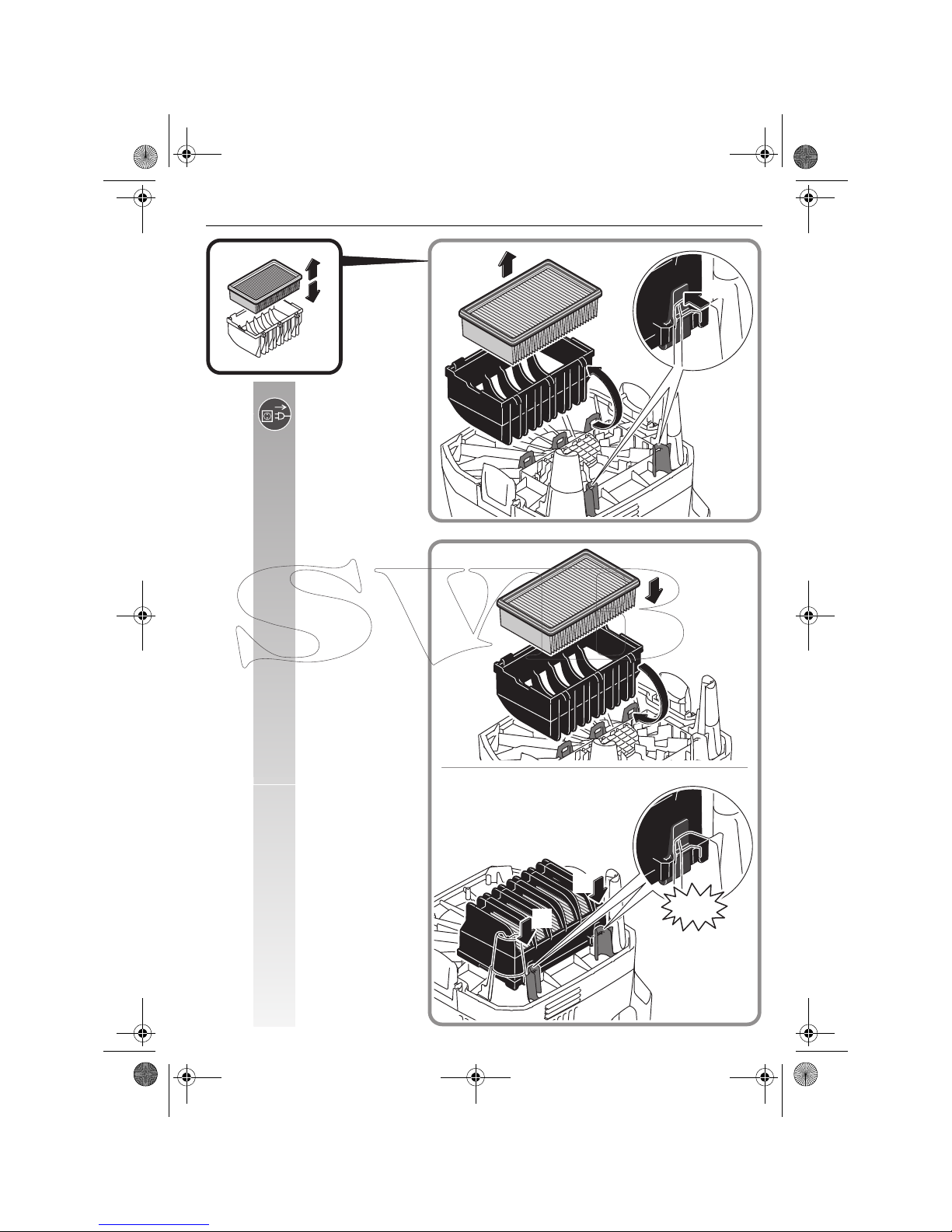

11
CLICK
1.
3.
2.
2.
1.
3.
3.
OBJ_BUCH-0000000148-001.book Page 11 Tuesday, February 25, 2014 12:35 PM

12
2.
1.
OBJ_BUCH-0000000148-001.book Page 12 Tuesday, February 25, 2014 12:35 PM

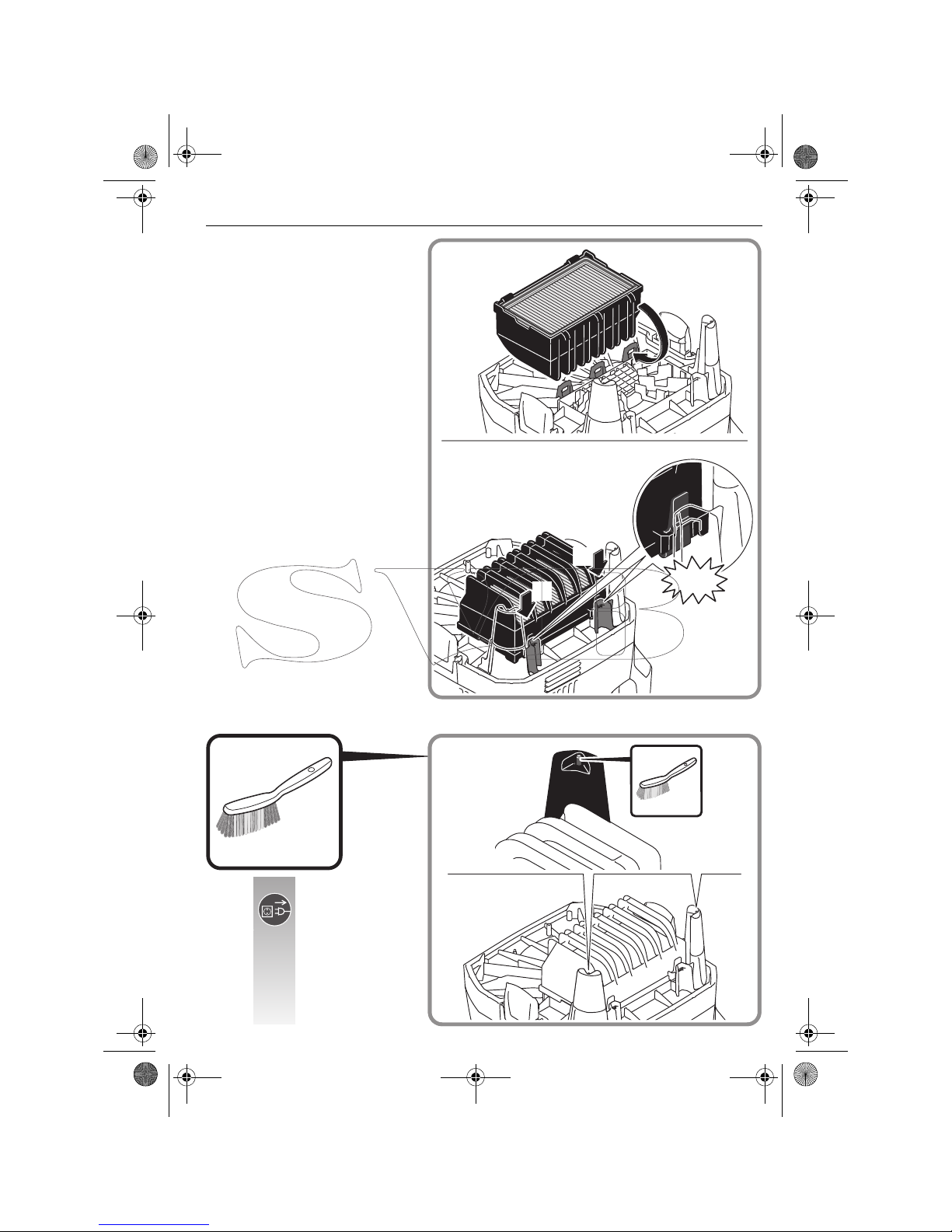

13
CLICK
1.
2.
2.
OBJ_BUCH-0000000148-001.book Page 13 Tuesday, February 25, 2014 12:35 PM

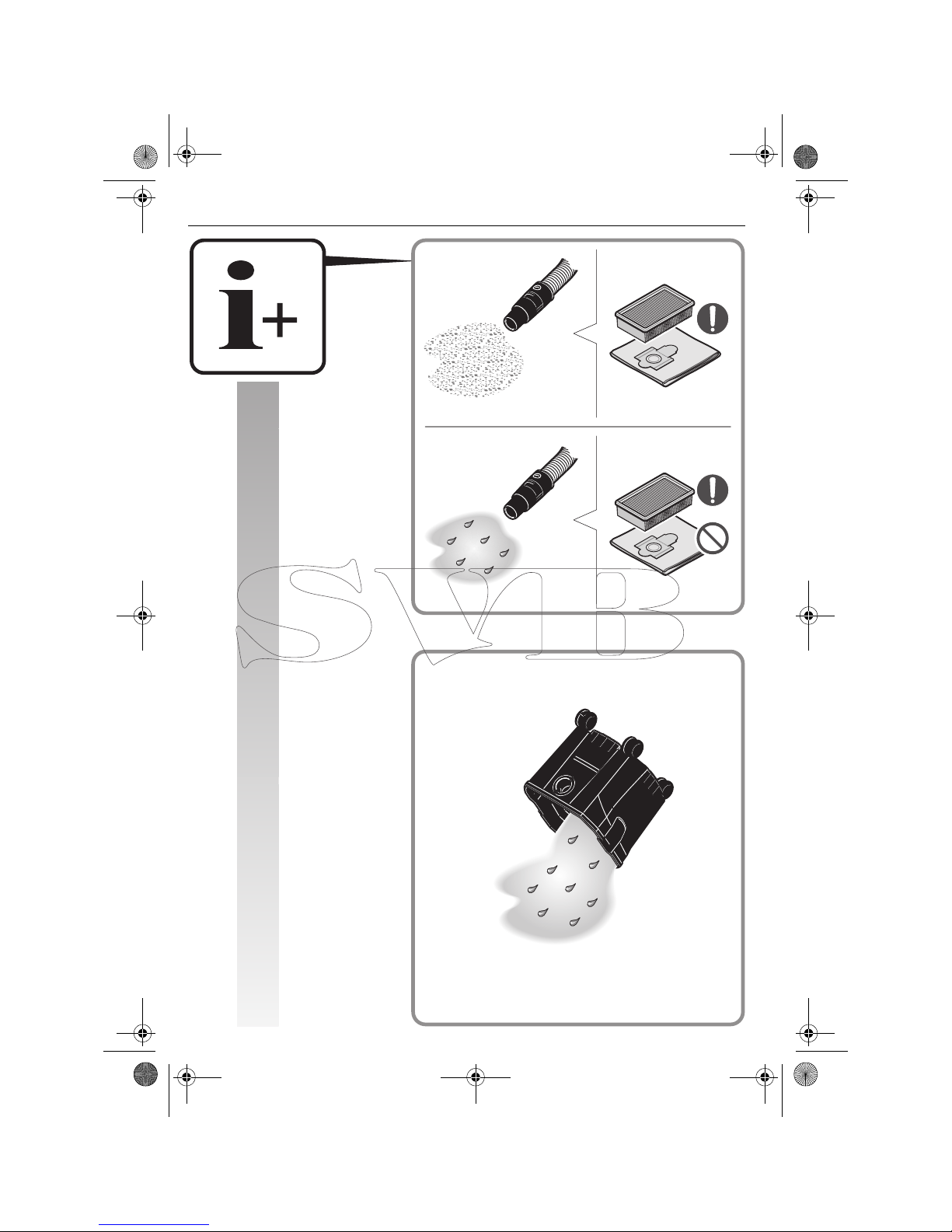

14
OBJ_BUCH-0000000148-001.book Page 14 Tuesday, February 25, 2014 12:35 PM

15
1x 3x
OBJ_BUCH-0000000148-001.book Page 15 Tuesday, February 25, 2014 12:35 PM

24 en
en
Original Instructions.

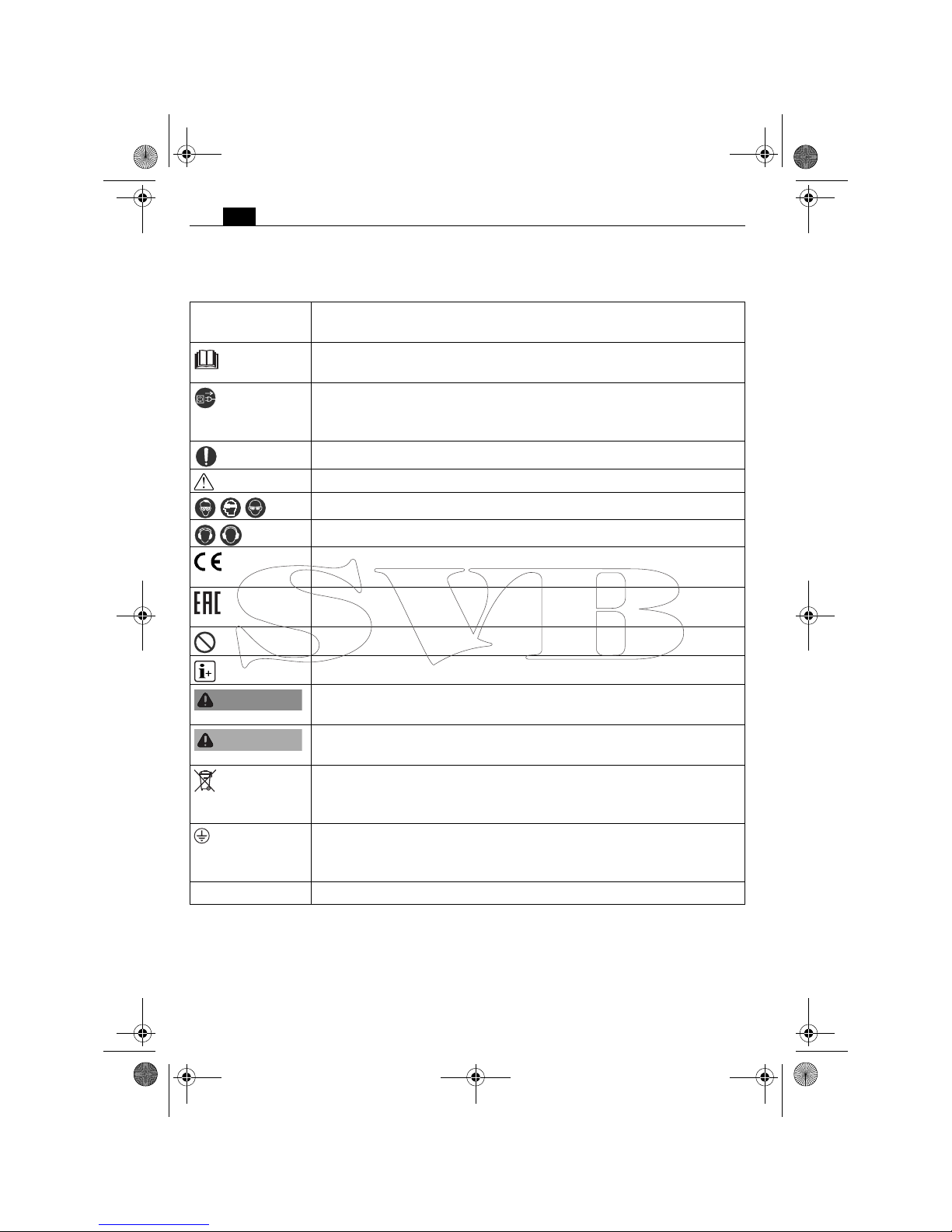

Symbols, abbreviations and terms used.
Symbol,
character Explanation
Make sure to read the enclosed documents such as the
Instruction Manual and the General Safety Instructions.
Before commencing this work step, pull the mains plug out
of the socket. Otherwise there will be danger of injury if the
power tool should start unintentionally.
Observe the instructions in the text or graphic opposite!
Observe the instructions in the text or graphic opposite!
Use eye protection during operation.
Use ear protection during operation.
Confirms the conformity of the power tool with the direc-
tives of the European Community.
Confirms the conformity of the power tool with the Guide-
lines of the European Customs Union.
General prohibition sign. This action is prohibited.
Additional information.
This sign indicates a possible dangerous situation that could
cause severe or fatal injury.
This sign warns of a possible dangerous situation that could
cause injury.
Worn out power tools and other electrotechnical and elec-
trical products should be sorted separately for environmen-
tal-friendly recycling.
Product with basic insulation plus additional insulation on
touchable, conductive parts connected to the protective
conductor.
IPX4 Protection class
WARNING
CAUTION
OBJ_BUCH-0000000148-001.book Page 24 Tuesday, February 25, 2014 12:35 PM

25
en
For your safety.
Read all safety warn-
ings and all instruc-
tions. Failure to follow the warnings
and instructions may result in electric
shock, fire and/or serious injury.
Save all warnings and instructions for
future reference.
Do not use this vacuum cleaner
before your have thoroughly read
and completely understood this
instructions manual and the enclosed
“safety warnings”. The documents
mentioned should be kept for later
use and enclosed with the vacuum
cleaner, should it be passed on or sold.
Character Unit of
measurement,
international
Unit of
measurement,
national
Explanation
P
1
W W Power input
P
A
W W Max. connected load of the
integrated socket outlet
UV V Rated voltage
fHz Hz Frequency
l l Container capacity
l l Capacity for liquids
l/s l/s Air flow with 4 m hose
Ø 35 mm
l/s l/s Air flow at fan
hPa hPa Vacuum
L x B x H mm mm Length x Width x Height
Ø mm mm Diameter of a round part
kg kg Weight
L
w
h-1 h-1 Air-exchange rate
L
pA
dB dB Sound pressure level
L
wA
dB dB Sound power level
K... Uncertainty
m/s2m/s2Vibrational emission value
according to EN 60745 (vec-
tor sum of three directions)
m, s, kg, A,
mm, V, W,
Hz, N, °C, dB,
min, m/s2
m, s, kg, A,
mm, V, W,
Hz, N, °C, dB,
min, m/s2
Basic and derived units of
measurement from the inter-
national system of units SI.
WARNING
OBJ_BUCH-0000000148-001.book Page 25 Tuesday, February 25, 2014 12:35 PM

26 en
Please also observe the relevant
national industrial safety regulations.
Intended use of the vacuum cleaner:
Wet/dry vacuum cleaner for vacuum-
ing and extraction of dry, non-hazard-
ous dusts of dust category L, minor
dust particles, particularly when carry-
ing out dust-forming work with a
power tool, and non-combustible liq-
uids, in weather-protected environ-
ments using the application tools and
accessories recommended by FEIN.
This vacuum cleaner is intended for
commercial use, such as in hotels,
schools, hospitals, factories, shops,
offices and rental businesses.
Only for EU countries:
Vacuum cleaners of dust category L
according to IEC/EN 60335-2-69 for
dry vacuuming of hazardous dusts
with an exposition limit value
> 1 mg/m3.
The vacuum cleaner contains materi-
als that are hazardous to one's health.
Have the emptying and maintenance,
incl. the disposal of dust-collection
containers, carried out only by spe-
cialists. Appropriate protective equip-
ment is required. Do not operate the
vacuum cleaner without the complete
filter system. Otherwise there is dan-
ger to your own health.
The vacuum cleaner contains materi-
als that are hazardous to one's health.
Have the emptying and maintenance,
incl. the disposal of dust-collection
containers, carried out only by spe-
cialists. Appropriate protective equip-
ment is required. Do not operate the
vacuum cleaner without the complete
filter system. Otherwise there is dan-
ger to your own health.
This vacuum cleaner is also suitable
for use with AC generators with suffi-
cient power output that correspond
the the Standards ISO 8528, design
type G2. This Standard is particularly
not complied with when the so-called
distortion factor exceeds 10 %.
When in doubt, please refer to the
generator instructions/specification
guide.
Special safety instructions.
This vacuum cleaner is not intended to
be used by persons (including chil-
dren) with limited physical, sensory or
mental capabilities, or lack of experi-
ence and/or knowledge, except if
being supervised by a person respon-
sible for their safety or having
received instructions from this person
on how to operate the vacuum
cleaner.
Supervise children. This will ensure
that they do not play with the vacuum
cleaner.
Cleaning and maintenance of the vac-
uum cleaner shall not be made by chil-
dren without supervision.
Operating personnel
must be appropri-
ately instructed in the use of this vac-
uum cleaner. Before usage, the
person operating the vacuum cleaner
must have been provided with infor-
mation, instructions and training on
using the vacuum cleaner and the
materials to be vacuumed, including
the safe procedure for disposal of vac-
uumed materials. The person operat-
WARNING
WARNING
OBJ_BUCH-0000000148-001.book Page 26 Tuesday, February 25, 2014 12:35 PM

27
en
ing the vacuum cleaner must observe
the relevant safety regulations for the
materials being vacuumed.
Wear personal protective equipment.
Depending on application, use face
shield, safety goggles or safety
glasses. Where appropriate, wear
dust mask, hearing protectors, gloves
and workshop apron capable of stop-
ping small abrasive or workpiece
fragments. The eye protection must
be capable of stopping flying debris
generated by various operations. The
dust mask or respirator must be capa-
ble of filtrating particles generated by
your operation. Prolonged exposure
to high intensity noise may cause
hearing loss.
Operate the vacuum cleaner only from
socket outlets with earthing contact
that are according to regulations. Use
only undamaged supply cords and
regularly checked extension cords
with earthing contact. A protective
conductor without continuity can lead
to electric shock.
When wet vacuuming, operate the
vacuum cleaner only when the con-
tainer is level. Otherwise there is
danger of electric shock from water
penetrating into the vacuum cleaner
motor.
Do not misuse the power supply cord
to pull the vacuum cleaner around or
pull the mains plug from the socket
outlet. Keep the power supply cord
away from heat, oil sharp edges, or
moving parts. Do not drive over or
pinch the power supply cord. Dam-
aged or entangled power supply cords
increase the risk of an electric shock.
Before replacing accessories, pull the
mains plug from the socket outlet.
This safety measure reduces the risk
of electric shock.
Do not vacuum materials that are haz-
ardous to one's health, e. g., dust from
beech or oak wood, masonry dust,
asbestos. These materials are consid-
ered carcinogenic.
Provide for good ventilation of the
workplace.
Do not vacuum inflammable or explo-
sive fluids; for example, benzene, oil,
alcohol, solvents. Do not vacuum hot
or inflammable dusts. Do not operate
the vacuum cleaner in rooms where
the danger of an explosion exists. The
dusts, vapours or fluids can ignite or
explode.
Do not rivet or screw any name-plates
or designs to the vacuum cleaner. If
the insulation is damaged, protection
against an electric shock will be inef-
fective. Adhesive labels are recom-
mended.
Do not use accessories not specifi-
cally intended or recommended for
this vacuum cleaner. Just because the
accessory can be attached to your vac-
uum cleaner, it does not assure safe
operation.
Before starting operation (see page
6–9), check the power supply cord
and the mains plug for damage.
Use the vacuum
cleaner's socket out-
let only for connection of an external
power tool. The vacuum cleaner is
automatically switched on and off via
the connected power tool.
WARNING
OBJ_BUCH-0000000148-001.book Page 27 Tuesday, February 25, 2014 12:35 PM

28 en
The connected load of the power tool
may not exceed the maximum con-
nected load PAof the vacuum
cleaner’s socket outlet.
Please also observe the operating
instructions and safety warnings of
the power tool being connected to the
socket outlet of the vacuum cleaner.
Recommendation: Always operate the
vacuum cleaner via a residual current
device (RCD) with a rated residual
current of 30 mA or less.
The vacuum cleaner may only be
stored indoors.
Operating Instructions.
Operation, see page 10.

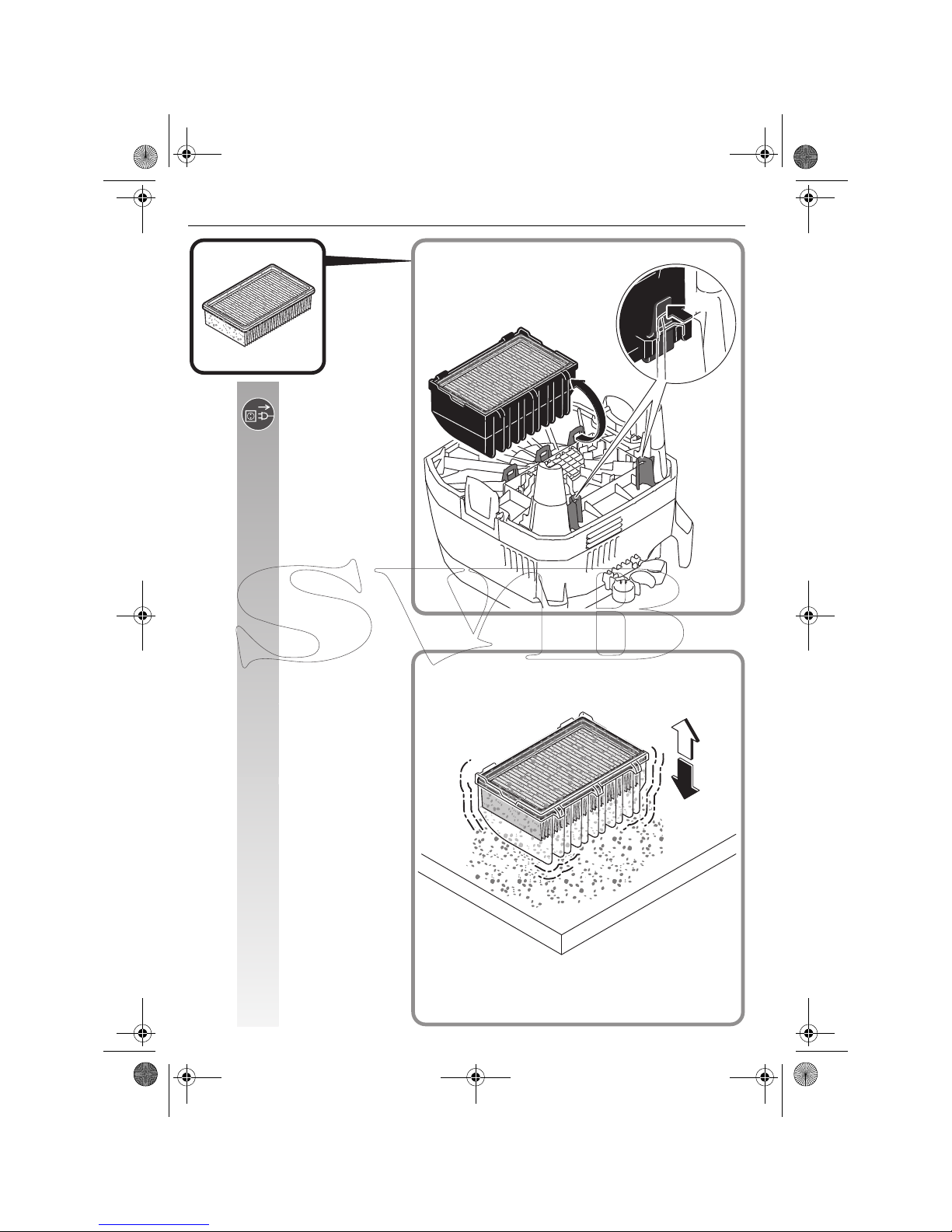

Filter replacement and filter cleaning,
see page 11–13/ 30 section “Fault
Finding.”
Never vacuum with-
out the flat-fold filter,
as otherwise the motor will be dam-
aged and a health hazard will occur
through increased exposure of fine
dust. When vacuuming fine dust, a
fleece filter bag must be used addi-
tionally.
An adequate ventilation rate L must
be provided for when the outgoing air
is circulated. The circulated airflow
must not exceed 50 % (max.) of the
fresh air volume (room volume x ven-
tilation rate Lw). The following applies
without special ventilation measures:
Lw=1h
-1.
When inserting the fleece filter bag,
pay attention that the closing cover
and the fleece bag face completely
against the interior side of the con-
tainer.
After removing the fleece filter bag,
seal it with the closing cover in order
to avoid debris.
For vacuuming dusts of dust cate-
gory L, only dry flat-fold filters,
which have not been moist or wet,
are permitted to be used.
Before switching from wet to dry
vacuuming, allow the flat-fold fil-
ter to dry or replace through a dry
one. Otherwise, the flat-fold filter will
become unusable.
Keep the flat-fold filter dry and clean
it regularly.
Mount accessories applying only slight
pressure. For disassembling, turn the
parts somewhat against each other
and pull apart.
Switch the vacuum cleaner off before
connecting a power tool to the vac-
uum cleaner’s socket outlet. Make
sure that the power tool is switched
off when inserting its plug into the
vacuum cleaner’s socket outlet.
After switching off a power tool con-
nected to the vacuum cleaner’s socket
outlet, the vacuum cleaner will run on
for approx. 15 seconds and then
automatically switch off.
When wet vacuuming electrically con-
ductive liquids, the vacuum cleaner is
automatically switched off (automatic
shut-off) when reaching the maximum
filling height of the container. Pull the
mains plug from the socket outlet and
empty the container.
When wet vacuuming electrically
non-conductive liquids (e. g., oils,
drilling emulsions), the vacuum
cleaner is not automatically switched
off when reaching the maximum filling
height of the container. Empty the
container in time.
CAUTION
OBJ_BUCH-0000000148-001.book Page 28 Tuesday, February 25, 2014 12:35 PM
