Fellowes QuasarE 500 User manual

Office Comb Binder
TM
Please read these instructions before use.
Do not discard: keep for future reference.
Lire ces instructions avant utilisation.
Ne pas jeter : conserver pour référence ultérieure.
Lea estas instrucciones antes de usarlo.
No las deseche: guárdelas para
tenerlas como referencia.
Diese Anleitungen vor Gebrauch genau
durchlesen.
Bitte nicht entsorgen: zur späteren
Bezugnahme aufheben
Prima dell’uso, si raccomanda di leggere
questo manuale di istruzioni. Conservare il
manuale per consultarlo secondo le necessità.
Dese instructies voor gebruik lezen. Niet
weggooien, maar bewaren om
later te kunnen raadplegen.
Läs dessa anvisningar innan du använder
apparaten.
Släng inte bort, behåll för framtida bruk.
Læs venligst denne vejledning før anvendelse.
Bør ikke bortskaffes. Behold for
fremtidig henvisning.
Lue nämä ohjeet ennen käyttöä.
Älä hävitä: säilytä myöhempää käyttöä varten.
Vennligst les nøye igjennom denne
bruksanvisningen før bruk.
Ikke kast den: Ta vare på den for senere referanse.
Przed użyciem proszę zapoznać się z tą
instrukcją.
Nie wyrzucać - zachować jako źródło
informacji na przyszłość
Перед началом эксплуатации обязательно
прочтите данную инструкцию.
Не выбрасывайте данную
инструкцию: сохраните ее для
последующего использования.
Παρακαλείσθε να διαβάσετε αυτές τις οδηγίες
πριν χρησιμοποιήσετε το προϊόν.
Μην τις απορρίψετε: κρατήστε
τις για μελλοντική αναφορ
Kullanmadan önce lütfen bu talimatları okuyun.
Atmayın: ileride başvurmak üzere saklayın.
Před použitím si pročtěte tyto pokyny.
Nelikvidujte: uschovejte pro budoucí použití.
Pred použitím si prečítajte tieto pokyny.
Nezahadzujte: odložte pre budúce použitie.
Kérjük, hogy használat előtt olvassa el az
utasításokat!
Az utasításokat ne dobja ki; tartsa meg
referenciaanyagként való jövőbeni használatra.
Leia estas instruções antes da utilização.
Não as deite fora: conserve-as para consulta futura.
Pročitajte ove upute prije upotrebe.
Nemojte baciti: sačuvajte za buduću upotrebu.
Molimo da ova uputstva pročitate pre upotrebe.
Nemojte ih baciti: sačuvajte ih za ubuduće.
Моля, прочетете тези инструкции преди
употреба.
Не изхвърляйте: пазете за справки в бъдеще.
Vă rugăm să citiţi aceste instrucţiuni înainte de
utilizare.
Nu aruncaţi: păstraţi pentru o consultare ulterioară.
Pred uporabo preberite ta navodila.
Ne zavrzite: shranite za poznejšo uporabo
ȲƾƵƯƄŴǽȚǚƃŻȝȚȢƾŵȤȁȚǟƴŸȬǾŶǽȚǟűǍƁ
ƾƷƸŽȘȬǞűǍƴŽƾƷƮƱŲǟűǍƁȶȆȝȚȢƾŵȤȁȚȵnjƀǜžǑƴƈƄŽȚƿƆƁǽ
ǚƃƲƄƉƓȚǠź
ĴĠĩĤĴğĤīįħğħěĵĠěijĠğěĠijIJħěī
ĞĤĵĭĜĨĦīĠĤĭħĠijĩĴĥĤħĴğħĪĤě

2
ENGLISH
CAPABILITIES
IMPORTANT SAFETY INSTRUCTIONS — Read Before Using!
When punching;
- always ensure the machine is on a stable surface
- test punch scrap sheets and set the machine before punching final documents
- remove staples and other metal articles prior to punching
- never exceed the machines quoted performance
Keep the machine away from heat and water sources.
Never attempt to open or otherwise repair the machine.
Plug the machine into an easily accessible socket.
Turn off the machine after each use
Unplug the machine when not in use for an extended period.
Note – this machine features a thermal cut-out device which activates when
the machine is overheated during use. It will automatically reset when the
machine is safe to operate.
2
Punching Capacity
Paper sheets
80g / 20lb 25 sheet
Transparent covers
100-200 micron / 4-8 mil 3 sheet
200+ micron / 8+ mil 2 sheet
Other standard covers
160-270g / 40-60 lb 3 sheet
270+g / 60+ lb 2 sheet
Voltage: 220-240V AC 50/60Hz
Current: 1.5A
Duty Cycle: 30 Minutes On / 30 Minutes Off
Binding Capacity
Max comb size 50mm/2”
Max document (80g / 20lb) 500 sheet
Technical Data
Paper dimensions A4
Punching slots 21
Slot pitch 14.28mm / 9/16”
Adjustable edge guide yes
Waste tray capacity approx. 1500 sheets
Motor wattage 345
Net weight 9.6 kg / 21.21 lb
Dimensions (HxWxD) 130 x 428 x 390mm / 5.1” x 16.9” x 15.4”
Please keep for future reference

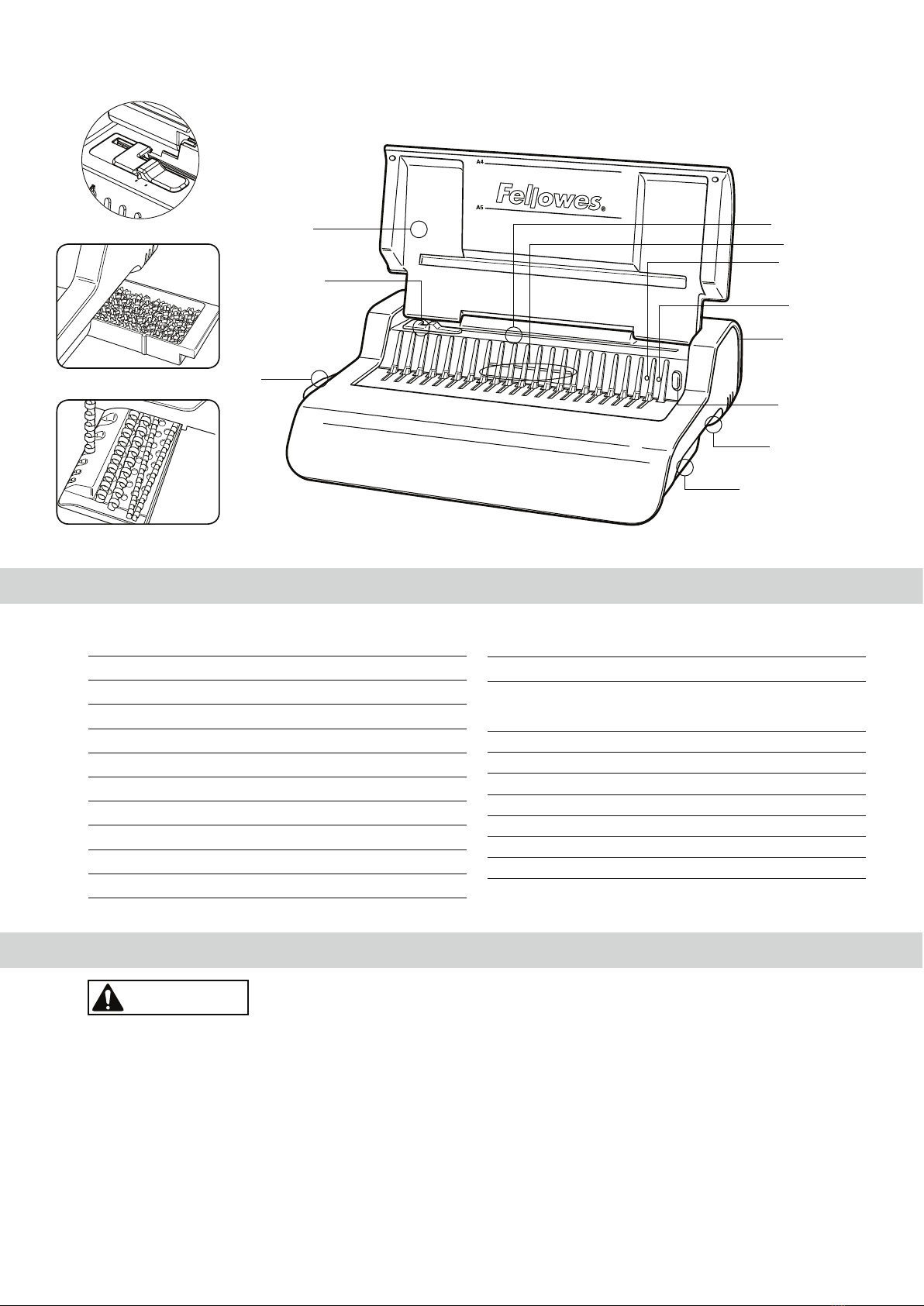

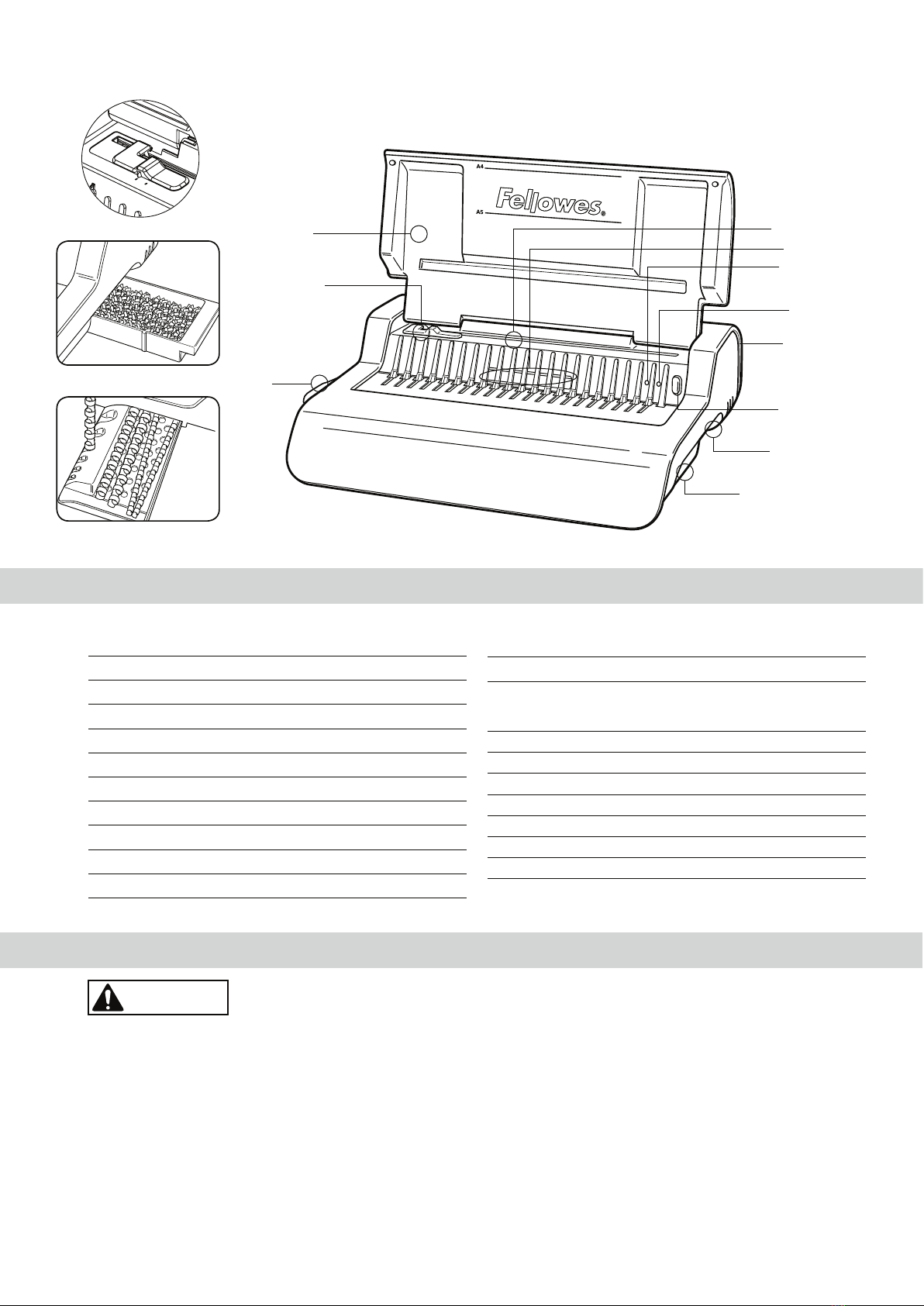

Comb storage and Document measure
Edge guide Document
support (lid)
Adjustable
edge guide
Comb storage
and Document
measure
Punch button
Waste tray
Window
Comb
opening
lever
Paper entry
On/off switch
Power on neon
Overload neon
Waste tray
A5
A4

3
65 7 8
COMB DIAMETER & DOCUMENT SIZES
3
SET UP
Comb diameter sizes
1. Ensure the machine is on a
stable surface.
2. Check waste tray is empty
and correctly fitted.
3. The machine is supplied with
loose power leads. Select the
correct lead for the appropriate
power supply.
4. Fit the lead to the machine
(the socket is at the rear of the
machine).
21 3 4
5. Plug the machine into an
easily accessible mains socket.
Switch the mains supply on.
6. Switch the machine on (located
at the rear of the machine)
7. Lift the lid. Check the green
power neon is on.
8. Ensure the comb-opening
lever is pushed backwards.
mm inch number of pages
6mm 1/4” 2-20
8mm 5/16” 21-40
10mm 3/8” 41-55
12mm 1/2” 56-90
16mm 5/8” 91-120
18mm 1 1/16” 121-150
22mm 7/8” 151-180
25mm 1” 181-200
32mm 1 1/4” 201-240
38mm 1 1/2” 241-340
45mm 1 3/4” 341-410
51mm 2” 411-500
Need Help?
Customer Service…. www.fellowes.com
Let our experts help you with a solution.
Always call Fellowes before contacting your
place of purchase.

4
ENGLISH
4

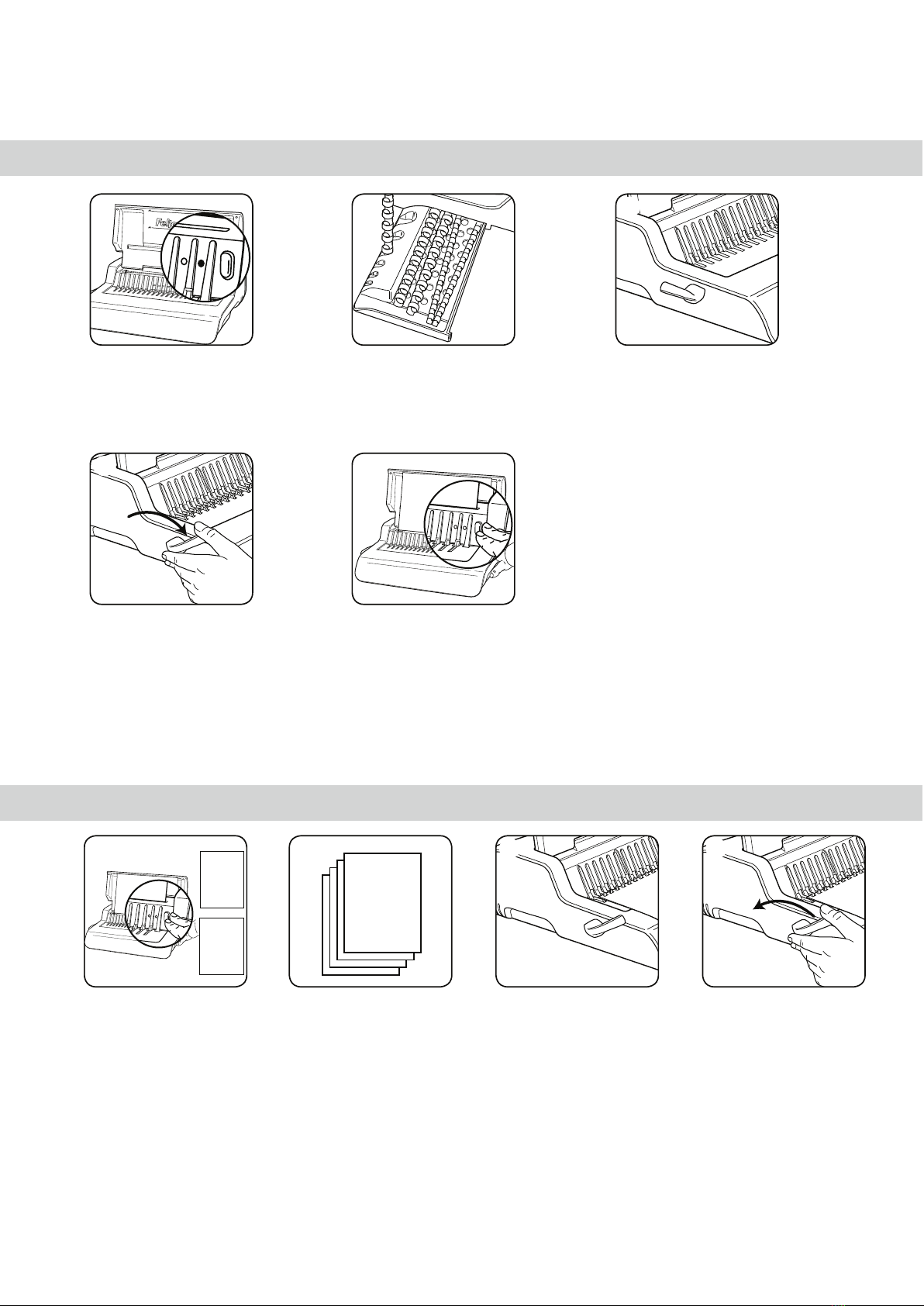

BEFORE YOU BIND
1. Check the green power neon is on. 2. Select the correct comb diameter
using the comb storage tray.
3. Insert the plastic comb into the
opening mechanism.
21 3
4. Pull comb-opening lever forward to
open the comb.
5. Test punch scrap sheets to check
edge guide setting.
54
STEPS TO BIND
3. Load punched sheets directly
onto the opened comb. Starting
with the front of the document.
4. When all punched sheets are
loaded onto the comb, push the
comb lever backwards to close
the comb and remove the bound
document.
21 3 4
30
Back
Cover
Front
Cover
Max 25
(80gsm)
(20 lb)
1. Ensure edge guide is set to the
proper document size. Punch front
and back covers first.
2. Punch sheets in small batches
that do not overload the machine
or the user. Adjust edge guide, if
necessary.

55
CORRECTING A BOUND DOCUMENT
REMOVAL OF WASTE CLIPPINGS
TROUBLESHOOTING
Problem
No Green power neon
Red standby neon
Punched holes are not central
Machine will not punch
Punch holes are not parallel to edge.
Partial holes
Damaged hole edges
Waste tray leaks
Cause
Machine is not switched on
Machine is overloaded when punching
Edge guide not set
Blockage
Debris is stuck below dies.
Sheets not correctly aligned to punch pattern.
Possibly overloading the machine
Waste tray is not correctly inserted or ‘burst
feature’ has activated
Solution
Switch on machine at rear next to plug inlet and at the socket.
Press the punch button. The machine will withdraw the punches
and re-set itself. Continue this process until the punch cycle is
complete
Adjust edge guide to correct paper or cover size.
Check waste tray is empty. Check for blockage to paper entry.
Take stiff cardboard and slide into the paper entry. Move the
cardboard sideways to release any stray clippings into the
waste tray.
Adjust edge guide and test punch scrap sheets until correct
Punch plastic covers with paper sheets. Reduce number of
sheets being punched.
Check waste tray is empty and ‘burst feature’ is closed.
Additional sheets may be include or removed at any time by opening and then closing the comb as previously described.
The waste tray is located under the machine and is accessed from the right side. For best results empty the tray regularly.
STORAGE
Switch off the machine. Lower the lid. The Quasar-E comb binder is designed to be stored horizontally on the desk.
WARRANTY
Fellowes warrants all parts of the binder to be free of defects in material and workman-
ship for 2 years from the date of purchase by the original consumer. If any part is found
to be defective during warranty period, your sole and exclusive remedy will be repair or
replacement, at Fellowes’ option and expense, of the defective part. This warranty does
not apply in cases of abuse, mishandling or unauthorised repair. Any implied warranty,
including that of merchantability or fitness for particular purpose, is hereby limited in
duration to the appropriate warranty period set forth above. In no event shall Fellowes be
liable for any consequential damages attributable to this product. This warranty gives you
specific legal rights. You may have other legal rights that vary from this warranty. The
duration, terms and conditions of this warranty are valid worldwide, except where differ-
ent limitations, restrictions or conditions may be required by local law. For more details or
to obtain services under this warranty, please contact Fellowes or your dealer.
Australia Residents Only:
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation
for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not
amount to a major failure. The benefits under Fellowes’ Warranty are in addition to other rights and remedies under a law in relation to the machine.
