Ferguson Ariva 52E User manual

User manual
52E
102mini
102E
103
103mini
202E
203
150Combo
152Combo
153Combo
250Combo
252Combo
253Combo
English

WARNING !!!
Ferguson satellite receivers support recording on external hard disk drives (HDDs) and
flash memories (pendrives). In all instances, the correct operation of the recording
function depends on the type of connected memory You must read the following
limitations.
REMEMBER:
1. In order to use an external USB memory, the memory must support the USB
2.0 standard. To ensure stable recording and playback, you must use a
memory with a recording speed of 9 0 MB/s or greater. Slower hard disk
drives and flash memories may not function properly, have problems with
recording (image jitter), or not function at all
2. Only disks with one basic NTFS or FAT32 partition (we recommend using the
NTFS format) will function properly. If you do not have such a format, prepare
the disk on your computer before connecting it to the receiver.
3. Highly fragmented or used memories may also not operate smoothly or
correctly.
4. External hard disk drives should be autonomously powered, since the built-in
USB port is unable to provide sufficient power.
5. Only one of the two USB ports can be used at the same time
CAUTION
1. Under no circumstances should you disconnect the USB device from the
receiver during recording or playback. Disconnecting during operation may
cause damage to the receiver and/or flash memory, and to the recorded data.
2. Do not touch the working device (and in particular the USB connector) with
wet hands. Risk of electric shock and permanent damage to the receiver
2

SAFETY MEASURES
We request that you read the instruction manual and recommendations set forward therein.
Also remember to correctly position the satellite antenna
In order to avoid an electric shock, never open the housing. Damage to the
warranty seal shall void the warranty.
Disconnect the device from the mains during thunderstorms or when it is not to
be used for an extended period of time. Please remember that the warranty does
not cover damage to the equipment caused by a lightning strike.
Do not expose the device to direct sunlight. Place it away from sources of heat
and humidity. Do not cover ventilation ducts, in order to ensure the correct
circulation of air.
Place the device horizontally on a flat, even and stable surface.
If you move the device from a room that is warm to one that is cold (or vice
versa), wait at min. 1 hour before connecting it to the mains. Otherwise,
problems may arise.
The device should be placed away from vases, bottles, aquariums and other
water containers in order to avoid damage. Do not touch the mains plug with your
bare hands.
Do not place any objects on the housing of the device. This may cause
overheating and reception problems.
Before commencing maintenance or installation work, disconnect the receiver from the mains.
Do not clean the receiver with alcohol or liquids containing ammonia. If necessary, clean it with
a soft, lint-free cloth wetted with a gentle solution of water and soap.
•Do not connect any cables when the mains plug is in the socket.
•Check the condition of your cables. Damaged cables may cause a fire.
•Please disconnect the receiver from the mains before connecting any cables.
DOWNLOADABLE SOFTWARE
Ferguson has taken every effort to provide users with software updates in order to ensure that
the parameters of the satellite television receiver are up to date. Ferguson reserves itself the
right to amend, change or modify the software used in the satellite television receiver as it
shall choose and without prior notification. The latest version of the software is available on the
website http://www.ferguson-digital.eu
3

ABOUT THE INSTRUCTION MANUAL
Ferguson Sp. z o.o. has made every effort to provide the most current information about its
products. Ferguson Sp. z o.o. does not grant any guarantee as to the contents of the present
instruction manual and disclaims any implied guarantees concerning market value or suitability
for specific purposes. The information contained herein is an instruction intended to enable the
correct usage and maintenance of the receiver.
Ferguson Sp. z o.o. reserves itself the right to introduce amendments, changes or translations
of the instruction manual without prior notification thereof. For this reason, we recommend you
regularly visit our website in order to obtain the latest information.
MARKINGS AND SIGNS APPLIED TO THE RECEIVER
Digital signal transmission logo.
This logo informs that the receiver
conforms to the Digital Video
Broadcasting standards.
CE logo.
The logo informs that the receiver
conforms to the terms and conditions of
Directive 2004/108/EC concerning
observance by Member States of provisions
regulating electromagnetic compatibility,
and to the terms and conditions of
Directives 2006/95/EC concerning
observance by Member States of provisions
regulating low voltage electricity and safety
with relation to the handling and operation
of electrical equipment.
Risk of electric shock - do not open.
This notice warns the user not to open
the receiver housing. The housing may
be opened solely by authorized service
technicians.
When this crossed-out wheeled bin
symbol is attached to a product it
means that the product is covered by
the European Directive 2002/96/EC.
Please inform yourself about the local
separate collection system for electrical
and electronic products.
Please act according to your local rules
and do not dispose of your old products
with your normal household waste.
Correct disposal of your old product
helps to prevent potential negative
consequences for the environment and
human health.
R&TTE Hereby Ferguson Sp. z o.o., declares
that the device is in compliance with
the essential requirements and other
relevant provisions of Directive 1999/5/EC.
You can find the Declaration of Conformity
on www.deklaracje.ferguson.pl
This product has been designed, tested
and
manufactured according the European
R&TTE directive 1999/5/EC.
Double insulation logo.
This logo informs that the receiver is an
electrically safe device, provided that it is
used in accordance with the
recommendations set forward in the
chapter concerning safety.
Your product contains batteries covered
by the European Directive 2006/66/EC,
which cannot be disposed with normal
household waste. Please inform yourself
about the local rules on separate
collection of batteries because correct
disposal helps to prevent negative
consequences for the environmental
and human health.
Hot surface mark
CAUTION: HOT SURFACE. DO NOT TOUCH.
The top surface over the internal heat sink
may become hot when operating this
product continuously. Do not touch hot
areas, especially around the “Hot surface
mark” and the top panel.
Your product is designed and
manufactured with high quality
materials and components, which can
be recycled and reused.
When this logo is attached to a product, it
means a financial contribution has been
paid to the associated national recovery
and recycling system.
4

BASIC INFORMATION ABOUT THE RECEIVER
1 Main features
✔Reception of high definition channels
✔Scaling of PAL signals to a resolution of 720p or 1080p
✔Availability of programmable timers
✔Separate lists of favourite, TV and Radio channels
✔Quick channel search function (QuickFind)
✔Teletext and on-screen captions
✔DiSEqC 1.0, 1.1 and DiSEqC 1.2, USALS
✔MPEG-2, MPEG-4, MPEG-4 AVC/H.264 standards
✔Compatible with DVB-S/S2, DVB-T/T2 and DVB-C systems (depending on model)
✔Card reader for pay-per-view television
✔Common Interface (depending on model)
2 Contents of box
Unpack the receiver and check whether all of the following elements are present
✔1 x remote control unit
✔1 x instruction manual
✔1 x receiver
3 Important instructions concerning handling of the receiver
The screen menu (OSD) simplifies operation of the receiver and has made it possible to reduce
the number of keys on the remote control. All of the functions are displayed on the screen and
may be controlled by means of a small number of keys. Common functions have been
connected in one "MENU". The selected function is coloured. Depending on the selected option,
various "function keys" are displayed: red, yellow, green, blue and white in the form of
graphics and descriptions. The colours represent various functions in individual "Menus". The
selected function is activated by pressing a key on the remote control unit. The so-called
function keys are active only when in the appropriate field there is information about it. The
user interface makes it possible to navigate within a menu and between functions in a number
of different ways. Certain buttons on the remote control allow direct access to functions. The
buttons are multi-functional, i.e. their functions depend on previously activated elements.
NOTE:
Please keep in mind that new software may change the functionality of the receiver.
Photographs and descriptions included in the instruction manual are for informational
purposes only. If you should notice an error, please report it - we shall make every
effort to have it rectified.
5

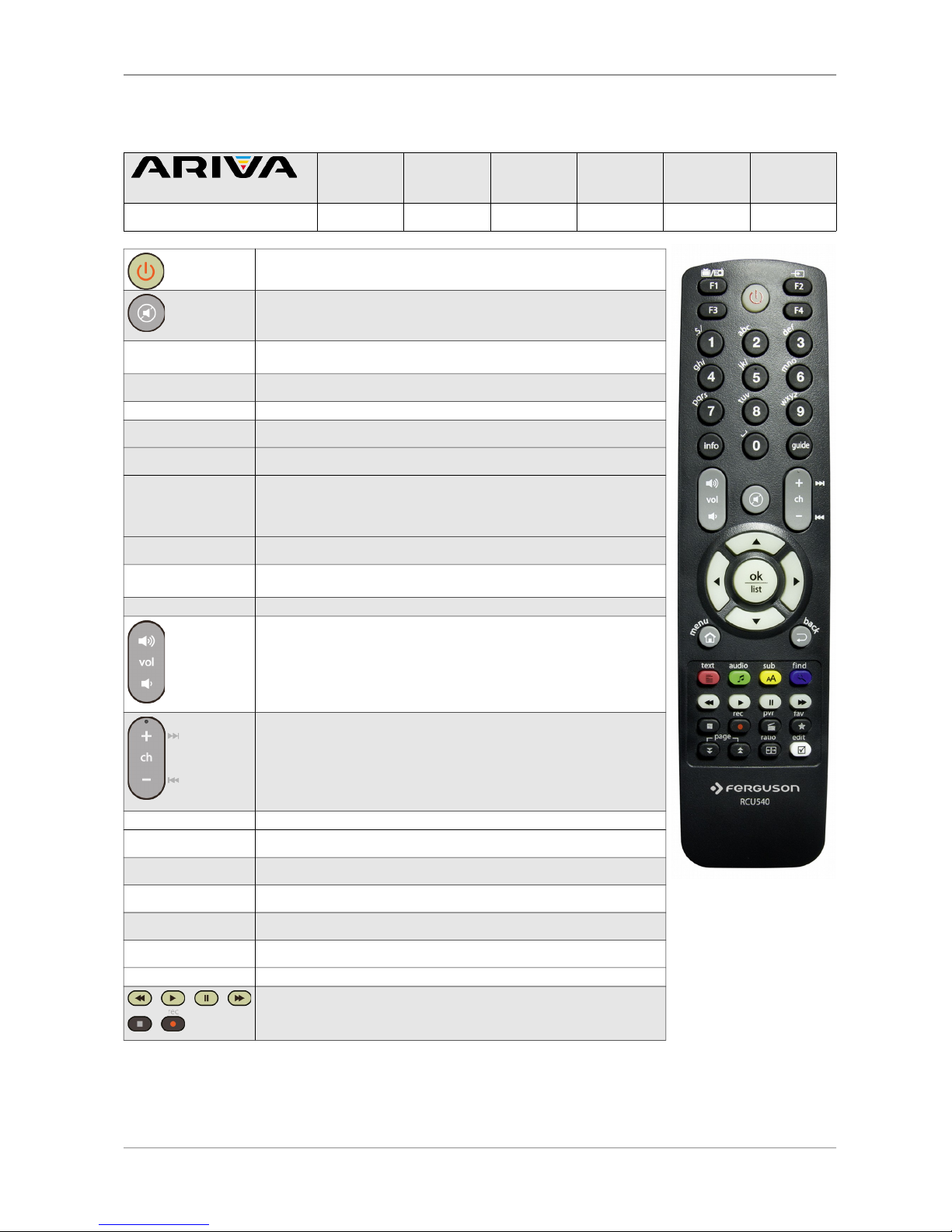

4 Remote control
Due to the standardization of Ferguson equipment, the majority of these devices use the same
remote control unit RCU540 or RCU650. This means that not all keys are used by this
equipment model
52E 102mini
103mini
102E
103
202E
203
150Combo
152Combo
153Combo
250Combo
252Combo
253Combo
RCU 540 540 540 540 540 650
Turns the receiver on and sets it in standby mode.
Switches the sound on and off.
back Returns to the previous submenu, or exits the menu.
Returns to the previously displayed channel.
guide Displays the electronic programme guide.
menu Displays the main menu on-screen.
F1 Switching between the list of television and radio programmes.
F2 Changes the active satellite for the channel list.
F3 Used to switch between the resolution selected in the menu and the
default resolution of 576i. Allows the user to restore proper
functioning of the receiver following the selection of a resolution not
supported by the television.
F4 Returns to the previously displayed channel.
pvr Displays the USB menu, if a USB memory device has been
connected.
fav Displays a selection of favorite channel lists.
Used to change the volume level (lower, higher).
Switches to the next or previous channel.
info Displays information about the current programme.
text Switches on the teletext on-screen, if this is available.
audio Switching between soundtrack versions, if these are available.
sub Switches the on-screen captions on and off, if these are available.
find A quick search for channels according to successive name letters.
edit Not used.
ratio Change the aspect ratio of 16:9, 4:3, etc..
Buttons used to operate the recording, playback and time shift
mode functions.
6

RCU650
RCU650 is 5 in 1 universal remote control is suitable for TV sets, A/V
receivers, tuners, BD/DVD players, CD players, DVR players, various
STBs (satellite, cable, terrestrial, IPTV), amplifiers and other devices
from common manufacturers. The universal remote control can execute
basic device functions.
Power button turns on the device or sets it in standby
mode.
Blue LED flashes to show that button is pressed.
Predefined stb button for Ferguson Ariva STBs. It is not
possible to setup another code set or use learning
function.
Device buttons can be used for device of your choice. You
can setup any code set and/or use learning function.
1, 2, 3, 4, 5, 6, 7,
8, 9, 0
Select particular channel number on a channel list.
Enter numeric values.
enter the device code during set up
Learn a new code from original remote control
WEB Direct access to internet services offered by receiver.
To make your remote control ready for use, you need to carry out one of
the following steps:
Set up device via auto search
1. Switch on the device that you like to control.
2. Point the remote control at your device. Press and hold down the
device button (e.g. TV) for 5 seconds. The LED turns on and after a
moment LED start flashing, that means RCU650 is in auto search
mode and you can release device button.
3. The “Volume+” signal is automatically transmitted from the remote
control to the device (code scan). As soon as the volume of the device
(e.g. TV) changes, immediately press device button to stop the auto search.
If the device you are searching for is a CD player, Tuner, TAPE, or AUX then “Power”
(instead of “Volume+”) signal is automatically transmitted from the remote control to the
device. As soon as the device turns off, press device key to stop the search. You need to
turn on the device by Power button before you check other button function.
4. Check the function of the other buttons on the remote control. If none of the buttons function
(i.e. the search was not be stopped in time) or the majority of the buttons do not function
correctly, restart the search (see steps 2 to 4) to find a suitable code. If the majority of the
buttons function correctly, set- up has been successful. Re-press the device button (e.g. TV)
to save the code and to terminate the set-up mode.
Note:
•Entering the auto searching mode, it will search forward from the current code.
•Sometimes, remote control does not work properly just because auto search was not stopped
in time. In this case, just enter into manual search again, and press Vol– button approx.
every 1.5 seconds to search backward the code database.
•If you are not satisfied with certain buttons assignments, or some functions are missing,
then you can use additionally learning function.
7

Setup device via brand name code
1. Switch on the device that you like to control.
2. Find the code number of your device brand in the code list (e.g. Ferguson 1244) from the
relevant device group (e.g. DVB-T).
3. Press and hold the device button (e.g. AUX) for three seconds. Release the device button as
soon as LED lights up, now it is in set up mode.
4. Enter the 4-digit device code (e.g. 1244 for Ferguson DVB-T) within 10 seconds. If an entry
is not made within 10 seconds, the set- up mode is automatically terminated.
5. The LED turns off if the remote accepts the code. If the LED flashes three times, that means
the code may be wrong, and the remote control remains in set-up mode, enter the correct
code from the list again in good time.
6. Check the function of the buttons on remote control. If it does not function correctly, try
another 4-digit device code from the list under the same brand. Repeat steps 3 to 6 until all
the basic functions operate correctly.
7. Exit the set-up mode by pressing the device button.
Note:
•If you are not satisfied with certain buttons assignments, or some functions are missing,
then you can use additionaly learning function.
•mode is automatically terminated if no button is pressed for 10 seconds.
Setup device via manual search
1. Switch on the device that you like to control.
2. Point the remote control at the device. Press and hold down the device button (e.g. TV) for
3 seconds. The LED lights up and the remote is in manual set-up mode, release the device
button now.
3. Press the Vol+ button approx. every 1.5 seconds.
4. As soon as the volume of the device (e.g. TV) changes or the device turns off, check
whether the other buttons on the remote control function correctly. If the majority of the
buttons does not function correctly, press the Vol+ approx. every 1.5 seconds to initiate the
reactive code (manual search is continued, see steps 3 to 4).
5. If the majority of the buttons on the remote control functions correctly, save the code by
pressing the device button (e.g. TV) to terminate the manual search.
Note:
•If you are not satisfied with certain buttons assignments, or some functions are missing,
then you can use additionaly learning function.
•Sometimes, remote control does not work properly just because manual search was not
stopped in time. In this case, just enter into manual search again, and press Vol– button
approx. every 1.5 seconds to search backward the code database.
•The Manual Search is automatically terminated if no entry occurs during 30 seconds period.
•Manual search mode, search forward from the current code.
Learning Function
The learning function is used to extend the pre-programmed codes. The standard code list
already provides you with the most important functions, but it is possible to add a few
additional functions. A fully functional original remote control is required for learning
programming.
Please use fresh batteries for both the Learning Remote Control and the Original Remote
Control.
8

1. Press down and hold the device button which you wanted to learn (e.g. BD
player), and press find button at the same time, when LED turns on then
release the both pressed keys, now remote control is in learning mode for
BD codes.
2. Point the IR transmitter of the original remote control remotes face to the IR
receiver of your RCU650 remote by approximately 30 mm apart. Keep two
remotes at the same straight line to make the learning process more
accurate.
3. Press and release the target button on your RCU650 remote control which
you want to learn (e.g. info), the LED starts to flash.
4. Press the one button (For example, info button) from your original remote
control, when you see LED on new universal remote control flashes three
times and stop, it means RCU650 has accepted new code and now you can
start to learn another new code from original remote.
5. Repeat step 3 to 4 to learn another code from original remote control.
6. When you finish learning all buttons you want to have, press find button to store all
commands you have learnt from original remote and exit from Learning remote.
Note:
•You can learn limited set of buttons on RCU. Available buttons are shown on the image.
•When you can not choose any more buttons from new universal remote control for learning,
it means new remote memory is full (RCU650 has limit for total 60 buttons).
•The learning mode is automatically terminated if no entry occurs during 14 seconds period.
•Press TV button and Number 6 button can delete all codes you have learnt for all devices.
Display device code
1. Press and hold the device button, simultaneously press button 1 to display the thousands of
the 4-figure code, Count how often the LED flashes, if the LED does not flash, 1. then the
number is zero.
2. Press and hold the device button, simultaneously press button 2 to display the hundreds of
the 4-figure code.
3. Press and hold the device button, simultaneously press button 3 to display the tens of the
4-figure code.
4. Press and hold the device button, simultaneously press button 4 to display the ones of the
4-figure code.
For example for code 0169 for TV:
1. Press TV and 1 LED flashes Zero time
2. Press TV and 2 LED flashes One time
3. Press TV and 3 LED flashes Six times
4. Press TV and 4 LED flashes Nine times
Reset / Delete Function
Just simply press TV button and Button 0 together, when LED flashes three times, now all
settings will be deleted, and remote go back to factory default settings.
9

4 1 Installation of batteries
Remove the cover of the battery compartment on the rear panel of the remote control unit;
slide it downwards and put it aside. Insert two AAA (R03) batteries into the compartment,
observing the indicated polarity. Do not mix old and new batteries, or batteries of
different types Replace the battery compartment cover. Slide it upwards until it locks in place.
5 Front panel (does not apply to the model 102mini/103mini)
*illustrative photo
52E 102mini
103mini
102E
103
202E
203
150Combo
152Combo
153Combo
250Combo
252Combo
253Combo
POWER - -    
  -   
  -   
OK -   
MENU -   
BACK -   
CA - 1 1 1 1 1
CI - - - 1 - 1
CA: Socket for a subscriber's card – always insert with the chip facing down
10

5 1 CAM module and subscriber's card
Inserting the module and subscriber's card
The conditional access module resembles a PC card (known as the PCMCIA) for laptop
computers. There are different types of CI modules, suitable for various encoding systems.
1. First, turn off the receiver.
2. Insert the subscriber's card into the conditional access
module.
3. Open the tab on the front panel and insert the CI CAM
module, forcing it home into the socket on the right side of the
front panel. If you want to remove the CAM module, press the
black button next to the CAM socket.
4. After correctly inserting the module, turn on the receiver.
From now on you will be able to watch coded television channels
available through this module and card.
Note: Check whether the subscriber s card has been correctly
inserted into the module. Incorrect insertion of the card may
cause damage to the conditional access module.
Warning: Do not attempt to remove or insert the module and/or
card when the receiver is turned on!!!
6 Rear panel
Depending on your receiver has inputs / outputs as shown below:
52E 102mini /
103mini
102E /
103
202E /
203
150Combo /
152Combo /
153Combo
250Combo /
252Combo /
253Combo
LNB IN / / / // //
LNB-OUT - - / /- // //
ANT IN - - -/- -/- // //
LOOP-OUT - - -/- -/- // //
HDMI / / / // //
LAN - / / / // //
USB 1 1 / 2 1/2 2/2 2/2/2 2/2/2
SCART -/ / // //
2x RCA analog audio - - / /- /- // //
1 x RCA video (cvbs) - - /-/- /- - /- /- /- /
1 x SPDIF -/ /- - / - / - - / - / -
1 x OPTICAL - - /-/- -/ // //
RS232 / / / // //
ON/OFF power button - - /- /- // //
11

7 Connecting the satellite antenna
In order to check the correctness of connection of external equipment, for example a satellite
antenna or converter, read the installation manual or hire a professional technician
Good reception is conditional on the precise placement of the antenna. Even the best antenna
will cause reception problems if it is incorrectly adjusted. Even slight placement errors may
render reception impossible or considerably impair image/sound quality. Before installation
make sure that the location is suitable. The proper direction may be initially determined by
making a comparison with other antennas. There should be no objects directly in front of the
antenna, for these may block the signal from reaching the bowl Once you select an optimal
location for the antenna, fix and adjust it initially, and then proceed to a precise adjustment.
Each antenna is fitted with regulating screws that make it possible to correct its vertical and
horizontal placement.
Adjusting is somewhat more difficult in the case of digital tuners. You cannot perform
adjustments on the basis of the image, because this appears with a certain delay. What is
more, the indicators available in the settings menu also act with a delay, and therefore
adjustment may take considerable time and be very imprecise. An antenna signal meter will be
indispensable for setting up the antenna. The meter must be connected to the antenna cable
between the converter and the receiver. This will confirm the presence of a voltage that
switches the converter from the tuner and show the signal strength for individual satellites. We
strongly recommend hiring a professional technician
7 1 Connecting an antenna system with a positioner
USALS type positioners manufactured by Stab will guarantee the correct operation of your
Ferguson receiver. In order to connect an antenna system to a USALS positioner, you should
connect the positioner out to the LNB IN of the Ferguson receiver. The role of the positioner
installed between the mast and the antenna is to turn the bowl in such a way as to ensure that
it is directed to various satellite positions.
The USALS function considerably simplifies configuration of the antenna. The
Ferguson receiver requires that you enter the geographical coordinates of the
antenna in order to automatically calculate the angle of revolution of the motor
for individual satellites. The receiver activates the positioner automatically and
turns the antenna to the selected satellite. When a signal is locked on, you
should precisely adjust the antenna's elevation and azimuth settings in order to
optimise signal reception. When correcting the azimuth, the entire antenna
assembly and positioner revolve with respect to the mast. If initially the antenna was not
directed precisely south, you can correct this now. When you have finished with the first
satellite, all other satellites will be remembered automatically, provided that you have
introduced their satellite position values correctly.
Without the USALS function, programming of the system is much more difficult. To this end you
should use the DiSEqC 1.2 function, which turns the antenna to the selected satellite in a
nearly identical manner. Since, however, it does not take into consideration the local
geographical coordinates, the movement is effected on the basis of the prime meridian and the
equator. Therefore it is necessary to introduce corrections separately for each satellite. Due to
these difficulties, manufacturers of DiSEqC 1.2 positioners frequently provide useful software
on their websites, using which you can easily calculate the location of the satellite.
8 Connecting the terrestrial antenna (Combo models only)
There are no special antennas for DVB-T. For collection of digital television, the same antennas
as analog TV reception. There is no need to change the antenna system. It is worth to check the
quality and condition of the plant, which has so far been used for analog TV reception.
Reception problems can be weathered with old antenna systems, or grid antennas. It is
recommended to use directional antennas with signal amplifier, depending on the particular
situation you may also establish impedance transformer. Indoor antenna may be used only in
areas with high signal intensity.
12

9 Connecting the receiver
The following illustrations show cable connections for a television and other devices connected
with the receiver. If you require any assistance in connecting individual devices, contact your
local technician. Before connecting or altering cabling, disconnect the receiver from the
mains
Note: Availability and type of connection depends on your receiver model Not all of the
connections are applicable for your receiver
9 1 Connection by means of an HDMI cable (recommended)
1. Connect the antenna to the LNB IN socket of the receiver.
2. Connect the HDMI to the receiver out and the television in.
Connection by means of an HDMI cable allows you to obtain the highest image quality.
If you have an amplifier with an HDMI out and in, which supports sound sent over
HDMI, connect the devices by two HDMI cables. As in the following figure: one cable to
the amplifier, and the other from the amplifier to the television set.
13

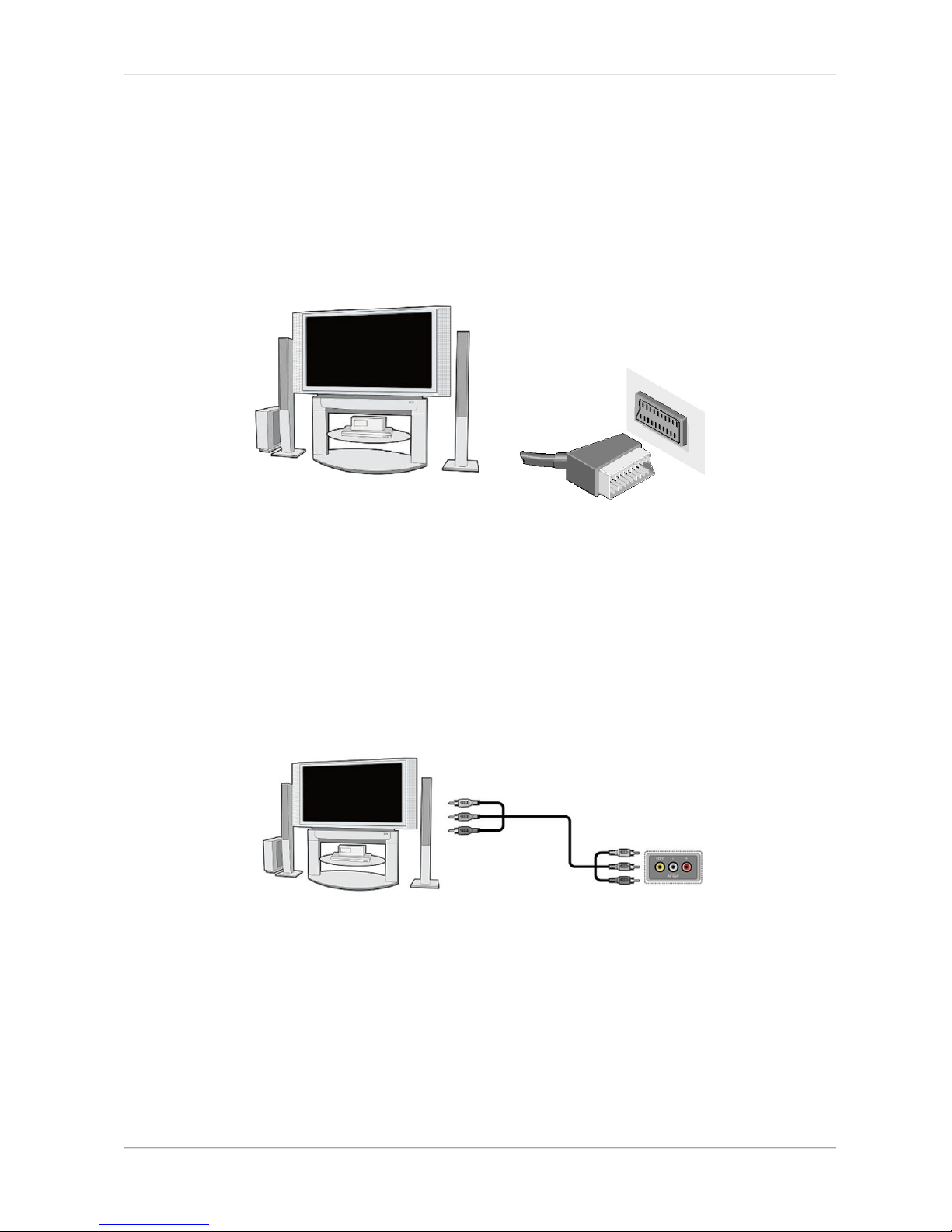

9 2 Connection by means of SCART cables
1. Connect the antenna to the LBN IN socket of the receiver.
2.Connect the television to the port in accordance with the description. We recommend
using shielded SCART cables.
9 3 Connect composite port
1. Connect LNB IN port on a receiver to a satellite dish.
2. Connect the video and audio by means of three cinch cables to the television set. One
cable, colored yellow used to send video. The two remaining cable, red and white, are
used to connect sound (right and left channel).
14

9 4 Connection of an audio system
•Digital sound (including surround sound, if broadcast) can be obtained from two
sockets: coaxial (1) or optical SPDIF (2).
•Stereo sound may be obtained by connecting cinch cables (white and red) for the
left and right channels
9 5 Connection of an external memory
1. The receiver supports all types of hard disk drives in housings that are equipped with an
independent power supply. The sole condition is that the hard disk has to have a single
basic partition that is formatted in the NTSF (recommended) or FAT32 system.
2.We recommend that you regularly archive data on your PC computer. A large number of
files with recordings may slow down cooperation with the receiver (slow loading of the file
list).
WiFi is supported only when plugged into the USB port is free WiFi USB adapter based
on Ralink chipset Rt5370. Available as a separate accessory.
15

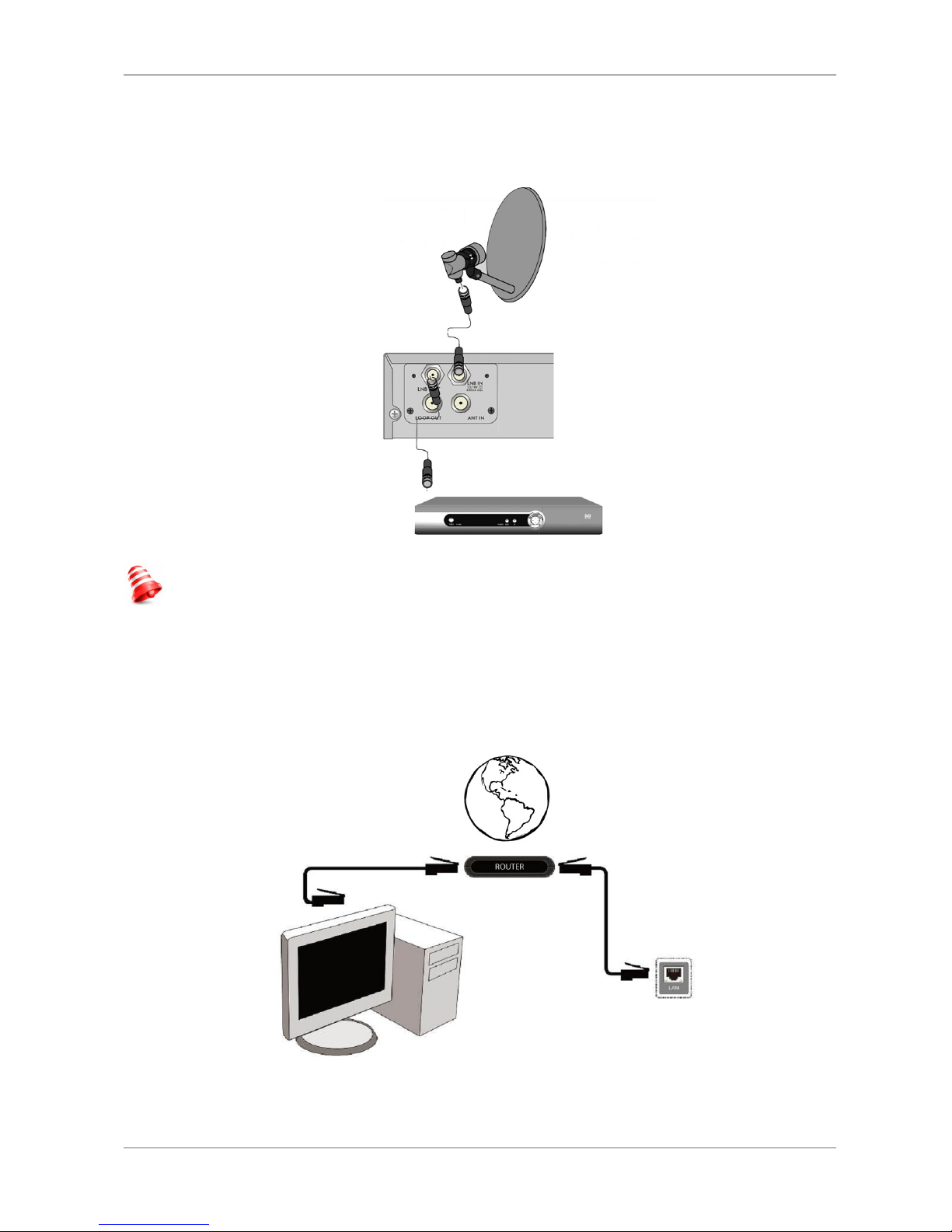

9 6 Connection of another receiver
Another receiver may be connected through the LNB OUT socket. Please keep in mind,
however, that only one device may be used at one time Permanent damage may result if both
are turned on simultaneously.
NOTE: LOOP OUT in all Combo receivers is the only signal loop-through. This is not a
modulator, so the receiver will not let go of the image decoding (DVB-T and USB) in the
form of an analog signal on this connector.
9 7 Connection to the LAN local network
In order to connect the receiver to a local network, use an RJ45 cable. We recommend that you
restart the receiver whenever the network settings are changed.
16

9 8 Connection to the computer by means of an RS232 Null Modem cable
For connection to a computer, use a Null Modem cable.
FIRST STEPS
1. Insert the plug of the receiver and other additional devices to a wall socket.
2. Select AV signal source of your television set.
3. The satellite receiver is supplied with reinstalled television channels. In order to watch other,
i.e. non-default channels, you should use channel search function.
Note: check all of the connections, i.e. antenna cables, audio and video signal cables,
before connecting the receiver to the mains!
INFORMATION ABOUT THE USER MENU
The user interface allows you to use numerous settings and receiver functions. Some buttons on
the remote control unit enable direct access to functions of the device. Certain of these buttons
have been described, for example Guide, MENU, OK, or coloured for ease of usage. Other
buttons are multi-functional and their operation depends on the type of device selected by the
user. Hereunder we have presented a brief description of how to use certain device functions
available through the user menu.
1. The up/down arrow keys on the remote control are used to move the cursor up and down on
the menu.
2. The left/right arrow keys on the remote control are used to move the cursor left and right,
and to switch on submenus
3. The OK button is used to enter submenus.
4. The BACK button is used to exit menus or functions.
5. When using a submenu, the OK button is used to confirm your selection; a green
background informs that a function is active.
17

10 Main menu
Press the MENU button on the remote control in order to display the following main menu,
which contains six items:
1. editing channel lists
2. installation
3. system settings
4. tools
5. entertainment
6. recording settings
11 Installation
The installation menu is used to set antenna installation parameters and to search for channels
on a satellite.
11 1 Antenna connection
Select one of the two available options, depending on your system. Two options are available: a
fixed antenna (a typical system with a single converter) and an antenna with a positioner. If you
have a Combo model is also possible to change the settings on the other head. It can work in
terrestrial mode (default) or digital cable. The possibility have only models 153Combo and
253Combo.
11 2 Satellite list
In this menu select the satellites that you want to use. Select a satellite by pressing the
up/down arrow keys. Mark by pressing OK. Each selected satellite will be accompanied by the 
symbol. The remaining menu options will be available only for selected satellites.
18

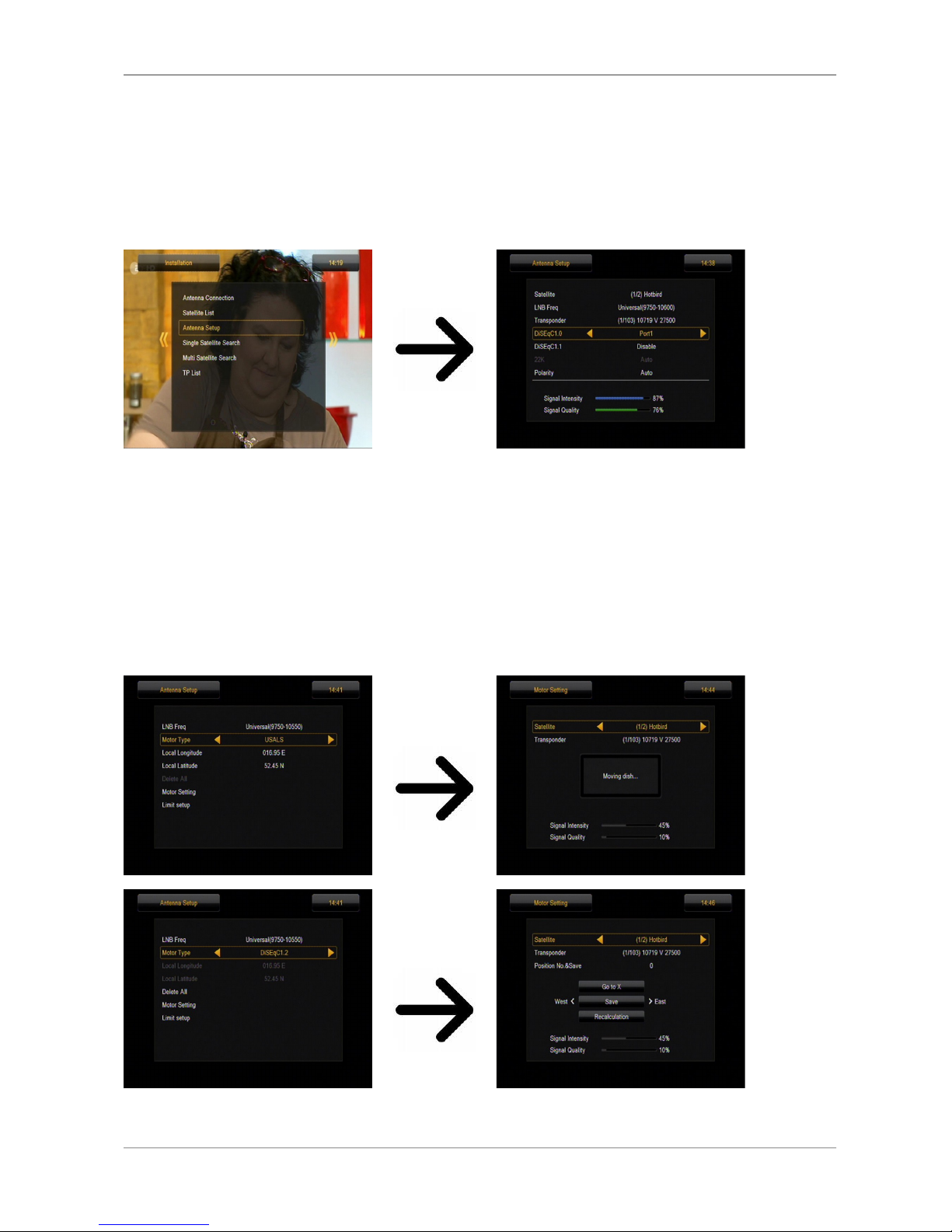

11 3 Antenna setup
This menu is used to set detailed operating parameters for previously selected satellites,
depending on your antenna system. Select a satellite by pressing the left/right arrow keys.
Only satellites marked on the list of satellites will be available. Now select the converter type
(usually, you do not have to change this option and may leave it set to "universal"). Next, if
you have a switch for more than one satellite, set the required port. Depending on the type of
switch, these will be options for DiSEqC 1.0 or DiSEqC 1.1 (do not activate these two options
simultaneously).
The correct setting of the antenna is indicated by bars presenting the strength and quality of
the signal. Both should indicate more than 80% for channel reception to be free of interference.
In order to check the strength and quality settings, use the "transponder" option in order to
alter the frequency and verify whether each V and H polarization is operative.
Confirm the settings by pressing BACK.
If as the antenna connection you have selected: antenna with positioner, the antenna settings
menu will have a different appearance. Two operating standards will be available for the
positioner: USALS or DiSEqC 1.2. We recommend using USALS positioners, for which only the
correct longitude and latitude must be given.
19

11 4 Single satellite search
In this menu you can search for channels from one selected satellite. To this end, select a
satellite by pressing the left/right arrow keys. Only satellites marked on the list of satellites will
be available. Next, select whether you want to search only for free to air channels or for all
channels, or for radio channels, television channels, or all channels.
Three search modes are available:
1. Auto scan – a so-called blind scan, which consists in an automatic search for available
satellite frequencies, which are then scanned in turn.
2. Preset scan – according to the TP list – the receiver searches through only frequency by
frequency, in accordance with a list recorded for the selected satellite. This list may be
edited in a separate menu.
3. FastScan - receiver scans the channels of the selected provider bucket. You can add
channels to an existing list or replace an existing list. Please note that the search result
and working of this function depends solely on the provider.
11 5 Multi satellite search
In this menu you can search for channels from a few satellites. The satellites will be searched
automatically one after another in the order in which they were entered in the list of satellites.
Options concerning settings and search functions are the same as in the menu: search one
satellite. The names of satellites that are to be searched are visible in the lower part of the
window.
20
