Festo VPPM User manual

VPPM
Proportional-pressure regulator
Festo SE & Co. KG
Ruiter Straße 82
73734 Esslingen
Deutschland
+49 711 347-0
www.festo.com
Operating instructions
8110177
2021-11g
[8110179]
Translation of the original instructions
© 2021 all rights reserved to Festo SE & Co. KG
1Applicable Documents
All available documents for the product è www.festo.com/sp.
2 Safety
2.1 Safety instructions
–Only use the product in its original condition without unauthorised modifica-
tions.
–Only use the product if it is in perfect technical condition.
–Take into account the ambient conditions at the location of use.
–Before working on the product, switch off the power supply and secure it
against being switched on again.
–Store the product in a cool, dry environment protected from UV and corrosion.
Keep storage times short.
2.2 Intended use
The proportional-pressure regulator is intended to regulate a pressure propor-
tional to a specified setpoint value. The product is intended for use in industrial
environments.
2.3 Training of qualified personnel
Work on the product may only be carried out by qualified personnel who can
evaluate the work and detect dangers. The qualified personnel have skills and
experience in dealing with electropneumatic (open-loop) control technology.
2.4 Approvals
In combination with the UL inspection mark on the product, the information in this
section must also be observed in order to comply with the certification conditions
of Underwriters Laboratories Inc. (UL) for USA and Canada.
UL certification information
Product category code QUYX, QUYX7
File number E322346
Considered standards UL 610101, CAN/CSAC22.2 No. 610101
UL mark
Tab. 1: UL certification information
–The unit shall be supplied by a power source which fulfils the requirements
on a limited-energy circuit in accordance to IEC/EN/UL/CSA 61010-1 or on
a Limited Power Source (LPS) in accordance to IEC/EN/UL/CSA 60950-1 or
IEC/EN/UL/CSA 62368-1 or a Class 2 circuit in accordance to NEC or CEC.
Electrical data and ambient conditions
Supply voltage 24 V DC
Max. power VPPM-6, VPPM-8 7 W
Max. power VPPM-12 12 W
Rated pressure up to 1.1 MPa
Max. installation height 2000 m
Tab. 2: Electrical data and ambient conditions
3 Additional information
–Contact the regional Festo contact if you have technical problems
è www.festo.com.
–Accessories and spare parts è www.festo.com/catalogue.
4 Product overview
4.1 Function
The proportional-pressure regulator controls the pressure proportionally to a
specified setpoint value. A built-in pressure sensor records the pressure at the
working port and compares this value with the setpoint value. If there are devia-
tions between the setpoint value and actual values, the proportional-pressure
regulator is actuated until the output pressure has reached the setpoint.
Fig. 1: Pneumatic circuit symbol
4.2 Structure
4.2.1 Product design
1
2 3
5 4
1
Fig. 2: Connections and mounting holes (in-line valve)
1
Through-holes for fastening
2
Electrical connecting plug
3
Working air port (2)
4
Compressed air port (1)
5
Exhaust air port (3)
2
1
3
Fig. 3: Pneumatic ports (sub base
valve)
1
Exhaust air port (3)
2
Working air port (2)
3
Compressed air port (1)
4.2.2 Display and control elements
5
4
3
2
1
8
6
7
Fig. 4: Display and control elements
1
[Edit] key
2
[UP] key
3
Yellow LED: precise control response
4
Yellow LED: universal control response
(factory setting)
5
Yellow LED: fast control response
6
Red LED [error]
7
Green LED [power]
8
[DOWN] key
5 Transport
Store and transport the product in its original packaging. Observe the weight, the
dimensions and the ambient conditions.
6 Assembly
6.1 Mounting clearances
During assembly make sure that there is sufficient space for the cable connection
and the tubing connections. Place the device as close to the consumer as pos-
sible. This leads to better control accuracy and shorter response times.
6.2 Wall mounting (in-line valve)
VPPM-6L-... and VPPM-8L-...
• Fasten the VPPM-... [2] with 2 M4 screws. If necessary, use the bracket VAME-
P1-A [1].
–Tightening torque: 1.5 Nm
Only apply a static load to the VPPM-... when mounting the VPPM-... with the
assistance of the bracket.
2
1
VPPM-12L-...
•Fasten the VPPM-… with 2 M5 screws.
–Tightening torque: 2.0 Nm
6.3 H.rail mounting (in-line valve)
VPPM-6L-... and VPPM-8L-...
1. Attach the H-rail adapter VAME-P1-T [2] to the VPPM-... with 2 screws [1].
–Screws: M4 x 65 for VPPM-6L-..., M4 x 77 for VPPM-8L-...
–Tightening torque: 1.5 Nm
2
1
2. Attach the VPPM -... to the H-rail.
2
1
3. Fasten the VPPM-... with the retaining screw [2] of the H-rail adapter.
–Tightening torque: 1.5 Nm
6.4 Manifold block assembly (sub base valve)
VPPM-6F-... and VPPM-8F-...
• Fasten the VPPM-... [2] to the manifold block [1] with 2 screws.
–Screws: M4 x 65 for VPPM-6F-..., M4 x 77 for VPPM-8F-...
–Tightening torque: 1.5 Nm
2
1
7Installation
7.1 Pneumatic installation (in-line valve)
1. Remove the covers from the supply ports.
2. Connect the compressed air port (1) and the working air port (2) with tubing
è Fig. 2.
3. Fit a silencer at the exhaust air port (3) or install an exhaust air duct è Fig. 2.
Operating medium
NOTICE
Too much residual oil content in the compressed air will reduce the service life of
the valve.
• When using bio-oils (oils that are based on synthetic ester or native ester,
e.g. rapeseed oil methyl ester), the maximum residual oil content of 0.1 mg/m³
must not be exceeded (ISO 8573-1:2010 [–:–:2]).
7.2 Electrical installation
WARNING
Risk of injury due to electric shock.
• For the electrical power supply, use only PELV circuits in accordance with IEC
60204-1/EN 60204-1 (Protective Extra-Low Voltage, PELV).
•Observe the general requirements of IEC 60204-1/EN 60204-1 for PELV circuits.
• Only use voltage sources that ensure a reliable electric separation from the
mains network in accordance with IEC 60204-1/EN 60204-1.
NOTICE
Malfunction due to impaired immunity to interference
Long signal lines reduce the immunity to interference.
• Use the shortest possible signal lines.
NOTICE
•The connector must not be twisted out of the intended position.
• The tightening torque of the M12 plug socket with cable must not exceed
0.5 Nm.
NOTICE
If the Y-connecting cable type NEBV-M12G8-KD-..-M12G5 is connected to CPX I/O
modules, galvanic isolation of the I/O modules will not be guaranteed.
1. Use the rating plate to check which valve variant is involved.
Valve variant VPPM-...-V1... VPPM-...-A4...
Voltage variant 0 … 10 V DC
Current variant 4 … 20 mA
2. Lay the electrical connection cable without crushing, kinking or stretching it.
3. If a shielded electrical connection cable is used, earth the shield at the end of
the cable remote from the valve.
4. Wire the VPPM-... according to the corresponding plug pattern.
VPPM-...-V1... VPPM-...-A4...
3.
1.
1.
Pin allocation
The pins on the electrical connection are assigned as follows:
Fig. 5: Pin allocation
PIN Wire colour1) Port identifications
VPPM-...-V1... VPPM-...-A4...
1 white (WH) Digital input D1
2 brown (BN) +24 V DC supply voltage
3 green (GN) Analogue input W- (- setpoint value)
4 yellow (YE) Analogue input W+
(+ setpoint value)
0 … 10 V
Analogue input W+
(+ setpoint value)
4 … 20 mA
5 grey (GY) Digital input D2
6 pink (PK) Analogue output X (actual value)
7 blue (BU) GND supply earth
8 red (RD) Digital output D32)
1) With usage of the plug socket with cable as specified in accessories.
2) The hysteresis of the digital comparator output D3 is 0.5% FS.
Tab. 3: Pin allocation
Digital comparator output D3
The “Pressure reached” function permits monitoring of the pressure control func-
tion. The setpoint value is compared with the actual value.
The digital switching output D3 becomes active as soon as the divergence is
£ 0.5% FS and becomes inactive when the divergence > 1% FS is exceeded.
Graph for VPPM-...-...P switching variant
1 2 3 4
Fig. 6: Switching variant VPPM-...-...P
1
Setpoint value
2
Actual value
3
Upper tolerance limit
4
Lower tolerance limit
Graph for VPPM-...-...N switching variant
1 2 3 4
Fig. 7: Switching variant VPPM-...-...N
1
Setpoint value
2
Actual value
3
Upper tolerance limit
4
Lower tolerance limit
Circuit diagram VPPM-...-...P Circuit diagram VPPM-...-...N
Tab. 4: VPPM-... circuit diagrams Switching output
8Commissioning
•Keep high-frequency radiation away from the VPPM-... in order to avoid
increased tolerances of the outlet pressure.
• The VPPM-... interprets setpoint signals that are less than 1% Full Scale (FS) as
0 V or 4 mA. In this case the working pressure is set to ambient pressure.
• At typical input values below 3.6 mA , the valve detects a cable break and the
last pressure set remains unregulated. Leakage results in a change of pressure
over the long term.
1. Connect the VPPM-... with a setpoint value signal. The VPPM-... has a differen-
tial input. Apply the setpoint signal 0 … 10 V or 4 … 20 mA to contacts 3 and 4.
Apply the lower potential to contact 3 and the higher potential to contact 4.
Contact 3 (– setpoint value) can be connected to contact 7 (GND).
2. Power the VPPM-... with direct current.
–Supply voltage UV = 24 V DC ±10%
Select a parameter set for the regulator.
–Press and hold the [Edit] key for 3 seconds.
–Select a parameter set with the [UP] and [DOWN] keys. The LED of the
selected parameter set lights up.
–Press the [Edit] key to confirm the selection.
The control response of the VPPM-... can also be set by remote control via
digital inputs D1 and D2.
Parameter set Control response Input D1 (PIN
1)
Input D2 (PIN
5)
1 Fast control response 1 (24 V DC) 0 (0 V DC)
2 Factory setting: universal control
response
0 1
3 Precise control response 1 1
Tab. 5: Parameter sets
The following 3 tables show the recommended parameter sets for the different
pneumatic ports:
Parameter sets recommended for VPPM-6...
Tube length1) Open system Output volume in ml
0 … 100 100 … 1000 >1000
0 m 3 3 2 1
1 m 3 3 2 2
3 m 3 3 3 2
³ 5 m 3 3 3 2
1) with inner tubing diameter 6 mm or 8 mm
Tab. 6: Parameter sets recommended for VPPM-6...
Parameter sets recommended for VPPM-8...
Tube length1) Open system Output volume in ml
0 … 500 500 … 2000 >2000
0 m 3 1 2 3
1 m 3 1 2 3
3 m 3 2 3 3
³ 5 m 3 3 3 3
1) with tubing diameter 8 mm or 10 mm
Tab. 7: Parameter sets recommended for VPPM-8...
Parameter sets recommended for VPPM-12L-...
Tube length1) Open system Output volume in ml
0 … 2000 2000 … 10000 >10000
0 m 3 1 2 3
1 m 3 1 2 3
3 m 3 2 3 3
³ 5 m 3 3 3 3
1) with tubing diameter 12 mm or 16 mm
Tab. 8: Parameter sets recommended for VPPM-12L-...
9 Maintenance
9.1 Disassembly
NOTICE
•When switching off the VPPM.-..., first make sure that the setpoint value is set
to 0, then that the supply pressure and finally the supply voltage are switched
off.
Switch off the following energy sources:
–Operating voltage
–Compressed air
2. Disconnect the connections from the device.
3. Remove the device from the mounting surface or H-rail.
9.2 Cleaning
Switch off the following energy sources to clean the outside:
–Operating voltage
–Compressed air
2. Clean the device on the outside with a soft cloth as required.
10 Malfunctions
Status of the LED displays
Cause Green LED [power] Red LED [error]
–Undervoltage or overvoltage
of the setpoint value
on on
–Hardware error
–Overvoltage (> 30 V)
–Internal temperature too
high
on flashes
–Undervoltage (< 18 V) off off
Tab. 9: Status of the LED displays
Fault clearance
Malfunction Possible cause Remedy
Device does not respond No supply voltage, LED [power]
off.
Check the connection of the
supply voltage 24 V DC.
No data communication. –Check control unit.
–Check connection.
Flow rate too low Restriction of the flow cross
section by connection tech-
nology.
Use alternative connections.
Pressure rise too slow Large cylinder volume and long
tube length.
Select another parameter set.
Pressure constant despite
modified setpoint specification
Break in the electrical con-
necting cable.
Replace supply cable.
Supply pressure P1 too low. Increase supply pressure.
Manual selection of parameter
sets with the [UP] and [DOWN]
keys on the device is not pos-
sible
Voltage is applied at digital
inputs D1 and D2.
Apply 0 V DC at digital inputs
D1 and D2.
Tab. 10: Fault clearance
11 Technical data
General technical data
Design Proportional-pressure regulator
Mounting position As desired, preferably horizontal (display elements
facing upwards)
Materials
Housing Wrought aluminium alloy
Cover PAXMD6 GF50/gr-P
Seals Nitrile rubber
Lubrication silicone-free
Weight
VPPM-6... [g] 400
VPPM-8... [g] 560
VPPM-12... [g] 2050
Tab. 11: General technical data
Operating and environmental conditions
Medium Compressed air in accordance with ISO 8573-1:2010
[7:4:4] inert gases
Information on operating
medium
Lubricated operation not possible
Degree of protection IP 65 when mounted, with tightened mounting screws,
in combination with plug socket according to accesso-
ries.
Ambient temperature [°C] 0 … 60
Temperature of medium [°C] 10 … 50
Storage temperature [°C] –10 … +70
Vibration and shock
Vibration Tested in accordance with DIN/IEC
68/EN 60068 Part 2-6; wall mounting: 0.35 mm path
at 10 … 60 Hz, 5 g acceleration at 60 … 150 Hz1)
Shock Tested in accordance with DIN/IEC
68/EN 60068 Part 2-27; wall mounting: ±30 g at 11 ms
duration; 5 shocks per direction1)
1) Information does not apply when mounting the VPPM-.../VPPX-... on bracket VAME-P1-A/-T.
Tab. 12: Operating and environmental conditions
VPPM-... 0L2H 0L6H 0L10H
Pressure ranges
Permissible input pressure P1 [MPa] 0 … 0.4 0 … 0.8 0 … 1.1
[bar] 0 … 4 0 … 8 0 … 11
[psi] 0 … 58 0 … 116 0 … 159.5
Control range (output pressure
P2)1)
[MPa] 0.002 … 0.2 0.006 … 0.6 0.01 … 1
[bar] 0.02 … 2 0.06 … 6 0.1 … 10
[psi] 2.9 … 29 8.7 … 87 1.45 … 145
Total leakage when new [l/h] < 5
Connection G 1/8, 1/8 NPT, G 1/4, 1/4 NPT, G 1/2, 1/2 NPT
VPPM-... 0L2H 0L6H 0L10H
Nominal width
Pressurisation [mm] 6 for VPPM-6...
8 for VPPM-8...
12 for VPPM-12...
Exhaust port [mm] 4.5 for VPPM-6...
6 for VPPM-8...
12 for VPPM-12...
1) Input pressure P1 at least 0.1 MPa (1 bar, 14.5 psi) above output pressure P2.
Tab. 13: Characteristic pneumatic values
Characteristic electrical values
Electrical connection Pin contact M12x1, 8-pin
Permissible operating voltage [V DC] 21.6 … 26.4
Permissible residual ripple max. 10%
Power rating of digital switching
output D3 (PIN 8 in el. connection)
[mA] max. 60
Max. permissible supply line
length and signal line length
[m] 10
Max. electrical power consumption
VPPM-6... and VPPM-8... [W] 7
VPPM-12L-... [W] 12
Voltage type VPPM-...-V1...
Setpoint variable [V DC] 0 … 10
Input resistance (setpoint value) [kΩ] 10
Output actual value load [kΩ] min. 2
Current type VPPM-...-A4...
Setpoint variable [mA] 4 … 20
Input resistance (setpoint value) [Ω] 250
Output actual value load [Ω] max. 500
Tab. 14: Characteristic electrical values
Control characteristics1)
Linearity 1% Full Scale (FS)/2% Full Scale (FS)
Hysteresis 0.5% Full Scale (FS)
Reproducibility 0.5% Full Scale (FS)
Total accuracy 1.25% (S1)/2.25 (2%)
Temperature coefficient 0.04/K
1) Maximum deviation, characteristic values determined at room temperature in accordance with ISO 10094.
Linearity refers to the ideal characteristic curve.
Tab. 15: Control characteristics

This manual suits for next models

3

Other Festo Controllers manuals

Festo SPC200 Series User manual

Festo

Festo SPC200 Series User manual

Festo CMMS-AS Series Operating and installation instructions

Festo

Festo CMMS-AS Series Operating and installation instructions

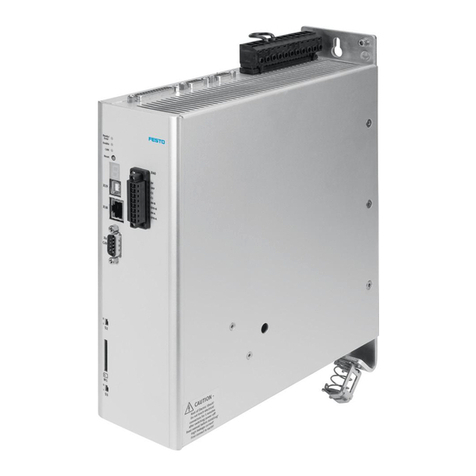

Festo CMMP-AS M0 Series Parts list manual

Festo

Festo CMMP-AS M0 Series Parts list manual

Festo SFC-LACI Reference guide

Festo

Festo SFC-LACI Reference guide

Festo CMMP Series Operating and installation instructions

Festo

Festo CMMP Series Operating and installation instructions

Festo CMXH User manual

Festo

Festo CMXH User manual

Festo SPC200 Series User manual

Festo

Festo SPC200 Series User manual

Festo CMMS-ST-C8-7-G2 User manual

Festo

Festo CMMS-ST-C8-7-G2 User manual

Festo ELGC-TB Series User manual

Festo

Festo ELGC-TB Series User manual

Festo s CMMD-AS-C8-3A Guide

Festo

Festo s CMMD-AS-C8-3A Guide

Festo SLS-6-Series-P-A User manual

Festo

Festo SLS-6-Series-P-A User manual

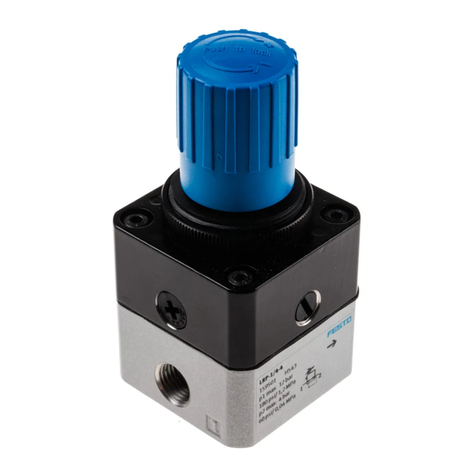

Festo LRP-1/4 Series User manual

Festo

Festo LRP-1/4 Series User manual

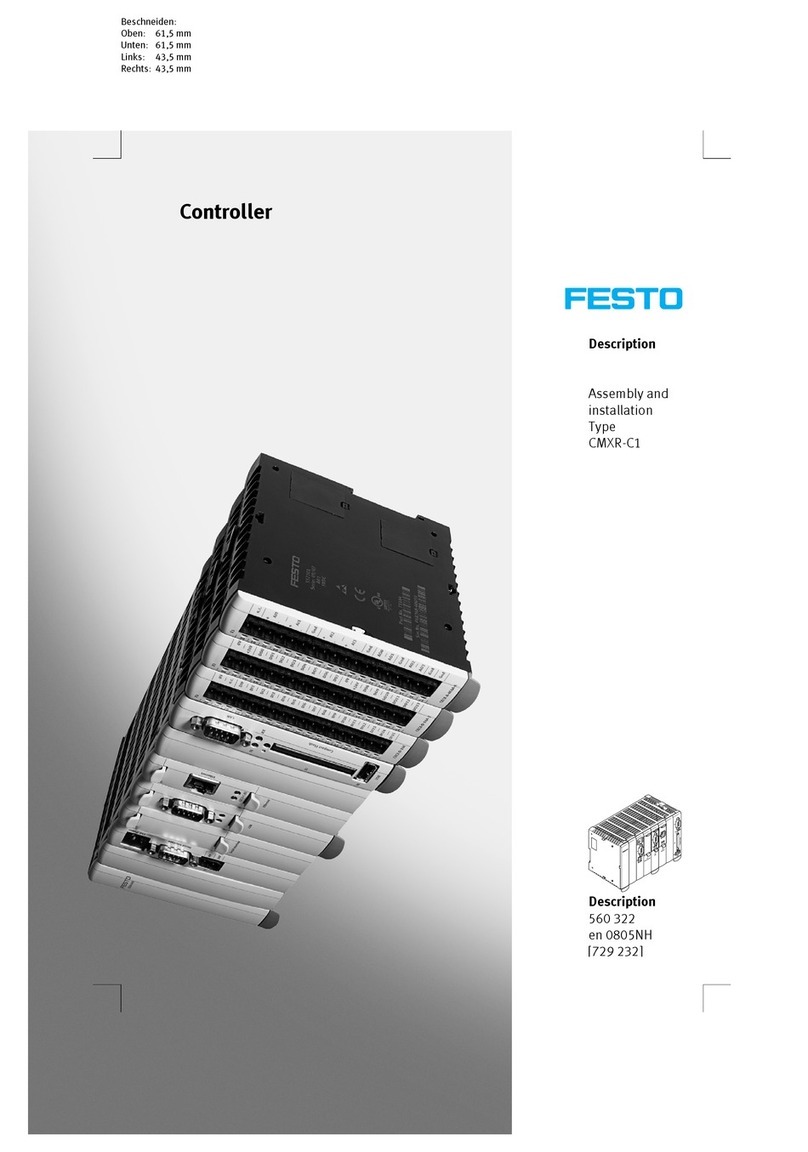

Festo CMXR-C1 Instruction Manual

Festo

Festo CMXR-C1 Instruction Manual

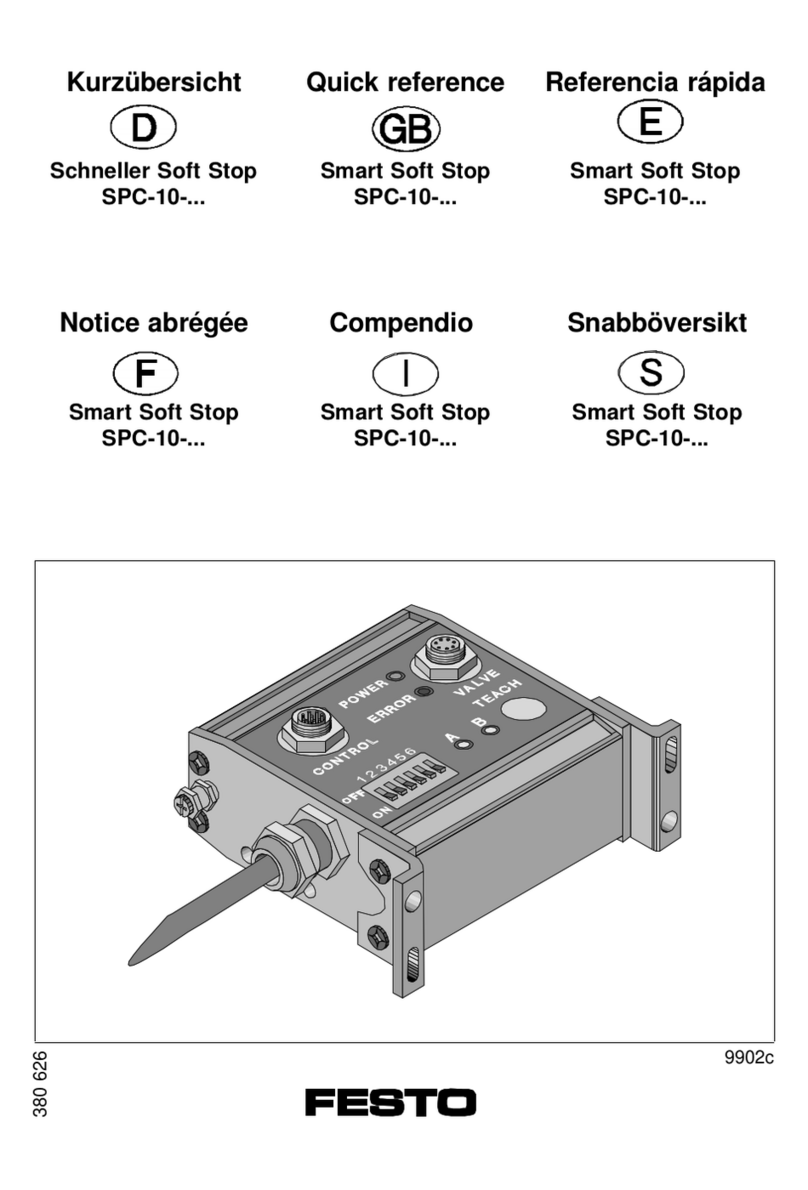

Festo SPC-10 Series User manual

Festo

Festo SPC-10 Series User manual

Festo CMMO-ST-C5-1-LKP User manual

Festo

Festo CMMO-ST-C5-1-LKP User manual

Festo VZXA Series User manual

Festo

Festo VZXA Series User manual

Festo CMMS-ST Series Guide

Festo

Festo CMMS-ST Series Guide

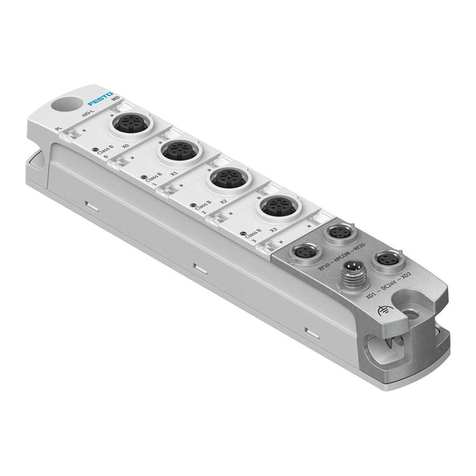

Festo CPX-AP-I-4IOL-M12 User manual

Festo

Festo CPX-AP-I-4IOL-M12 User manual

Festo CMMO-ST-C5-1-LKP User manual

Festo

Festo CMMO-ST-C5-1-LKP User manual

Festo CMMP-AS M3 Series Parts list manual

Festo

Festo CMMP-AS M3 Series Parts list manual

Festo CMMB-AS-0x User manual

Festo

Festo CMMB-AS-0x User manual

Festo CECC-X-M1 series Parts list manual

Festo

Festo CECC-X-M1 series Parts list manual

Festo DAPS-2880-8000 R F Series Operating instructions

Festo

Festo DAPS-2880-8000 R F Series Operating instructions

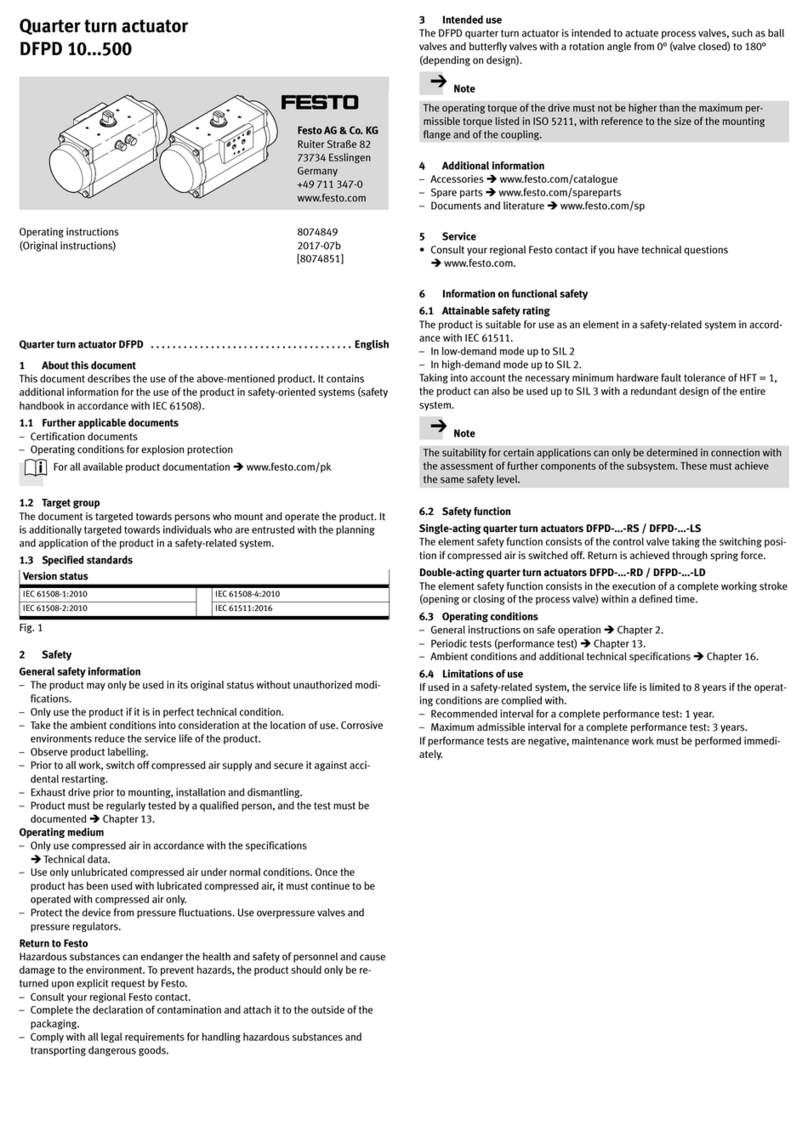

Festo DFPD-x-RS Series User manual

Festo

Festo DFPD-x-RS Series User manual

Popular Controllers manuals by other brands

Meteo Control MX-Module RS485/422 quick start guide

Meteo Control

Meteo Control MX-Module RS485/422 quick start guide

GiBiDi PC200 Instructions for installation

GiBiDi

GiBiDi PC200 Instructions for installation

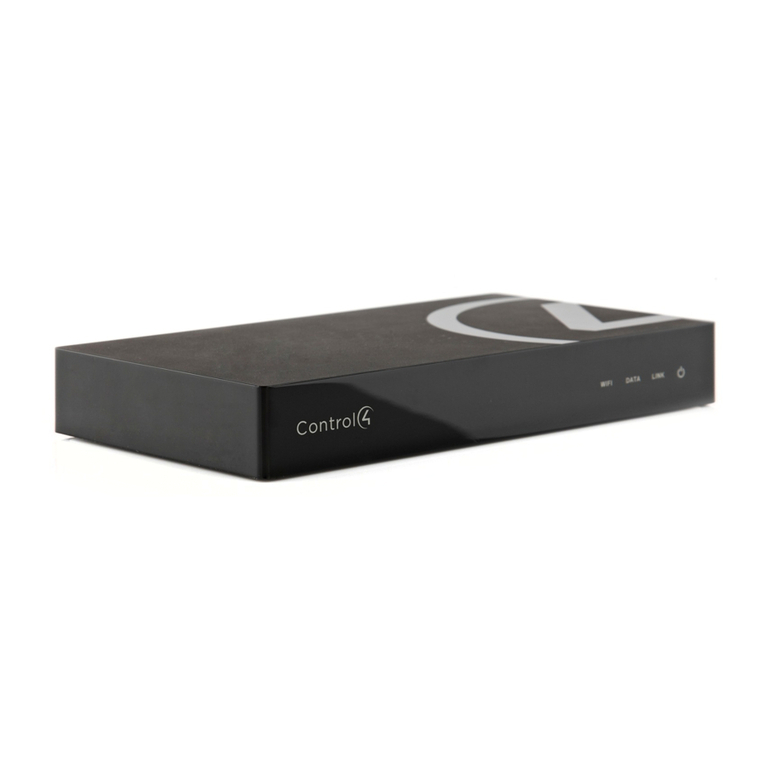

Contro l4 HC-250 user manual

Contro l4

Contro l4 HC-250 user manual

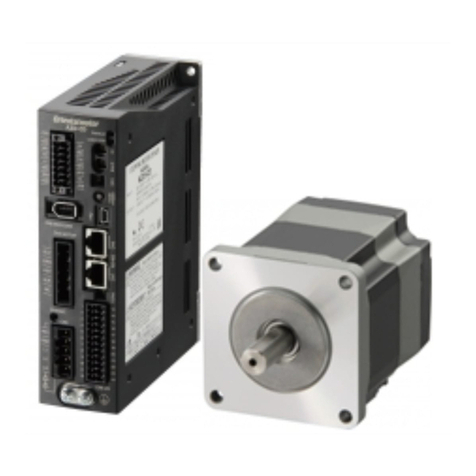

Oriental motor A Step AZ Series user manual

Oriental motor

Oriental motor A Step AZ Series user manual

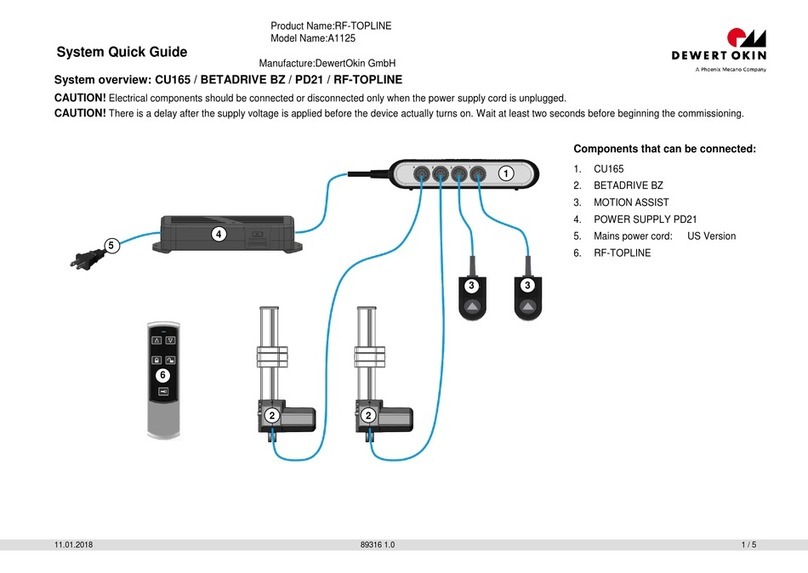

dewert okin A1125 quick guide

dewert okin

dewert okin A1125 quick guide

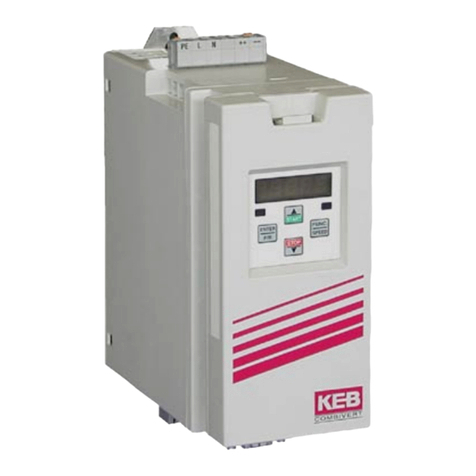

KEBCO COMBIVERT F5 Series Installation guide & operation manual

KEBCO

KEBCO COMBIVERT F5 Series Installation guide & operation manual

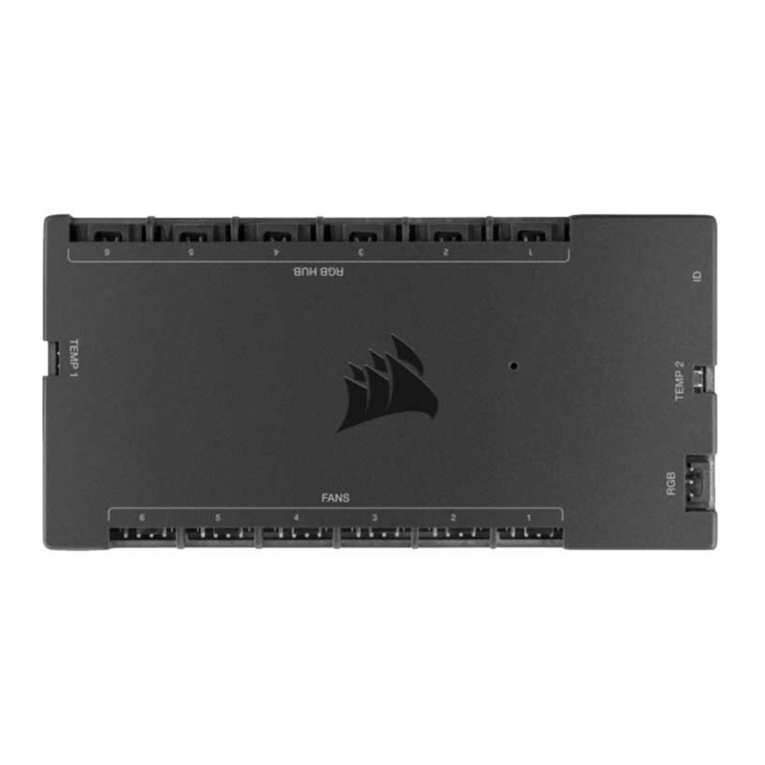

Corsair iCUE COMMANDER CORE XT quick start guide

Corsair

Corsair iCUE COMMANDER CORE XT quick start guide

Arun Microelectronics LTD PGC4S Interface manual

Arun Microelectronics LTD

Arun Microelectronics LTD PGC4S Interface manual

Meanwell DUPS20 installation manual

Meanwell

Meanwell DUPS20 installation manual

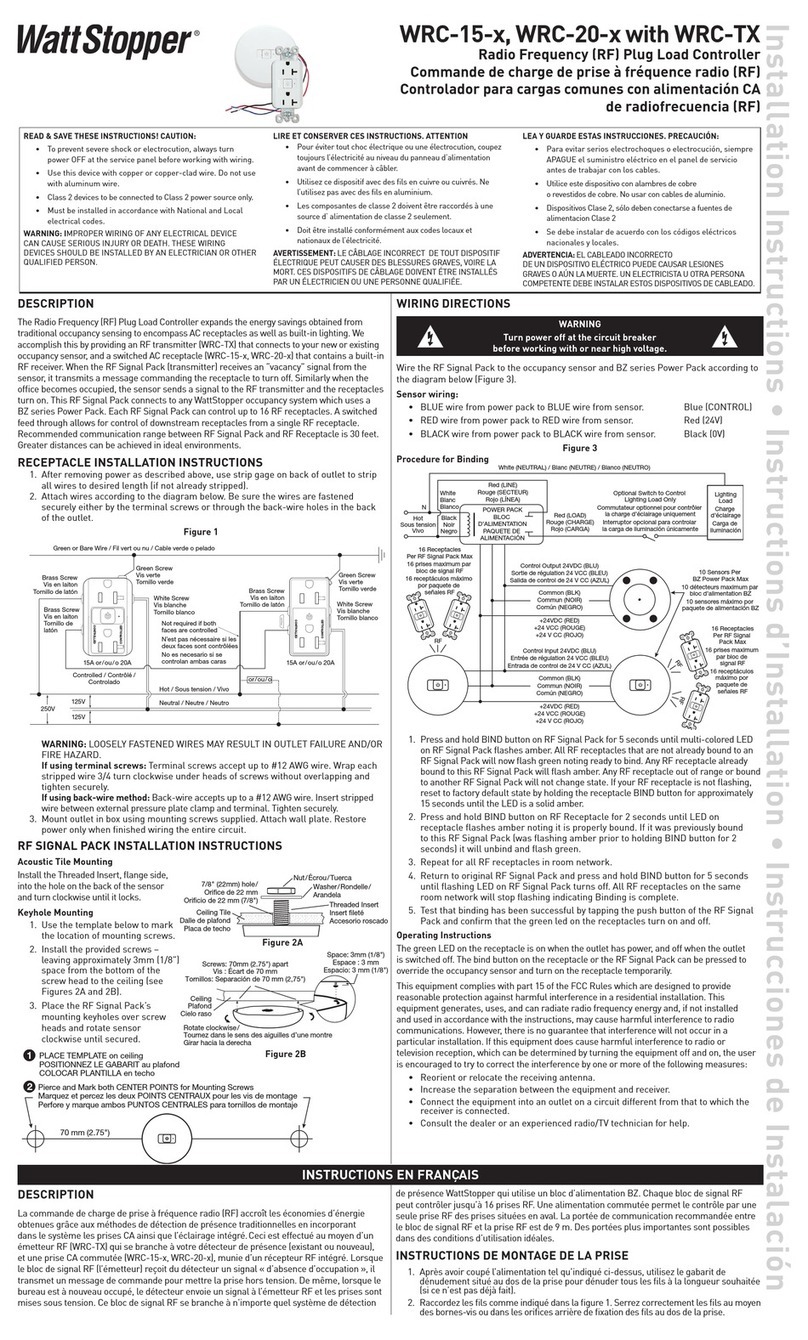

wattstopper WRC-15 Series instructions

wattstopper

wattstopper WRC-15 Series instructions

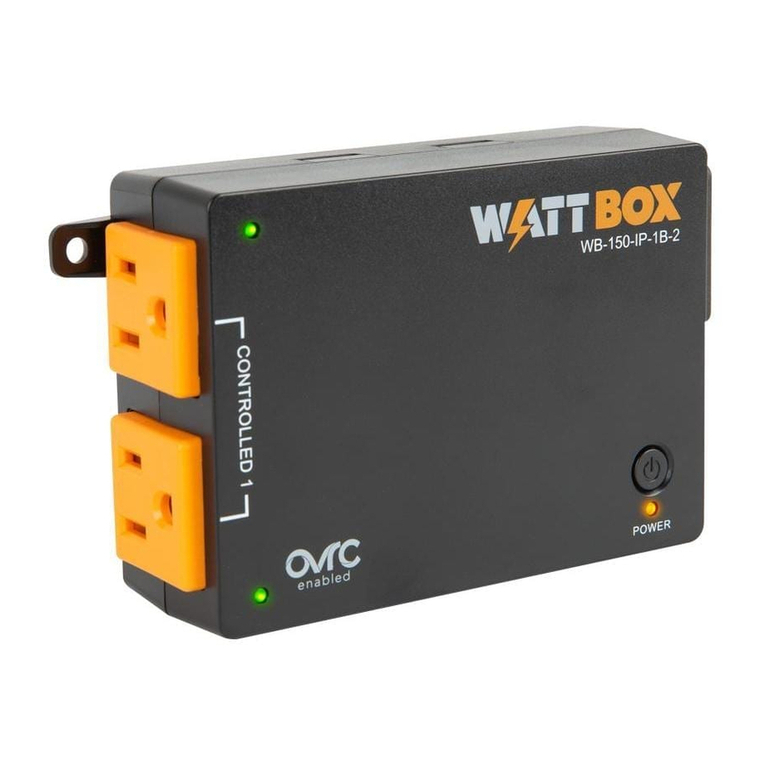

watt box WB-150-IP-1B-2 quick start guide

watt box

watt box WB-150-IP-1B-2 quick start guide

digitalview HSP-1920v2 instructions

digitalview

digitalview HSP-1920v2 instructions

superbrightleds Dream-Color RGB-DC83 user manual

superbrightleds

superbrightleds Dream-Color RGB-DC83 user manual

digitalview 417100041-3 instructions

digitalview

digitalview 417100041-3 instructions

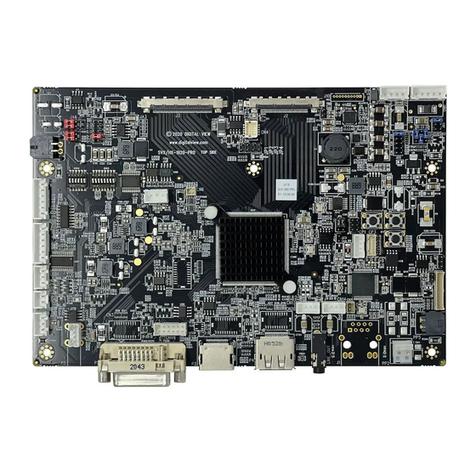

digitalview SVX-1920-PRO instructions

digitalview

digitalview SVX-1920-PRO instructions

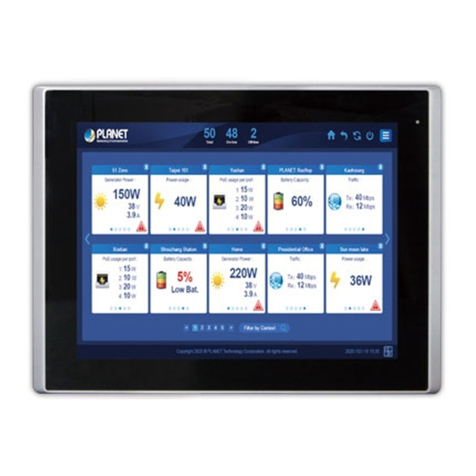

Planet NMC-360V-12 Quick installation guide

Planet

Planet NMC-360V-12 Quick installation guide

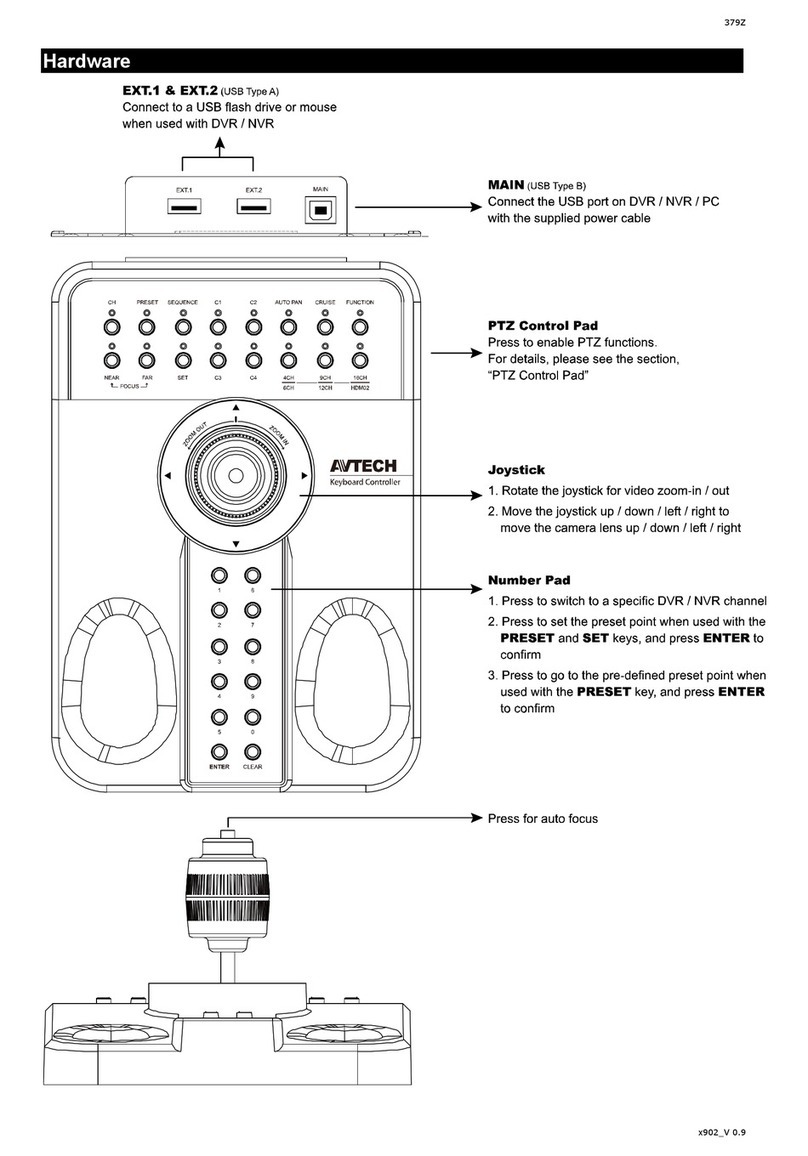

Avtech AVX102 Hardware manual

Avtech

Avtech AVX102 Hardware manual

Cana Kit 50A Motor Speed Controller manual

Cana Kit

Cana Kit 50A Motor Speed Controller manual

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.
