Festo CMXH User manual

Description
STO
Safe Torque Off
(STO)
8067357
1612a
[8067359]
CMXH
Controller

CMXH
2 Festo – CMXH-STO-EN – 1612a – English
Translation of the original instructions
CMXH-STO-EN
Identification of hazards and instructions on how to prevent them:
Danger
Immediate dangers which can lead to death or serious injuries
Warning
Hazards that can cause death or serious injuries
Caution
Hazards that can cause minor injuries
Other symbols:
Note
Material damage or loss of function
Recommendations, tips, references to other documentation
Essential or useful accessories
Information on environmentally sound usage
Text designations:
 Activities that may be carried out in any order
1. Activities that should be carried out in the order stated
– General lists
èResult of an action/References to more detailed information

CMXH
Festo – CMXH-STO-EN – 1612a – English 3
Table of Contents – CMXH
Instructions on this documentation 4.................................................
1 Safety and requirements for product use 5......................................
1.1 Safety 5..................................................................
1.1.1 Safety instructions for use of the STO safety function (Safe torque off) 5......
1.1.2 Intended use of the STO function 6.....................................
1.1.3 Safety characteristics 6..............................................
1.1.4 Foreseeable misuse of the STO function 6...............................
1.1.5 Diagnostic coverage (DC) of the controller 6.............................
1.2 Requirements for product use 7...............................................
1.2.1 Qualification of specialized personnel 7.................................
1.2.2 Range of application 7..............................................
1.2.3 Specified standards 7...............................................
2 Function and application 8...................................................

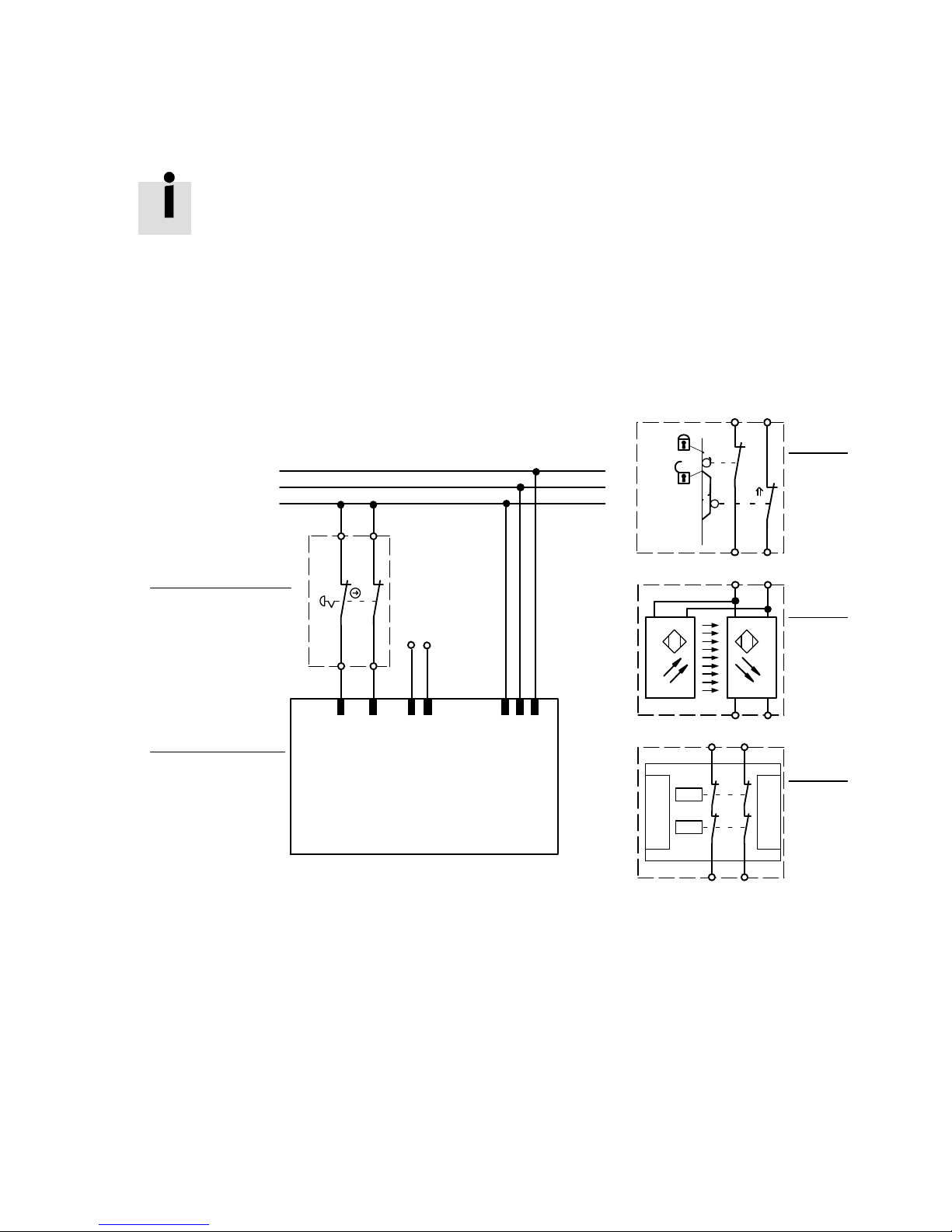

2.1 Circuitry of the STO inputs 9..................................................
2.2 Functional description 10.....................................................
2.3 STO function of the interface [X4] 11.............................................
2.3.1 Switching statuses 11................................................
2.3.2 Switching times 12..................................................
2.3.3 Logic supply 24 V logic 12.............................................
3 Electrical installation 13......................................................
3.1 Installation 13..............................................................
3.2 Notes on commissioning 14....................................................
3.3 Diagnostics 15..............................................................
3.4 Obligations of the machine operator 15..........................................
A Technical appendix 16........................................................
A.1 Technical data 16............................................................
A.1.1 Safety engineering 16................................................
A.1.2 Electrical data 17....................................................
A.2 Product conformity and certifications 18.........................................

CMXH
4 Festo – CMXH-STO-EN – 1612a – English
Instructions on this documentation
This document only describes the utilisation of the safety function STO – “Safe Torque Off” in accord
ance with EN 61800-5-2, which is implemented in the controller CMXH, in combination with the related
planar surface gantry EXCM-30/-40.
Documentation
The complete description of the system, comprising controller and gantry, includes the following docu
ments:
Designation Contents
Assembly instructions
CMXH
Notes on mechanical installation of the CMXH.
Description
EXCM-30/-40
Description of the mechanical installation of the planar surface gantry
EXCM-30/-40
Description
EXCM-30/40-...-PF-...
Commissioning of the planar surface gantry EXCM-30/-40 with the CMXH
controller
Help system
for the FCT plug-in CMXH
Help system in the FCT for support of commissioning and
parameterisation of the CMXH controller
Description
CMXH
Use of the STO safety function (“Safe Torque Off”).
Tab. 1 Documentation for the system EXCM-30/-40 with CMXH
Product identification, versions
This documentation refers to the following software versions:
CMXH firmware version Required CMXH plug-in
V1.2 or later V2.0 or later
Tab. 2 Software versions
The hardware version, firmware version and serial number are displayed in the software
with an active online connection (èConfiguration software FCT, “Controller” page).
If an online connection is currently unavailable, information relating to the last connection
will be displayed.
Additional information about the product:
– Overview of accessories (catalogue) èwww.festo.com/catalogue
– Certificates, declaration of conformity èwww.festo.com/sp
Note
Before using a newer firmware version:
 Check whether a newer corresponding version of the FCT plug-in or user documenta
tion is available èwww.festo.com/sp.

1 Safety and requirements for product use
Festo – CMXH-STO-EN – 1612a – English 5
1 Safety and requirements for product use
1.1 Safety
When commissioning electrical drives:
 Always observe the safety instructions and warnings in the documentation of the controller
(èTab. 1) and the documentation of the components used.
 Before mounting and installation work: Switch off the supply voltage. Secure against accidental
reactivation. Only switch on the supply voltage again when mounting and installation work is com
plete.
 Never remove or insert a plug when the motor controller is powered.
 Observe the handling specifications for electrostatically sensitive devices.
 Only enable the controller if the drive has been professionally installed and fully parameterised.
 Do not carry out repairs on the controller. In the event of a defect: Replace the complete controller.
1.1.1 Safety instructions for use of the STO safety function (Safe torque off)
Caution
In order to achieve safety characteristics according to EN ISO 13849-1:
 Conduct a risk assessment of the application.
 Select the components and their wiring corresponding to the required category
according to EN ISO 13849-1.
Caution
Failure of the safety function can result in serious, irreversible injuries, e.g. due to unex
pected movements of the actuators.
 Do not bypass the connections for safety equipment.
 Observe the input voltage ranges of the controller èChapterA.1.
 Only use the STO function when all of the necessary safeguards have been set up
and are functional.
 Validate the STO function to complete commissioning.
Caution
Severe injuries as a result of uncontrolled movement of the passive actuators when
switching off the power output stage. The STO function is insufficient as the sole safety
function for drives that are subject to permanent torque (e.g. through suspended
loads).
 Shut down the passive actuators mechanically if required, e.g. via a brake, to ensure
that movements are prevented. This especially applies to vertical axes without auto
matic locking mechanics, clamping units or counterbalancing.

1 Safety and requirements for product use
6 Festo – CMXH-STO-EN – 1612a – English
1.1.2 Intended use of the STO function
The controller supports the STO safety function (STO, Safe Torque Off) in accordance with
EN61800-5-2. The STO function is intended to shut down the torque from a motor that is connected to
the CMXH, thereby preventing an unexpected restart of the motors. The STO function may only be used
for applications in which the specified safety characteristics suffice.
1.1.3 Safety characteristics
The STO function of the CMXH fulfils requirements for the following characteristic safety values:
– PL e/Cat. 3 according to ENISO13849-1
– SIL CL 3 in accordance with EN61800-5-2 / in accordance with EN62061 / IEC 61508
The achievable safety level of the complete system depends on the other components that are used to
implement the safety function.
To protect against unintended start-up, the controller must be activated via the connection [X4] with the
category required for the application according to EN ISO 13849-1, e.g. via an external safety relay.
1.1.4 Foreseeable misuse of the STO function
Unintended use includes the following misuses:
– Bypassing of the safety function
– Use in applications where switching off can result in hazardous movements or conditions.
The STO function does not provide protection against electric shock, only against dangerous move
ments!
1.1.5 Diagnostic coverage (DC) of the controller
The diagnostic coverage (èChapter A.1) is influenced by the interconnection of the controller in the
control chain as well as the measures implemented for diagnostics.
In order to achieve the diagnostic coverage, the status of the diagnostic contacts must be evaluated by
the control system with each request of the STO function.
If the signal does not correspond to the expected value, it can allude to a potentially dangerous mal
function, e.g. a wire break. In this case, appropriate measures must be implemented to maintain the
safety level.
Note
The controller cannot detect a cross circuit in the input circuit by itself.
 Find out if cross-circuit detection is needed for the input circuit and wiring in your
application.
 If required, use a safety switching device with cross-circuit detection.

1 Safety and requirements for product use
Festo – CMXH-STO-EN – 1612a – English 7
1.2 Requirements for product use
For correct and safe use of the product in a machine or system:
 Provide the complete product documentation to the following specialists
– the design engineer and installer of the machine or system
– the personnel responsible for commissioning
 Keep the documentation safe throughout the entire product lifecycle.
 Ensure compliance with all of the specifications in the documentation for the controller
(èTab. 1 Documentation for the system EXCM-30/-40 with CMXH).
 Also take into consideration the documentation for the other components (e.g. motors, cables,
etc.).
 Take into consideration all of the legal regulations that are applicable for the installation site, as
well as the following documents:
– regulations and standards
– regulations of the testing organisations and insurers
– national specifications
For correct and safe use of the STO function:
 Conduct a risk assessment for your machine or system.
 Comply with the specified safety characteristics (èChapter A.1, Technical data).
 Comply with the connection and environmental conditions, in particular the voltage ranges of the
product and all connected components. Only compliance with the limit values and load limits will
enable operation of the product in compliance with the specified safety regulations.
1.2.1 Qualification of specialized personnel
The function should only be integrated into the machine by a qualified electrical technician of the ma
chine manufacturer. The qualified technician must be familiar with:
– Installation and operation of electrical control systems
– the applicable regulations for operating safety-engineered systems
– the applicable regulations for accident prevention and occupational safety
– the documentation for the product
1.2.2 Range of application
The controller has the CE marking. The product-relevant EU directives can be found in the declaration of
conformity. Additional information:
– Certificates and the declaration of conformity (èwww.festo.com/sp)
– Standards and test values (èChapter A.1,Technical data)
1.2.3 Specified standards
ENISO13849-1:2015
EN 60204-1:2006/AC:2010
IEC 61508-1…2/4…7:2010-04
EN 61800-5-2:2007-10
EN 62061:2005/A2
Tab. 1.1 Standards specified in the document

2 Function and application
8 Festo – CMXH-STO-EN – 1612a – English
2 Function and application
Caution
Unexpected movement of the vertically built-in planar surface gantry when the output
stage is shut down.
Risk of impact and crushing injuries.
 Only planar surface gantries with holding brakes may be installed vertically.
 Note the mechanical inertia of the holding brake.
Note
Failure of the output stage.
If the output stage of the controller fails when an STO function is active, it may result in
the drive jerking through a limited detent movement of the rotor. The rotation angle/
travel corresponds to the pole pitch of the motor used.

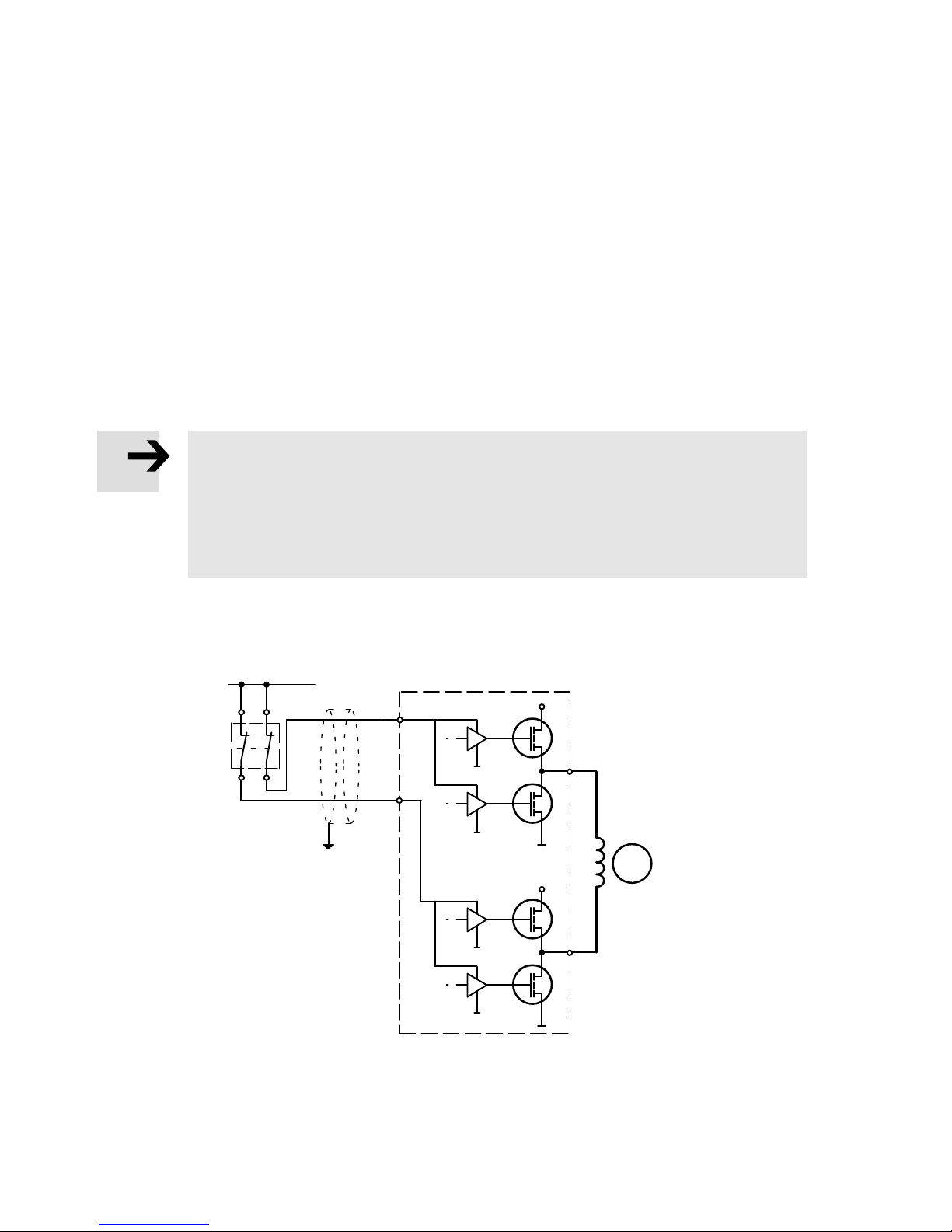

The STO function (“Safe Torque Off”) enables 2-channel, secure disconnection of the power supply to
both motors connected to the controller.
The safety function is requested solely via the control ports of the switch-off functions interface [X4] on
the controller. Safety-oriented circuitry for additional interfaces of the controller is not required.
1
1Switch-off functions interface [X4]
Fig. 2.1 Switch-off functions interface [X4]

2 Function and application
Festo – CMXH-STO-EN – 1612a – English 9
2.1 Circuitry of the STO inputs
To protect against unintended start-up, the controller must be activated via the connec
tion [X4] with the category required for the application in accordance with
EN ISO 13849-1. Attainable safety level of the STO function èChapter 1.1.3.
The following components for requesting the STO function, for example, can be connected to the STO
inputs (èTab. 3.1 Switch-off functions interface [X4]):
– Semiconductor safety outputs (electronic safety switching devices, active safety sensors, e.g. light
curtains with OSSD signals) (OSSD = “Output Signal Switching Device”)
– Switch contacts (safety switching devices with relay outputs, passive safety sensors, e.g. forced
position switches)
3
4
5
1
2
+24 V/+48 V DC, load
Controller CMXH
Logic
Load
0 V
STO1 STO2
0 V DC
DIAG1 DIAG2
S1
OSSD1
OSSD2
S1
S1
S1 13
24
13
42
13
42
13
42
+24 V DC, logic
Receiver
Transmitter
Input circuit Feedback circuit
PLC input: Safety feedback
1Controller CMXH
(only relevant connections depicted)
2Emergency stop switches
3Guard door (alternative to 2)
4Light curtain (alternative to 2)
5Safety switching device (alternative to 2)
Fig. 2.2 Switching example (without cross-circuit detection)

2 Function and application
10 Festo – CMXH-STO-EN – 1612a – English
2.2 Functional description
The STO function is requested over 2 channels via switch S1, whereby the control voltage (+24 V DC,
logic èFig. 2.2) is switched off at both inputs STO1 and STO2.
The STO inputs are of equal value, i.e. it makes no difference in which sequence they are connected.
The controller monitors the status of the STO inputs and switches off the driver supply for the output
stages as soon as logic 0 (0 V) is present at one of the STO inputs. Power supply of the motors is inter
rupted via the power output stages:
– Behaviour of the drive with running motors: The movement of the drive is not decelerated via a
braking ramp of the controller. The drive continues to move uncontrolled due to inertia or external
forces until it comes to a standstill by itself.
– Behaviour of the drive with a stopped motor: The drive is uncontrolled and can move due to external
forces.
Note
For motors with integrated holding brake, the holding brake is activated by the non-
safety-relevant firmware of the device. When the output stage is switched off, there is
no deceleration of the drive via a braking ramp. The holding brake is closed immediately.
If the motor is running, this results in increased wear and can lead to damage to the
motors if it occurs repeatedly.
The 2-channel disconnection of the output stages is indicated by the DIAG1/DIAG2 diagnostic contact.
The status of the STO function can be reported to an external safety switching device for diagnostics,
for example, via the diagnostics contact. The diagnostics contact is not evaluated in terms of safety
engineering.
3
2
1
STO1
STO2
+24 VDC
M
+24 VDC load
+24 VDC load
2x
3
4
1Input circuit (e.g. safety relay)
2Power output stage in CMXH
(only one phase shown)
3Driver supply
4Motor (only one phase shown)
Fig. 2.3 “Safely switched off torque” functional principle

2 Function and application
Festo – CMXH-STO-EN – 1612a – English 11
2.3 STO function of the interface [X4]
2.3.1 Switching statuses
The STO inputs do not have voltage monitoring.
If required, voltage monitoring must be achieved through additional measures.
Inputs STO1/STO2:
As long as a logic 1 (+24 V DC) is present at both STO inputs, the motors can be operated.
If there is a logic 0 (0 V DC) at one or both of the STO inputs, the voltage supply to the motors is inter
rupted. At the same time, error 0x34 is triggered. When both STO inputs receive logic 1 again, the error
0x34 must first be acknowledged before the drive can be enabled again.
Diagnostic contacts DIAG1/DIAG2:
The diagnostic contacts are closed when the STO function is active.
The diagnostic contacts are opened:
– in the event of a failure of the logic voltage or supply voltage
– if the STO function is inactive
STO1 STO2 DIAG1/DIAG2 Status
1 1 High impedance
(open)
Normal operation
– Output stages are switched on.
– STO function is inactive.
1 0 High impedance
(open)
The STO function has been requested on one channel, e.g. in the
event of a failure of a channel:
– Output stages are switched off through 1 channel.
– The motors can no longer be operated.
– STO function is inactive.
0 1
0 0 Low impedance
(closed)
The STO function has been requested on 2 channels.
– Output stages are switched off through 2 channels.
– The motors can no longer be operated.
– The STO function is active.
Tab. 2.1 Switching logic of the inputs STO1/STO2

2 Function and application
12 Festo – CMXH-STO-EN – 1612a – English
Switching statuses [X4]
Inputs STO1/STO21)
Logic 1 [V DC] 20.4
0-signal [V DC] 5
Diagnostic contacts DIAG1/DIAG2
Closed: Max. internal resistance [Ω] 40
Open: off-state current [μA] 2
1) Intermediate area is undefined
Tab. 2.2 Electrical data of switching statuses [X4]
2.3.2 Switching times
The amount of energy stored in the components of the STO function (e.g. capacitors) depends on the input
voltage level. These amounts of energy must be charged or discharged depending on the switching opera
tion. Depending on the input voltage, this results in different values for the transition to the safe status (STO)
and the tolerance time (buffer time) compared to signals of safety-relevant output switching elements of
Electro-Sensitive Protective Equipment (Output Signal Switching Device = OSSD).
Signal1) Switching time1)
STO1/STO2 Activate STO [ms] 2
Deactivate STO [ms] 8
DIAG1/DIAG2 Close diagnostics contact [ms] 10
Open diagnostics contact [ms] 20
1) Other electrical data èChapter A.1.2
Tab. 2.3 Switching times
2.3.3 Logic supply 24 V logic
A 24 V auxiliary supply is available at [X4.1] and [X4.16].
The reference potential (0 V) is [X4.8].
The logic supply can be optionally used to supply external, active sensors.
Other electrical data èChapter A.1.2.

3 Installation and commissioning
Festo – CMXH-STO-EN – 1612a – English 13
3 Electrical installation
Warning
Electric shock from voltage sources without safeguarding.
 For the electrical power supply, only use PELV circuits compliant with EN602041
(Protective Extra-Low Voltage, PELV).
 Observe the general requirements of EN 60204-1 for PELV circuits.
 Use only voltage sources which guarantee reliable electrical isolation of the operat
ing and load voltage in accordance with IEC 60204-1.
3.1 Installation
Caution
Unexpected and unintended movement of the drive during mounting, installation and
maintenance work.
 Before starting work: Switch off power supplies. Cancelling the enable signal on the
controller is not sufficient.
 Secure the power supplies against accidental reactivation.
Installation instructions:
 Observe all of the information on electrical installation of the controller èTab. 1.
 Comply with the handling specifications for electrostatically sensitive devices.
 Use the plug connector [X4] included in the scope of delivery of the controller.
 Connect the STO inputs in 2 channels with parallel wiring.
Note
Damage to the device in the event of an overload.
Pin [X4.1] and [X4.16] (24-V logic) are not overload-proof! Max. 100 mA permissible.
Note
The STO function must never be bridged.
 Make sure that no jumpers etc. can be used parallel to the safety wiring, e.g. by
using the maximum cable cross section of 0.5 mm2.

3 Installation and commissioning
14 Festo – CMXH-STO-EN – 1612a – English

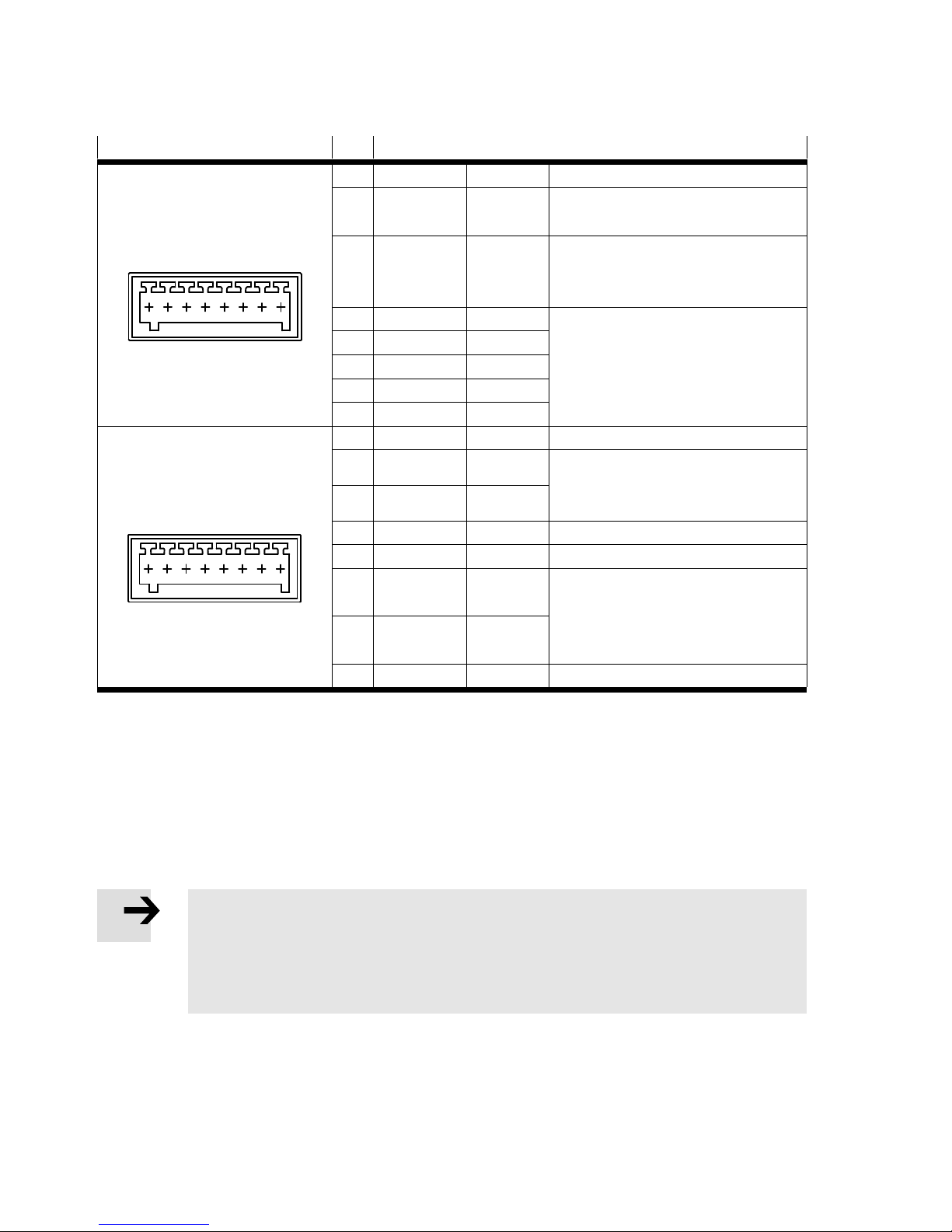

Connection X4 Pin Function
Top row 16 24 V logic Output Logic voltage +24 V
16 9
15 ESTOP1) Input External stop, trigger braking ramp
(at 0 V)
14 RB2) Input With +24 V: Release brake
With 0 V: Brake control via the
control word CCON3)
13 – Reserved
12 –
11 –
10 –
9 –
Bottom row 124 V logic Output Logic voltage +24 V
81
2 STO1 Input Safe Torque Off function:
With 0 V: safely switching off
supply voltage to the motors
3 STO2 Input
4 – Reserved
5FAULT4) Output With +24 V: Fault is present
6 DIAG1 Potential-free diagnostic contacts
(Low impedance if the STO function
has been requested and activated
via 2 channels.)
7 DIAG2
80 V GND GND (reference potential)
1) At rest, the output stage is switched off and any motor brakes present are closed.
2) Detailed information about the brake function (èDescription for the module EXCM-30/-40-...-PF)
3) If no controller has master control, the brake remains in its last status when 0 V is applied.
4) The output is high impedance. To signal errors, a low impedance consumer is used.
Tab. 3.1 Switch-off functions interface [X4]
3.2 Notes on commissioning
Note
It is recommended that at least the STO function should be wired at initial start-up.
The complete commissioning of the controller by the machine manufacturer is de
scribed in the description EXCM-30/-40-...-PF and in the Online Help for the CMXH plug-
in of the FCT software.

3 Installation and commissioning
Festo – CMXH-STO-EN – 1612a – English 15
Caution
Incorrect wiring or use of inappropriate components will result in failure of the STO
function or non-compliance with the requirements of ENISO138491 (category).
Prior to commissioning:
 Make sure that components are used and wired in accordance with the required
category according to ENISO13849-1.
 Check the electrical installation (connecting cable, pin allocation).
 Validate the STO function to conclude the installation process and after every modi
fication to the installation.
 Only use the STO function when all of the necessary safeguards have been set up
and are functional.
For a performance test of the STO function:
1. Switch off each channel individually, and check the reaction of the motors and diagnostics contacts.
2. Switch off both channels and check the reactions.
3.3 Diagnostics
Diagnostics Description
Potential-free dia
gnostic contacts1)
The potential-free diagnostic contacts of the STO function (DIAG1/DIAG2)
can be evaluated by a higher-order controller. Closed diagnostic contacts
show that the STO function is active.
Error message
0x34
When the STO function is requested, the error “Safe torque off” (0x34) is
generated and displayed cyclically on the 7-segments display of the control
ler. An entry of the error in the diagnostic memory is optional.
1) This diagnosis is not evaluated in terms of safety.
Tab. 3.2 Diagnostics options of the STO function
For additional information on the 7-segment display and complete error lists
(èDescription EXCM-30/-40-...-PF)
3.4 Obligations of the machine operator
The implemented safety function must be subjected to a regular and documented performance test by
a specialist during the machine's period of use. The frequency of these tests must be determined by
the machine operator based on the specifications of the machine manufacturer. An inspection of the
controller is recommended at least once a year.

A Technical appendix
16 Festo – CMXH-STO-EN – 1612a – English
A Technical appendix
A.1 Technical data
The general technical data, operating and ambient conditions and additional connection
data can be found in the commissioning of the planar surface gantry EXCM-30/-40 with
the controller CMXH (èDescription EXCM-30/-40-...-PF).
A.1.1 Safety engineering
Safety reference data and safety specifications
Safety function STO Safe Torque Off
(safely switched-off torque)
Category 3 In accordance with EN ISO 13849-1
Performance Level PLe In accordance with EN ISO 13849-1
Safety Integrity Level SILCL 3 In accordance with EN 61800-5-2
(Safety integrity level)
SIL Claim Limit SIL CL 3 In accordance with EN 62061
(SIL Claim Limit)
Systematic Capability SC 3 In accordance with IEC 61508
(Systematic suitability)
DCavg [%] 90 Average Diagnostic Coverage
(Average degree of diagnostic coverage)
èChapter1.1.3
SSF [%] 99 Safe Failure Fraction
(Proportion of safe failures)
MTTFd[Years] 5700 Mean Time To dangerous Failure
(Mean time until a dangerous failure)
HFT 1Hardware Failure Tolerance
(hardware fault tolerance)
PFH [1/hr] 2 x 10-9 Probability of Dangerous Failure per Hour
(Probability of a dangerous failure per hour)
T
Proof Test Interval [Years] 20 Inspection interval
Service life [years] 20 In accordance with EN ISO 13849-1
Type test The STO function has been certified by an independent
testing body. Certificate CMXH èwww.festo.com/sp
Tab. A.1 Safety reference data and safety specifications

A Technical appendix
Festo – CMXH-STO-EN – 1612a – English 17
A.1.2 Electrical data
Inputs STO1/STO2 [X4.2]/[X4.3]
Nominal voltage [V DC] 24 (relative to 0 V at [X1.3] )
Voltage range [V DC] 21.6 … 28.8
Permissible residual ripple [%] 5 (relative to nominal voltage 24 V)
Nominal current [mA] 20
Starting current [mA] 200
Input voltage thresholds (intermediate range is undefined)
Logic 1 [V DC] 20.4
Logic 0 [V DC] 5
Activate STO function switching time [ms] 2
Deactivate STO function switching time [ms] 8
Tab. A.2 Electrical data for inputs STO1 and STO2
Potential-free diagnostic contacts DIAG1/DIAG2 [X4.6]/[X4.7]
Version Semiconductor relay
Max. voltage [V DC] 30
Nominal current [mA] 100
Max. internal resistance (contact closed) [Ω] 40
Residual current (contact open) [μA] 2
Switching time closing [ms] 10
Switching time opening [ms] 20
Galvanic separation Via optocoupler
Protective function Overvoltage resistant to 60 V DC (checked)
Tab. A.3 Electrical data of the diagnostic contacts

A Technical appendix
18 Festo – CMXH-STO-EN – 1612a – English
Logic voltage 24 V logic [X4.1]/[X4.16]
Nominal voltage
– Supply via [X1.4]
– Not additionally filtered or
stabilised
[V DC] 24
Nominal current [mA] 100 (max.)
Overload protection Not overload-proof
Tab. A.4 Electrical data of the 24 V logic output
Connection [X1] Pin Function
14
1GND 0 V Reference potential for
load voltage
2Load voltage +24 V ±10 %
or
+48 V ±10 %
Power supply of the power
output stages of the motors
3GND 0 V Reference potential for
logic voltage
4Logic voltage +24 V ±15 % Power supply for the con
trol electronics and brakes
Tab. A.5 Voltage supply [X1] connection
Signal lines
Max. cable length [m] 30
Cable cross section [mm²] 0.14 … 0.5
Tab. A.6 Technical data of the cabling at [X4]
A.2 Product conformity and certifications
Product conformity and certifications
CE marking
(see declaration of conformity èwww.festo.com)
In accordance with EU EMC Directive1)
In accordance with EU Machinery Directive
Approvals RCM (Regulatory Compliance Mark)
1) The component is intended for industrial use. Outside of industrial environments, e.g. in commercial and mixed-residential areas,
actions to suppress interference may have to be taken.
Tab. A.7 Product conformity and certifications

Reproduction, distribution or sale of this document or communica
tion of its contents to others without express authorization is
prohibited. Offenders will be liable for damages. All rights re
served in the event that a patent, utility model or design patent is
registered.
Copyright:
Festo AG & Co. KG
Postfach
73726 Esslingen
Germany
Phone:
[phone]
Fax:
[phone]
E-mail:
[e-mail]
Internet:
www.festo.com
Original: de
