Fhiaba 0FR Series User manual

27
1
1.1
1.2
1.3
2
2.1
2.2
2.3
3
3.1
3.2
3.3
3.4
3.5
3.7
4
4.1
4.2
4.3
4.4
5
5.1
5.2
5.3
6
6.1
7
7.1
7.2
8
8.1
9
9.1
9.2
10
11
11.1
11.2
11.3
12
12.1
12.2
13
13.1
13.2
www.fhiaba.com ∙ [email protected] ∙ Tel [phone] ∙ Fax [phone]
EN
Index
Important directions for safety and the environment
For your safety
Caring for the environment
Cleaning, sanitization and maintenance of the ice and/or water dispenser (if present)
Installation

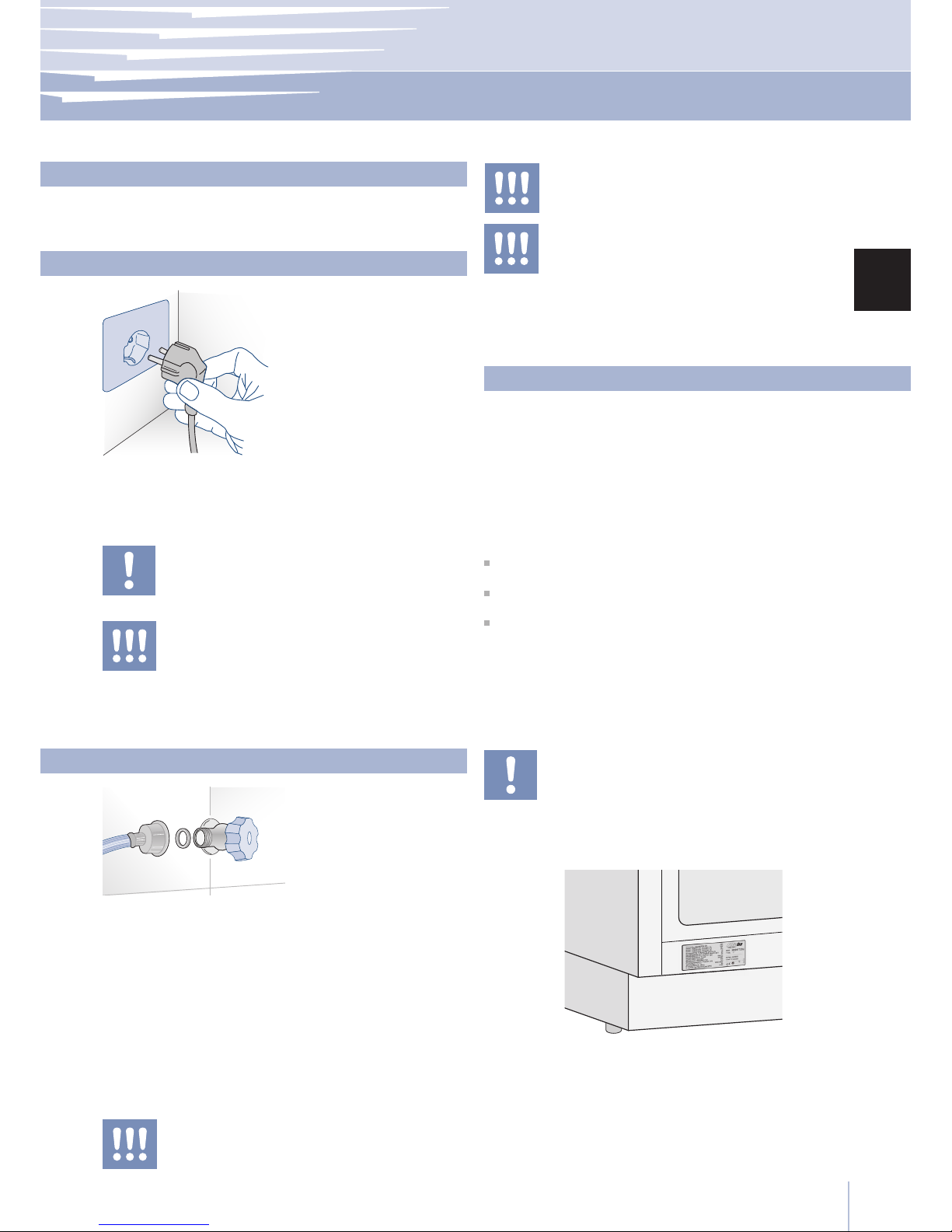

Installation
Connection to the electrical power supply
Connection to the water system
Before starting
Know your Fhiaba
Main components
Electronic Control
Main control panel
Fresco control panel
Main control panel
Appliance switching on and off
Switching on and off
How to adjust the temperature for different requirements
Ice Maker activation
Information and malfunction messages on the display
Settings and Special Functions
Customization and language settings
Special functions activated through the Menu
Basic settings of the Menu
Internal Layout

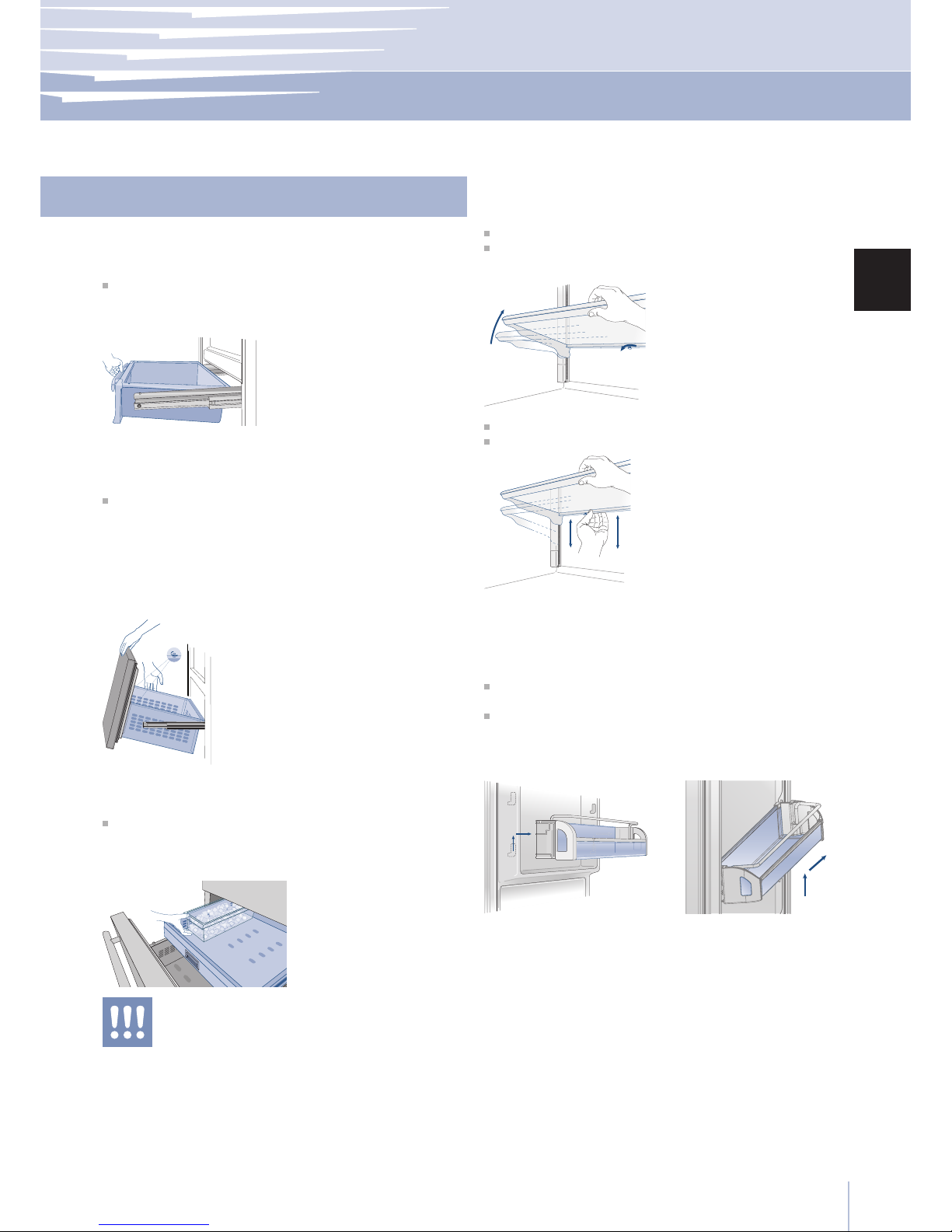

Internal Layout (positioning, adjustment, removal)
Activation and use of the Ice Maker
Activation and use of the Ice Maker
Water Filter
Lighting
Lighting
Food Preservation
General directions
How to maintain good food quality
Recommended times for Food Preservation
Care and Cleaning
Care and Cleaning
Condenser cleaning
Internal cleaning
Troubleshooting Guide
Troubleshooting Guide
Malfunction messages appearing on the display
Menu Map
Functions
Setting
USER MANUAL

2828
1
1.1
1.2
1.3
B09001301

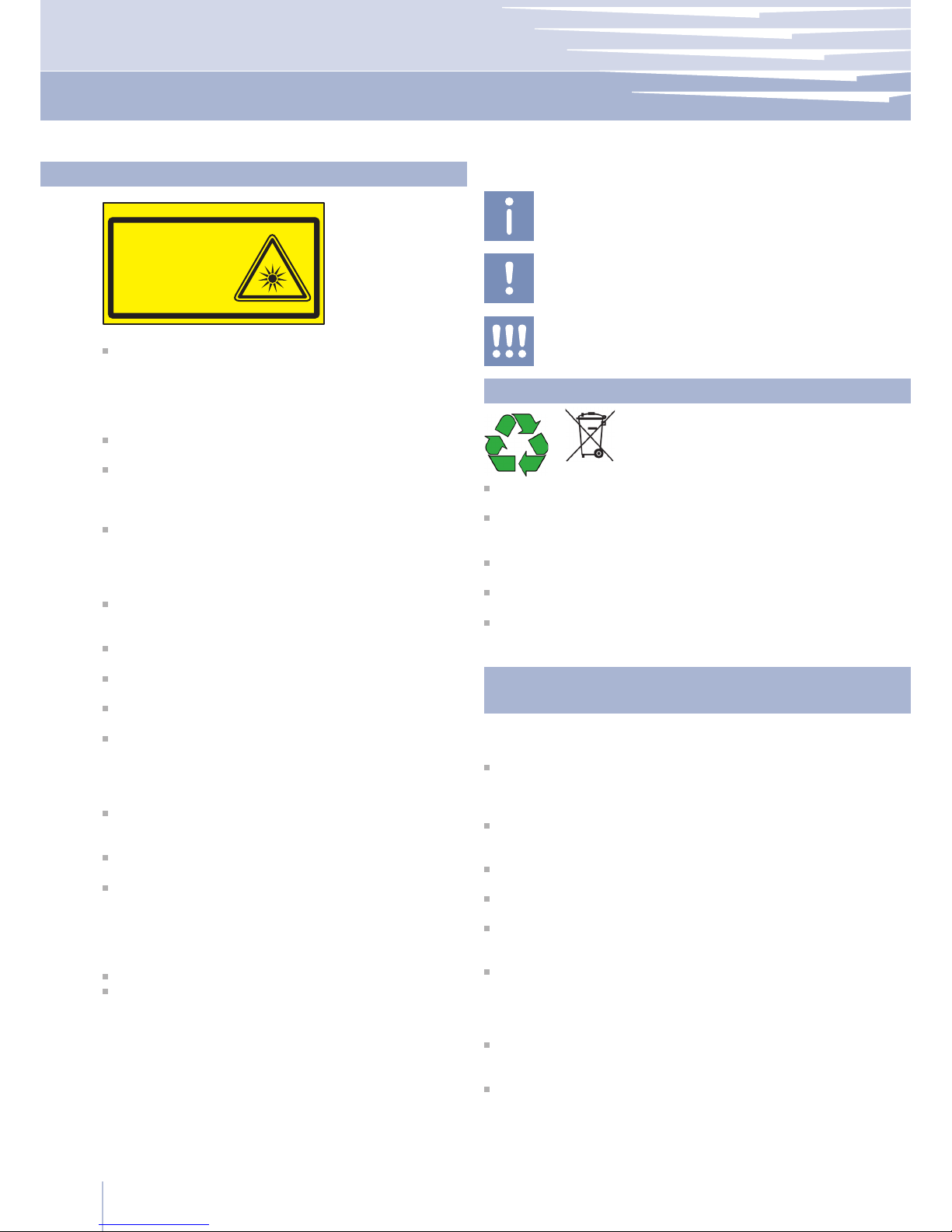

Product tested in accordante with EN62471
Risk Group 2
PRUDENZA:
NON FISSARE LA LAMPADA IN FUNZIONE.
PUÒ ESSERE DANNOSO PER GLI OCCHI.
CAUTION:
DO NOT STARE AT OPERATING LAMP.
MAY BE HARMFUL TO THE EYES.
www.fhiaba.com ∙ [email protected] ∙ Tel [phone] ∙ Fax [phone]
Pay special attention to correct disposal procedure for
all the packaging materials.
The appliance must not be disposed of with urban waste.
Contact local waste disposal centres for on how to dispose
of recyclable waste.
Prior to disposal, cut the power supply cord and make it
impossible to close the door.
During disposal, avoid damage to the refrigeration cir-
cuit.
The appliance does not contain hazardous substances for
the atmospheric ozone layer, neither in the refrigeration circuit
nor in the insulation.
Notes
Recommendations for correct use of the
appliance
For your safety
Caring for the environment
Important
Directions for avoiding appliance damage
Warning
Indications for avoiding injury
to people
Important directions for safety and the environment
Failure to follow the instructions regarding sanitizing can
compromise the hygienic safety of the water dispensed.
When using the appliance for the rst time and every
time the lter is changed, it is recommended to let the wa-
ter ow in the circuit using the “Manual Cleaning” and
discard the ice produced in the rst 24 hours.
If the water dispenser has not been used for more than
4/5 days, it is advisable to clean the circuit and run off the
rst litre of water.
Reposition the removable water dispenser (if present),
ensuring your hands are hygienically clean.
Clean the ice bucket or drawer regularly but using only
drinking water.
The lter must be changed when indicated on the con-
trol panel or when the ice/water dispenser has not been
used for more than 30 days.
With each lter replacement, sanitise the ice and/or wa-
ter distribution system using a food grade disinfectant (with
sodium hypochlorite), which does not alter the characte-
ristics of the materials. Rinse with at least 2 litres of water
before use.
Only original spare parts supplied by the manufacturer
should be used when replacing components in the ice and
water dispenser.
Any work on the appliance must be carried out by a
qualied technician or the After-sales Service.
Cleaning, sanitization and maintenance of
the ice and/or water dispenser (if present)
If this appliance is replacing an existing appliance which
must be removed or disposed of, make sure that it does not
become a dangerous trap for children by cutting its power
supply cable and rendering it impossible to close the door.
Use the same caution at the end of the lifespan of the new
appliance.
This appliance is designed to refrigerate beverages and
foods and is intended for domestic use.
The appliance must be installed by following the instruc-
tions in the Installation Guide, particular care should be
taken not to obstruct the vent openings of the appliance
and of the built-in units.
The appliance features a concentrated lighting system
with LED lamps. Do not stare into these lamps when they
are on to avoid possible eyesight damage.
This warning is also contained on the label attached to
the inside of the refrigerator door.
When the freezer is functioning do not touch the inner
surfaces in stainless steel with wet or damp hands, since
skin may stick to the very cold surfaces.
Do not use any type of electrical equipment inside of the
food conservation compartments.
When positioning the shelves, do not place fingers in the
shelf slide guides.
Do not position containers of ammable liquids near the
appliance.
Completely switch off the appliance and unplug the
power supply cable during cleaning operations. If the plug
is not easily reached, it is a good idea to turn off the break-
er or remove the fuse that controls the socket that the ap-
pliance is connected to.
The packaging parts can be dangerous for children: do
not allow children to play with the plastic bags, plastic lm
or Styrofoam.
Any repairs must be performed by a qualified Fhiaba
Service technician.
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or lack of experience
and knowledge unless they have been given supervision or
instruction concerning use of the appliance by a person re-
sponsible for their safety. Children should be supervised to en-
sure that they do not play with the appliance.
Do not damage the appliance refrigerant circuit pipes.
Do not store explosive substances such as aerosol cans with
a ammable propellant in this appliance.

29
2-3
2.1
2.2
2.3
3.1
www.fhiaba.com ∙ [email protected] ∙ Tel [phone] ∙ Fax [phone]
EN
Make sure that installation is performed correctly, adhering
to all directions in the specic installation manual provided
with the appliance.
Installation
Connection to the electrical power supply
The appliance is equipped with a Schuko type 16A plug
and must be connected to the electrical power supply
through a corresponding Schuko socket.
Do not use extension cords and/or multiple adapters for
the power supply connection.
Do not use extension cords and/or mul-
tiple adapters for the power supply con-
nection.
Installation
Connection to the water system
The models provided with Ice Maker require a connection
to the domestic water supply system. This can be executed
through the provided water hose with 3/4” threading.
The system pressure must be between 0.05 MPa and 0.5
MPa (between 0.5 Bar and 5 Bar).
Differents pressures can cause malfunctions or leaks in the
water system. The appliance should be supplied only with
drinkable water.
The appliance should be supplied only with
drinkable water.
Make sure that installation is performed correctly,
according to all of the directions in the specic in-
stallation manual provided with the appliance.
Do not attempt to use a locally sourced garden
hose threaded adapter or braided supply line. It
will strip the threads on the appliance water con-
nection solenoid.
Know your Fhiaba
If energy is supplied through an alternative energy
power source (solar, geothermal, etc..) or if home
automation systems are installed, it is necessary to
install the Alternative Energy Kit to integrate the unit
into the power grid.
Before calling, write down the model type and se-
rial number which are available on the warranty
certificate and on the rating plate located on the
bottom left-hand corner of the appliance, behind
the bottom drawer.
Congratulations for having purchased your new Fhiaba:
from now on you can use our innovative conservation sys-
tem, which will allow you to keep all of your food in the
best way possible.
This manual will answer most of your questions about the
product’s features. Should you require further information,
please
call us [phone]
write us an e-mail at [email protected].
check our website www.fhiaba.com

30
3
3.2
1
8
9
10
2
3
4
5
6
7
TriMode
www.fhiaba.com ∙ [email protected] ∙ Tel [phone] ∙ Fax [phone]

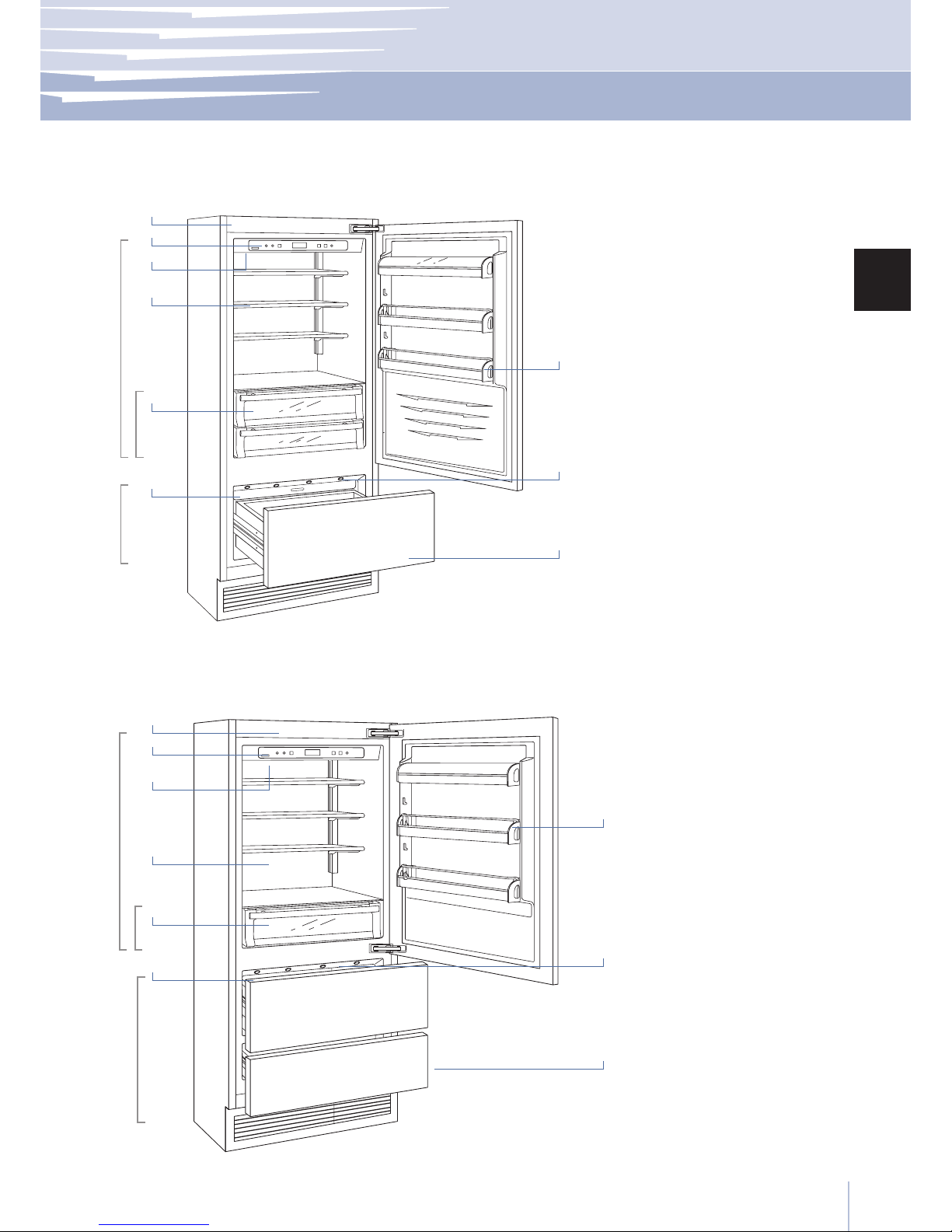

Before starting

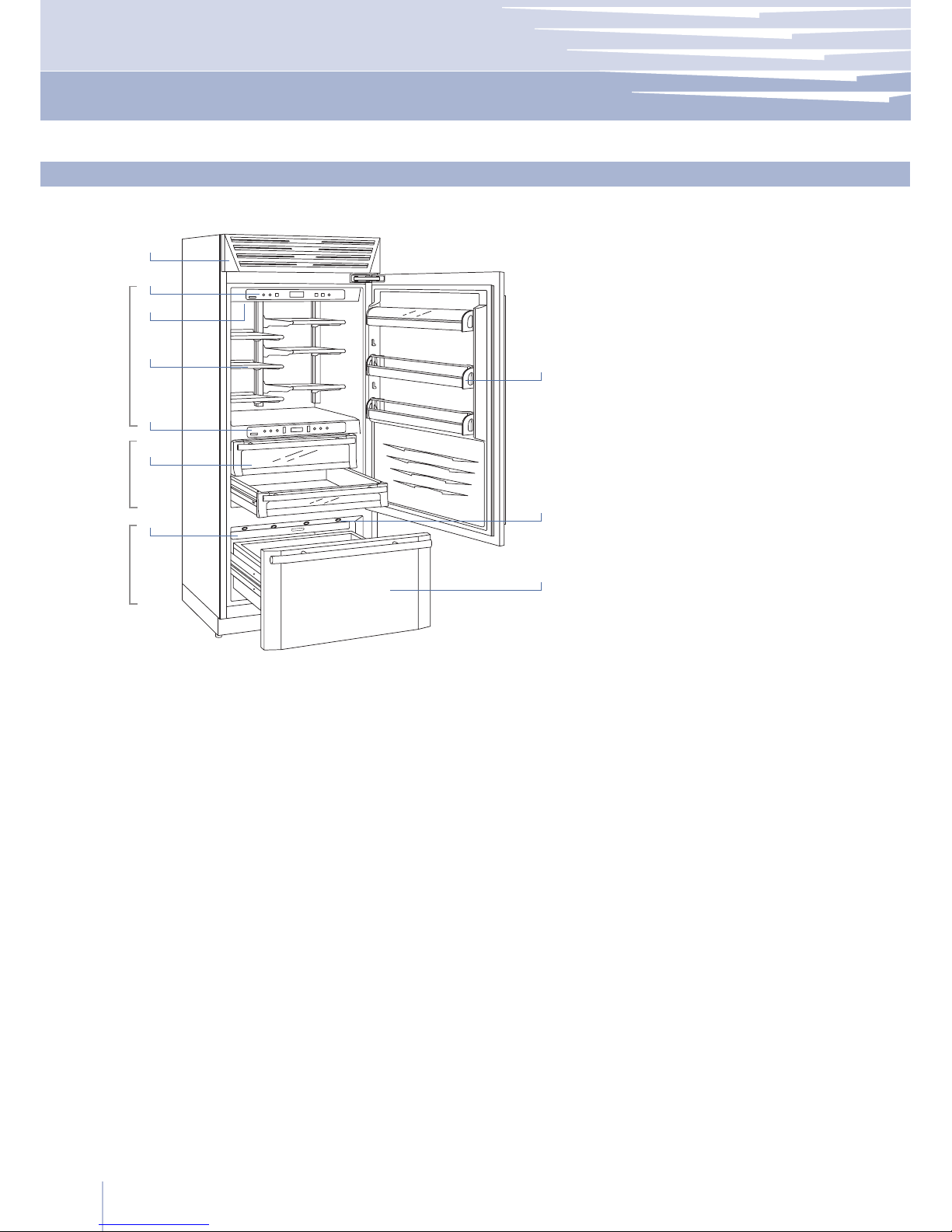

Main components
1Stainless steel structure with
aluminum trim
2Control panel
3Water Filter
4Patented shelf positioning
system
5Control panel, Fresco area
6Fresco compartment with
controlled humidity
7Automatic icemaker
8Spacious door shelves
9 Led lighting
10 Freezer compartment
that can be transformed
into a refrigerator or Fresco
compartment
(TriMode function)
1T Models
Fridge
Fresco

31
3
1
7
8
9
2
3
4
5
6
Low Temp
TriMode
1
7
8
9
2
3
4
5
6
Low Temp
TriMode
www.fhiaba.com ∙ [email protected] ∙ Tel [phone] ∙ Fax [phone]
EN
Before starting
0H Models
Fridge
1Stainless steel structure with
aluminum trim
2Control panel
3Water Filter
4Patented shelf positioning
system
5 “Low Temp” drawer
6Automatic icemaker
7Spacious door shelves
8 Led lighting
9 Freezer compartment that
can be transformed into
a refrigerator or Fresco
compartment
(TriMode function)
0T Models
Fridge

32
3
1
5
2
3
4
Low Temp
www.fhiaba.com ∙ [email protected] ∙ Tel [phone] ∙ Fax [phone]

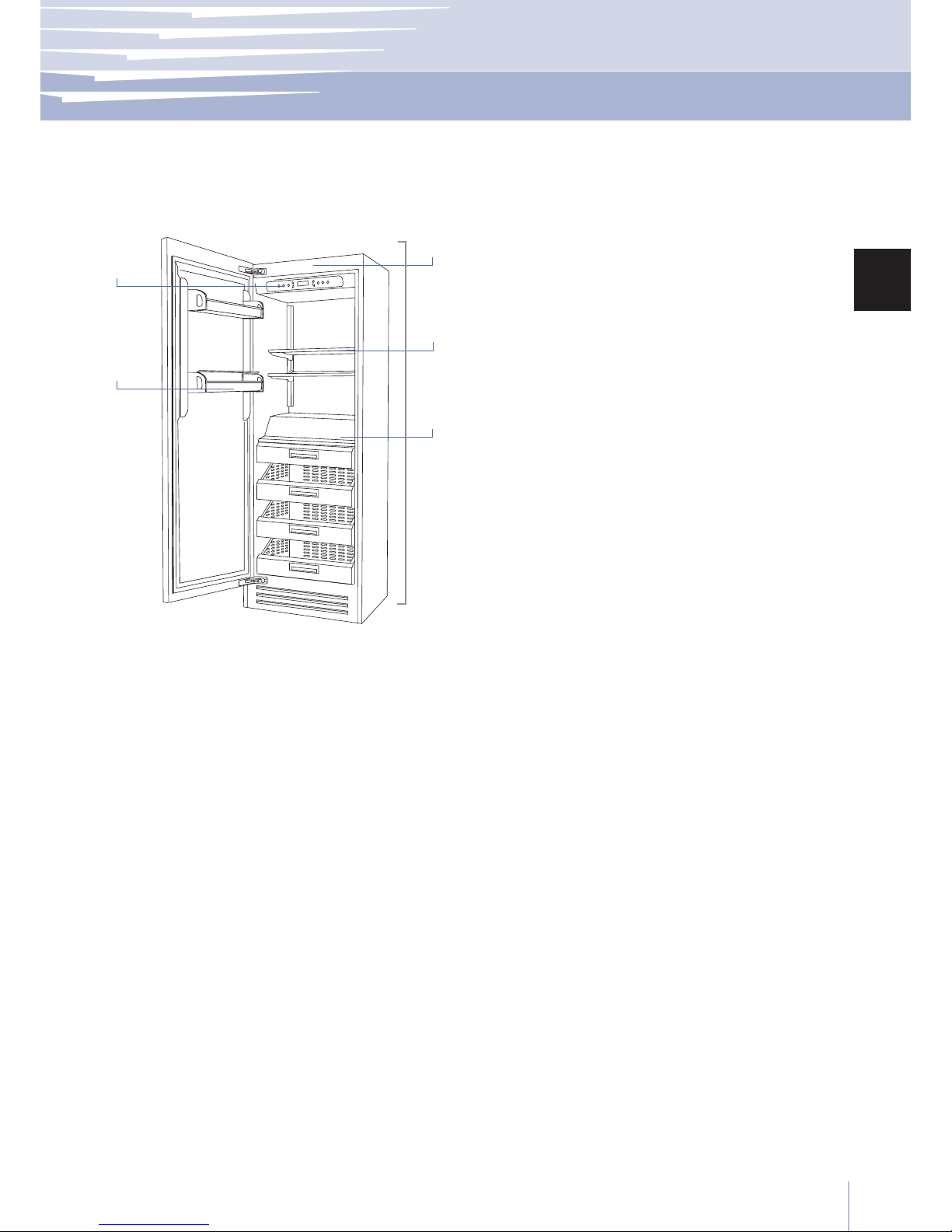

Before starting
1Stainless steel structure with
aluminum trim
2Control panel
3Patented shelf positioning
system
4 “Low Temp” drawer
5Spacious door shelves
0FR Models

33
3
3
4
1
2
5
Freezer
www.fhiaba.com ∙ [email protected] ∙ Tel [phone] ∙ Fax [phone]
EN
Before starting
1Stainless steel structure with
aluminum trim
2Control panel
3Patented shelf positioning
system
4Automatic icemaker
5Spacious door shelves
0FZ Models

34
3
3.4
3.5
3.3

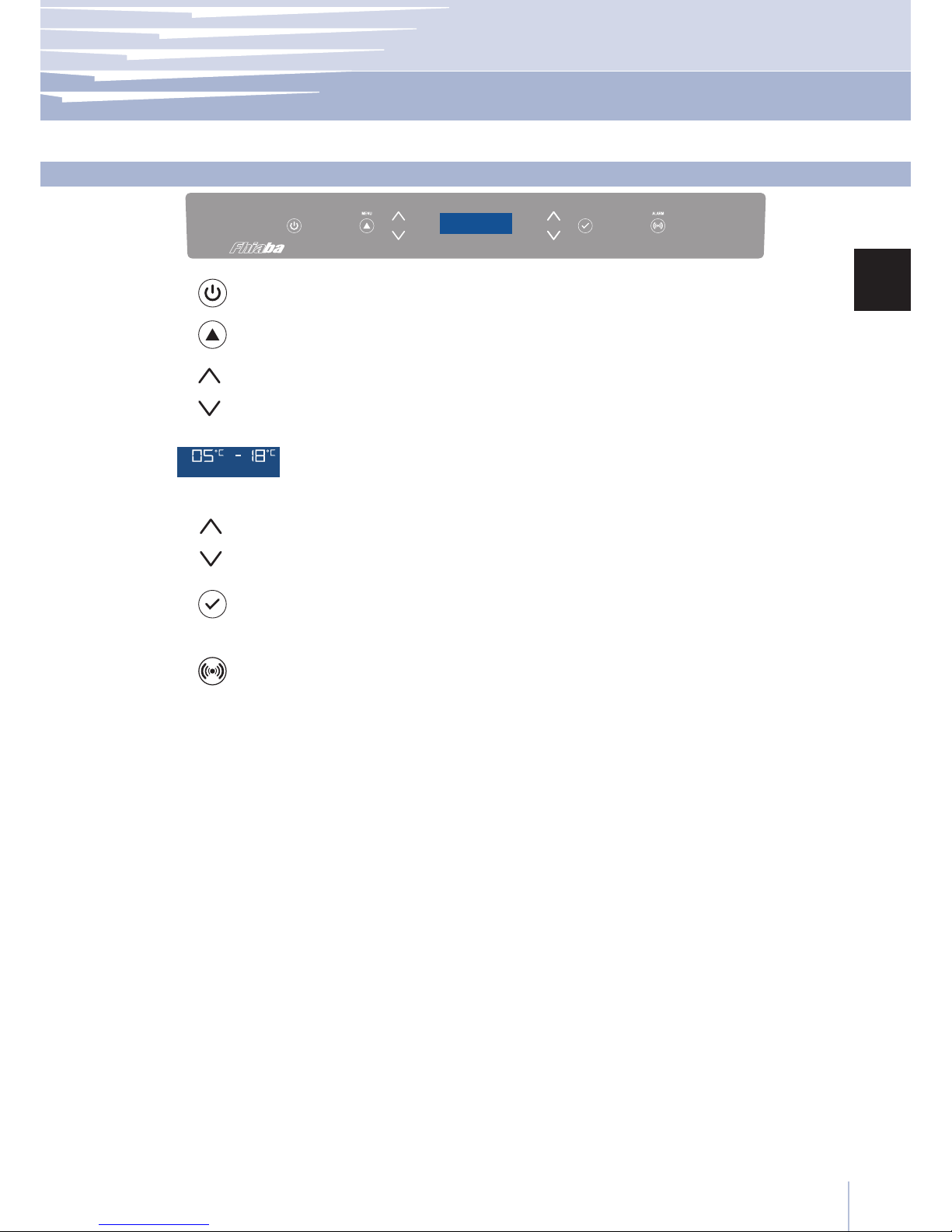

123456798
ICE MAKER
ENTER
FRIDGE
UNIT
1Unit
2Fridge
3Menu
4Up/down
Fridge
5Display
6
Up/Down
Freezer
(TriMode)
7Enter
8Ice maker
9Alarm
CRISPER
10 11 12
11 Display
13 Crisper
12 Up/Down
www.fhiaba.com ∙ [email protected] ∙ Tel [phone] ∙ Fax [phone]
The innovative electronic control system designed by Fhiaba maintains constant temperature on the compartments and
visualizes it on the control panel display.
It also allows user interaction making it possible to personalize settings of the various functions and to receive sound and/
or visual messages should occur any malfunction in the appliance.

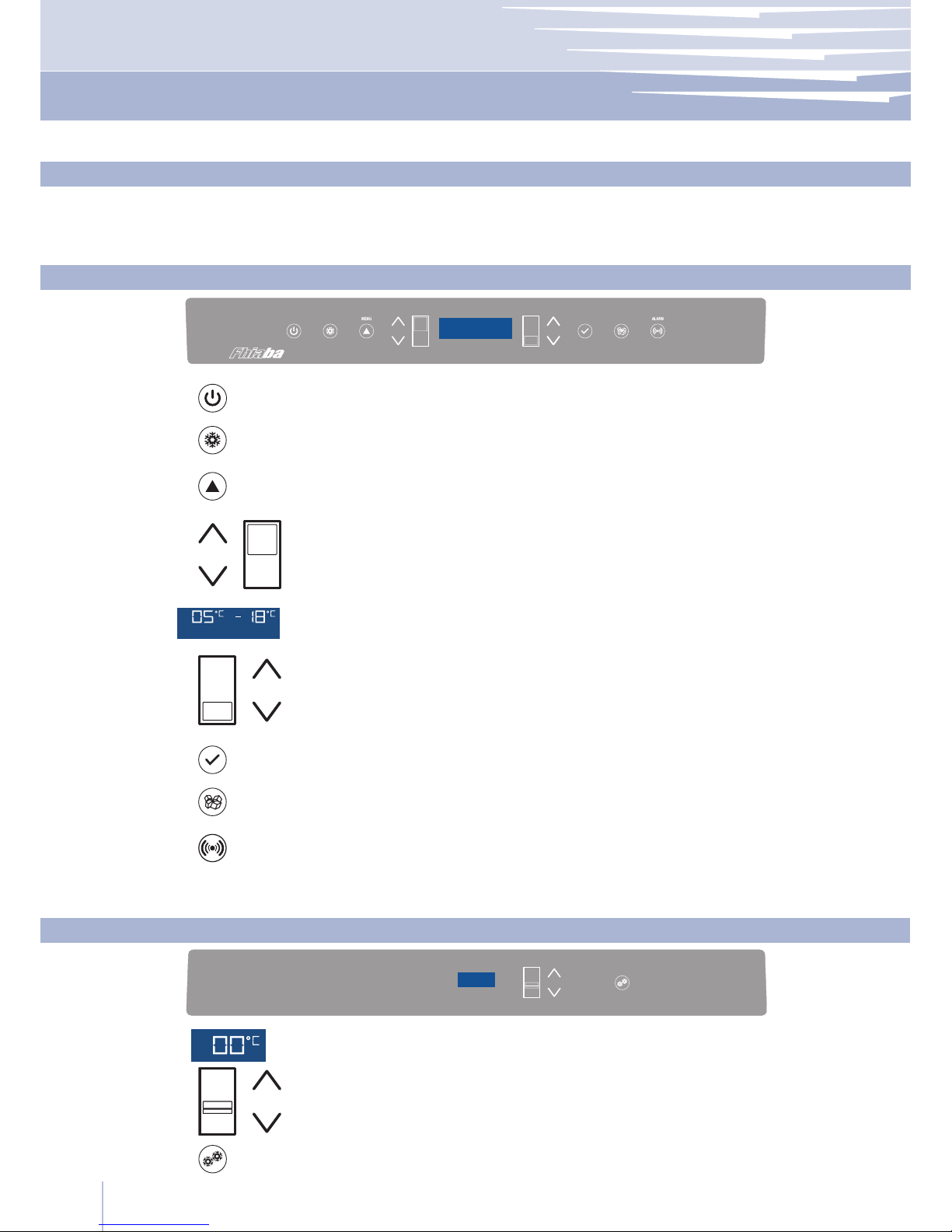

Main control panel (1T, 0T and 0H models)
Fresco control panel (1T models)
Switches the appliance (all compartments) between ON and STAND BY
(press for three seconds).
Allows switching ON and OFF of only the refrigerator compartment
(press for three seconds).
Allows access to the appliance function menu
It shows the temperature of the refrigerator and freezer compartments,
the date and time, Menu functions and visual messages.
By selecting Up/Down the preset temperature can be changed ac-
cording to the selected function mode (freezer, refrigerator, Fresco)
and navigate through the interactive menu.
Confirms activation or deactivation of the selections made in the
Menu.
Allows activating or deactivating the automatic ice production.
Blinks to signal user alerts such as door left open, also in combination with
a sound signal which can be deactivated by pressing the button.
Using the Up and Down buttons, it is possible to change the set tempera-
ture of the refrigerator and navigate through the interactive menu.
Shows the temperature of the Fresco compartment.
Allows switching on and off of only the Fresco compartment (press
for three seconds).
Using the Up and Down buttons, it is possible to change the tempera-
ture set for the Fresco compartment.
Before starting
Main components

35
3.6
1234 56 7
ENTER
UNIT
1Unit
2
3
Menu
4
Up/down
Fridge
5
Display
6
Up/Down
Freezer
7
Enter
Alarm
FRIDGE
FREEZER
3
www.fhiaba.com ∙ [email protected] ∙ Tel [phone] ∙ Fax [phone]
EN
Main control panel (0F models)
Switches the appliance (all compartments) between ON and STAND BY
(press for three seconds).
Allows access to the appliance function menu
It shows the temperature of the refrigerator and freezer compartments,
the date and time, Menu functions and visual messages.
By selecting Up/Down the preset temperature and navigate through
the interactive menu.
Confirms activation or deactivation of the selections made in the
Menu.
Blinks to signal user alerts such as door left open, also in combination
with a sound signal which can be deactivated by pressing the button.
Using the Up and Down buttons, it is possible to change the set temper-
ature of the refrigerator and navigate through the interactive menu.
Before starting

36
4.2
4
4.1
www.fhiaba.com ∙ [email protected] ∙ Tel [phone] ∙ Fax [phone]
Appliance switching on and off
If at the rst startup the Standby message does not appear, but
another message appears, it means that the appliance has
already started the cooling process. If this is the case, deacti-
vate any possible sound signal by pressing the Alarm button
, close the door and wait until the set temperature is reached.
During the rst startup, it will not be possible to use the Menu
to modify the factory settings until the preset temperature has
been reached.
Each time the appliance is switched on it goes through a self-
diagnosis procedure lasting three minutes before completely
starting up.
If only the refrigerator compartment or the Fresco compart-
ment is switched off, the specic fan will continue to operate to
prevent the formation of unpleasant odours and mould.
Before switching off the appliance for a long period of time,
remove all of the items inside and leave the doors and draw-
ers open to prevent the formation of unpleasant odours and
mould.
When the appliance is connected to the electrical power
supply but has not yet been switched on, the display shows
the message
This is a safety message to warn that the appliance is con-
nected to the mains, and all the panel buttons are off.
To switch on all the appliance compartments, press the
Unit button for three seconds.
First startup
When the appliance is rst switched on the TriMode com-
partment is set to the “freezer” mode. After switching on it
remains always on and can be switched off only by switch-
ing off the complete appliance.
Press Unit for three seconds.
During long absence periods it is recommended to switch off
the refrigerator by pressing the Unit button for three sec-
onds and disconnecting the electrical plug or the breaker
controlling the socket.
Completely empty the refrigerator, clean and dry it and leave
the doors and drawers partially open to prevent unpleasant
odors.
Switching off the Refrigerator and Fresco compartments
Restarting
Switching off for long periods
Switching on and off
Use the same buttons to restart.
The freezer compartment always stays on and cannot be
switched off except by completely switching off the appli-
ance by pressing the Unit button for three seconds.
Each model has been carefully tested before leaving the
factory and is adjusted in such a way to ensure high per-
formance and low consumption. Usually, it is not necessary
to modify the settings.
Nevertheless, according to special requirements, it is pos-
sible to modify the set temperatures as follows:
Refrigeration Compartment
Fresco Compartment (1T models)
Freezer Compartment
(TriMode)
From +2°C to +8°C (from 35.6°F to 46.4°F), the recommend-
ed preset temperature is +5°C (41°F).
To adjust the temperature use the Up/Down buttons .
Upon touching these buttons the newly set temperature
will appear in the display. To modify this temperature, use
the buttons until reaching the desired temperature.
From -2°C to +2°C (from 28.4°F to 35.6°F), the recommend-
ed preset temperature is 0°C (32°F).
To adjust the temperature use the Up/Down buttons .
Upon touching these buttons the newly set temperature
will appear in the display. To modify this temperature, use
the buttons until reaching the desired temperature.
From -15°C to -22°C (from 5°F to -7.6°F), the recommended
temperature is preset at -18° (0°F).
To adjust the temperature use the Up/Down buttons .
Upon touching these buttons the newly set temperature
will appear in the display. To modify this temperature, use
the buttons until reaching the desired temperature.
In case the compartment is used as refrigerator or Fresco
compartment (TriMode function) the recommended and
preset temperatures will correspond to those indicated for
the respective compartments.
The temperature shown can vary slightly in respect to the set
temperature following frequent openings of the doors or inser-
tion of room temperature foods or large quantities of foods.
6 to 12 hours are necessary to reach the selected tempera-
ture.
How to adjust the temperature
for different requirements

37
4-5
4.3
4.4
5.1
ICE MAKER
ENTER
FRIDGE
UNIT
5.2
www.fhiaba.com ∙ [email protected] ∙ Tel [phone] ∙ Fax [phone]
EN
An integrated control system provides information through
lighted signals or text messages visualized on the display.
The information signal is always visualized with a xed text
message, while a malfunction signal is visualized with blink-
ing text.
The sound signal that accompanies some malfunction signals
can be deactivated by pressing the Alarm button on the
main control panel.
The list of malfunction signals is located at the back of this
manual.
Appliance switching on and off

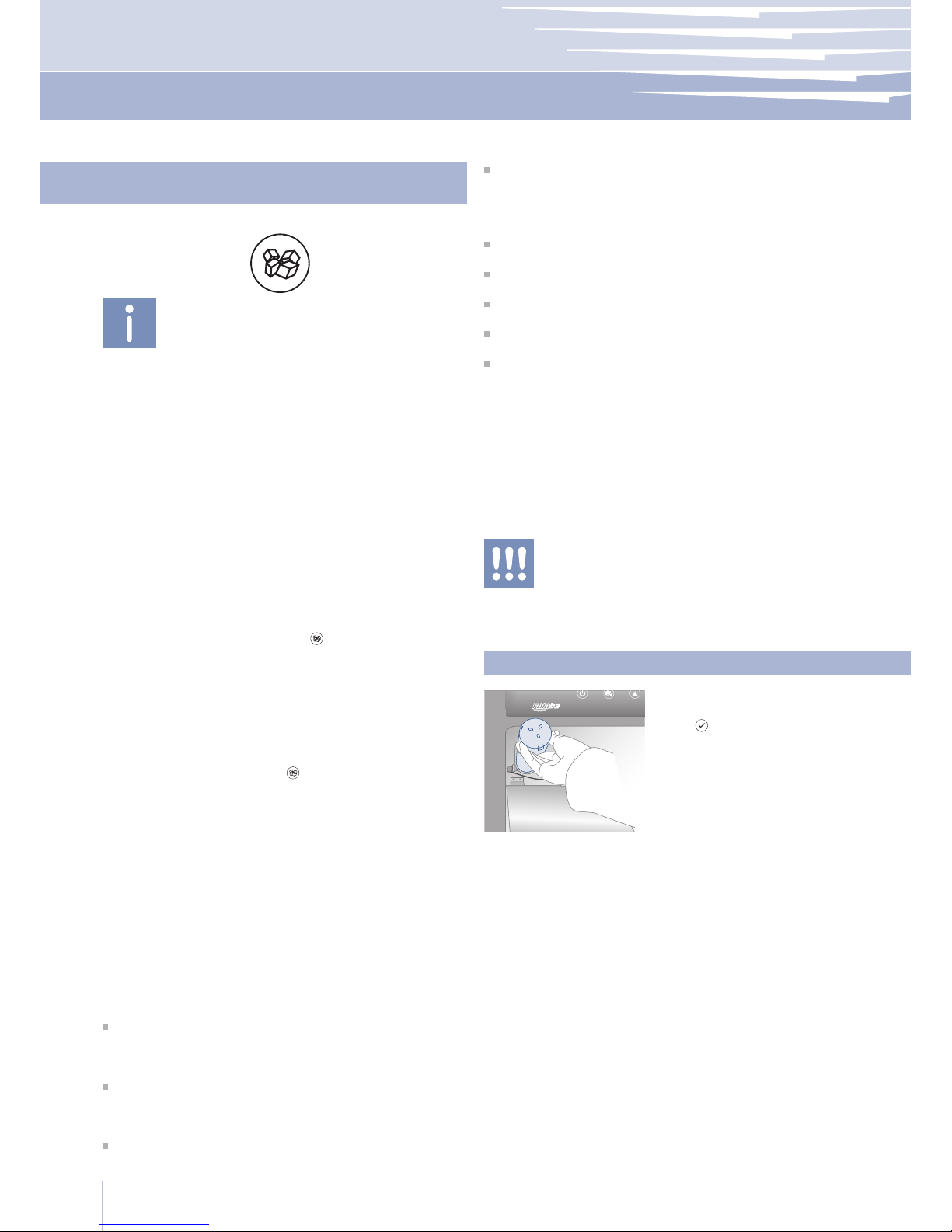

Ice Maker Activation
The Ice Maker button located on the main control panel
permits activation of the automatic icemaker.
The button is illuminated when the icemaker is functioning.
A prewash of the water circuit should be performed before
activating the Ice Maker for the rst time. To do this touch
at the same time buttons Enter and Ice Maker .
After a few minutes the Ice Maker can be activated.
For freezer models 0F
Information and malfunction
messages on the display
Do not activate the Ice Maker unless the appliance
is connected to the water mains.
It is possible to customized the functions of your Fhiaba to
adapt it to diverse usage needs, resetting the main param-
eters (Settings) or activating special functions (Functions).
Functions are visualized on the main display by pressing the
Menu button .
The Up/Down buttons permit scrolling the available
To prevent an inadvertent change to the settings the keypad is
automatically locked after a certain period of time.
To re-activate the Menu function, press simultaneously the Menu
button and the Down button for at least three seconds or
just press the Menu button again for 3 seconds.
The key lock can be disabled through the specic function in
the Settings menu.
Customization and language settings
functions, which can be selected by pressing the Enter
button . The display visualizes the current functioning
status.
Using the Up/Down buttons , it is also possible to scroll
through the selected function, activating or deactivat-
ing by pressing the Enter button . Once the function is
conrmed, the display will automatically visualize the main
menu to select other functions.
At any time it is possible to return to the previous selection
through the FhiabaAccess button .
The language of the messages appearing on the display
can be changed by operating as follows:
Enter the Menu by pressing the Menu button select
Settings via the Up/Down buttons and conrm via Enter
. Then select the Language function and the desired
language.
Special functions activated
through the Menu
To use special functions, select the Menu button and
use the Up/Down button to access the menu, conrming
the selection .

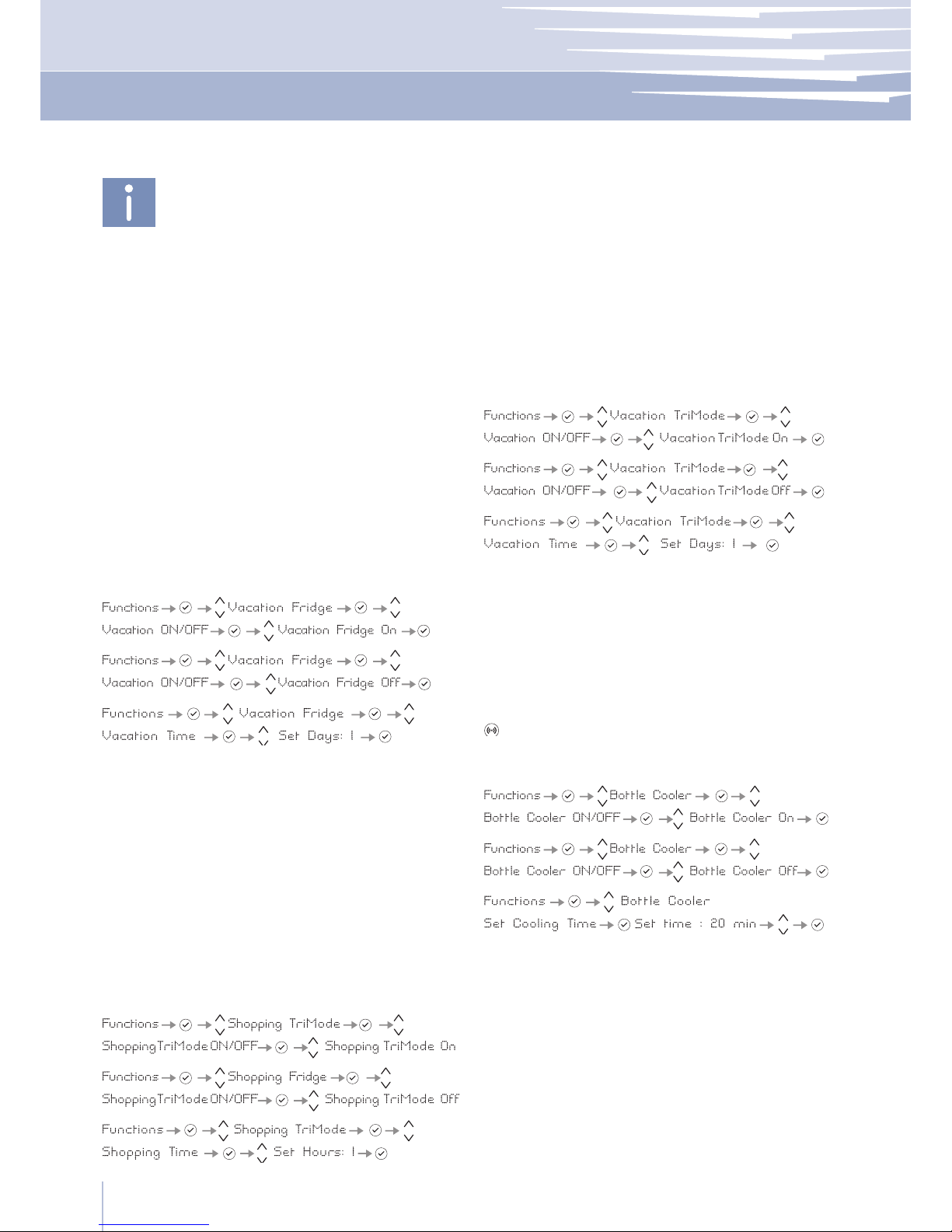

Shopping Fridge
The function lowers the refrigerator temperature to +2°C
(35.6°F) for 12 hours, permitting more rapid cooling of food
that has just been placed in. Once the 12 hours have ex-
pired, the function deactivates automatically, returning to
the previously set temperature. It is possible to program a
timed activation of the function. After a prolonged inter-
ruption of electrical current, it is necessary to reactivate the
function.
How to activate
How to deactivate
How to program timed activation
It is possible to program the function with a delay of 1 to 12
hours.
...

38
5
www.fhiaba.com ∙ [email protected] ∙ Tel [phone] ∙ Fax [phone]
It is possible to program a period from 1 to 90 days.
It is possible to program the function with a delay of 1 to 12
hours.
This function must be activated at least 24 hours before insert-
ing room temperature items into the freezer, or several hours
before placing into the freezer previously frozen items which
have been subject to a slight temperature rise. This function is
automatically deactivated when the programmed time pe-
riod expires. It is possible o program timed activation of the
function.
If interrupted by a prolonged interruption of the electrical
power, it is necessary to reactivate the function.
Shopping TriMode
This function (recommended in case of prolonged absences
since it allows considerable energy savings) brings the refriger-
ator compartment temperature to +14°C (57.2°F). It is possible
to program the duration, or it can be manually deactivated
upon re-entry after a period of absence. This function remains
active even if during the period of absence there is a pro-
longed interruption of electrical power.
How to activate
How to activate
How to deactivate
How to program timed activation
How to deactivate upon re-entry
How to program the duration
Vacation Fridge
The various Shopping Modes help prepare the cooling,
Fridge and TriMode compartments for the introduction of
a heat load which can consist of fresh food or other items
which may have warmed during transport. The more quick-
ly an item can be cooled or frozen the better it will be pre-
served.
This mode can also be effective at maintaining compart-
ment temperatures while entertaining when higher than av-
erage door and drawer openings are anticipated.
This function (recommended in case of prolonged absenc-
es since it allows considerable energy savings) brings the
TriMode compartment temperature to - 18°C (46.4°F).
It is possible to program the duration, or it can be manually
deactivated upon re-entry after a period of absence.
This function remains active even if during the period of
absence there is a prolonged interruption of electrical
power.
Vacation TriMode
How to activate
How to deactivate upon re-entry
How to program the duration
This function can be activated when it is necessary to cool
off beverages quickly, by placing them inside the freezer
compartment.
It is possible to select a duration of 1 to 45 minutes.
A sound signal will indicated when the optimal tempera-
ture has been reached. After removing the beverages,
deactivate the sound signal by pressing the Alarm button
.
Bottle Cooler
It is possible to program a period from 1 to 90 days.
How to activate
How to deactivate
How to program the duration
The IceMaker function permits selecting the size of the ice
cubes, by choosing between Large (base setting) or Me-
dium, and activation of the SuperIce function, which in-
creases the quantity of produced ice.
The SuperIce function deactivates automatically after 24
hours.
Ice Maker
Settings and Special Functions

39
5
5.3
www.fhiaba.com ∙ [email protected] ∙ Tel [phone] ∙ Fax [phone]
EN
Settings and Special Functions
How to activate the cube size function
How to deactivate
How to activate the SuperIce function
How to deactivate
The function makes it possible to comply to certain religious
observances requiring that the operation of the appliance
is not affected by the opening or closing of the doors (the
thermostatic control, the inner lighting and the ice maker
are deactivated).
Sabbath Mode (Optional)
How to activate
How to deactivate
The View Status function permits visualizing the time left be-
fore the lter needs to be replaced.
Water Filter
How to check the status of the lter
The Reset Filter function sets to zero the time left before the
lter needs to be replaced. It is necessary to set the meter
to zero each time the cartridge is replaced. As an alterna-
tive press for 5 seconds the Enter button
Reset Filter
How to set the ltered water meter to zero
This function is to be activated when it is not necessary to
lter the water, because excellent quality water is already
available from the home water system.
Bypass Filter
How to activate lter Bypass
How to deactivate lter Bypass
If ice production has been disabled or unused for a long
period it is recommended to perform a Manual Clean func-
tion to ush out water which has sat in the system during
this period. Repeat the operation until the water is clean.
Before proceeding it is important to turn off the ice maker
by pressing button .
Manual Clean, Water Filter
Correctly position the ice tray or another suitable container
under the IceMaker to collect water, then close the drawer.
At the end of the operation, wash the tray.
How to manually clean the lter
Basic settings of the Menu
Select the Menu button and used the Up/Down button
to select .
The freezer compartment can, if required, be converted to
the refrigeration o Fresco operating mode.
TriMode Options
How to set the Fridge function
How to set the Fresco function
How to revert to the Freezer function
This offers the possibility to reset default factory settings
and cancels any previous changes.
Default Setting
How to reset default settings

40
5
www.fhiaba.com ∙ [email protected] ∙ Tel [phone] ∙ Fax [phone]
Settings and Special Functions
Time
Set Time
How to set the time
Using this function it is possible to deactivate/activate the
date visualization on the display.
Show Date
How to activate the date
How to deactivate the date
Date
Set Date
How to set the date
ATTENTION: If the default settings are restored, the default mode
of the TriMode compartment is freezer mode. If it was previously
being used in refrigerator or Fresco mode be sure to set it back to
your desired setting.
The display shows the hours and minutes in the format
hh:mm and with hh: blinking. Use the Up/Down buttons
to modify the setting and then conrm by pressing Enter
to go on to the next setting.
Once the minutes are conrmed, the time will be set.
The display will show the date in the format dd:mm:yy
(day:month:year), the day will blink. Use the Up/Down
buttons to modify the setting, conrm with Enter to
go on to the next setting; once the year is conrmed the
date will be set.
This function permits visualizing the temperature in Centi-
grade or Fahrenheit degrees. Normally, the appliance is
set for visualization in centigrade degrees.
Set °C/°F
How to set the temperature in Centigrade
How to set the temperature in Fahrenheit
Through this function it is possible to activate/deactivate
the constant visualization of the time.
The function allows selection of the language for the display
messages.
This function selects the display at 12 or 24 h.
Show Time
How to activate the permanent time
How to deactivate
Language
Italian
English
French
German
Spanish
Set 12/24
How to set the display to 12 h
How to set the display to 24 h
Through this function it is possible to activate/deactivate
the keypad lock.
keypad lock
keypad lock
Keypad lock
How to activate
How to deactivate

41
6
6.1
1
2
1
2
www.fhiaba.com ∙ [email protected] ∙ Tel [phone] ∙ Fax [phone]
EN
Internal Layout
Internal Layout (positioning, adjustment,
removal)
Fresco Drawer
TriMode Drawer
Fixed to the slide guides with two thumbscrews.
to remove the drawer, unscrew the thumbscrews and
remove the drawer.
The upper TriMode can be removed using the same
method used for the Fresco drawer
to remove the inner TriMode drawer unscrew the
thumbscrews.
When replacing the drawers, make certain the back of
the drawers engage under the clips on the slide guides.
Located in the upper drawer of the freezer compartment
after removal, make sure to reposition it correctly.
Ice Tray
Do not place hands or ngers near the Icemaker when in
function.
The shelves are sliding and can be easily re-positioned by
the user as follows:
release the locking knob by turning i anti-clockwise
lift or lower the shelf to the desired position
re-tighten the locking knob
to remove a shelf it is necessary to slide it up to the top
Shelves
The door shelves can be easily removed for cleaning
Hold the door shelf at the sides and push it upwards to
release it from its seat, then pull it outwards.
Reverse the procedure to reinstall.
Door Shelves

42
7
7.1
7.2
www.fhiaba.com ∙ [email protected] ∙ Tel [phone] ∙ Fax [phone]
Activation and use of the Ice Maker
Activation and use of the Ice Maker
Do not place any bottles or food for rapid cooling in the ice
cube container. The ice maker may become blocked and be
damaged.
If the ice is not used frequently is advisable to empty the ice
bin once every 8-10 days.
It is normal that some ice cubes stick to one another. If the
ice is not frequently used, the older cubes can become
opaque, and will have a strange avour and become
smaller.
The Icemaker automatically deactivates if the Vacation
function is activated.
When the Icemaker is started for the rst time, it is
recommended to dispose of the rst full bin of ice.
If the equipment has been switched off for a month or more,
it is recommended to perform a water cleaning cycle.
The ice maker will only produce ice with the TriMode
compartment set to Freezer Mode.
The ice maker will continue to operate even when the ice
bin is not in position
To activate the Ice Maker after installation of the appli-
ance, press the Icemaker button .
Please note that 12 to 24 hours are necessary before ice
production may begin. The production is of 10 cubes per
cycle in approximately 10 cycles in 24 hours.
The yield depends on the temperature set in the freezer,
the room temperature and the frequency of door open-
ing.
If the appliance is operating without being connected to
the water system, make sure that the Icemaker is deacti-
vated by pressing the button .
The Ice Maker produces ice until the ice tray is full and will
automatically stop once the maximum level is reached.
With the SuperIce function, it is possible to increase the
quantity of ice produced a 24 hours, while the Set Cube
Size function permits selection of the size of the produced
ice cubes.
At factory default settings Ice Maker can produce approx.
100 ice cubes within 24 hours.
Do the ice cubes have an unusual odour?
Ice is a porous material which can absorb odours from the
environment. Ice cubes which have been in the ice cube
container for a long time may absorb odours, stick togeth-
er and slowly become smaller.
We recommend that old ice cubes not be used.
Other means of preventing odors:
The ice cube container should be cleaned occasion-
ally with warm water. Make sure that you switch off the ice
maker before clearing the container. Rinse out and wipe
dry.
Check the contents of the freezer for spoiled or out-of-
date food. All odorous foods should be wrapped thorough-
ly or stored in airtight containers to prevent the build-up of
odors.
The water lter may have to be replaced in some mod-
els.
In some cases the quality of the water connection in the
house should be checked.
Operating noises
Quite normal noises
Grumbling: refrigerating unit is running. Fan in the recircu-
lating air system is running.
Bubbling, humming or gurgling noises: refrigerant is ow-
ing through the tubes.
Clicking: motor is switching on or off. Solenoid valve on
the water connection is opening/closing.
Rumbling: ice cubes are falling into the ice cube con-
tainer.
Note: the appliance is powered by two independent
compressors. It is therefore normal to always have one of
two compressors in operation.
Water Filter (not 0F models)
The Water Filter makes available high-quality water for the
production of ice cubes. It provides up to 3000 liters of wa-
ter for a maximum time of 12 months.
When the lter is nearly expired the message “Replace Fil-
ter” will appear on the display.

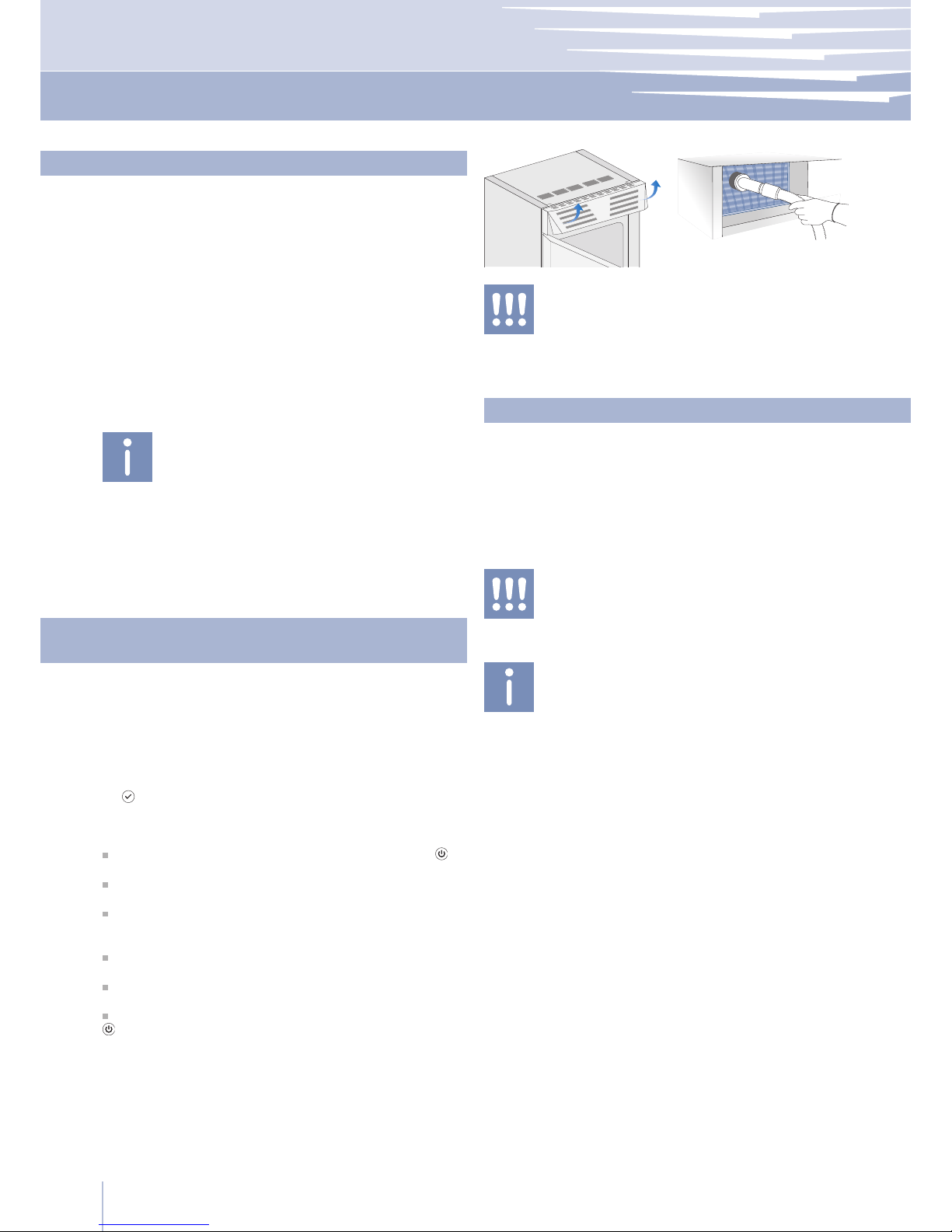

Filter Replacement
The lter is located inside the refrigerator compartment,
above the top glass panel. Prior to changing the lter, switch
off the Ice Maker by pressing the IceMaker button.
Open the top glass panel and carefully rotate the lter car-
tridge for a quarter rotation in a counter clockwise direction
until it detaches from its housing. It is normal for a small quan-
tity of water to come out. Remove the cap of the new car-
tridge and insert it into the housing by gently rotating it for
a quarter rotation in a clockwise direction until it locks into
place.
Then enter the Fhiaba Access Menu and set “Manual Clean”
function. At the end of the cleaning cycle remove the water
from the ice tray and wipe it dry.
Reset water lter in the settings
menu or by pressing the Enter
button for 5 seconds.

43
8-9
8.1
ICEMAKER
ENTER
FRIDGE
UNIT
ICEMAKER
ENTER
FRIDGE
UNIT
ICEMAKER
ENTER
FRIDGE
UNIT
CRISPER
9.1
1T
0H
0T
0F
www.fhiaba.com ∙ [email protected] ∙ Tel [phone] ∙ Fax [phone]
EN
Lighting
Lighting
To provide optimum interior lighting, LED strips illuminate the
refrigerator compartment from the top and sets of LED lights
directly illuminate different areas of the refrigerator com-
partment, of the Crisper-Fresco drawers and the freezer
drawer.
In case of malfunction and/or wearing out of the lighting
system, the repair should be carried out by a qualied Fhi-
aba Service technician.
General directions
Fridge
from +2° to +8 °C
(from 35,6°F to 46,4°F)
Crisper - Fresco
from -2°C to +2 °C
(from 28,4°F to 35,6°F)
TriMode
from -15° to -22 °C
(from 5°F to -7,6°F)
ICE MAKER
ENTER
FRIDGE
UNIT
CRISPER
Low Temp
Fridge
from +2° to +8 °C
(from 35,6°F to 46,4°F)
ICE MAKER
ENTER
FRIDGE
UNIT
Low Temp
Fridge
from +2° to +8 °C
(from 35,6°F to 46,4°F)
TriMode
from -15° to -22 °C
(from 5°F to -7,6°F)
ICE MAKER
ENTER
FRIDGE
UNIT
Your Fhiaba is designed to ensure precise, constant tem-
peratures and appropriate humidity levels in all compart-
ments.
In addition, the double refrigeration ensures that frozen
foods and ice do not absorb the odor of fresh foods and
that the humidity in the refrigerator does not freeze and
build up frost.
Nevertheless, to properly preserve all of your foods, it is not
enough to have an excellent refrigerator. It is also neces-
sary to know the rules for correct food preservation.
Do bear in mind that all foods will inevitably change their
characteristics over the passage of time. This change begins
long before the food is consumed, since foods contain mi-
cro organisms which multiply and can cause deterioration.
This process occurs more rapidly due to improper handling,
preservation temperatures and humidity levels.
It is therefore recommended to follow the directions presented
below which will permit using your refrigerator/freezer in the
most effective and safe manner to keep your foods in the best
way for as long as possible.
Bear in mind that the Crisper-Fresco area is the area for pre-
serving the most delicate fresh foods, since it ensures con-
stant average temperature near freezing.
Periodically check that all foods are in a perfect state of
preservation. It is usually quite clear when a food item is de-
teriorated, due to mold, unpleasant odor and unpleasant
aspect. Nevertheless, there are cases in which these con-
ditions are not so evident. If you believe that a food item
was kept for an excessive period of time and may be de-
teriorated, do not consume this item or even taste it, even
if it seems to still be healthy, since the bacteria that cause
deterioration of food can also cause poisoning and illness.
When in doubt, throw the food away.
Freezer
from -15° to -22 °C
(from 5°F to -7,6°F)
ICE MAKER
ENTER
FRIDGE
UNIT

44
9.2
9
www.fhiaba.com ∙ [email protected] ∙ Tel [phone] ∙ Fax [phone]
How to maintain good food quality
Always take the following precautions:
Place any packages of raw meat, sh or poultry in plastic
bags so that they do not drip on other foods.
Purchase meat, poultry and sh last. Do not leave your
groceries in a warm car after shopping. Keep a freezer bag
in your car and use it in case of very high temperatures or
long trips.
Check the production dates and “best before” times on
foods to be sure that they are fresh.
Be very careful when buying fresh foods, and only buy a
quantity that can be consumed during your planned pres-
ervation period.
When possible, let warm foods adjust to room tempera-
ture for at least two hours before placing them in the re-
frigerator, unless you have activated the Shopping function
before.
When buying groceries
When placing foods in
Check the refrigeration temperature of the various com-
partments on the control panel:
The refrigerator temperature must be 8°C (45°F) or lower
and the freezer temperature must be -18°C (0°F)
Follow the recommendations regarding the preservation
times and temperatures indicated in the tables to follow.
Keep raw meat, sh and poultry separate from other
foods and avoid any possible drippings.
When placing in the refrigerator your meat, sh or poultry,
leave these in their original packaging, unless the packag-
ing is ripped or punctured. Repeated handling could intro-
duce bacteria into these foods.
To keep food in the freezer is a good idea to use freezer
containers.
Label and date the packages
Be careful to correctly position the food items on the shelves
in a way that does not obstruct the air circulation vents inside
the compartment.
When placing foods in
Food Preservation
When a high level of humidity is present either in the environ-
ment or in the foods placed in the Fresco drawers, the bottom
of the Fresco compartment might be covered with some water
or ice (if the temperature is set between 0°C and -2C°).
Such condition is normal and it is due to the high humidity le-
vels of the Fresco compartment; high humidity together with
low temperatures is what guarantees a longer preservation of
foods.
Water or ice can disappear on its own if the air humidity level
should lower; it is also possible to remove the water with a to-
wel. If a thin layer of ice has formed, set the temperature of the
Fresco compartment to +2°C and after one day remove the
water with a towel.
If the layer of ice is thicker, it might be necessary to shut off the
Fresco compartment for one day in order to melt it.
After a prolonged interruption of electrical power, once the
electrical power is reactivated, an audible signal will in-
dicate if the temperature has raised above normal levels.
In addition to this the display will show for one minute the
highest temperature detected inside the compartments, to
allow the user to decide how to better use the food items.
After one minute the display will resume normal operation,
while the Alarm button will continue to blink.
Press the Alarm button to display the highest recorded
temperatures.

45
10
www.fhiaba.com ∙ [email protected] ∙ Tel [phone] ∙ Fax [phone]
EN
Recommended times for Food Preservation
Fresh foods Preservation area Time
Raw meats
Large cuts Fresco Compartment 4 days
Beef steaks, poultry and wild game Fresco Compartment 3 days
Ground meat Fresco Compartment 1-2 days
Carpaccio Fresco Compartment Immediately
Cooked meat
Boiled meat and roasted meat Refrigerator Compartment 2 days
Meat sauce Refrigerator Compartment 6 days
Fish
Raw and cooked sh Fresco Compartment 2 days
Other
Soups and broths Refrigerator Compartment 2 days
Pasta Refrigerator Compartment 2 days
Opened cold cuts Fresco Compartment 3 days
Fresh cheeses Fresco Compartment 2-3 days
Well sealed aged cheeses Refrigerator Compartment Several months
Eggs (fresh and unwashed) Refrigerator Compartment 2 weeks
Opened cans Refrigerator Compartment 2-3 days
Raw vegetables (in perforated bags) Fresco Compartment 1 week
Frozen foods Preservation area Time
Beef, veal, lamb and goat meat Freezer Compartment (steaks) 6-12 months
Beef, veal, lamb and goat meat Freezer Compartment (Meat with bone) 4-6 months
Ground beef Freezer Compartment 1-2 months
Pork Freezer Compartment (Without bones) 4-6 months
Pork Freezer Compartment (With bones) 2-3 months
Ground pork Freezer Compartment 1-2 months
Meat leftovers Freezer Compartment 2-3 months
Whole chicken and turkey Freezer Compartment 8-12 months
Goose, duck and pheasant Freezer Compartment 4-8 months
Fish Freezer Compartment 1-2 months
Shellsh Freezer Compartment 2-3 months
Cooked food Freezer Compartment 1-2 months
Vegetables Freezer Compartment 8-12 months
Fruit Freezer Compartment 6-12 months
Desserts and cakes Freezer Compartment 2-3 months

46
11
11.1
11.2
11.3
www.fhiaba.com ∙ [email protected] ∙ Tel [phone] ∙ Fax [phone]
Care and Cleaning
Care and Cleaning
Condenser cleaning
Internal cleaning
Scrupulously follow the detailed directions that can be found
in the provided kit and never use abrasive or metallic products
which could scratch and damage the satin nishing on the ap-
pliance permanently.
Before performing any sort of cleaning, disconnect the appliance
from the electrical power supply.
Make sure you do not damage the refrigerant circuit in any
way.
Do not bring cold glass parts into contact with boiling water.
Do not wash any parts of the refrigerator in a dishwashing
machine since this could damage or irreparably deform the
parts.
Clean the internal and removable parts by washing them
with a solution of lukewarm water, a small amount of dish-
washing detergent.
Rinse and dry right away.
Do not use mechanical devices or other methods to speed up
defrosting.
The edges of the condenser are sharp, therefore use adequate
protection for the hands and arms when cleaning the con-
denser.
Do not use water on the electrical parts, lights and control
panel.
To clean the parts made of steel use a microber cloth and
the sponge provided in the kit with the appliance. Always
use the cloth and sponge in the direction of the steel’s satin
nish.
Every now and then, to polish the steel, wipe with a slightly
damp microber cloth.
Do not use the sponge on aluminium parts, such as the han-
dles and the proles of the glass shelves.
You should use special care to keep the ventilation open-
ings in the appliance or in the cabinet that houses it free of
obstructions.
A ventilation grille is located either at the top of the appli-
ance or at the bottom according to the model type.
To clean it use a vacuum cleaner with a soft brush attach-
ment at maximum power, sweeping it along the vent slits. In
case of a signicant dust build up, the ventilation grille can
be removed to allow a more accurate cleaning of the lter.
Every 6 months the display shows the message “Check
Cond”, clean the condenser and press for 5 seconds the En-
ter button to reset.
Operate as follows:
Switch off the appliance by pressing the Unit button on
the main control panel for approx 3 seconds.
Wait approx 30 minutes, until the nned condenser cools
down to room temperature.
On models with ventilation at the base remove the grille
at the bottom (magnetically attached) and take it off. On
models with ventilation lift the grille as shown in the picture.
Thoroughly clean the grille and the foam lter, by means of
a vacuum cleaner and the soft brush attachment.
Clean it thoroughly from any dust build up as shown in the
picture, taking care not to damage it.
Start up the appliance again, by pressing the Unit button
on the main
