Fhiaba XS8990TST6IU User manual

www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222) www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222)
1
Combi fridge
User manual
Réfrigérateur combiné
Mode d’emploi
Frigorífico combinado
Manual de usuario

www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222)
2

www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222) www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222)
3
EN
INDEX
1
1.1
1.2
1.3
1.4
IMPORTANT DIRECTIONS OF SAFETY AND THE ENVIRONMENT
For your safety..................................................................................................................................................
Important information when using the applance ......................................................................................
Caring for the environment ............................................................................................................................
Cleaning, sanitization and maintenance of the ice and/or water dispenser (if present)....................
6
6
6
8
8
2
2.1
2.2
2.3
INSTALLATION
Installation.........................................................................................................................................................
Connection to the water system....................................................................................................................
Connection to the electrical power supply ..................................................................................................
9
9
9
9
3
3.1
3.2
3.3
3.4
3.5
BEFORE STARTING
Know your Fhiaba.............................................................................................................................................
Product plate.....................................................................................................................................................
Main components .............................................................................................................................................
Electic Control ...................................................................................................................................................
Main control panel (models 1T, 0T, 0H..........................................................................................................
9
9
10
12
14
14
4
4.1
4.2
4.3
APPLIANCE SWITCHING ON AND OFF
Switching on and o ........................................................................................................................................
How to adjust the temperature for dierent requirements .....................................................................
Information signals of anomaly on the display .........................................................................................
15
15
17
18
5
5.1
5.2
FUNCTIONS AND SETTINGS
Functions............................................................................................................................................................
Settings...............................................................................................................................................................
19
19
26
6
6.1
INTERNAL LAYOUT
Internal layout (positioning, adjustment, removal .....................................................................................
32
32
7
7.1
7.2
ACTIVATION AND USE OF THE ICE MAKER
Activation and use of the Ice Maker ..............................................................................................................
Water Filter........................................................................................................................................................
33
33
34
8
8.1
LIGHTING
Lighting...............................................................................................................................................................
35
35
9
9.1
9.2
FOOD PRESERVATION
General directions ............................................................................................................................................
How to maintain good food quality................................................................................................................
35
35
36
10
10.1
10.2
10.3
CARE AND CLEANING
Care and Cleaning ............................................................................................................................................
Internal cleaning...............................................................................................................................................
Cleaning of the ventilation grille, filter and condenser.............................................................................
39
39
39
40
11
11.1
11.2
TROUBLESHOOTING GUIDE
Troubleshooting Guide.....................................................................................................................................
Malfunction messages appearing on the display.......................................................................................
41
41
43

www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222)
4
WARNING
IMPORTANT SAFETY INSTRUCTIONS
This manual contains operational instructions for the users of the appliance.
Keep this manual in an easily accessible place for future reference.
Improper installation, adjustment, alteration, service or maintenance can
cause property damage, injury, or death.
Read the installation, operating, and maintenance instructions thoroughly
before installing or servicing this equipment.
To reduce risk of fire, electric shock, or injury to persons when using your applian-
ce, follow basic precautions, including the following:
> Children should be supervised to ensure that they do not play with the appliance.
> This appliance is not intended for use by persons (including children) with reduced
physical, sensory or lack of experience and knowledge unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for
their safety.
> This appliance is designed to refrigerate beverages and foods and is intended for domestic use.
> This appliance is intended to be used in household and similar applications such as: sta
kitchen areas in shops, oces, and other working environments; farm houses and by
clients in hotels, motels, and other residential-type environments; bed and breakfast-
type environments; and catering and similar non-retail applications.
> Do NOT use an extension cord or adapter.
> Plug into a grounded 3 prong outlet.
> Do not remove ground prong.
> If available, ice make kit can be added to some models. See serial tag inside the food
compartment of appliance for ice maker kit model information.
> A qualified service technician must connect ice maker (if available) and the appliance to
the water supply system (if the appliance has water load included).
> If present, clean the ice bucket or drawer regularly but using only drinking water.
> The appliance should be supplied only with drinkable water (if is --- a water connection).
WARNING
In the event of a power failure, do not attempt to operate this
appliance.
WARNING
Keep the appliance area free and clear from combustibles or
flammable materials and vapors.
WARNING
Keep ventilation openings, in the appliance enclosure or in the
built-in structure, clear of obstruction. Do not obstruct the air
intake or exhaust openings of the appliance.
WARNING
Do not store explosive substances such as aerosol cans with a
flammable propellant in this appliance.
WARNING
Do not use electrical appliances inside the food storage com-
partments of the appliance, unless they are of the type recom-
mended by the manufacturer.
WARNING
This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or
hurt you and others. All safety messages will follow the safety alert symbol and either the
word “DANGER” or “WARNING.” These words mean:
WARNING
You can be killed or seriously injured if you don’t follow instructions.
DANGER
You can be killed or seriously injured if you don't immediately follow
instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance
of injury, and tell you what can happen if the instructions are not followed.
SAVE THESE INSTRUCTIONS!

www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222) www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222)
5
EN
IMPORTANT SAFETY INSTRUCTIONS FOR MAINTENANCE
AND CARE
DANGER
Risk of fire or explosion due to puncture of refrigerant tubing; fol-
low handling instructions carefully. Flammable refrigerant used.
WARNING
To b e repaired only by trained service personnel.
Use only manufacturer-authorized service parts, Do not use replacement parts that
have not been recommended by the manufacturer (e.g, parts made at home using a
3D printer). If power supply cord is damaged, it must be replaced by the manufac-
turer, its service agent, or a similarly qualified person in order to avoid a hazard.
Any repair equipment used must be designed for flammable refrigerants. Follow all
manufacturer repair instructions. Use nonflammable cleaner.
WARNING
Do not puncture refrigerant tubing, do not damage the refrige-
rant circuit.
WARNING
Do not use mechanical devices or other means to accelerate
the defrosting process, other than those recommended by the
manufacturer.
TIP OVER HAZARD
WARNING
Refrigerator is top heavy and tips easily when not completely
installed; to avoid a hazard due to instability of the appliance, it must be fixed in
accordance with the instructions (see instruction manual provided).
Keep doors taped closed until refrigerator is completely installed.
Use two or more people to move and install refrigerator.
Failure to do can result in death or serius injury.
IMPORTANTSAFETYINSTRUCTIONSFORPROPERDISPOSAL
OF YOUR OLD REFRIGERATOR
WARNING
Suocation Hazard
Remove doors or lid from your old appliance.
Failure to do so can result in death or brain damage.
WARNING
Risk of child entrapment.
Before you throw away your old refrigerator or freezer:
> Take o the doors.
> Leave the shelves in place so that children may not easily climb inside.
> IMPORTANT: Child entrapment and suocation are not problems of the past. Junked or
abandoned refrigerators are still dangerous, even if they will sit for "just a few days."
If you are getting rid of your old refrigerator, please follow these instructions to help
prevent accidents.
Important information to know about disposal of refrigerants:
Dispose of refrigerator in accordance with federal and local regulations. Refrigerants
must be evacuated by a licensed. EPA-certified refrigerant technician in accordance with
established procedures.

www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222)
6
1. IMPORTANT DIRECTIONS FOR SAFETY AND THE ENVIRONMENT
1.1 For your safety
> If this appliance is replacing an existing appliance
which must be removed or disposed of, make
sure that it does not become a dangerous trap
for children by cutting its power supply cable and
rendering it impossible to close the door. Use the
same caution at the end of the lifespan of the new
appliance.
> The appliance is not designed to operate with
external timers or with remote-control systems.
> This appliance is for refrigeration and
conservation of fresh and frozen foods in the home.
Every other use is considered inappropriate.
> The appliance must be installed by following the
instructions in the Installation Guide, particular
care should be taken not to obstruct the vent
openings of the appliance and of the built-in units.
> The appliance features a concentrated lighting
system with LED lamps. Do not stare into these
lamps when they are on to avoid possible eyesight
damage.
> This warning is also contained on the label
attached to the inside of the refrigerator door.
> When the freezer is functioning do not touch
the inner surfaces in stainless steel with wet or
damp hands, since skin may stick to the very cold
surfaces.
> When positioning the shelves, do not place fingers
in the shelf slide guides.
>Never attempt to extinguish a flame/fire with
water: turn o the appliance and cover the flame
with a fireproof blanket.
> Do not position containers of flammable liquids
near the appliance.
> Completely switch o the appliance and unplug
the power supply cable during cleaning operations.
If the plug is not easily reached, it is a good idea
to turn o the breaker or remove the fuse that
controls the socket that the appliance is connected
to.
> The packaging parts can be dangerous for
children: do not allow children to play with the
plastic bags, plastic film or Styrofoam.
> Any repairs must be performed by a qualified
Bertazzoni Service technician.
> Do not damage the appliance refrigerant circuit
pipes.
> Improper installations and repairs may put the
user at considerable risk.
> Repairs may be performed by the manufacturer,
customer service or a similarly qualified person
only.
> Plug into a grounded 2-prong Schuko outlet.
> Do not remove ground prong.
> Do not use an adapter.
> Do not use an extension cord.
> Disconnect power to all units before servicing.
> Do not modify this appliance.
> Do not insert pointed metal objects (cutlery or
utensils) into the slots in the appliance.
> Do not touch (especially with wet hands) frozen
products or 22 - PRECAUTIONS 914779600/A put
them in your mouth directly.
>Do not store inflammable, explosive or volatile
substances.
>Do not keep explosive substances, such as spray
bottleswithflammablepropellantsintheappliance.
>Bottles containing strong alcoholic drinks must
be tightly closed and stored vertically.
>Organic compounds, acids and essential oils can
corrode the seals and plastic surfaces if
left in contact with them for extended periods.
>Turn o the appliance and unplug it from the
mains before cleaning or maintenance.
>Do not pull the cable to unplug the appliance.
1.2 Important information when using
the appliance
> Cleaning and maintenance that should be
performed by the user must not be carried out by
unsupervised children.
> Never use electrical appliances inside the
appliance (e.g. heater, electric ice maker, etc.).
Explosion hazard!
> Never defrost or clean the appliance with
a steam cleaner! The steam may penetrate
electrical parts and cause a short-circuit. Risk of
electric shock!
> Do not use pointed and sharp-edged
implements to remove frost or layers of ice. You
could damage the refrigerant tubes. Leaking
refrigerant may cause eye injuries or ignite.
> Take care that no objects are stuck in the doors.
> Do not store products which contain flammable
propellants (e.g. spray cans) or explosive
substances in the appliance.
Explosion hazard!
> Do not stand on or lean heavily against base of
appliance, drawers or doors, etc.
> Before cleaning the appliance, pull out the
power cord plug or switch o the fuse. Do not pull
out the power cord plug by tugging on the power
cord.
> Store high-percentage alcohol tightly closed and
standing up.

www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222) www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222)
7
EN
EN
> Keep plastic parts and the door seal free of oil
and grease. Otherwise, parts and door seal will
become porous.
> Never cover or block the ventilation openings of
the appliance.
>According to current regulations, children between
3 and 8 years of age can take or load food from
the appliance, but it is highly discouraged to allow
children under 8 years of age to perform these
operations and in general to use the appliance.
>Keep children under the age of eight at a safe
distance unless they are constantly supervised and
make sure that they do not play with the appliance.
>Do not use mechanical, electrical, chemical
devices other than those recommended by the
manufacturer to speed up the defrosting process.
> Do not damage the cooling circuit (if it can be
accessed).
> Do not use electrical appliances inside food
storage compartments unless these are of the
type recommended by the manufacturer.
>In the event of damage to the cooling circuit, avoid
the use of naked flames and ventilate the area
properly.
>Do not use the appliance or parts of it in ways
other than those specified in this manual.
>Opening the door for long periods can cause the
temperature in the appliance compartments to rise
considerably.
> Clean surfaces that may come into contact with
food and accessible drainage systems regularly.
> Store raw meat and fish in suitable containers
in the freezer, so that it does not come into contact
with other food or drip on it.
>If the appliance is left empty for long periods of
time, switch it o, thaw it, clean it, dry it and leave
the door open to prevent the development of mould
inside.
> Never rest sharp metal objects such as knives,
forks, spoons and lids on the appliance during use.
> Do not use abrasive or corrosive detergents (e.g.
scouring powders, stain removers and metallic
sponges) on glass parts.
> Do not sit on the appliance.
> Do not sit or lean on the door or any open drawers.
>Do not prize the door or handle to move the
appliance.
> Do not use electrical appliances (e.g. hair dryers)
or sprays for defrosting, the plastic parts could be
damaged.
> Do not use the appliance to cool rooms for any
reason.
> Always unplug the appliance in the event of a fault
or when performing cleaning or maintenance.
> Do not keep liquids in tins or glass containers in
the freezer.
> Do not place heavy objects on the top of the
appliance.
Symbols used in the Guide:
Note
Recommendations for correct use of the
appliance
Important
Directions for avoiding appliance damage
Warning
Indications for avoiding injury to people
1.3 Caring for the environment
> Pay special attention to correct disposal
procedure for all the packaging materials.
> The appliance must not be disposed of with urban
waste. Contact local waste disposal centres for on
how to dispose of recyclable waste.
> Prior to disposal, cut the power supply cord and
make it impossible to close the door.
> During disposal, avoid damage to the refrigeration
circuit.
> The appliance does not contain hazardous
substances fortheatmosphericozone layer, neither
in the refrigeration circuit nor in the insulation.
1.4 Cleaning, sanitization and mainte-
nance of the ice and/or water dispen-
ser (if present)
Failure to follow the instructions regarding
sanitizing can compromise the hygienic safety of
the water dispensed.
> When using the appliance for the first time and
every time the filter is changed, it is recommended
to let the water flow in the circuit using the “Manual
Cleaning” and discard the ice produced in the first
24 hours.

www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222)
8
2. INSTALLATION
2.1 Installation
Make sure that installation is performed correctly,
adhering to all directions in the specific installation
manual provided with the appliance.
Warning
Always connect the water before the
power.
2.2 Connection to the water system
The models provided with Ice Maker require a
connection to the domestic water supply system.
This can be executed through the 1/4” water line
(copper or polyethylene)to the house water supply.
The system pressure must be between from 8 psi
to 75 psi (between 0.5 bar and 5 bar).
Dierent pressures can cause malfunctions or
leaks in the water system.
The appliance should be supplied only with
drinkable water.
Warning
The appliance should be supplied only
with drinkable water.
Warning
Make sure that installation is performed
correctly, according to all of the
directions in the specific installation
manual provided with the appliance.
Warning
Do not attempt to use a locally sourced
garden hose threaded adapter or braided
supply line. It will strip the threads on
the appliance water connection solenoid.
1. IMPORTANT DIRECTIONS
> If the water dispenser has not been used for
more than 4/5 days, it is advisable to clean the
circuit and run o the first litre of water.
> Reposition the removable water dispenser (if
present), ensuring your hands are hygienically
clean.
> The filter must be changed when indicated on the
control panel or when the ice/water dispenser has
not been used for more than 30 days.
> With each filter replacement, sanitise the ice and/
or water distribution system using a food grade
disinfectant (with sodium hypochlorite), which
does not alter the characteristics of the materials.
Rinse with at least 2 litres of water before use.
> Only original spare parts supplied by the
manufacturer should be used when replacing
components in the ice and water dispenser.
> Any work on the appliance must be carried out
by a qualified technician or the After-sales Service.
Warning
To avoid contamination of food, please
respect the following instructions:
>Openingthedoorforlongperiodscancause
a significant increase of the temperature
in the compartments of the appliance.
> Clean regularly surfaces that
can come in contact with food
and accessible drainage systems.
> Clean water tanks if they have not
been used for 48 h; flush the water
system connected to a water supply if
water has not been drawn for 5 days.
> Store raw meat and fish in suitable
containers in the refrigerator, so that it is
not in contact with or drip onto other food.
>Two-star frozen-food compartments are
suitable for storing pre-frozen food, storing
or making icecream and making ice cubes.
> One-, two- and three-star compartments
are not suitable for the freezing of fresh food.
> If the refrigerating appliance is left empty
for long periods, switch o, defrost, clean,
dry, and leave the door open to prevent
mould developing within the appliance.

www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222) www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222)
9
3. BEFORE STARTING
EN
3.1 Know your Fhiaba
Congratulations for having purchased your new
Fhiaba: from now on you can use our innovative
conservation system, which will allow you to keep
all of your food in the best way possible.
This manual will answer most of your questions
about the product’s features. Should you require
further information, please check our website
> call us 1-855-4-FHIABA (1-855-434-4222)
> write us an e-mail at car[email protected]
>our website www.fhiaba.com
Important
Before calling, write down the model type
and serial number which are available on
the warranty certificate and on the rating
plate, and any messages which may have
appeared on the display.
2.3 Connection to the electrical power
supply
The appliance operates at 115 V AC, 60 Hz and is
equipped with a power supply cord with a 3-prong
grounded plug, which must be connected to a
corresponding 3-prong (15 Amp) grounding-type
wall receptacle.
Important
Do not use extension cords and/or
multiple adapters for the power supply
connection.
2.4 Refrigerant
The refrigerant isobutane (R600a) is contained
within the refrigerant circuit of the appliance, a
natural gas with a high level of environmental
compatibility, which is nevertheless flammable.
> During transportation and installation of the
appliance, be certain that none of the components
of the refrigerant circuit become damaged.
> If the refrigerant circuit should become damaged:
– avoid open flames and sources of ignition;
– thoroughly ventilate the room in which the
appliance is situated.
DANGER
Risk of fire or explosion. Flammable re-
frigerant used. Do not use mechanical
devices or other means to accelerate the
defrosting process, other than those rec-
ommended by the manufacturer.
Do not puncture refrigerant tubing.
Do not damage the refrigerant circuit.
Do not use electrical appliances inside
the food storage compartments of the
appliance, unless they are of the type
recommended by the manufacturer.

www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222)
10
3. BEFORE STARTING
Position of the serial number
inside the compartment.
3.2 Product plate
The product plate shows the technical data, the
serial number and the model. The product plate
must never be removed.
The product plate is positioned on
the side opposite door opening.

www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222) www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222)
11
XS8990TST6IU
FP36BI-RS
F20200101000006
4.5 oz MODEL
CODE
SER.NO./N° SERIE
3186660
ETL LISTED
CONFORMS TO
ANSI/UL STD 250
CERTIFIED TO CAN/CSA
STD C22.2 NO.63
4.2 oz
4.8 A
115 V
60 Hz
R134a
Fridge Gas Fill Charge
Quantité de Gaz Réfrigerateur
Freezer Gas Fill Charge
Quantité de Gaz Congélateur
Total Absorbed Current
Courant Absorbée Totale
Voltage
Tension
Frequency
Frequence
Refrigerant Gas Type
Type de Gaz Rèfrigerant
Defrost Heater
Chauffage de Dégivrage
Made in Italy
213 W
EN
Conservation Tips
>SN (Subnormal) from +50°F to +90°F (+10°C to +32°C)
>N (Normal) from +61°F to +90°F (+16°C to +32°C)
>ST (Subtropical) from +64°F to +100°F (+18°C to +38°C)
>T (Tropical) from +64°F to +109°F (+18°C to +43°C)
Features .
Model .
Code .
Serial Number .

www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222)
12

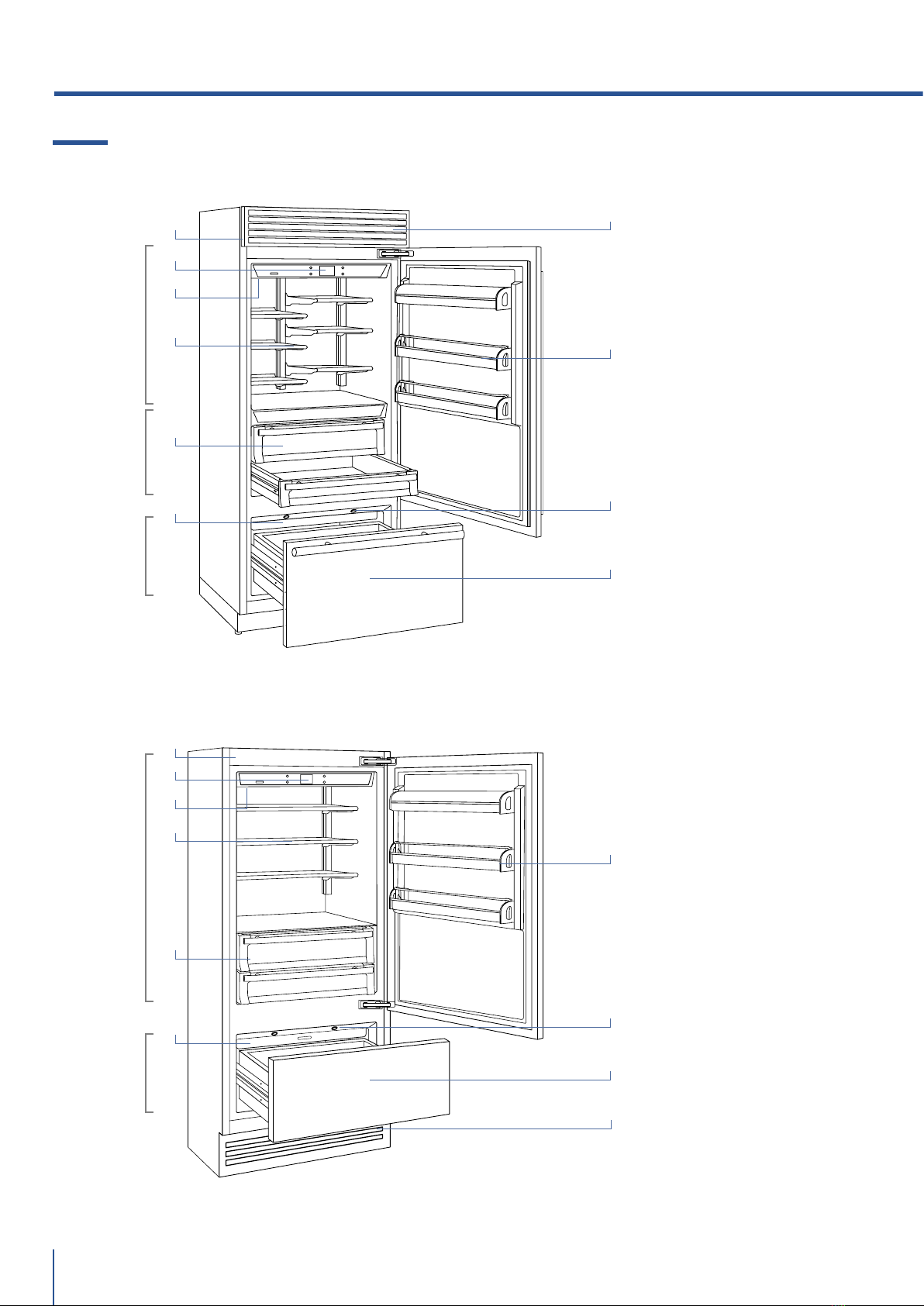

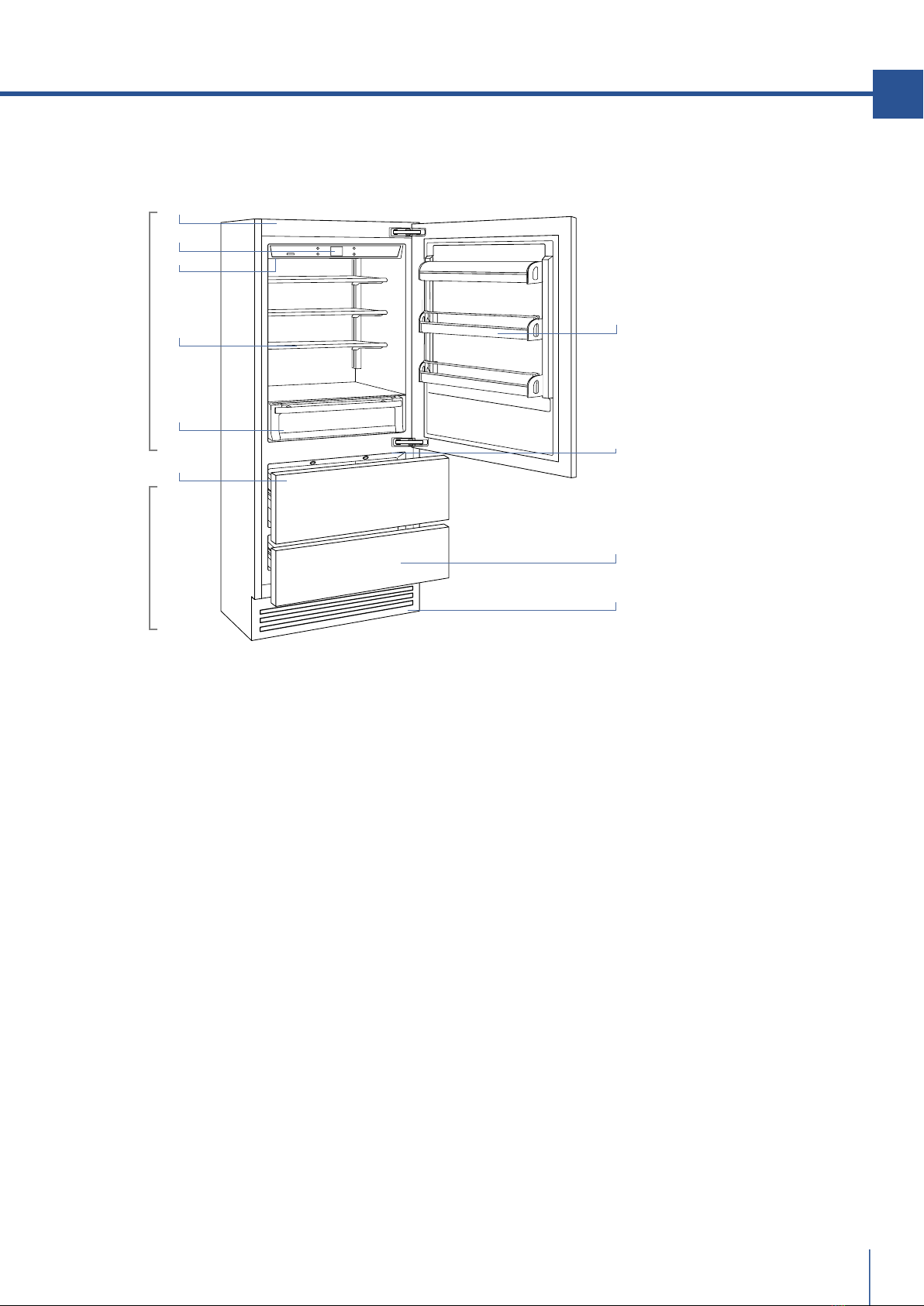

1) Stainless steel body.
2) Interactive control panel.
3) Water filter (*).
4) Patented shelf positioning
system (Even Lift).
5) Drawers fresco
compartment.
6) Drawers fridge
compartment.
7) Ice maker countainer (*).
8) Door bins.
9) LED illuminations for the
freezer compartment
bottom drawer.
10) Freezer bottom drawer
compartment convertible
into Fridge compartment
or Fresco compartment
(TriMode functionality).
11) Removable Grill
(capacitor).
(*) on models with Ice Maker.
3.3 Main components
3. BEFORE STARTING
Models 1T
/Country
Models 0T
/Brilliance
Fresco
+28°F/+36°F
(+2°C/-2°C)
Fridge
+46°F/+36°F
(+8°C/+2°C)
TriMode
+9°F/-11°F
(-15°/-22°C)
Fridge
+46°F/+36°F
(+8°/+2°C)
TriMode
+9°F/-11°F
(-15°/-22°C)
1
9
2
3
4
5
1
4
7
6
7
8
11
11
10
2
3
9
8
10

www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222) www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222)
13
EN
1) Stainless steel body.
2) Interactive control panel.
3) Water filter (*).
4) Patented shelf positioning
system (Even Lift).
5) Drawers fridge
compartment.
6) Ice maker countainer (*).
7) Door bins.
8) LED illuminations for the
freezer compartment
bottom drawer.
9) Freezer bottom drawer
compartment convertible
into Fridge compartment
or Fresco compartment
(TriMode functionality).
10) Stainless stell drawers AISI
304 satin scotch brite.
11) Removable Grill
(capacitor).
(*) on models with Ice Maker.
Models 0H
Fridge
+46°F/+36°F
(+8°/+2°C)
TriMode
+9°F/-11°F
-15°/-22°C
1
8
2
4
5
6
7
9
3
11

www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222)
14
Serigraa B02919200 VETRO USER 599 LCD2.8 - FHIABA
Limite per graca parti retro-illuminate - la parte bianca è trasparente
Testo e graca
00
°C+
Impostazioni
Funzioni
00
°C+
00
°C-
Colore SMEG
colore C71
Serigraa B02919200 VETRO USER 599 LCD2.8 - FHIABA
Limite per graca parti retro-illuminate - la parte bianca è trasparente
Testo e graca
00
°C+
Impostazioni
Funzioni
00
°C+
00
°C-
Colore SMEG
colore C71
Serigraa B02919200 VETRO USER 599 LCD2.8 - FHIABA
Limite per graca parti retro-illuminate - la parte bianca è trasparente
Testo e graca
00
°C+
Impostazioni
Funzioni
00
°C+
00
°C-
Colore SMEG
colore C71
Serigraa B02919200 VETRO USER 599 LCD2.8 - FHIABA
Limite per graca parti retro-illuminate - la parte bianca è trasparente
Testo e graca
00
°C+
Impostazioni
Funzioni
00
°C+
00
°C-
Colore SMEG
colore C71
3.5 Main control panel (models 1T, 0T, 0H).
3.4 Eletronic Control
The innovative electronic control system designed by Fhiaba maintains constant temperature on the
three compartments and visualizes it on the control panel display. It also allows user interaction
making it possible to personalize settings of the various functions and to receive sound and/or visual
messages should any malfunction occur in the appliance.
Turning On/ Turning Off:
Touch the icon for turning on or off the unit.
Home
Touch the icon home for going back to the main display screen.
Allarm
Touch the icon to view the allarm tone functions and to deactivate them.
Back
Touch the arrow icon for going back to the previous display screen.
3. BEFORE STARTING
Serigraa B02919200 VETRO USER 599 LCD2.8 - FHIABA
Limite per graca parti retro-illuminate - la parte bianca è trasparente
Testo e graca
00 °C+
Impostazioni
Funzioni
00 °C+
00 °C-
Colore SMEG
colore C71

www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222) www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222)
15
FUNCTIONS
SETTINGS
32 F
39 F
0F
FUNCTIONS
SETTINGS
32 F
39 F
0F
+ 37 °F
+ 39
+ 38
+ 35
+ 36
OK
OFF
ARE YOU SURE YOU WANT TO
POWER OFF THIS UNIT?
YES NO
ARE YOU SURE?
YES NO
TURN
COMPARTMENT
OFF?
ON OFF
Serigraa B02919200 VETRO USER 599 LCD2.8 - FHIABA
Limite per graca parti retro-illuminate - la parte bianca è trasparente
Testo e graca
00
°C+
Impostazioni
Funzioni
00
°C+
00
°C-
Colore SMEG
colore C71
EN
4.1 Switching on and o

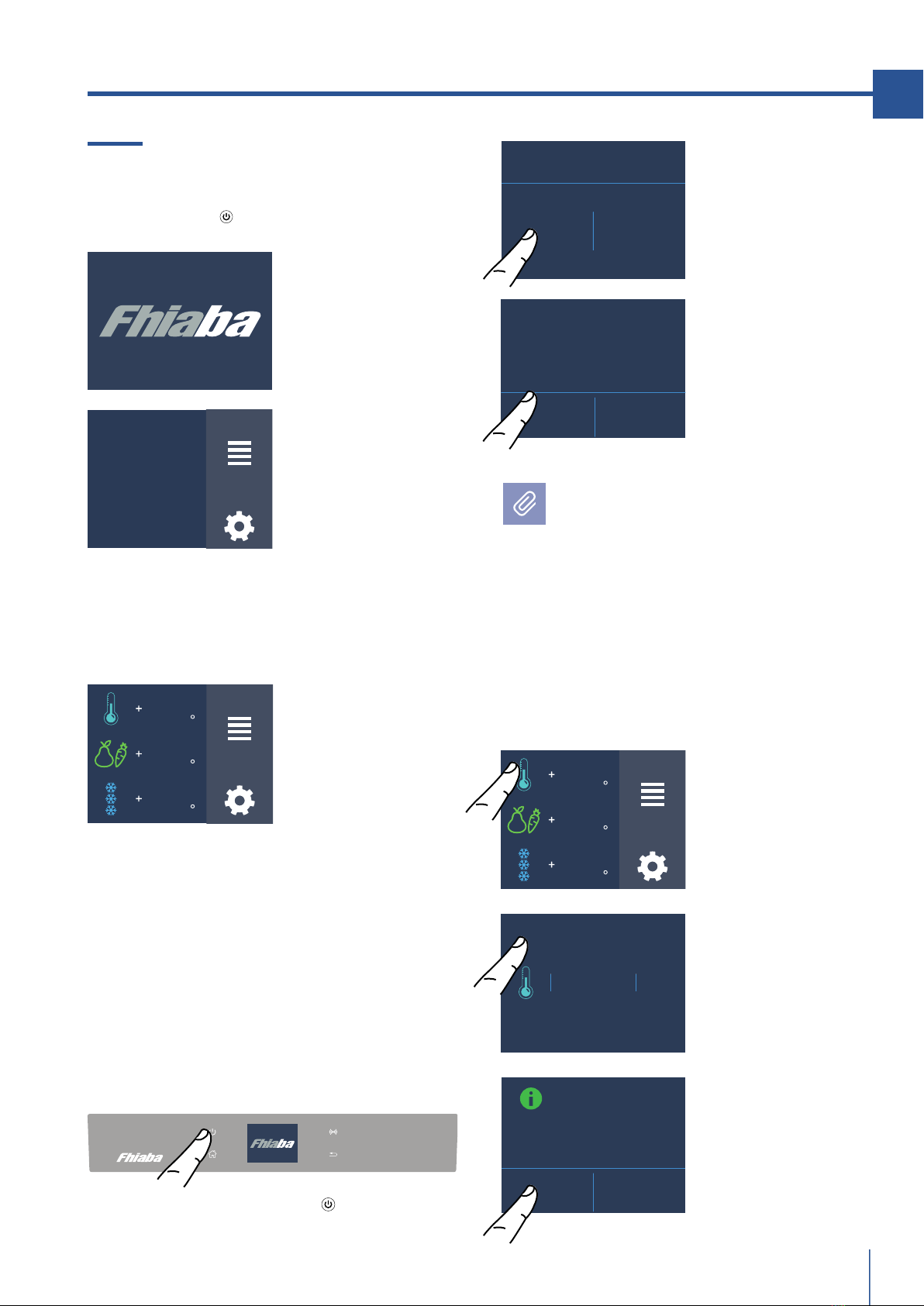

First time starting the unit
Touch the button . The display shows the
following launch screens:
4. APPLIANCE SWITCHING ON

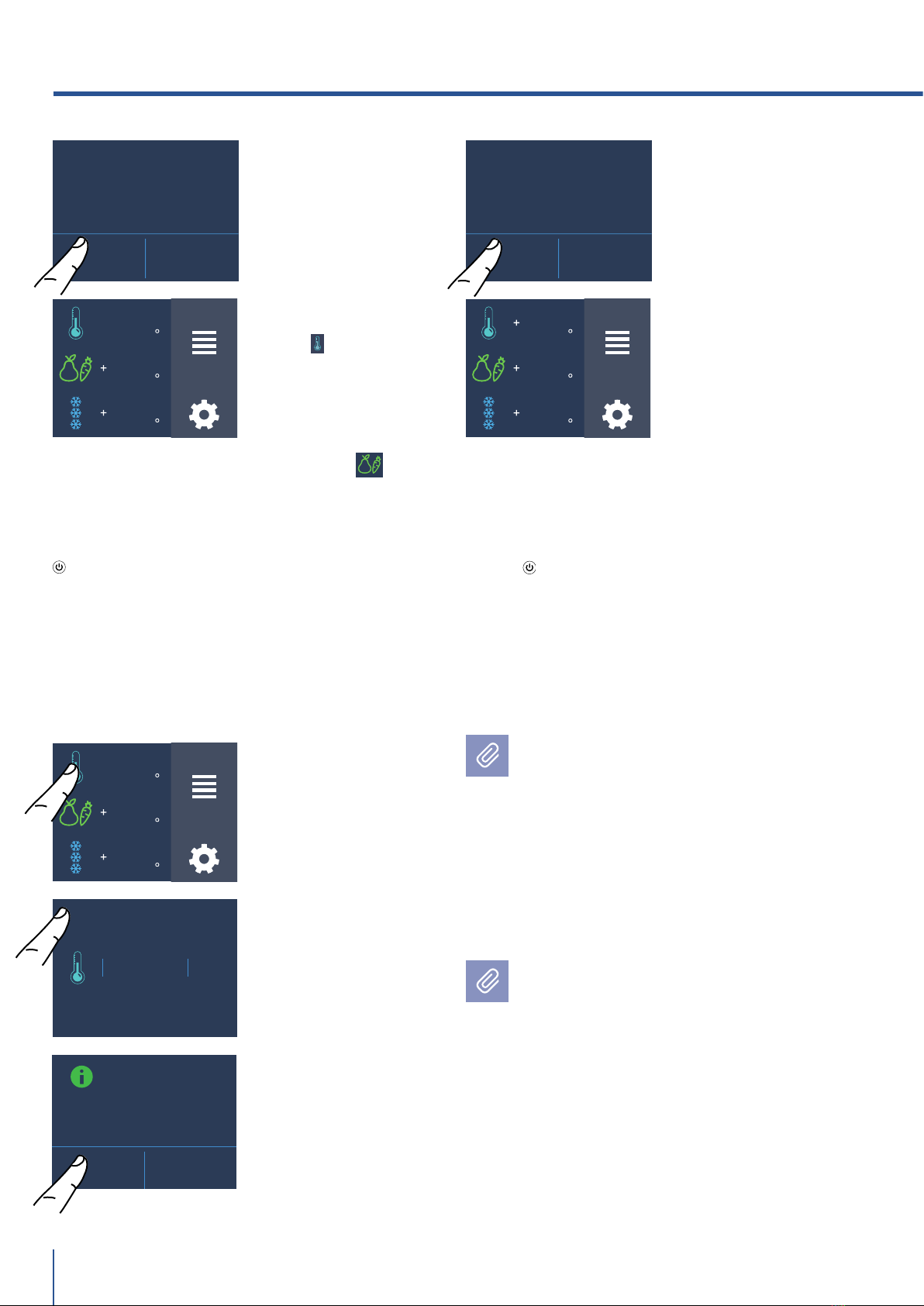

Switching off Fridge and Fresco compartment.
(Models 1T, OT e OH)
The fridge compartment and the fresco
compartment, can be shutdown individually
whereas the TriMode drawer can't be turned off
unless through the complete shutdown of the unit.
(*) The home screen varies
depending on the models;
The TriMode compartment is set in the freezer
mode +0°F (-18°C). For changing this setting
look up the setting 5.
When the appliance is first switched on is
reccomended to wait at least 12 hours without
opening the doors and before placing any food
inside the unit.During such period deactivated
any error message by pressing the Alarm button.
4) Home screen (*).
- Fridge Compartment
+39°F (+5°C)
- Fresco Compartment
+32°F (+0°C)
- Drawer Freezer
(TriMode)
+0°F (-18°C)
When the fridge is o there are no warning
signs that prove that the fridge is plugged to
a socket.
1) Home screen.
2) Touch the icon
Yes to swich on
3) Conferm
shutdown by
touching the
Yes icon.
1) Fhiaba Logo.
2) Initial test
(lasts 3 minuts).
3) The display shows the main screen with the
envirorment temperature measured from the
fridge inside the compartments. Automatically
the unit start to cool down until reaching the set
temperatures.
2) Touch the
icon Off.
Shutdown.
3) Touch theicon
On to turn
compartment off.
1) touch the bottom Off.
FUNCTIONS
SETTINGS
INITIAL TEST...

www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222)
16
FUNCTIONS
SETTINGS
32 F
OFF F
0F
FUNCTIONS
SETTINGS
32 F
OFF F
0F
FUNCTIONS
SETTINGS
32 F
39 F
0F
ARE YOU SURE?
YES NO
ARE YOU SURE?
YES NO
TURN
COMPARTMENT
ON?
ON OFF
+ 37 °F
+ 39
+ 38
+ 35
+ 36
OK
ON
Turn back on the compartments.
In the case you wish to turn on again the fridge
and fresco compartments.
For turning off the fresco compartment
follow the same sequence.
Turning on the fridge and fresco compartment
again.
For turning on the unit again press the button,
the display will turn on; the starting screen
and the home screen, with the temperature
measured from the fridge inside the
compartments, will appear again. The fridge
will start cooling off until reaching the set
temperatures.
1) Home screen.
For example, for
turning back on
the fridge
compartment,
touch the icon off.
5) On the screen
home appears the
icon off, which
indicates that the
fridge
compartment is
off.
2) Touch the
icon On.
4) Touch the icon
Yes for confirming
the disactivation.
FUNCTIONS
SETTINGS
32 F
OFF F
0F
Switching off for long periods
During long absence periods it is recommended
to switch off the refrigerator by pressing the Unit
button for three seconds and disconnecting
the electrical pluvxeaker controlling the socket.
Completely empty the refrigerator, clean and dry
it and leave the doors and drawers partially open
to prevent unpleasant odors.
5) Now the fridge
compartment will
turn back on. The
home screen will
appear again.
4) Touch the yes
icon to confirm
activation.
Follow the same procedure for turning back on
the fresco compartment.
If at the first startup the Standby message
does not appear, but another message
appears, it means that the appliance has
already started the cooling process.
During the first startup, it will not be possible
to use the Menu to modify the factory settings
until the preset temperature has been
reached.
Each time the appliance is switched on it goes
through a self-diagnosis procedure lasting
three minutes before completely starting up.
If only the refrigerator compartment or
the Fresco compartment is switched o,
the specific fan will continue to operate to
prevent the formation of unpleasant odours
and mould.
3) Touch the
icon On.
4. APPLIANCE SWITCHING ON

www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222) www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222)
17
FUNCTIONS
SETTINGS
32 F
39 F
0F
+ 37 °F
+ 39
+ 38
+ 35
+ 36
OK
OFF
+ 37 °F
+ 39
+ 38
+ 35
+ 36
OK
OFF
FUNCTIONS
SETTINGS
32 F
39 F
0F
EN
FUNCTIONS
SETTINGS
32 F
39 F
0F
FUNCTIONS
SETTINGS
32 F
39 F
0F

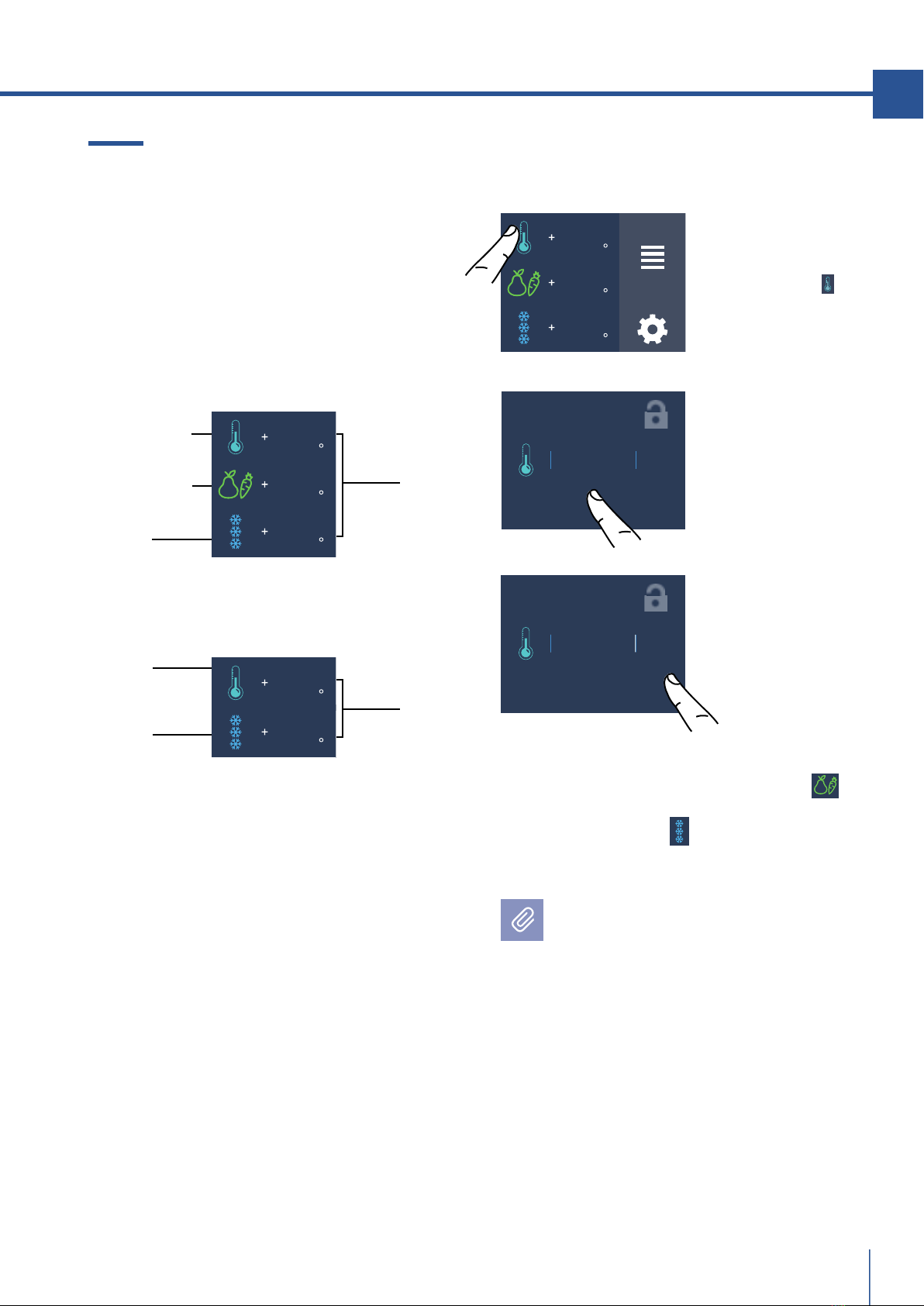

4.2 How to adjust the temperature for
dierent requirements
Each model has been carefully tested before
leaving the factory and is adjusted in such a way
to ensure high performance and low consumption.
Usually, it is not necessary to modify the settings.
Fridge
Compartment
Drawer
Freezer
(TriMode)
Preset
temperatures
Model 1T
How it looks to the home screen in the various
models:
Fresco
Compartment
(models 1T)
Fridge
compartment
Drawer
Freezer
(TriMode)
Preset
temperatures
Model 0T/0H
3)Touchtheiconokto
confirm the desider
temperature.
Modify the temperatures compartment
Example: How to modify the Fridge
compartment temperature.
1) Home screen.
Touch the icon of
fridge compartement.
2) Scoll up/down to
select the desided
temperature
fridge from
+34°F to +46°F
(from +1°C to +7°C)
The temperature shown can vary slightly
in respect to the set temperature following
frequent openings of the doors or insertion of
room temperature foods or large quantities
of foods.
6 to 12 hours are necessary to reach the
selected temperature.
The same procedure is required to set the
temperature in the Fresco compartment
FUNCTIONS
SETTINGS
32 F
OFF F
0F
from +28°F to +36°F (from -2°C to +2°C) and
in the Trimode bottom
FUNCTIONS
SETTINGS
32 F
OFF F
0F
drawer from +9°F to
-11°F (from -13°C to -23°C).

www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222)
18
+ 37 °F
+ 39
+ 38
+ 35
+ 36
OK
OFF
+ 37 °F
+ 39
+ 38
+ 35
+ 36
OK
OFF
Serigraa B02919200 VETRO USER 599 LCD2.8 - FHIABA
Limite per graca parti retro-illuminate - la parte bianca è trasparente
Testo e graca
00
°C+
Impostazioni
Funzioni
00
°C+
00
°C-
Colore SMEG
colore C71
Padlock icon.
The padlock icon shows up when the
temperatures are set up.
The padlock open/close shows that is or isn't
possible to modify the compartment's
temperatures anymore.
Usually an open grey padlock can be seen
open; in that case you can scroll up or down
with a finger on the display, select the desired
temperature and press OK for confirming.
Whereas a white closed padlock can be seen if
the user has activated some functions (described
in the paragraph 5.1) that modify the settings of
the Fridge Compartment, Fresco Compartment
and Drawer Freezer (TriMode) therefore the
user in that situation will not be able anymore
to change the temperature of the compartments.
Iftheiconfunctionistouchedandaspecificfunction
is set (for example holiday, shopping trimode,
ect...), the white padlock will be seen closed and
it won't be possible to change the temperature of
the compartments as long as the function won't
be completed or if it is manually deactivated.
4.3 Information signals of anomaly on
the display
Anintegratedcontrolsystemwill give information
through bright texual signals messages you can
see on the display.
The voiced signal that goes along with some
of the anomalies signals and can be turned off
by touching the button allarm on the main
control panel.
You can find the list of the anomalies signals at
the end of this manual.
4. APPLIANCE SWITCHING ON

www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222) www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222)
19
SHOPPING FRIDGE
MODE?
ON OFF
SHOPPING FRIDGE
SHOPPING TRIMODE RAPID BOTTLE
COOLER
VACATION MODE
FUNCTIONS
SETTINGS
32 F
39 F
0F
SHOPPING FRIDGE
SHOPPING TRIMODE
RAPID BOTTLE
COOLER
VACATION MODE
SHOPPING FRIDGE
SHOPPING TRIMODE
RAPID BOTTLE
COOLER
VACATION MODE
SHOPPING FRIDGE
SHOPPING TRIMODE RAPID BOTTLE
COOLER
VACATION MODE
SHOPPING FRIDGE
SHOPPING TRIMODE RAPID BOTTLE
COOLER
VACATION MODE
ICE MAKER
WATER FILTER
SYSTEM CLEANINGWATER DISPENSER
ICE MAKER
WATER FILTER
SYSTEM CLEANINGWATER DISPENSER
LIGHT 12H
ICE MAKER WATER FILTER
SYSTEM CLEANING
WATER DISPENSER
9HOUR
11
10
7
8
OK
ICE MAKER WATER FILTER
SYSTEM CLEANING
WATER DISPENSER
EN
It is possible to program in advance between
1 and 24 hours.
5. CUSTOMIZE FUNCTIONS AND SETTINGS
INFORMATION FOR THE USE OF THE DISPLAY.
5.1 Functions
It is possible to personalize the operation of your
Fhiaba unit in order to adapt it to the different
ways you might want to use it.
After touching the icon Function
FUNCTIONS
SETTINGS
32 F
OFF
F
0F
on the home
screen will be shown the icon of the following
available functions.
1) Shopping Fridge
The function lowers the refrigerator temperature
to +36°F (+2°C) for 12 hours, permitting more rapid
cooling of food that has just been placed in. Once
the 12 hours have expired, the function deactivates
automatically, returning to the previously set
temperature. It is possible to program a timed
activation of the function.
After a prolonged interruption of electrical current,
it is necessary to reactivate the function.
1) Shopping Fridge.
2) Vacation.
3) Shopping TriMode.
4) Rapid Bottle Cooler.
5) Ice Maker.
6) Water filter.
C) Touch the icon
On to activate the
function.
B) Touch the icon
Shopping Mode
Fridge.
D) Scroll up /
down to setting
the desired time
and then pres ok.
A) Home screen.
Touch the icon
functions.
8) System Cleaning.
9) Light 12h.
(optional, fridge with glass door).
EN
7) Water dispenser
(optional for 0T model).

www.fhiaba.com · www.thevettagroup.com · Info Line 1-855-4-FHIABA (1-855-434-4222)
20
9DAY
11
10
7
8
OK
SHOPPING FRIDGE
SHOPPING TRIMODE RAPID BOTTLE
COOLER
VACATION MODE
SHOPPING FRIDGE
SHOPPING TRIMODE RAPID BOTTLE
COOLER
VACATION MODE
FUNCTIONS
SETTINGS
32 F
39 F
0F
FUNCTIONS
SETTINGS
32 F
39 F
0F
9 HOUR
11
10
7
8
OK
VACATION MODE
ON OFF
SHOPPING
TRIMODE MODE
ON OFF
3) Shopping TriMode
This function must be activated at least 24 hours
before inserting room temperature items into the
freezer, or several hours before placing into the
freezer previously frozen items which have been
subject to a slight temperature rise.
This function is automatically deactivated when
the programmed time period expires. It is possible
o program timed activation of the function.
If interrupted by a prolonged interruption of the
electrical power, it is necessary to reactivate the
function.
2) Vacation
This function (recommended in case of
prolonged absences since it allows considerable
energy savings) brings the refrigerator
compartment temperature to +57°F (+14°C).
It is possible to program the duration, or it can
be manually deactivated upon re-entry after a
period of absence. This function remains active
even if during the period of absence there is
a prolonged interruption of electrical power.
It is possible to program a period from 1 to 90 days.
C) Touch the button
On to activate the
function.
B) Touch the icon
Shopping Mode
TriMode.
D) Scroll up / down
to set the desired
time (in hours)
and then pres ok.
It is possible to
program a period
from 1 to 24 hours.
C) Touch the but-
ton On to activate
the function.
B) Touch the icon
Vacation Mode.
D) Scroll up / down
to set the desired
time (in days)
and then pres ok.
It is possible to
program a period
from 1 to 90 days.
A) Home screen.
Touch the icon
functions.
A) Home screen.
Touch the icon
functions.
5. CUSTOMIZE FUNCTIONS AND SETTINGS
