Fhiaba 1T User manual

Fridge
User manual
Réfrigérateur
Mode d’emploi

2www.fhiaba.com · [email protected] · Info Line 800-344222

3
www.fhiaba.com · [email protected] · Info Line 800-344222
EN
1
1.1
1.2
1.3
1.4
IMPORTANT DIRECTIONS FOR SAFETY AND THE ENVIRONMENT
For your safety.................................................................................................................................................................
Important information when using the appliance..................................................................................................
Caring for the environment..........................................................................................................................................
Cleaning, sanitization and maintenance of the ice and/or water dispenser (if present)..........................
4
4
4
5
5
2
2.1
2.2
2.3
INSTALLATION
Installation.........................................................................................................................................................................
Connection to the electrical power supply..............................................................................................................
Connection to the water system.................................................................................................................................
5
5
5
6
3
3.1
3.2
3.3
3.4
3.5
3.6
BEFORE STARTING
Know your Fhiaba...........................................................................................................................................................
Main components............................................................................................................................................................
Electronic Control............................................................................................................................................................

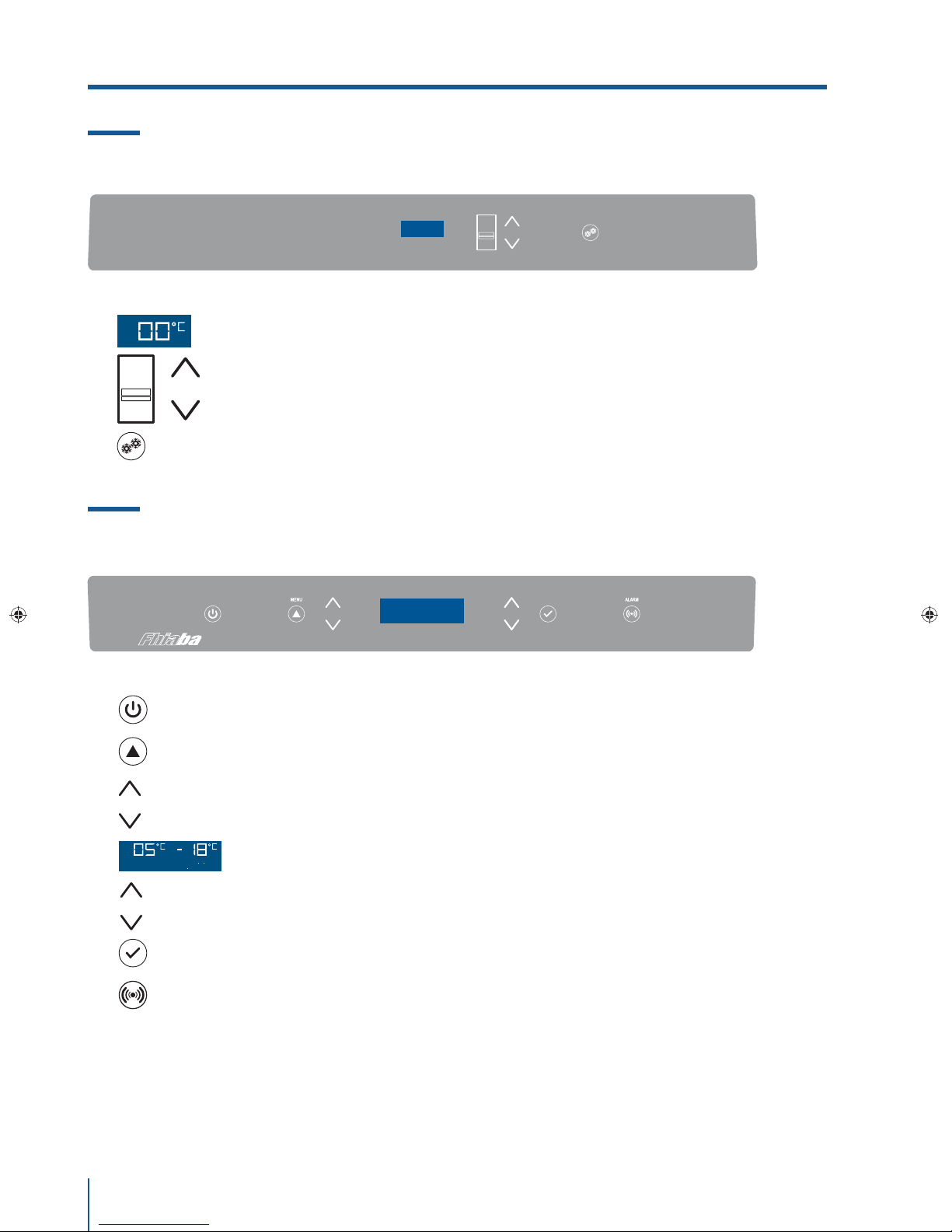

Main control panel..........................................................................................................................................................
Fresco control panel......................................................................................................................................................
Main control panel..........................................................................................................................................................
6
6
7
9
9
10
10
4
4.1
4.2
4.3
4.4
APPLIANCE SWITCHING ON AND OFF
Switching on and o.......................................................................................................................................................
How to adjust the temperature for dierent requirements................................................................................
Ice Maker activation........................................................................................................................................................
Information and malfunction messages on the display.......................................................................................
11
11
11
12
12
5
5.1
5.2
5.3
SETTINGS AND SPECIAL FUNCTIONS
Customization and language settings........................................................................................................................
Special functions activated through the Menu.......................................................................................................
Basic settings of the Menu...........................................................................................................................................
12
13
13
15
6
6.1
INTERNAL LAYOUT
Internal Layout (positioning, adjustment, removal)...............................................................................................
17
17
7
7.1
7.2
7.3
ACTIVATION AND USE OF THE ICE MAKER
Activation and use of the Ice Maker............................................................................................................................
Water Filter.......................................................................................................................................................................
Water filter for freezer column ice maker................................................................................................................
18
18
19
19
8
8.1
LIGHTING
Lighting...............................................................................................................................................................................
20
20
9
9.1
9.2
FOOD PRESERVATION
General directions...........................................................................................................................................................
How to maintain good food quality.............................................................................................................................
20
20
21
10
10.1
RECOMMENDED TIMES FOR FOOD PRESERVATION
Recommended times for Food Preservation..........................................................................................................
22
22
11
11.1
11.2
11.3
CARE AND CLEANING
Care and Cleaning...........................................................................................................................................................
Condenser cleaning........................................................................................................................................................
Internal cleaning.............................................................................................................................................................
23
23
23
24
12
12.1
12.2
TROUBLESHOOTING GUIDE
Troubleshooting Guide...................................................................................................................................................
Malfunction messages appearing on the display..................................................................................................
24
24
26
13
13.1
13.2
MENU MAP
Functions...........................................................................................................................................................................
Setting................................................................................................................................................................................
27
27
28
INDEX

4www.fhiaba.com · [email protected] · Info Line 800-344222
1.1 For your safety
> If this appliance is replacing an existing appliance
which must be removed or disposed of, make sure
that it does not become a dangerous trap for children
by cutting its power supply cable and rendering it im-
possible to close the door. Use the same caution at
the end of the lifespan of the new appliance.
> This appliance is designed to refrigerate beverages
and foods and is intended for domestic use.
> The appliance must be installed by following the
instructions in the Installation Guide, particular care
should be taken not to obstruct the vent openings of
the appliance and of the built-in units.
> The appliance features a concentrated lighting sy-
stem with LED lamps. Do not stare into these lamps
when they are on to avoid possible eyesight damage.
This warning is also contained on the label attached
to the inside of the refrigerator door.
> When the freezer is functioning do not touch the
inner surfaces in stainless steel with wet or damp
hands, since skin may stick to the very cold surfaces.
> Do not use any type of electrical equipment inside
of the food conservation compartments.
> When positioning the shelves, do not place fingers
in the shelf slide guides.
> Do not position containers of flammable liquids
near the appliance.
> Completely switch o the appliance and unplug the
power supply cable during cleaning operations. If the
plug is not easily reached, it is a good idea to turn
o the breaker or remove the fuse that controls the
socket that the appliance is connected to.
> The packaging parts can be dangerous for children:
do not allow children to play with the plastic bags,
plastic film or Styrofoam.
> Any repairs must be performed by a qualified Fhia-
ba Service technician.
> This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or lack of experience and knowledge unless they
have been given supervision or instruction concer-
ning use of the appliance by a person responsible for
their safety. Children should be supervised to ensure
that they do not play with the appliance.
> Do not damage the appliance refrigerant circuit pi-
pes.
> Do not store explosive substances such as aerosol
cans with a flammable propellant in this appliance.
> If the power cord of this appliance is damaged, it
must be replaced by the manufacturer, customer
service
or a similarly qualified person. Improper installations
and repairs may put the user at considerable risk.
> Repairs may be performed by the manufacturer,
customer service or a similarly qualified person only.
1.2 Important information when using
the appliance
>Never use electrical appliances inside the applian-
ce (e.g. heater, electric ice maker, etc.). Explosion ha-
zard!
>Never defrost or clean the appliance with a steam
cleaner! The steam may penetrate electrical parts
and cause a short-circuit. Risk of electric shock!
>Do not use pointed and sharp-edged implements
to remove frost or layers of ice. You could damage
the refrigerant tubes. Leaking refrigerant may cause
eye injuries or ignite.
>Do not store products which contain flammable
propellants (e.g. spray cans) or explosive substances
in the appliance. Explosion hazard!
>Do not stand on or lean heavily against base of ap-
pliance, drawers or doors, etc.
>Before cleaning the appliance, pull out the power
cord plug or switch o the fuse. Do not pull out the
power cord plug by tugging on the power cord.
>Store high-percentage alcohol tightly closed and
standing up.
>Keep plastic parts and the door seal free of oil and
grease. Otherwise, parts and door seal will become
porous.
> Never cover or block the ventilation openings for
the appliance.
1. IMPORTANT DIRECTIONS FOR SAFETY AND THE ENVIRONMENT

5
www.fhiaba.com · [email protected] · Info Line 800-344222
EN
2.1 Installation
Make sure that installation is performed correctly,
adhering to all directions in the specific installation
manual provided with the appliance.
Attention
Do not use extension cords and/or
multiple adapters for the power supply
connection.

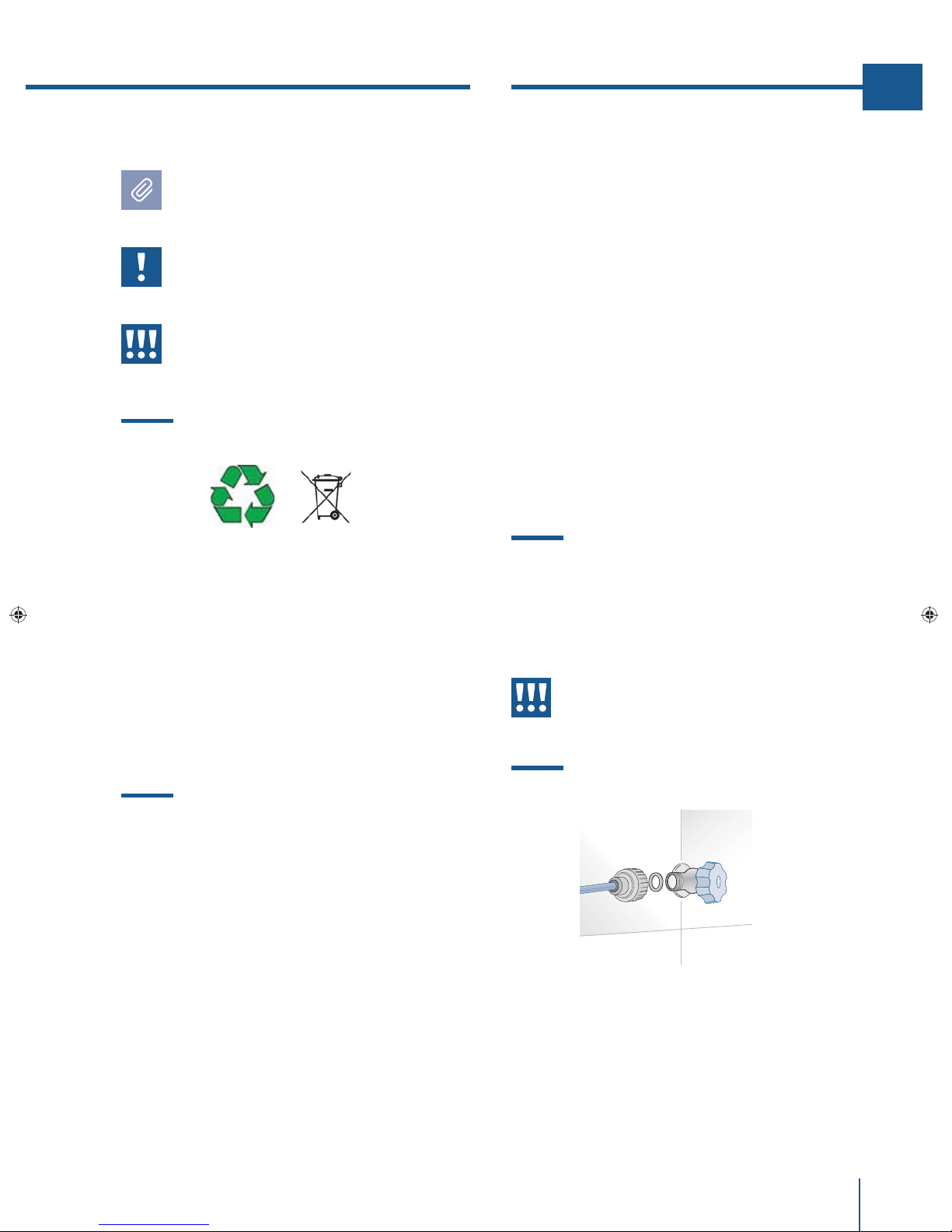

2.2 Connection to the water system
The models provided with Ice Maker require a con-
nection to the domestic water supply system. This
can be executed through the 1/4” water line (copper
or polyethylene)to the house water supply.
The system pressure must be between from 8 psi
to 75 psi (between 0.5 bar and 5 bar).
Dierent pressures can cause malfunctions or le-
aks in the water system.
The appliance should be supplied only with drinka-
ble water.
Symboles utilisés dans le manuel:
Note
conseils pour une correcte utilisation de
l’appareil
Important
Indications afin d’éviter tout
endommagement de l’appareil
Attention
indications afin d’éviter toute lésion aux
personnes
1.3 Caring for the environment
> Pay special attention to correct disposal procedu-
re for all the packaging materials.
> The appliance must not be disposed of with urban
waste. Contact local waste disposal centres for on
how to dispose of recyclable waste.
> Prior to disposal, cut the power supply cord and
make it impossible to close the door.
> During disposal, avoid damage to the refrigeration
circuit.
> The appliance does not contain hazardous sub-
stances for the atmospheric ozone layer, neither in
the refrigeration circuit nor in the insulation.
1.4 Cleaning, sanitization and maintenan-
ce of the ice and/or water dispenser (if
present)
Failure to follow the instructions regarding sani-
tizing can compromise the hygienic safety of the
water dispensed.
> When using the appliance for the first time and
every time the filter is changed, it is recommended
to let the water flow in the circuit using the “Ma-
nual Cleaning” and discard the ice produced in the
first 24 hours.
> If the water dispenser has not been used for
more than 4/5 days, it is advisable to clean the
circuit and run o the first litre of water.
> Reposition the removable water dispenser (if
present), ensuring your hands are hygienically
clean.
> Clean the ice bucket or drawer regularly but
using only drinking water.
> The filter must be changed when indicated on the
control panel or when the ice/water dispenser has
not been used for more than 30 days.
> With each filter replacement, sanitise the ice
and/or water distribution system using a food gra-
de disinfectant (with sodium hypochlorite), which
does not alter the characteristics of the materials.
Rinse with at least 2 litres of water before use.
> Only original spare parts supplied by the manu-
facturer should be used when replacing compo-
nents in the ice and water dispenser.
> Any work on the appliance must be carried out
by a qualified technician or the After-sales Service.
2. INSTALLATION

6www.fhiaba.com · [email protected] · Info Line 800-344222
Attention
The appliance should be supplied only
with drinkable water.
Attention
Make sure that installation is performed
correctly, according to all of the direc-
tions in the specific installation manual
provided with the appliance.
Attention
Do not attempt to use a locally sourced
garden hose threaded adapter or brai-
ded supply line. It will strip the threads
on the appliance water connection sole-
noid.

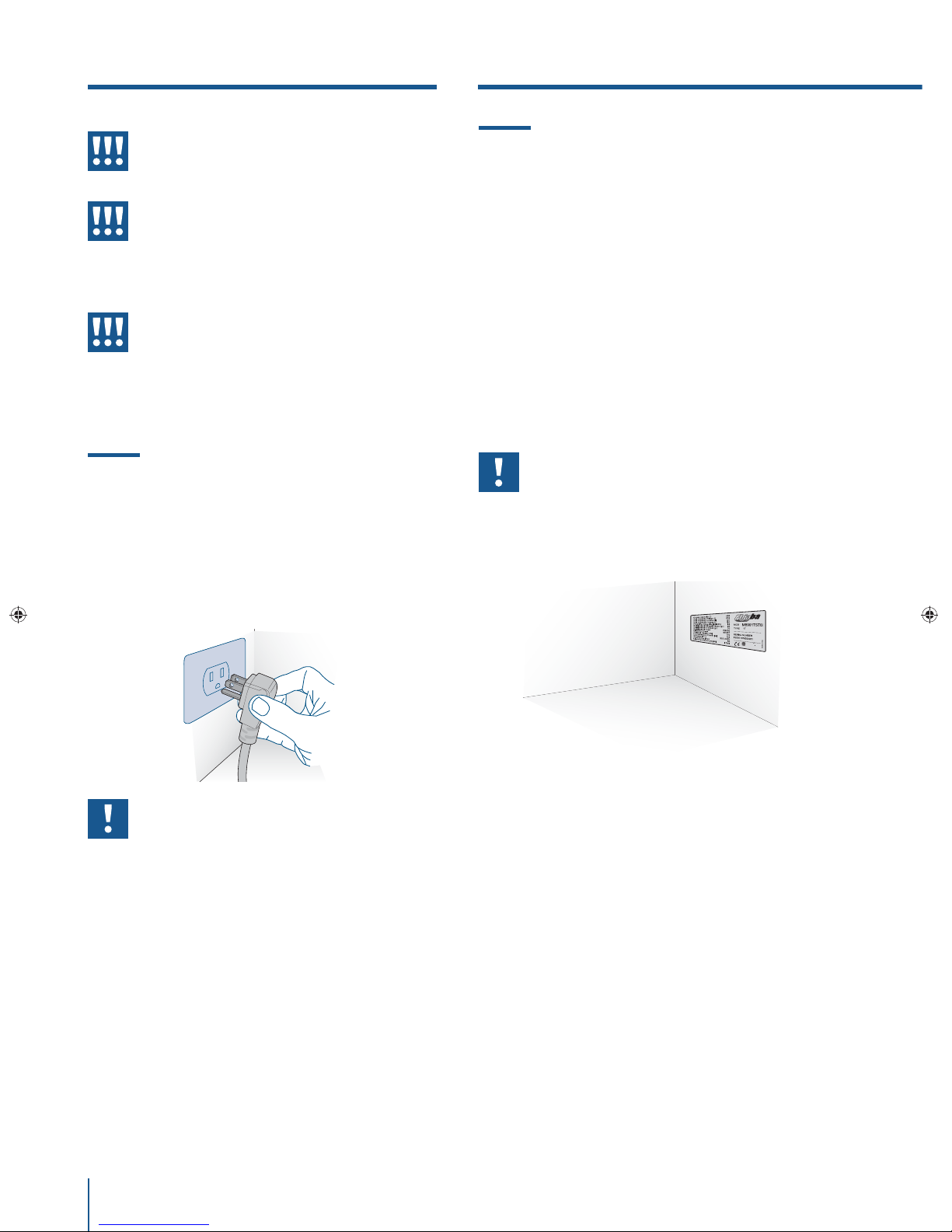

2.3 Connection to the electrical power
supply
The appliance operates at 115 V AC, 60 Hz and is
equipped with a power supply cord with a 3-prong
grounded plug, which must be connected to a cor-
responding 3-prong (15 Amp) grounding-type wall
receptacle.
Important
Do not use extension cords and/or
multiple adapters for the power supply
connection.
3.1 Know your Fhiaba
Congratulations for having purchased your new
Fhiaba: from now on you can use our innovative con-
servation system, which will allow you to keep all of
your food in the best way possible.
This manual will answer most of your questions
about the product’s features. Should you require fur-
ther information, please check our website
> call us:
1-855-4-FHIABA (1-855-434-4222)
> write us an e-mail at [e-mail]
>our website www.fhiaba.com
Important
Before calling, write down the model type
and serial number which are available on
the warranty certificate and on the rating
plate, and any messages which may have
appeared on the display.
3. BEFORE STARTING2. INSTALLATION

7
www.fhiaba.com · [email protected] · Info Line 800-344222
EN
3.2 Main components
1 Stainless steel structure
with aluminum trim
2Control panel
3 Water Filter (*)
4Patented shelf
positioning system
5Control panel,
Fresco area
6Fresco drawer with
controlled humidity
7Automatic icemaker (*)
8Spacious door shelves
9Led lighting
10 Frezer compartment
that can be transformed
into a refrigerator
or Crisper-Fresco
compartment (TriMode
function)
(*) on some models
Fridge
1T Models
Fridge
0T / Brilliance Models
TriMode
1
9
2
3
4
5
6
Crisper - Fresco
1
4
5
6
TriMode
7
8
10
2
3
8
7
9
Low Temp

8www.fhiaba.com · [email protected] · Info Line 800-344222
1 Stainless steel structure
with aluminum trim
2Control panel
3 Water Filter (*)
4Patented shelf
positioning system
5 Low Temp drawer
6 Automatic icemaker (*)
7Spacious door shelves
8Led lighting
9 Frezer compartment
that can be transformed
into a refrigerator
or Crisper-Fresco
compartment (TriMode
function)
(*) on some models
0FR Models - Fridge 0FZ Models - Freezer
Fridge
0H Models
Fridge
Freezer
3. BEFORE STARTING
TriMode
1
8
2
3
4
5
6
1
4
5
7
9
2
7
1
Low Temp Low Temp
2
7
4
6

1234 5 67 98
ICE MAKER
ENTER
FRIDGE
UNIT
9
www.fhiaba.com · [email protected] · Info Line 800-344222
EN
3.3 Electronic Control
The innovative electronic control system designed by Fhiaba maintains constant temperature in multiple
compartments and displays it on the control panel. It also allows user interaction making it possible to
personalize settings of various functions and to alert the user with sound and/or visual messages should
any malfunction occur in the appliance.
3.4 Main control panel (1T, 0T and 0H models)
1Unit Switches the appliance (all compartments) between ON and STAND BY (press for three se-
conds).
2Fridge Allows switching ON and OFF of only the refrigerator compartment (press for three secon-
ds).
3Menu Allows access to the appliance function menu
4Up/down
Fridge
Using the Up and Down buttons, it is possible to change the set temperature of the refrige-
rator and navigate through the interactive menu.
5Display It shows the temperature of the refrigerator and freezer compartments, the date and time,
Menu functions and visual messages.
6
Up/Down
Freezer
(TriMode)
By selecting Up/Down the preset temperature can be changed according to the selected
function mode (freezer, refrigerator, Fresco)and navigate through the interactive menu.
7Enter Confirms activation or deactivation of the selections made in the Menu.
8Ice maker Allows activating or deactivating the automatic ice production.
9Alarm Blinks to signal user alerts such as door left open, also in combination with a sound signal
which can be deactivated by pressing the button.

CRISPER
10 11 12
123 4 567
ENTER
UNIT
10 www.fhiaba.com · [email protected] · Info Line 800-344222
3.5 Fresco control panel (1T models)
3.6 Main control panel (0F models)
11 Display Shows the temperature of the Fresco compartment.
12 Up/Down Using the Up and Down buttons, it is possible to change the temperature set for the Fresco
compartment.
13 Crisper Allows switching on and off of only the Fresco compartment (press for three seconds).
1Unit Switches the appliance (all compartments) between ON and STAND BY (press for three secon-
ds).
2Menu Allows access to the appliance function menu
3Up/down
Fridge
Using the Up and Down buttons, it is possible to change the set temperature of the refrigerator
and navigate through the interactive menu.
4Display It shows the temperature of the refrigerator and freezer compartments, the date and time, Menu
functions and visual messages.
5Up/Down
Freezer By selecting Up/Down the preset temperature and navigate through the interactive menu.
6Enter Confirms activation or deactivation of the selections made in the Menu.
7Alarm Blinks to signal user alerts such as door left open, also in combination with a sound signal which
can be deactivated by pressing the button.
3. BEFORE STARTING

11
www.fhiaba.com · [email protected] · Info Line 800-344222
EN
4.1 Switching on and o
First startup
When the appliance is connected to the electrical
power supply but has not yet been switched on,
the display shows the message
This is a safety message to warn that the ap-
pliance is connected to the mains, and all the pa-
nel buttons are off.
To switch on all the appliance compartments,
press the Unit button for three seconds.
When the appliance is first switched on is recco-
mended to wait at least 12 hours without opening
the doors and before placing any food inside the
unit.
During such period deactivated any error messa-
ge by pressing the Alarm button. .
Switching off the Refrigerator
and Fresco compartments
Press Fridge or Crisper button for three seconds.
Switching off the TriMode compartment
Can only be switched off by switching off the
whole unit.
Press Unit for three seconds.
Restarting
Use the same buttons to restart.
The freezer compartment always stays on and
cannot be switched off except by completely
switching off the appliance by pressing the Unit
button for three seconds.
Switching off for long periods
During long absence periods it is recommended
to switch off the refrigerator by pressing the Unit
button for three seconds and disconnecting the
electrical plug or the breaker controlling the so-
cket.
Completely empty the refrigerator, clean and dry
it and leave the doors and drawers partially open
to prevent unpleasant odors.
If at the first startup the Standby message
does not appear, but another message appe-
ars, it means that the appliance has already
started the cooling process. If this is the case,
deactivate any possible sound signal by pres-
sing the Alarm button , close the door and
wait until the set temperature is reached.
During the first startup, it will not be possible
to use the Menu to modify the factory settings
until the preset temperature has been rea-
ched.
Each time the appliance is switched on it goes
trough a self-diagnosis procedure lasting th-
ree minutes before completely starting up.
If only the refrigerator compartment or the
Crisper-Fresco compartment is switched o,
the specific fan will continue to operate to
prevent the formation of unpleasant odors
and mold.
Before switching o the appliance for a long
period of time, remove all of the items inside
and leave the doors and drawers open to pre-
vent the formation of unpleasant odors and
mold.
4.2 How to adjust the temperature for
dierent requirements
Each model has been carefully tested before lea-
ving the factory and is adjusted in such a way to
ensure high performance and low consumption.
Usually, it is not necessary to modify the settings.
Nevertheless, according to special needs, it is
possible to modify the set temperatures as fol-
lows:
Refrigeration Compartment
From +1°C to +7°C (from 34°F to 46°F), the re-
commended preset temperature is +4°C (39°F).
To adjust the temperature use the Up/Down but-
tons . Upon touching these buttons the newly set
temperature will appear in the display. To modify
this temperature, use the buttons until reaching
the desired temperature.
Vano Crisper - Fresco (sui modelli 1T)
From -2°C to +2°C (from 28°F to 36°F), the re-
commended preset temperature is 0°C (32°F).
To adjust the temperature use the Up/Down but-
tons . Upon touching these buttons the newly set
temperature will appear in the display. To modify
this temperature, use the buttons until reaching
the desired temperature.
Freezer Compartment (TriMode)
From -13°C to -23°C (from 9°F to -11°F), the re-
commended temperature is preset at -18° (0°F).
To adjust the temperature use the Up/Down but-
tons . Upon touching these buttons the newly set
temperature will appear in the display. To modify
this temperature, use the buttons until reaching
the desired temperature.
4. APPLIANCE SWITCHING ON AND OFF

FRIDGE
UNIT
12 www.fhiaba.com · [email protected] · Info Line 800-344222
In case the compartment is used as refrigerator
or Crisper-Fresco compartment (TriMode fun-
ction) the recommended and preset temperatu-
res will correspond to those indicated for the re-
spective compartments.
The temperature shown can vary slightly in
respect to the set temperature following fre-
quent openings of the doors or insertion of
room temperature foods or large quantities
of foods.
6 to 12 hours are necessary to reach the se-
lected temperature.
4.3 Ice Maker Activation (optional)
The Ice Maker button located on the main con-
trol panel permits activation of the automatic ice-
maker.
The button is illuminated when the icemaker is
functioning.
A prewash of the water circuit should be perfor-
med before activating the Ice Maker for the first
time. To do this touch at the same time buttons
Enter and Ice Maker .
After a few minutes the Ice Maker can be activa-
ted.
Important
Do not activate the Ice Maker unless
the appliance is connected to the water
mains.
4.4 Information and malfunction mes-
sages on the display
An integrated control system provides informa-
tion through light signals or text messages vi-
sualized on the display.
The information signal is always visualized with
a fixed text message, while a malfunction signal
is visualized with blinking text. The sound signal
that accompanies some malfunction signals can
be deactivated by pressing the Alarm button
For freezer models 0F
...
on the main control panel.
The list of malfunction signals is located at the
back of this manual.

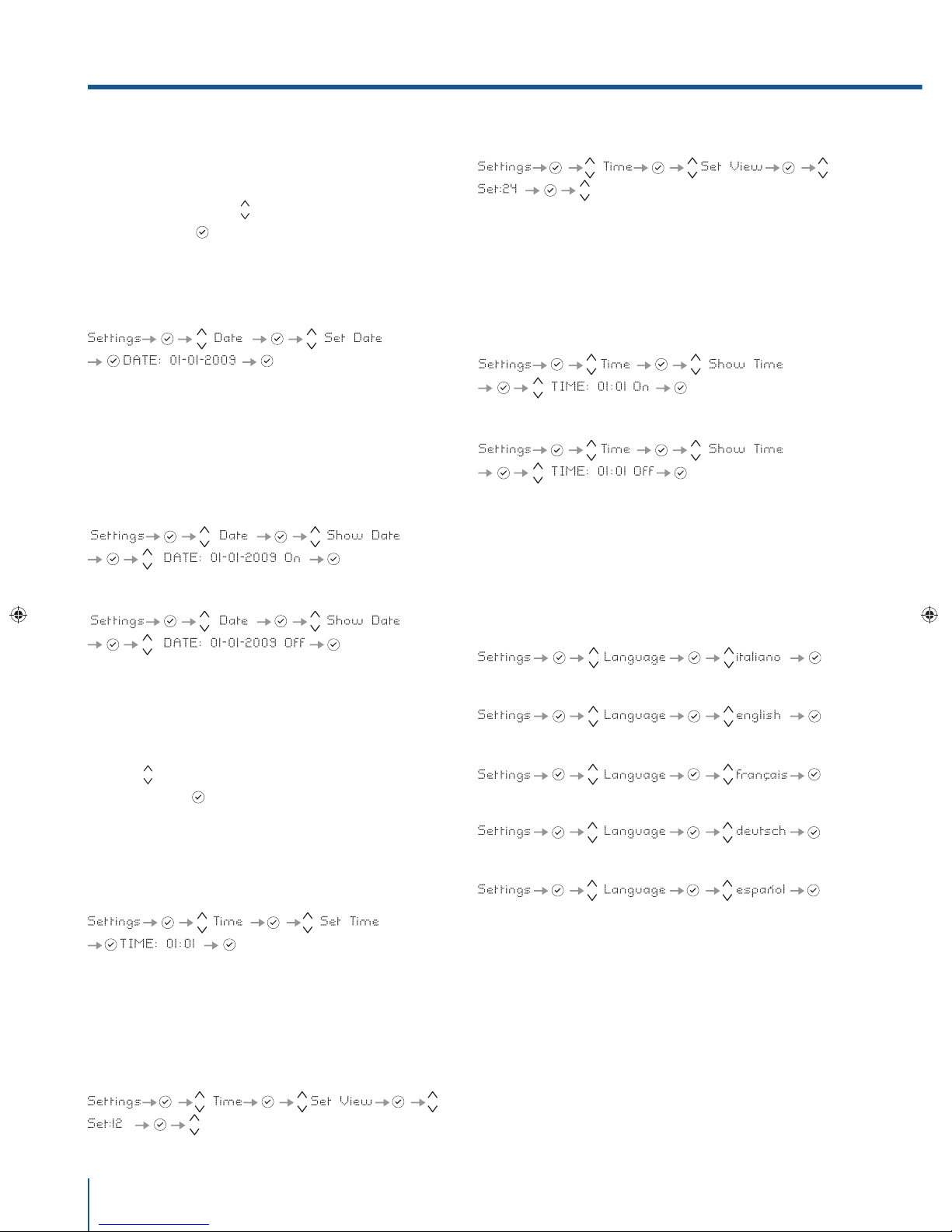

5.1 Customization and language set-
tings
To prevent an inadvertent change to the set-
tings the keypad is automatically locked after
a certain period of time.
To re-activate the Menu function, press simul-
taneously the Menu button and the Down
button for at least three seconds.
The key lock can be disabled through the spe-
cific function in the Settings menu.

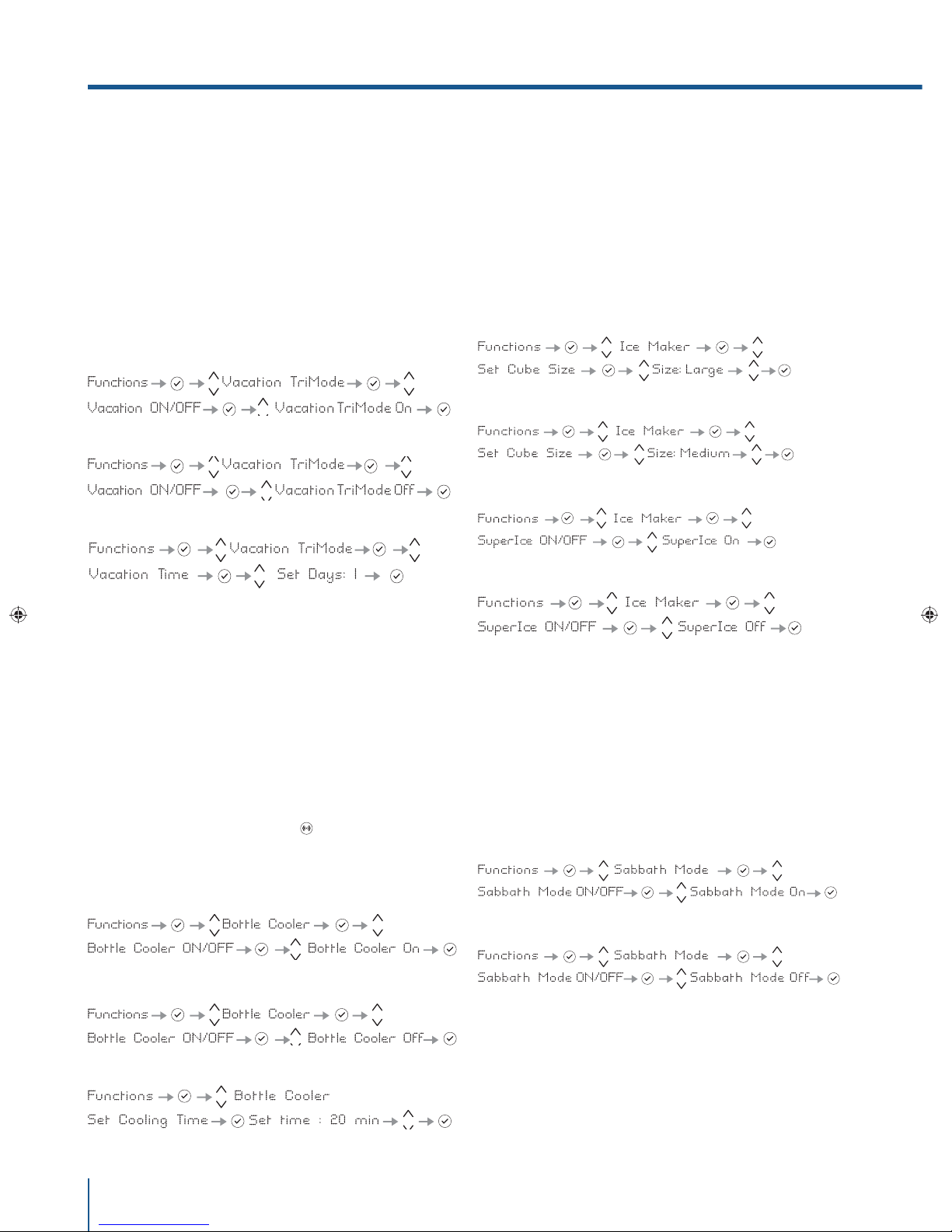

It is possible to customized the functions of your
Fhiaba to adapt it to diverse usage needs, reset-
ting the main parameters (Settings) or activating
special functions (Functions).
Functions are visualized on the main display by
pressing the Menu button .
The Up/Down buttons permit scrolling the avai-
lable functions, which can be selected by pres-
sing the Enter button . The display visualizes
the current functioning status.
Using the Up/Down buttons , it is also possible
to scroll through the selected function, activating
or deactivating by pressing the Enter button .
Once the function is confirmed, the display will
automatically visualize the main menu to select
other functions.
At any time it is possible to return to the previous
selection through the FhiabaAccess button .
The language of the messages appearing on the
display can be changed by operating as follows:
Enter the Menu by pressing the Menu button
select Settings via the Up/Down buttons and
confirm via Enter . Then select the Language
function and the desired language.
5.2 Special functions activated through
5. SETTINGS AND SPECIAL FUNCTIONS

13
www.fhiaba.com · [email protected] · Info Line 800-344222
EN
the Menu
To use special functions, select the Menu button
and use the Up/Down button to access the
menu, confirming the selection Functions.
Shopping Fridge
The function lowers the refrigerator temperatu-
re to +2°C (35.6°F) for 12 hours, permitting more
rapid cooling of food that has just been placed
in. Once the 12 hours have expired, the function
deactivates automatically, returning to the pre-
viously set temperature. It is possible to program
a timed activation of the function. After a prolon-
ged interruption of electrical current, it is neces-
sary to reactivate the function.
How to activate
How to deactivate
How to program timed activation
It is possible to program the function with a delay
of 1 to 12 hours.
The various Shopping Modes help prepare the
cooling, Fridge and TriMode compartments
for the introduction of a heat load which can
consist of fresh food or other items which
may have warmed during transport. The
more quickly an item can be cooled or frozen
the better it will be preserved.
This mode can also be eective at maintai-
ning compartment temperatures while enter-
taining when higher than average door and
drawer openings are anticipated.
Vacation Fridge
This function (recommended in case of prolonged
absences since it allows considerable energy sa-
vings) brings the TriMode compartment tempera-
ture to - 18°C (46.4°F).
It is possible to program the duration, or it can be
manually deactivated upon re-entry after a pe-
riod of absence.
This function remains active even if during the
period of absence there is a prolonged interrup-
tion of electrical power.
It is possible to program a period from 1 to 90
days.
Shopping TriMode
This function must be activated at least 24 hours
before inserting room temperature items into the
freezer, or several hours before placing into the
freezer previously frozen items which have been
subject to a slight temperature rise. This function
is automatically deactivated when the program-
med time period expires. It is possible o program
timed activation of the function.
If interrupted by a prolonged interruption of the
electrical power, it is necessary to reactivate the
function.
It is possible to program the function with a delay
of 1 to 12 hours.
How to activate
How to deactivate upon re-entry
How to program the duration
How to activate
How to deactivate
How to program timed activation
S

14 www.fhiaba.com · [email protected] · Info Line 800-344222
Vacation TriMode
This function (recommended in case of prolonged
absences since it allows considerable energy sa-
vings) brings the TriMode compartment tempera-
ture to - 18°C (46.4°F).
It is possible to program the duration, or it can be
manually deactivated upon re-entry after a pe-
riod of absence.
This function remains active even if during the
period of absence there is a prolonged interrup-
tion of electrical power.
How to activate
How to deactivate upon re-entry
How to program the duration
It is possible to program a period from 1 to 90
days.
Bottle Cooler
This function can be activated when it is necessa-
ry to cool off beverages quickly, by placing them
inside the freezer compartment.
It is possible to select a duration of 1 to 45 minu-
tes. A sound signal will indicated when the opti-
mal temperature has been reached. After remo-
ving the beverages, deactivate the sound signal
by pressing the Alarm button .
How to activate
How to deactivate
How to program the duration
Ice Maker (optional)
The IceMaker function permits selecting the size
of the ice cubes, by choosing between Large
(base setting) or Medium, and activation of the
SuperIce function, which increases the quantity
of produced ice.
The SuperIce function deactivates automatically
after 24 hours.
How to set large size ice cubes
How to set medium size ice cubes
How to activate the SuperIce function
How to deactivate
Sabbath Mode (Optional)
The function makes it possible to comply to cer-
tain religious observances requiring that the
operation of the appliance is not affected by the
opening or closing of the doors (the thermostatic
control, the inner lighting and the ice maker are
deactivated).
How to activate
How to deactivate
Water Filter
The View Status function permits visualizing the
time left before the filter needs to be replaced.
5. SETTINGS AND SPECIAL FUNCTIONS

15
www.fhiaba.com · [email protected] · Info Line 800-344222
EN
It displays days and liters left before filter expi-
ration.

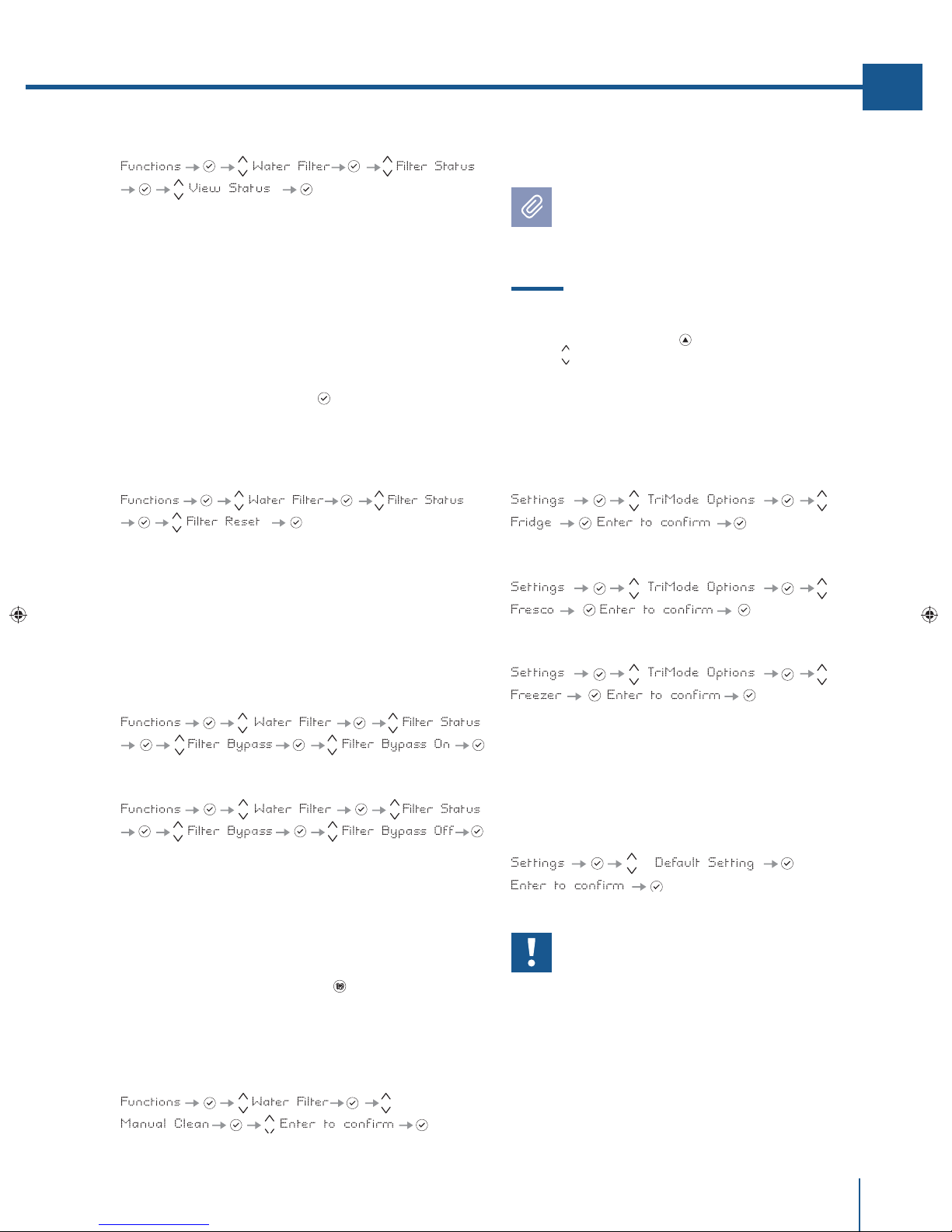

How to check the status of the filter
Reset Filter
The Reset Filter function sets to zero the time
left before the filter needs to be replaced. It is
necessary to set the meter to zero each time the
cartridge is replaced. As an alternative press for
5 seconds the Enter button
How to set the filtered water meter to zero
Bypass Filter
This function is to be activated when it is not
necessary to filter the water, because excellent
quality water is already available from the home
water system.
How to activate filter Bypass
How to deactivate filter Bypass
Manual Clean, Water Filter
If ice production has been disabled or unused for
a long period it is recommended to perform a Ma-
nual Clean function to flush out water which has
sat in the system during this period.
Before proceeding it is important to turn off the
ice maker by pressing button .
Repeat the operation until the water is clean.
Correctly position the ice tray or another sui-
table container under the IceMaker to collect
water, then close the drawer. At the end of the
operation, wash the tray.
5.3 Basic settings of the Menu
Select the Menu button and used the Up/Down
button to select Settings .
TriMode Options
The freezer compartment can, if required, be con-
verted to the refrigeration o Fresco operating mode.
How to manually clean the filter
Default Setting
This oers the possibility to reset default factory
settings and cancels any previous changes.
How to set the Fridge function
How to set the Fresco function
How to revert to the Freezer function
How to reset default settings
Important
If the default settings are restored, the de-
fault mode of the TriMode compartment is
freezer mode. If it was previously being
used in refrigerator or Fresco mode be sure
to set it back to your desired setting.

16 www.fhiaba.com · [email protected] · Info Line 800-344222
5. SETTINGS AND SPECIAL FUNCTIONS
Show date
Using this function it is possible to deactivate/acti-
vate the date visualization on the display.
How to activate the date
How to deactivate the date
DATE
Set date
The display will show the date in the format
dd:mm:yy (day:month:year), the day will blink. Use
the Up/Down buttons to modify the setting, con-
firm with Enter to go on to the next setting; once
the year is confirmed the date will be set.
How to set the date
TIME
Set time
The display shows the hours and minutes in the for-
mat hh:mm and with hh: blinking. Use the Up/Down
buttons to modify the setting and then confirm by
pressing Enter to go on to the next setting.
Once the minutes are confirmed, the time will be
set.
How to set the time
Set 12/24
This function selects the display at 12 or 24 h.
How to set the display to 24 h
Show Time
Through this function it is possible to activate/de-
activate the constant visualization of the time.
LANGUAGE
The function allows selection of the language for
the display messages.
SET °C/°F
This function permits visualizing the temperature
in Centigrade or Fahrenheit degrees. Normally, the
appliance is set for visualization in centigrade de-
grees.
How to activate the permanent time
How to deactivate
Italian
English
French
German
Spanish
How to set the display to 12 h

17
www.fhiaba.com · [email protected] · Info Line 800-344222
EN
Keypad lock
Through this function it is possible to activate/de-
activate the keypad lock.
How to activate
keypad lock
How to deactivate
keypad lock

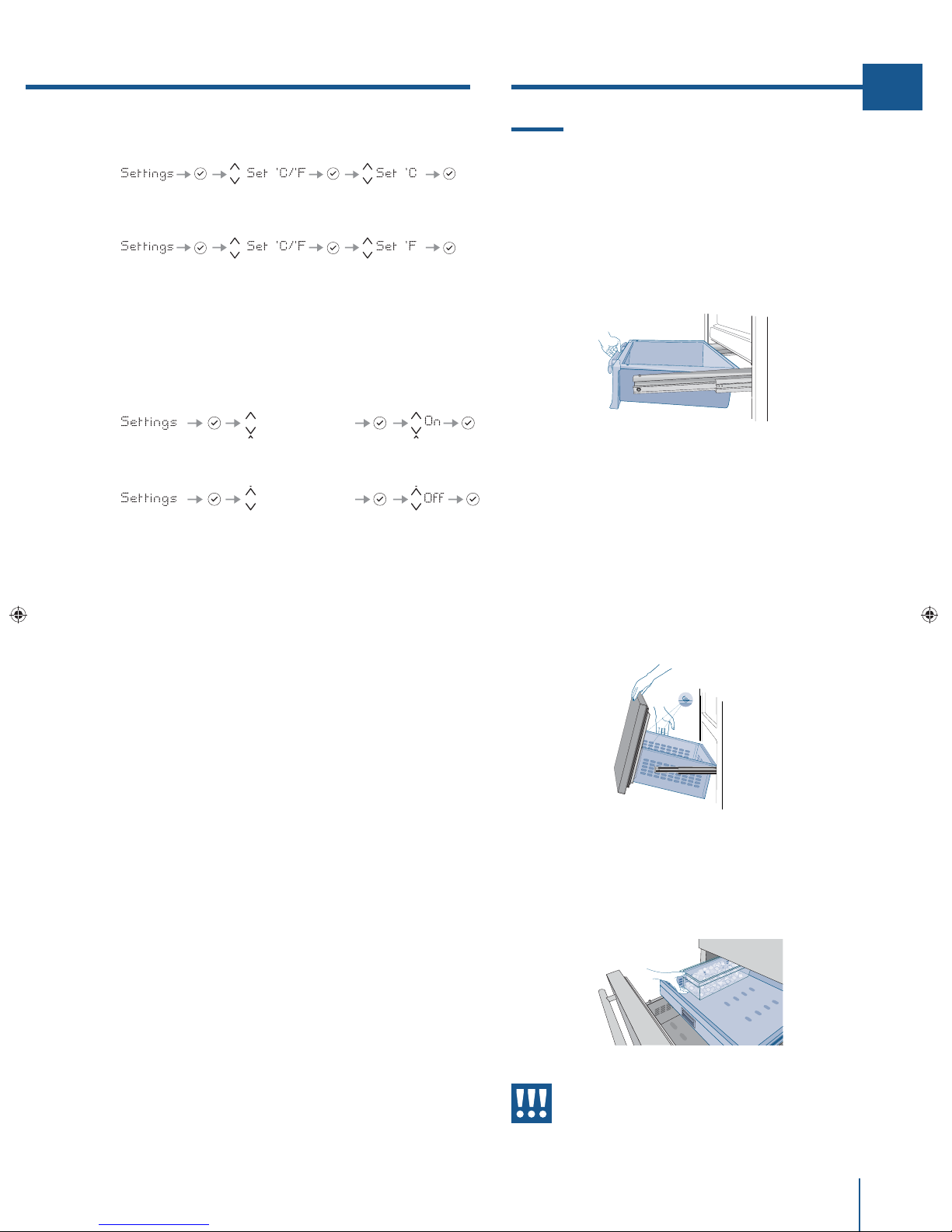

How to set the temperature in Centigrade
How to set the temperature in Fahrenheit
6.1 Internal Layout (positioning, adjust-
ment, removal)
Fresco Drawer
1T / 0T / 0H models
Fixed to the slide guides with two thumbscrews.
> to remove the drawer, unscrew the thumbscrews
and remove the drawer.
TriMode Drawer
modelli 1T / 0T / 0H
The upper TriMode can be removed using the same
method used for the Fresco drawer
> to remove the inner TriMode drawer unscrew the
thumbscrews.
When replacing the drawers, make certain the
back of the drawers engage under the clips on the
slide guides.
Ice Tray
Located in the upper drawer of the freezer com-
partment
> after removal, make sure to reposition it correctly.
Warning
Do not place hands or fingers near the Ice-
maker when in function.
6. INTERNAL LAYOUT

7. ACTIVATION AND USE OF THE ICE MAKER
18 www.fhiaba.com · [email protected] · Info Line 800-344222
1T / 0T / 0H models 0F models
1
2
1
2
Shelves
The shelves are sliding and can be easily re-posi-
tioned by the user as follows:
> release the locking knob by turning i anti-clockwise
> lift or lower the shelf to the desired position
> re-tighten the locking knob
> to remove a shelf it is necessary to slide it up to
the top
Door Shelves
1T / 0T / 0H models
The door shelves can be easily removed for cleaning
> Hold the door shelf at the sides and push it upwards
to release it from its seat, then pull it outwards.
> Reverse the procedure to reinstall.

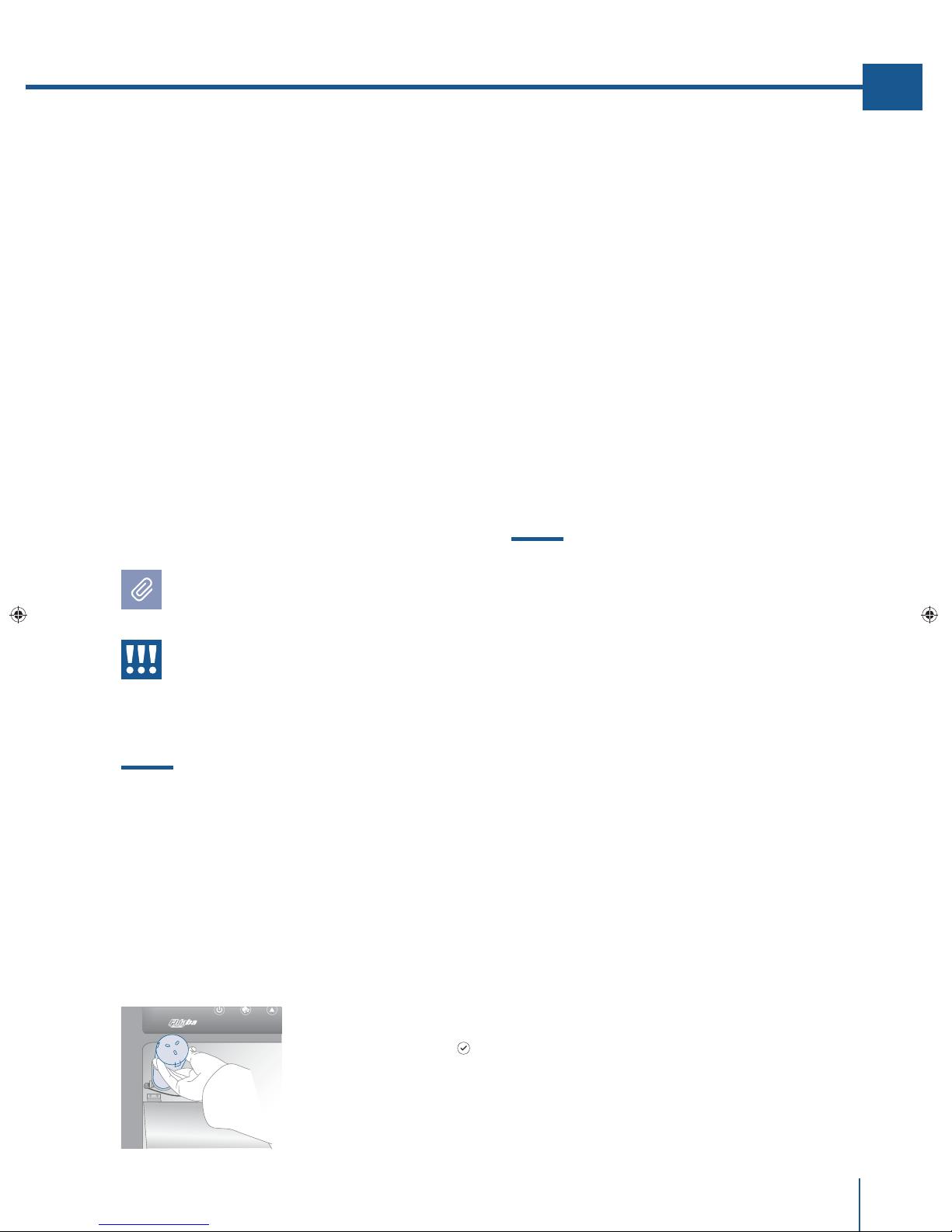

7.1 Activation and use of the Ice Maker
Notes
> If the ice is not used frequently is advisable
to empty the ice bin once every 8-10 days.
It is normal that some ice cubes stick to one
another. If the ice is not frequently used, the
older cubes can become opaque, and will
have a strange flavour and become smaller.
> The Icemaker automatically deactivates if
the Vacation function is activated.
When the Icemaker is started for the first
time, it is recommended to dispose of the first
full bin of ice.
> If the equipment has been switched o for
a month or more, it is recommended to per-
form a water cleaning cycle.
> The ice maker will only produce ice with the
TriMode compartment set to Freezer Mode.
The ice maker will continue to operate even
when the ice bin is not in position
To activate the Ice Maker after installation of the ap-
pliance, press the Icemaker button .
Please note that 12 to 24 hours are necessary before
ice production may begin.
The production is of 10 cubes per cycle in approx-
imately 10 cycles in 24 hours.
The yield depends on the temperature set in the
freezer, the room temperature and the frequency of
door opening.
If the appliance is operating without being connected
to the water system, make sure that the Icemaker is
deactivated by pressing the button .
The Ice Maker produces ice until the ice tray is full
and will automatically stop once the maximum level
is reached.
With the SuperIce function, it is possible to increase
the quantity of ice produced a 24 hours, while the Set
Cube Size function permits selection of the size of
the produced ice cubes.
Do the ice cubes have an unusual odour?
Ice is a porous material which can absorb odours
from the environment. Ice cubes which have been in
the ice cube container for a long time may absorb
odours, stick together and slowly become smaller.
We recommend that old ice cubes not be used.
Other means of preventing odors:

19
www.fhiaba.com · [email protected] · Info Line 800-344222
EN
> The ice cube container should be cleaned occa-
sionally with warm water. Make sure that you switch
o the ice maker before clearing the container. Rinse
out and wipe dry.
> Check the contents of the freezer for spoiled or out-
of-date food. All odorous foods should be wrapped
thoroughly or stored in airtight containers to prevent
the build-up of odors.
> The water filter may have to be replaced in some
models.
> In some cases the quality of the water connection
in the house should be checked.
Operating noises
Quite normal noises
> Grumbling: refrigerating unit is running. Fan in the
recirculating air system is running.
> Bubbling, humming or gurgling noises: refrigerant
is flowing through the tubes.
> Clicking: motor is switching on or o. Solenoid
valve on the water connection is opening/closing.
> Rumbling: ice cubes are falling into the ice cube
container.
> Note:
the appliance is powered by two independent
compressors. It is therefore normal to always
have one of two compressors in operation.
Warning
Do not place any bottles or food for rapid
cooling in the ice cube container. The ice
maker may become blocked and be dam-
aged.
7.2 Water Filter (not 0F model
The Water Filter makes available high-quality wa-
ter for the production of ice cubes. It provides up
to 3000 liters of water for a maximum time of 12
months.
When the filter is nearly expired the message “Re-
place Filter” will appear on the display.
Filter Replacement
The filter is located inside the refrigerator compart-
ment, above the top glass panel. Prior to changing
the filter, switch o the Ice Maker by pressing the
IceMaker button.
Open the top glass panel and carefully rotate the
filter cartridge for a quarter rotation in a counter
clockwise direction until it detaches from its hous-
ing. It is normal for a small quantity of water to
come out. Remove the cap of the new cartridge and
insert it into the housing by gently rotating it for
a quarter rotation in a clockwise direction until it
locks into place.
Then enter the Fhiaba Access Menu and set “Man-
ual Clean” function. At the end of the cleaning cycle
remove the water from the ice tray and wipe it dry.
7.3 Water filter for freezer column
ice maker
Freezer columns equipped with automatic ice-mak-
ers include an externally mounted water filter kit.
The water filter manifold and waterline connections
must be installed in conjunction with the fridge as
the waterline connecting the back of the appliance
to the filter kit must be in place before installing the
unit.
The filter kit should be installed in an accessible lo-
cation (such as an adjacent cabinet) to allow for the
water filter cartridge to be changed annually.
If you choose not to use the water filter (such as
connecting the appliance to an already filtered wa-
ter source) then it is suggested to also set the “By-
pass filter” function to ‘ON’ to avoid receiving re-
minders to change the filter (that you are not using).
For more details and how to access this function
setting, follow instructions on page 17 of the in-
cluded instruction manual: “How to activate filter
Bypass”.
Reset water filter in the
settings menu or by pres-
sing the Enter button
for 5 seconds.

ICEMAKER
ENTER
FRIDGE
UNITICEMAKER
ENTER
FRIDGE
UNIT
ICEMAKER
ENTER
FRIDGE
UNIT
CRISPER
1T 0T / 0H 0F
20 www.fhiaba.com · [email protected] · Info Line 800-344222
8. LIGHTING 9. FOOD PRESERVATION
8.1 Lighting
To provide optimum interior lighting, LED strips il-
luminate the refrigerator compartment from the top
and sets of LED lights directly illuminate dierent ar-
eas of the refrigerator compartment, of the Crisper-
Fresco drawers and the freezer drawer.
In case of malfunction and/or wearing out of the
lighting system, the repair should be carried out by a
qualified Fhiaba Service technician.
9.1 General directions
Your Fhiaba is designed to ensure precise, constant
temperatures and appropriate humidity levels in all
compartments.
In addition, the double refrigeration ensures that fro-
zen foods and ice do not absorb the odor of fresh
foods and that the humidity in the refrigerator does
not freeze and build up frost.
Nevertheless, to properly preserve all of your foods,
it is not enough to have an excellent refrigerator. It
is also necessary to know the rules for correct food
preservation.
Do bear in mind that all foods will inevitably change
their characteristics over the passage of time. This
change begins long before the food is consumed,
since foods contain micro organisms which multi-
ply and can cause deterioration. This process occurs
more rapidly due to improper handling, preservation
temperatures and humidity levels.
It is therefore recommended to follow the directions
presented below which will permit using your refrig-
erator/freezer in the most eective and safe man-
ner to keep your foods in the best way for as long as
possible.
Bear in mind that the Crisper-Fresco area is the area
for preserving the most delicate fresh foods, since it
ensures constant average temperature near freez-
ing.
Periodically check that all foods are in a perfect
state of preservation. It is usually quite clear when
a food item is deteriorated, due to mold, unpleasant
odor and unpleasant aspect. Nevertheless, there are
cases in which these conditions are not so evident. If
you believe that a food item was kept for an exces-
sive period of time and may be deteriorated, do not
consume this item or even taste it, even if it seems to
still be healthy, since the bacteria that cause deterio-
ration of food can also cause poisoning and illness.
When in doubt, throw the food away.
1T 0T
Fridge
from +1° to +7 °C
(from 34°F to 46°F)
Crisper - Fresco
from -2°C to +2 °C
(from 28°F to 36°F)
TriMode
from -13° to -23 °C
(from 9°F to -11°F)
ICEMAKER
ENTER
FRIDGE
UNIT
CRISPER
Low Temp
Fridge
from +1° to +7 °C
(from 34°F to 46°F)
TriMode
from -13° to -23 °C
(from 9°F to -11°F)
ICEMAKER
ENTER
FRIDGE
UNIT
