FiberHome AN5506-04-F User manual

AN5506-04-F
GPON Optical Network Unit
User Manual
Version: A
Code: MN000000619
FiberHome Telecommunication Technologies Co., Ltd.
June 2010

Thank you for choosing our products!
We appreciate your business. Your satisfaction is our
goal. We will provide you with comprehensive technical
support and after-sales service. Please contact your
local sales representative, service representative or
distributor for any help needed at the contact information
shown below.
Fiberhome Telecommunication Technologies Co., Ltd.
Address: No. 5 Dongxin Rd., Hongshan Dist., Wuhan, China
Zip code: 430073
Tel: [phone]
Fax: [phone]
Website: http://www.fiberhomegroup.com

Legal Notice





are trademarks of FiberHome Telecommunication Technologies Co., Ltd.
(Hereinafter referred to as FiberHome)
All brand names and product names used in this document are used fo
r
identification purposes only and are trademarks or registered trademarks
of their respective holders.
All rights reserved
No part of this document (including the electronic version) may be
reproduced or transmitted in any form or by any means without prio
r
written permission from FiberHome.
Information in this document is subject to change without notice.


TM
TM
TM

I
Operation Safety Rules
High optical power can cause bodily harm, especially to eyes.
Never look directly into the end of the optical transmitter fiber
jumper or the end of its active connector.
Exercise care if you must bend fibers. If bends are
necessary, the fiber bending radius should never be less than
38mm.
Power socket overload, broken cables or broken plugs may
cause electric shock or fire. Regular check-ups on power
supply wires and cables are essential. If any appear damaged,
replace at once.
Use the power supply adapter provided in the package only.
Using other adapters may cause equipment damage or
operation failures.
Install the equipment in a well ventilated environment without
high temperatures or direct sunlight to protect the equipment
and its components from overheating, which can result in
damage.

II
Avoid moisture, dampness and water damage. Equipment
exposed to water cannot work normally and can be extremely
hazardous due to shorting.
Do not lay this equipment on an unsteady base.

III
Packing List
After opening the carton of the AN5506-04-F, refer to the following
packing list to check whether the items in the carton are complete:
Item Quantity Remarks
AN5506-04-F 1 -
Certificate of quality 1 -
User manual 1 AN5506-04-F GPON Opitical
Network Unit User Manual
AC power adapte with
three pins 1
Select one power adapter
according to the requirement of
the customer.
Power adapter with
storage battery

Contents
1Product Introduction........................................................................1-1
1.1Product Functions...................................................................1-1
1.2Product Type ..........................................................................1-3
1.3Technical Specifications..........................................................1-3
2Appearance Description..................................................................2-1
2.1Top Panel and LED Indicators ................................................2-1
2.2Rear Panel and Interfaces ......................................................2-4
3Product Installation..........................................................................3-1
3.1Preparation Before Installation................................................3-1
3.1.1 Checking Items in the Package.................................. 3-1
3.1.2 Installation Precautions.............................................. 3-1
3.2Placing the Device..................................................................3-2
3.2.1 Placing the Device on a Platform ............................... 3-2
3.2.2 Mounting the Device on the Wall................................ 3-2
3.3Cable Connection ...................................................................3-3
3.3.1 Connecting the Network Cable .................................. 3-3
3.3.2 Connecting the Phone Cable ..................................... 3-5
3.3.3 Connecting the CATV Cable ...................................... 3-5
3.3.4 Connecting the Fiber.................................................. 3-6
3.3.5 Connecting the Power Cable ..................................... 3-8

3.4Checking After Installation ......................................................3-9
4FAQs...............................................................................................4-1

Figures
Figure 1-1Network application of the AN5506-04-F ......................1-1
Figure 2-1Top panel of the AN5506-04-G1 ...................................2-2
Figure 2-2Rear panel of the AN5506-04-G1 .................................2-4
Figure 3-1Dimensions of recesses on the AN5506-04-F bottom
panel............................................................................3-3
Figure 3-2Cable connection (three-pin power)..............................3-4
Figure 3-3Fiber connection (1)......................................................3-6
Figure 3-4Fiber connection (2)......................................................3-7
Figure 3-5Fiber connection (3)......................................................3-7
Figure 3-6Cable connection ..........................................................3-9

Tables
Table 1-1Product type ...................................................................1-3
Table 1-2Technical specifications of the AN5506-04-F..................1-4
Table 2-1LED indicators of the AN5506-04-G1 ............................. 2-2
Table 2-2Interfaces and buttons of the AN5506-04-G1 ................. 2-5

Version A 1-1
1 Product Introduction
1.1 Product Functions
The AN5506-04-F is an FTTH GPON optical network unit. It provides
communication and entertainment service in multiple modes such as data,
voice, and video, to meet integrated access requirement of families or
small enterprises.

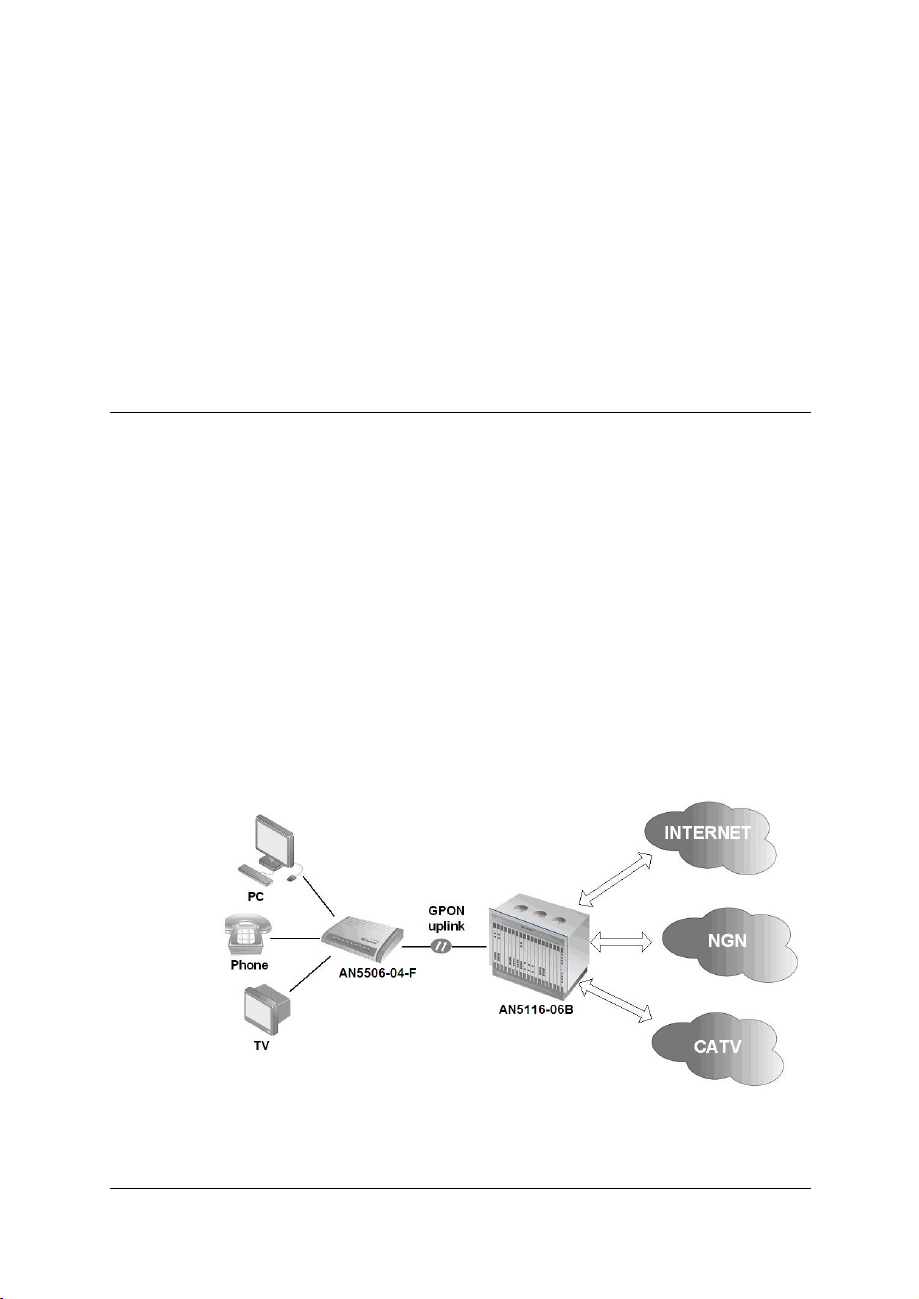

The following figure shows the network application of the AN5506-04-F:
Figure 1-1 Network application of the AN5506-04-F

AN5506-04-F GPON Optical Network Unit User Manual
1-2 Version A
As shown in Figure 1-1, the AN5506-04-F works with the AN5116-06B
(the OLT) to build a gigabit GPON system, which provides triple-play
multi-service access of high capacity and reliability.
The AN5506-04-F is one of the AN5506-04 series and it supports the
following features:
Adopts GPON interface for uplinkings, compliant with ITU-T G.984.
Supports configuring the Ethernet interface rate, working mode,
MDI/MDIX self-adaption mode, and pause-frame-based flow control.
Provides lightningproof and ESD protection of Ethernet interfaces.
Supports packet filtering and DoS attack protection, to suppress
unknown unicast, broadcast, and multicast packets.
Supports performance statistics of Ethernet lines.
Supports reporting the physical position information of Ethernet
interfaces through DHCP Option82.
Supports PPPoE+ function for accurate user identification.
Supports various voice protocols including H.248, MGCP, and SIP.
Supports IGMP snooping and IGMP proxy.
Supports the STP/RSTP protocol.
Supports L2/L3 line-speed forwarding.
Adopts triple churning algorithm for data encryption of downstream
data in GPON system.

1 Product Introduction
Version A 1-3
Supports powerful QoS function. Supports global configuration of
queue priority and flexible mapping of 802.1p value of packets.
Supports three scheduling modes: PQ, WRR, and PQ+WRR. You
can configure the weight of scheduling queue to ensure QoS of key
services such as voice and video under multiple service conditions.
Supports wireless access mode, compliant with 802.11 b/g/n.
Supports the following authentication modes: open, shared, WPA,
WPAPSK, WPA2, WPA2PSK, WPA1WPA2, WPAPSKWPA2PSK, and
802.1x. Supports the following encryption modes: none, WEP, TKIP,
AES, and TKIPAES.
1.2 Product Type
The AN5506-04-F has two types: AN5506-04-F1 and AN5506-04-G1.
Both types provide Ethernet interfaces, phone interfaces and WiFi access.
In addition, the AN5506-04-G1 supports CATV interface. Table 1-1 lists
the two product types and the interfaces that each type supports.
Table 1-1 Product type
Product Type Ethernet
Interface
Phone
Interface
CATV
Interface
Power
Interface
AN5506-04-F1 4 2 - 1
AN5506-04-G1 4 2 1
Three-pin
power
jack
1.3 Technical Specifications
Table 1-2 lists technical specifications of the AN5506-04-F in detail.

AN5506-04-F GPON Optical Network Unit User Manual
1-4 Version A
Table 1-2 Technical specifications of the AN5506-04-F
Type Item Description
Service
parameter
Voice
Supports the following voice
protocols: H.248, MGCP, and SIP.
Adopts the following voice coding:
G.711a/u, G.723, G.729.
VLAN
Supports IEEE 802.1Q VLAN.
Supports adding 802.1Q VLAN in
tag or untag mode.
Supports 64 VLANs.
MAC address Supports 8k MAC addresses.
Multicast
Supports IGMP snooping and
IGMP proxy.
Supports IGMP V1/V2.
QoS
Supports 802.1P.
Supports QoS classification based
on port, MAC address, and VLAN
ID.
Supports priority re-tag.
Line speed
L2/3 switching
All interfaces support line speed
forwarding.
CATV Output level: 75dBuV. Owned by
the AN5506-04-G1.
Network
side
interface
GPON
interface
G.984-compliant, the maximum
transmission distance is 20 km.
One SC/PC inerface for the
AN5506-04-F1 and one SC/APC
interface for the AN5506-04-G1.
User side
interface
LAN interface
Four RJ-45 interfaces. Supports
full duplex or half duplex, 10/100
Mbps self-adaption.
Phone
interface Two RJ-11 interfaces.
Mechanical
parameter
Dimension (H x W x D:) 45 mm x 190 mm x
235 mm
Weight About 650 g
Power
supply DC Input voltage: 12 V DC
