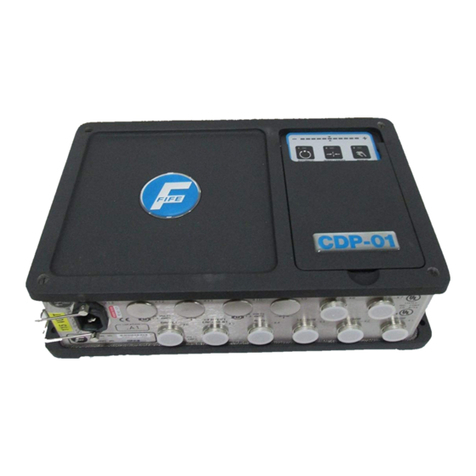

CDP-01
Additional Instruction Manual
Recoiler Application With Sensor Selection
Using SE-34 Sensor

02-11-05 CDP-01 Figure Sheet 1-811-B

SUPPLEMENTARY OPERATING MANUAL i
02-11-05 CDP-01 Figure Sheet 1-811-B
COPYRIGHT
NOTE
These additional instructions explain the special features of the system delivered to the customer. They
are intended for being used in conjunction with the CDP-01 Reference Manual. The CDP-01 Reference
Manual applies except as noted to the contrary in these instructions.
Copyright:
All rights reserved. Any reproduction of this Additional Instruction Manual, in any form, in whole or in part,
requires the prior written consent of FIFE.
The information given in this Additional Instruction Manual is subject to change without notice.
We have compiled this Additional Instruction Manual with the greatest possible care and attention:
however, the possibility of error can not be completely excluded. FIFE accepts no legal liability for
incorrect information given and the consequences arising therefrom.
Copyright 2002 FIFE Corporation, P.O. Box 26508, Oklahoma City, OK 73126, U.S.A.
FIFE GmbH,Postfach 1240, D-65762 Kelkheim/Ts., Germany

02-11-05 CDP-01 Figure Sheet 1-811-B

SUPPLEMENTARY OPERATING MANUAL iii
02-11-05 CDP-01 Figure Sheet 1-811-B
TABLE OF CONTENTS
GENERAL INTRODUCTION 1
APPLICATION DESCRIPTION..............................................................................................1-1
SOFTWARE PART NUMBERS.............................................................................................1-1
CONNECTING THE SYSTEM COMPONENTS....................................................................1-1
OVERVIEW OF FUNCTION 2
OPERATOR CONTROL OPTIONS .......................................................................................2-1
SPECIAL FEATURES OF EXTERNAL CONTROL ..............................................................2-1
INPUT MATRIX - EXTERNAL CONTROL.............................................................................2-2
EXPLANATION OF THE OPERATING MODES........................................................ 2-3 to 2-4
EXPLANATION OF THE SENSOR MODES.........................................................................2-5
START UP / POSITION TRANSDUCER CALIBRATION .....................................................2-6
START UP / SENSOR BANDWIDTH TO MANDREL RATIO CALIBRATION .....................2-7
START UP / MANDREL DRIVE POLARITY .........................................................................2-8
TROUBLESHOOTING 3
FAULT DIAGNOSIS - FAULT RECTIFICATION ...................................................................3-1

02-11-05 CDP-01 Figure Sheet 1-811-B

SUPPLEMENTARY OPERATING MANUAL 1
1-1
02-11-05 CDP-01 Figure Sheet 1-811-B
GENERAL INTRODUCTION
Application Description
Application is a Recoiler using the SE-34 Sensor. Linear analog position feedback is used on the
mandrel. The mandrel to sensor bandwidth ratio is programmable. The CDP-01 can be operated
from the keypad (internal control) or via the parallel port (external control). When placed in
automatic mode, the sensor output signal and the mandrel position are recorded. The sensor
continues to monitor the web edge and the mandrel, then follows the sensor output signal.
A CDP-01-H12 or CDP-01-M12 is required for this application.
Software Part Numbers
The software part numbers are located on the side of the CDP-01 housing. They include the
Matrix Setup no. (MS), State Machine no. (SM) and firmware version ( Dx ).
CDP version: CDP-01-H12 D1:5650xx-02x MS: 100055-02x Please quote these
or CDP-01-M12 D2:5650xx-02x SM: 100056-02x details with all inquiries.
D3:5650xx-02x FIFE USA
Connecting the System Components
The system components are to be connected according to the Cable Connection Diagram
contained in the documentation.

02-11-05 CDP-01 Figure Sheet 1-811-B

SUPPLEMENTARY OPERATING MANUAL 2
2-1
02-11-05 CDP-01 Figure Sheet 1-811-B
OVERVIEW OF FUNCTION
Operator Control Options
The CDP-01 signal amplifier can be operated by way of the CDP-01 control panel (internal
operation) or via the parallel port (external operation) with a remote control panel or
programmable logic controller.
The symbols below are used for the various operator control options in the following:
Internal operation
External operation
Special Features of External Control
When the operation modes are being controlled via
external control, the Automatic, Servo-Center, Manual keys
of the CDP-01 control panel are disabled.
If the cable to the parallel port ( -X7 ) of the CDP-01 is
disconnected, the last mode selected is retained until other
settings are made on the internal control panel.

SUPPLEMENTARY OPERATING MANUAL 2
2-2
02-11-05 CDP-01 Figure Sheet 1-811-B
Input Matrix - External Control
Inputs CDP-01
Modes
I5 I4 I3 I2 I1 I0
External Lock - - - - - H
Automatic with Center Guiding - - H H L -
Automatic with Edge L Sensor H L H
Automatic with Edge R Sensor H L L
Manual - - L L H -
Center Mandrel - - L H L -
Jog Mandrel Left L H - - H -
Jog Mandrel Right H L - - H -
L = Low level
H = High level
- = any

SUPPLEMENTARY OPERATING MANUAL 2
2-3
02-11-05 CDP-01 Figure Sheet 1-811-B
Explanation of the Operating Modes
Note: All Start-up Procedures must be performed before Automatic and Servo
Center modes are used.
MANUAL
’Manual’
Select ‘Manual’ via external control.
The active drives are switched to Manual.
Check: LED (3) lit.
Sensor mode selection and setup functions can be
performed, if desired.
‘Left’
‘Right’
Press the - or + key to set ‘Left’ or ‘Right’ to manually alter
the position of the drive.
JOG MANDREL LEFT / RIGHT
Select ‘Jog Mandrel Left’ or ‘Jog Mandrel Right’ via
external control to manually alter the position of the
mandrel.

SUPPLEMENTARY OPERATING MANUAL 2
2-4
02-11-05 CDP-01 Figure Sheet 1-811-B
AUTOMATIC
’Automatic’
The sensor mode must be pre-selected for Guiding.
Select ‘Automatic’ via external control.
The sensor output signal and the position of the mandrel
are recorded.
The mandrel drive is switched to Automatic. The
mandrel now follows the sensor output signal.
System gain can be altered, if desired. Guide point shifts
are not allowed in this application.
Reference: CDP-01 Reference Manual, ‘Basic Settings’
section.
EXTERNAL LOCK
’External Lock’
Set ‘External Lock’ via external control.
Note: Automatic guiding is suspended as
long as External Lock is present on the parallel port.
CENTER MANDREL
’Center Mandrel’
Select ‘Center Mandrel’ via external control.
The mandrel moves to the center of the stroke.
Check: LED 2 lit.

SUPPLEMENTARY OPERATING MANUAL 2
2-5
02-11-05 CDP-01 Figure Sheet 1-811-B
Explanation of the Sensor Modes
EDGE LEFT-Select this sensor mode while in Manual
mode for guiding to the Edge 2 output of the SE-34
sensor. The SE-34 sensor signal and the mandrel
position transducer signal are combined.
EDGE RIGHT- Select this sensor mode while in
Manual mode for guiding to the Edge 1 output of the
SE-34 sensor. The SE-34 sensor signal and the
mandrel position transducer signal are combined.
EDGE CENTER- Select this sensor mode while in
Manual mode for center guiding to both the Edge 1
and Edge 2 outputs of the SE-34 sensor. The SE-34
sensor signals and the mandrel position transducer
signal are combined.
SPECIAL- Select this sensor mode while in Manual
mode to view the Edge 2 output of the SE-34 sensor.
SPECIAL- Select this sensor mode while in Manual
mode to view or calibrate the output of the Mandrel
Position Transducer.
SPECIAL- Select this sensor mode while in Manual
mode to view the Edge 1 output of the SE-34 sensor.

SUPPLEMENTARY OPERATING MANUAL 2
2-6
02-11-05 CDP-01 Figure Sheet 1-811-B
Start-up / Position Transducer Calibration
The following procedure must be performed while in Manual mode with all parallel inputs low.
Press the Sensor key repeatedly until LED 12 is lit.
Press and hold the Left or Right Jog key until the
mandrel is located at the end of the stroke in the
direction of the end of the SE-34 sensor which is
opposite of the junction box end.
Press the Setup key.
Press the Sensor key.
Press the F1 key
Check: LED 4 lit.
Press and hold the Left or Right Jog key until the
mandrel is located at the end of the stroke in the
direction of the junction box end of the SE-34 sensor.
Press the F2 key.
Check: LED 5 lit.
The LED bar graph indicates contrast. If the contrast is
too low an error message is displayed (left and right
outer LEDs flash).
Press the Automatic key to store the settings.
or
Press the Manual key to abort the procedure.

SUPPLEMENTARY OPERATING MANUAL 2
2-7
02-11-05 CDP-01 Figure Sheet 1-811-B
Start-up / Sensor Bandwidth to Mandrel Ratio Calibration
The following procedure must be performed while in Manual mode with all parallel inputs low.
Press the Sensor key repeatedly until LED’s 11 and 12
are lit.
Verify the sensor is operational by moving a web edge
back and forth in the sensor field of view that is nearest
the junction box while watching the signal change in the
bar graph on the CDP-01.
Locate the end of the SE-34 sensor bandwidth by
moving the web edge away from the junction box until
the sensor begins to scan.
(NOTE: There are 3 configurations of the SE-34. See
left for the different configurations and the approximate
location of the end of bandwidth).
The SE-34 sensor will "scan" looking for a web when
there is nothing present. After the sensor begins to
"scan", slowly move the web back and forth to narrow in
on the precise point of the scan. Make a mark here.
From this point, move the edge of a web into the sensor
(towards the junction box) a distance equal to the total
stroke length of the mandrel. This procedure is
simplified by making a calibration strip cut to the same
width as the guide cylinder’s stroke. The strip should
be kept for future calibrations.
With the web edge stable at this position, press and
hold the F2 and F3 keys until LED’s 5 and 6 are lit
(approximately 3 seconds). Once LED’s 5 and 6 are lit,
it is no longer necessary to hold the web edge stable.
Note: Approximately one minute is required for calculations
in this procedure. If it is desired to abort this procedure, press
and hold the Manual key until LED’s 5 and 6 turn off.
The previous calibration is retained.
Half way through the calculations (approximately 30
seconds), LED 6 will turn off.
Note: If it is desired to abort this procedure, press and
hold the Manual key until LED 5 turns off.
The previous calibration is retained.
When the calculations are complete (approximately 30
additional seconds), LED 5 will turn off.
Position the web in the sensor for normal guiding.

SUPPLEMENTARY OPERATING MANUAL 2
2-8
02-11-05 CDP-01 Figure Sheet 1-811-B
Start-up / Mandrel Drive Polarity
Press the Servo Center key. Verify that the mandrel
moves to the center of the stroke.
If the mandrel moves to either end, press the Manual
key and change the Servo Center polarity.
Reference: CDP-01 Reference Manual, section “Servo
Center Polarity”.
If the mandrel oscillates, press the Manual key and
change the Servo Center gain.
Reference: CDP-01 Reference Manual, section “Servo
Center Gain”.
Place a web in the sensor, positioned for normal
guiding.
Connect the parallel cable and select ‘Automatic with
Edge R Sensor’ via external control.
Move the web momentarily back and forth in the sensor
field of view. If the mandrel stops moving when the web
is not moving, repeat this portion of the procedure for
Edge L and Edge Center sensor modes with the web
placed in the corresponding sensor(s) field of view,
then skip the rest of this portion of the procedure.
If the mandrel moves to either end of the stroke, select
‘Manual’ via external control.
Verify that the correct sensor mode is selected:
Edge Left
Edge Right
or
Edge Center
Change the guide polarity.
Reference: CDP-01 Reference Manual, section
“Changing The Guide Direction”.
Repeat the portion of this procedure beginning with the
parallel cable connection.

SUPPLEMENTARY OPERATING MANUAL 3
3-1
02-11-05 CDP-01 Figure Sheet 1-811-B
TROUBLESHOOTING
An incorrect setting on the CDP-01 is often the cause for incorrect or unwanted guiding
characteristics. Faults and the procedures for rectifying the faults are described in more detail in
the CDP-01 Reference Manual, Chapter ‘Frequent Setting Errors’. Application-specific faults are
explained below.
Note: In Auto mode, the mandrel is supposed to move (chase) the same direction as the test
strip.
Fault Diagnosis - Fault Rectification
Fault: In Automatic mode, the mandrel moves in the wrong direction to end of stroke.
Remedy: Select ‘Manual’ mode and change the polarity (guide direction) in the appropriate
sensor mode (LEDs 9 or 10 or 9 & 10 lit).
Reference: CDP-01 Reference Manual, section: “Changing the Guide Direction”
Fault: In Servo Center mode, the mandrel moves to either end of the stroke instead of to the
center of its stroke.
Remedy: Select ‘Manual’ mode and change the servo-center polarity.
Reference: CDP-01 Reference Manual, section: “Servo Center Polarity”.
Fault: In Automatic mode, the mandrel does not accurately follow the sensor.
Remedy: Perform the procedure “Start-up / Sensor Bandwidth To Mandrel Ratio Calibration”
found in this document.
Fault: In Automatic mode, the mandrel follows the strip, but in the wrong direction.
Remedy: Perform the procedure “Start-up / Position Transducer Calibration” again, but reverse
the directions of movement for the mandrel in the steps just before pressing ‘F1’ and
‘F2’ keys.
Fault: While guiding, the mandrel hunts back and forth excessively.
Remedy: Reduce System Gain or if the strip is slipping across face of deflector roll, increase
traction through deflector.
Reference: CDP-01 Reference Manual, section: “Changing the System Gain with the
Web in Motion”

02-11-05 CDP-01 Figure Sheet 1-811-B
