Fiido M3 User manual
Folding Electric Bike
Fiido M3
(Off Road)
3
Dear users！Be sure to pead this manual carefully befor riding,do understand the operations and seep
this manual and other material for further using.
WARNING:DO NOT USE THE BIKE BEFORE YOU KNOE HOW TO USE.
Safety precautions
1. Please follow the precautions in this instruction to effectively reduce risks. When you enter public areas,
please obey national and local regulations, remain vigilant while riding, and maintain a reasonable safe
distance from other people and vehicles.
2. Please operate by the instruction of the user manual, the loss caused by not following the instructions
shall be borne by oneself.
3. For the first time riding, please do not choose the area with many children, pedestrians, pets, vehicles,
or other obstacles and potential hazards. Please be familiar with the bike before riding on public road.
4. Before each ride, please carefully check whether fasteners are loose or parts are damaged. If there’s any
unusual noise, please stop riding immediately, and contact after-sales team for assist.
5. To reduce the injury risk, please read and follow all "Caution", "Danger" and "warning" instructions in this
user manual. No speeding, and do not ride in motorized road under any circumstances.
6. For safety consideration, user must be over 16 years old. Users under the following circumstances are
strongly not recommended to use this product:
- People affected by alcohol or drugs.
- People who are unable to engage in strenuous physical activity due to illness.
- People who are unable to maintain balance or whose balance is impaired by motor skills.
- People whose weight exceeds the max load limit (max load is 120KG/265lb).
- Pregnant woman.
Dear user：
In this manual,we will introduce the specification,installation,usage,precautions,and maintenance of
FIIDO M3.Be sure you know everything you need to know about the bike that introduced in this manual.
Any questions,please contact Fiido After-sales Team or our Local Service Center,and a prompt and feasible
solution will be provided.
7. Please ride carefully in snow, rain, wet road, ice and other bad weather. Do not ride over too
high or too large obstacles, otherwise it’s very likely to lose balance or grip and cause injuries.
8. Do not attempt to charge while the charger or power supply is wet, please follow the local safety
regulations if you need to charge the bike in public area.
9. For effective protection and as convenient as possible for yourself, please be sure to use Fiido
specific parts.
10. If you need to retrofit your bike,Please follow the local laws and regulations, after consulting
with Fiido after-sales team, then proceed with caution. Serious injury and/or damage caused by
unauthorized modification will result in the void of warranty.
CONTENTS
1.Product introduction 2. Using guide
1.1 Bike overview
1.2 Packing list
1.3 Bike diagrams
1.4 Function DESC
2.1 Installation guide
2.2 First time using
2.3 Charging instructions
2.4 Folding instructions
3.Maintenance precautions
3.1 Using precautions
3.2 Bike maintenance & repair
3.3 Motor maintenance & repair
3.4 Battery maintenance & repair
3.5 Reflex reflector cautions
4. Service directory
4.1 Troubleshooting methods
4.2 Specifications
4.3 Warranty coverage
4.4 Repair record
* All pictures are for reference only。
1.1 Bike overview
1.2 Packing list
1.3 Bike diagrams
1.4 Function DESC
1. Product introduction
1.1 Bike overview
THE FUTURE STARTS HERE
M3,theiconic off-roadelectricbicycleofFiido.Equippedwith48Vlargebatteryandadvanced torquesensor,
itcouldaccuratelysensetherider'spedalingforce,andthenoutputthecorrespondingpower.Themaxspeed
couldreachto15.5MPH.With20inchoff-roadtiresandupgradedsuspensionsystem,easiertochallengeany
difficultoutdoorterrain.Furthermore,theflexible battery isremovable,portableandcapable;solvetheproblem
ofoutdoorcharging. 20*4.0 inch wheels and non-slip tread design, easy through jungle, sand, stone beach,
water hole and other difficult terrain.
FiidoM3has3ridingmodes,3powergear,7speedtransmissionsystem,toprovidearicherridingexperience.
Thebikecanbefoldedtobepushed,extendingmorecyclingscenes.
2

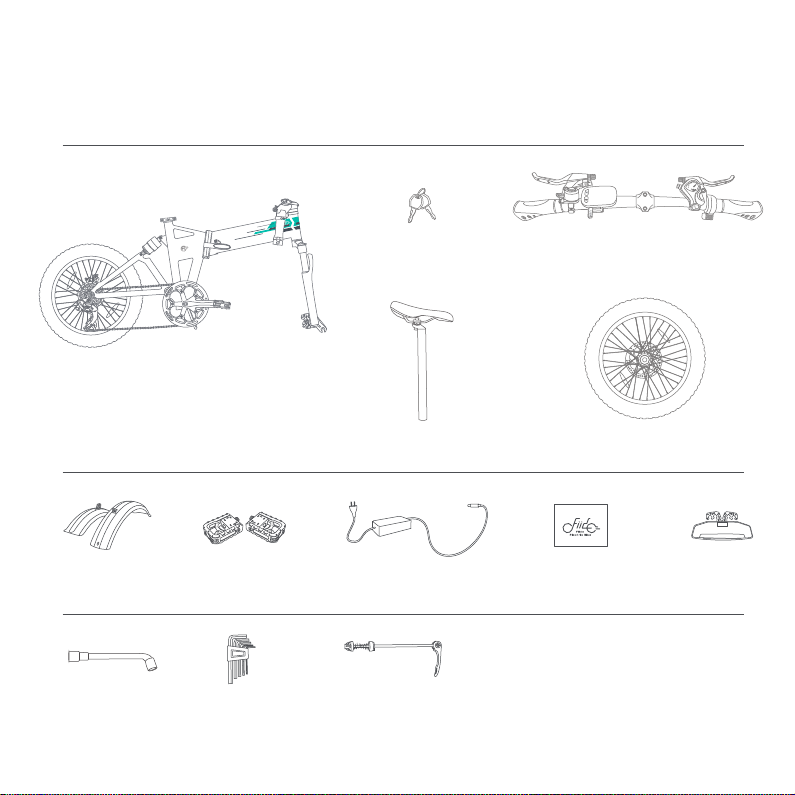

1.2 Packing list
Bike parts
Electric Bike*1
Fenders*1
Socket Spanner *1 Hex wrench*5 Front wheel quick release*1
tires*1
Key*2
Seatpost*1
handlebar*1
Bike accessories
User manual*1
Charger*1
Tools
*Please carefully check whether all items are complete and intact. If there is any problem such as missing or damaged,
please contact the official after-sales team asap.
Pendals*1
3
Taillight*1
*Non professionals are forbidden to disassemble and assemble the battery.
Please contact after-sales team for assist.

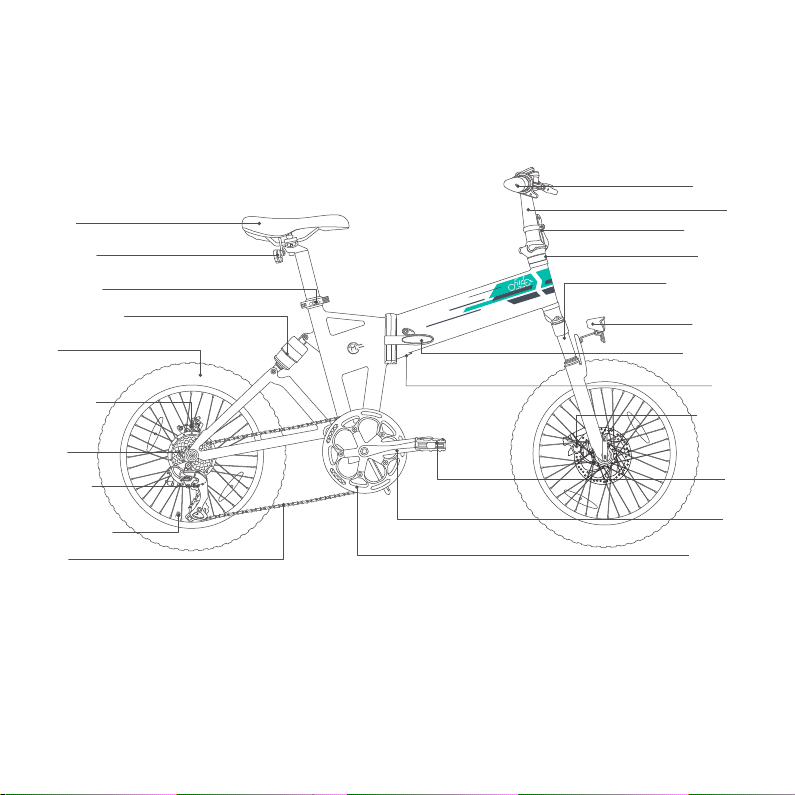

1.3 Bike Diagrams
4
Saddle
Rear Light
Seat clamp
Shock absorber
Shock absorber
Disc Brake
Tire
Chain Chainwheel
Crank
Pedal
Keyhole
Bike Code
Motor
Charge Valve
Rear
Derailleur
Handlebar
Stem Clamp
Headlight
Disc Brake
Stem
Frame Clamp
3
1.4 Function DESC
5
Bike
Battery
Charging Port
(Insert the Fiido charger ONLY)
(Press the pendal in the
direction of the arrow to
fold for easier storage.)
Parts
Folding pandals
(In case of overtaking, road
section affecting safety
visibility or emergency,
slow down and ring the bell for signal)
Bell Button
Rear Brake
(For emergency charge ONLY)
(The left side is rear brake)
USB Charging Port
(Gently press down the button to
switch to the pure electric mode, the
stonger the press, the faster the speed.)
Electric mode button
(Display the current derailleur gear)
Speed Gear Display
(Display remaining power.)
Battery Status
(Shows the status of the front .)
Lights
(Display the current range by default,
Double-click the Instrument Power button
to switch the total historical mileage display.)
Range
(Display the current speed)
① Click to switch the gear and PAS 0, a total of 3 gears.
② Double-click to switch KMH/MPH display.
Power Assisted Gear Switch
Instrument Power
① Long press for more than 3 sec：turn on/off the
power assisted mode.
②Click to turn on/off the headlight.
③ Double-click to display the total historical mileage.
(Display the current power assisted gear.
For details please check Page12:step 3.)
Power Assisted Gear Display
Speed
(Click the button to shift up)
(Pull the handle outward to shift down)
6 Speed Shift Down
6 Speed Shirft Up
2.1 Installation guide
2.2 First time using
2.3 Charging instructions
2.4 Folding instructions
2.Using Guide
2.1 Installation guide
Install the handlebar
The basic installation of the bike has been completed before leaving the factory. After receiving the bike, you only need
to install the handlebar, front wheel and front light for complete installation.
① Lift the stem from bottom to top, open the stem
clamp, and close the safety hook.
③ Adjust the handlebar direction, to make it at an angle of 15°-20° with the horizontal line, then close the quick release
and fully lock the screws,to complete the installation of the handlebar.
② Unscrew the riser cover, hang the handlebar
and keep the center of the handlebar in the stem, and
fasten the riser cover and lock the screws evenly.
( Do not tighten the screw completely at this time)
15°-20°
7
Install the front wheel
8
① Unscrew the nut and spring of the front wheel
quick release ② Lift the front part of the bike, align the front
wheel and insert the front fork sleeve ring
③ Put the front axle through the front wheel, and load
the spring, screw the nut, lock the front wheel quick
disassembly
Install the seatpost
Install the front light
① Align the front light screw holes with the front basket screw holes, insert screws and nuts and tighten them.
9
① Open the seat clamp, insert the seatpost. ② Adjust the seatpost to suitable height, the recommended
height is when the saddle is level with the user’s pelvis when
standing naturally.The height of the adjustment can NOT
exceed the safety line
安装座管
安装座管

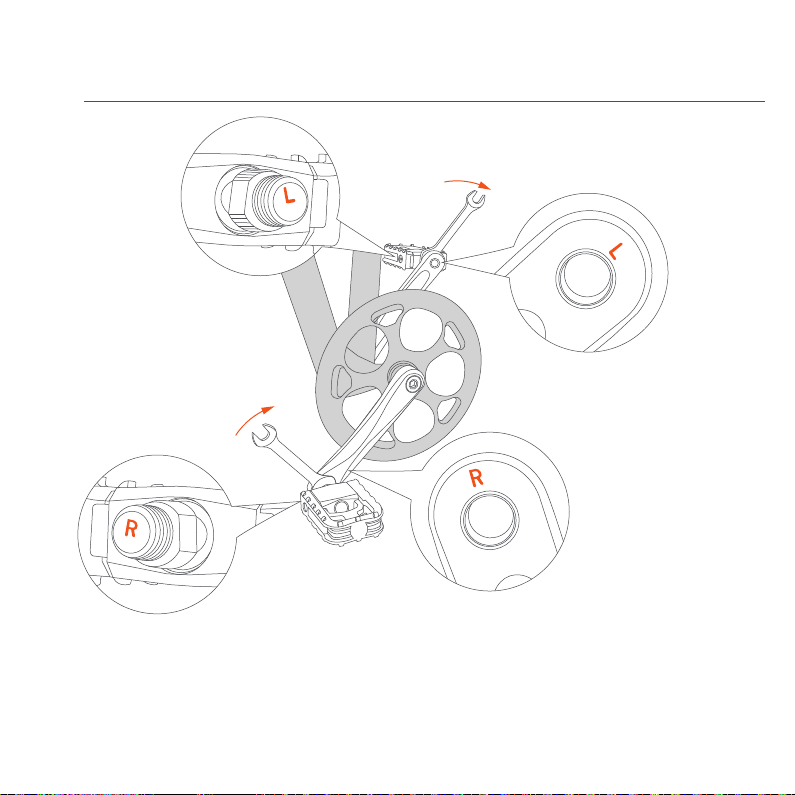

Install pendals
10
Use the open spanner of the tools bag, screw the pedal shaft into the threaded hole and tighten it in
the direction of the arrow.
Caution: While installing the pendal, pay attention to the left / right pendal corresponding to the left / right crank, the
pendal screw and the inside of the crank are respectively marked L(left) / R(right). Please install the pendal correctly to
prevent it from sliding out of the crank.
2.2 First time using
Before riding, please follow the installation guide to install components properly, check whether the firmware is loose,
ensure sufficient power, and take appropriate protection for riding.
Step 1：Adjust the seat
Please adjust the seat to the appropriate riding height according to your height.
（the recommended height is when the saddle is level with the user’s pelvis when standing naturally.
The height of the adjustment can NOT exceed the safety line）
Step 2：Turn on the power and adjust the suspension fork
①Using the key to turn on the battery power, long press the “M” button of the display to turn on the bike power.
②Adjust the front shock absorption according to riding requirements: rotate the left button of the front fork
to the direction of "+" to harden the front fork (faster rebound speed). Rotate to the direction of "-" to soften
the front fork(slower rebound speed);
11
Step 4：Start riding
Please take corresponding protection before starting riding.
The right side is front brake, the left side is rear brake. While riding, it’s recommended to use the rear brake
first, then the front brake to slow down the speed to stop, in order to avoid the front wheel brake is too urgent,
resulting in the bike center of gravity instability caused by falling accident.
Step 5：Braking introduction
Step 3：Mode switching
12
Switch and choose the riding mode according to the cycling road conditions and personal needs.
① Electric mode：Equipped with pure electric mode, gently press down the electric mode button to switch
to the pure electric mode, the stonger the press, the faster the speed
② Power assisted mode：Equipped with 3 power assisted gears, click the power assisted gear button to
switch the gear. The 1st gear is suitable for relatively flat road conditions, the more/higher the road slope,
the larger gear can be adjusted accordingly.
Attention: When the bike is on PAS 3 status, click the power assisted gear button again and the bike will be on
PAS 0 status, by then the gear display wont't be lighted and the power assisted mode will be turn off. The bike
will be on pedalling mode.

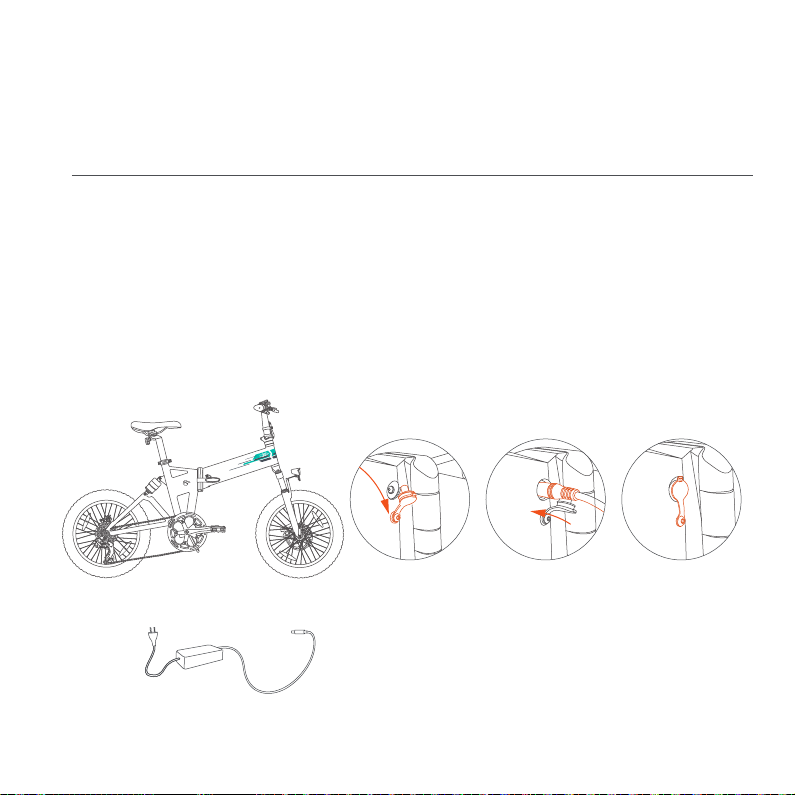

1.Charging connection: Connect the charging interface of the charger to the charging port, then connect the power
plug of the charger to the power socket.
2.Fully charged：When the indicator light of the charger is red, means it’s normal charging. When the light is green,
means it’s fully charged.
3.Charging hour: Charging hour is around 7 hours, The duration depends on the situation.
4.Disconnect charging: When the indicator light turns green, means it’s fully charged. Unplug the power plug first,
then remove the charging interface from the battery. Close the battery dust cover.
5.Charging mode: The bike supports two charging modes: vehicle charging and disassembly battery charging.
① Vehicle charging
2.3 Charging instructions
The battery comes with a small amount of electricity, before the first time use, please make sure to charge it
to full power before riding.
Charging
13
② Disassembly battery charging
1） Use the key to turn off the power, push the key up, turn it clockwise to the bottom and remove the key
2） Open the frame clamp and fold the bike in half.
3） Hold the handle of the battery cover and pull out the battery to charge.
14
Caution: Charger has high voltage device, DO NOT repair without permission. In order to avoid danger, battery and
charger should be placed away from children. There should be no inflammable and explosive objects
around the batteries (such as car seat cushions, sofas, etc.). Keep the battery in a ventilated and dry place,
and make sure NOT to charge in open-air place, to avoid electrical short circuit fire and other accidents
caused by rain and other factors, and to prevent liquid and metal particles into the electrical parts.
Danger: Charging can be allowed on public charging equipment, but the matching between the bettery and the
charging equipment should be fully considered.
Warning: If there’s any odor or high temperature during charging, please stop charging immediately and contact
after-sales team for assist.
Lower the seatpost
2.4 Folding instructions
Open the stem safety hook, turn the stem clamp downward to keep it in open status. Gently turn the stem downward to
the bottom, to finish the stem folding.
Lift the seat clamp upward, to keep it in open status. Gently press down the seatpost to the bottom. Press down the
seat clamp to keep it in closed status.
Fold the stem
15
① Open the safety hook, open the frame clamp outward and keep it in open status.
② Fold the front part of the bike backward, until the front and rear wheel is matched, to finish the bike folding.
Fold the bodywork
16
